Overkill NAS and Gaming Rigs

My project to try to reduce the noise that my setup was generating along with the heat.

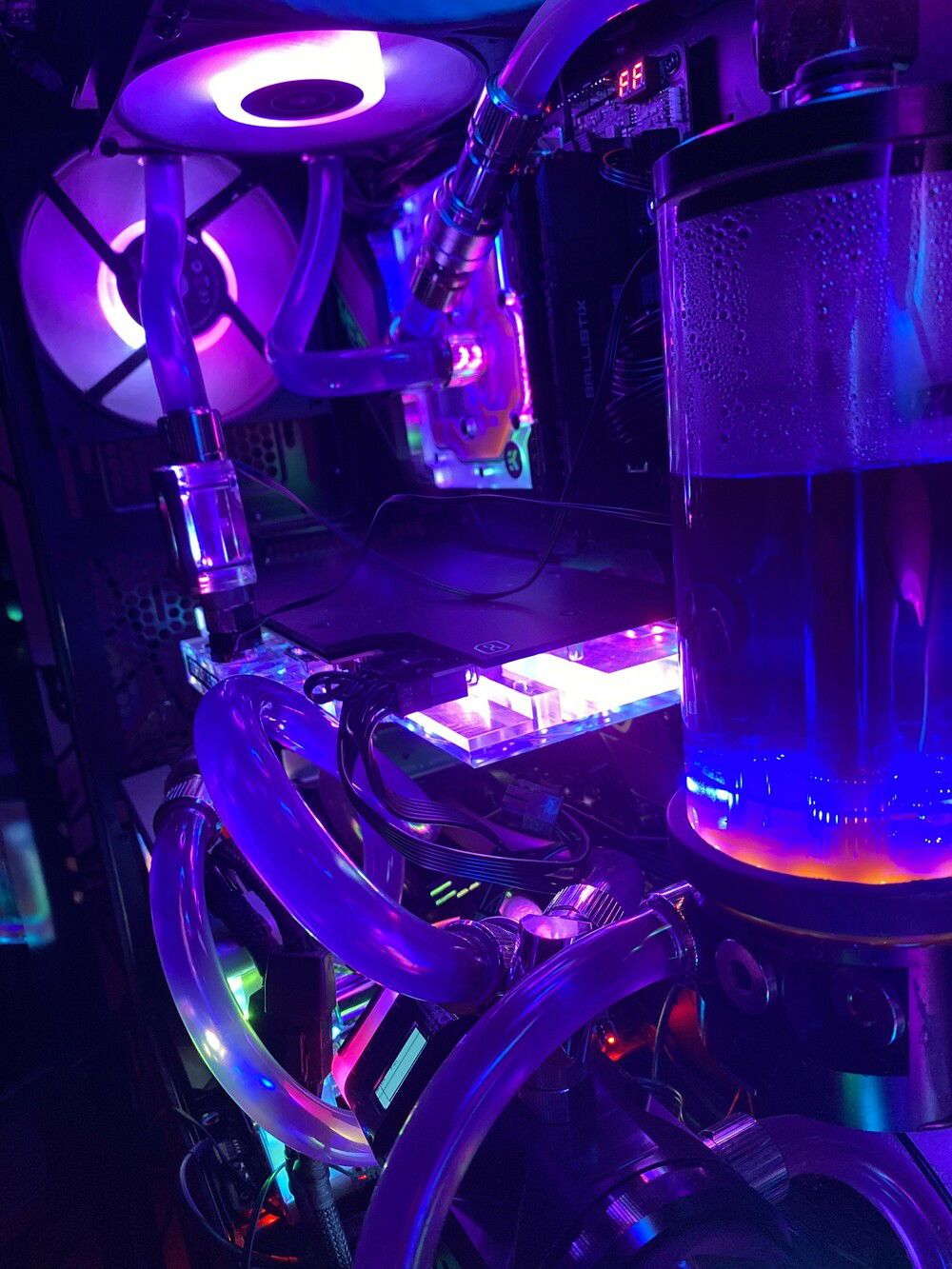

I went with the enthoo elite as I wanted a single loop with an external rad which covers both systems. I’m running unraid on the main board along with the Harddrives etc and then on the smaller DTX board I’m running a Win10 gaming rig.

I will freely admit to having not gone into detail on cable management nor hose management and the hose management is because I want to be able to disconnect one system from the loop whilst letting the other system run.

I have yet to figure out how to sort out the relays from the Aquaero so that both systems will shut down in case of an alarm. I tried wiring them up to the same relay but I couldn’t get it to work so if anyone has any thoughts I’d really appreciate it.

Equally I’d love to be able to power the loop on its own so if anyone have any ideas I’m all ears.

I wouldn’t say it is finished as I still want to add some more bits and pieces to it but at least it’s all up and running after taking me weeks to put together and buying more and more fittings etc.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 280.00
AMD - Ryzen 7 (3800X)
Socket: AM4
Cores: 8
CPU
$ 500.00
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 419.99
ASUS - Crosshair VIII Impact
Chipset: X570
CPU Socket: AM4
Size: Mini-DTX
Motherboard
$ 379.99
ASUS - ROG Crosshair VIII Hero (WiFi)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 245.01
Corsair - Vengeance LPX (3200MHz) (Black)
Type: DDR4
Capacity: 32 GB
Memory
$ 698.68
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 64 GB
Memory
$ 75.00
Crucial - Ballistix (3200MHz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,000.00
Gigabyte - GeForce Aorus Master
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Graphics
$ 1,877.00
NVIDIA - GeForce Founders
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 299.99
Sabrent - Rocket 4 Plus
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
Storage
$ 215.01
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 97.98
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 399.96
Seagate - Barracuda (4x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 559.98
Western Digital - WD Red NAS (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 10 TB
PSU
$ 200.00
be quiet! - POWER ZONE 1000W CM (discontinued)
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Bronze
PSU
$ 475.01
Corsair - AX1200i
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 989.99
Phanteks - Enthoo Elite
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 306.63
Case Fan
$ 147.80
Cooling
$ 99.00
Aquacomputer - Aqualis ECO
Type: Reservoir
Cooling
$ 345.96

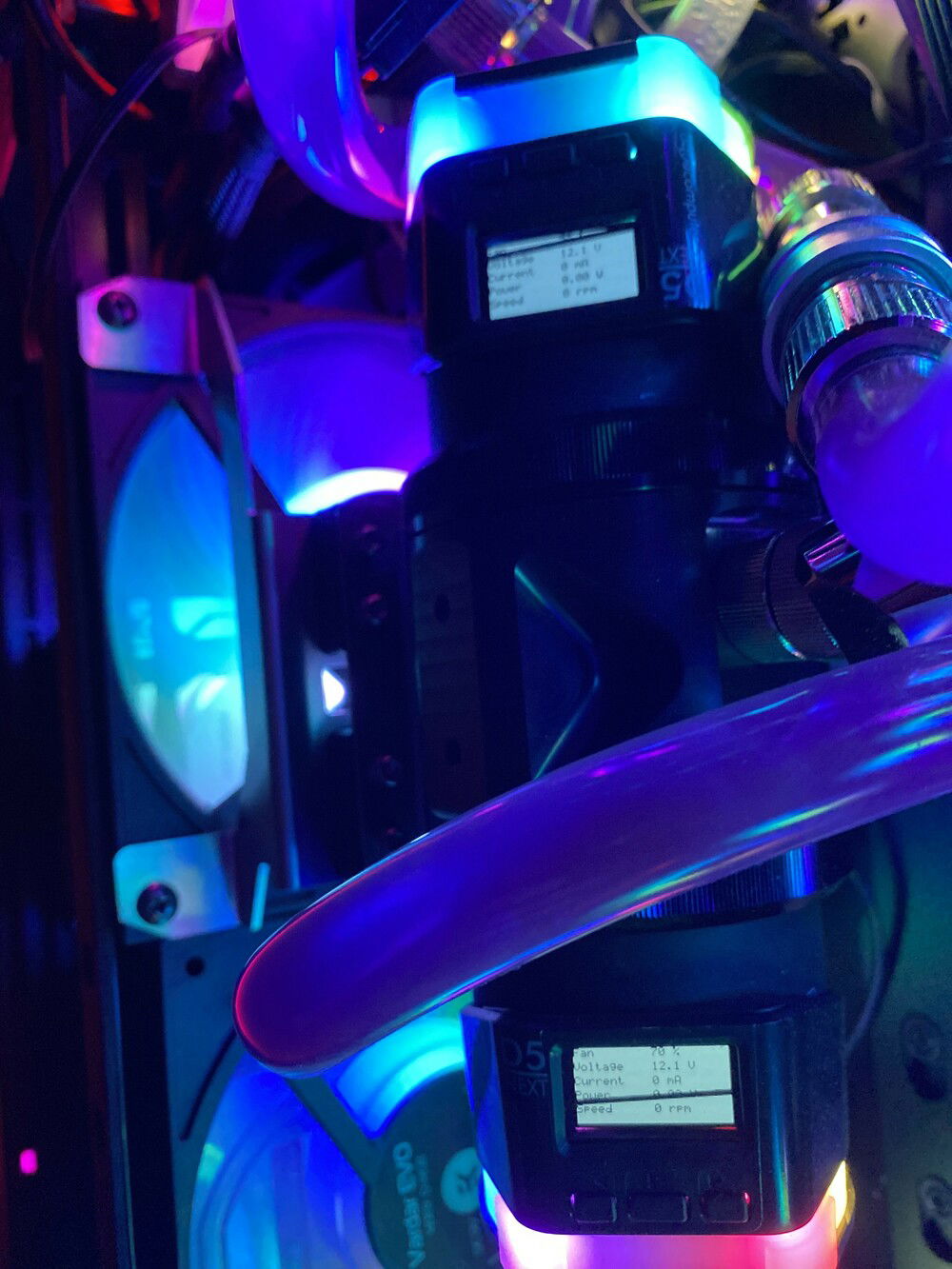

Aquacomputer - D5 NEXT (2x)
Type: Pump
Cooling
$ 80.00
Aquacomputer - Ultitop Dual D5
Type: Water Cooling
Cooling
$ 154.99
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
$ 250.00
EKWB - EK-Quantum Vector FE RTX 3090 D-RGB
Type: GPU Waterblock
Cooling
$ 118.99
Cooling
$ 400.00
Accessories
$ 23.22
Monitor
$ 549.99
Samsung - Odyssey G7
Size: 32 Inch
Panel: VA
Refresh Rate: 240 Hz
Estimated total value of this build:
$ 10,807.80
