Outsourced

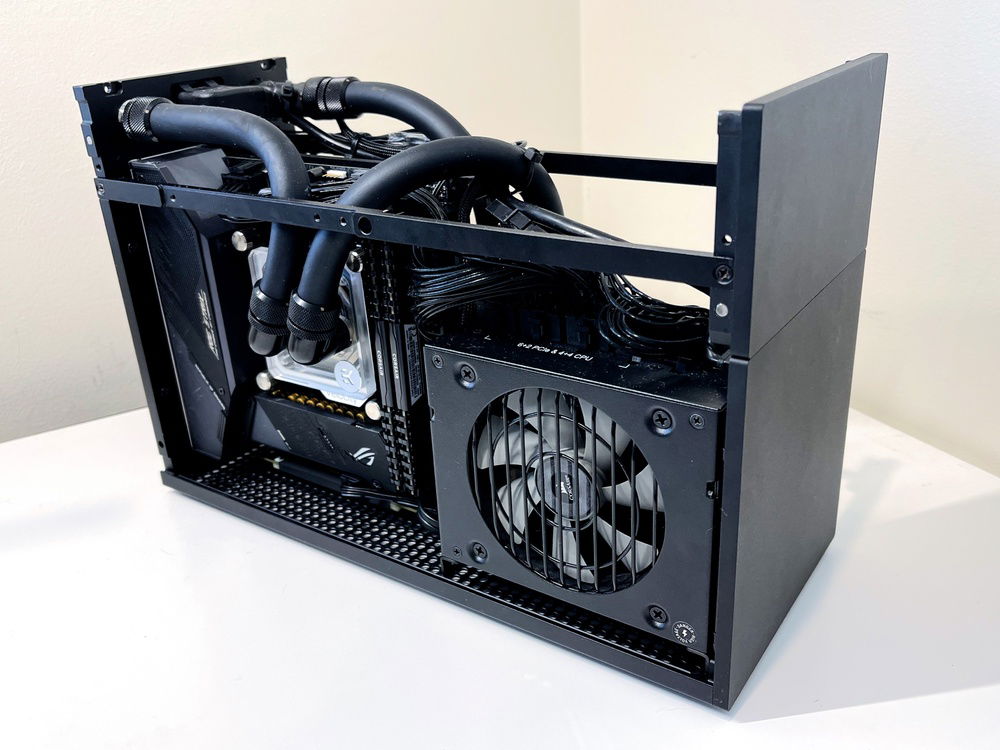

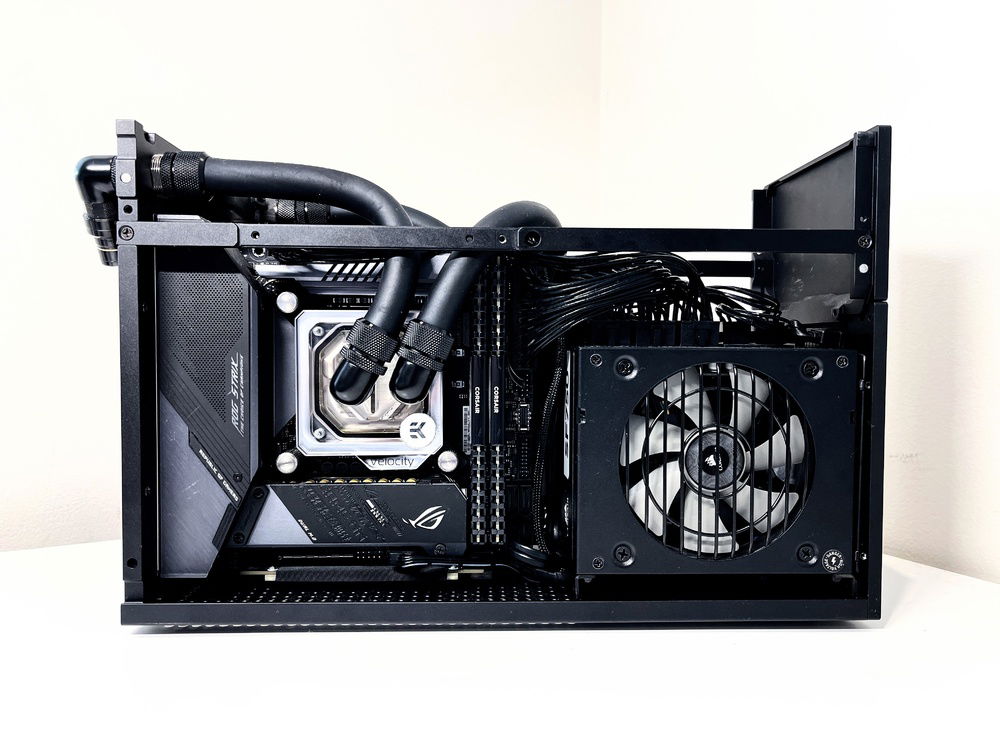

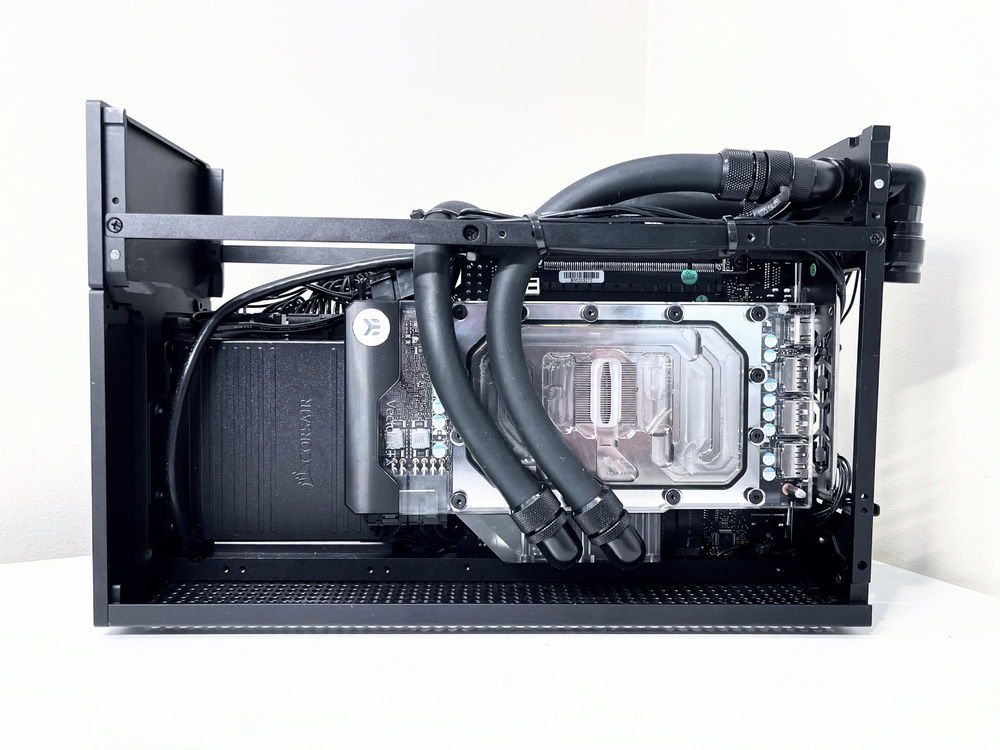

This build was based around the FormD T1 case, measuring up at under 10L in volume. Generally with small form factor custom loops, compromises need to be made on both thermal and acoustic performance. This is simply due to the lack of space for larger radiators. However, I planned to eliminate this issue by not trying to fit a radiator inside the case at all...

Introducing Outsourced, an SFF PC with a non SFF secret - providing a small footprint, silent operation, crispy cool temp, no compromise setup

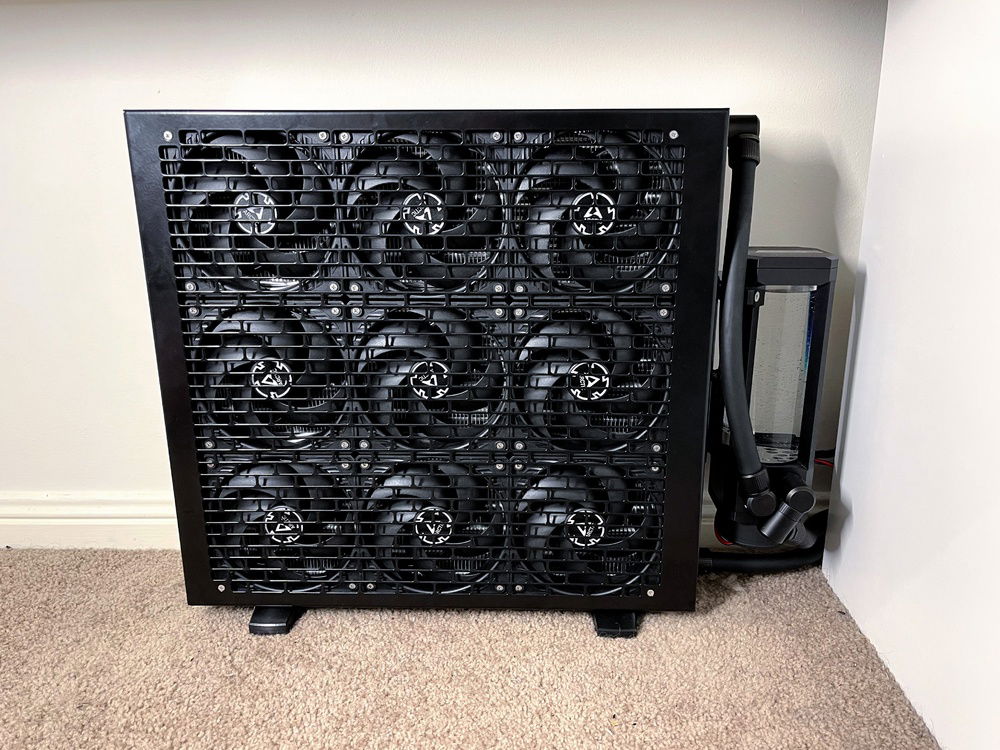

Using quick disconnect fittings through passthroughs at the rear of the case, a Watercool MO-RA3 360mm radiator is introduced to the loop and hidden out of sight underneath the desk. Coolant is circulated through the system using a powerful D5 pump, cooled down by the massive surface area of the MO-RA3 with 9 Artic P12 fans running at inaudible speeds.

Since both rear holes in the case are being used for the external radiator, there is no room for the original power button. Instead, I have integrated a Honda S2000 engine start button into the left corner of my desk for powering on the PC.
Color(s): Black
RGB Lighting? No
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Contests

This build participated in 3 contests.

Hardware

CPU
$ 291.99
Intel - Core i7-10700K
Socket: LGA 1200
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 176.00
ASUS - ROG Strix Gaming (Z490-I) (WiFi 6)
Chipset: Z490
CPU Socket: LGA 1200
Size: Mini-ITX
Memory
$ 97.98
Corsair - Vengeance LPX (3600Mhz) (Black) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
Galax - GeForce Serious Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 149.99
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 89.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
FormD - T1
Type: Mid-Tower
Side Panel: Mesh
Case Fan
$ 134.91
ARCTIC - P12 PWM PST CO (Black) (9x)
Size: 120 mm
Cooling
Cooling
Watercool - HeatKiller Tube 150 D5
Type: Custom Loop
Size (WxHxD): 150 mm
Cooling
Watercool - MO-RA3 360 LT (Black)
Type: Custom Loop
Monitor
$ 1,249.99
ASUS - PG279Q
Size: 27 Inch
Panel: IPS
Refresh Rate: 165 Hz
Keyboard
KBD Fans - KBD67 v2 MKII (custom)
Interface: Wired
Type: Compact
Mouse
$ 77.00
Glorious PC Gaming Race - Model O
Interface: Wired
Chair
Secretlab - Titan
Material: Fabric
Color: Black
