This was my setup earlier in the year with this new build having a single 360mm distro. I recently changed it to a dual loop with dual 120mm distros and dual pumps. Also removed the black lights and UV green coolant and now using XSPC LUMINARA coolant.

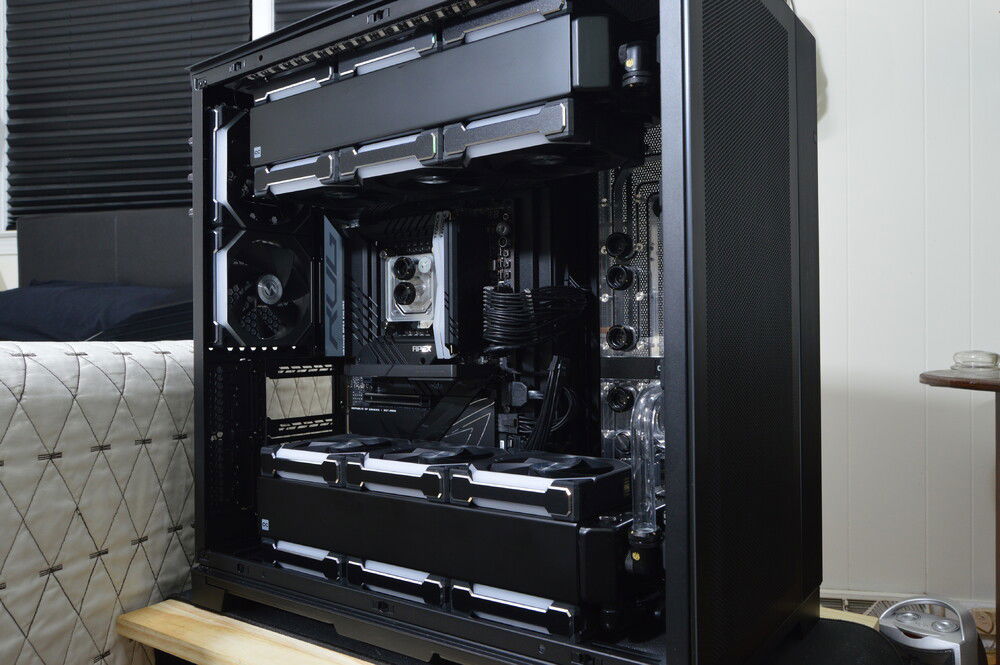

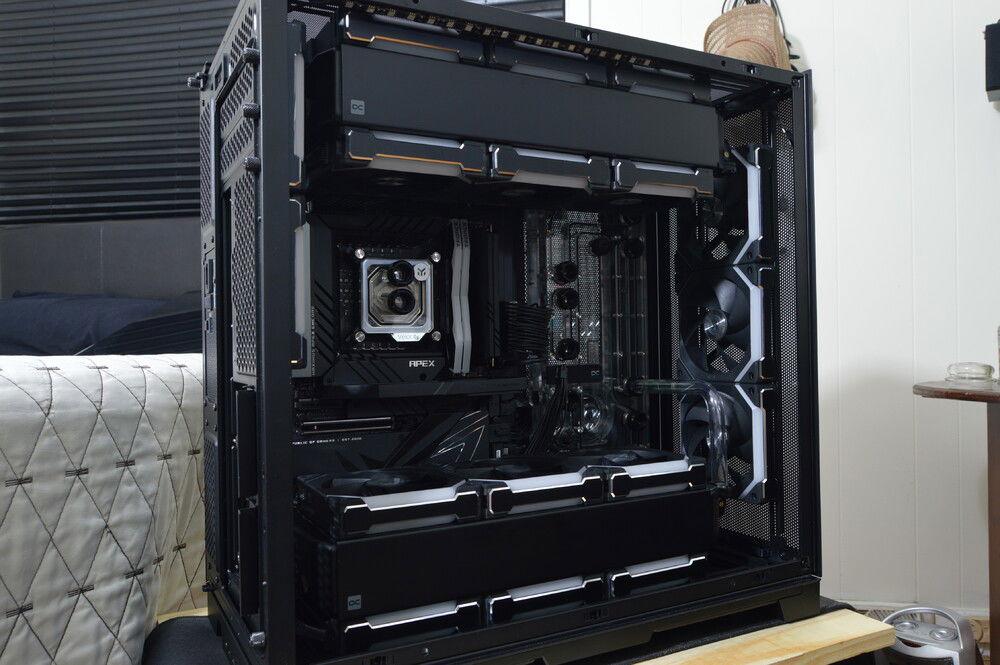

The mockup photos show my build with an EK CPU block, but the final build uses an Optimus water block.

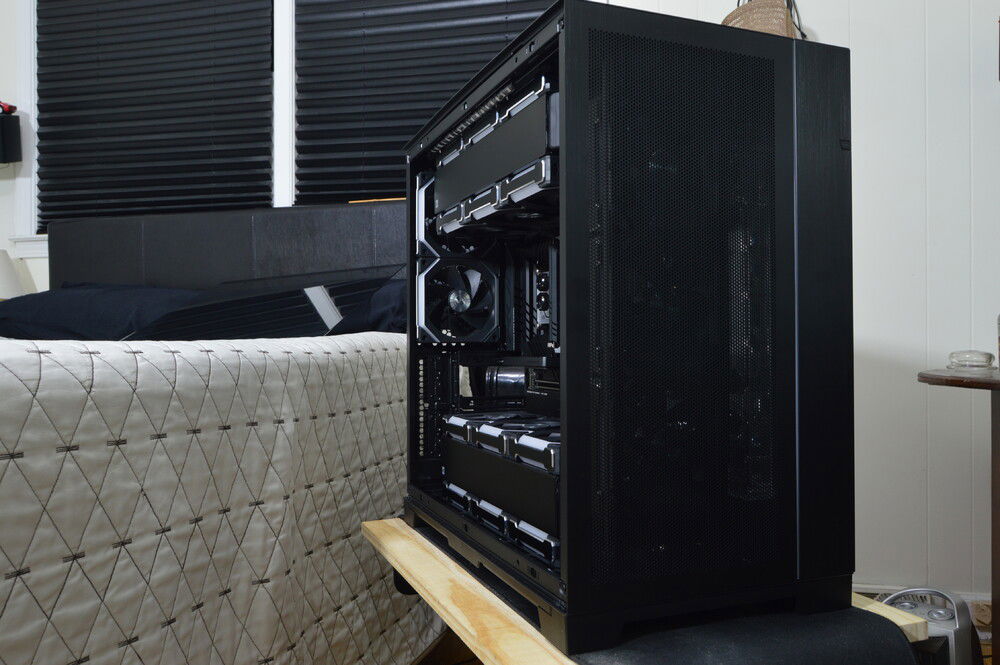

I decided to use a front mesh kit with fans instead of glass on this build and glad I did.

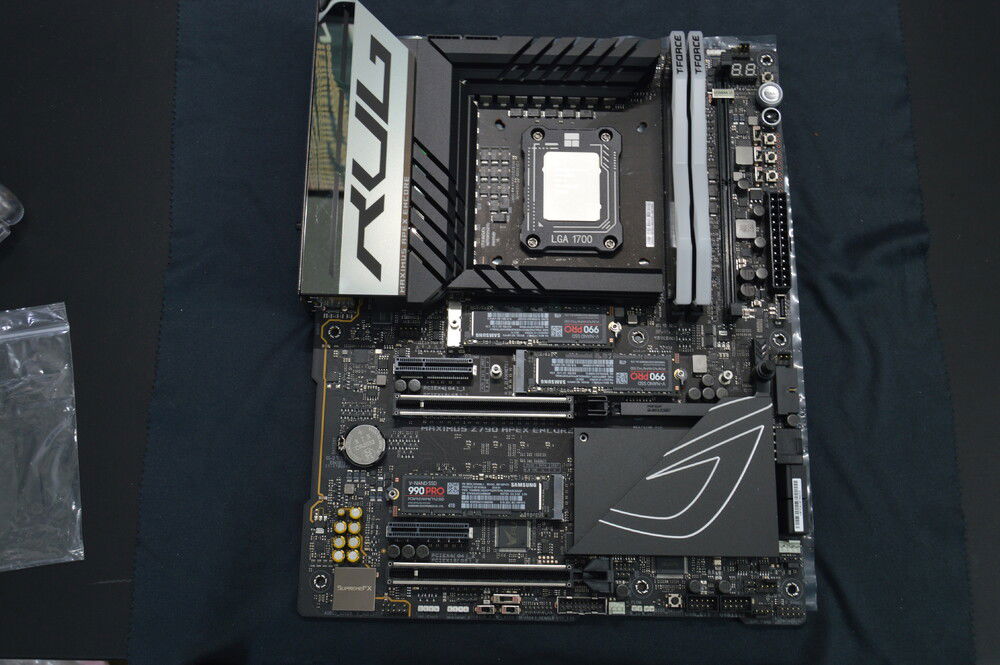

Three 4TB Samsung 990Pro in the motherboard and two more in the DIMM.2 slot. All the space I should ever need.

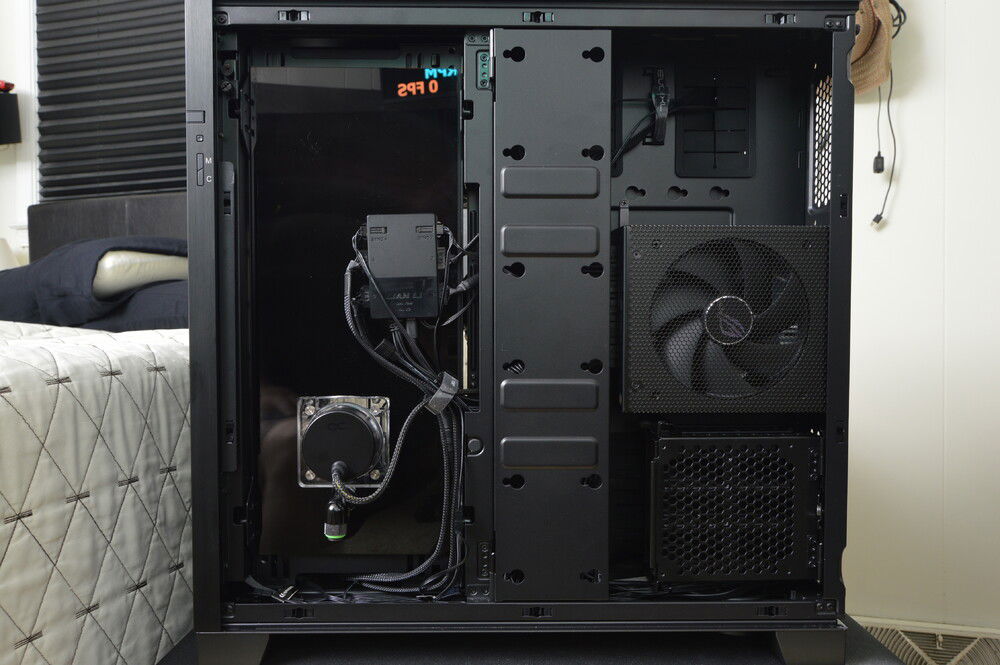

Yes, I have all 17 fans using only one controller, I did not install the Lian Li software and control all RGB using OpenRGB software.
Just a plain single color RGB here

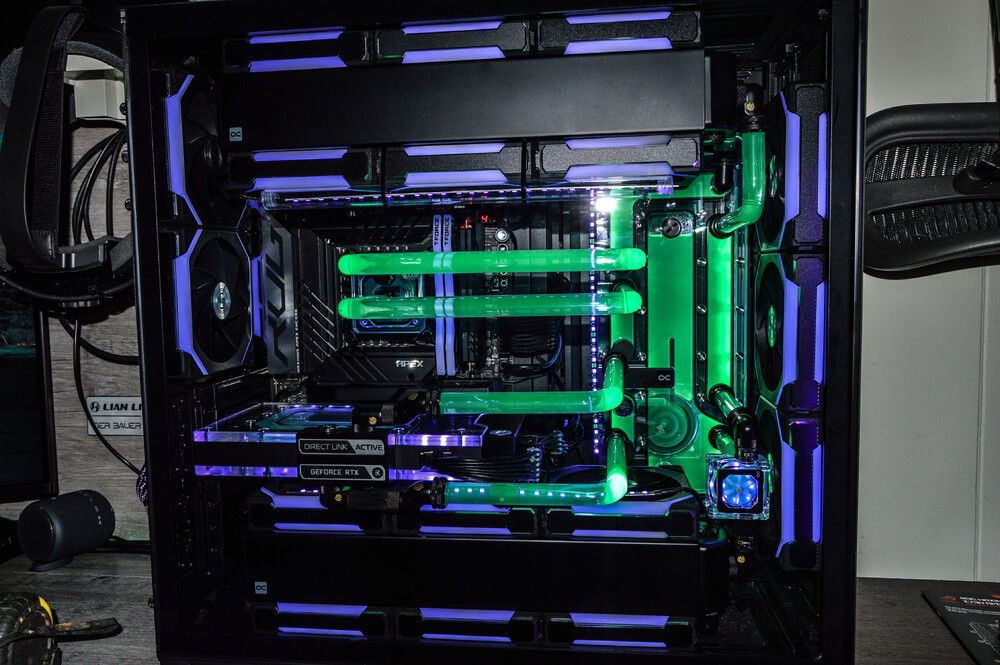

After completing the first version of this build, I noticed no matter what pump speed I ran the flow indicator would not spin. This was the reason to swap to a dual loop. All that radiator must have been just too much for one pump.

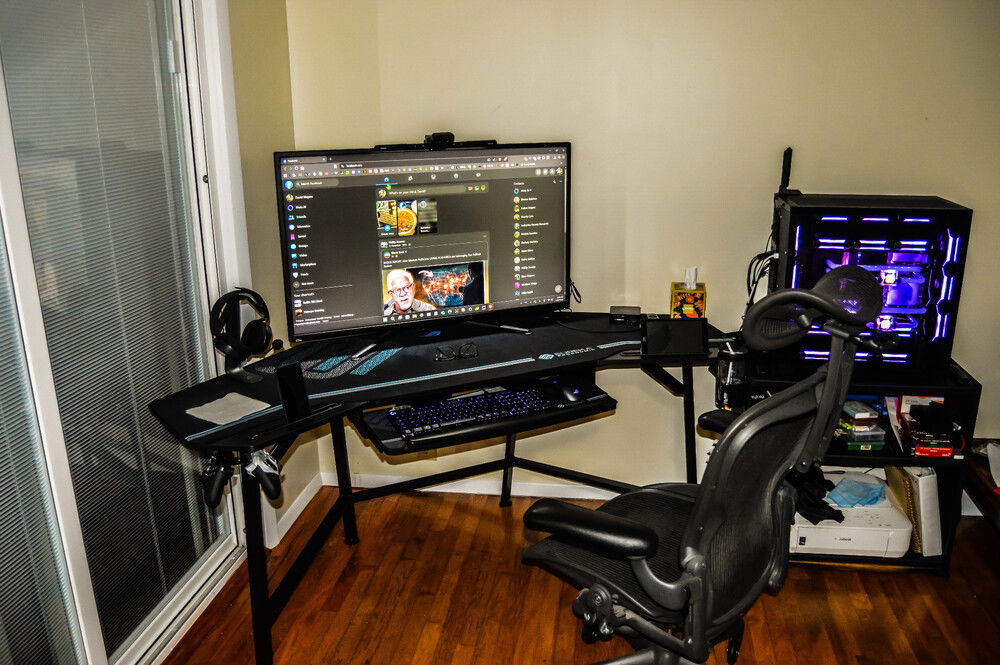

New desk today, monitor mount will be here this weekend to raise it up and move it back.
Video of my daily gaming rig.

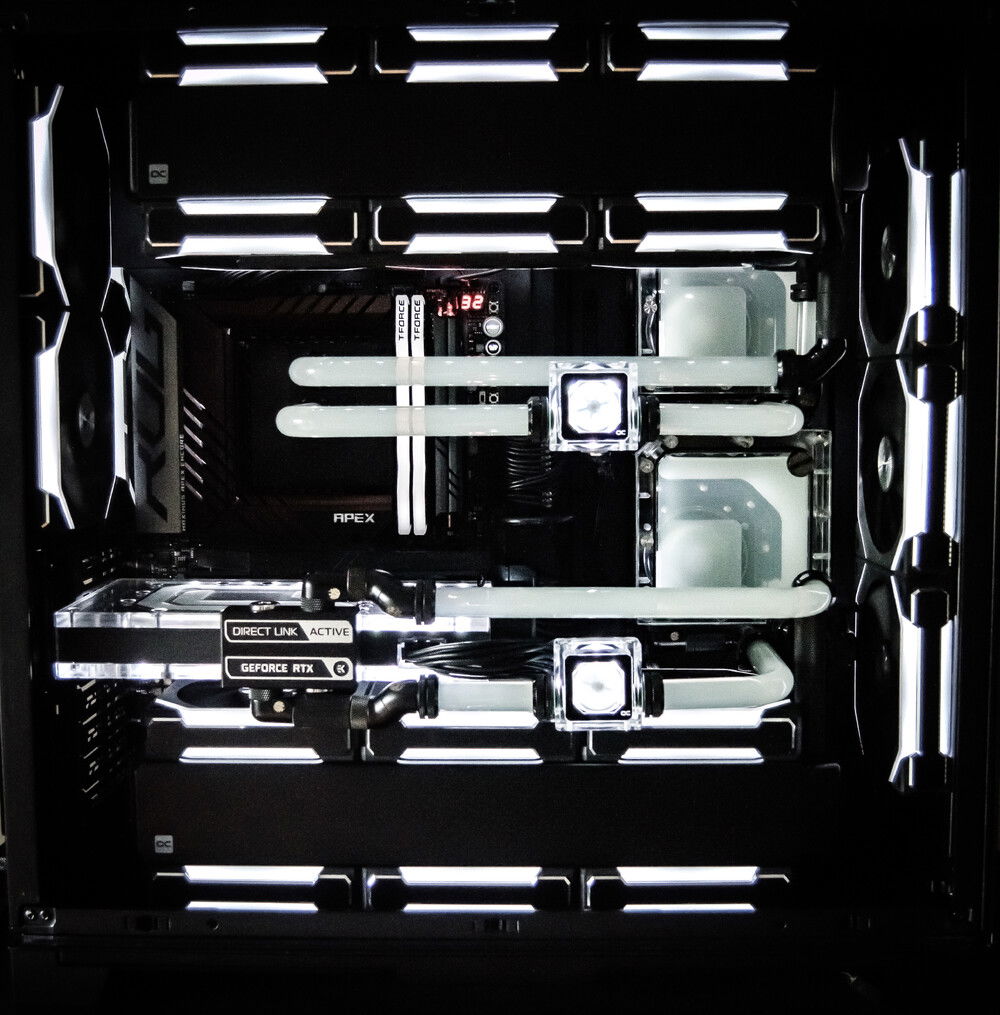

My dual loop 14900k / 4090 build
New updated build 2024
2024 build
Case- Lian Li O11 Dynamic EVO XL with Front Mesh Kit - O11DEXL-4X
Fans- (X17 each) Lian Li SL V2 120 X-9 normal blade and X 8 reverse blades
Motherboard- ASUS ROG MAXIMUS Z790 APEX ENCORE
CPU- Intel I9 14900K with Bending Corrector Frame Protector
GPU- ASUS TUF Gaming GeForce RTX™ 4090 24GB GDDR6X OG OC Edition
PSU- ASUS ROG Strix 1200W Gold Aura Edition
RAM- Team T-Force Delta RGB 32GB (2 x 16GB) 288-Pin PC RAM DDR5 7200Mhz
Storage- (X5 each) SAMSUNG 990 PRO M.2 2280 4TB PCI-Express Gen 4.0 x4 NVMe 2.0 (X3 each in motherboard and X2 each in DIMM.2 slot)
(X2 each) Alphacool Core rise Flat Reservoir D5 with Apex VPP Pump, 13743
(X2 each) Alphacool Eisfluegel Aurora Flow Indicator "HighFlow" with RPM-Signal
(X2 each) Alphacool NexXxoS UT60 Radiators 360mm X 60mm thick
Fittings- (X16 each) Bitspower G 1/4 Inch, Reinforced Multi-Link for Outer Diameter 16 mm
Fittings- (X11 each) Bitspower G1/4" Male to Female Extender Fitting, 90 Degree Rotary, Matte Black
Fittings- (X3 each) BITSPOWER BP-MVV-MBKBK Mini drain Valve
Fittings- (X4 each) Bitspower G 1/4" Matte Black Dual Rotary 90 Degree IG 1/4"
Fittings (X5 each) Bitspower Touchaqua G1/4" Male to Male Extender Fitting, Rotary, Black
Fittings (X2 each) Bitspower X-Cross Fittings Black
Fittings- Bitspower Touchaqua G1/4" Air Exhaust Fitting
Tubing- Bitspower None Chamfer Crystal Link Tube, 16mm OD, 1000mm, Clear acrylic, 4-pack
CPU water block- Optimus Signature V3 CPU Block - Intel - Black Ceramic / Nickel
GPU water block- EK-Quantum Vector² Strix/TUF RTX 4090 D-RGB ABP Set - Nickel + Plexi
coolant- (X4 each) PrimoChill Base High Purity Deionized Water (32oz.) - UV Green
lighting- (X5 each)12" (30cm) DarkSide CONNECT Dimmable Rigid LED Strip - UV G2-Pro
Type 2s - DarkSide Connect to 3-PIN Y-cable - 4" (10cm)
(X5 each) Type 1s - DarkSide Connect to 3-PIN cable - 4" (10cm)
(X4 each) 19" (50cm) DarkSide Connect Extension Cable (Type 9L)
Monitor 1- ASUS PG43UQ 43" 144Hz 1000nit
Monitor 2- SAMSUNG 43-Inch Class 144Hz Neo QLED 4K QN90C Series Neo Quantum HDR, Dolby Atmos,Smart TV (QN43QN90C, 2023 Model)
Monitor 3- LG 32" Class 4K UHD LED Monitor 60Hz (Used as AIDA64 Extreme Sensor panel)
VR headset- Pimax Crystal Simmers Favorite bundle Pimax Crystal Sim+Lighthouse Faceplate+Sword Kit
Keyboard- Razor Blackwidow 3
Mouse Logitech G700S, ASUS Gladius 2, EVGA X20
Headphone- Steelseries Artcis Pro Wireless
RGB controlled by OpenRGB
Case- Lian Li O11 Dynamic EVO XL with Front Mesh Kit - O11DEXL-4X
Fans- (X17 each) Lian Li SL V2 120 X-9 normal blade and X 8 reverse blades
Motherboard- ASUS ROG MAXIMUS Z790 APEX ENCORE
CPU- Intel I9 14900K with Bending Corrector Frame Protector
GPU- ASUS TUF Gaming GeForce RTX™ 4090 24GB GDDR6X OG OC Edition
PSU- ASUS ROG Strix 1200W Gold Aura Edition
RAM- Team T-Force Delta RGB 32GB (2 x 16GB) 288-Pin PC RAM DDR5 7200Mhz
Storage- (X5 each) SAMSUNG 990 PRO M.2 2280 4TB PCI-Express Gen 4.0 x4 NVMe 2.0 (X3 each in motherboard and X2 each in DIMM.2 slot)
(X2 each) Alphacool Core rise Flat Reservoir D5 with Apex VPP Pump, 13743
(X2 each) Alphacool Eisfluegel Aurora Flow Indicator "HighFlow" with RPM-Signal
(X2 each) Alphacool NexXxoS UT60 Radiators 360mm X 60mm thick
Fittings- (X16 each) Bitspower G 1/4 Inch, Reinforced Multi-Link for Outer Diameter 16 mm
Fittings- (X11 each) Bitspower G1/4" Male to Female Extender Fitting, 90 Degree Rotary, Matte Black
Fittings- (X3 each) BITSPOWER BP-MVV-MBKBK Mini drain Valve
Fittings- (X4 each) Bitspower G 1/4" Matte Black Dual Rotary 90 Degree IG 1/4"
Fittings (X5 each) Bitspower Touchaqua G1/4" Male to Male Extender Fitting, Rotary, Black
Fittings (X2 each) Bitspower X-Cross Fittings Black
Fittings- Bitspower Touchaqua G1/4" Air Exhaust Fitting
Tubing- Bitspower None Chamfer Crystal Link Tube, 16mm OD, 1000mm, Clear acrylic, 4-pack
CPU water block- Optimus Signature V3 CPU Block - Intel - Black Ceramic / Nickel
GPU water block- EK-Quantum Vector² Strix/TUF RTX 4090 D-RGB ABP Set - Nickel + Plexi
coolant- (X4 each) PrimoChill Base High Purity Deionized Water (32oz.) - UV Green
lighting- (X5 each)12" (30cm) DarkSide CONNECT Dimmable Rigid LED Strip - UV G2-Pro
Type 2s - DarkSide Connect to 3-PIN Y-cable - 4" (10cm)
(X5 each) Type 1s - DarkSide Connect to 3-PIN cable - 4" (10cm)
(X4 each) 19" (50cm) DarkSide Connect Extension Cable (Type 9L)
Monitor 1- ASUS PG43UQ 43" 144Hz 1000nit
Monitor 2- SAMSUNG 43-Inch Class 144Hz Neo QLED 4K QN90C Series Neo Quantum HDR, Dolby Atmos,Smart TV (QN43QN90C, 2023 Model)
Monitor 3- LG 32" Class 4K UHD LED Monitor 60Hz (Used as AIDA64 Extreme Sensor panel)
VR headset- Pimax Crystal Simmers Favorite bundle Pimax Crystal Sim+Lighthouse Faceplate+Sword Kit
Keyboard- Razor Blackwidow 3
Mouse Logitech G700S, ASUS Gladius 2, EVGA X20
Headphone- Steelseries Artcis Pro Wireless
RGB controlled by OpenRGB
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build
