my nas build

AD:

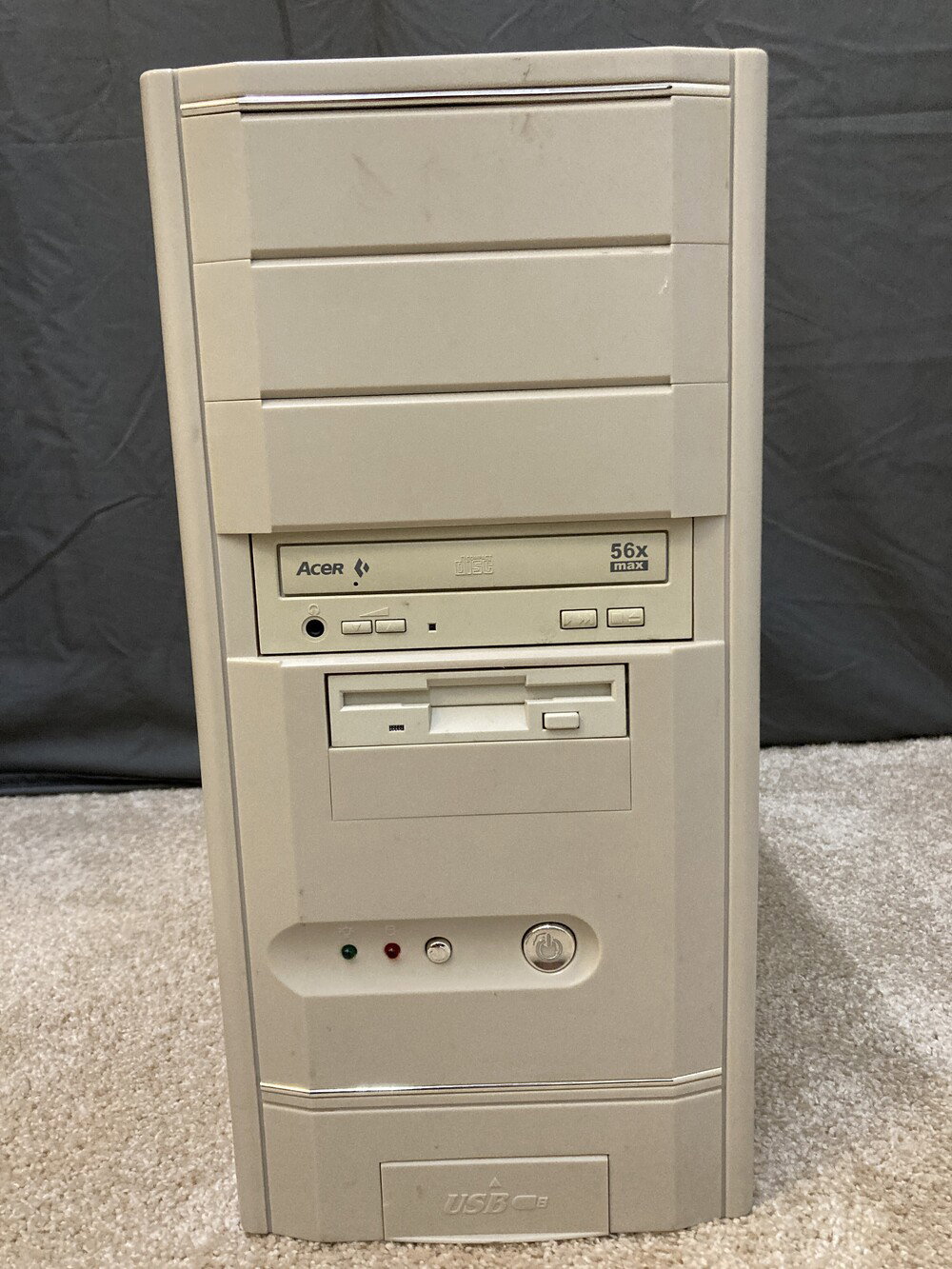

This is my nas I built mostly for photo storage. I built it in this case because I thought it would be cool and it keeps a lot of the noise down. It's very optimized for power consumption, or at least as much as possible considering I built it out of extra parts I had lying around after my trips to my local recycling center. It consumes around 25 to 30 watts when running.

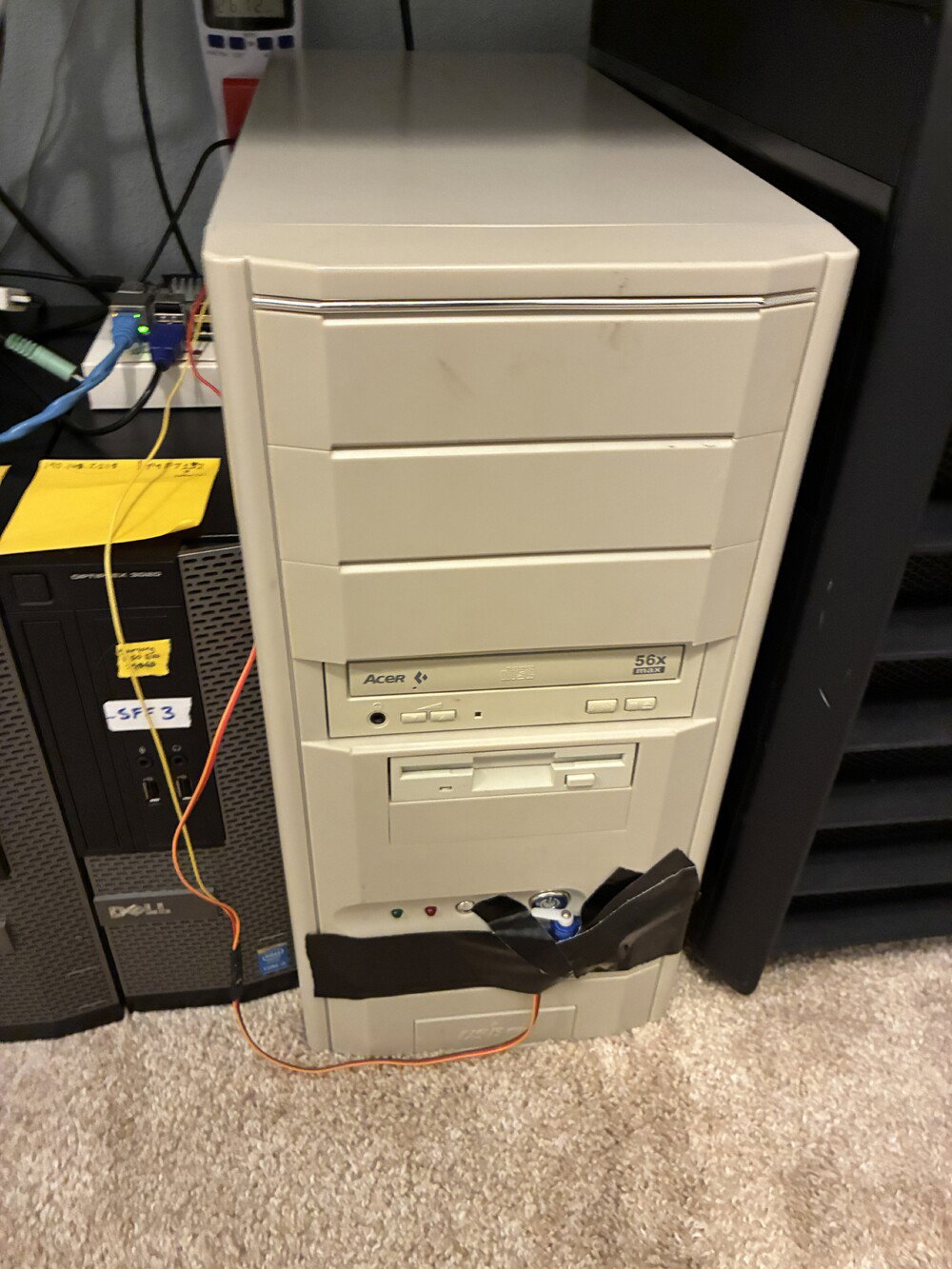

The servo on the power button is connected to a raspberry pi 2 that is running tailscale. I can connect to it via ssh and run a custom-made python script that uses the servo to press the power button. Once it does that, I then wait for it to boot up and tailscale into the nas directly and I am then able to access my photos from anywhere. This allows me to have the NAS on only when I need it to, and since the raspberry pi draws only 1.4 watts, I can leave that running all the time.
Color(s): Beige
RGB Lighting? No
Theme: Retro
Cooling: Air Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 135.87
Intel - Core i5 4590
Socket: LGA 1150
Cores: 4
Motherboard
MSI - Z97 PC Mate
Chipset: Z97
CPU Socket: LGA 1150
Size: ATX
Memory
$ 107.90
Corsair - Vengeance (1600MHz) (Black) (2x)
Type: DDR3
Capacity: 8 GB
Memory
$ 90.00
Corsair - Vengeance LP (Black) (1600MHz)
Type: DDR3
Capacity: 16 GB
Graphics
Storage
$ 79.99
Crucial - MX100 (OLD VERSION)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 128 GB
Storage
TeamGroup - T-Force Vulcan Z
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
PSU
$ 139.90
Seasonic - Focus GX
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
TBD/To Be Determined - TBD/To Be Determined (custom)
Cooling
$ 32.88
be quiet! - Pure Rock Slim 2
Type: Air Cooler
Size (WxHxD): 92 mm
