Morpheus Vega MV56VF-1

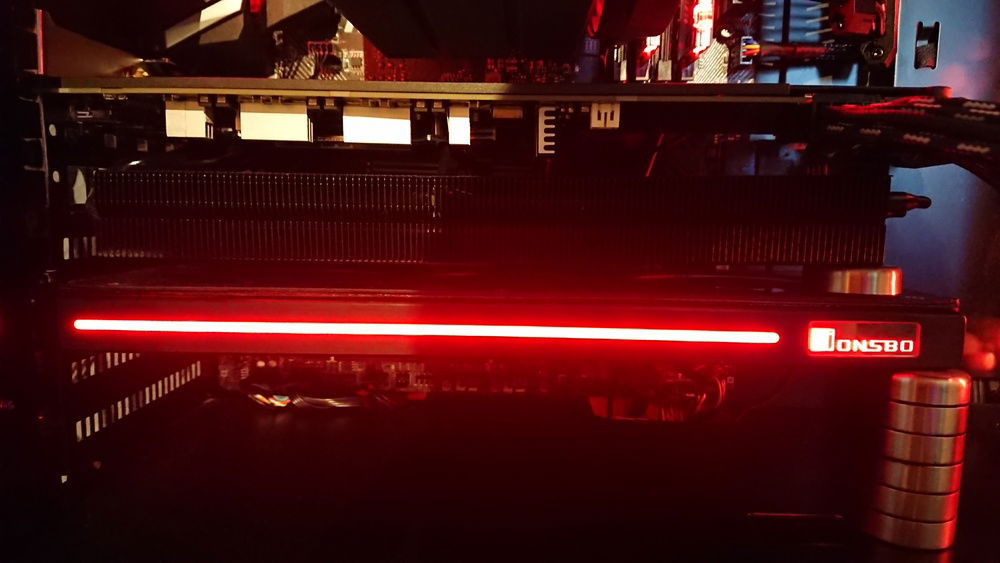

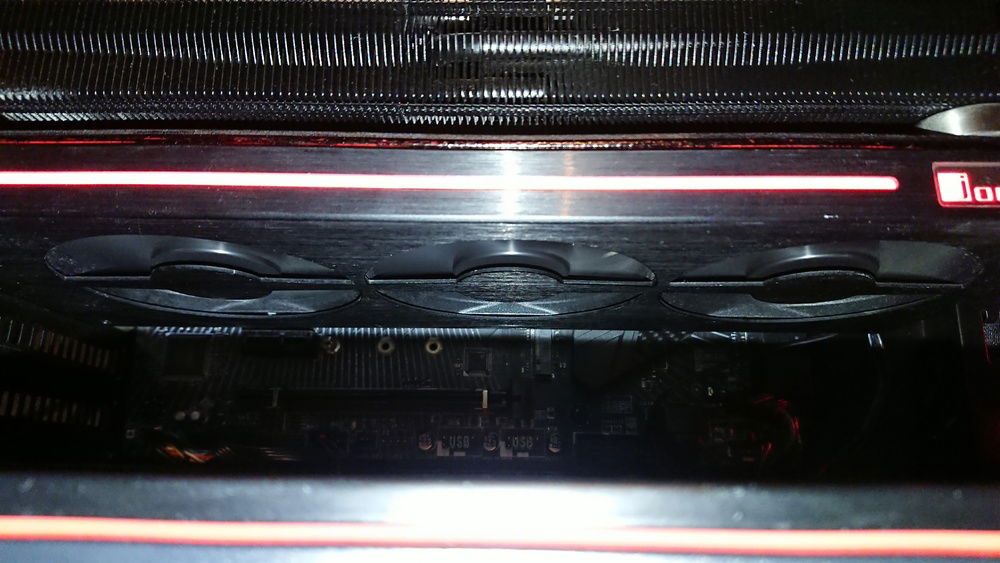

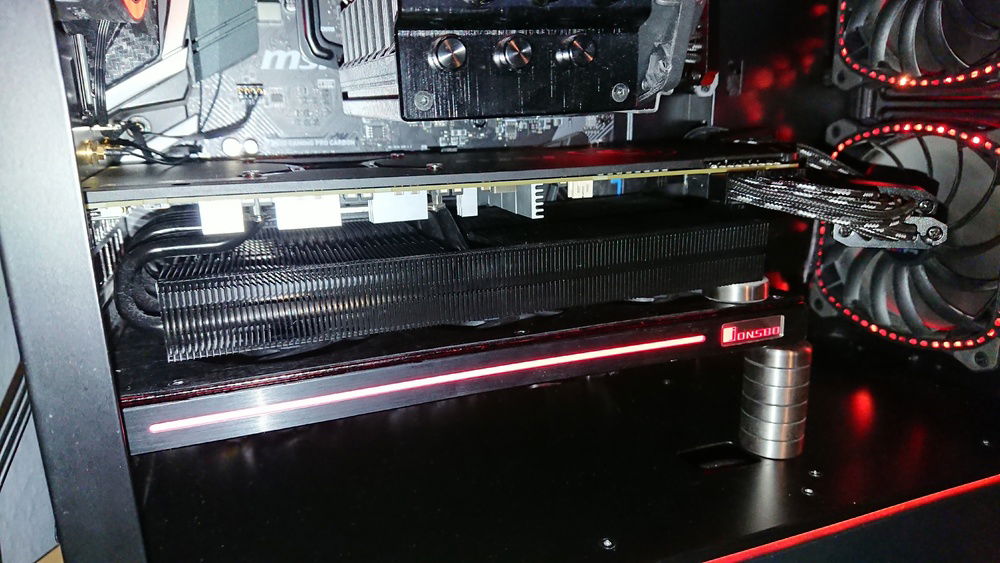

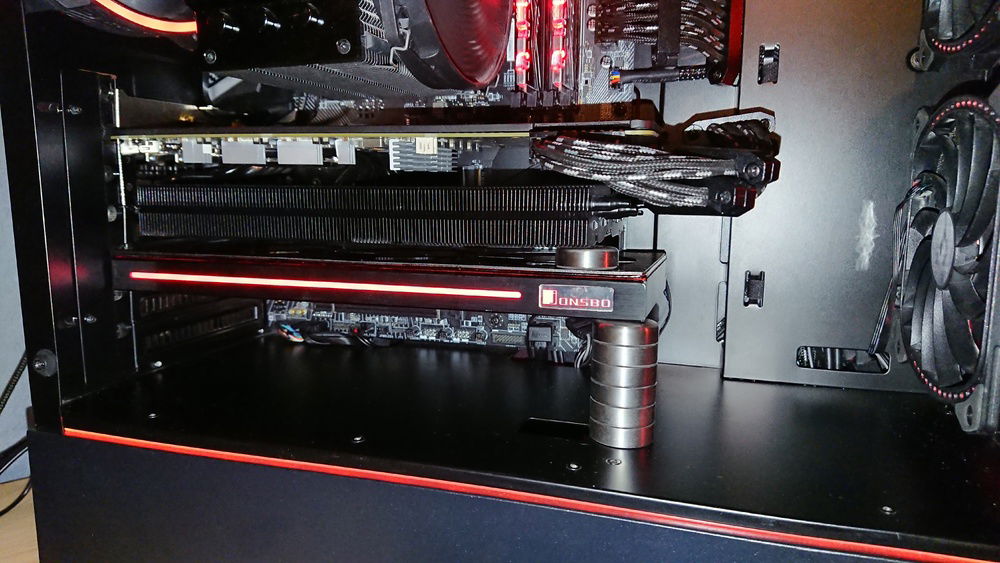

This Build takes a different Approach to the Raijintek Morpheus cooler by instead of using case fans for the cooler, i opted to use an 3-fan slot in card made by Jonsbo
(VF-1 is the product name) which not only performs reasonably well and even quiet, it actually looks really good.

Things didn't go smooth though the as VF-1 does not have an PWM signal and the stock cable is a plain SATA power cord, so i had to solder a new header onto the VF-1 in order to at least somewhat control the fan speeds, first i tried to use an GPU 4-pin which plugged in nicely and did made the fans spin... at full speed... it seems that the RX Vega (and some other cards) will always run the fans at max RPM if there isn't an PWM signal coming in so there is that, now i needed a different method, this time i used a case fan header since motherboards will always output set desired voltage. The fans now spin up accordingly thanks to the Argus Monitor software which can be set so that case fans are controlled by GPU temperature.

Further plans with this build is to replace the CPU cooler with an AIO in order to look better as well as changing to a different case (the Pure Base 500 is in my eyes).

Fell free to ask some questions if you like!
Color(s): Black Carbon Silver
RGB Lighting? Yes
Cooling: Air Cooling
Theme: none
Size: ATX
Type: General Build

Hardware

CPU
$ 139.99
AMD - Ryzen 5 (2600)
Socket: AM4
Cores: 6
Motherboard
$ 399.99
MSI - Gaming Pro Carbon
Chipset: X470
CPU Socket: AM4
Size: ATX
Memory

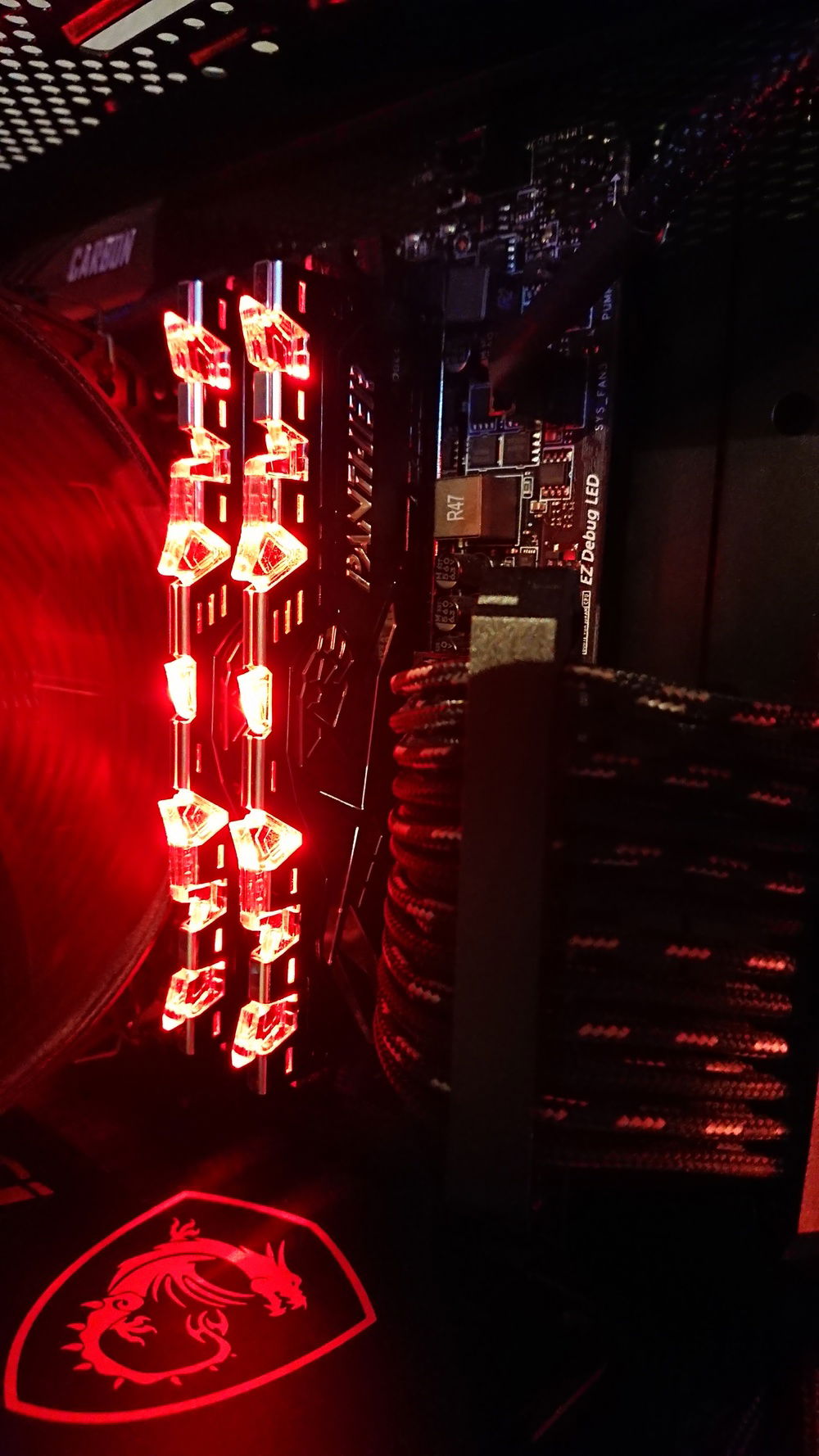

Apacer - Panther Rage (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 420.00
MSI - Air Boost
Chip Manufacturer: AMD
Chip: Vega 56
Storage
$ 83.59
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 169.00
Antec - High Current Gamer
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 69.99
Phanteks - Eclipse P350X
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fans
Enermax - SquA RGB (3x)
Size: 120 mm
Cooling
$ 65.76

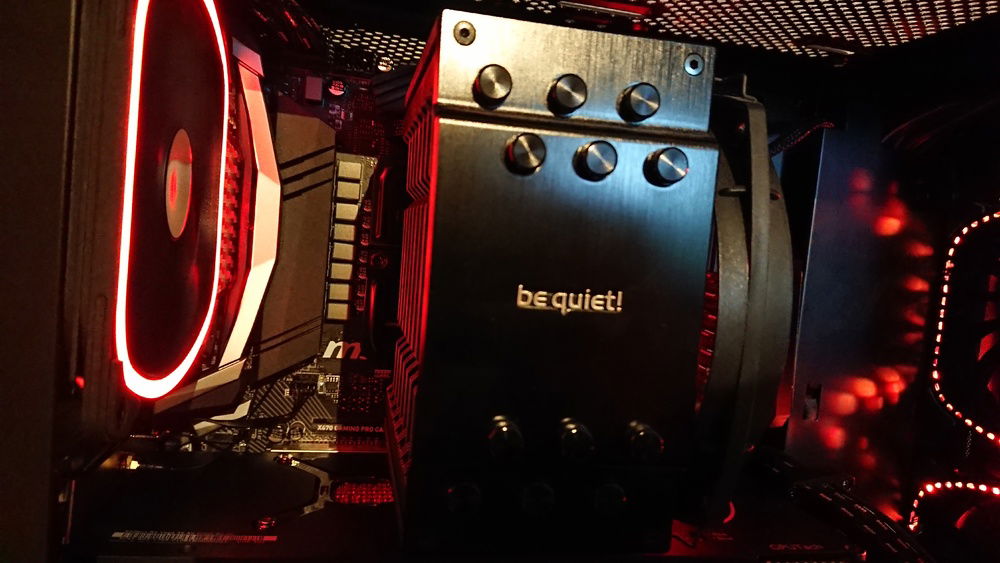

be quiet! - Dark Rock 4
Type: Air Cooler
Cooling
$ 42.90
Jonsbo - VF-1 Cooling Fans
Type: Air Cooler
Cooling
$ 74.99
Raijintek - Morpheus II CORE
Type: Air Cooler
Accessories
$ 129.65
Accessories
$ 62.90
Accessories
$ 29.99
Monitor
$ 310.11
AOC - G2590VXQ
Size: 24 Inch
Panel: TN
Refresh Rate: 60 Hz
Monitor
BenQ - GL2250
Size: 21.5 Inch
Panel: TN
Refresh Rate: 60 Hz
Keyboard
$ 237.89
Creative - Sound BlasterX Vanguard K08 SE (Black)
Interface: Wired
Type: Full Size
Mouse
$ 77.00
Glorious PC Gaming Race - Model O
Interface: Wired
