Mike's M1

I am a healthcare designer and I needed a small powerful PC for modeling and rendering, I was sick of keeping two computers maintained as I work both on-site (5-hour drive) and at home. After a ton of research, this build seemed to be the best solution.

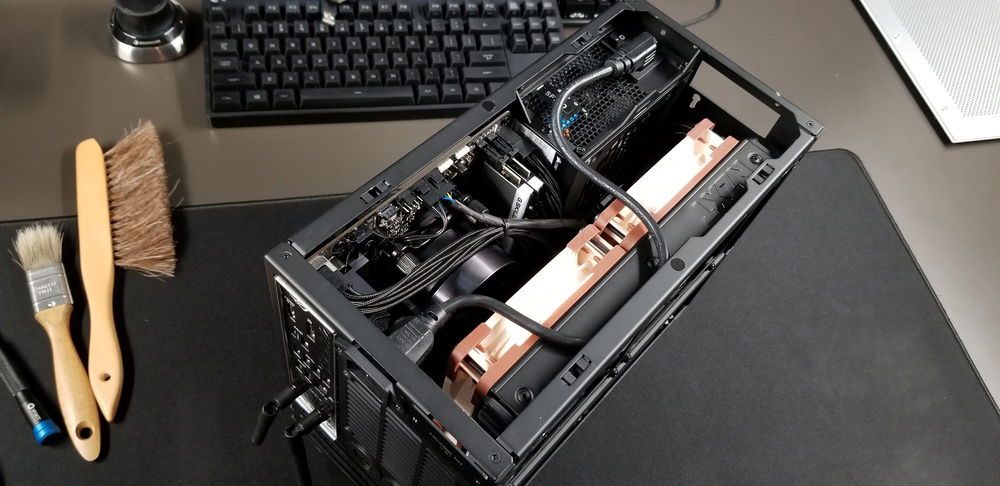

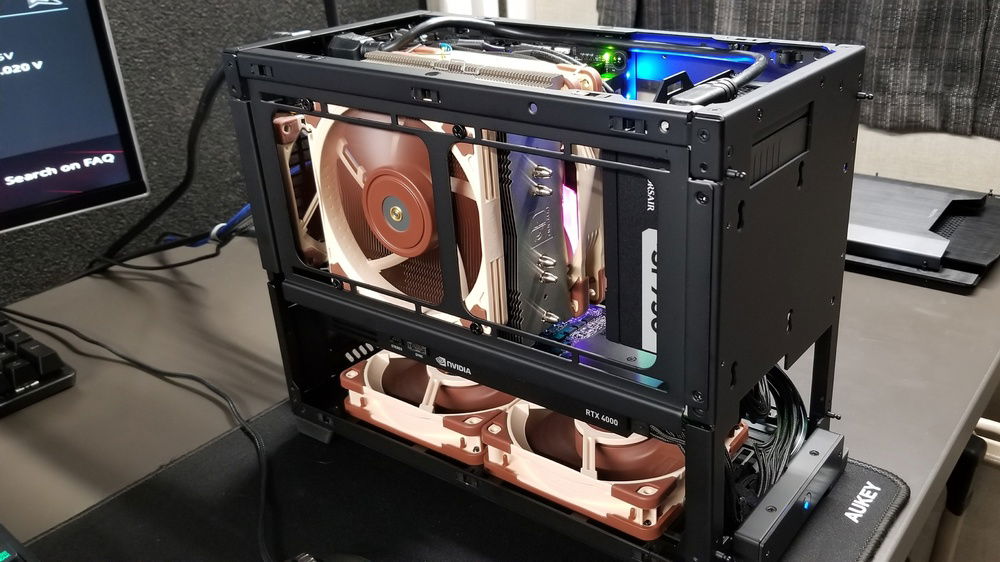

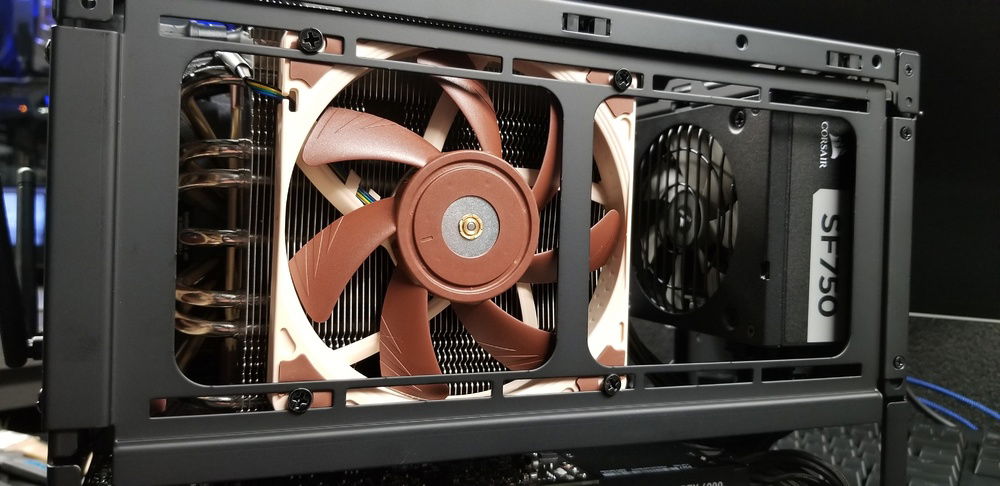

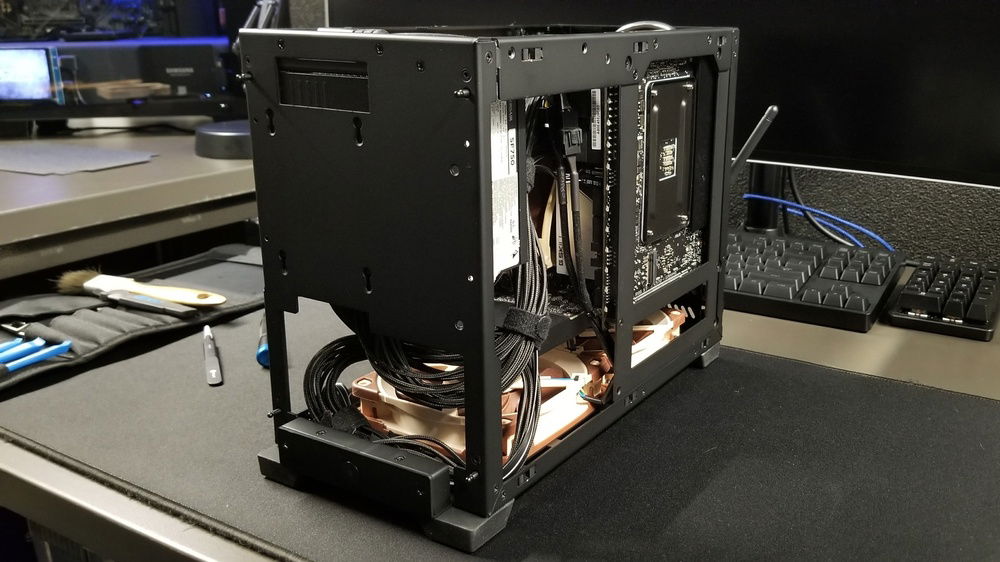

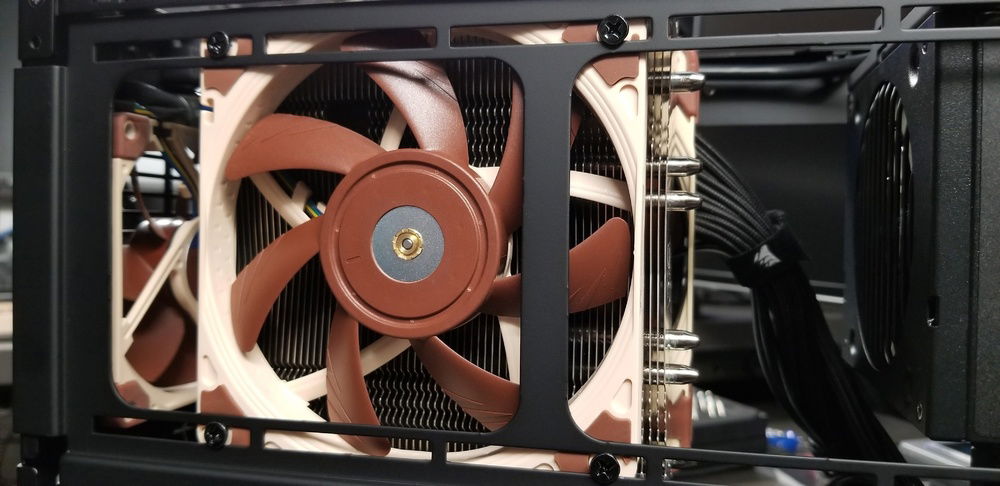

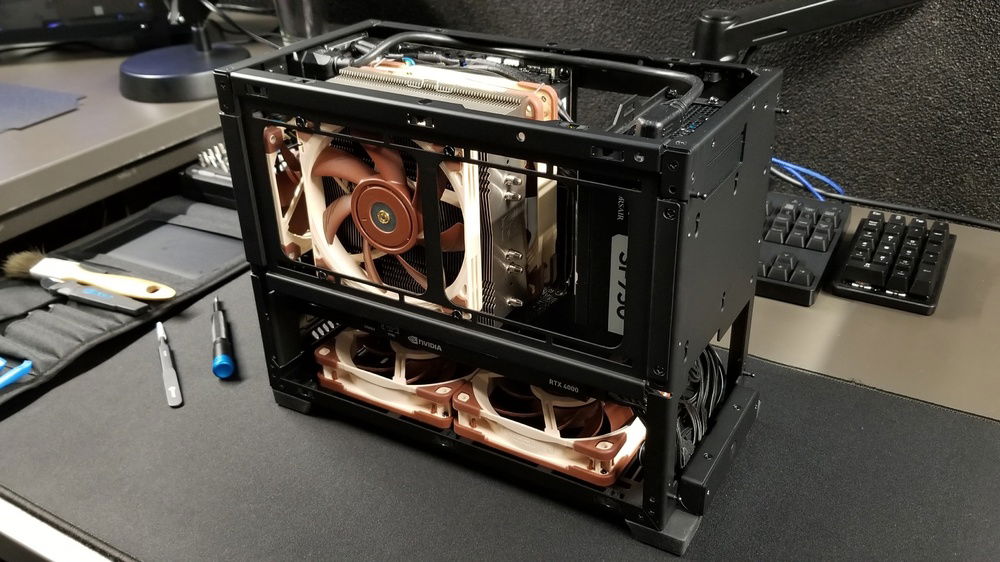

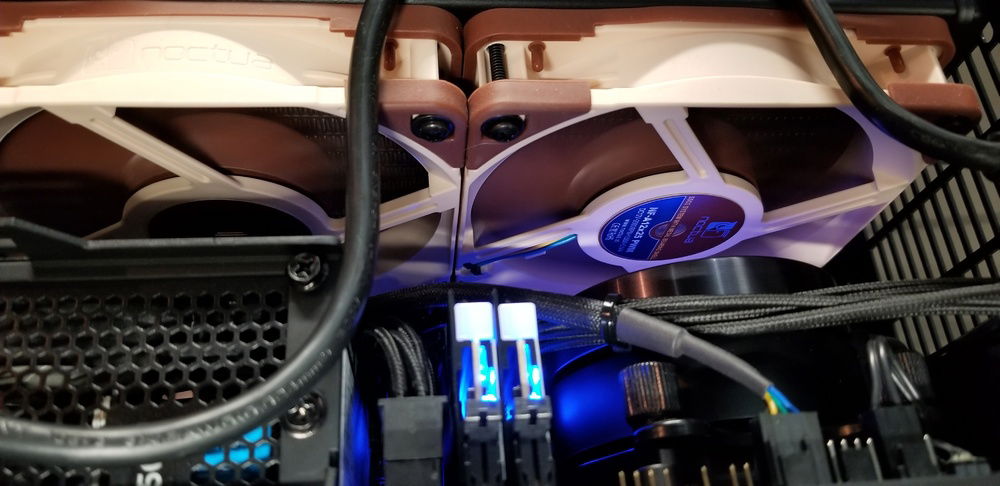

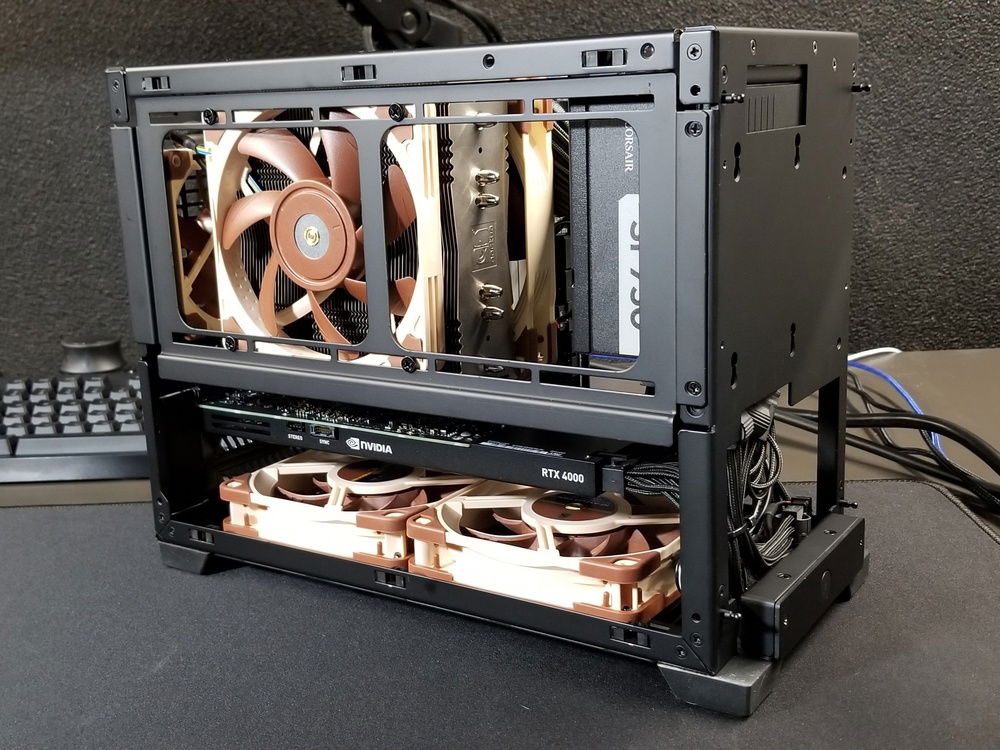

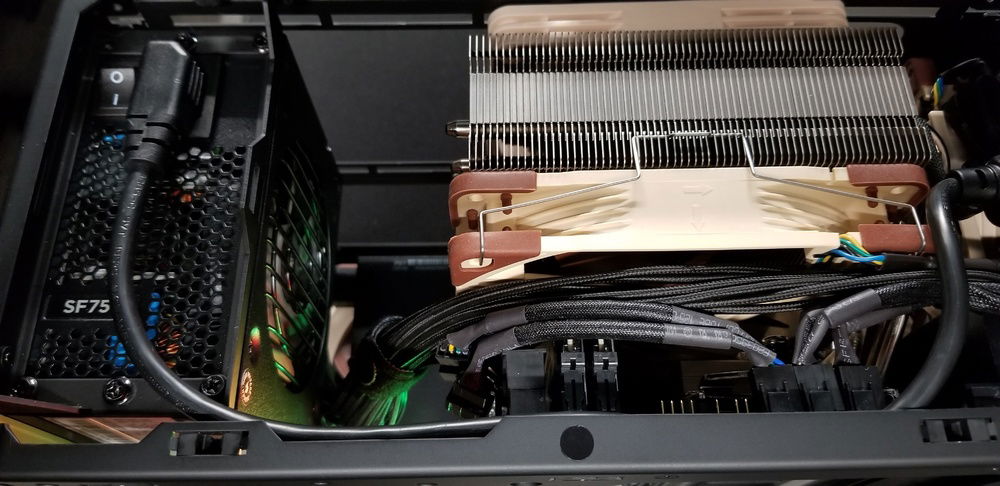

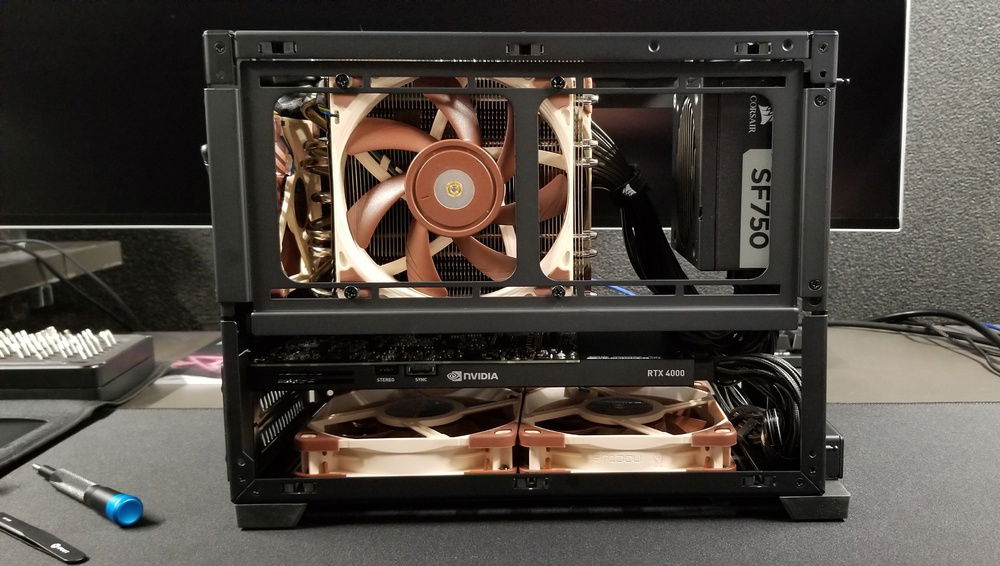

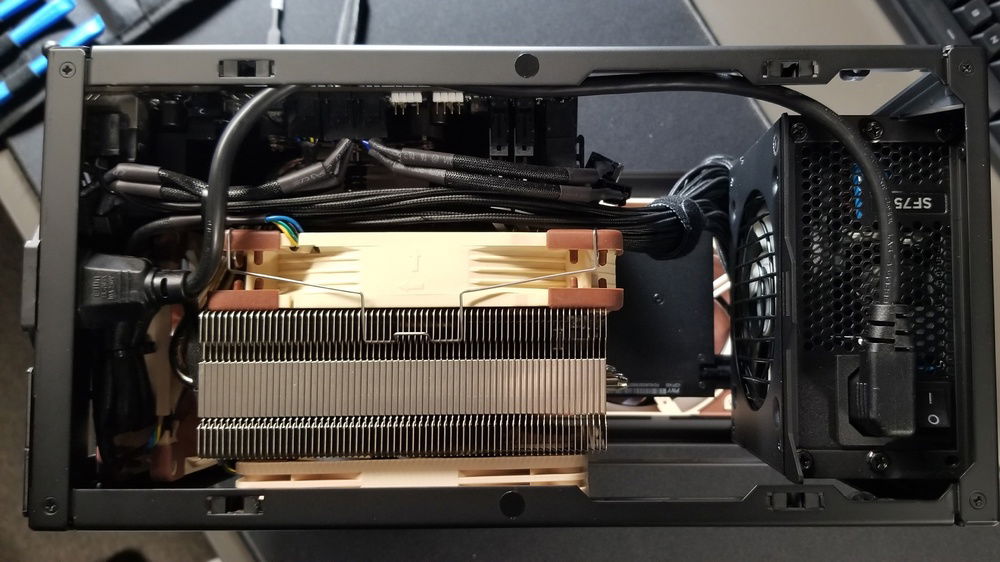

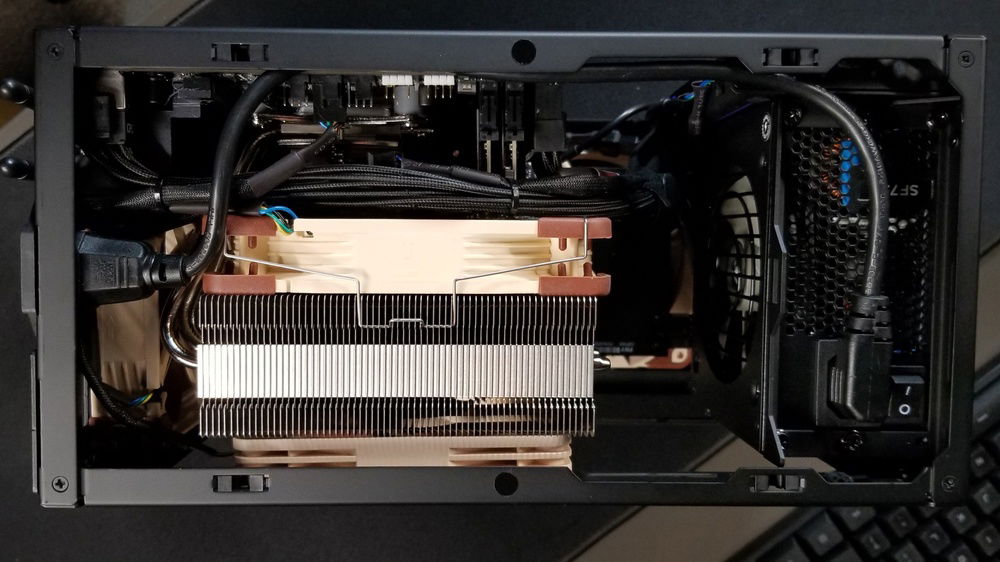

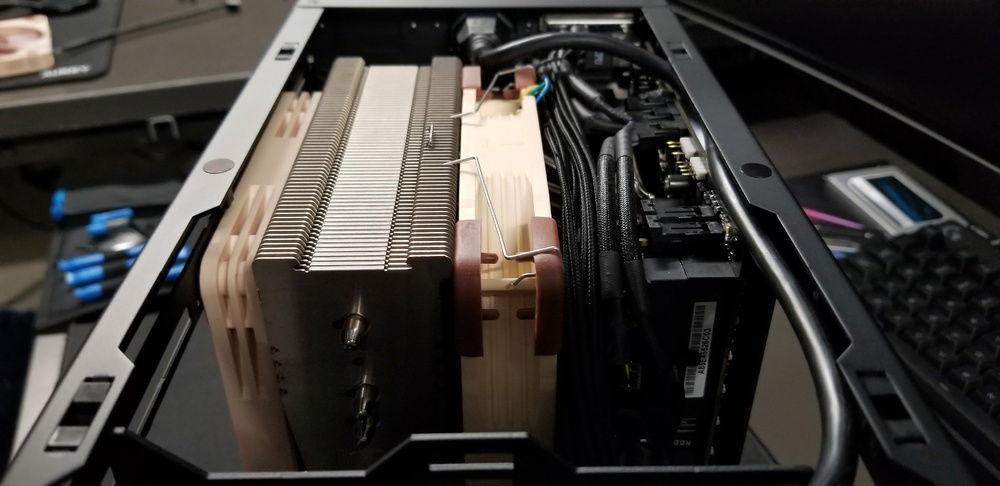

Build 1 (Air Cooled) I was doubtful that air cooling would be enough for the 3950X, but I had to try since I absolutely hate AIO coolers, however, this configuration performed better than I expected! Under normal workload and with my modeling software the temps were respectable, however, when rendering my models with V-ray the CPU temp would climb into the 80’s and that is a bit high for my liking. I would’ve likely been able to get the temps down with the fans set to 100% but I do A LOT of rendering and that’s obviously not an ideal situation.

FILE: 24MB Model
AMBIENT: 21c
Anti-Aliasing: 16x (love the RTX 4000 BTW ????)

CPU GPU CPU RPM GPU RPM
IDEL: 38c 34c 600 1500
MODELING 7.5%/35%: 47c 58c 600 1500
RENDERING 100%/3%: 84c 39c 1250 1500

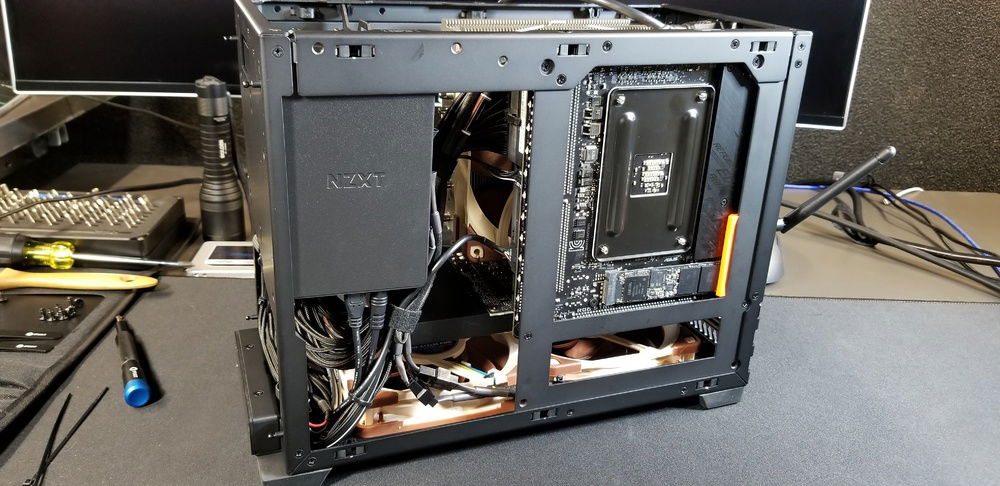

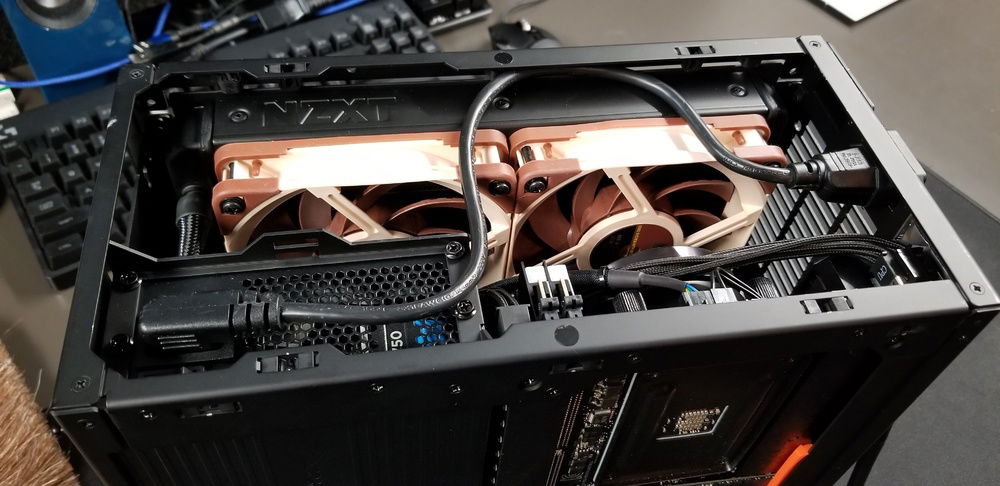

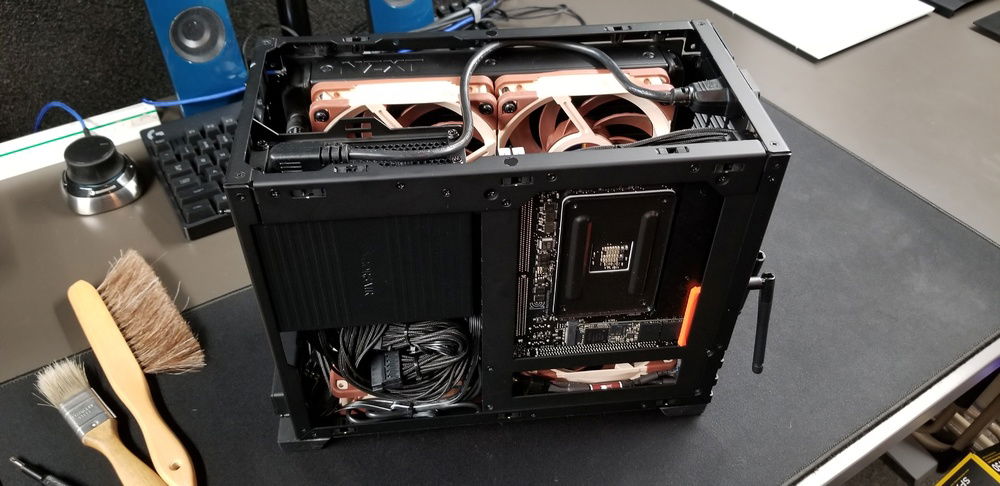

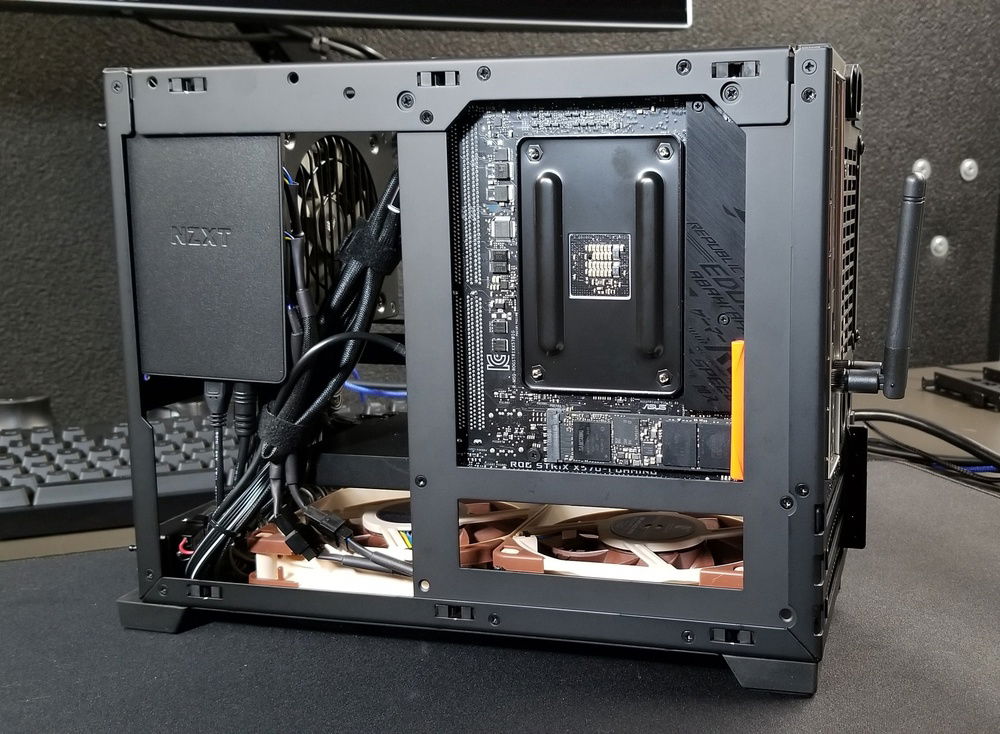

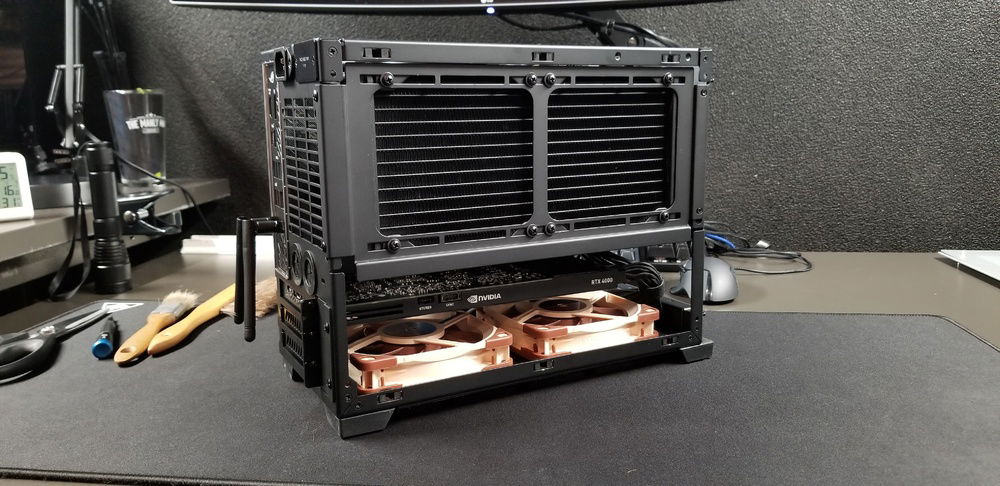

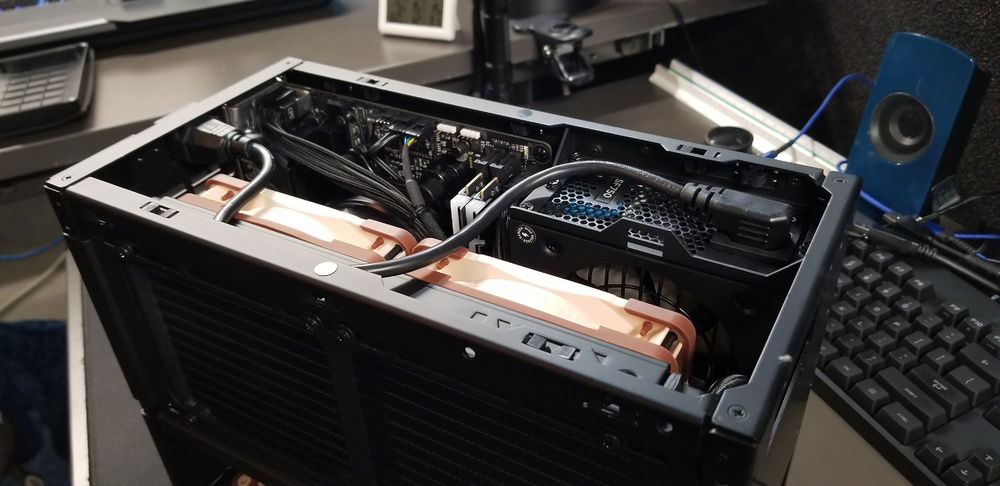

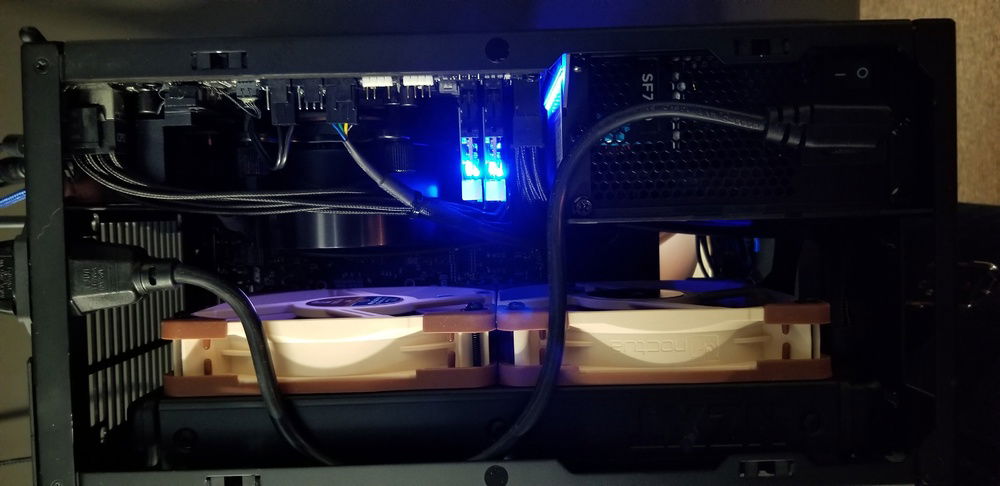

So, after my tantrum… Build 2 with the Kraken X52 :/

CPU GPU CPU RPM GPU RPM
IDEL: 38c 34c 400 1500
MODELING 7.5%/35%: 44c 53c 400 1500
RENDERING 100%/3%: 67c 33c 1250 1500
Um Yeah…this will work…amazing performance from this tiny beast! ????
Color(s): Black Silver
RGB Lighting? Yes
Cooling: AIO Cooling
Theme: none
Size: Mini-ITX
Type: General Build

Hardware

CPU

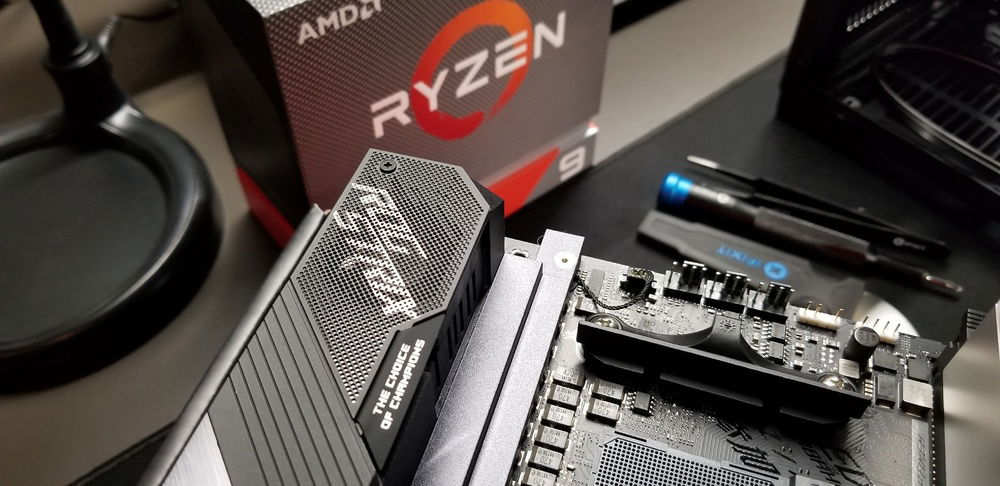

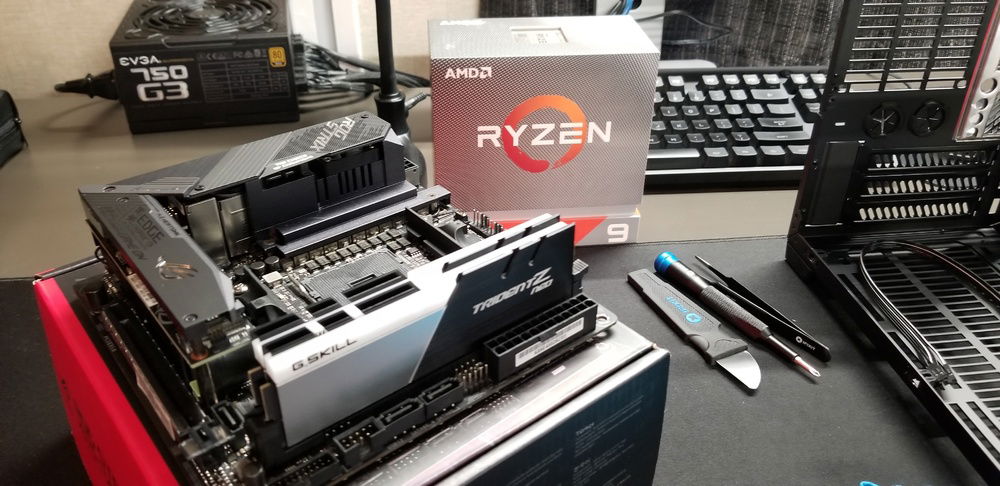

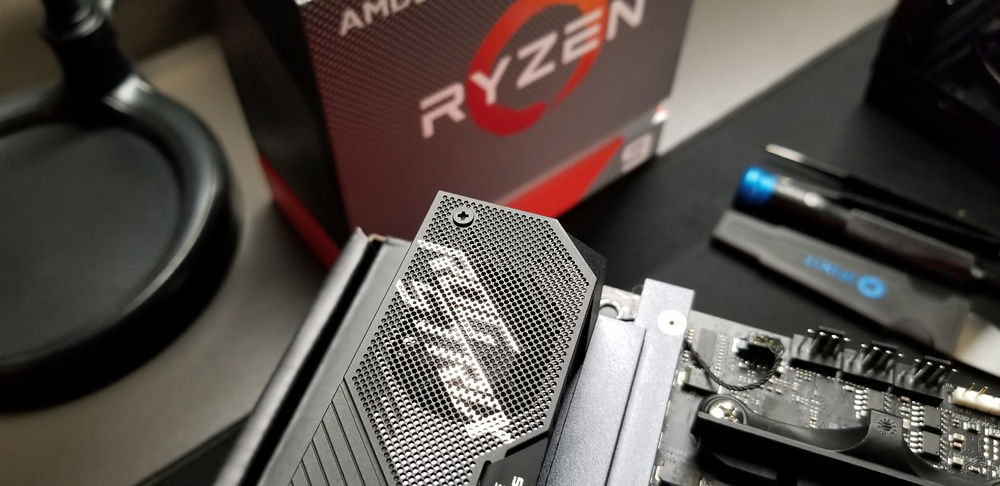

AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 353.99

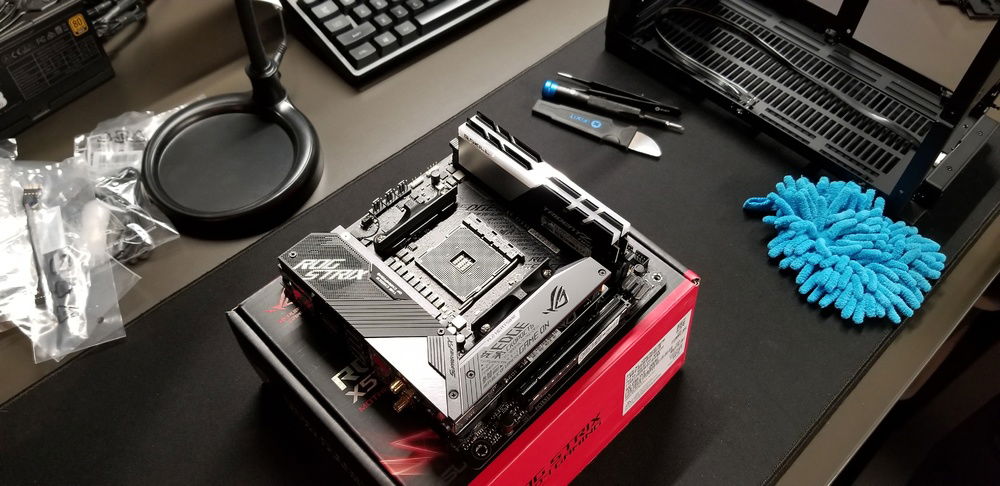

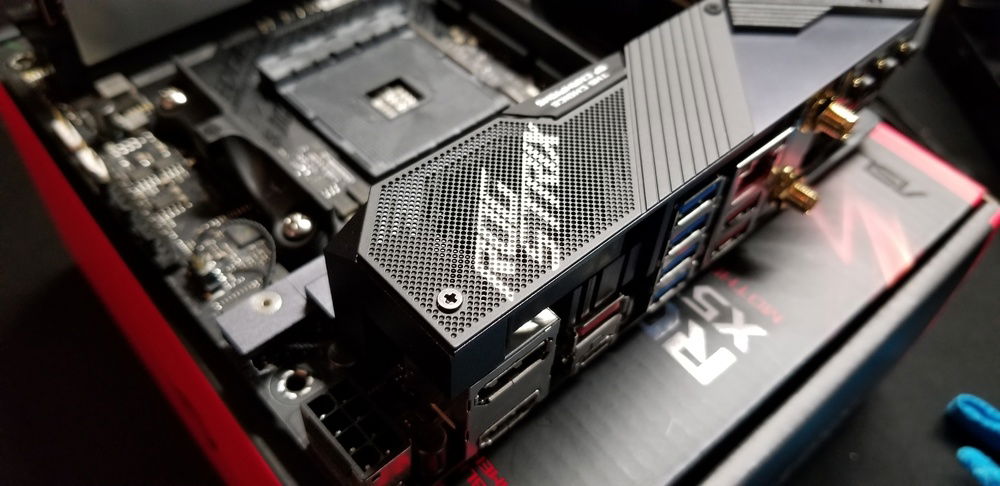

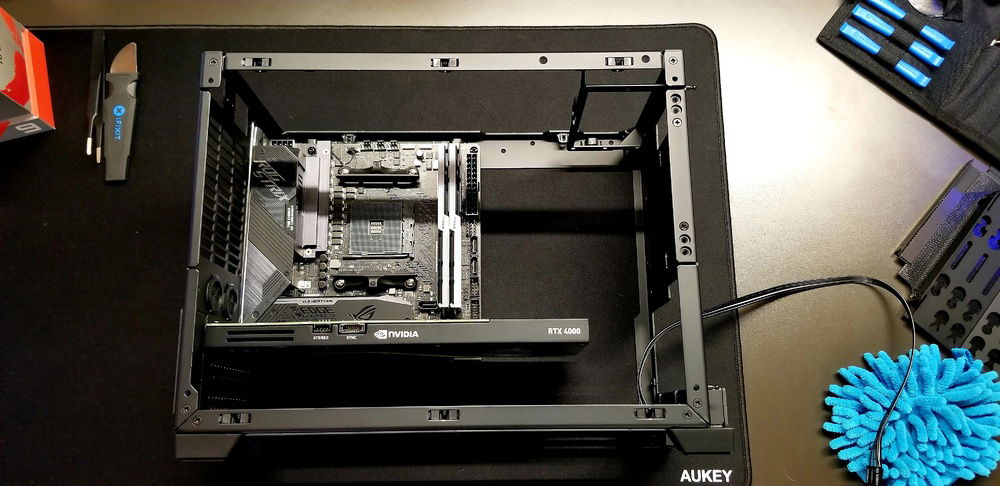

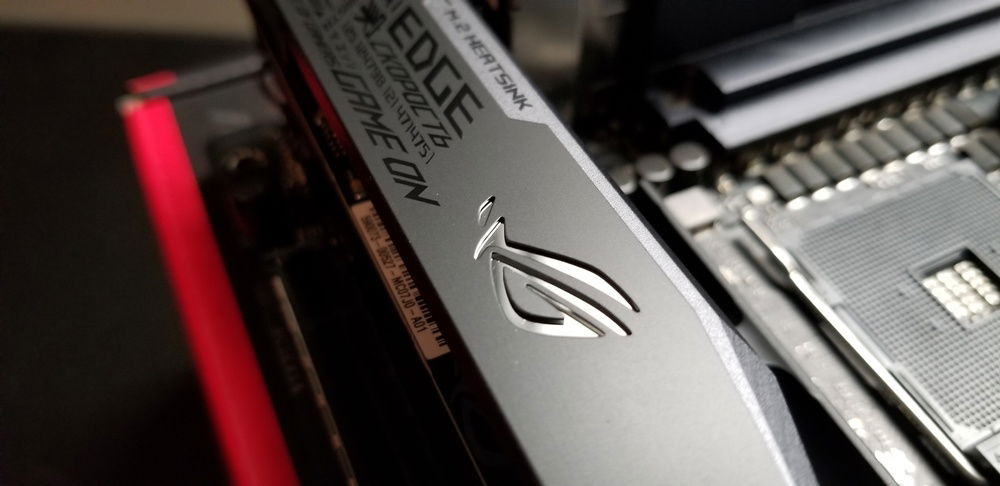

ASUS - ROG Strix Gaming (X570-I)
Chipset: X570
CPU Socket: AM4
Size: Mini-ITX

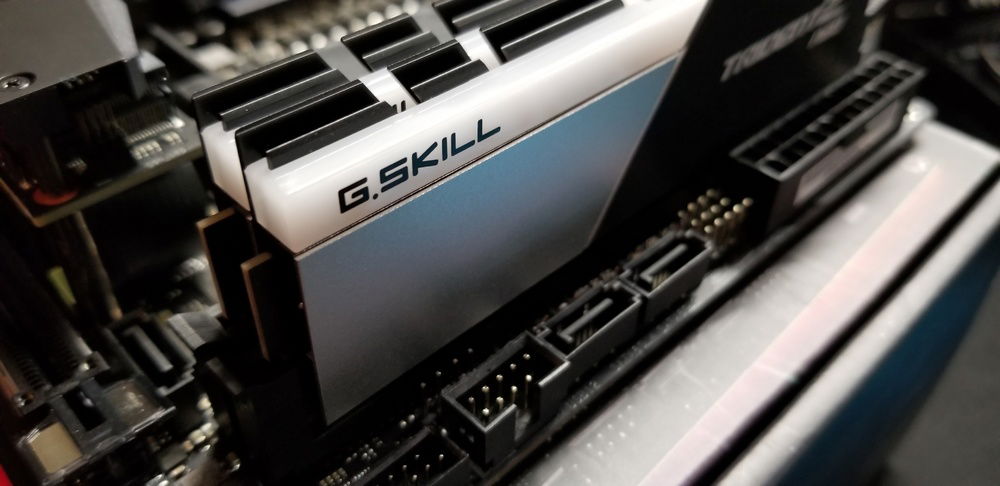

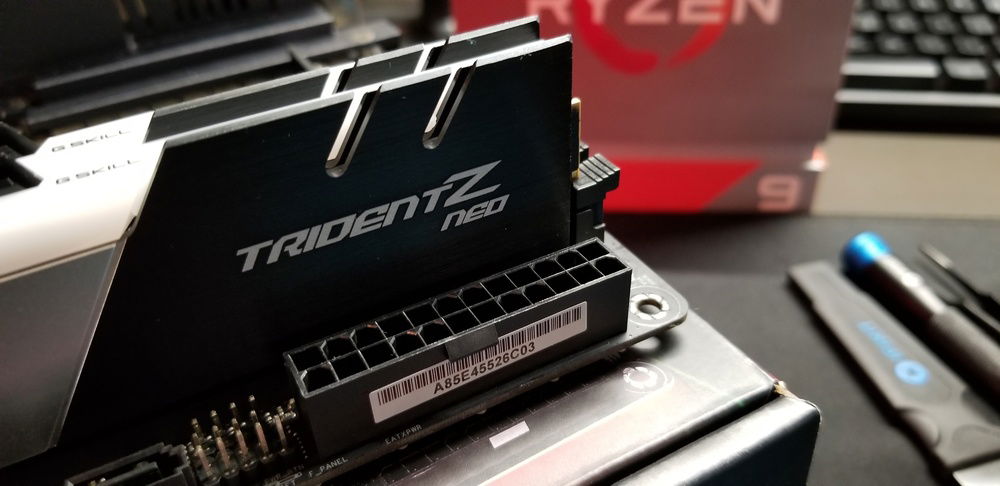

Memory
$ 139.99
Graphics
$ 1,179.00

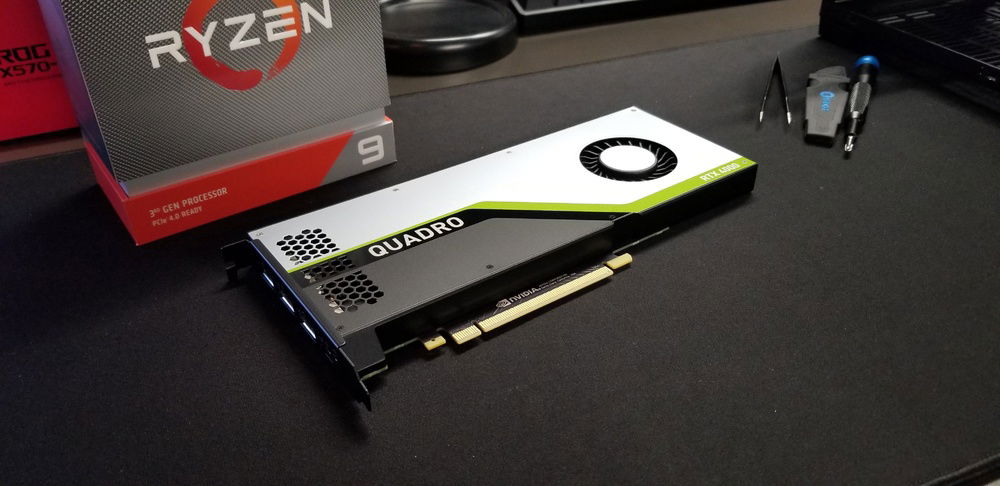

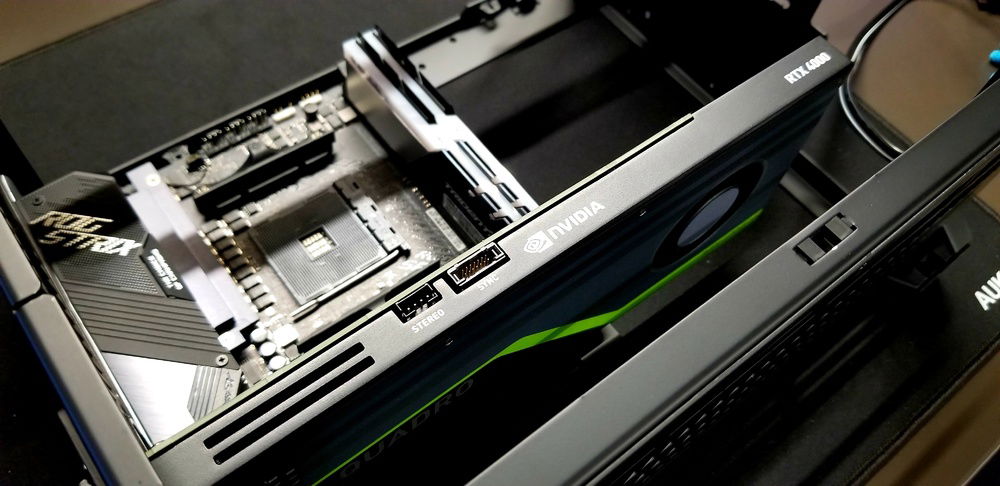

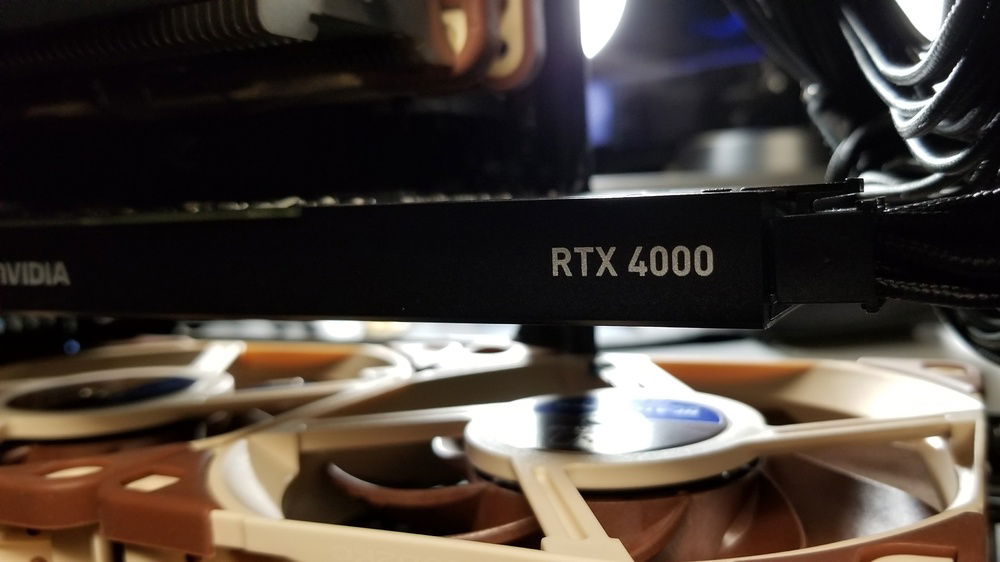

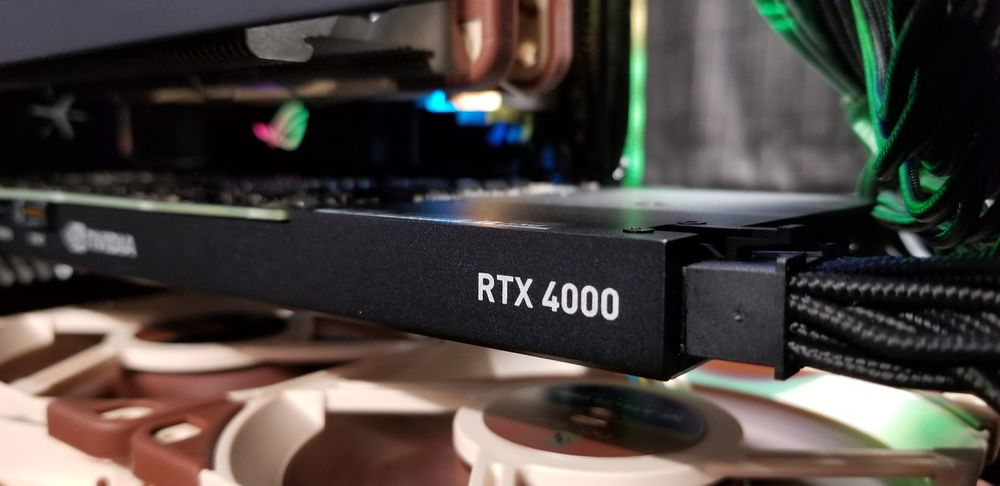

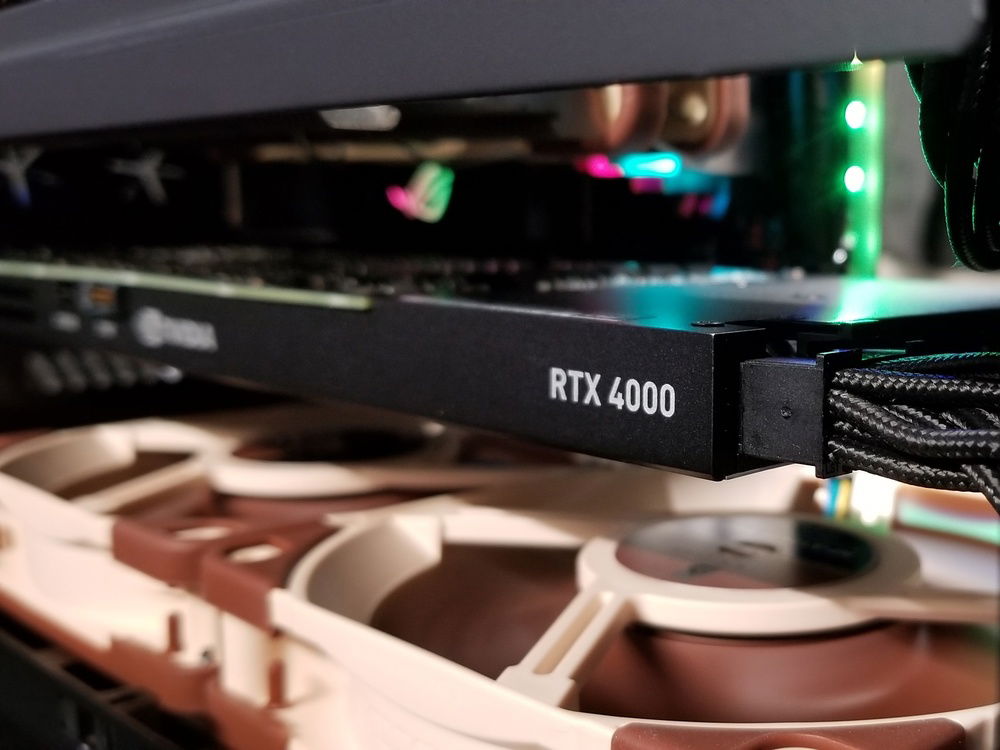

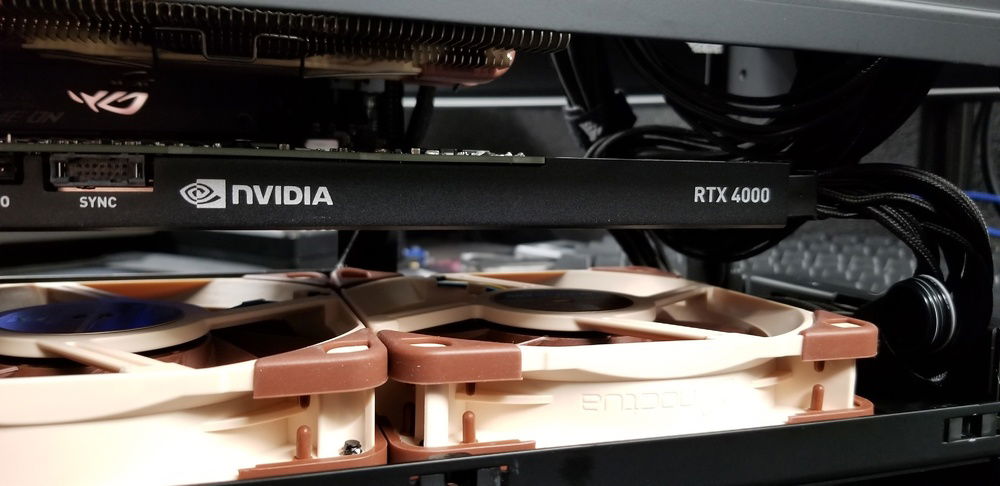

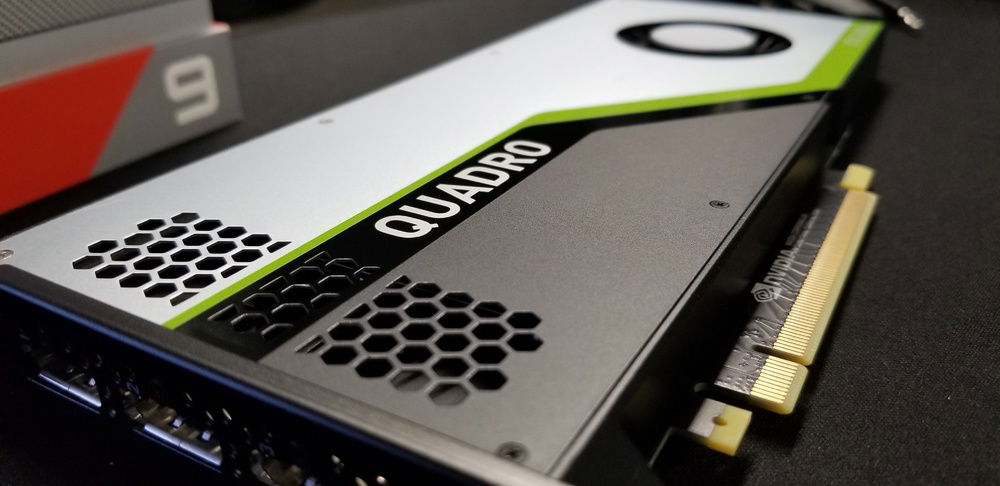

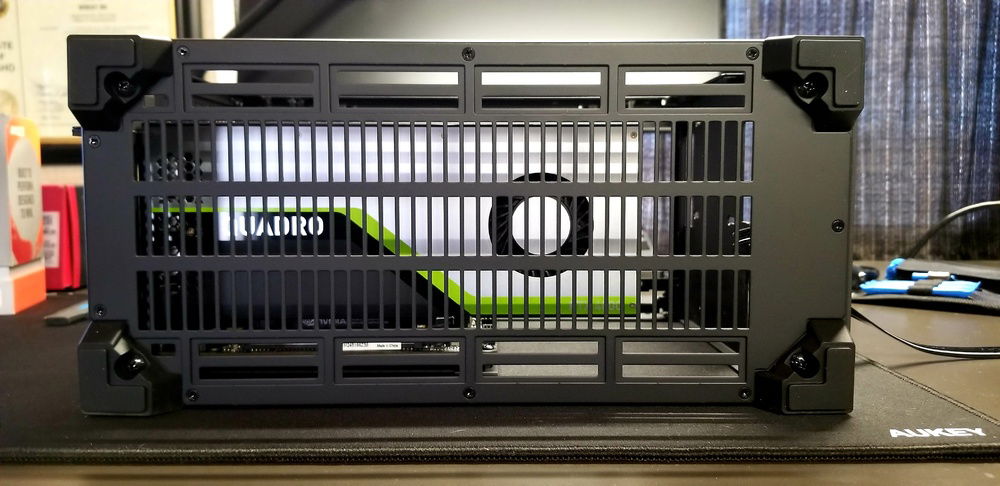

PNY - Quadro
Chip Manufacturer: NVIDIA

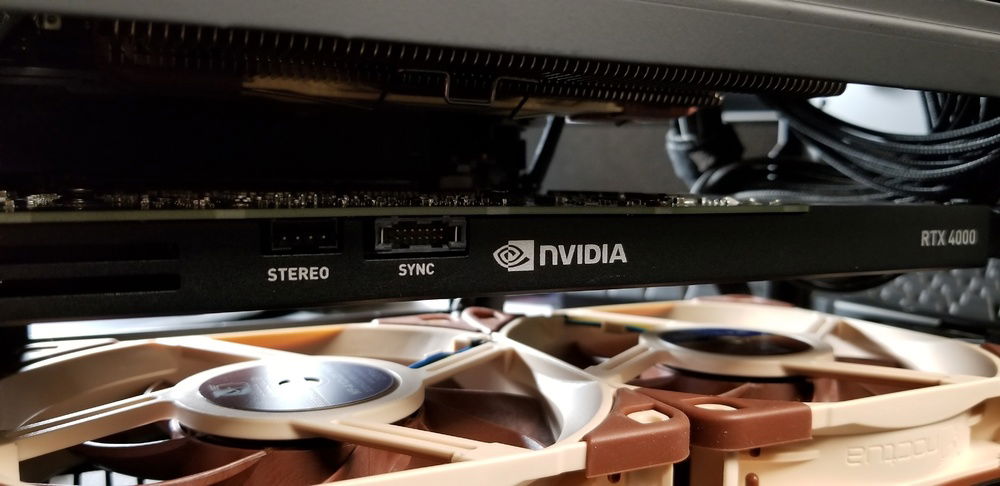

Chip: RTX 4000
Interface: PCIe x16
Storage
$ 389.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 139.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case

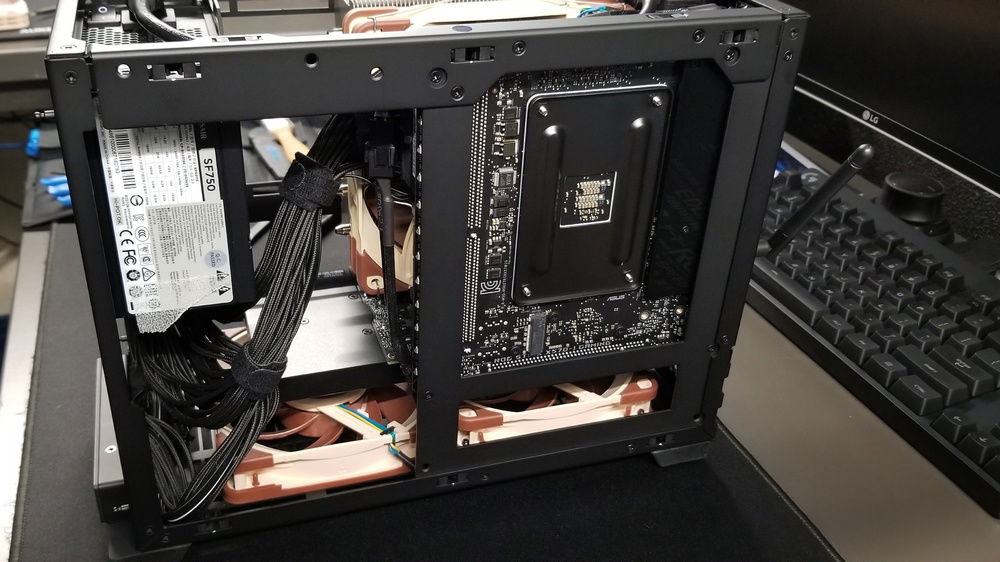

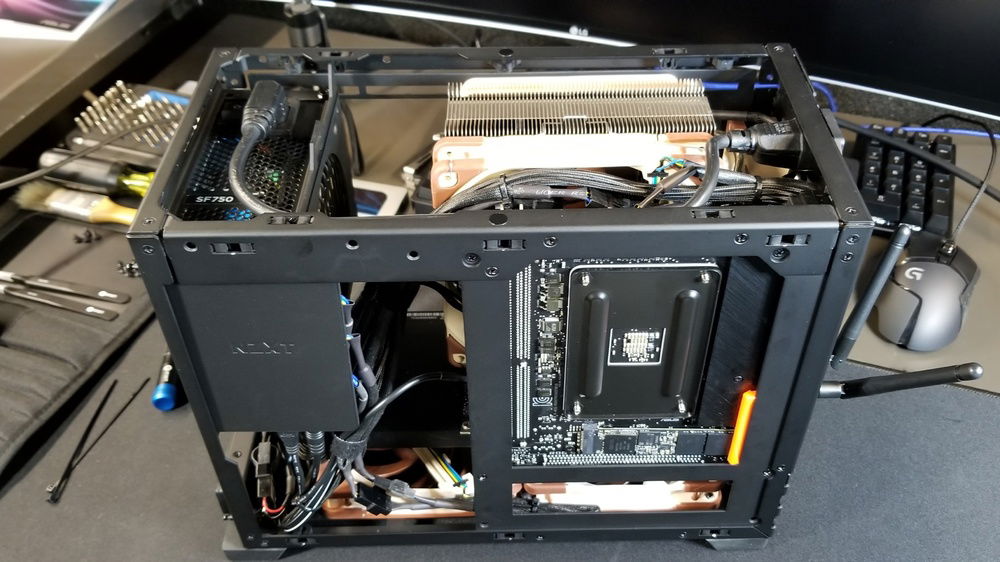

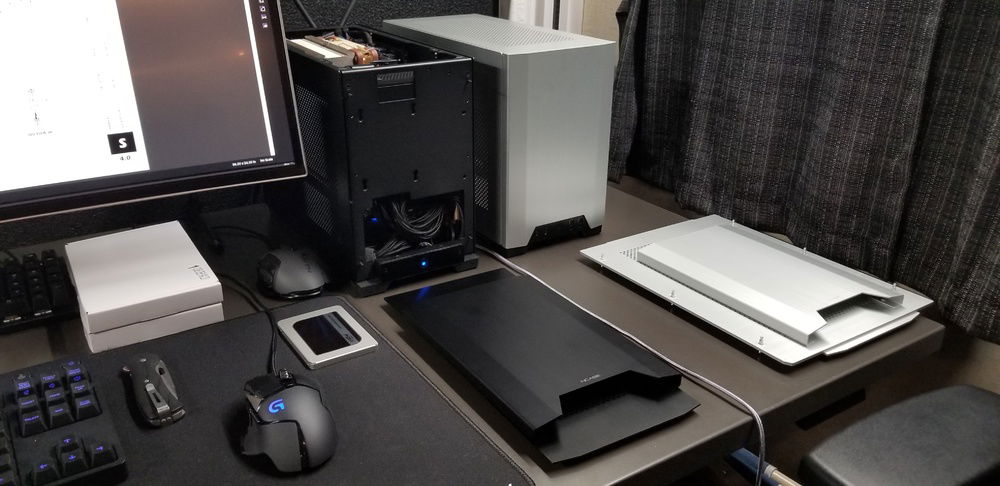

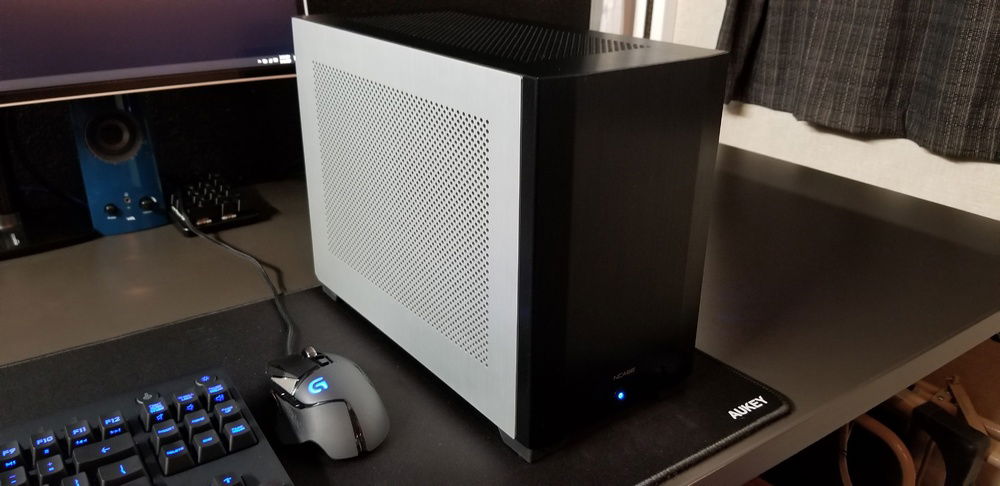

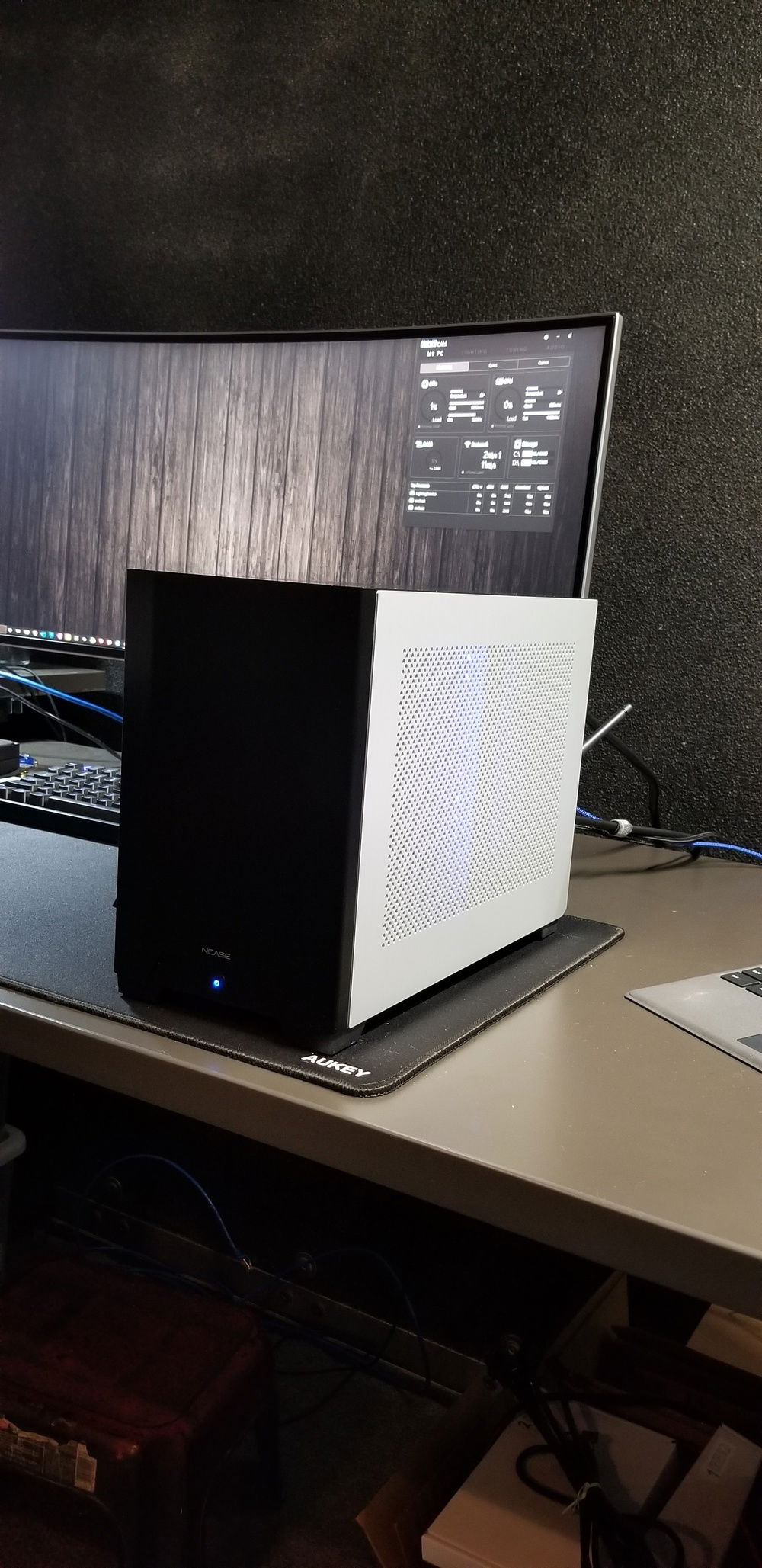

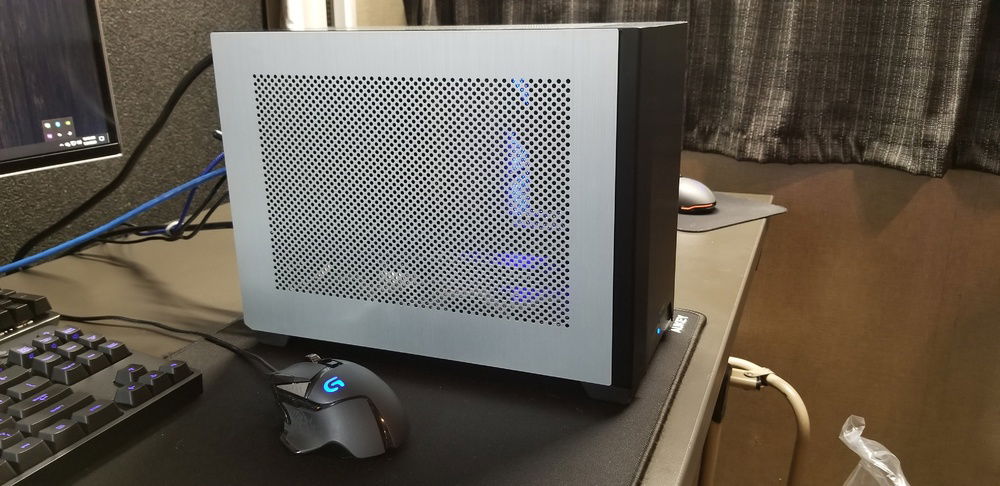

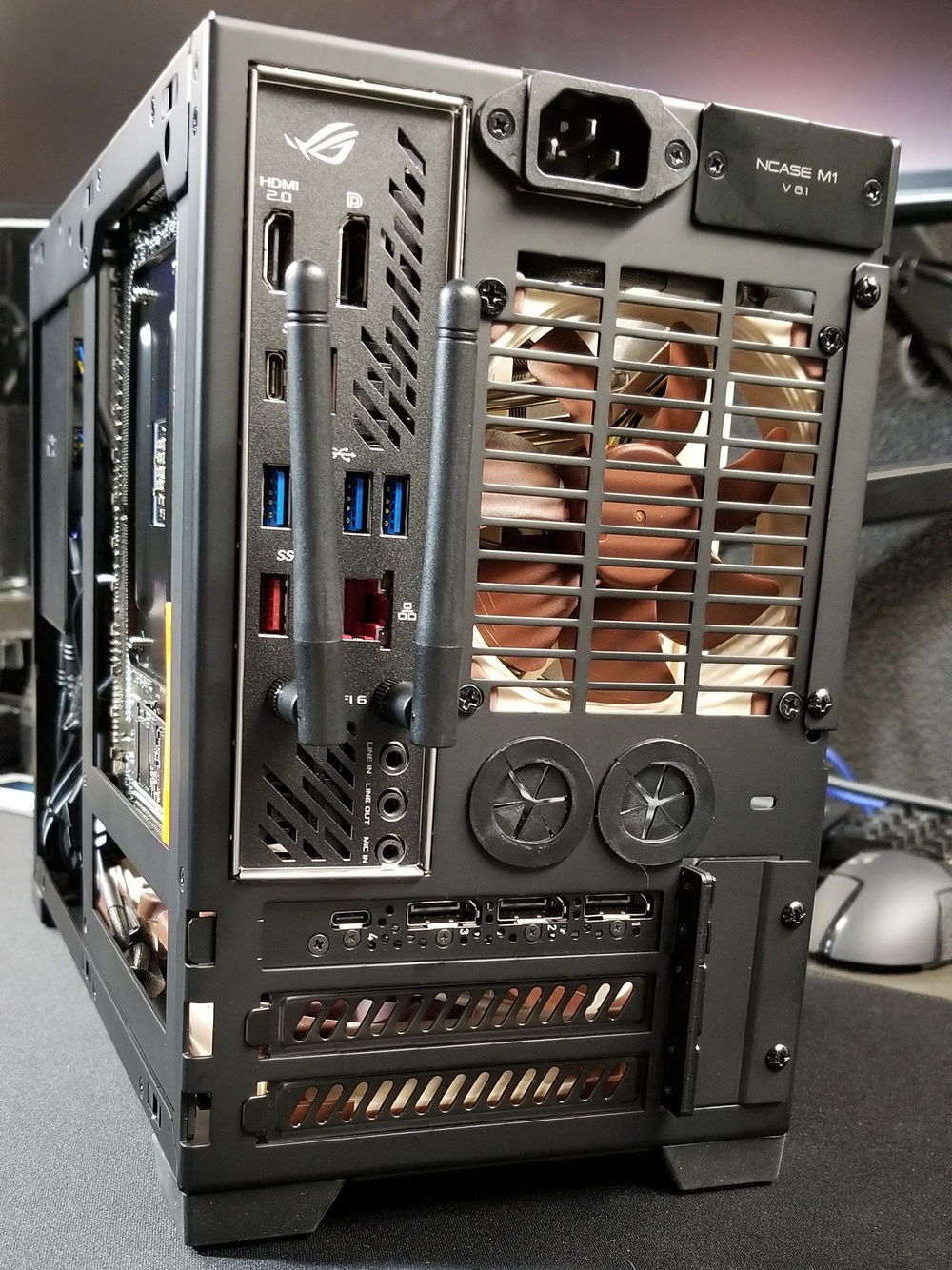

Ncases - NCase M1
Type: Mini-Tower
Side Panel: Solid
Case Fan
$ 181.00

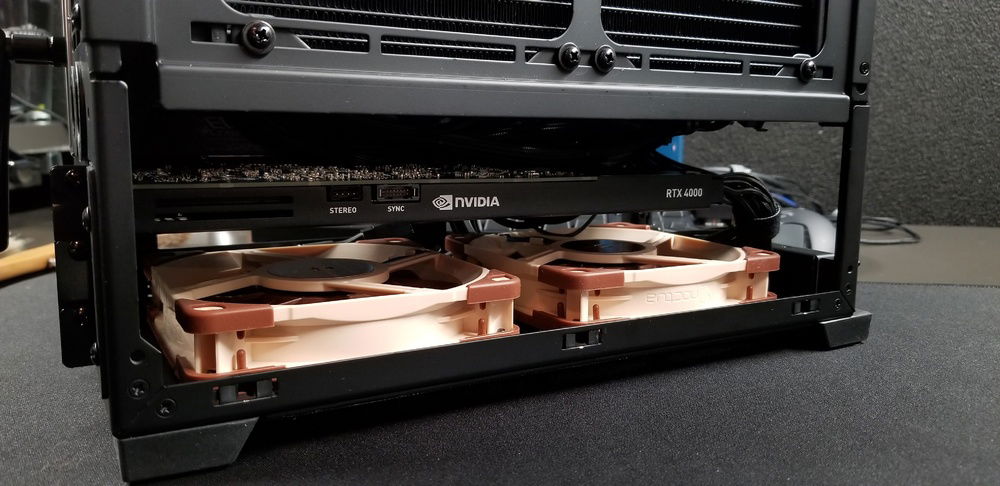

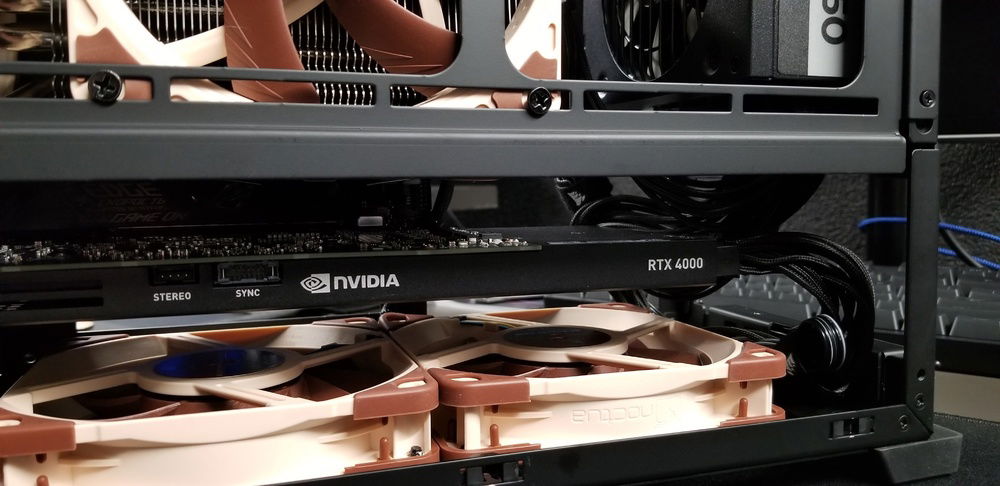

Noctua - NF-A12x25 PWM (4x)
Size: 120 mm
Cooling
$ 116.00

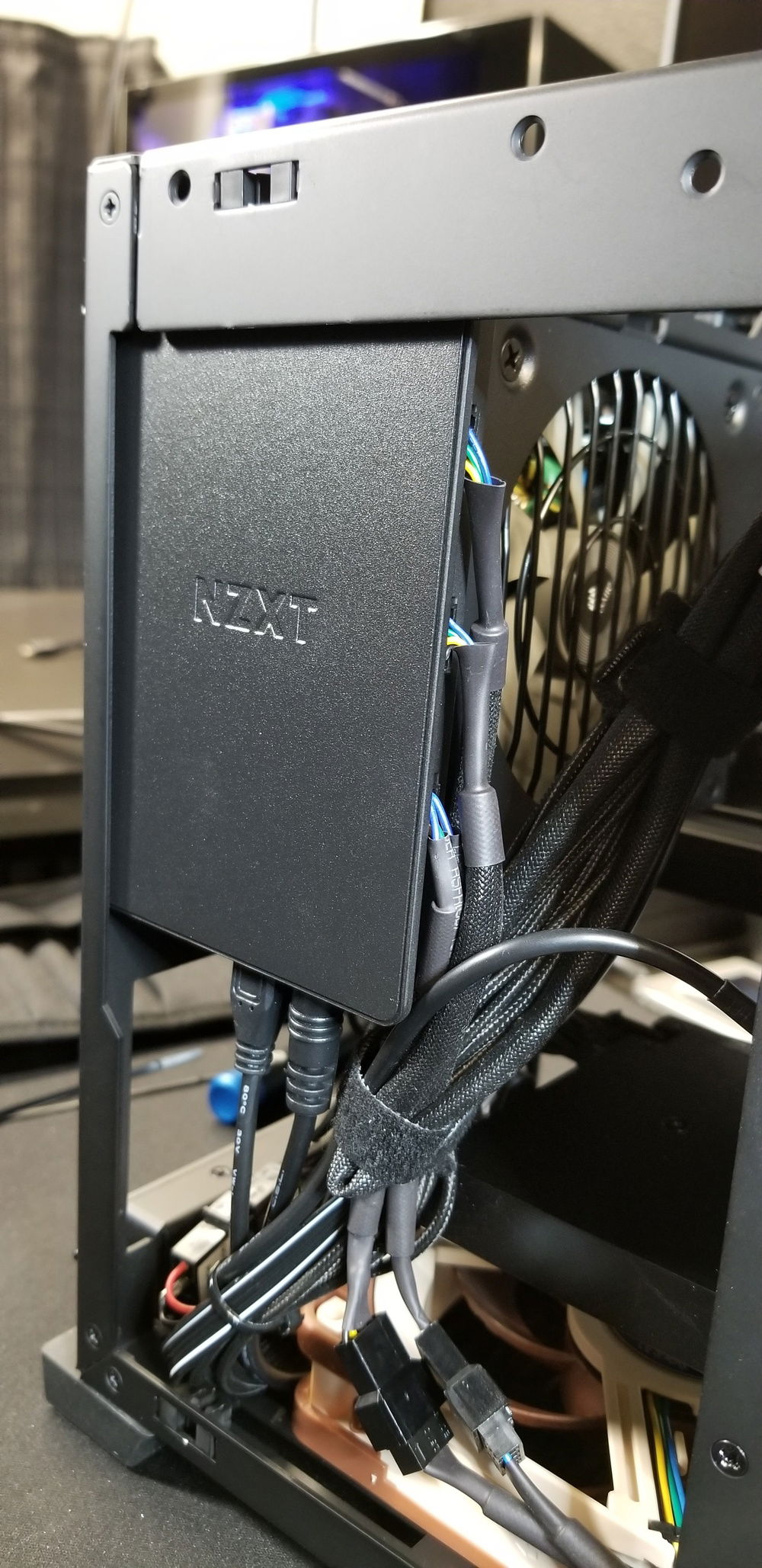

NZXT - Kraken X52
Type: AIO
Unable to dertermine total build value (missing part value)
