Jack the Ripper

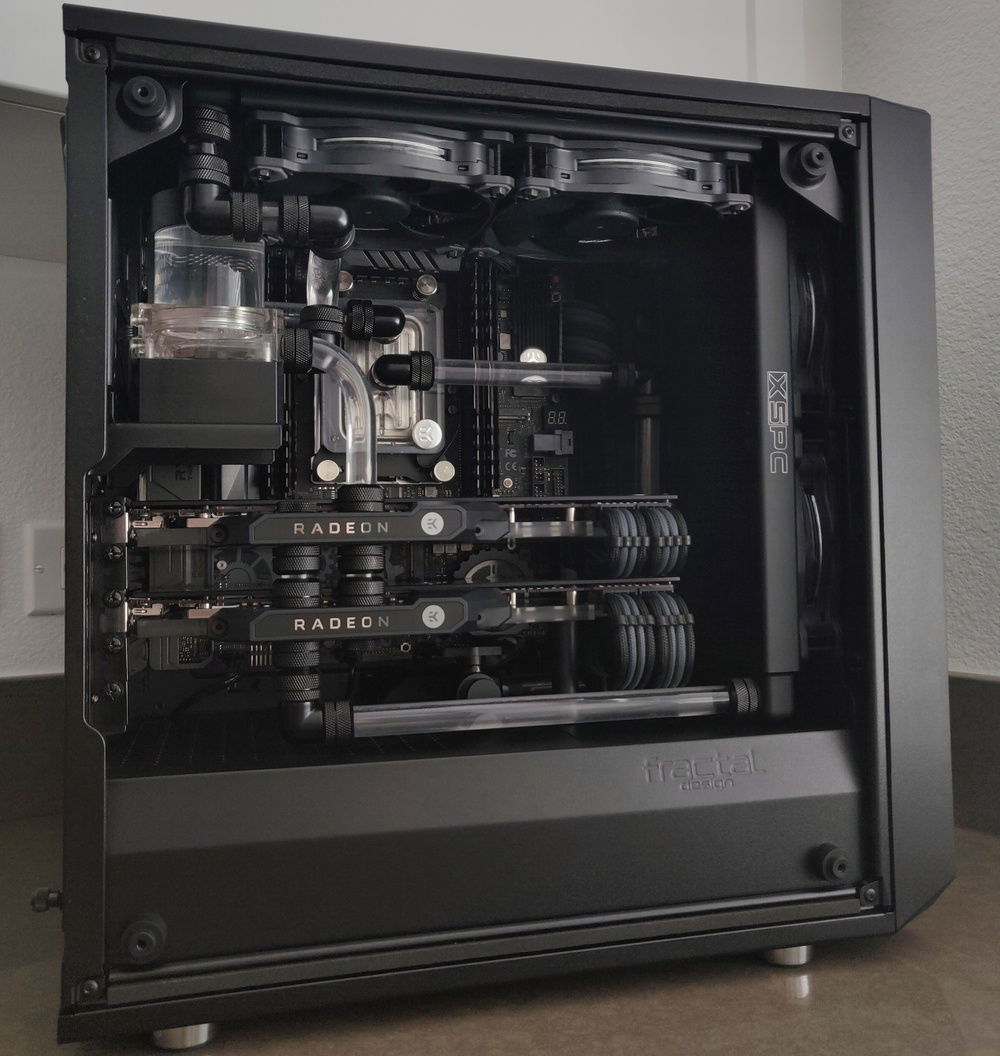

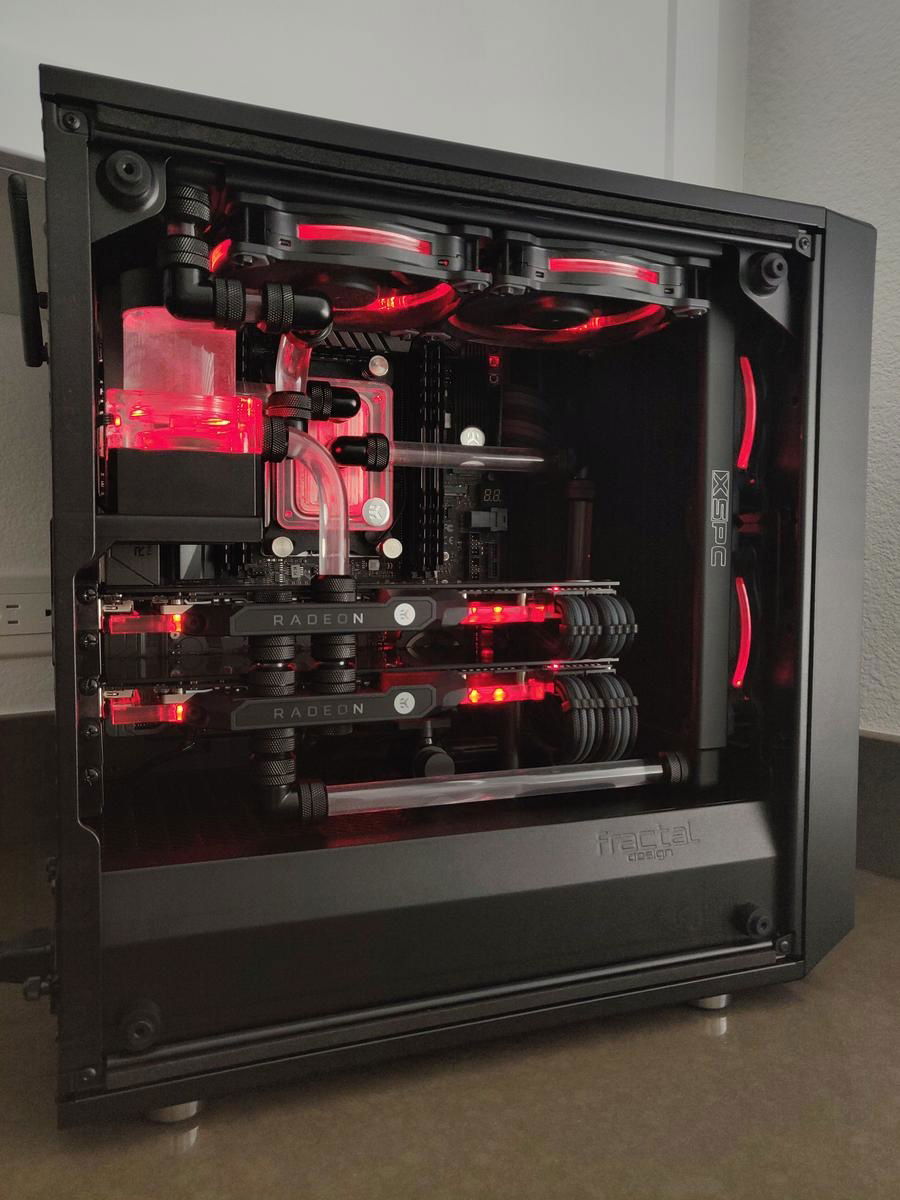

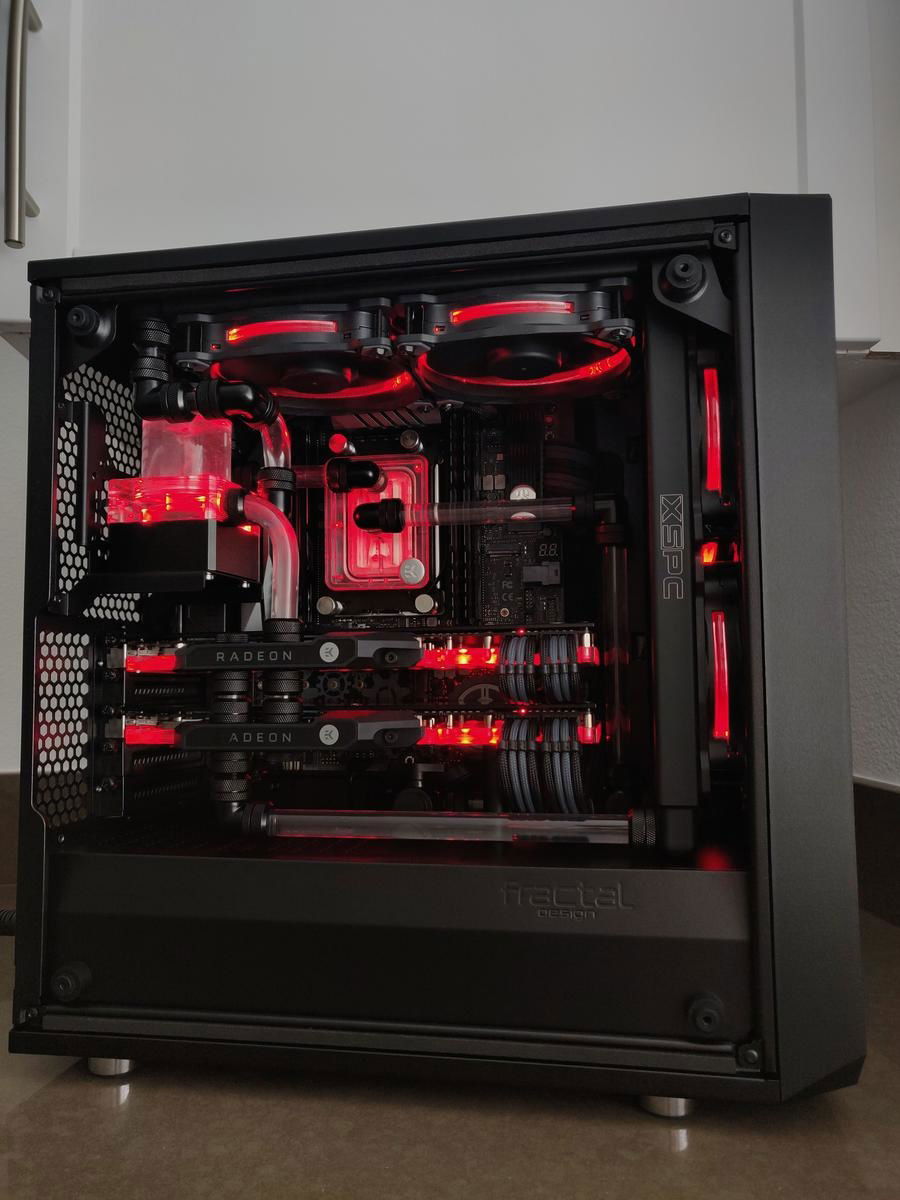

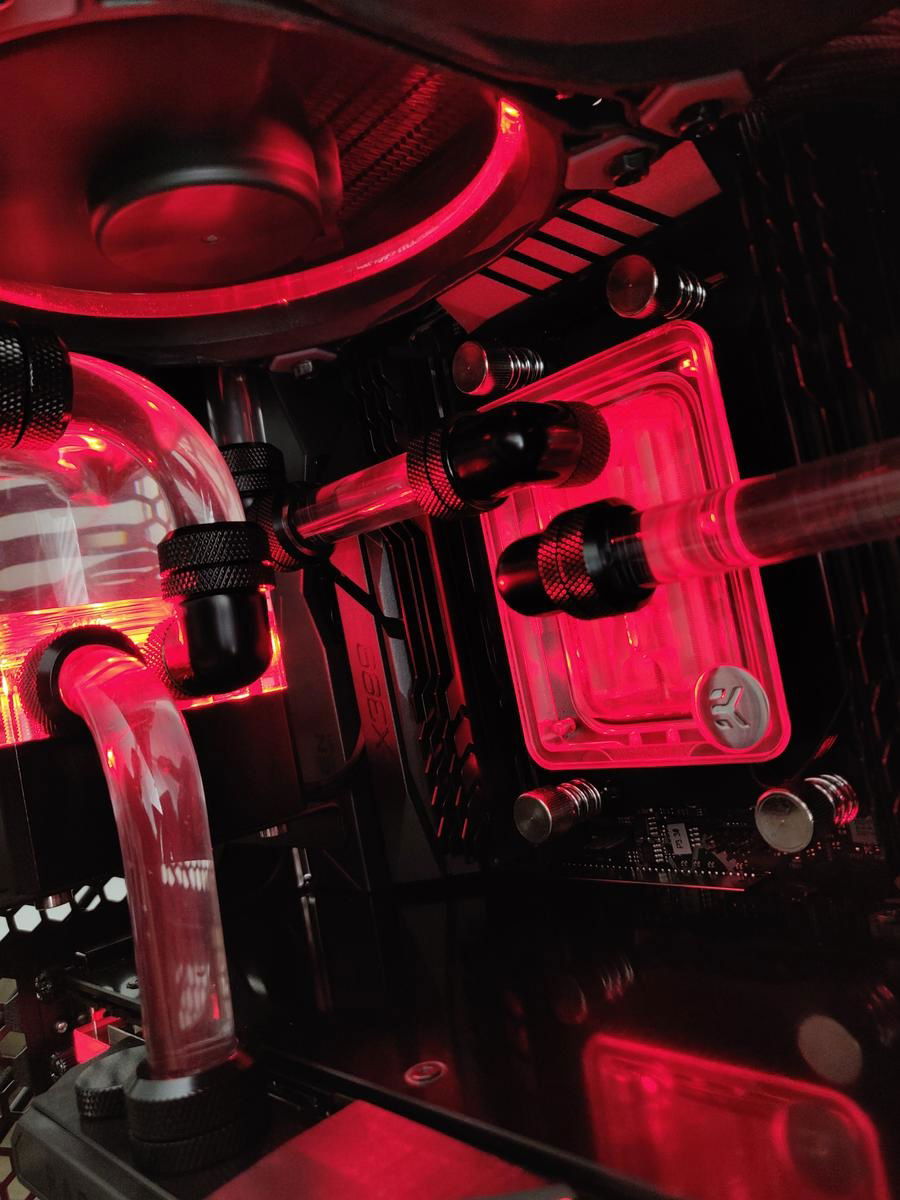

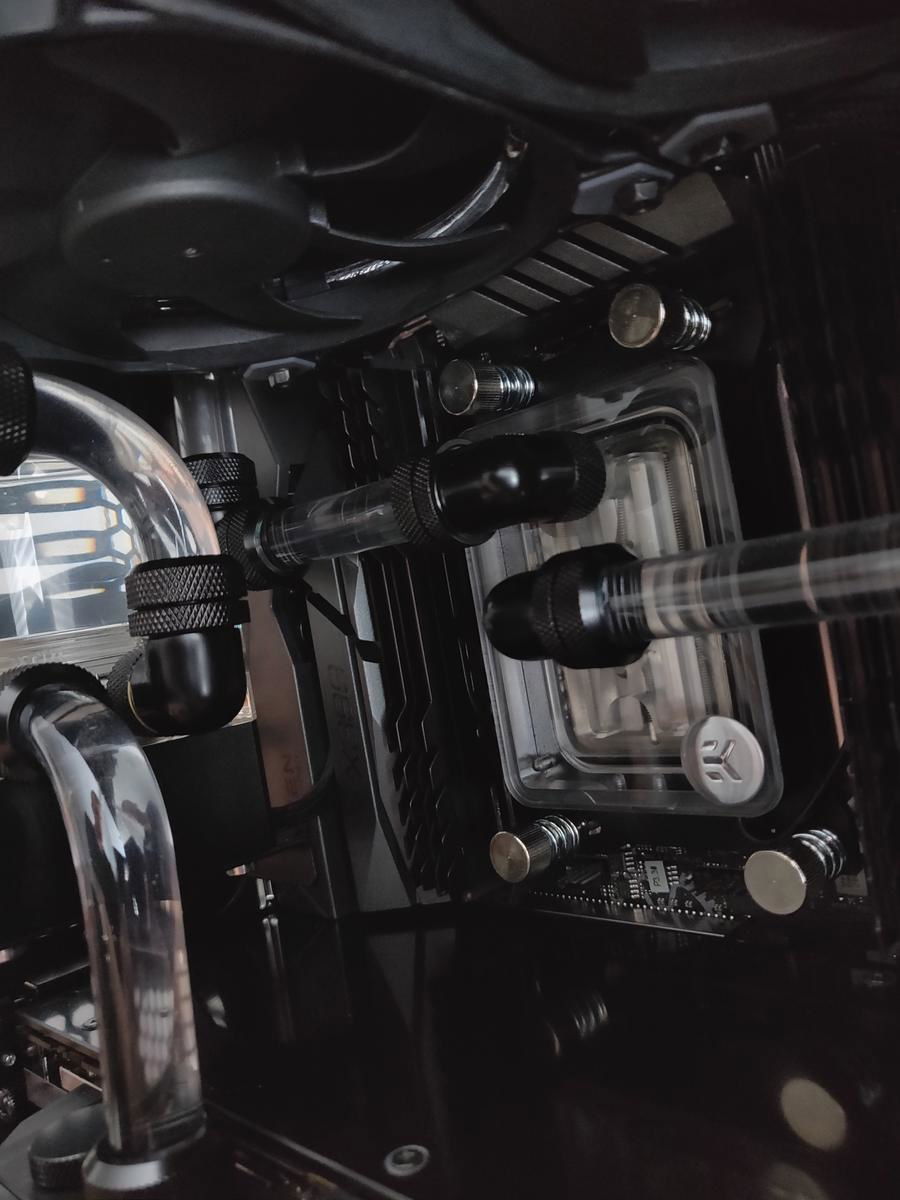

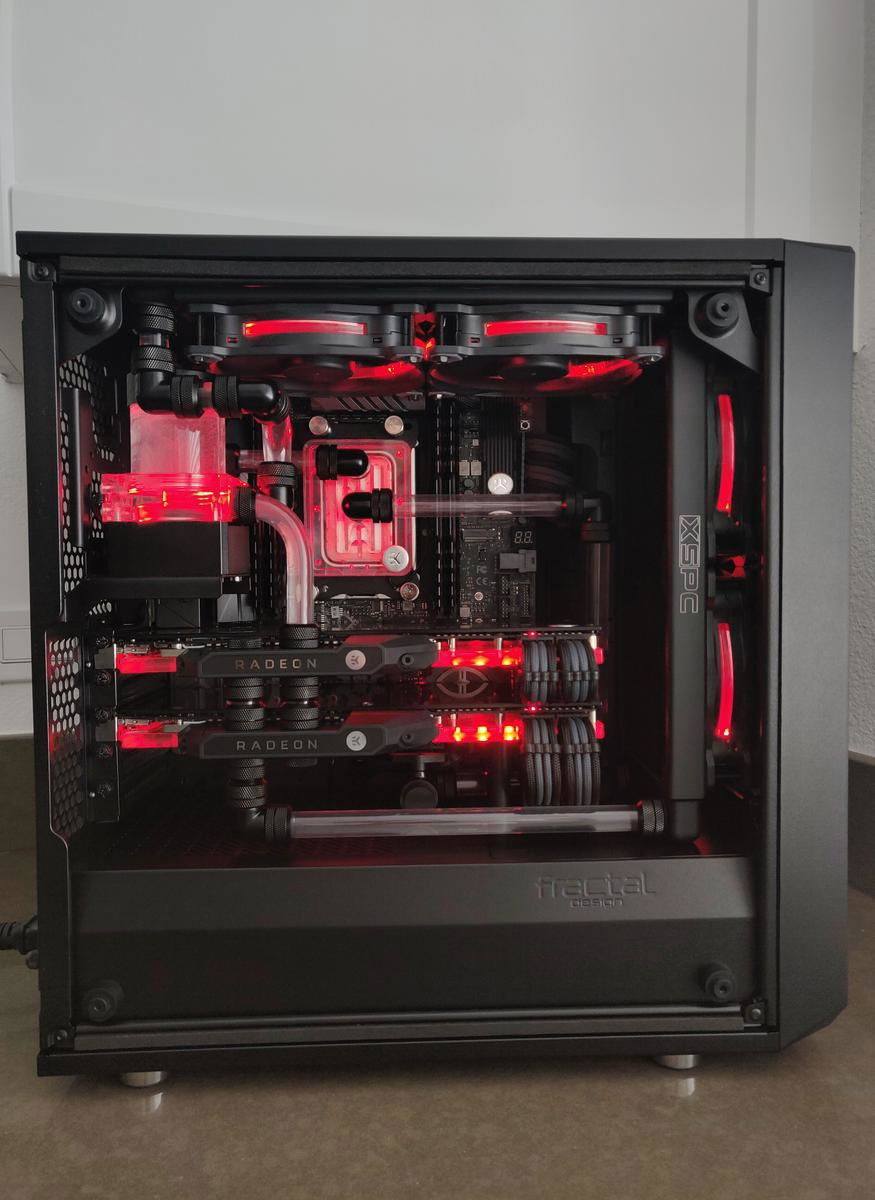

First custom WC build! My goal was to create something that looked clean on and off, as I'm not a fan of most RGB parts which look white when you turn the led lights off. So having the ability to flip everything on & off whenever while still matching the theme was a main priority! I also wanted to show AMD some love while moving away Intel/Nvidia. Ah, how I've missed AMD. OCing & getting acclimated again with AMD has been smooth sailing thus far.

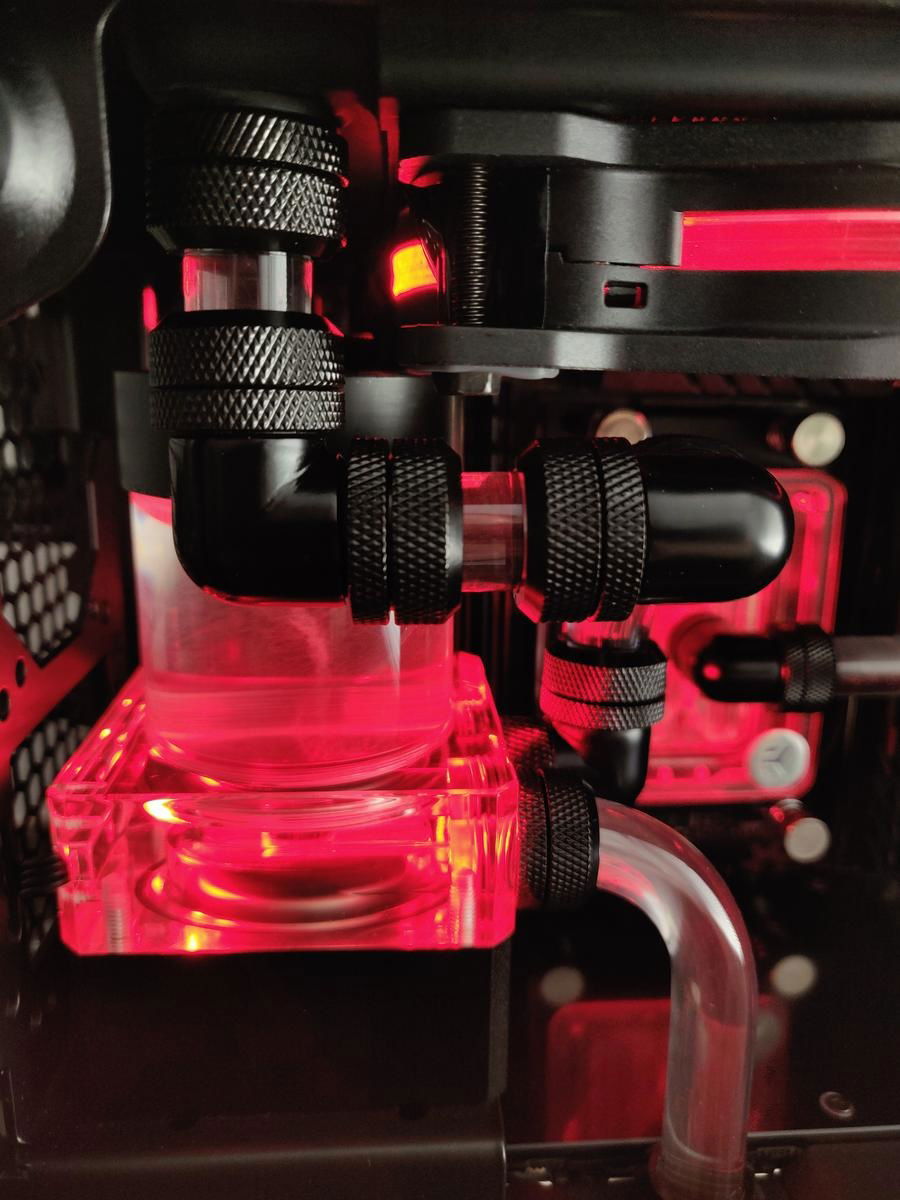

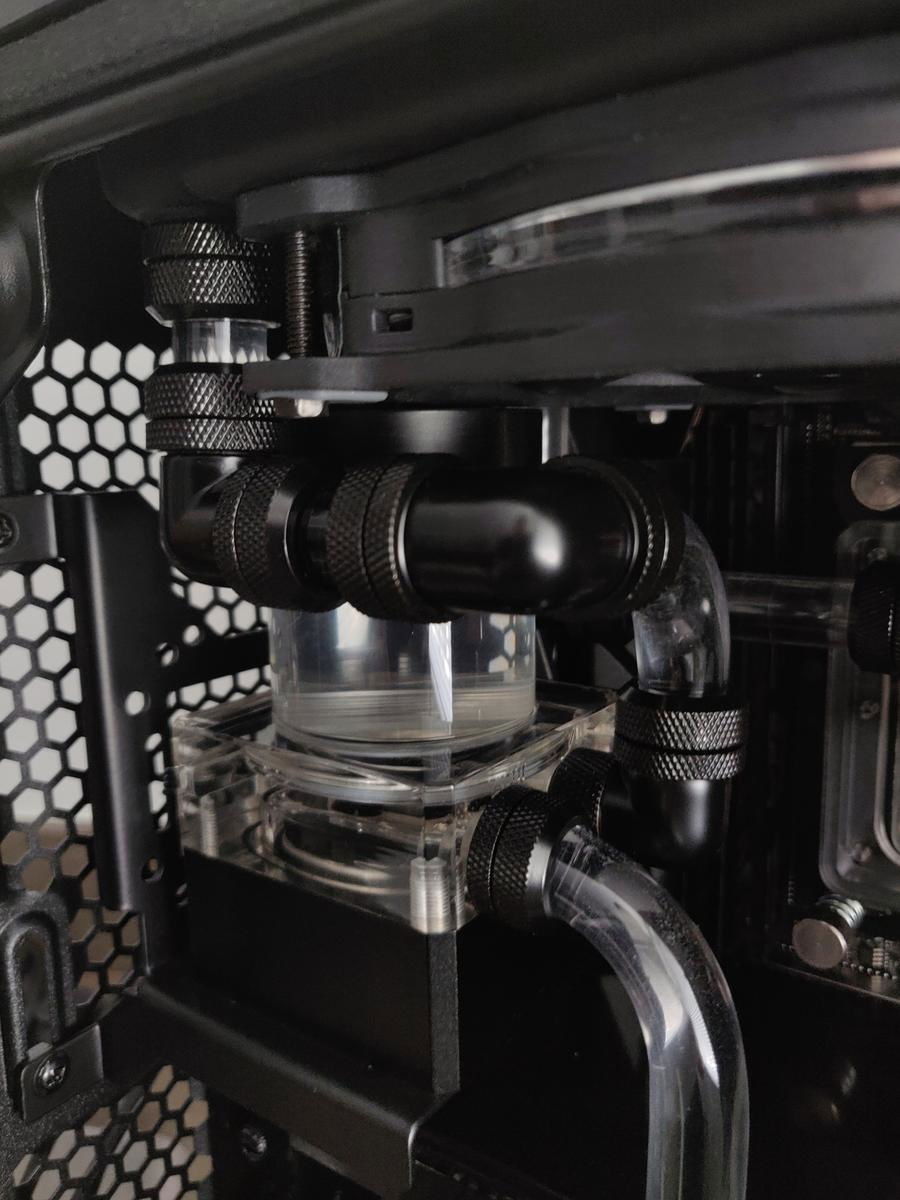

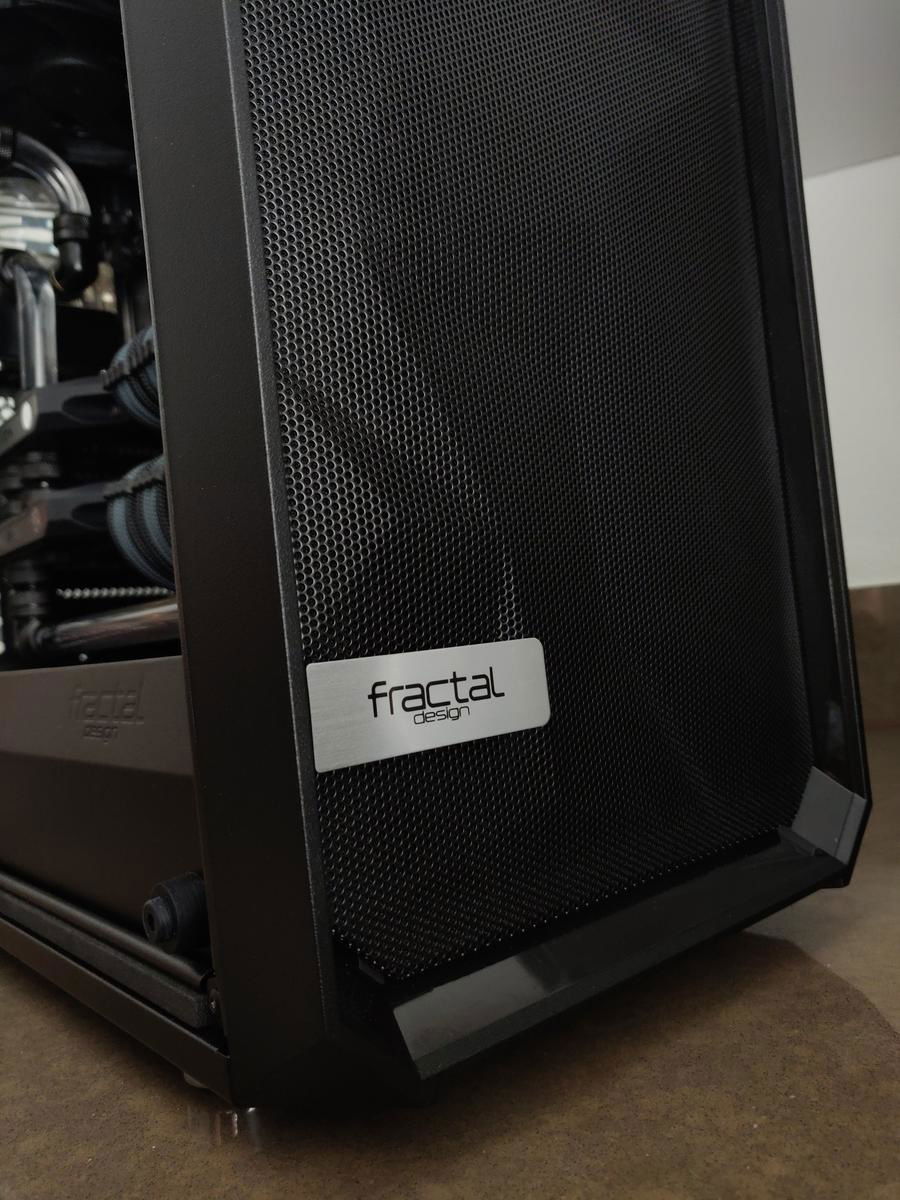

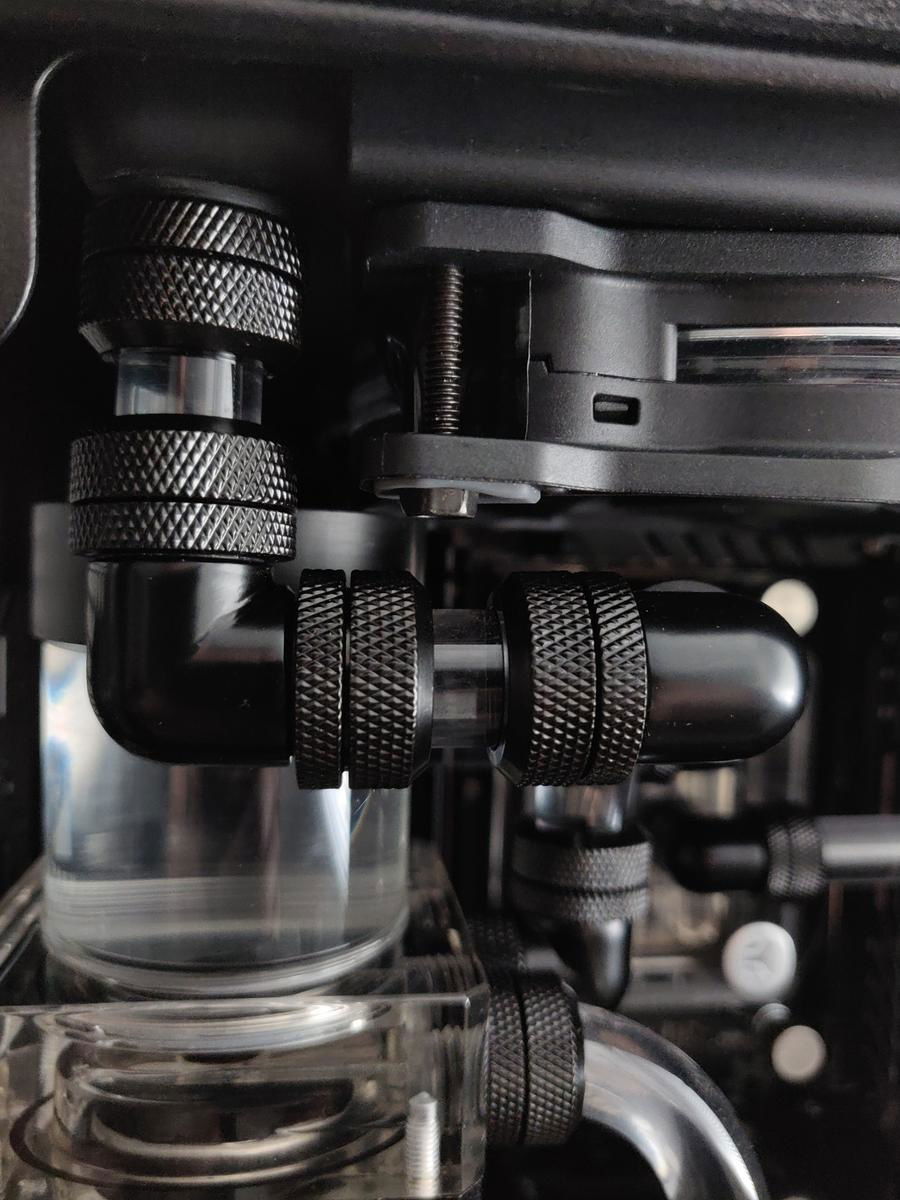

The build process went as expected, although it took me a little bit to get the bends correct for the inlet/outlet on the pump as it was my first time doing custom WC, let alone bending PETG. The Meshify C Mini was honestly a pleasure to work in & the Freezemod fittings just can't be beat for the price. I think I spent more time pre-planning the build so I didn't hit any snags than actually building it, nevertheless, everything turned out great :)

Overclocking/Temps:

2950X: Full load after 2 hours = 55C w/4.175ghz all-core PBO , 57C with manual 4.3ghz all-core 1.4v

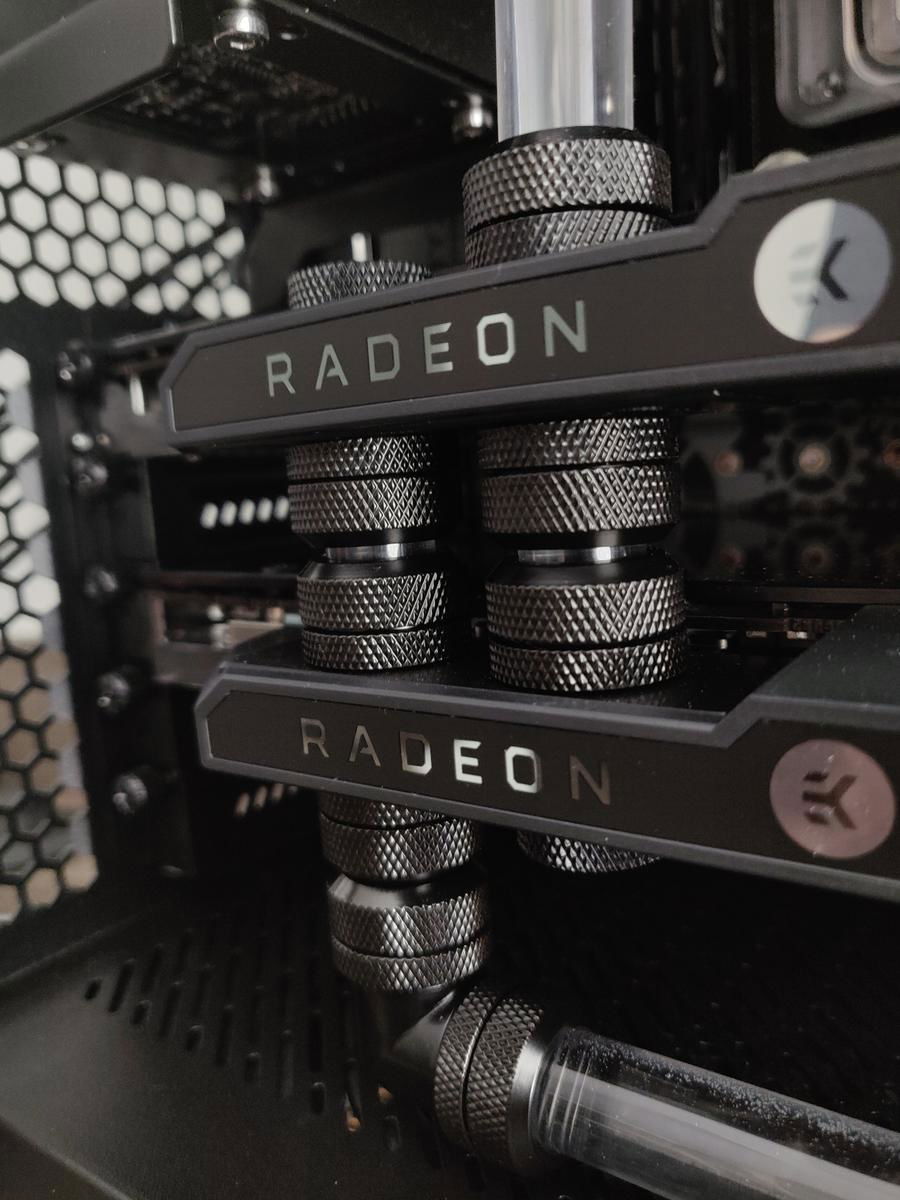

Vega 64 crossfire: 4K ROTTR max settings after 2 hours 50c/45c (Undervolted core to 1.1v, hovers around 1710mhz w/ hbm @ 1150mhz w/ LC BIOS)

XPG D10 32GB: So far I've reached 3400mhz stable @ the stock timings. Needing only 4 dimms to populate all the slots on the Asrock X399M definitely helps out. I think I have some more room to spare, so I'll see where I can get with the timings etc

Edit: Sorry for the smallish pictures. Guess the ratio on here is different. I'll try to fix!
Color(s): Black Silver
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 1,075.00
AMD - Threadripper 2950X
Socket: TR4
Cores: 16
Motherboard
$ 388.79
ASRock - Taichi (X399M)
Chipset: X399
CPU Socket: TR4
Size: Micro-ATX
Memory
ADATA - XPG Gammix D10
Type: DDR4
Capacity: 8 GB
Memory
ADATA - XPG Gammix D10
Type: DDR4
Capacity: 8 GB
Memory
ADATA - XPG Gammix D10
Type: DDR4
Capacity: 8 GB
Memory
ADATA - XPG Gammix D10
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,389.00
POWERCOLOR - Reference
Chip Manufacturer: AMD
Chip: Vega 64
Graphics
$ 1,389.00
POWERCOLOR - Reference
Chip Manufacturer: AMD
Chip: Vega 64
Storage
$ 161.00
Western Digital - WD Black
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
EVGA - SuperNOVA 1300
Wattage: 1300
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 194.50
Fractal Design - Meshify C Mini - Dark TG
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 28.99
Case Fan
$ 28.99
Case Fan
$ 28.99
Case Fan
$ 28.99
Cooling
$ 209.99
EKWB - EK-FC Radeon Vega RGB - Nickel
Type: GPU Waterblock
Cooling
$ 209.99
EKWB - EK-FC Radeon Vega RGB - Nickel
Type: GPU Waterblock
Cooling
EKWB - EK-Supremacy sTR4 RGB - Nickel
Type: CPU Waterblock
Cooling
$ 66.61
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 66.61
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
