The smallest Core i7 powered PC
ISO
Welcome to project ISO, a custom built Gigabyte BRIX powered mini PC with Core i7 CPU!

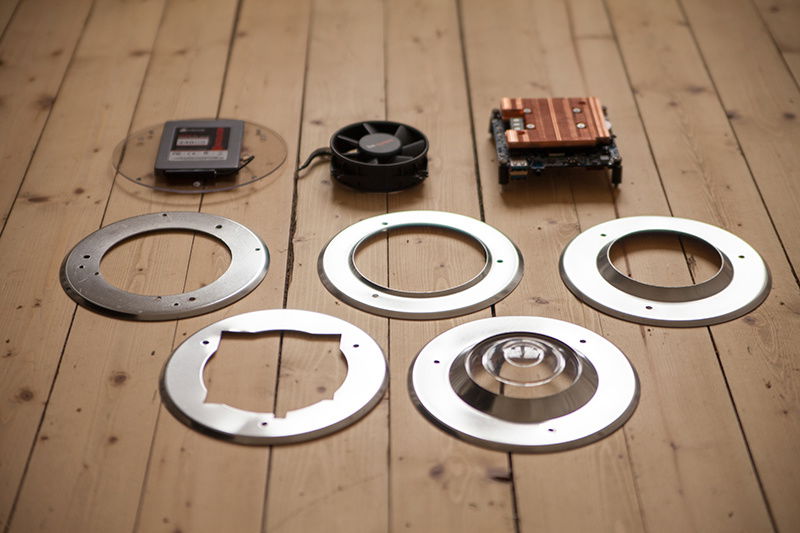

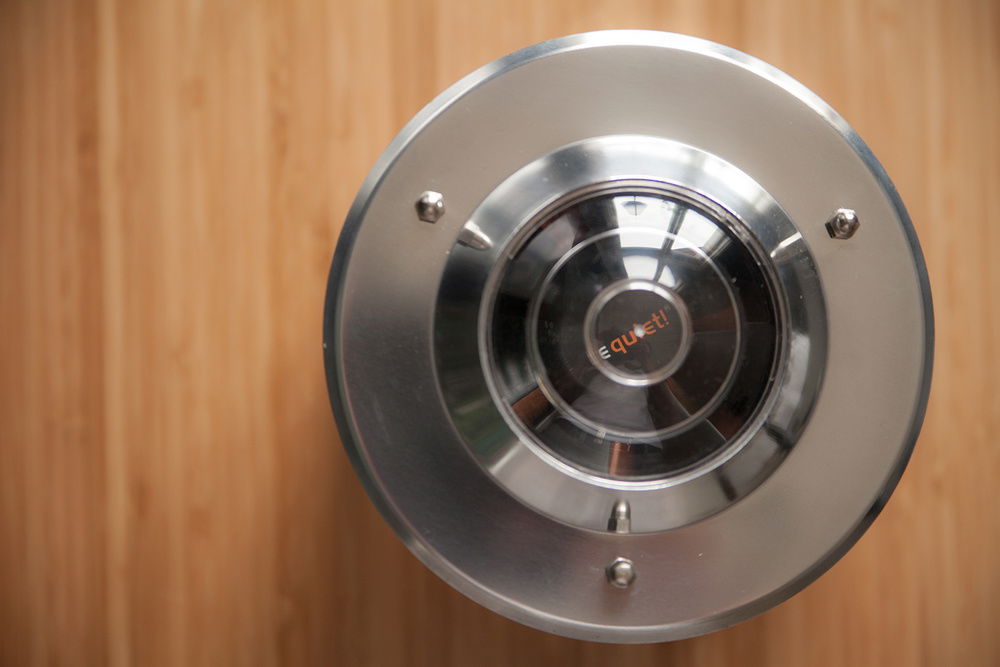

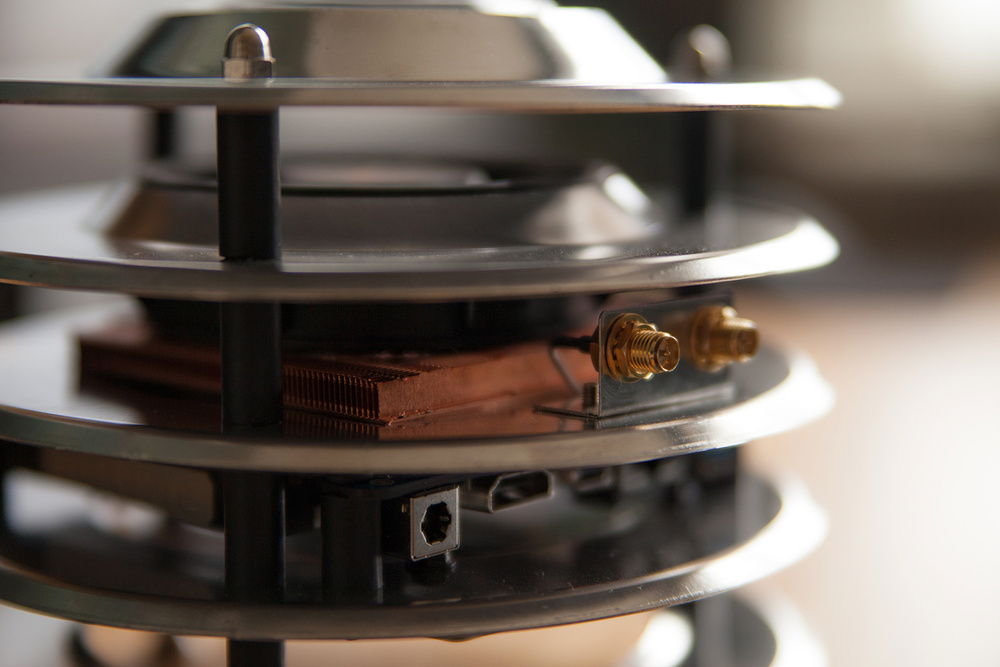

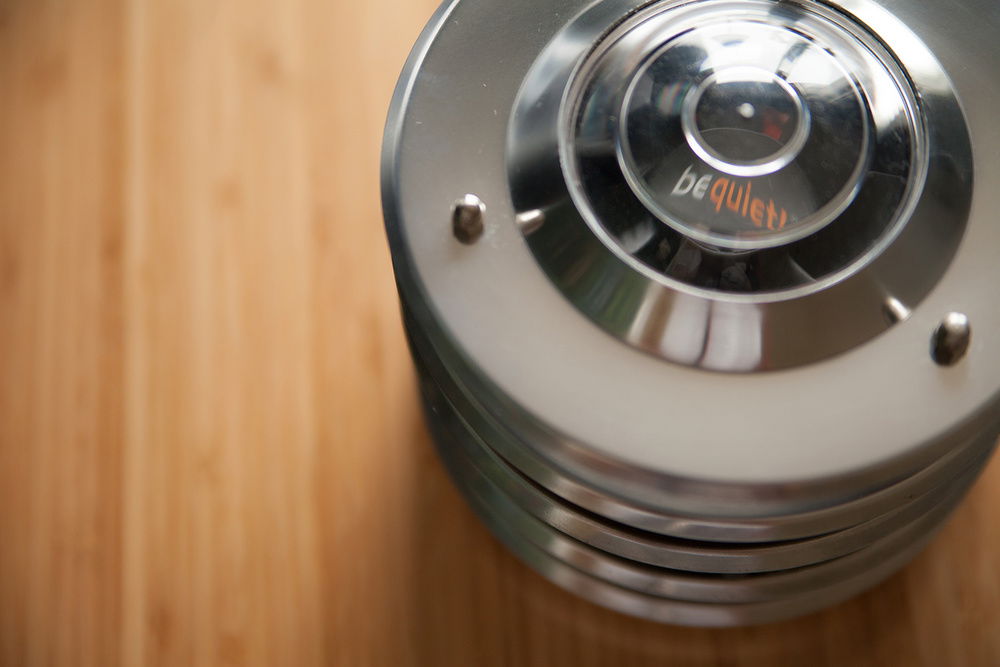

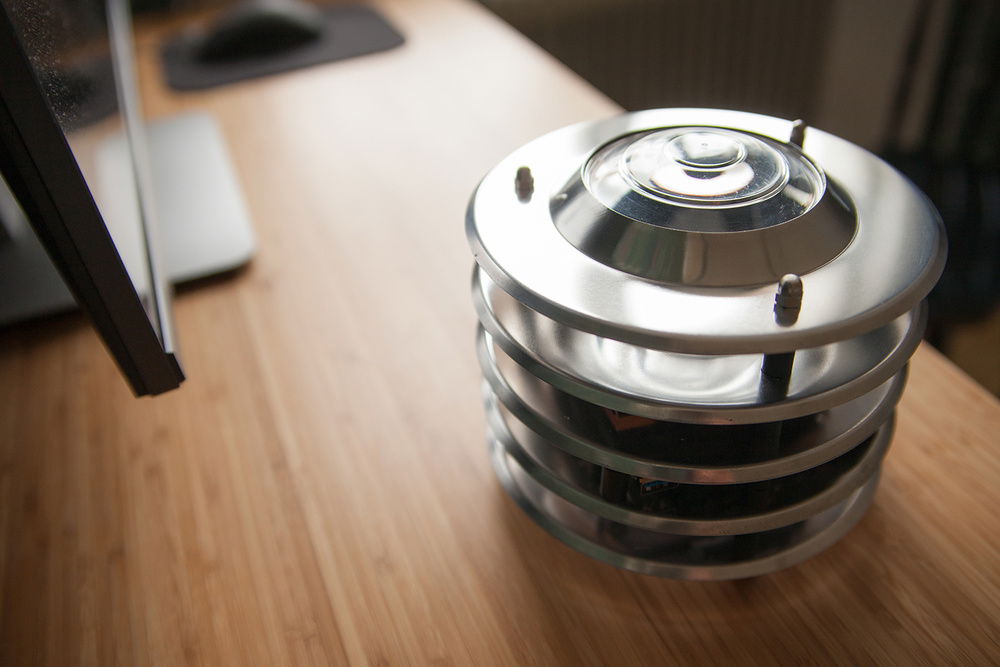

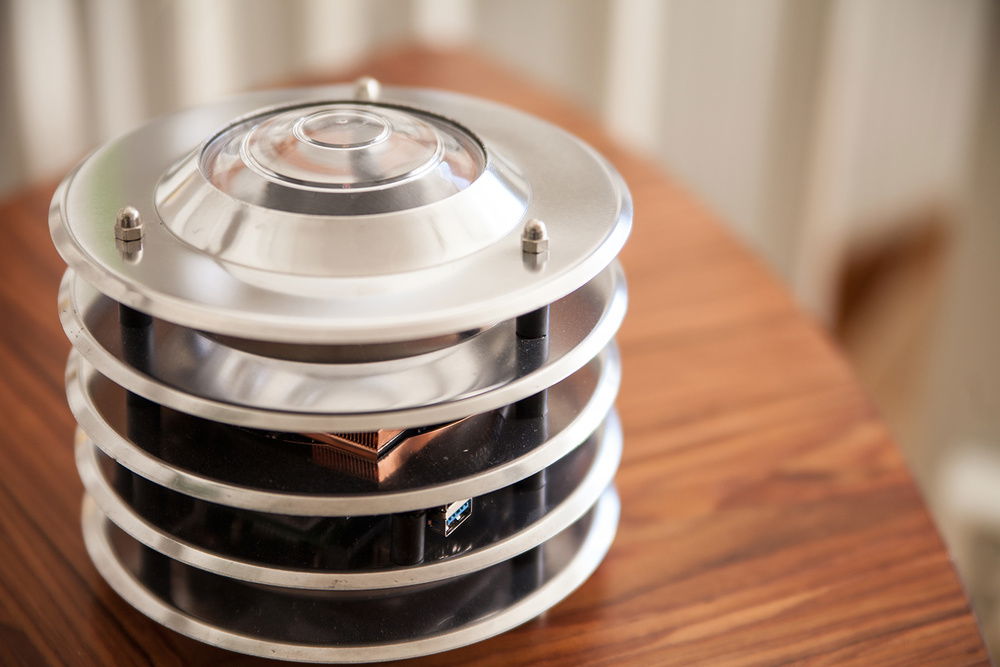

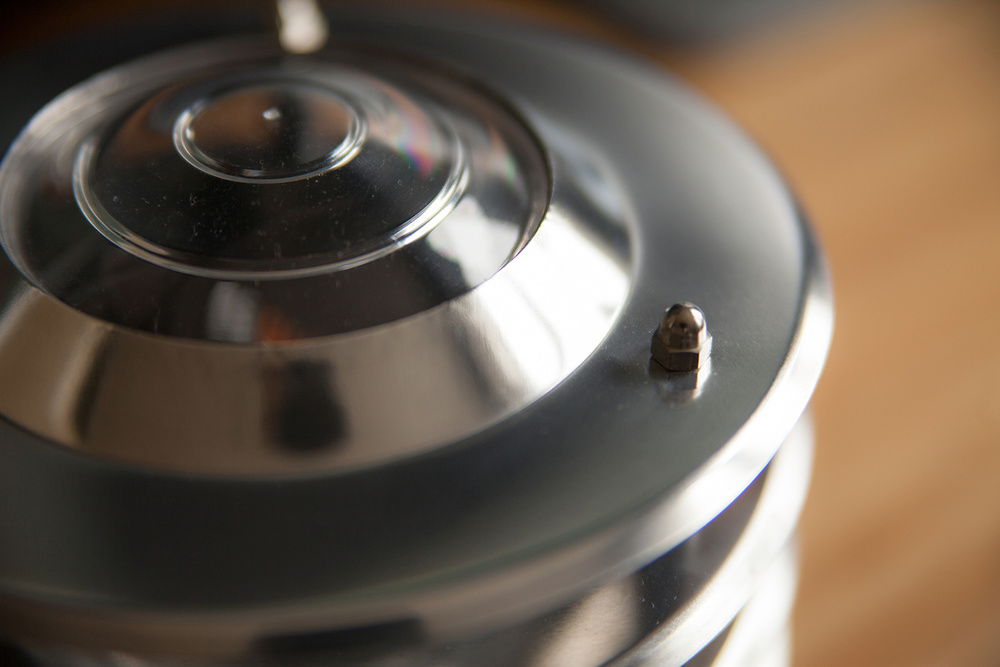

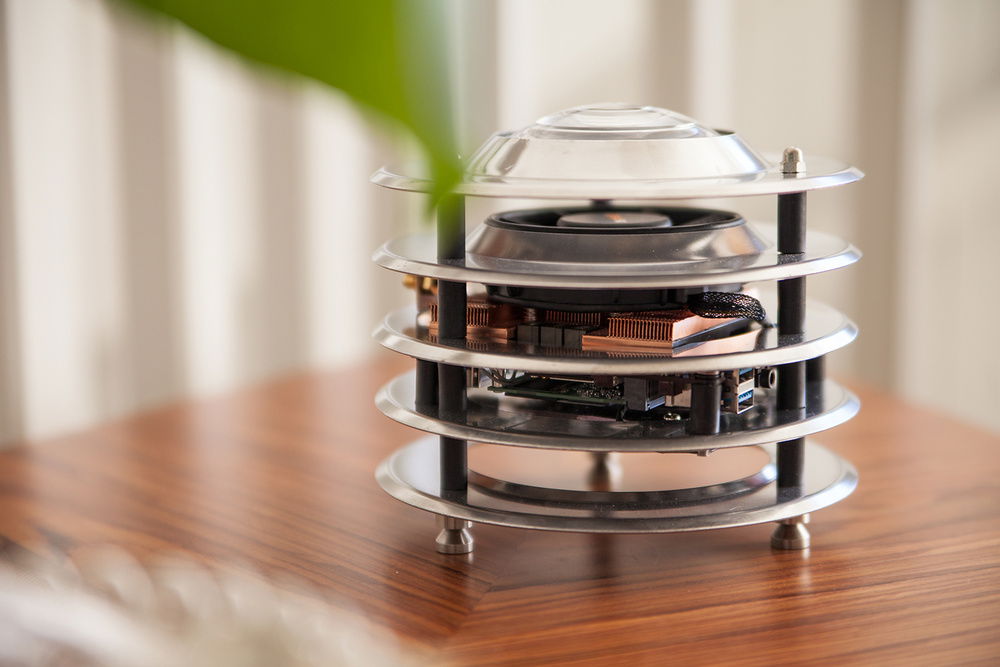

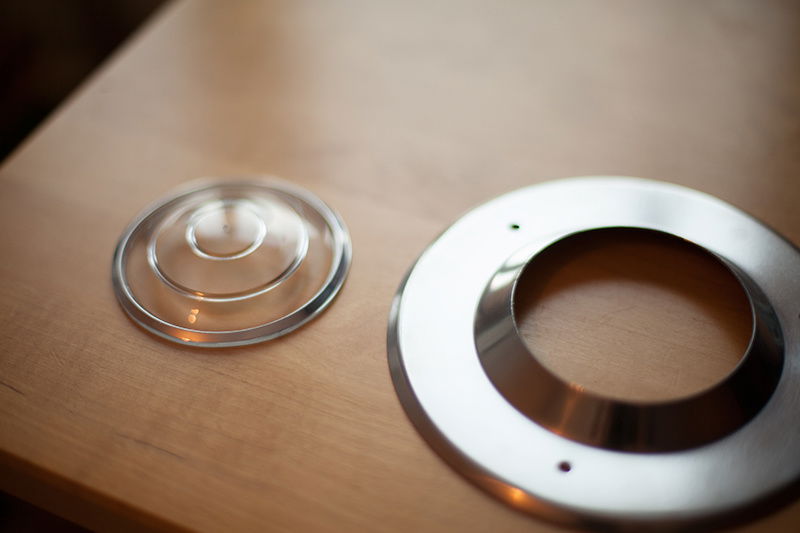

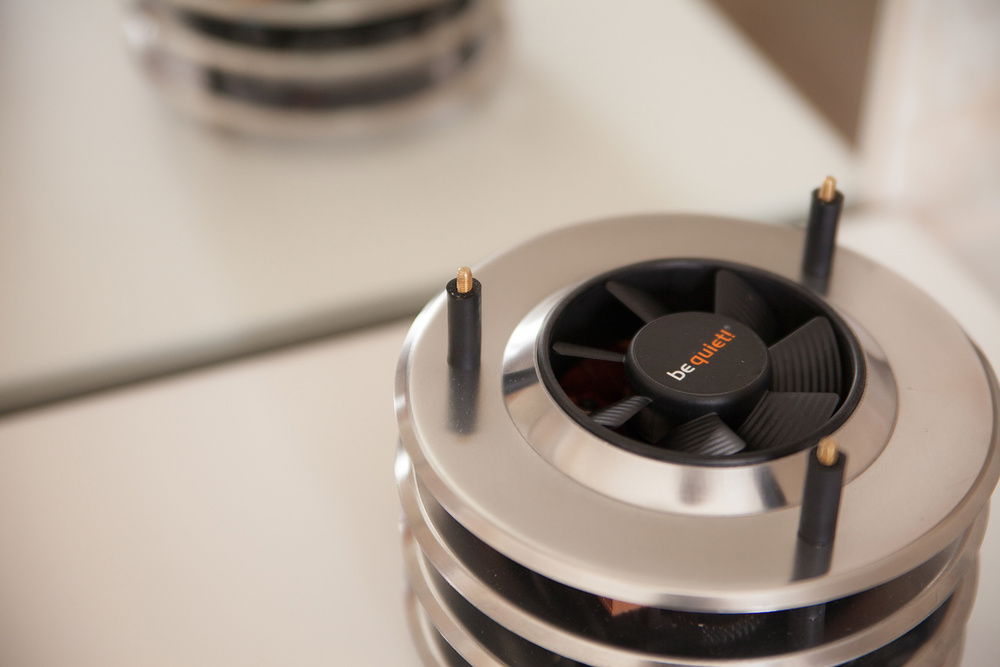

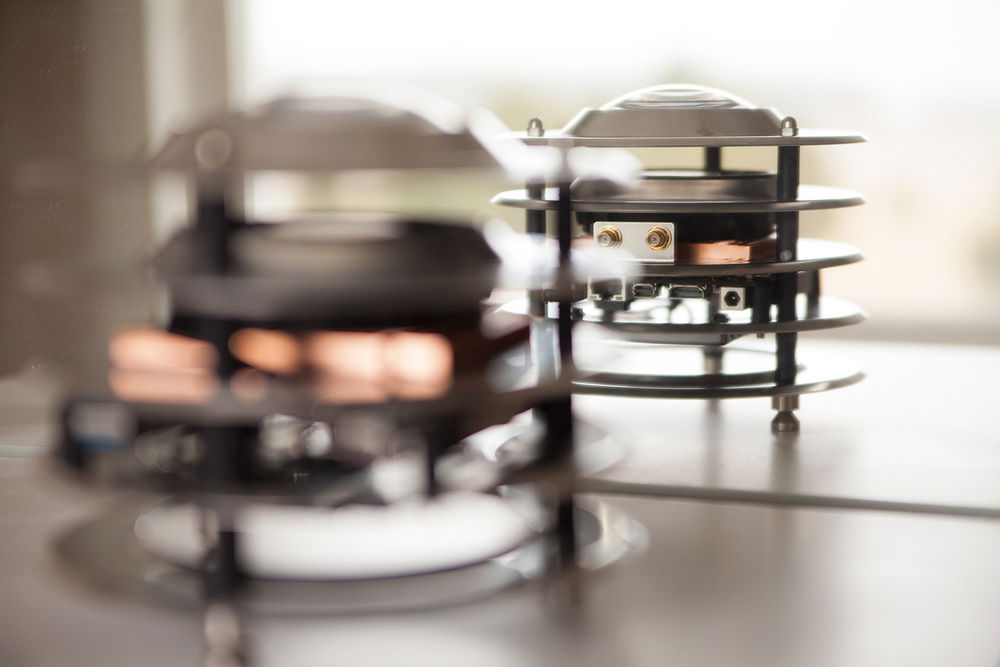

The case consists of 5 circular aluminum discs. Cooling is handled by an 80 mm Be quiet Silent Wings 2 together with original copper heatsink modded to be cooled in push configuration. The fan uses the original PWM/temp fan controller. A light touch on the middle plate activates the power button. Wi-Fi is expanded with connections for external antenna at the back. All connections, both front and rear, are fully accessible between the discs. The bottom disc features a mount for a single 2,5" SSD to add storage to the mSATA SSD mounted directly on the motherboard. A transparent dome at the top gives you a peek of the cooling solution.
The case consists of 5 circular aluminum discs. Cooling is handled by an 80 mm Be quiet Silent Wings 2 together with original copper heatsink modded to be cooled in push configuration. The fan uses the original PWM/temp fan controller. A light touch on the middle plate activates the power button. Wi-Fi is expanded with connections for external antenna at the back. All connections, both front and rear, are fully accessible between the discs. The bottom disc features a mount for a single 2,5" SSD to add storage to the mSATA SSD mounted directly on the motherboard. A transparent dome at the top gives you a peek of the cooling solution.
Color(s): Silver
RGB Lighting? No
Theme: Futuristic
Cooling: Air Cooling
Size: Mini-ITX
Type: General Build
Contests
This build participated in 2 contests.
| Rank | Contest | Date |
|---|---|---|
| #7 | SFFPC meets builds.gg Contest | ended |
| #39 | The builds.gg Stock Cooling Showdown - Air Cooling Division | ended |
Hardware
CPU
Motherboard
Memory
$ 87.95
Graphics
Storage
PSU
Case Fan
$ 18.80
