Industrial/Steampunk wooden/copper PC

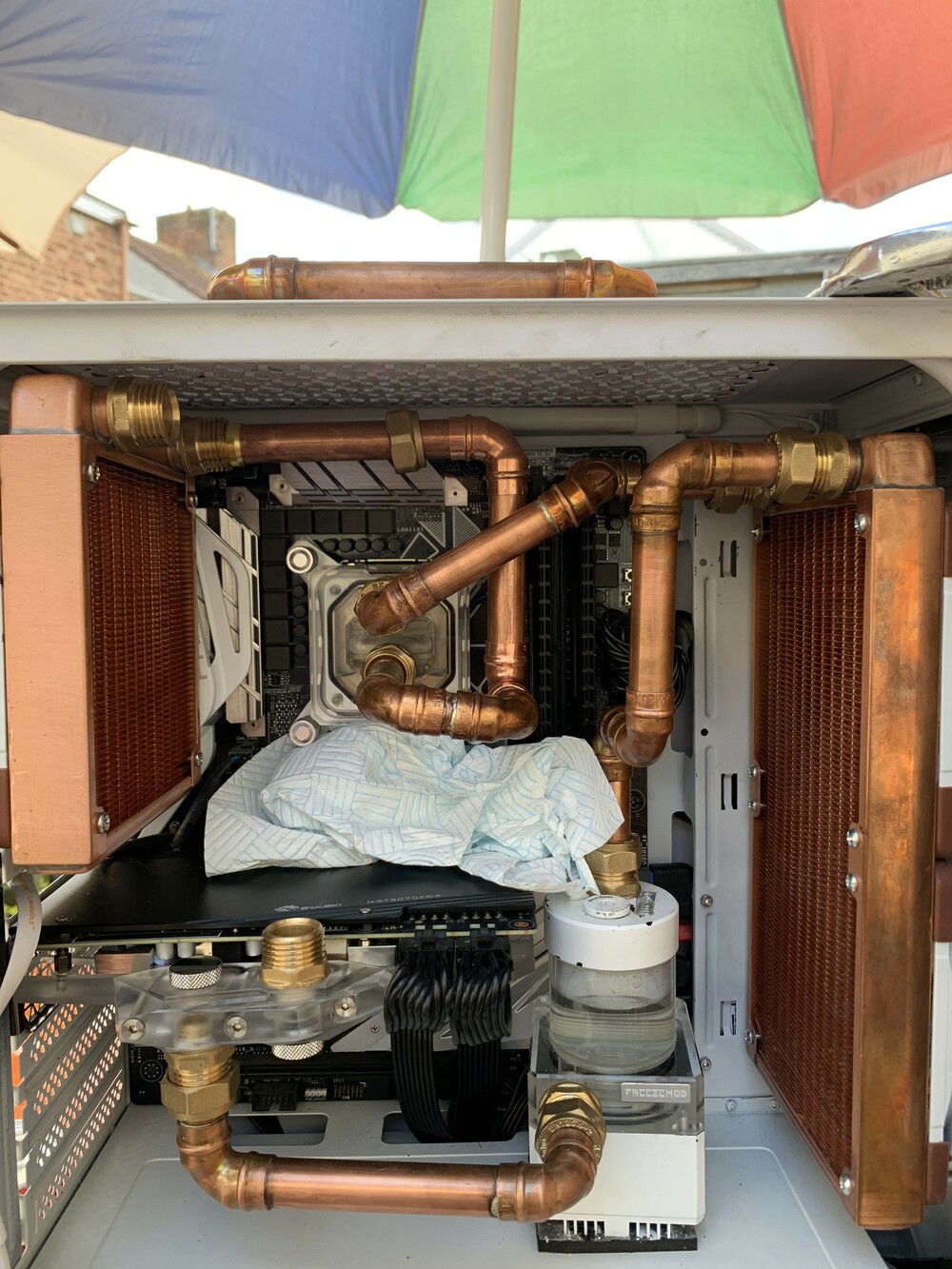

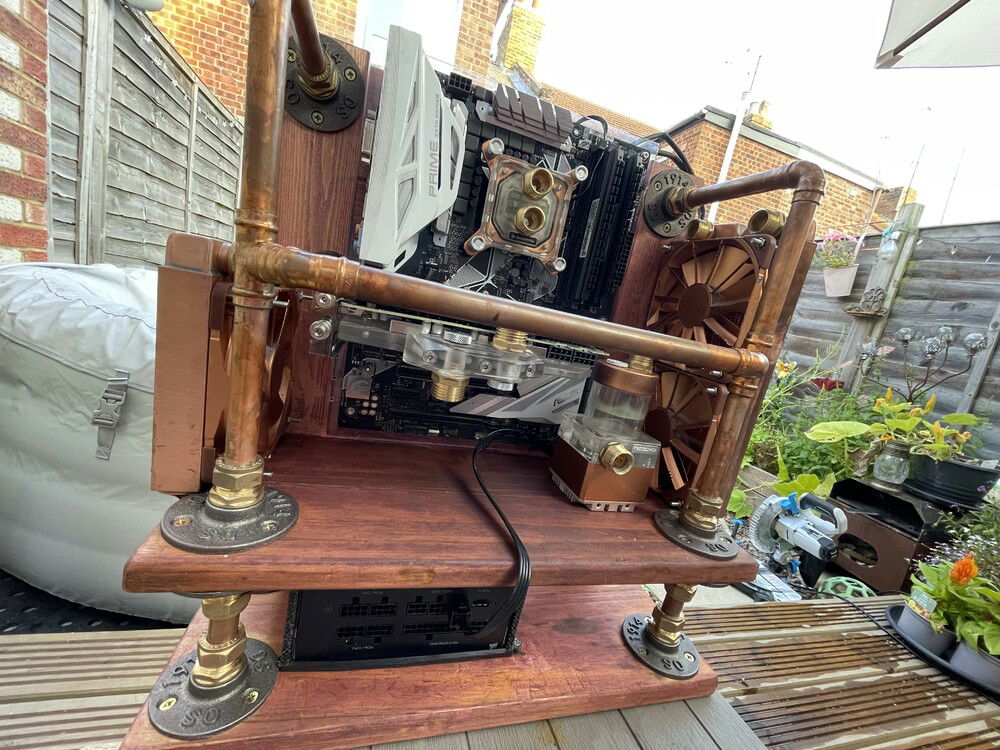

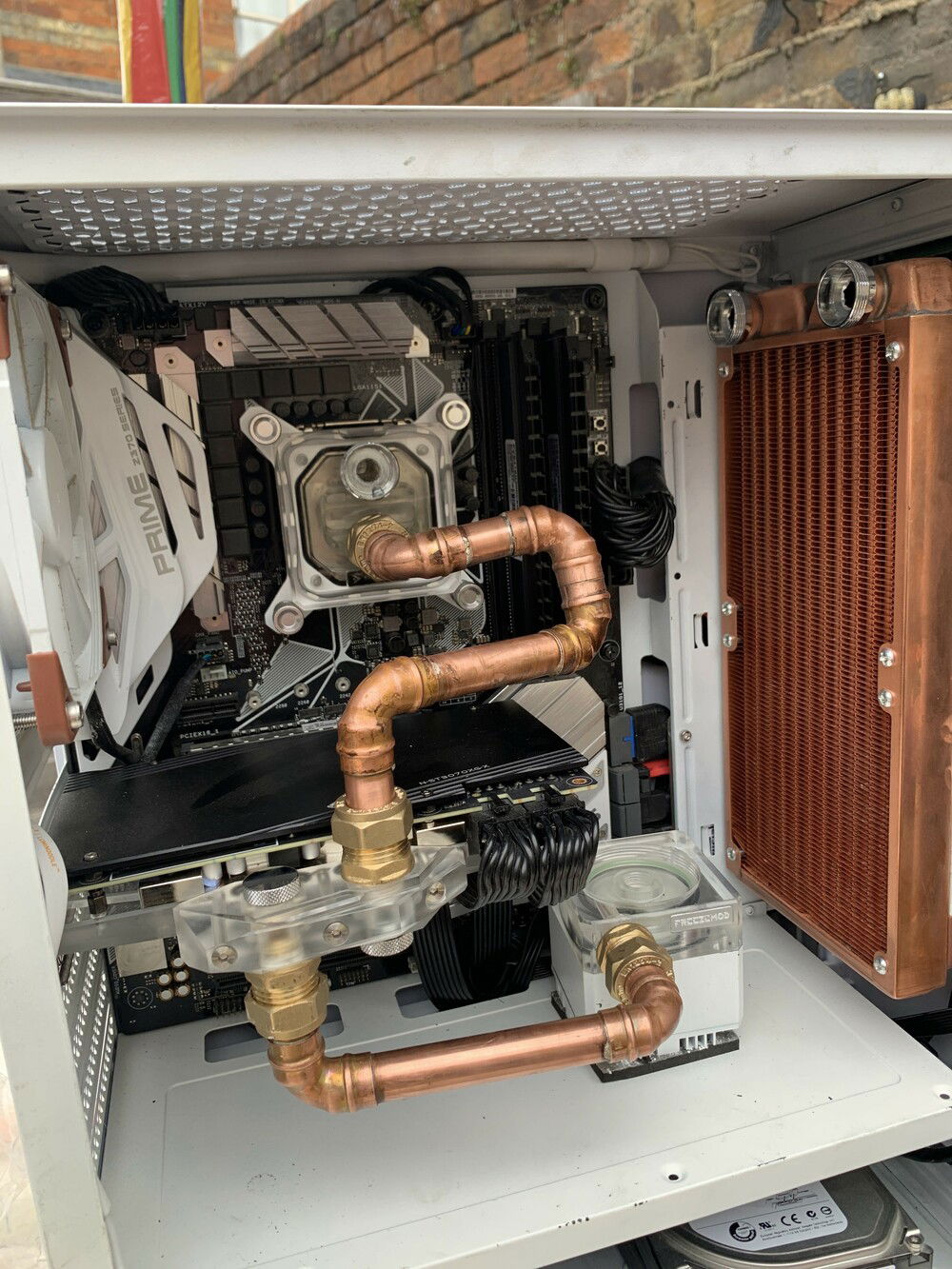

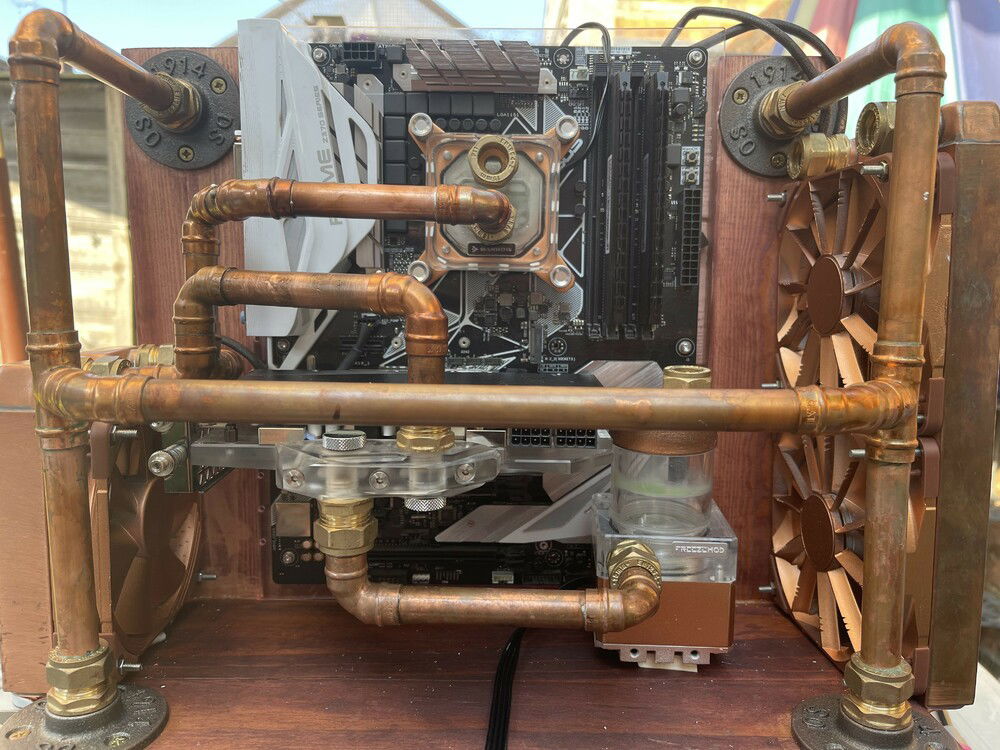

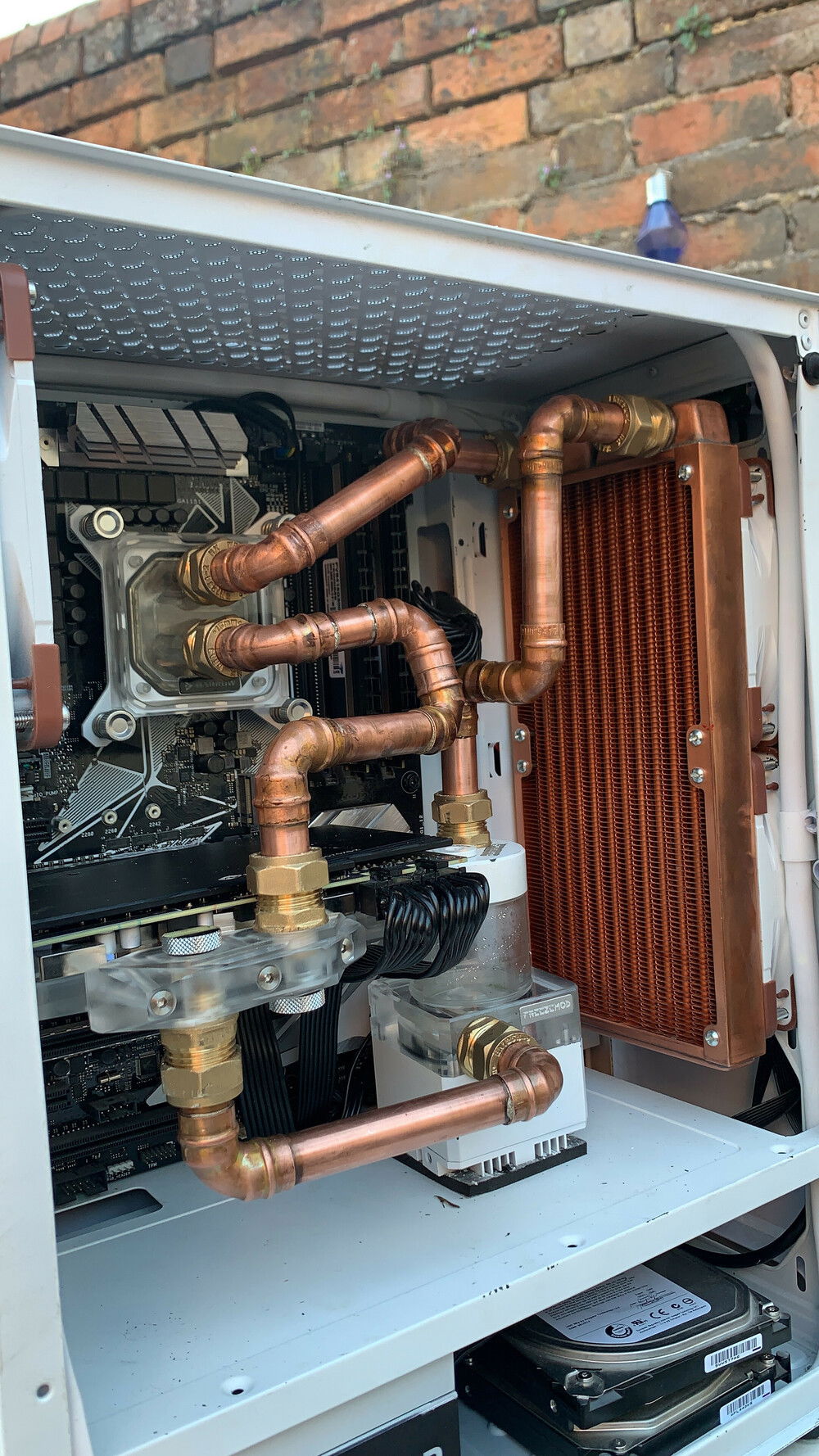

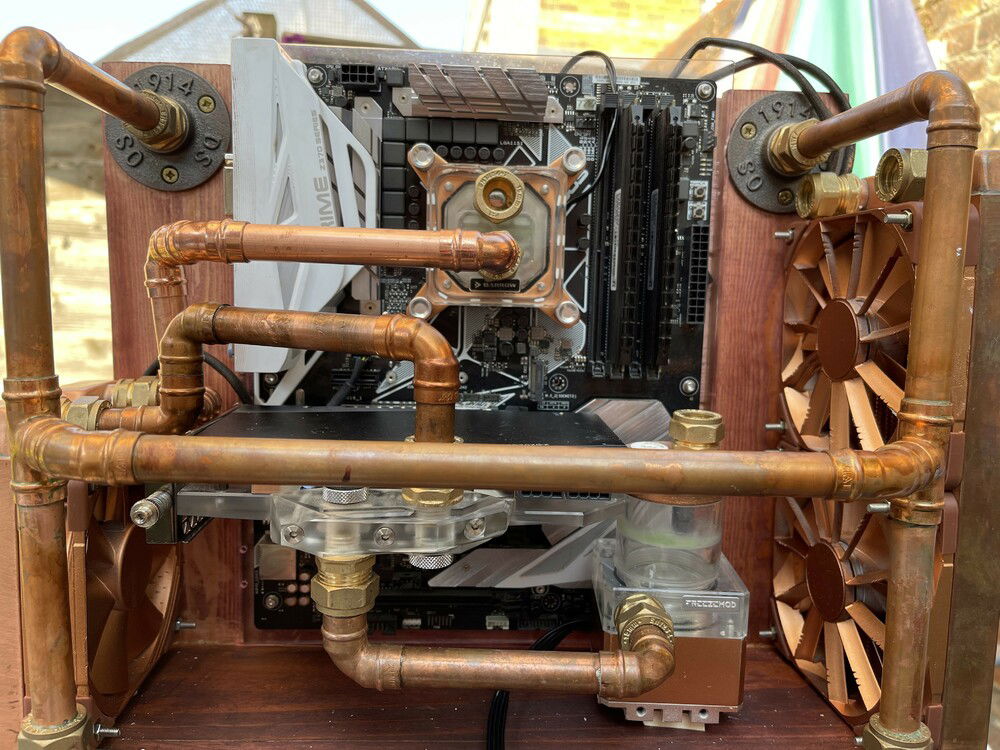

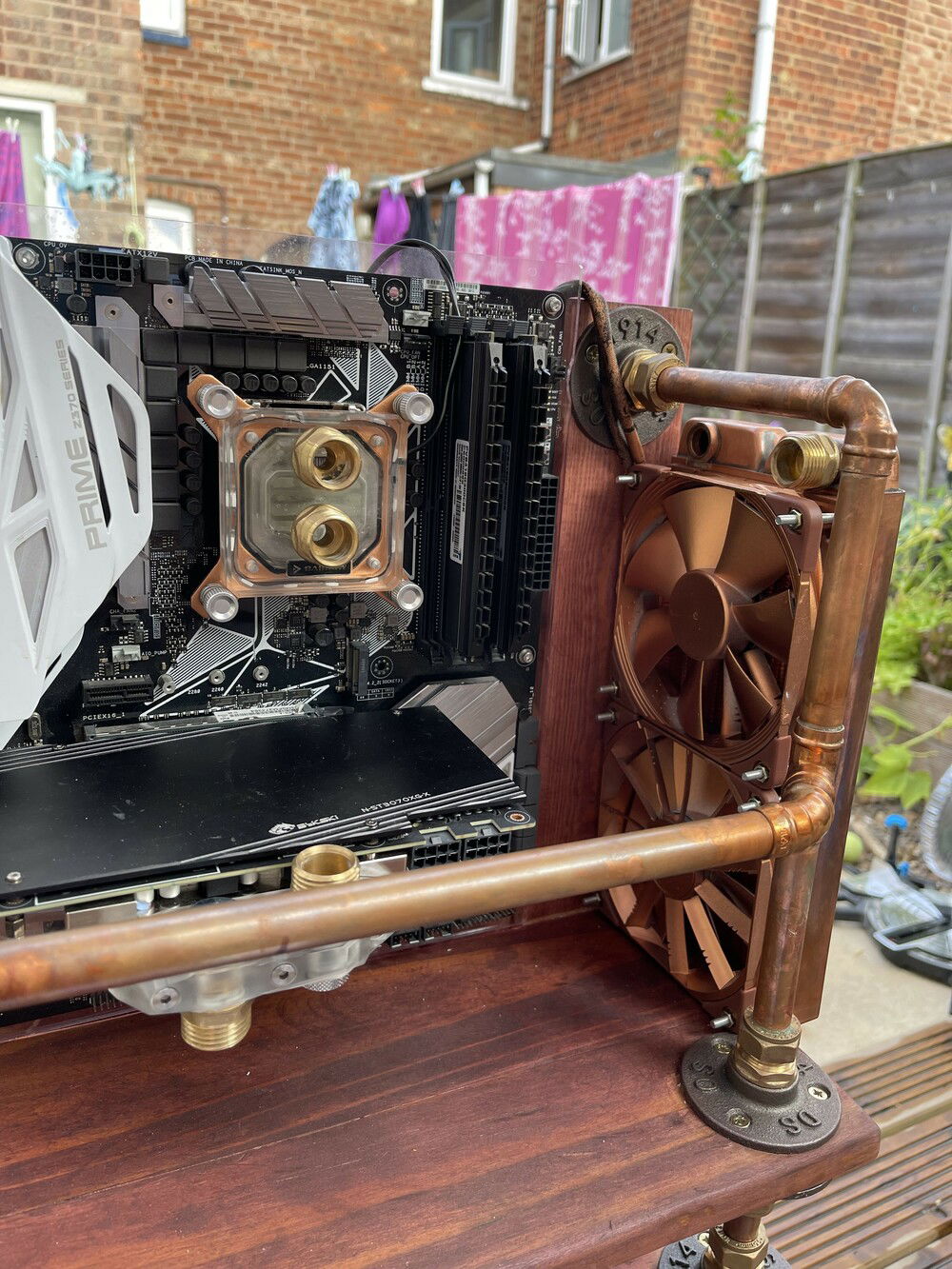

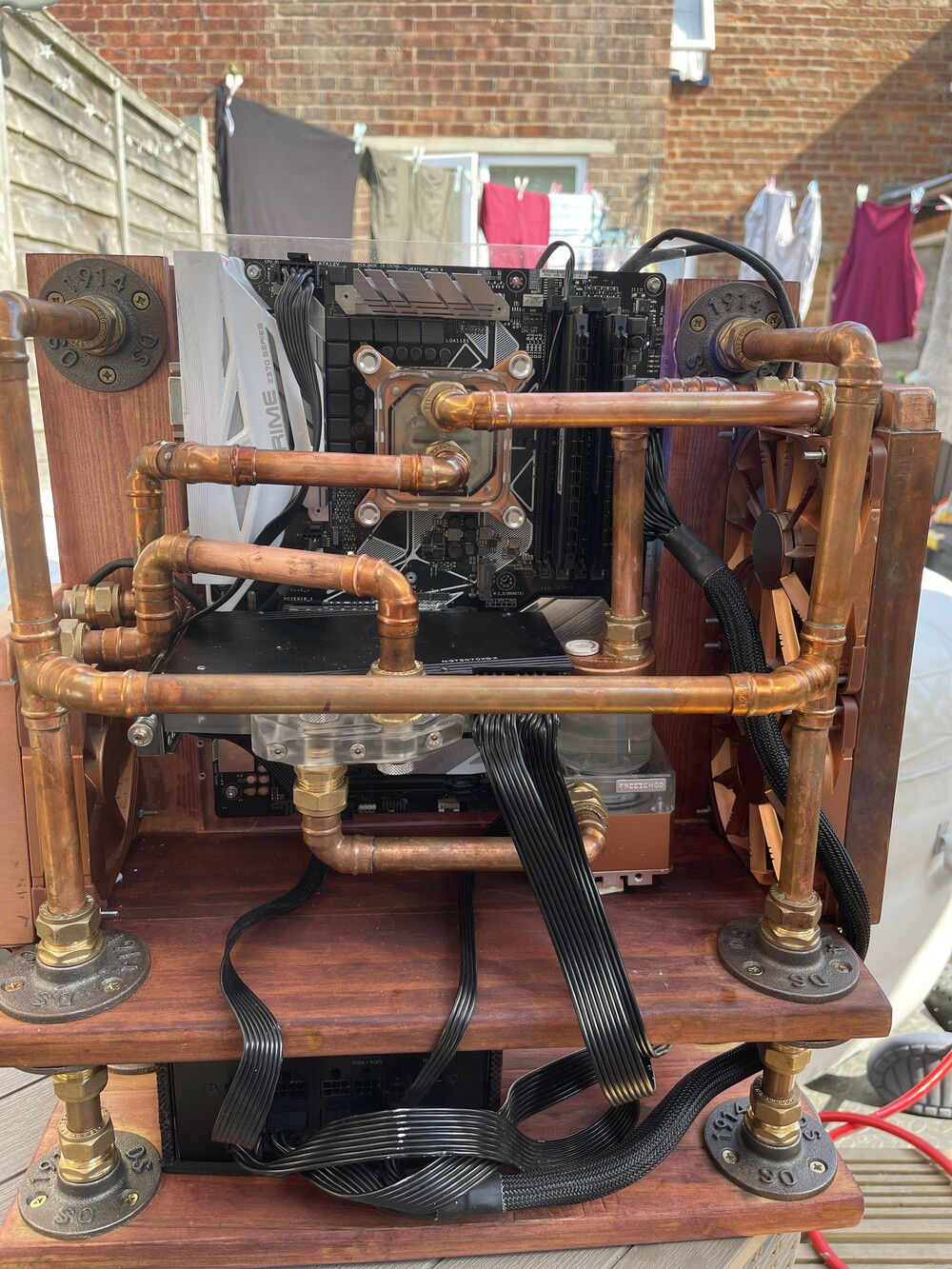

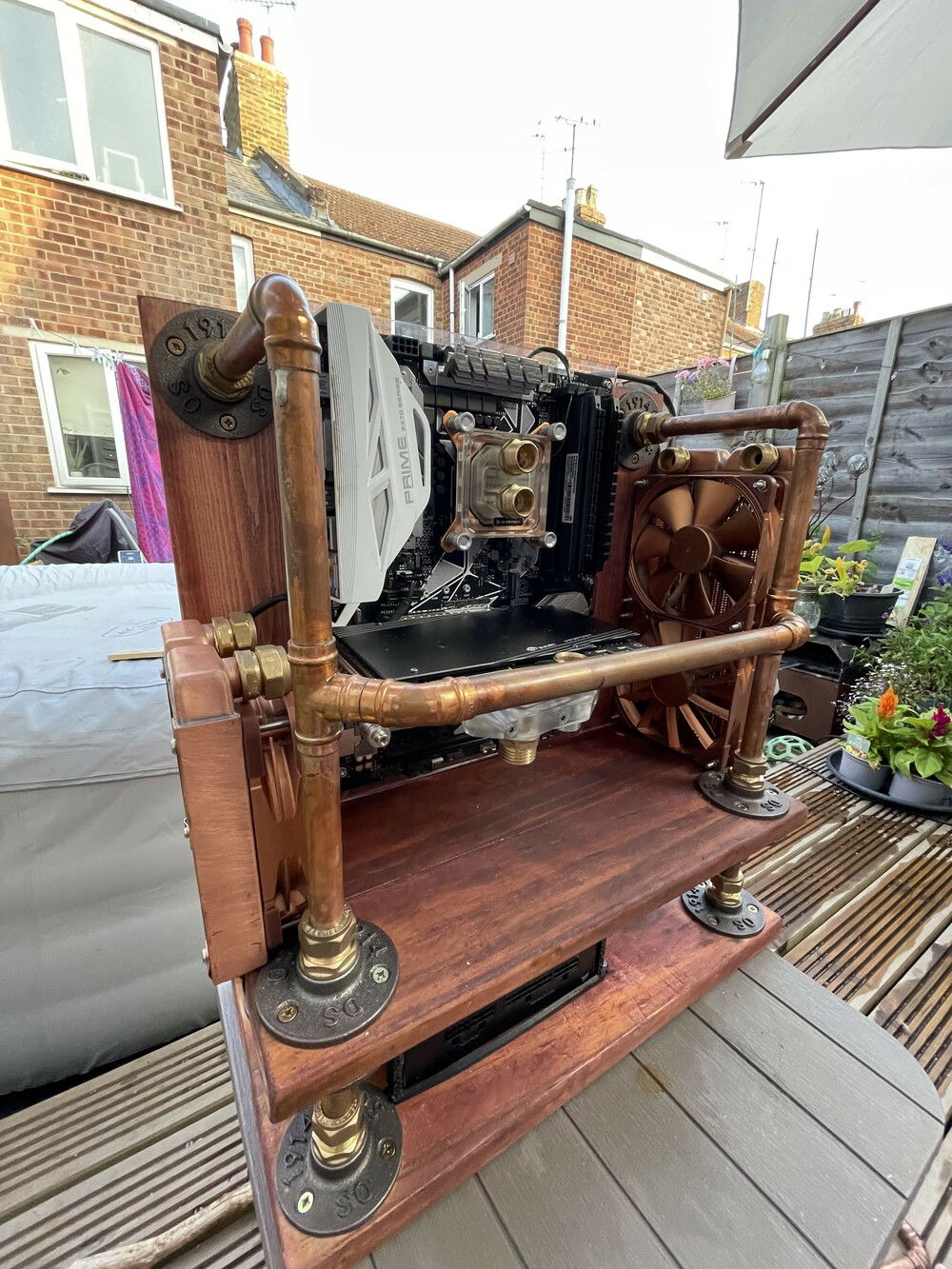

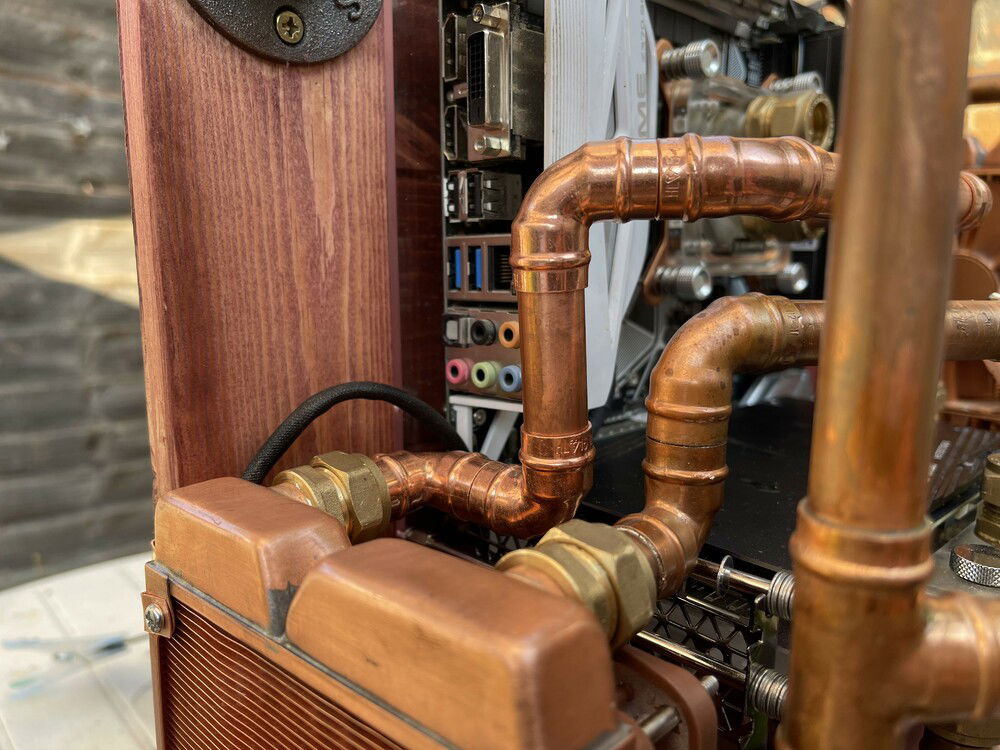

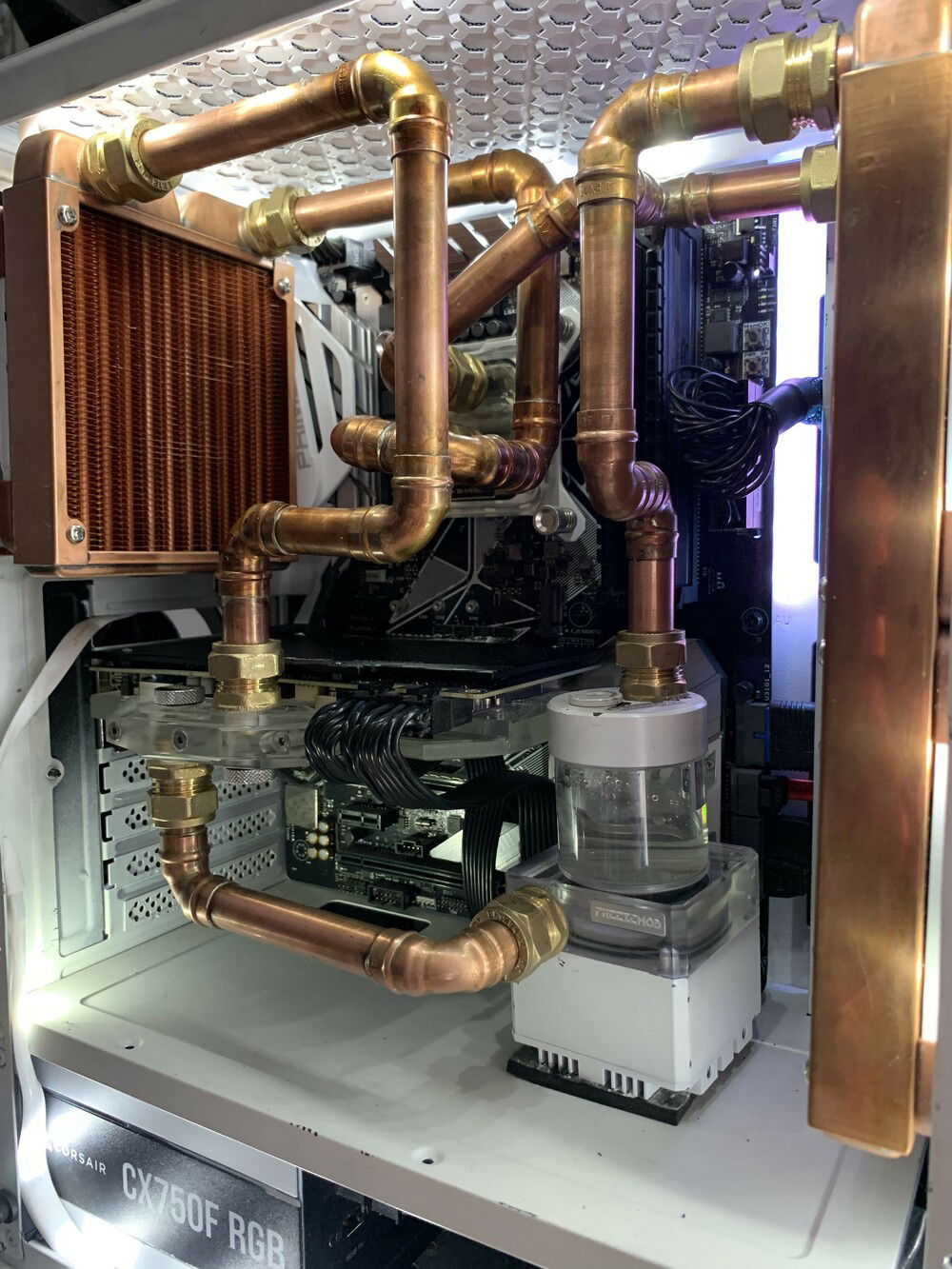

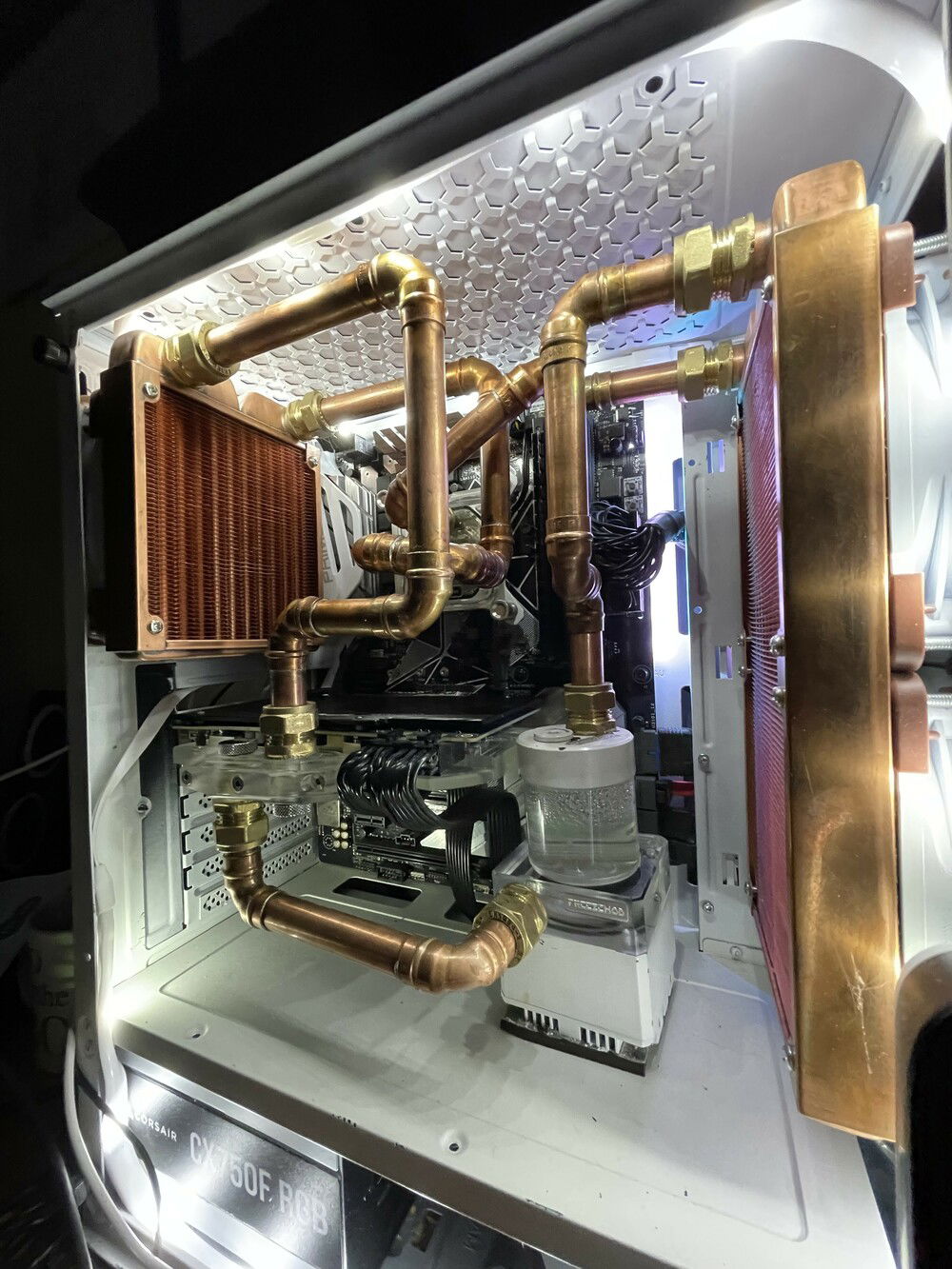

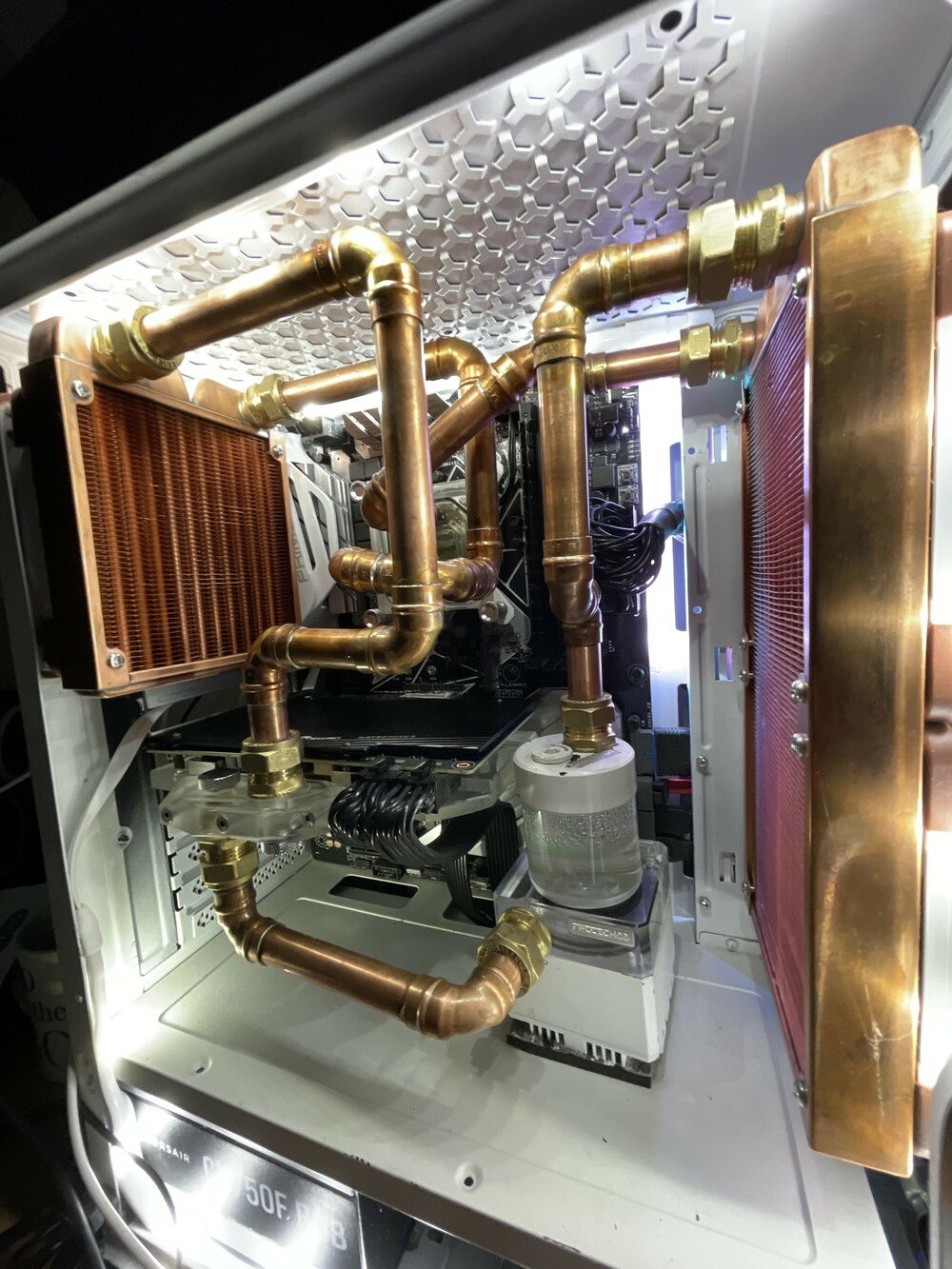

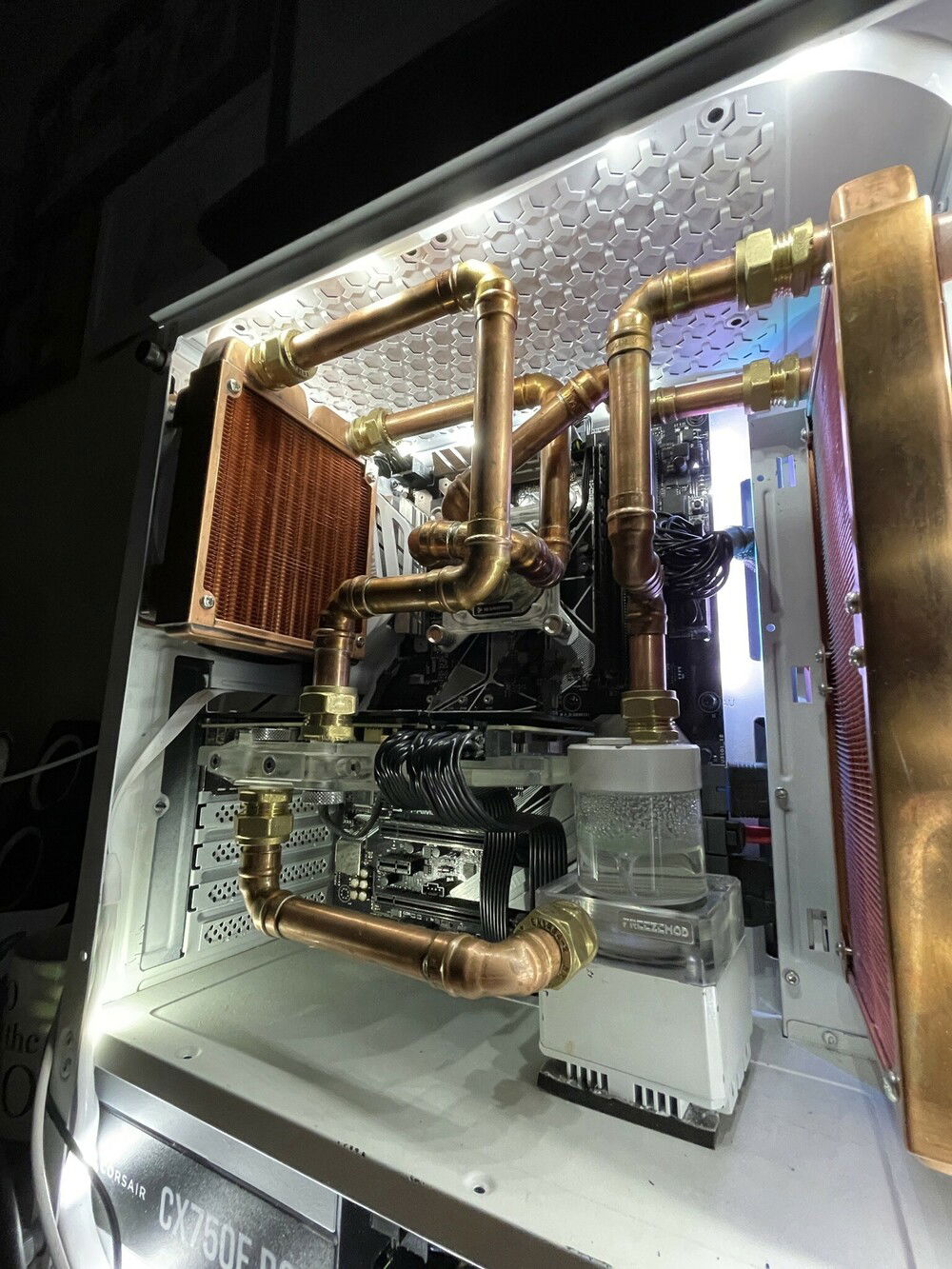

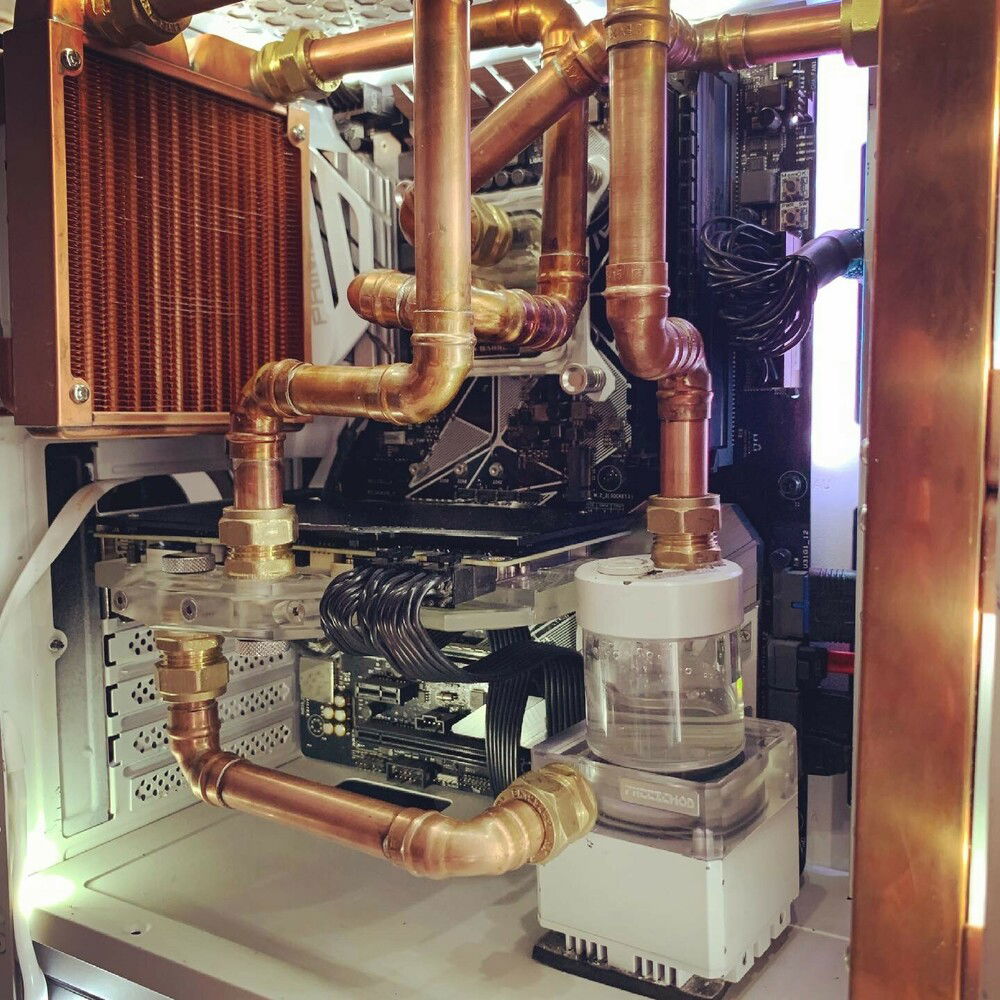

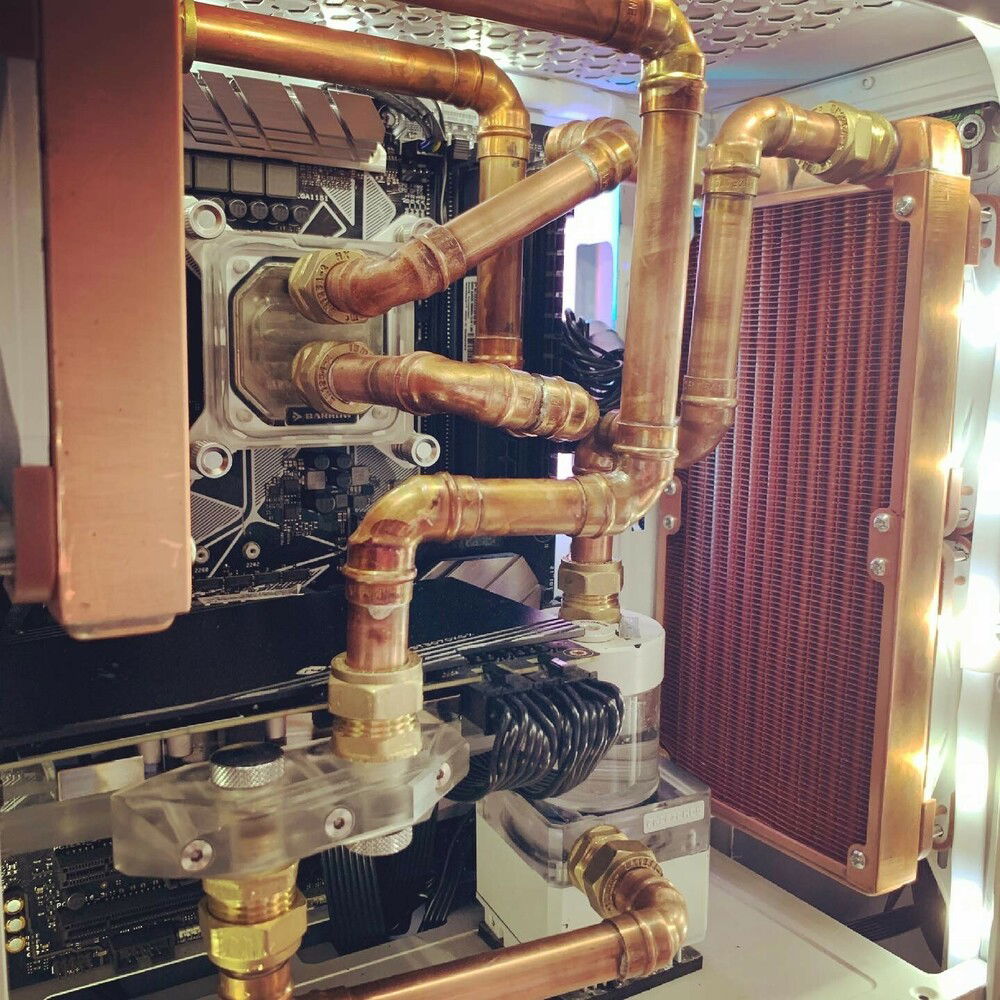

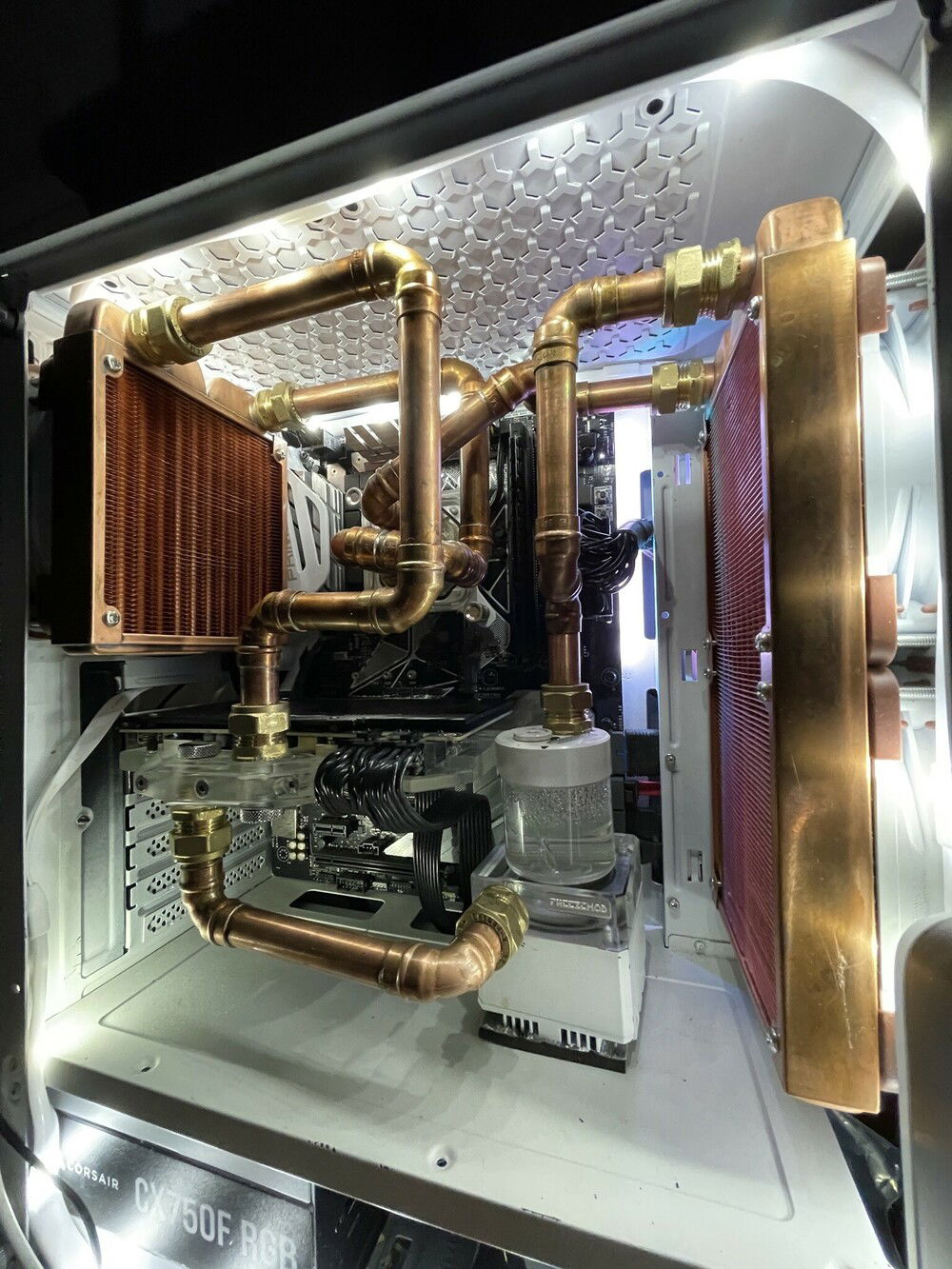

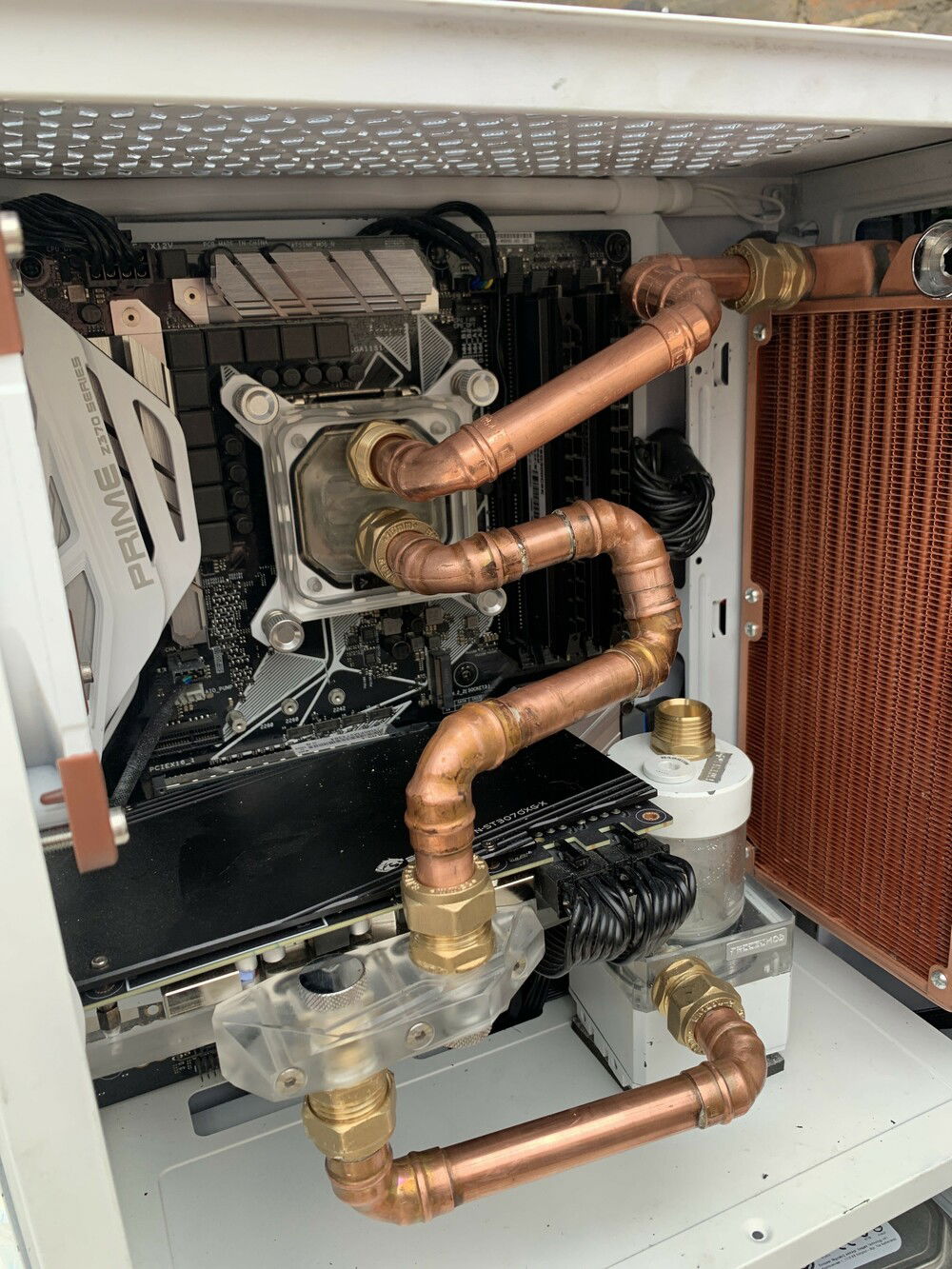

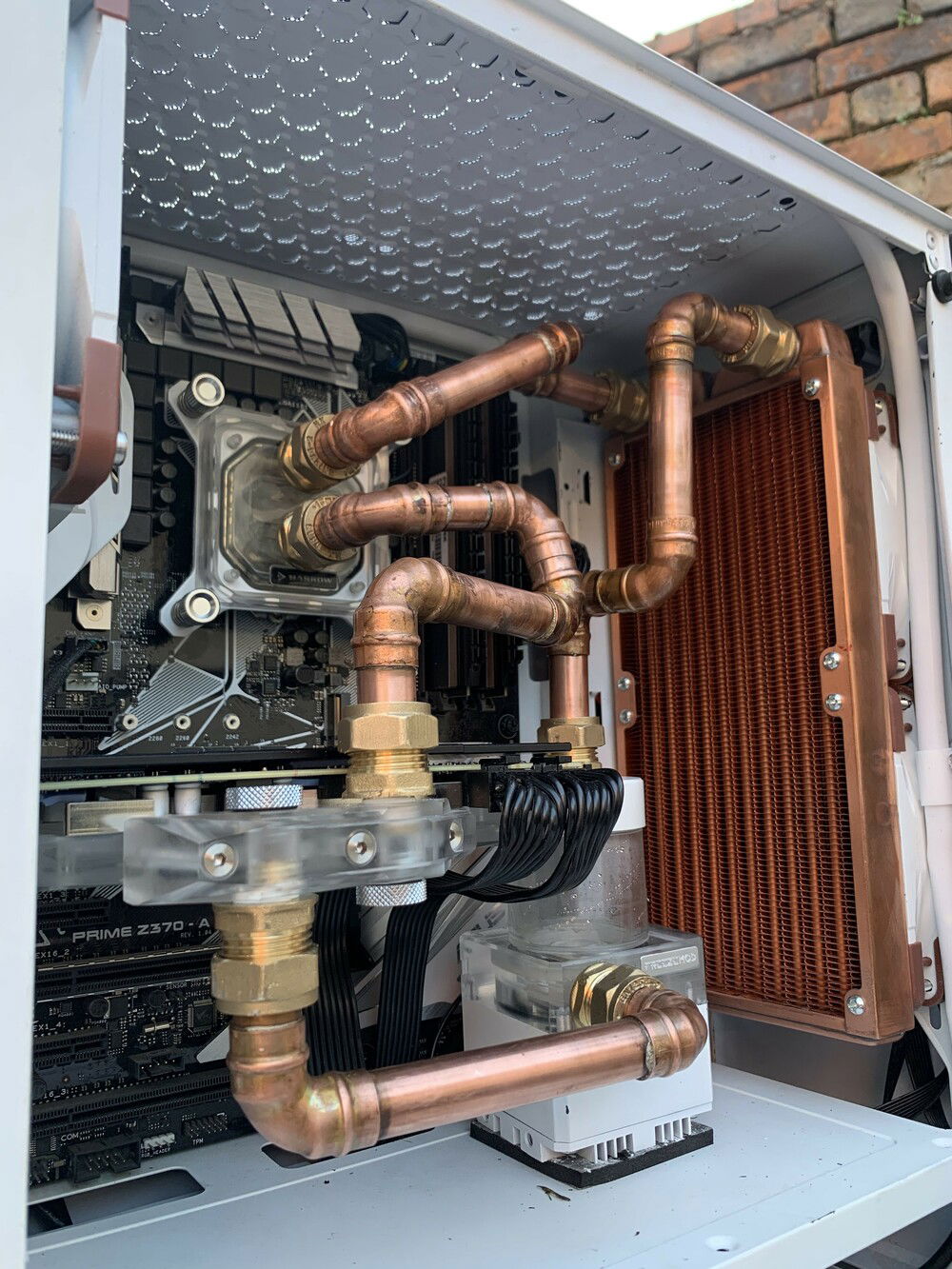

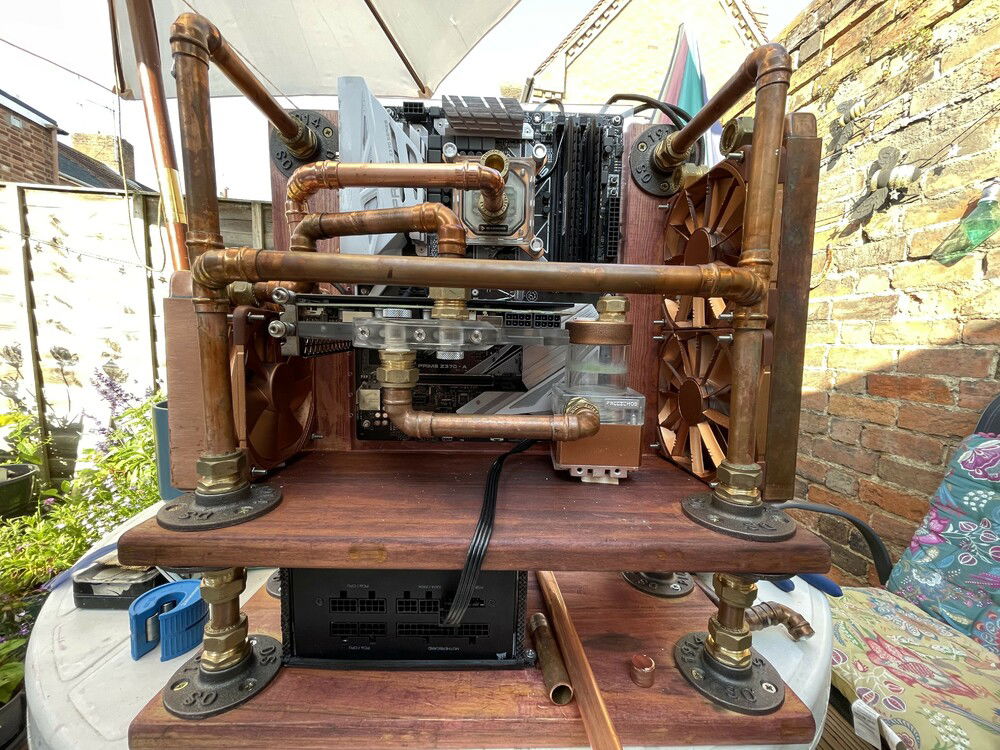

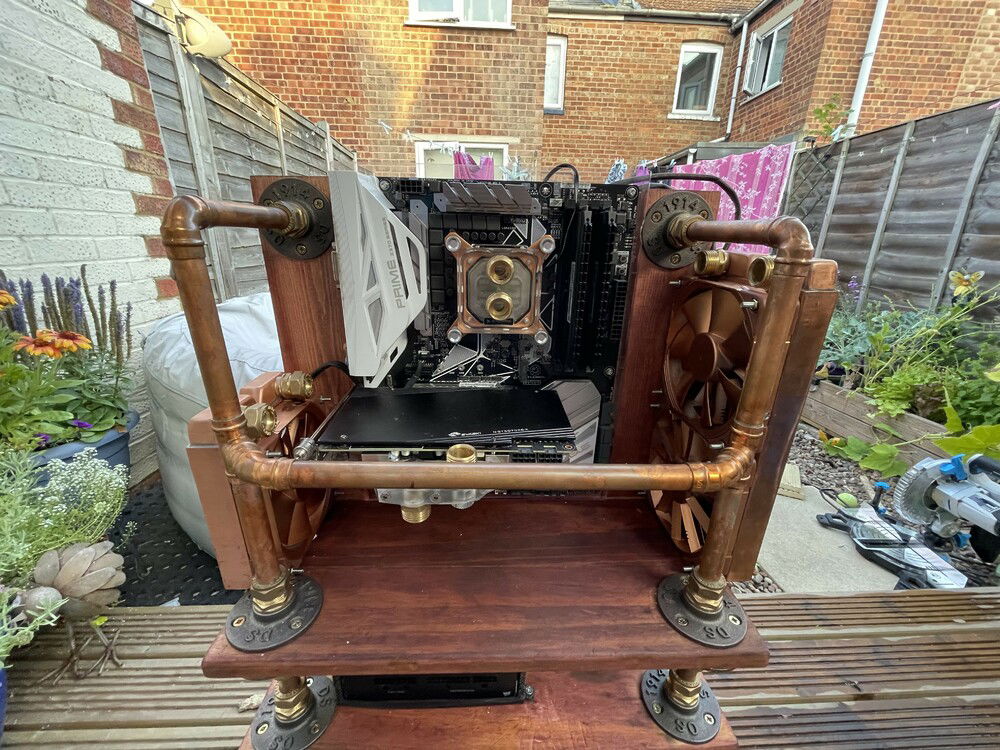

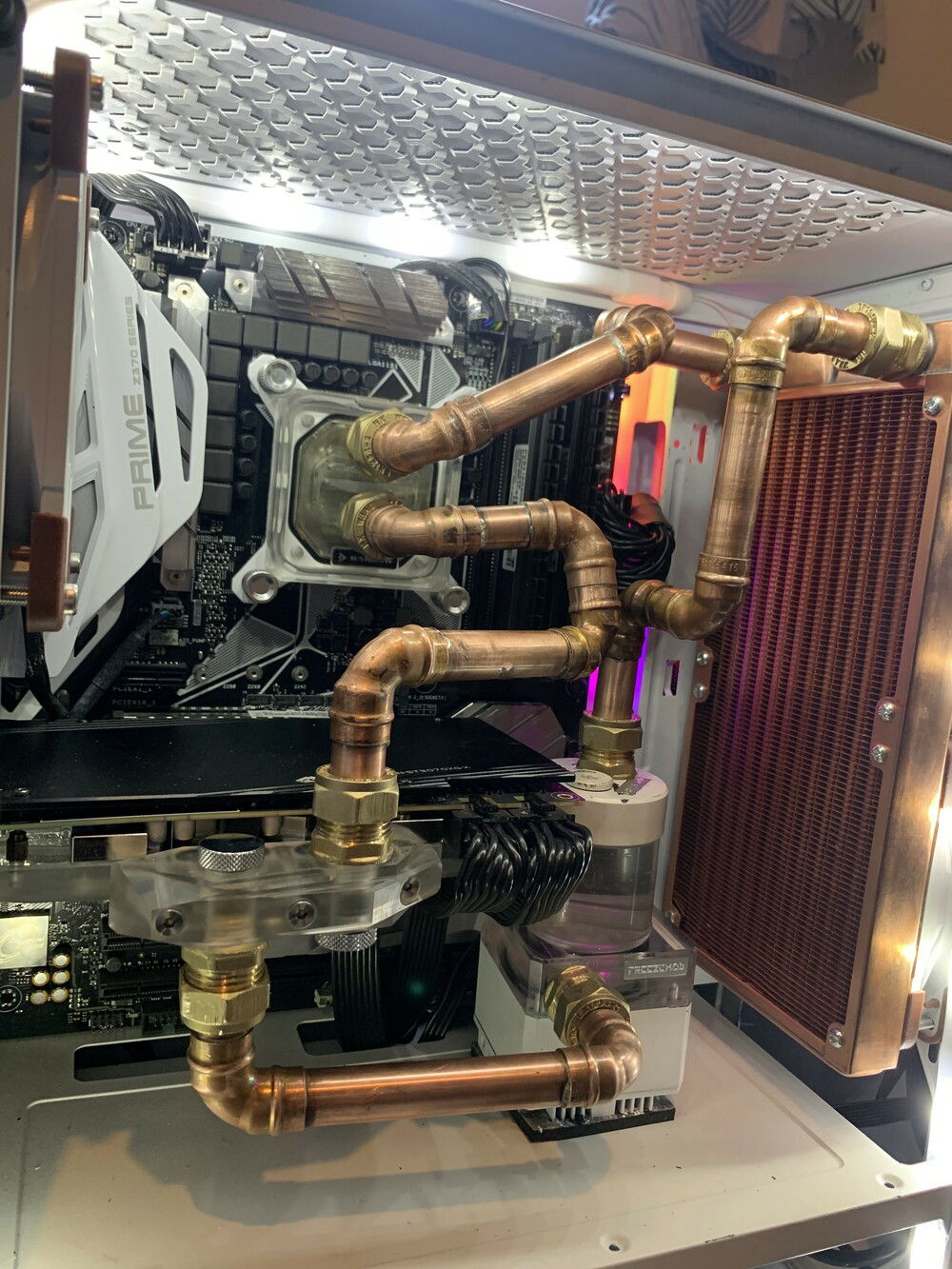

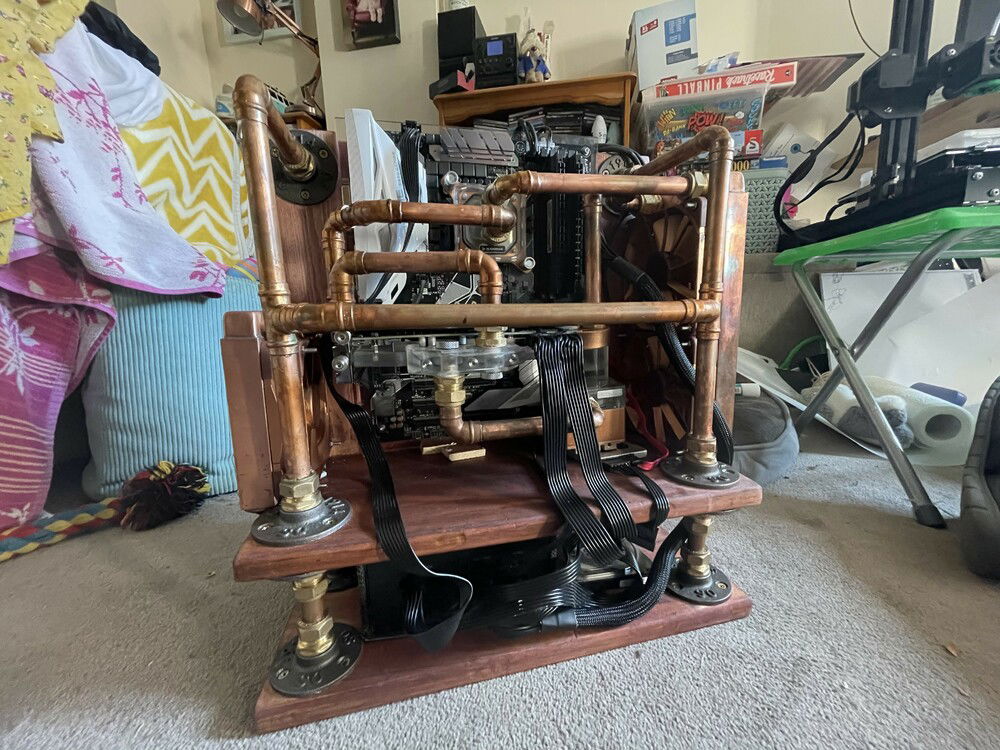

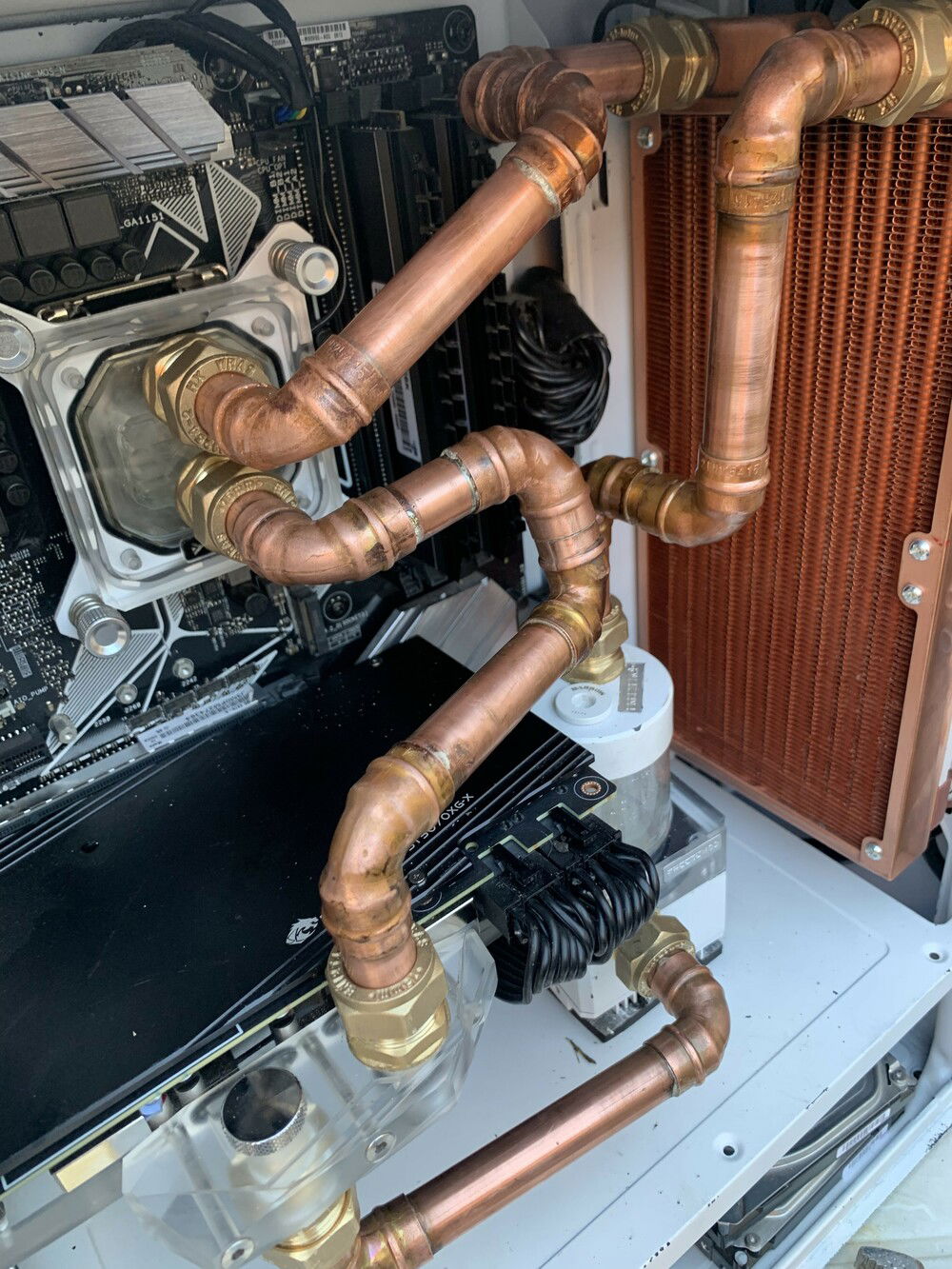

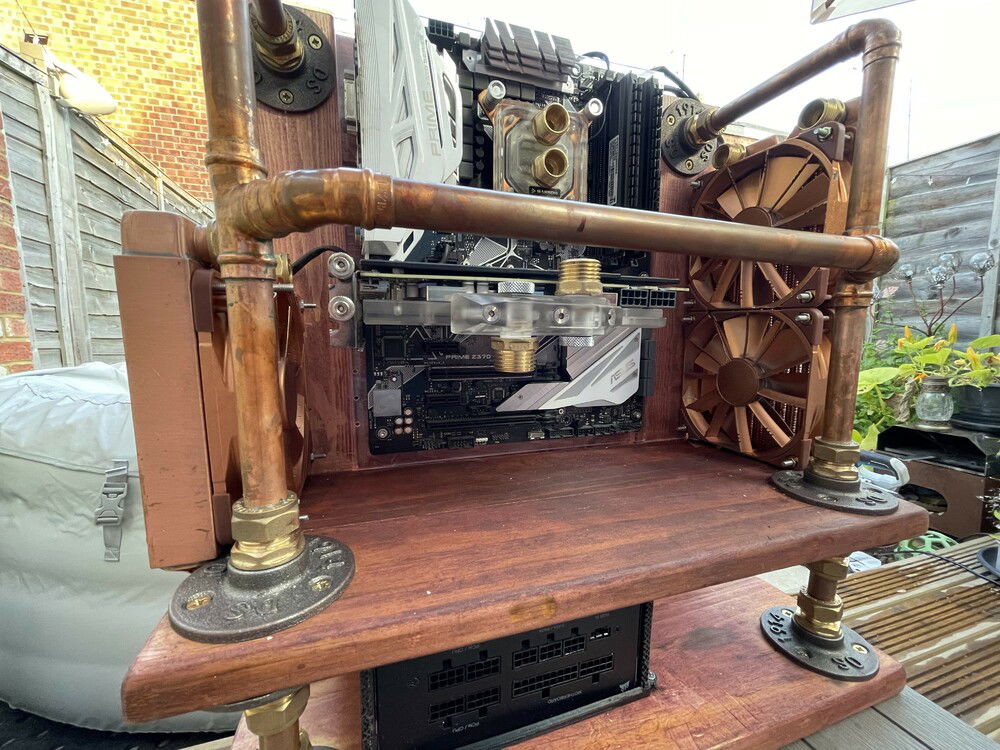

Here’s my custom made wooden cased desktop setup, water cooled using copper pipework and full copper radiators.

Specs:
I7 8700k @ 5Ghz
16GB DDR4 Patriot Viper 3200Mhz ram
Zotac twin edge OC RTX3070
OS Drive - Intel 660P NVMe
Crucial mx300 SSD
Corsair CX750f RGB PSU

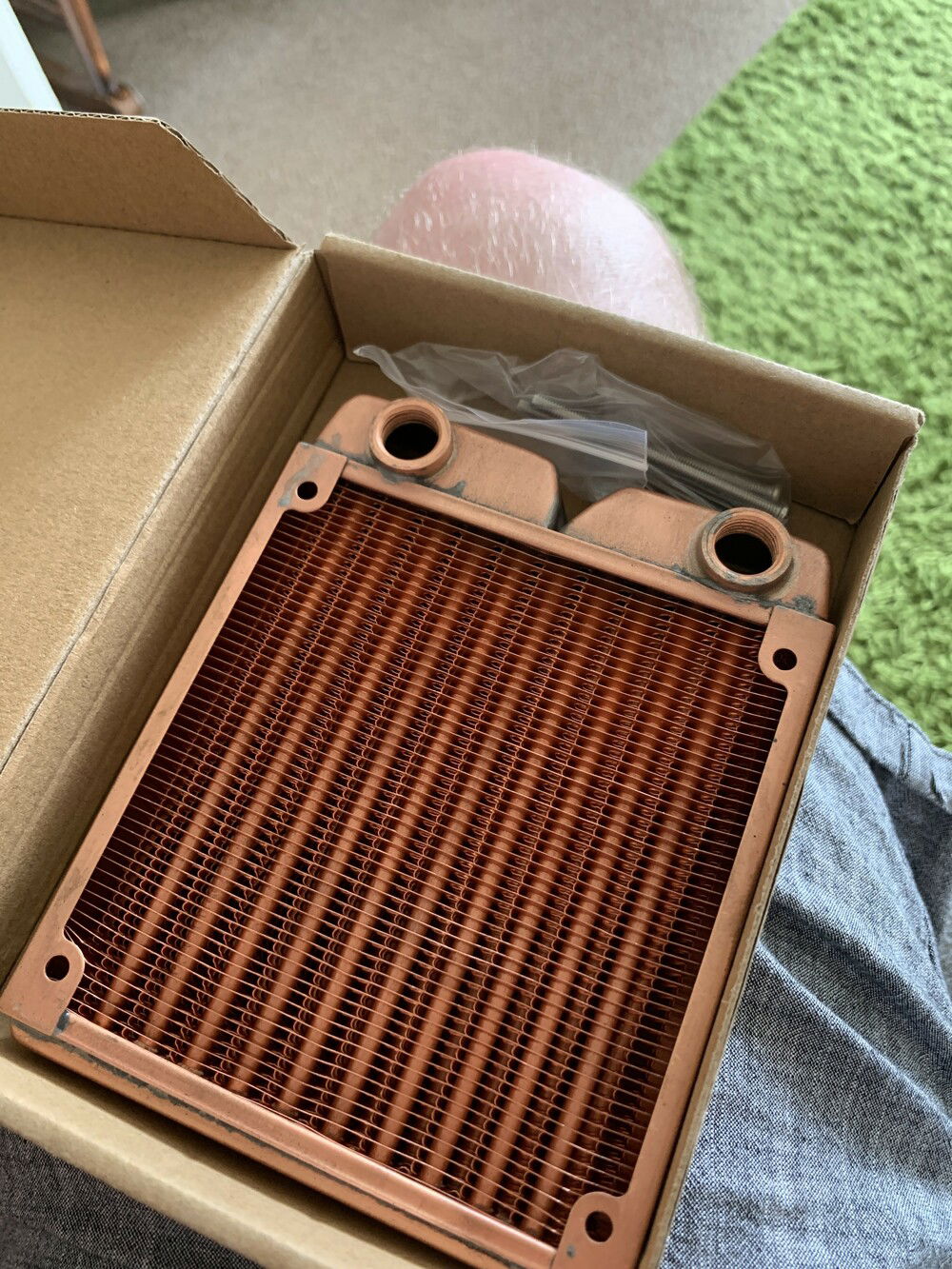

Coolworld 240mm and 120mm copper radiators
Common 15mm - 1/4bsp brass compression fittings

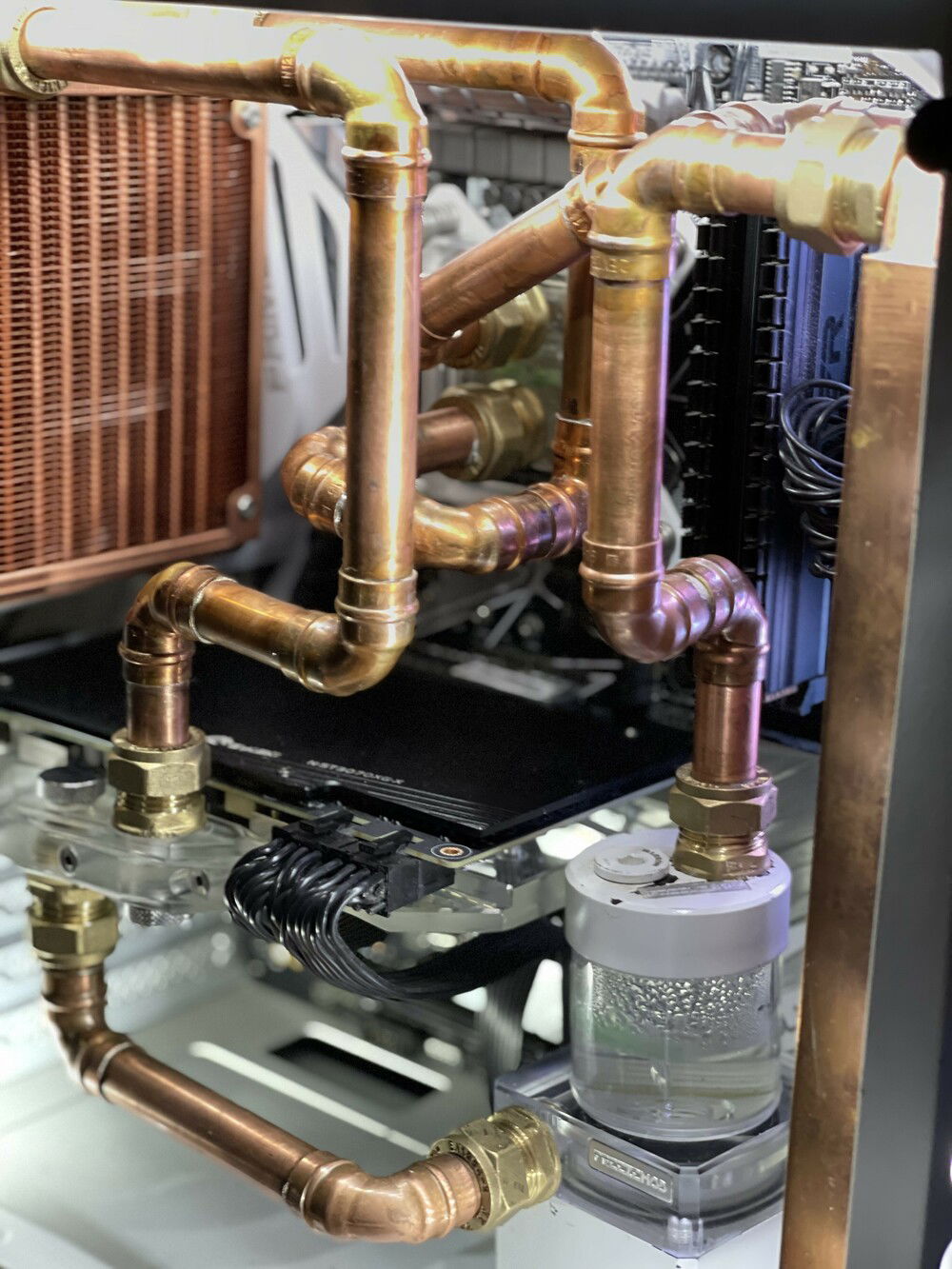

15mm household copper pipe (around 1.8m used including framework)
Freezemod D5 water pump
Bykski Zotac 3070 nickel/copper waterblock

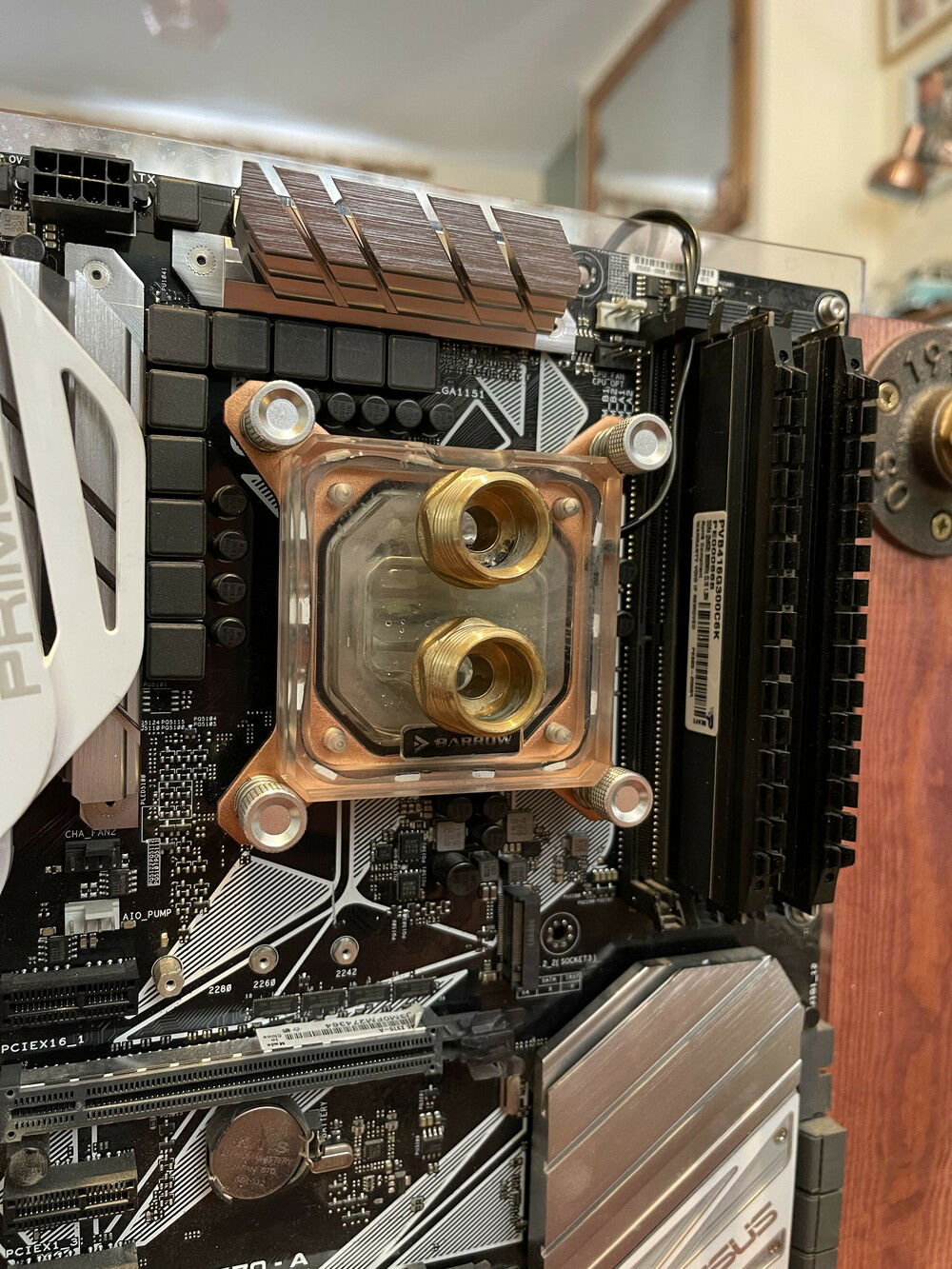

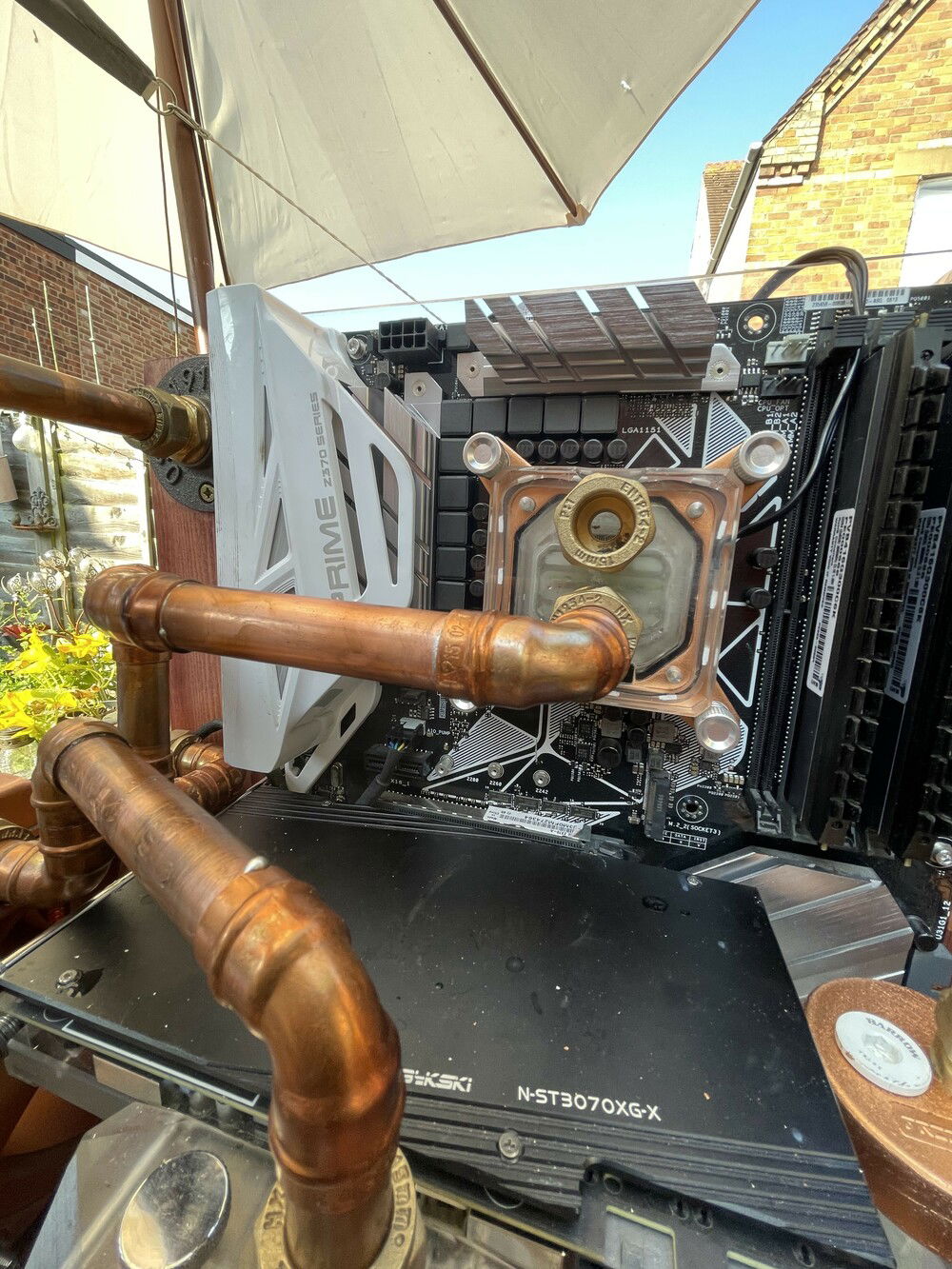

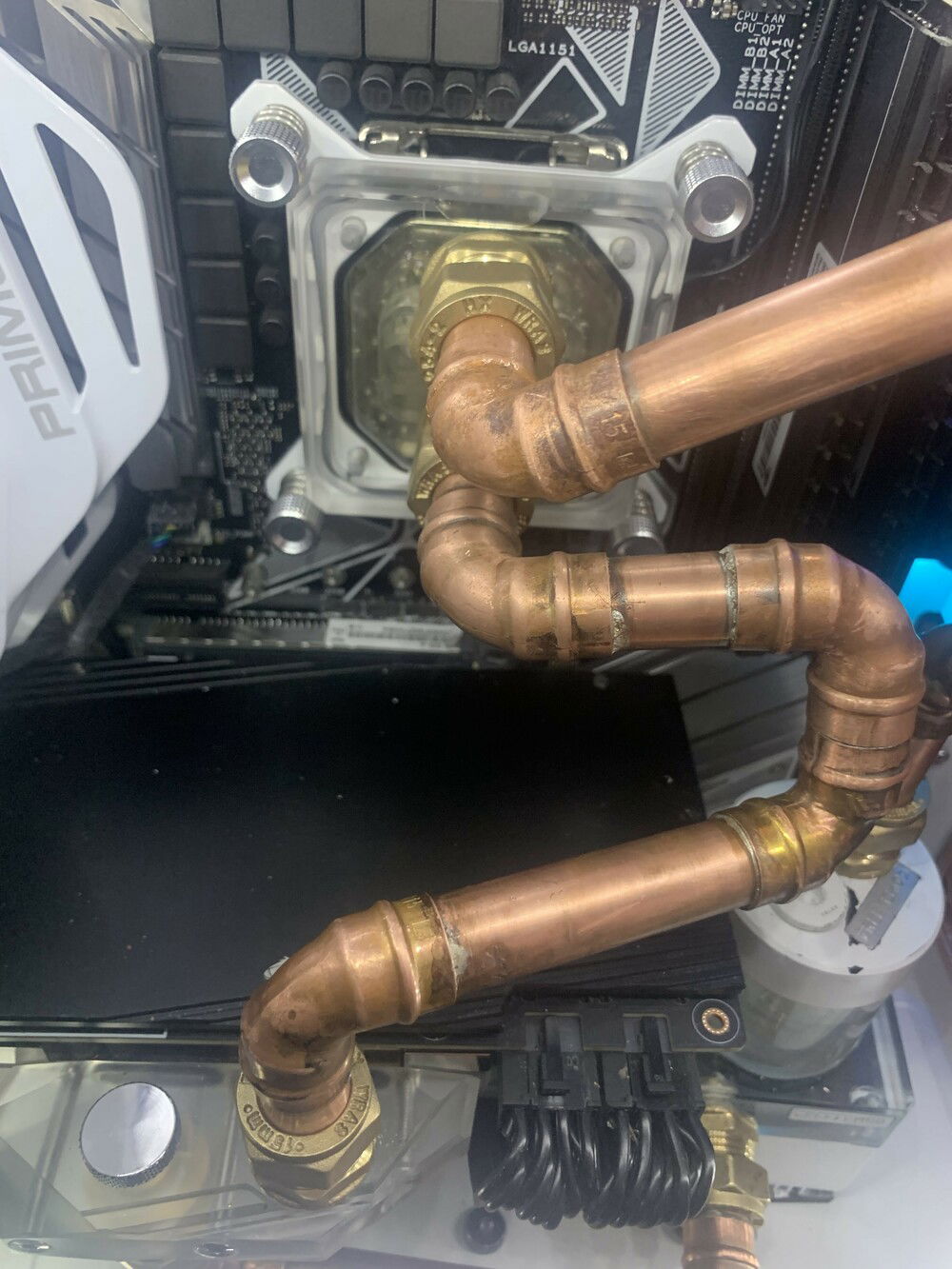

Barrow LGA115x socket Nickel/copper block

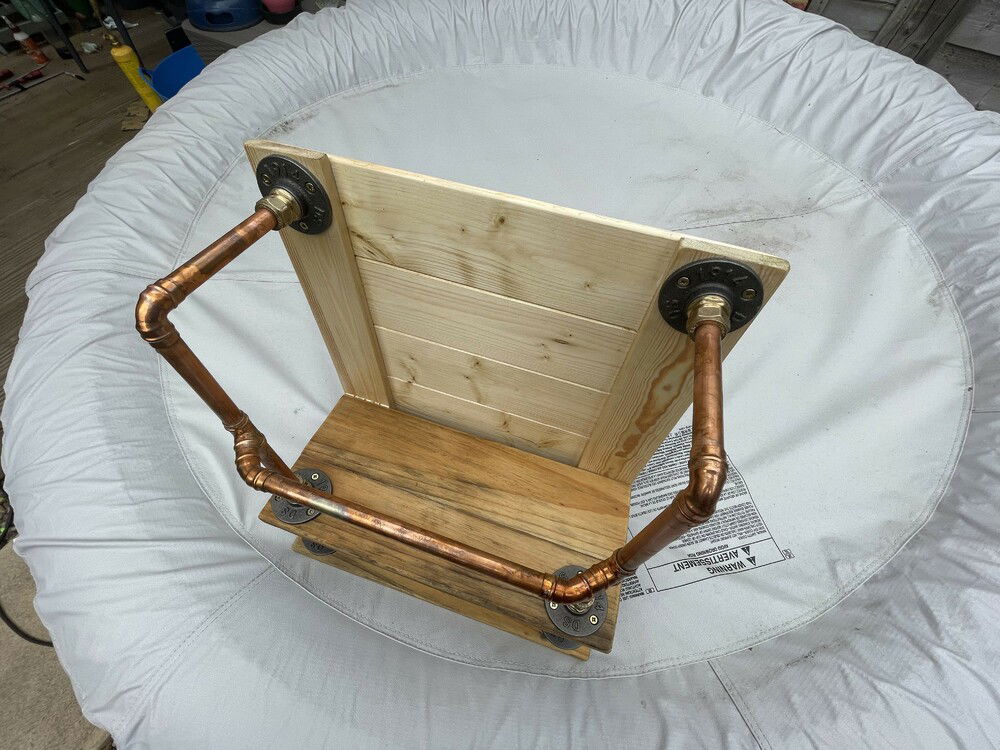

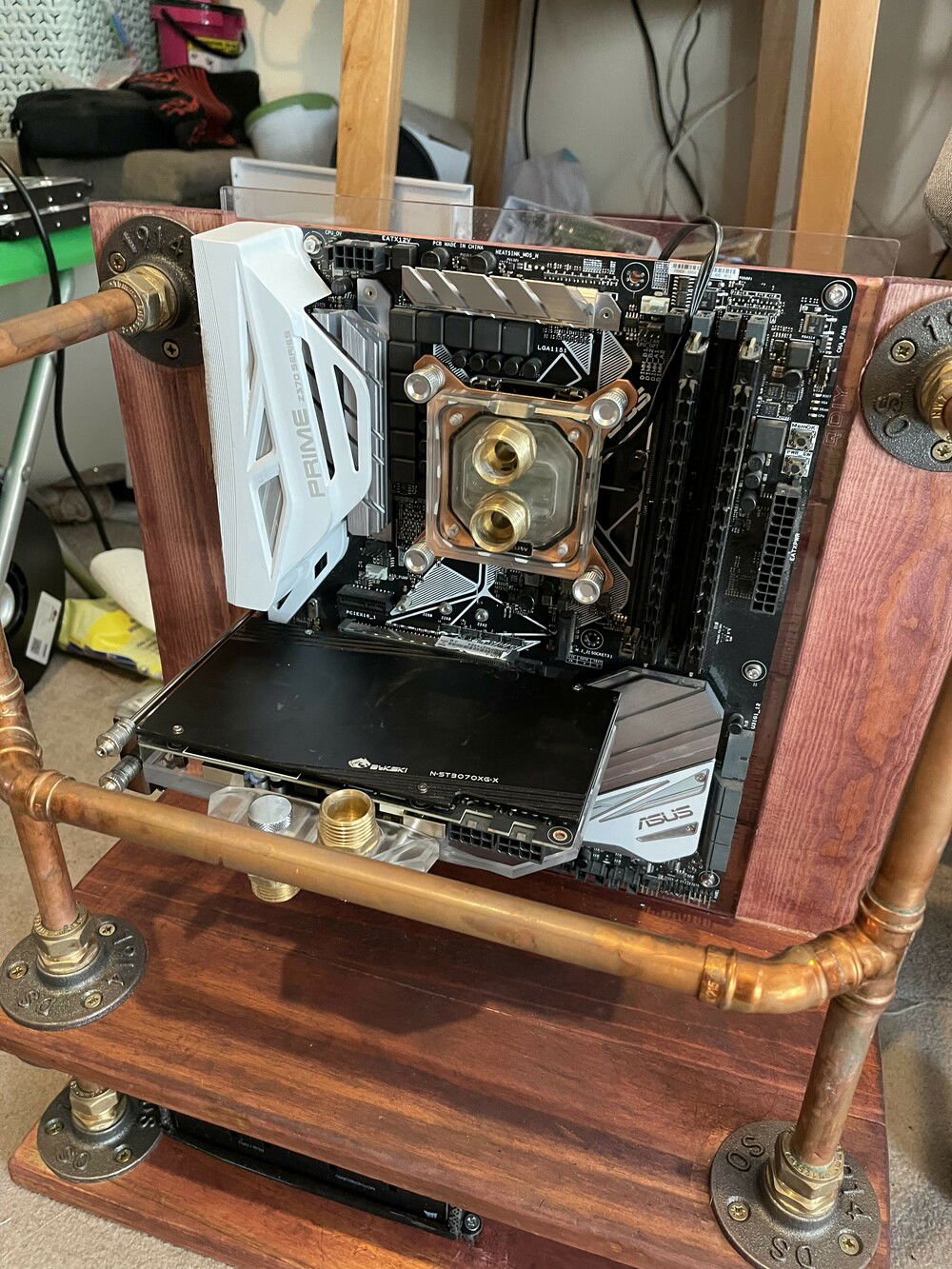

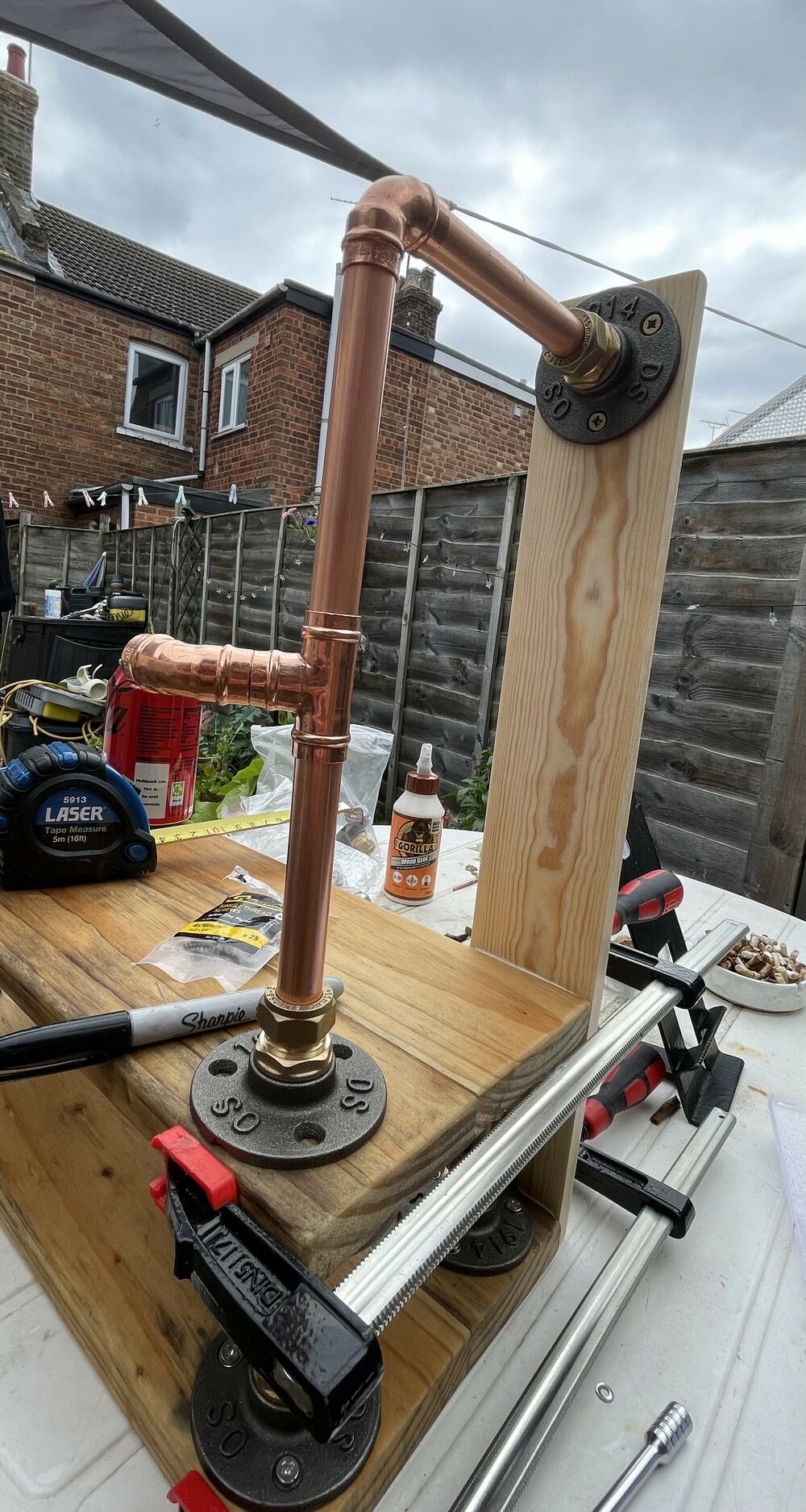

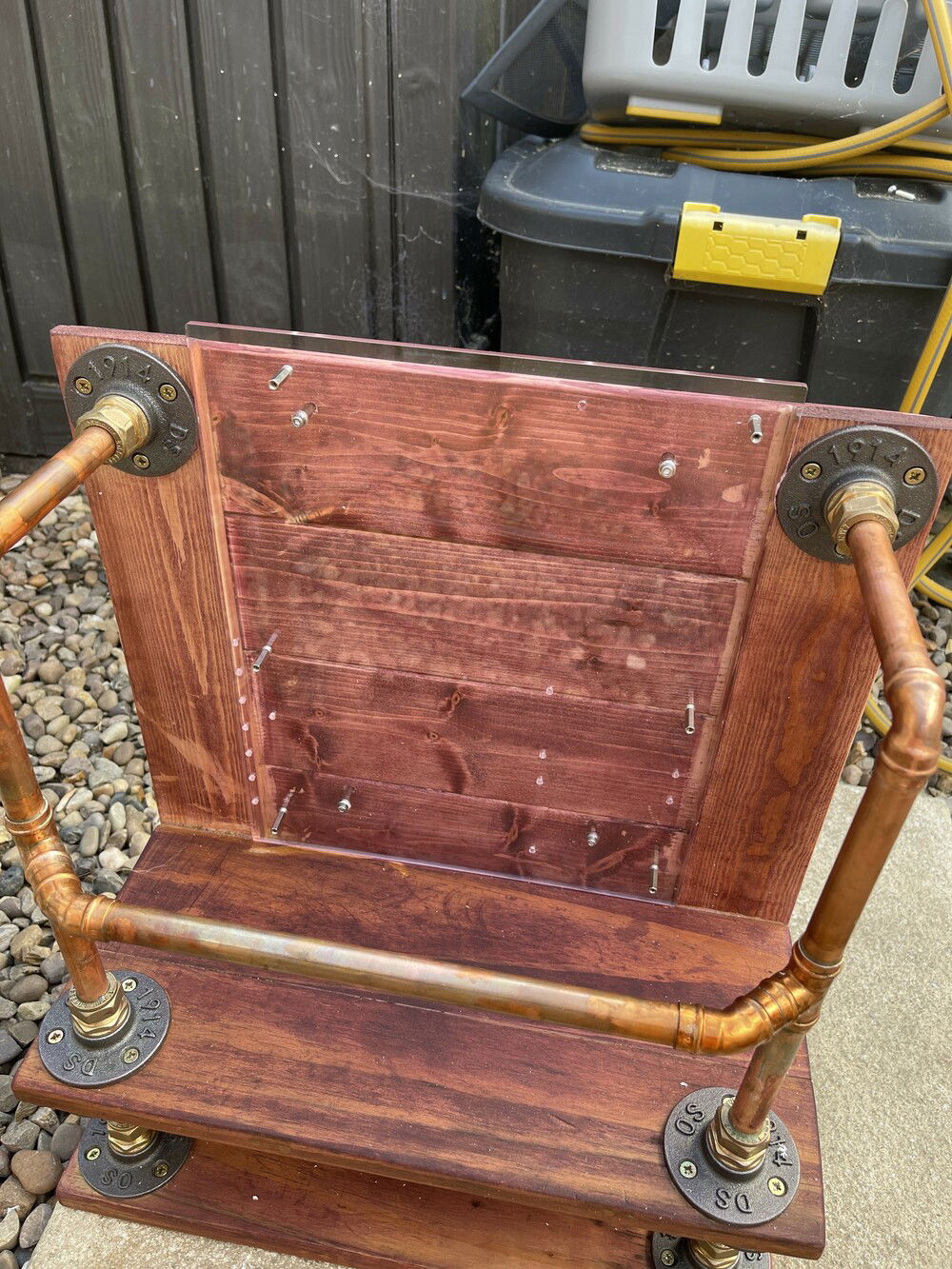

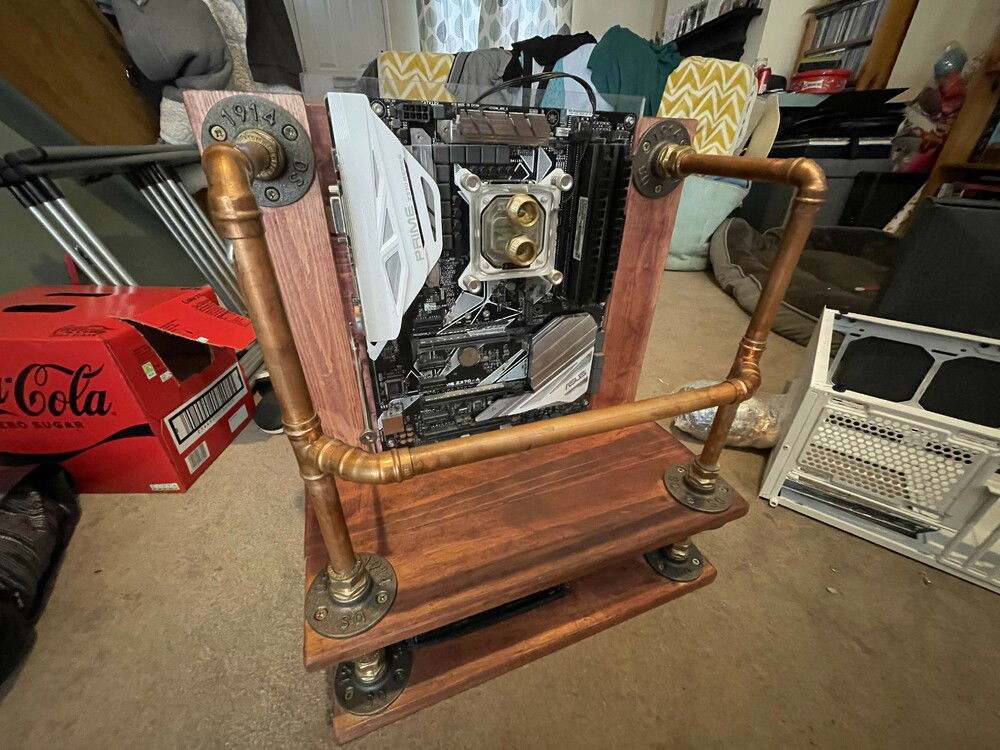

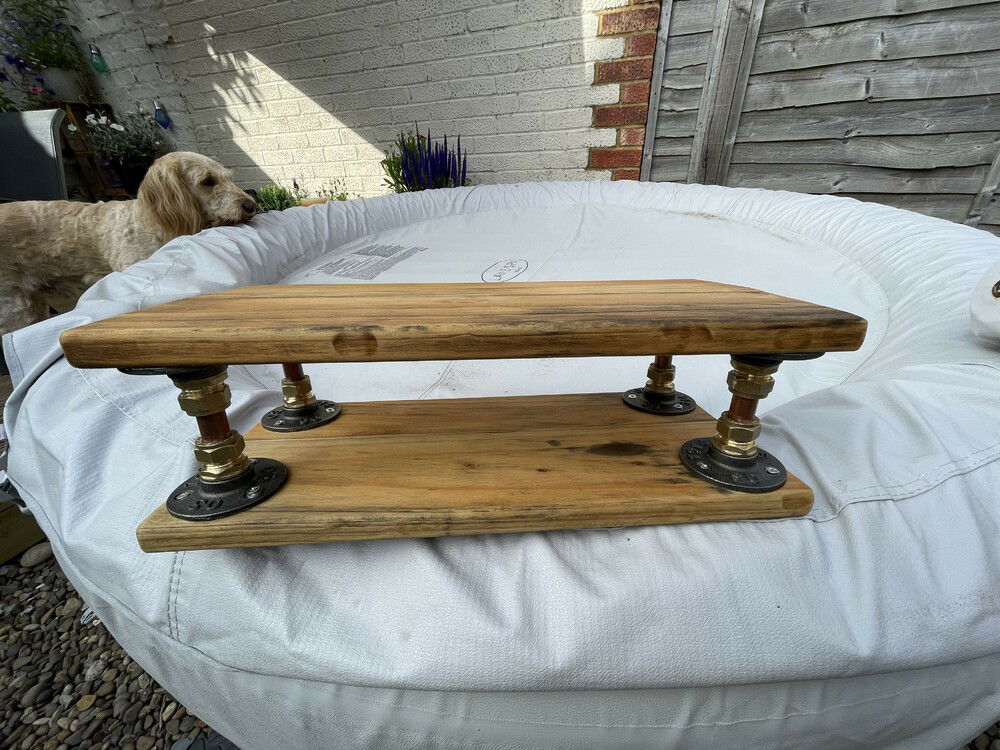

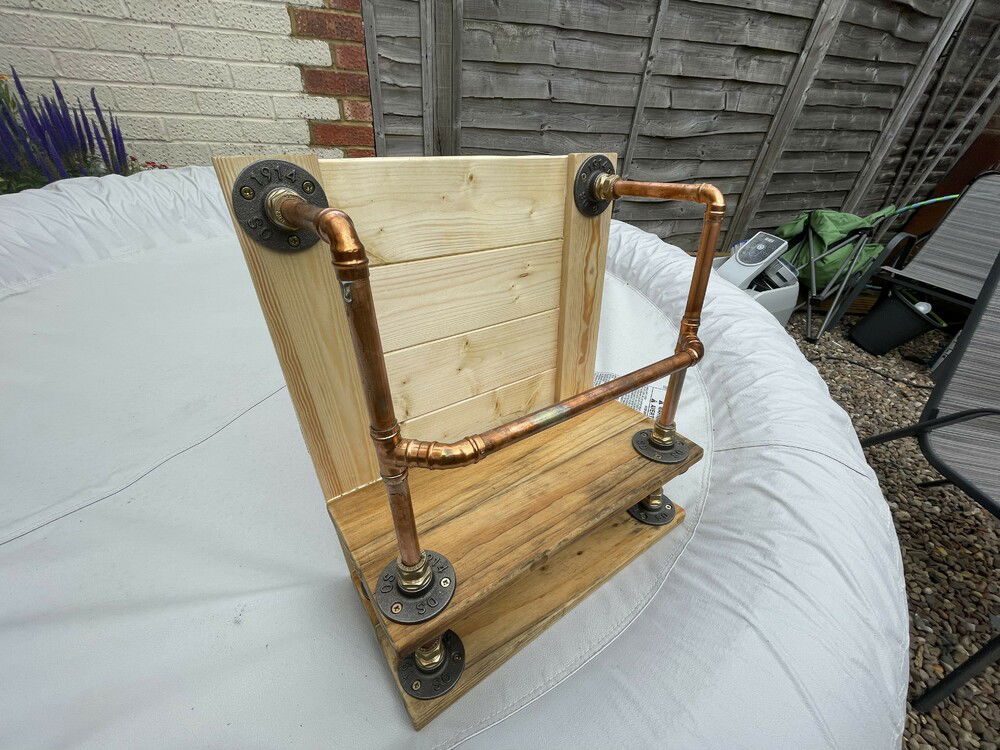

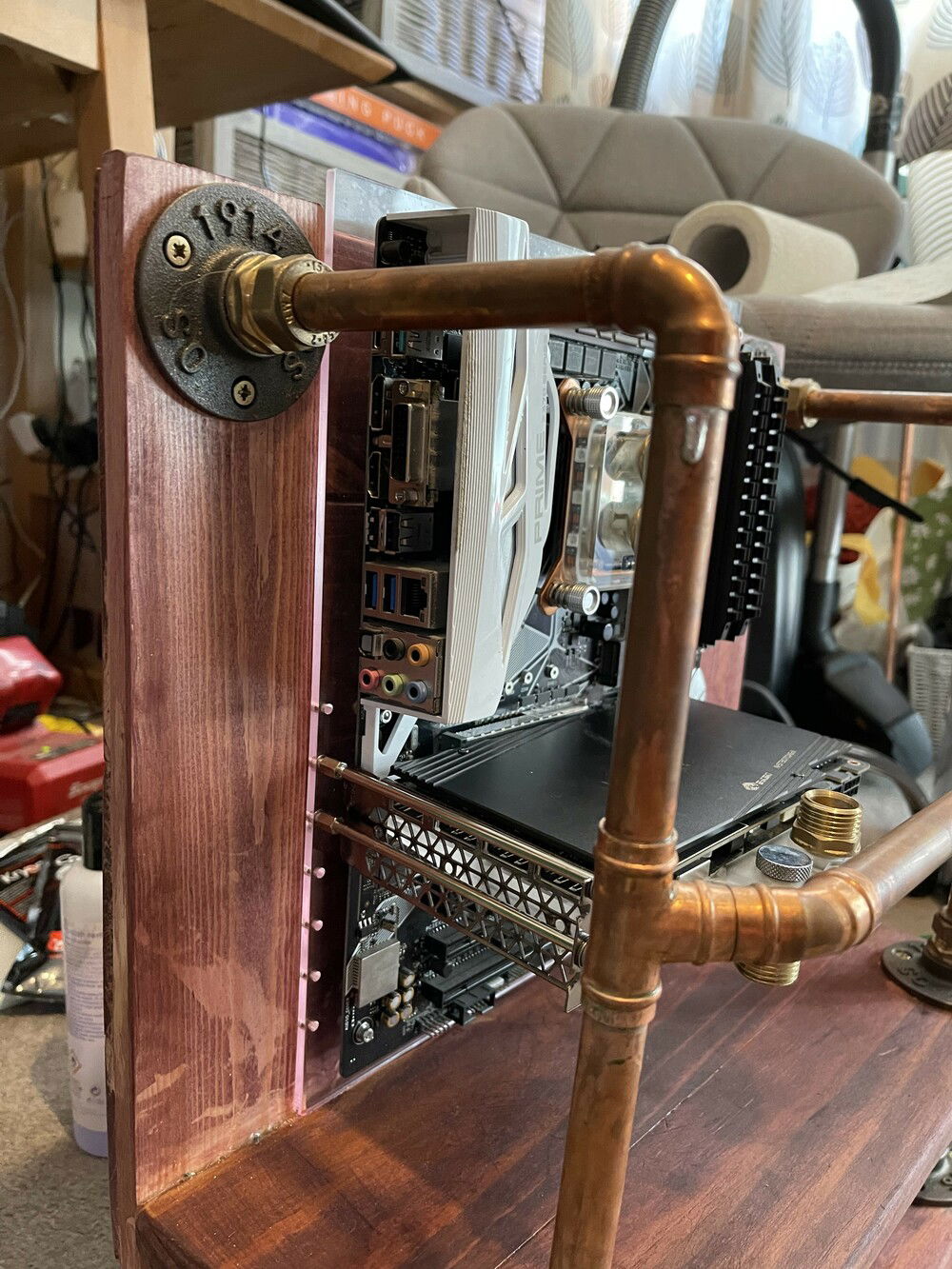

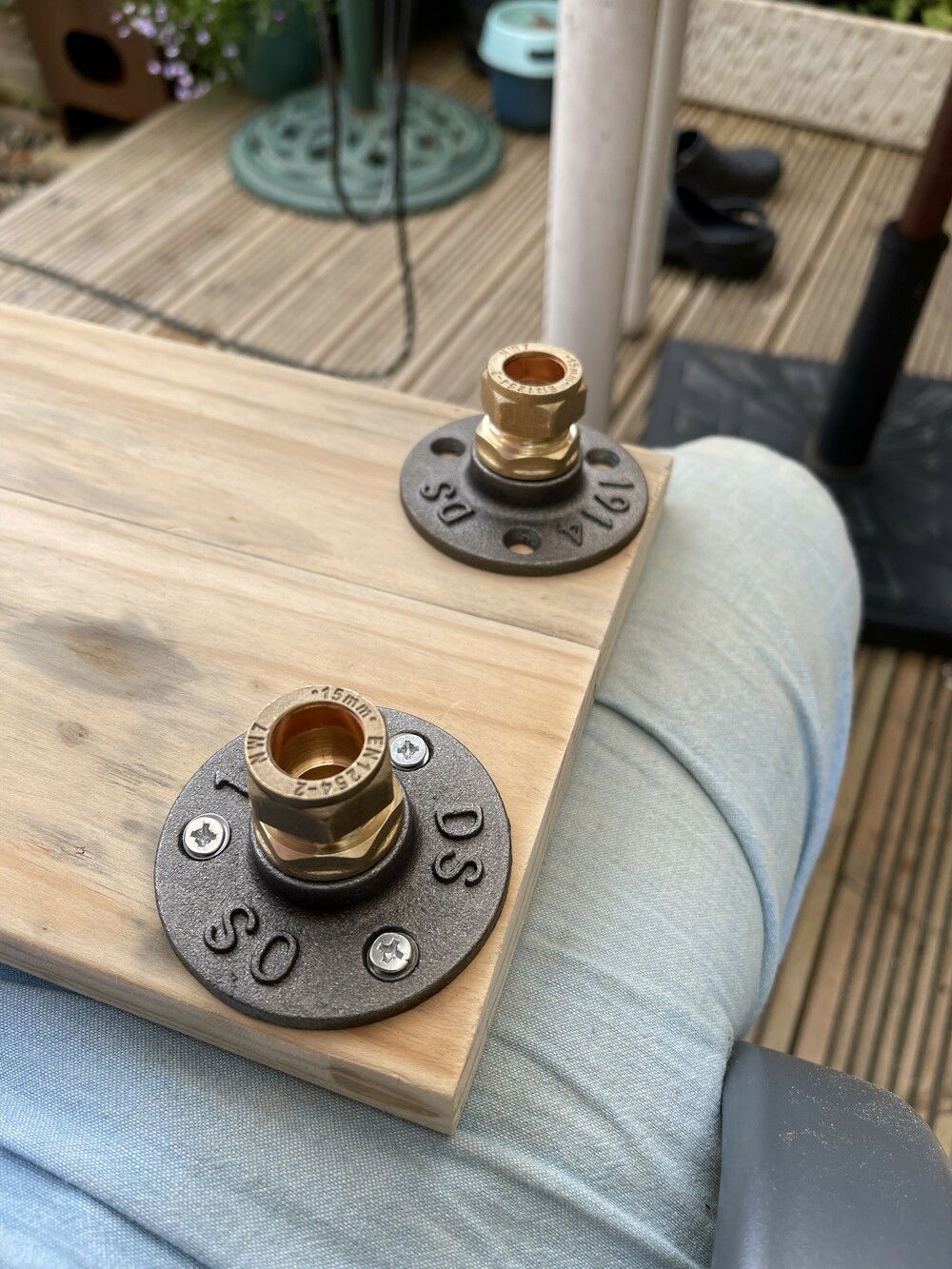

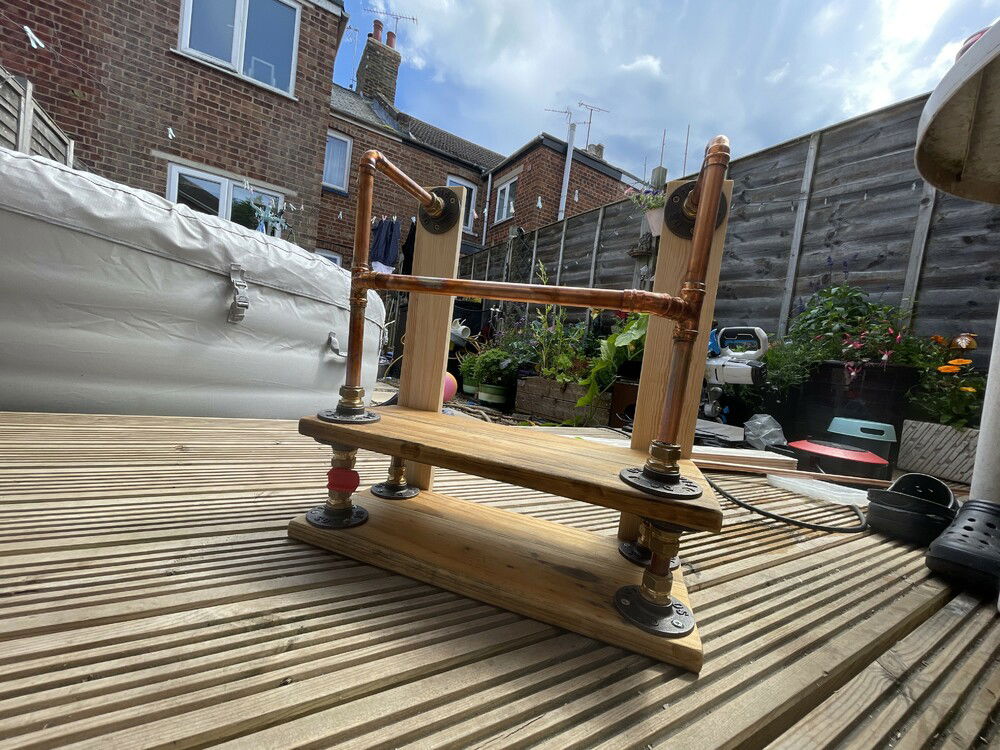

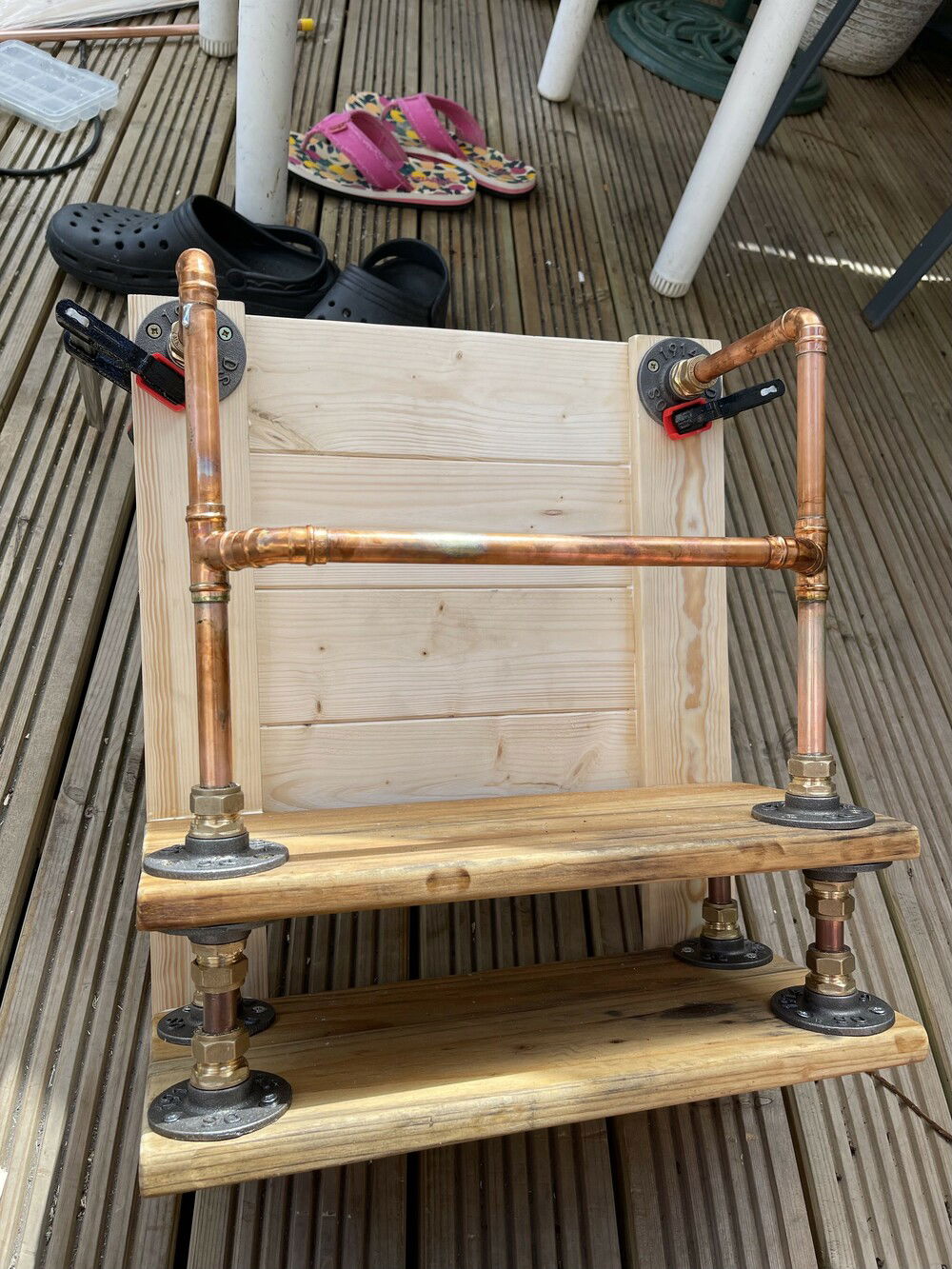

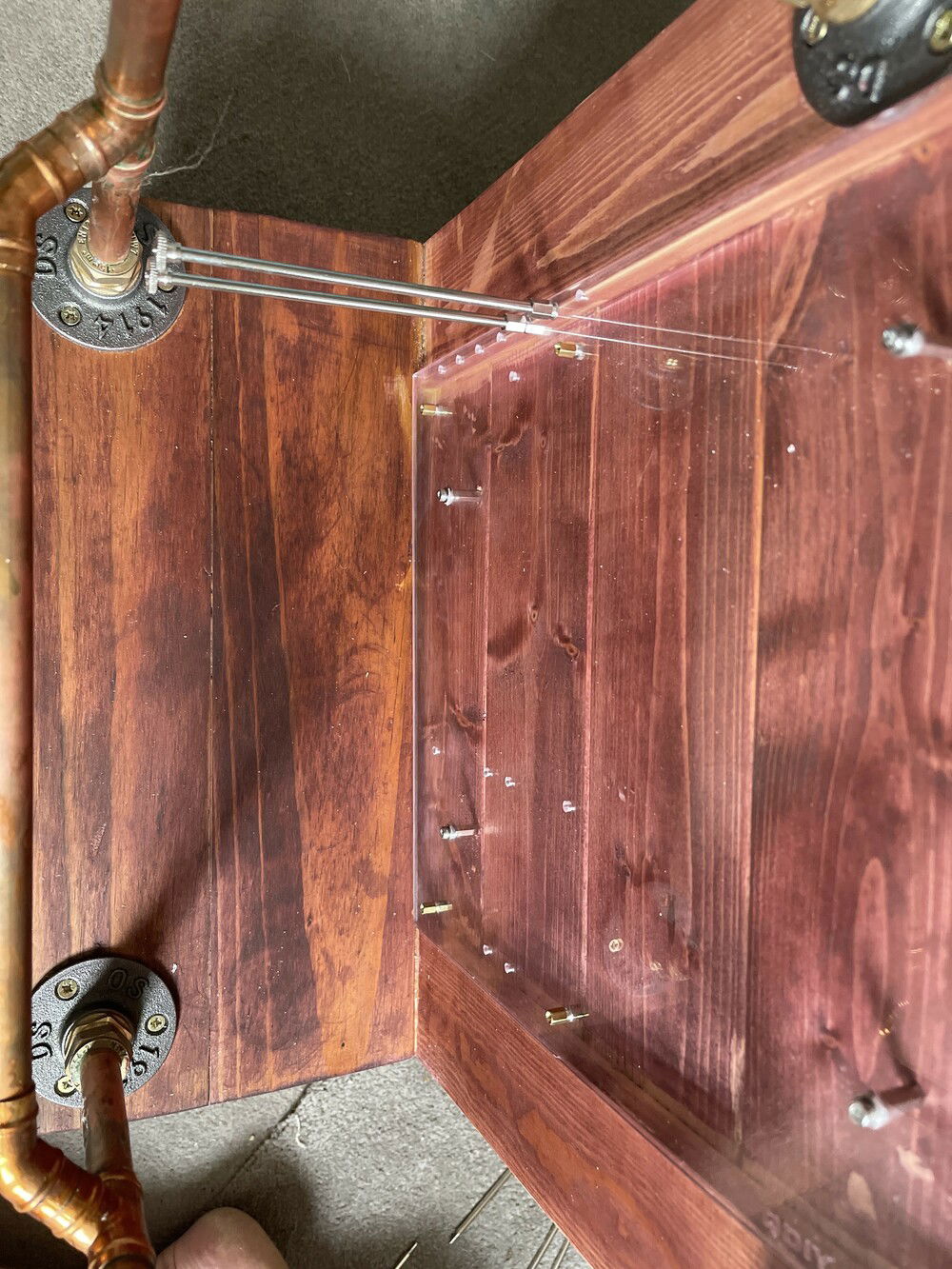

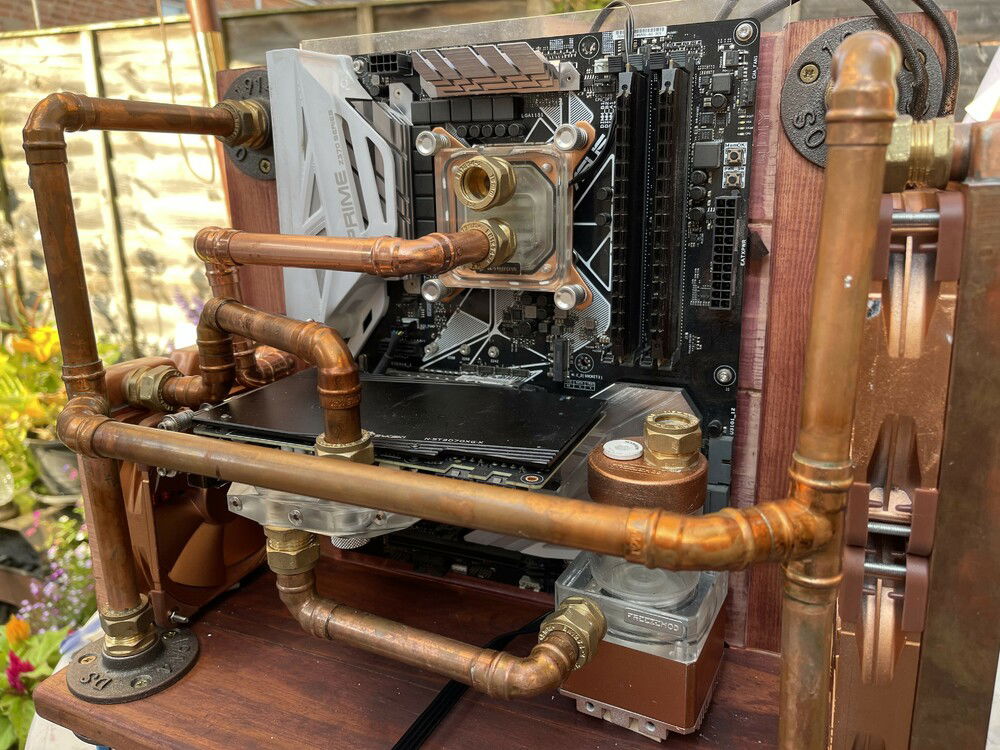

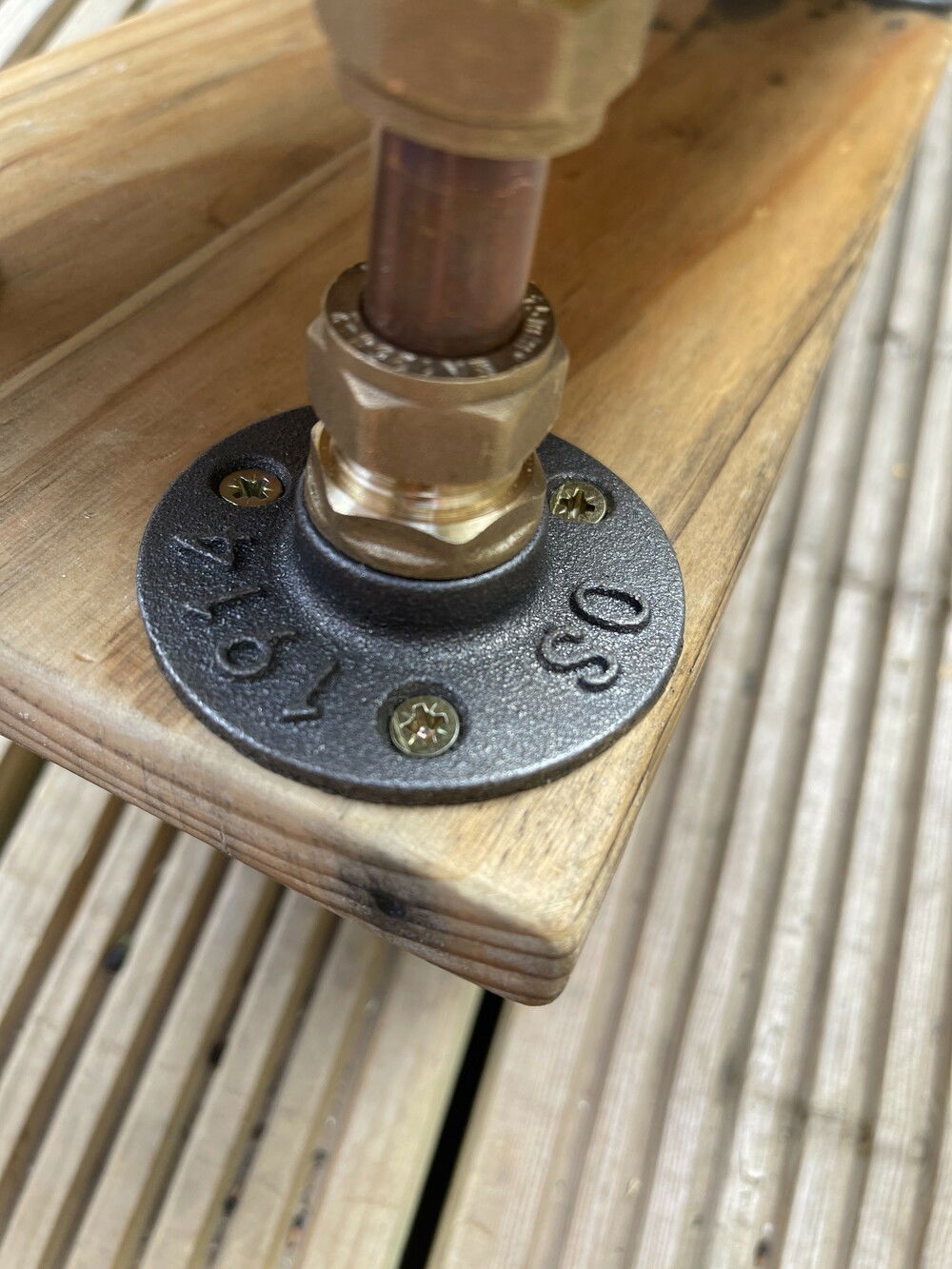

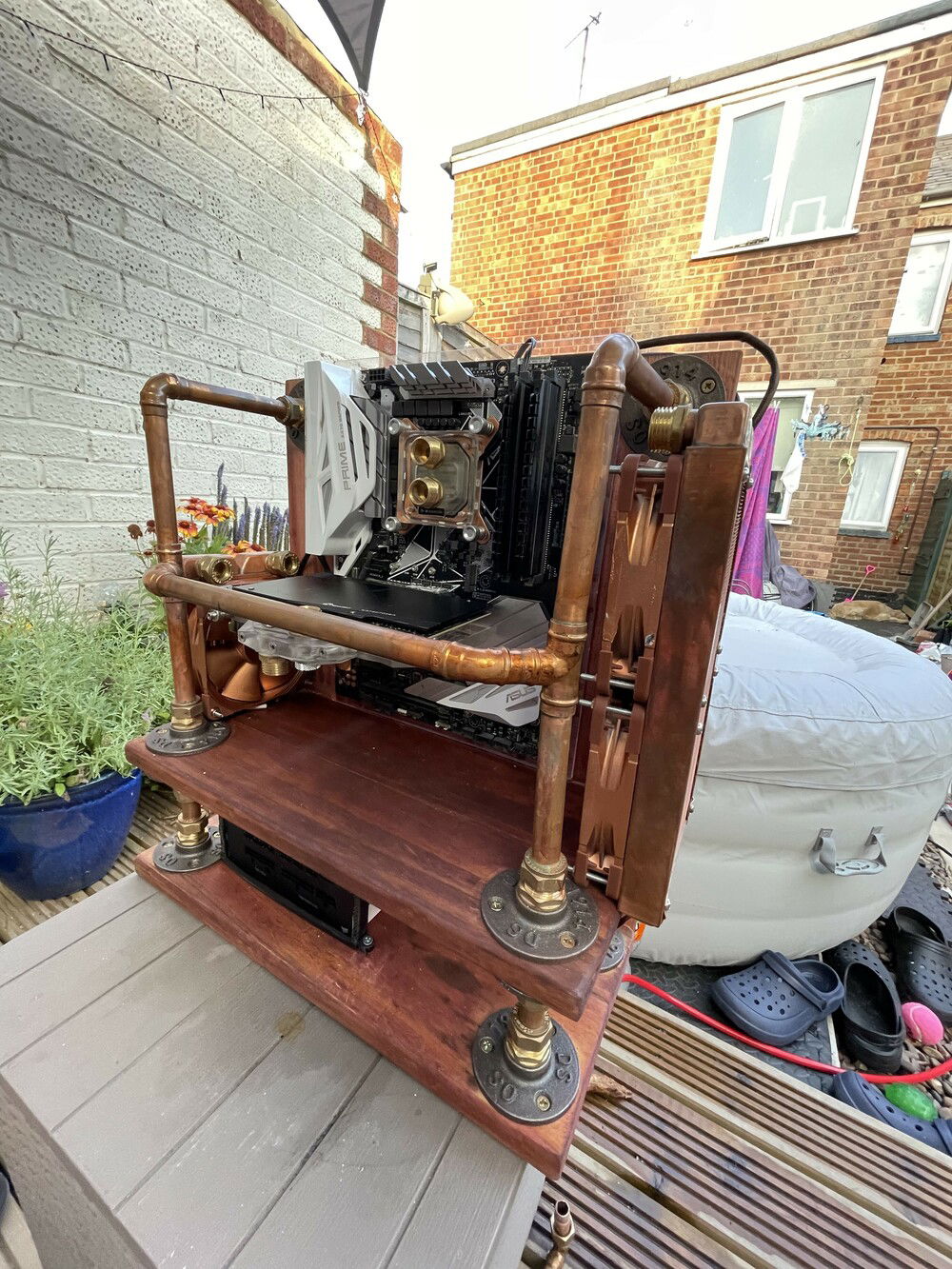

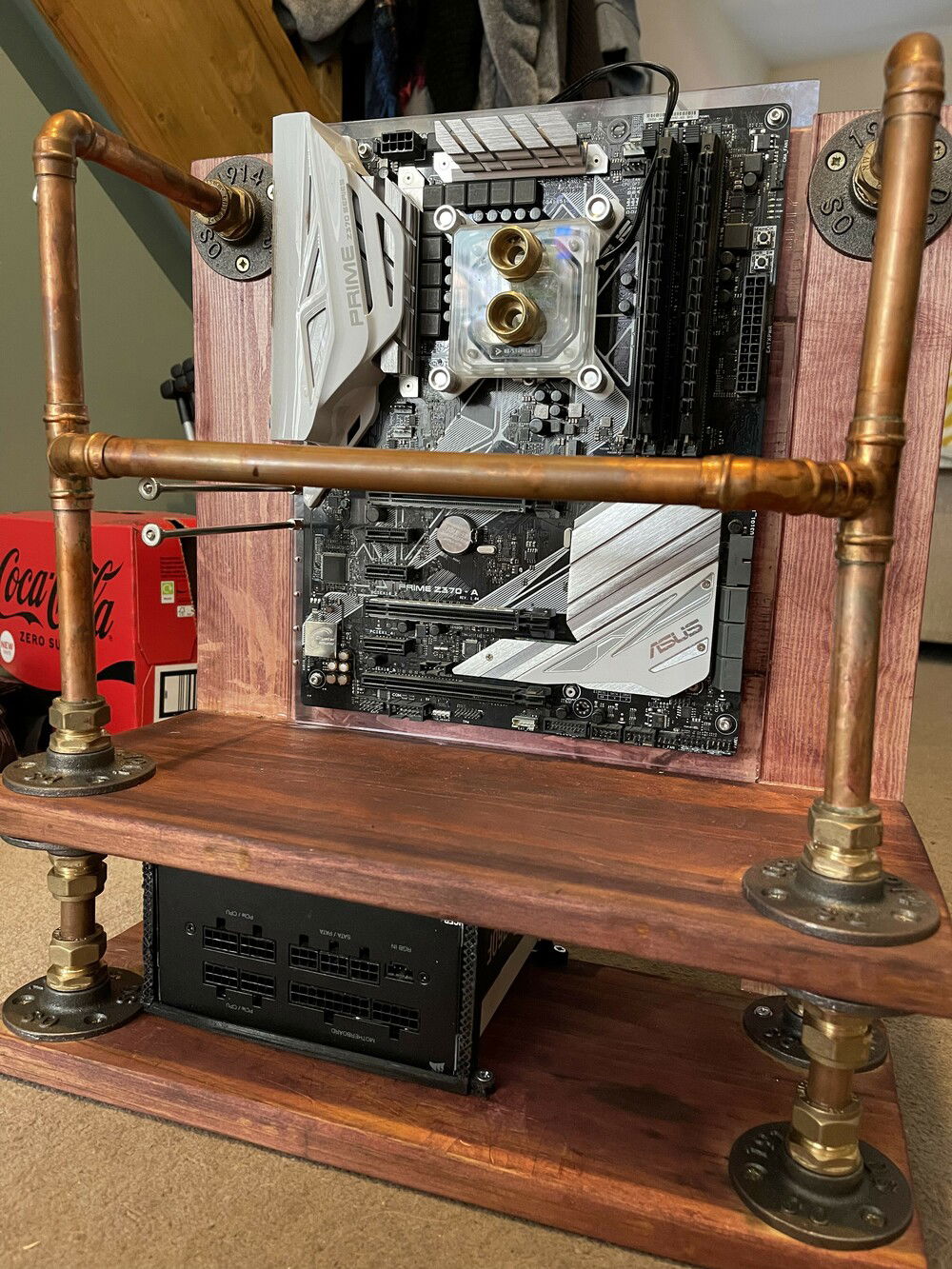

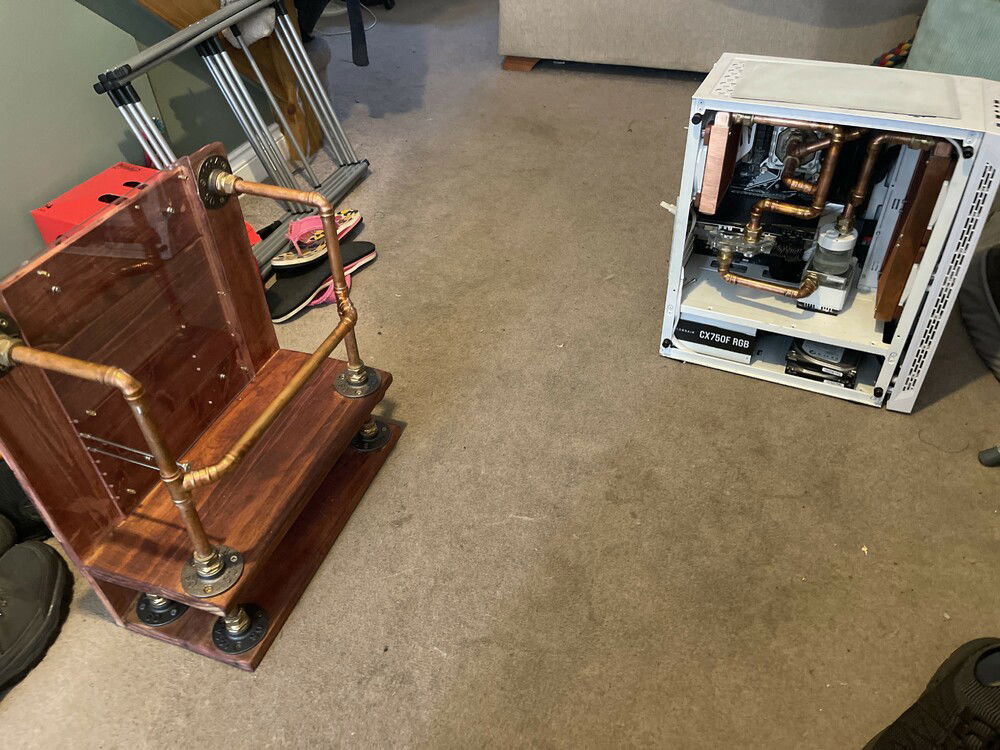

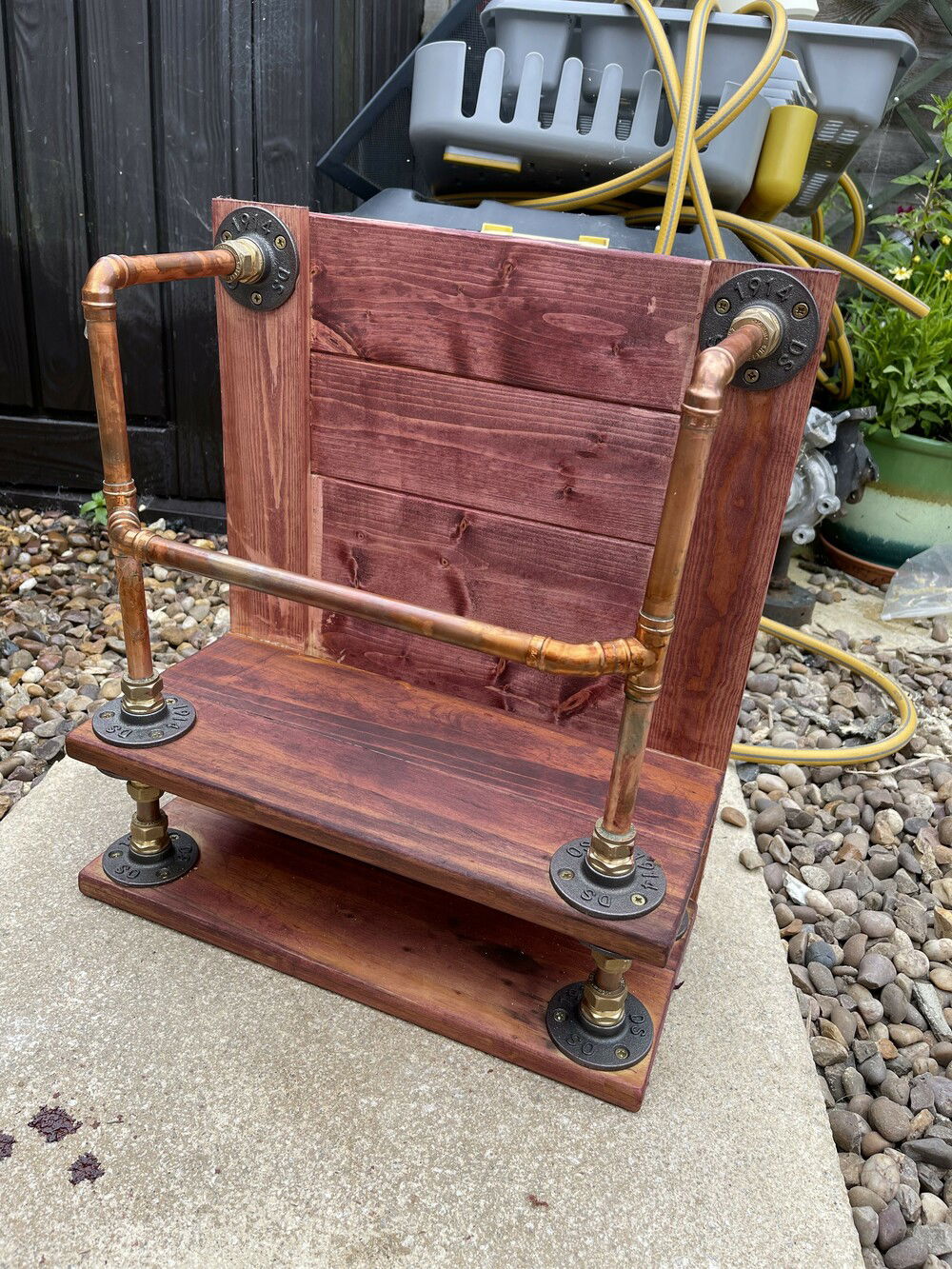

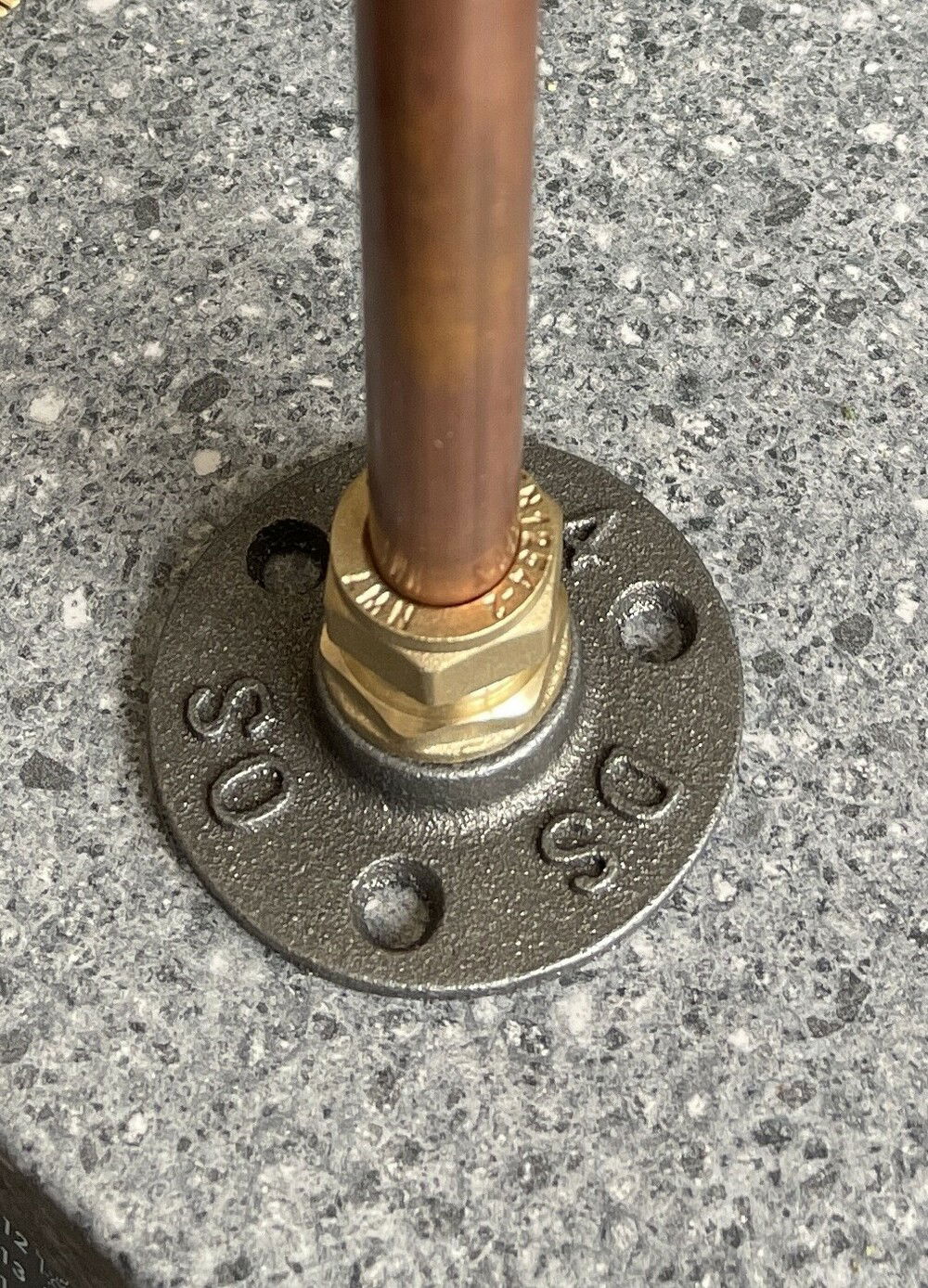

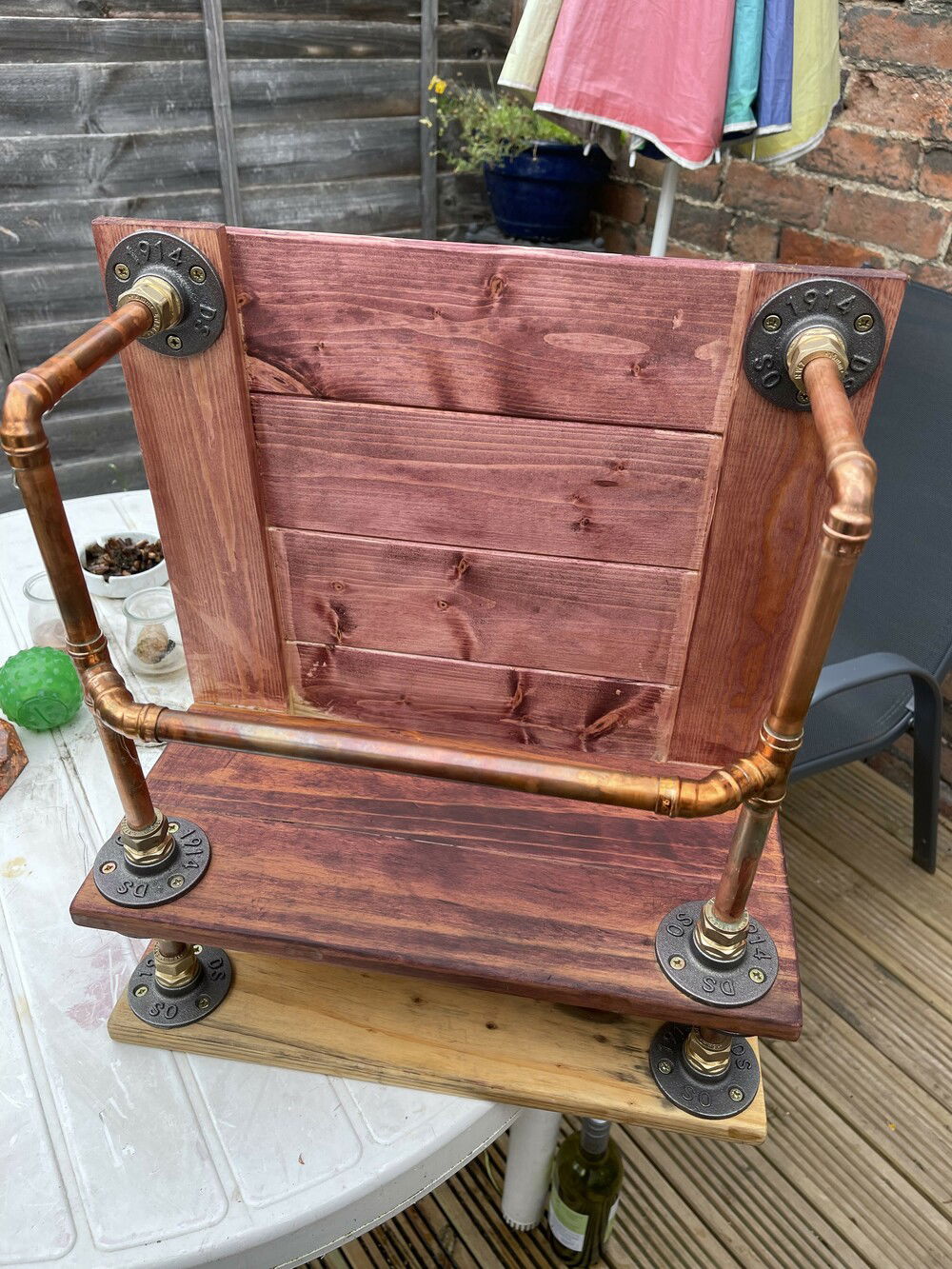

Wood for the case sourced from an old shed and a pack of tongue and groove slats for the motherboard mount area, then copper pipework for a frame, cast iron 15mm backplates for the pipework to hold onto.
Color(s): Brass Brown Copper
RGB Lighting? No
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 192.00
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 159.99
ASUS - Prime (Z370-A)
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 45.99
Patriot - Viper 4 Blackout (3200MHz)
Type: DDR4
Capacity: 16 GB
Graphics
ZOTAC - GeForce Gaming AMP Holo
Chip Manufacturer: NVIDIA
Chip: RTX 3070
Interface: PCIe x16
Storage
$ 173.98
Intel - 660P (2x)
Form Factor: M.2
Interface: PCIe x4
Capacity: 512 GB
PSU
Corsair - CX (CX750F)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Bronze
Case
Custom - Custom (custom)
Case Fan
$ 83.85
