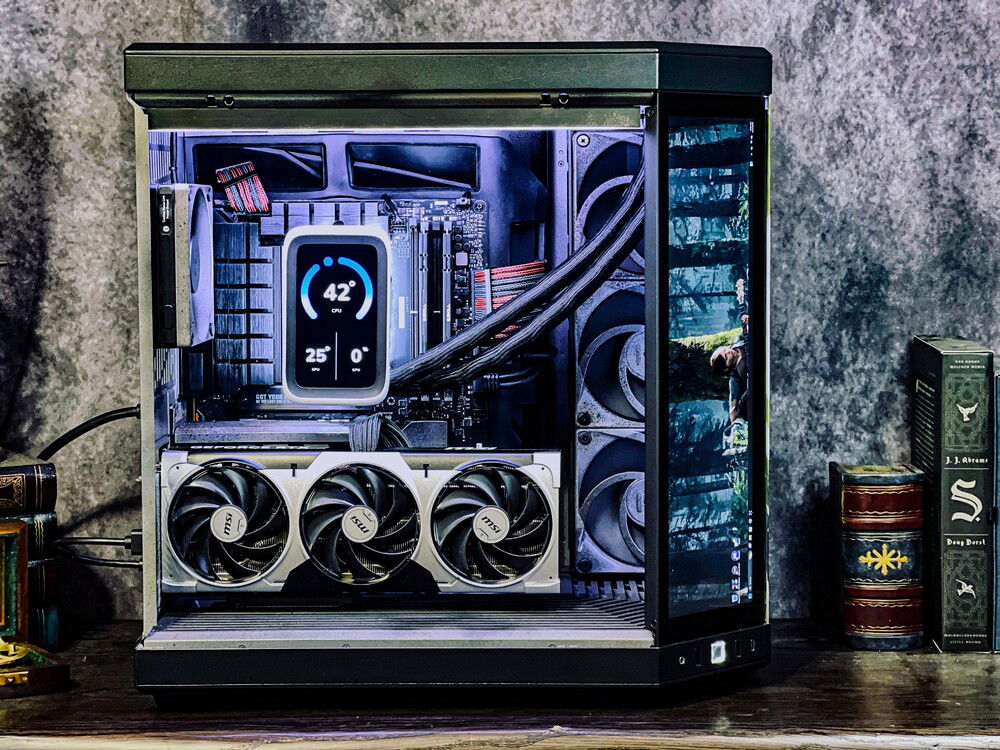

Hyte Y70 Touch with The Last of Us theme

This was my latest commission, and first sponsored build. This was a collaboration with fellow builder Techside , who did all the planning and outreach. Hyte provided the Y70 Touch Infinite case, FP12 fans, and their new THICC Q60 AIO (which I promptly disguised as a Q80 😅); Seasonic was kind enough to send us their new Focus ATX 3.0 PSU. I couldn't have done this without all their help.

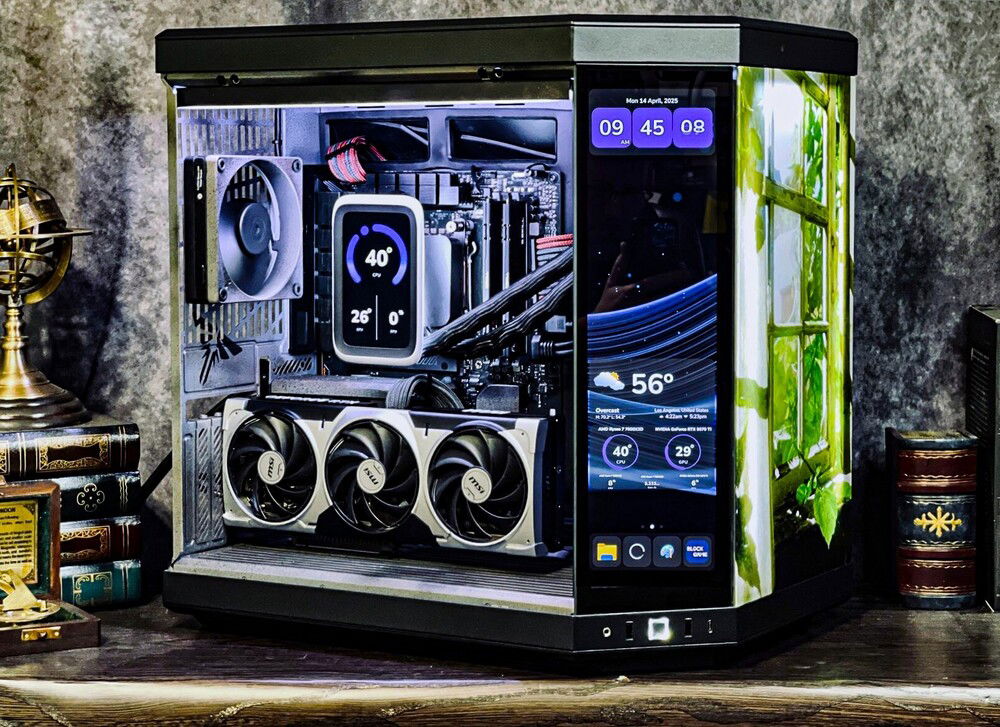

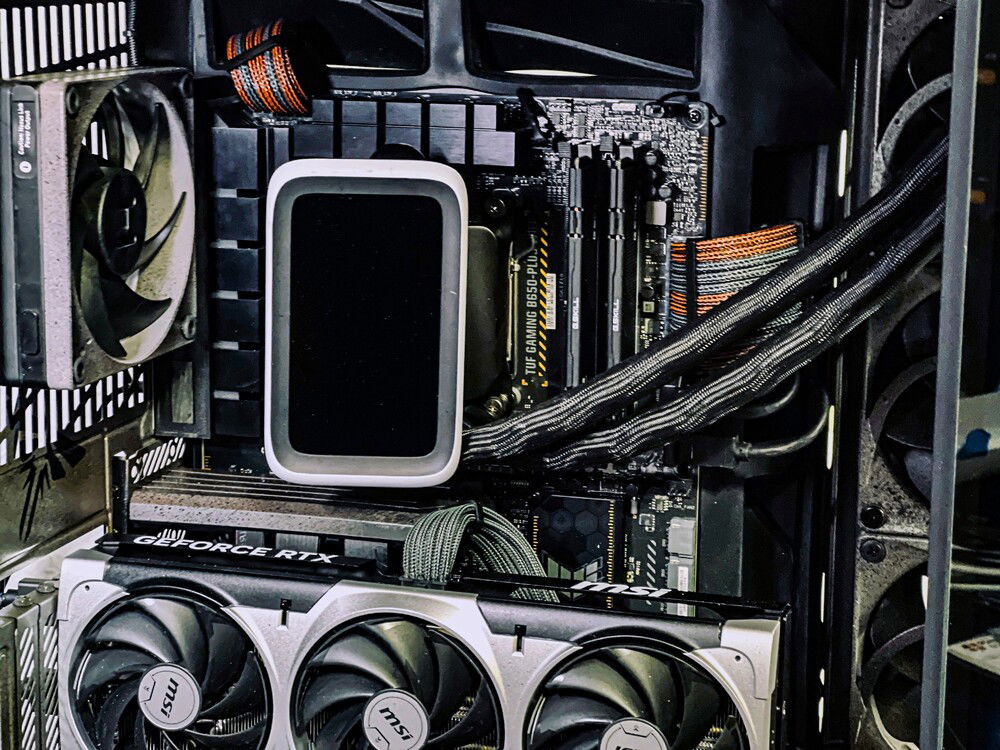

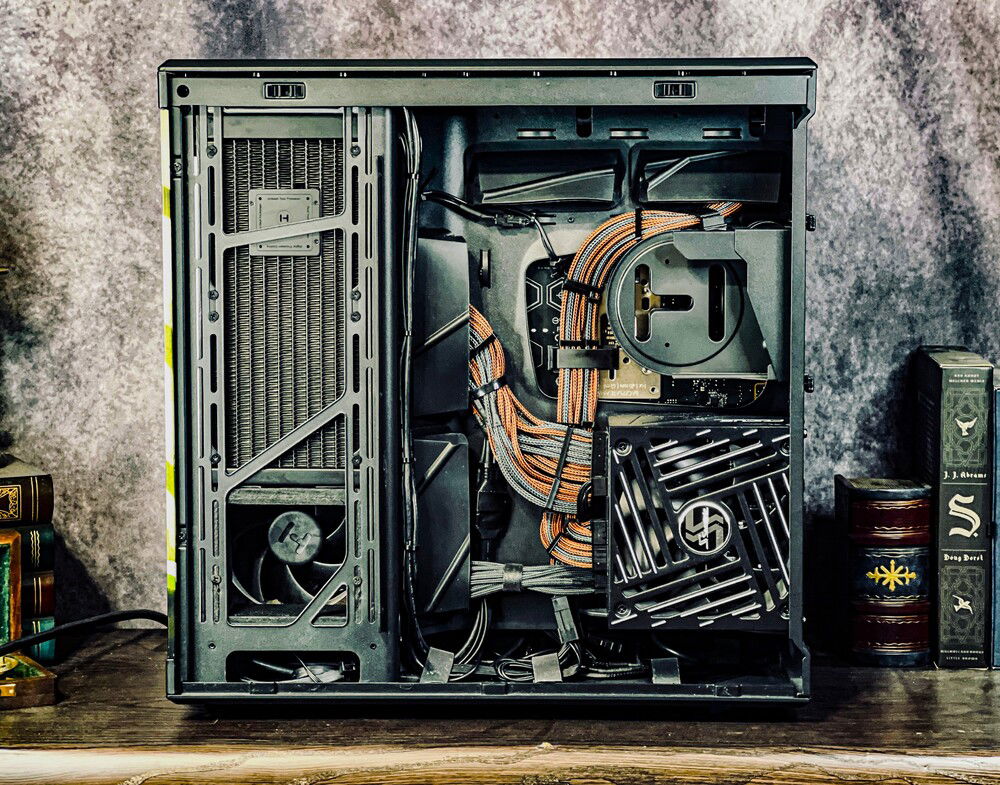

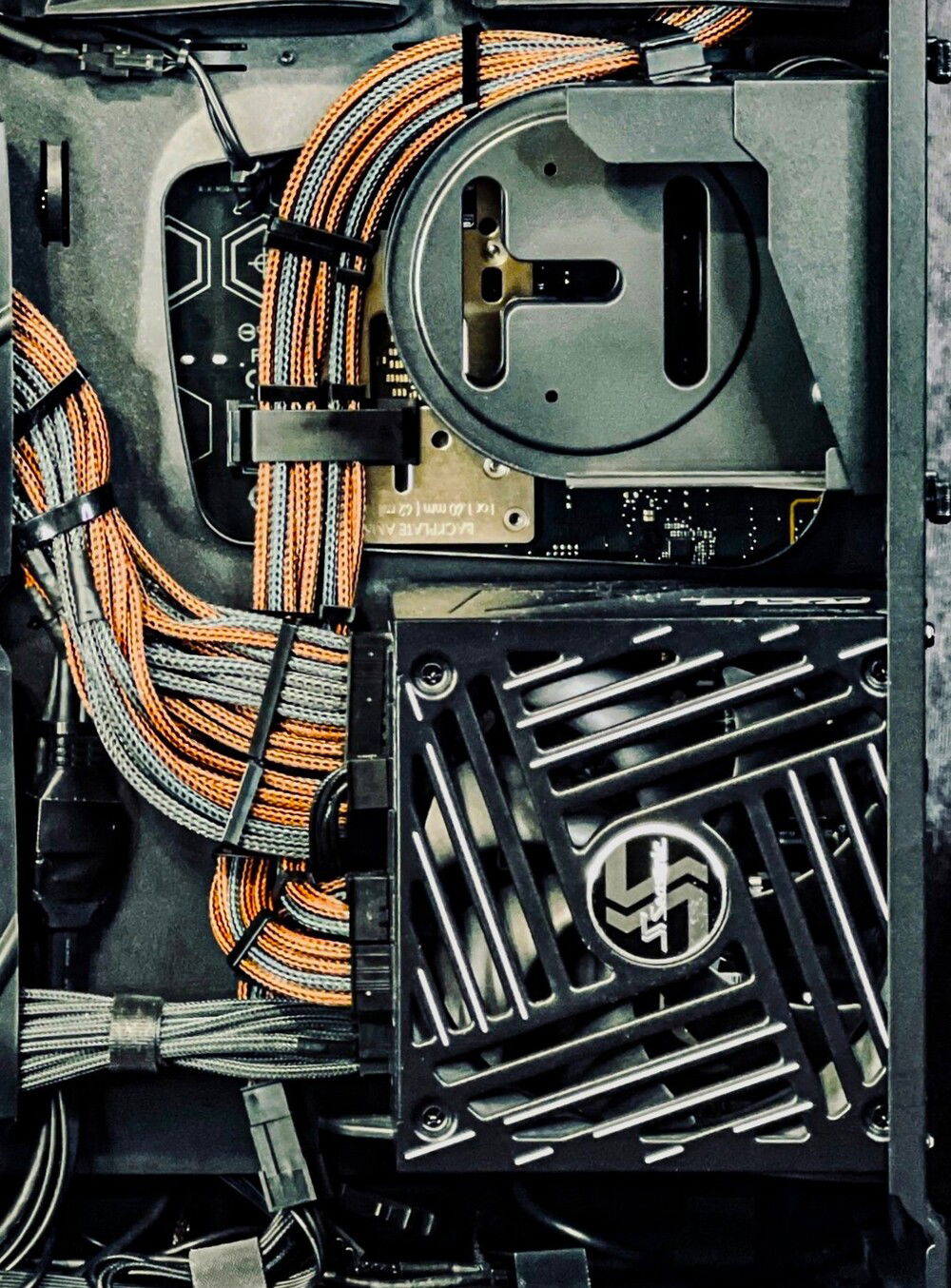

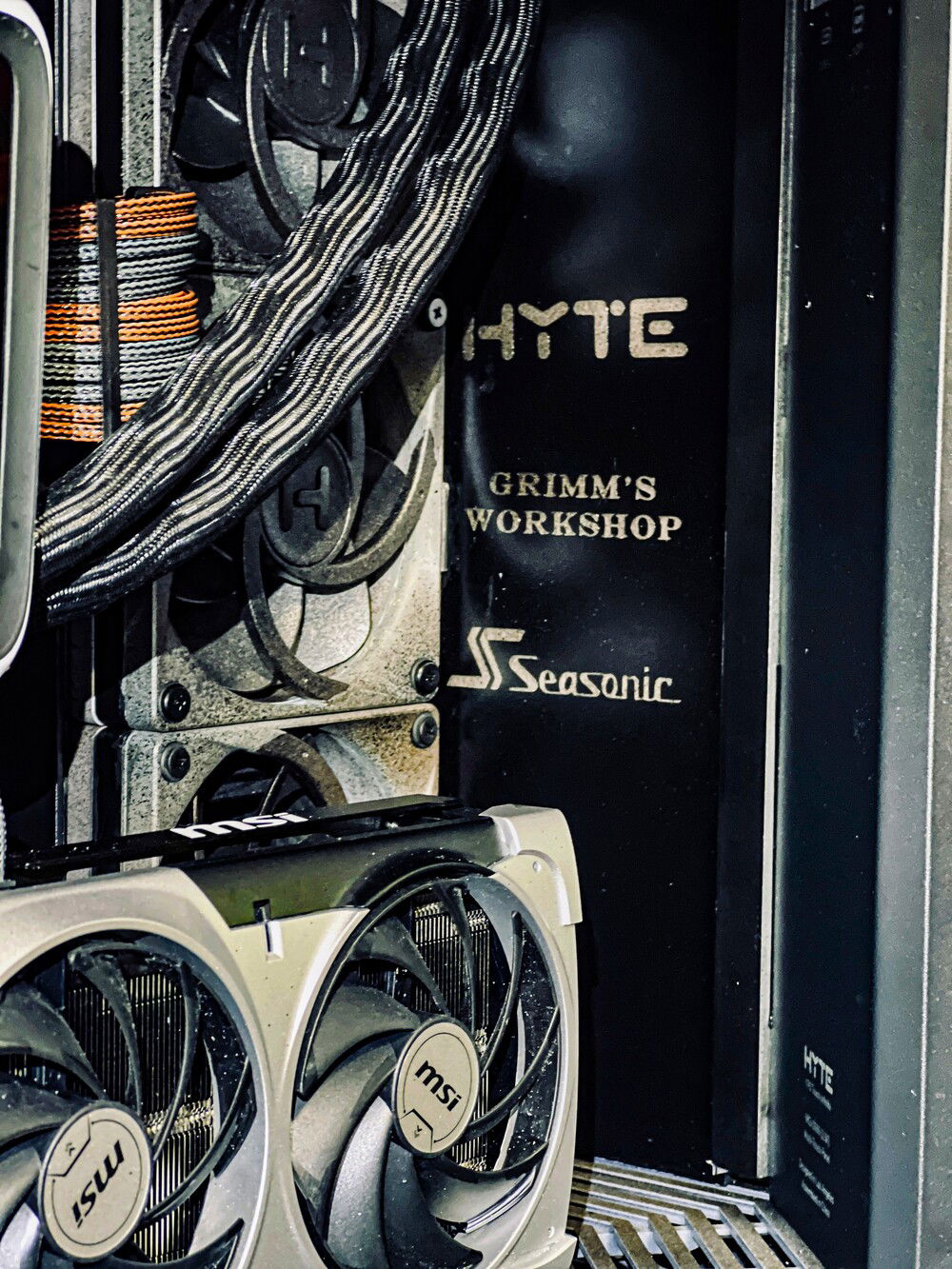

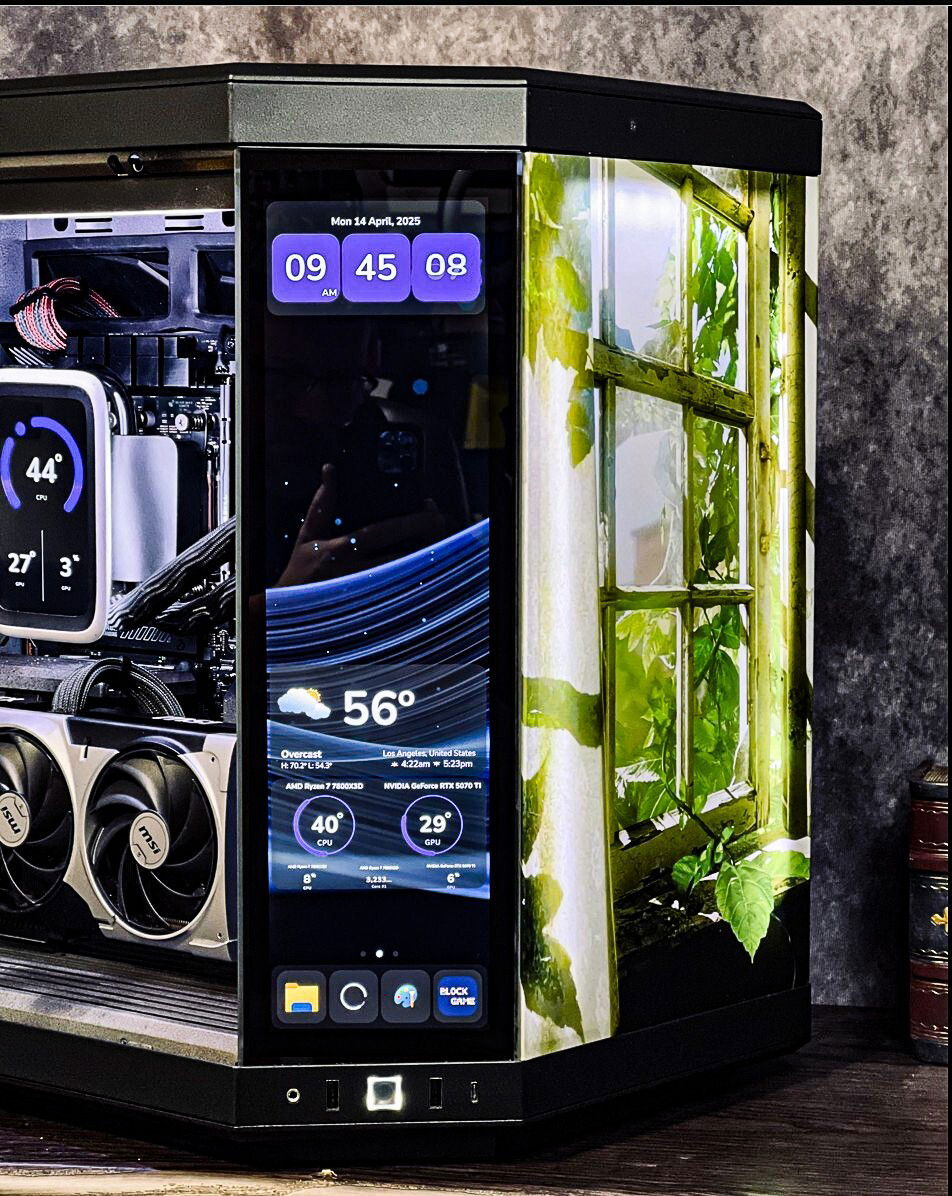

Fittingly, the build's theme was The Last of Us. The mods are extensive, including painting the case interior, AIO, and the fans, hiding branding on the board, and custom cables. The side glass is a translucent vinyl decal with LED backlighting - the window is from the menu screen of the game, and was a client request.

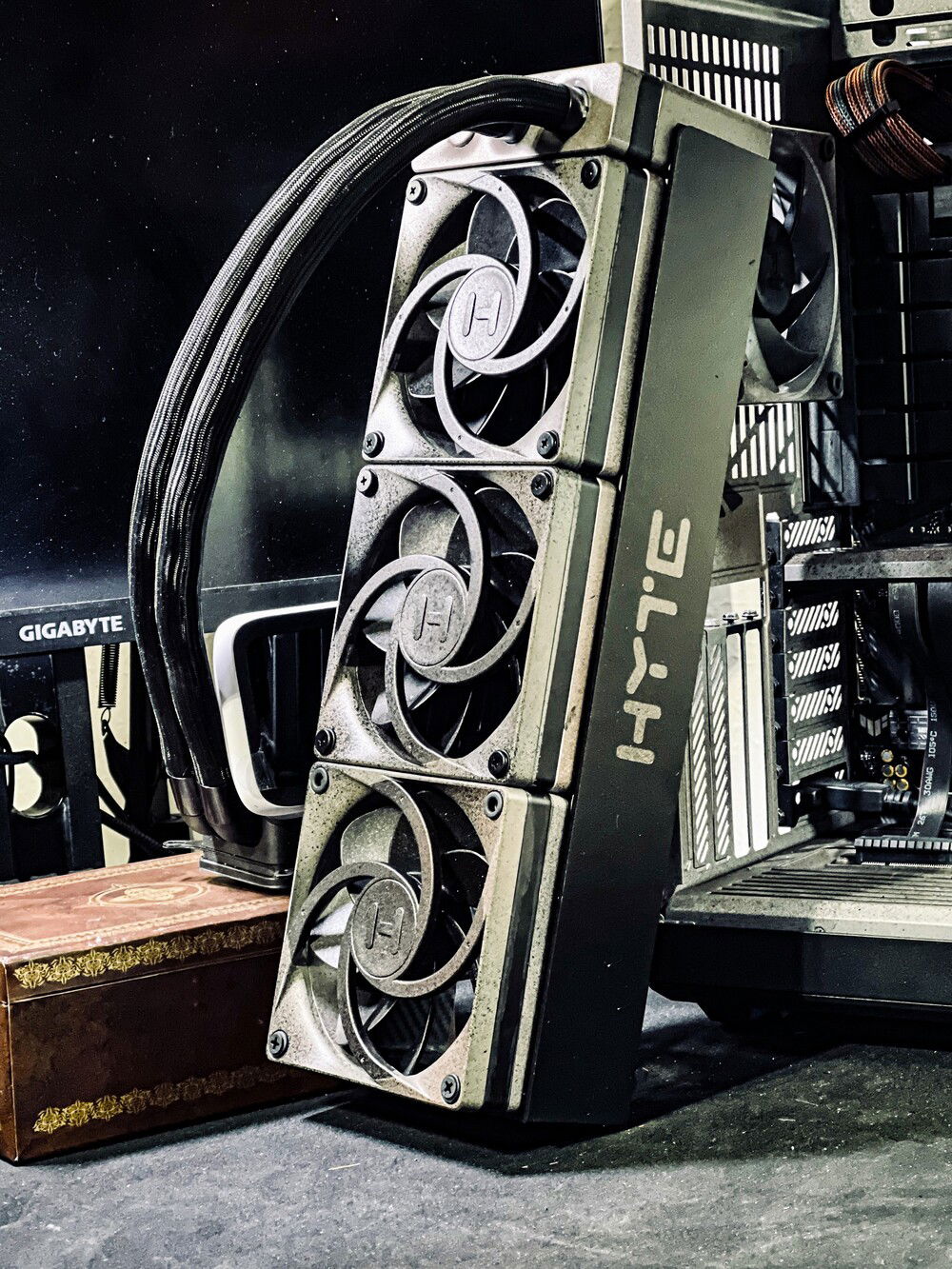

The most extensive mod was to the AIO. The Q60 is a 240mm AIO; to avoid empty spaces it was modded to look like a 360mm. This involved framing an extension to the bottom of the radiator to support the third fan - I used 1/2" plywood, although 3D printing would be the more common method. I then covered the sides of the rad with acrylic panels to make it look like one unit.

Detailed parts list: https://pcpartpicker.com/list/HK48mC
Color(s): Black Brown Gray
RGB Lighting? Yes
Theme: Video Game
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 385.38
AMD - Ryzen 7 7800X3D
Socket: AM5
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 194.99
ASUS - TUF Gaming B650-E (WiFi)
Chipset: B650
CPU Socket: AM5
Size: ATX
Memory
$ 84.99
G.Skill - Flare x5 (6000mhz)
Type: DDR5
Capacity: 32 GB
Graphics
$ 912.98

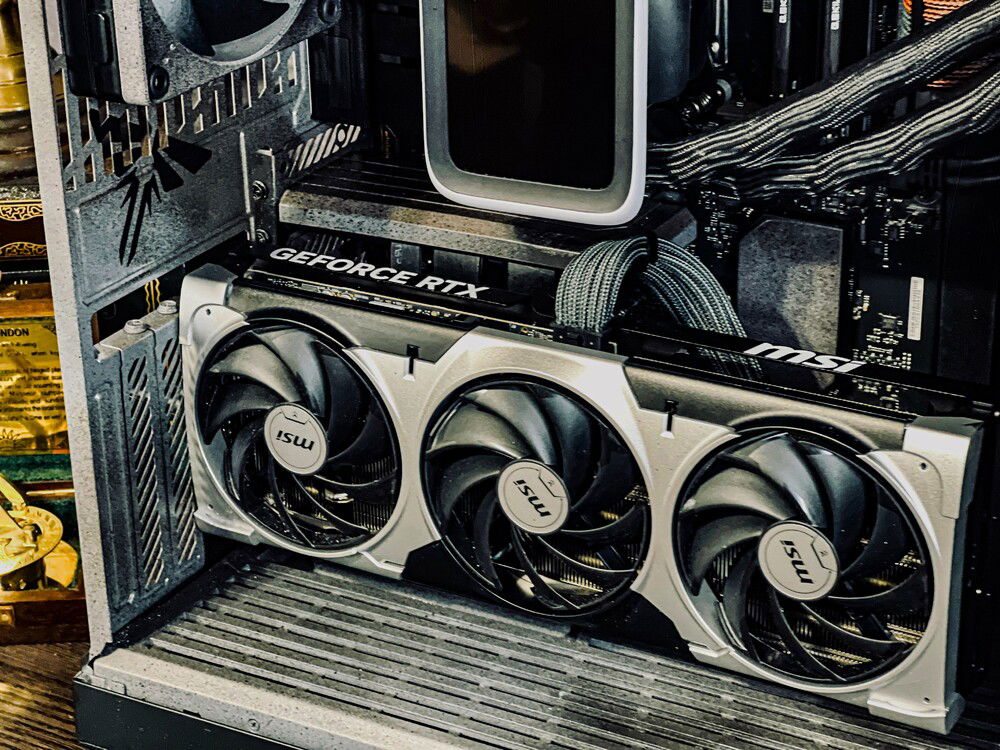

MSI - GeForce Ventus 3X OC
Chip Manufacturer: NVIDIA
Chip: RTX 5000
Interface: PCIe x16
Storage
$ 79.99
Western Digital - WD_Black SN770
Form Factor: M.2
Interface: M.2 (B+M)
Capacity: 2 TB
PSU
$ 268.68
Seasonic - Focus GX-1000
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 439.99
hyte - Y70 Touch
Type: Mid-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 79.99
hyte - Thicc FP12
Size: 120 mm
Case Fan
$ 75.90
Cooling
$ 249.00
hyte - Thicc Q60
Type: AIO
Size (WxHxD): 240 mm
