GIGABYTE AORUS WATERFORCE DUAL DISTROPLATE

Hello all,

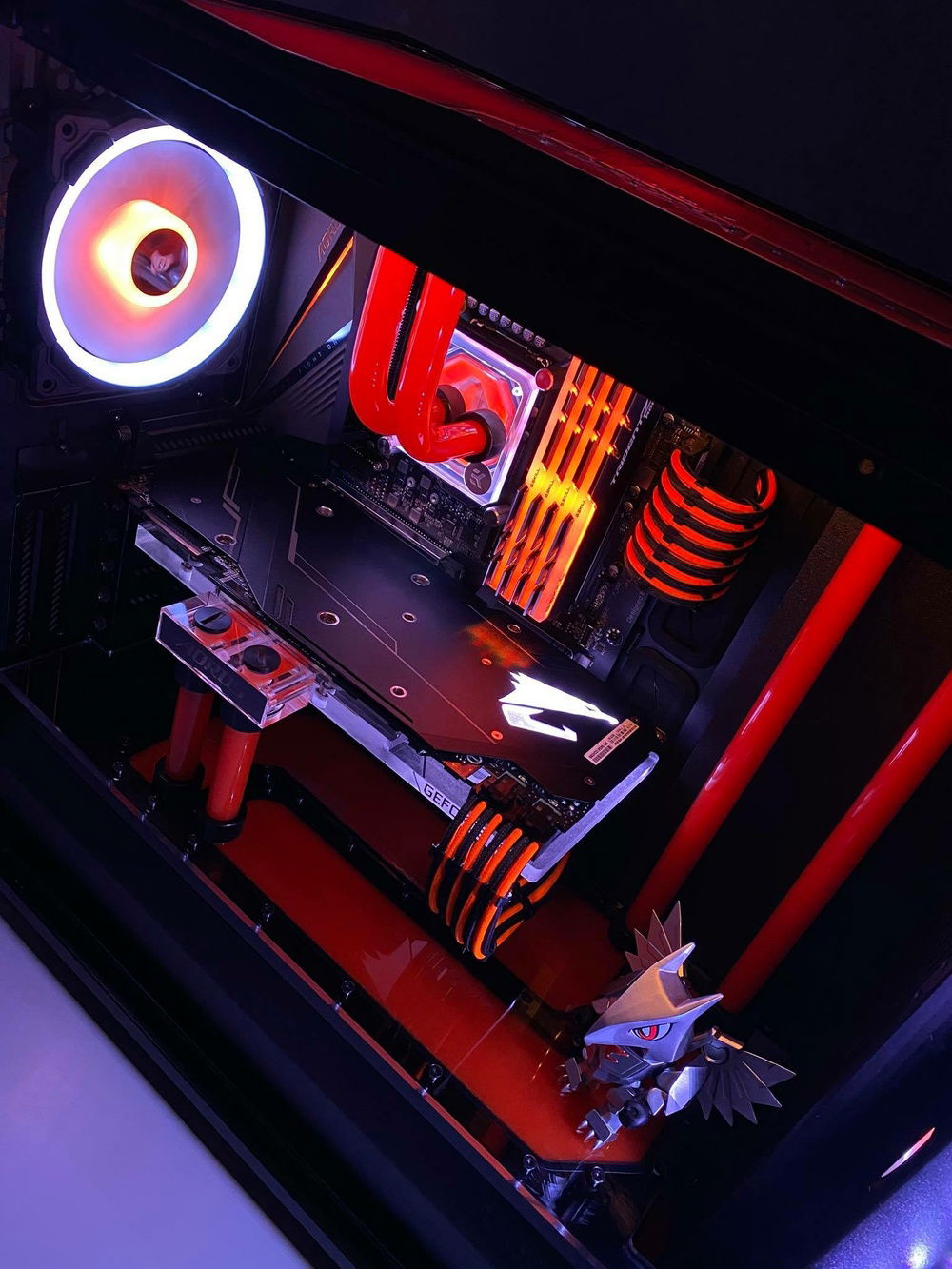

welcome to my GIGABYTE AORUS WATERFORCE build.

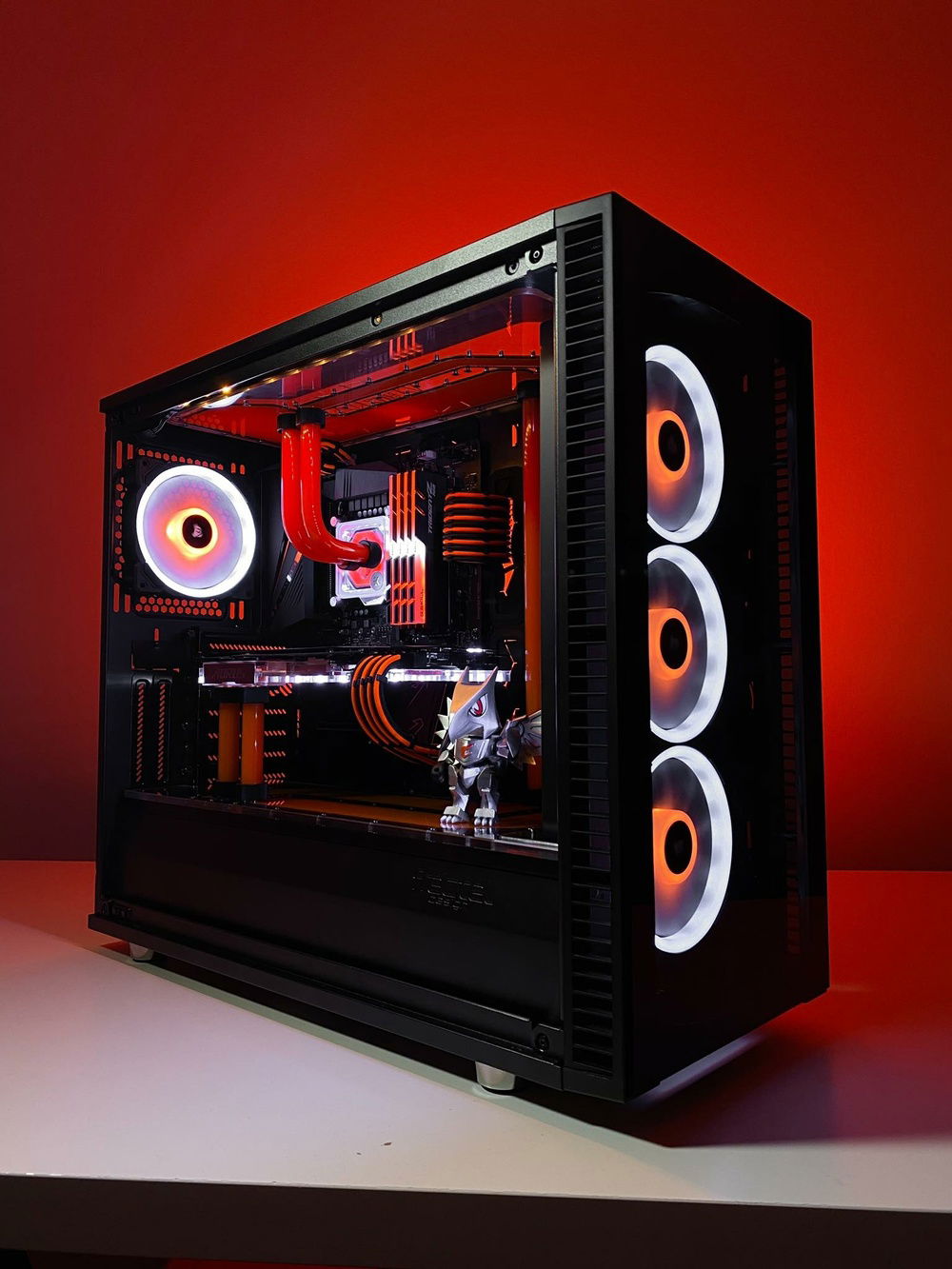

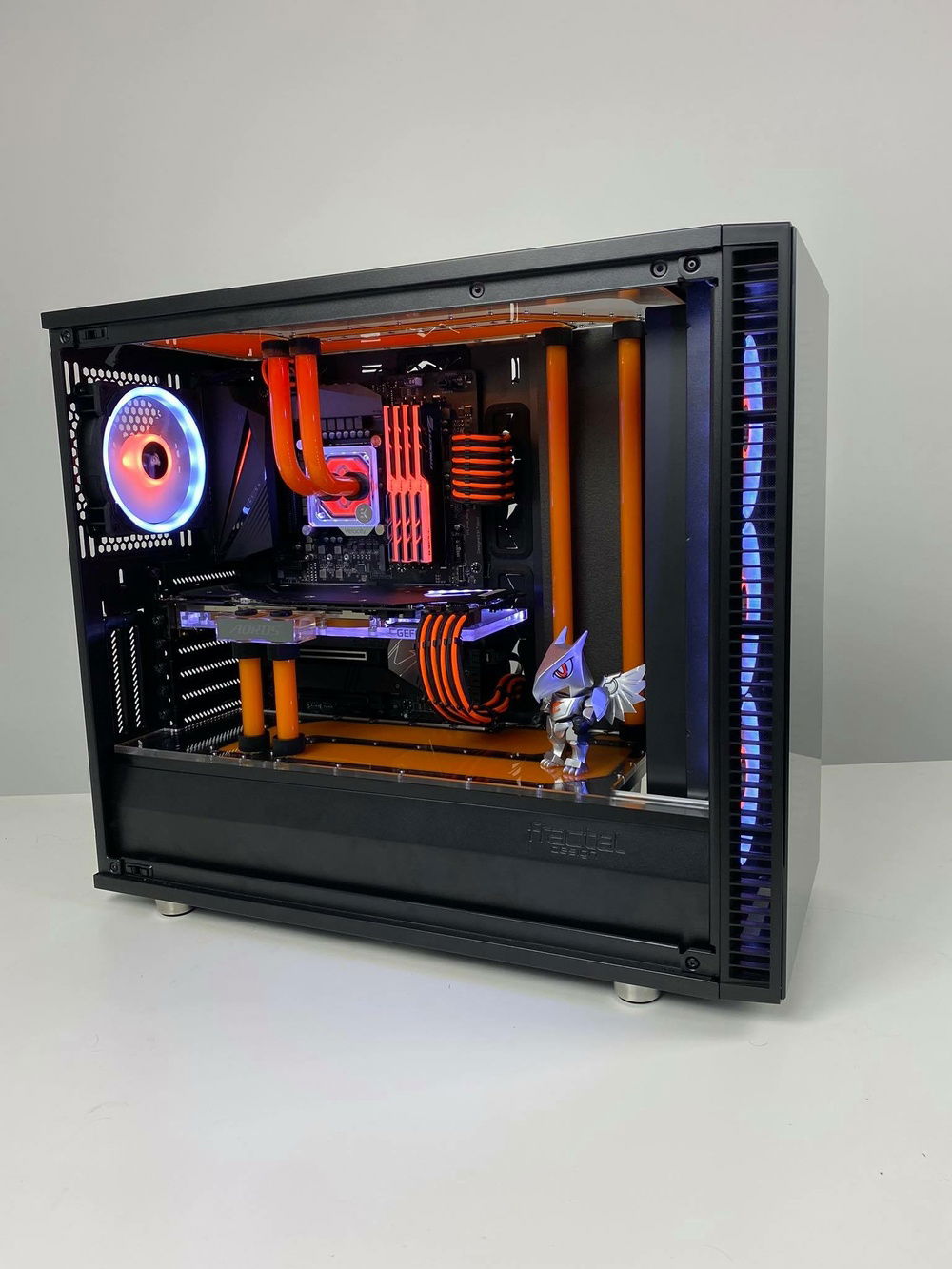

The base for the project is a Fractal Design Vision Blackout. We chose this case because we don't need the RGB fans of the Vision RGB version anyway, so we could save some money.

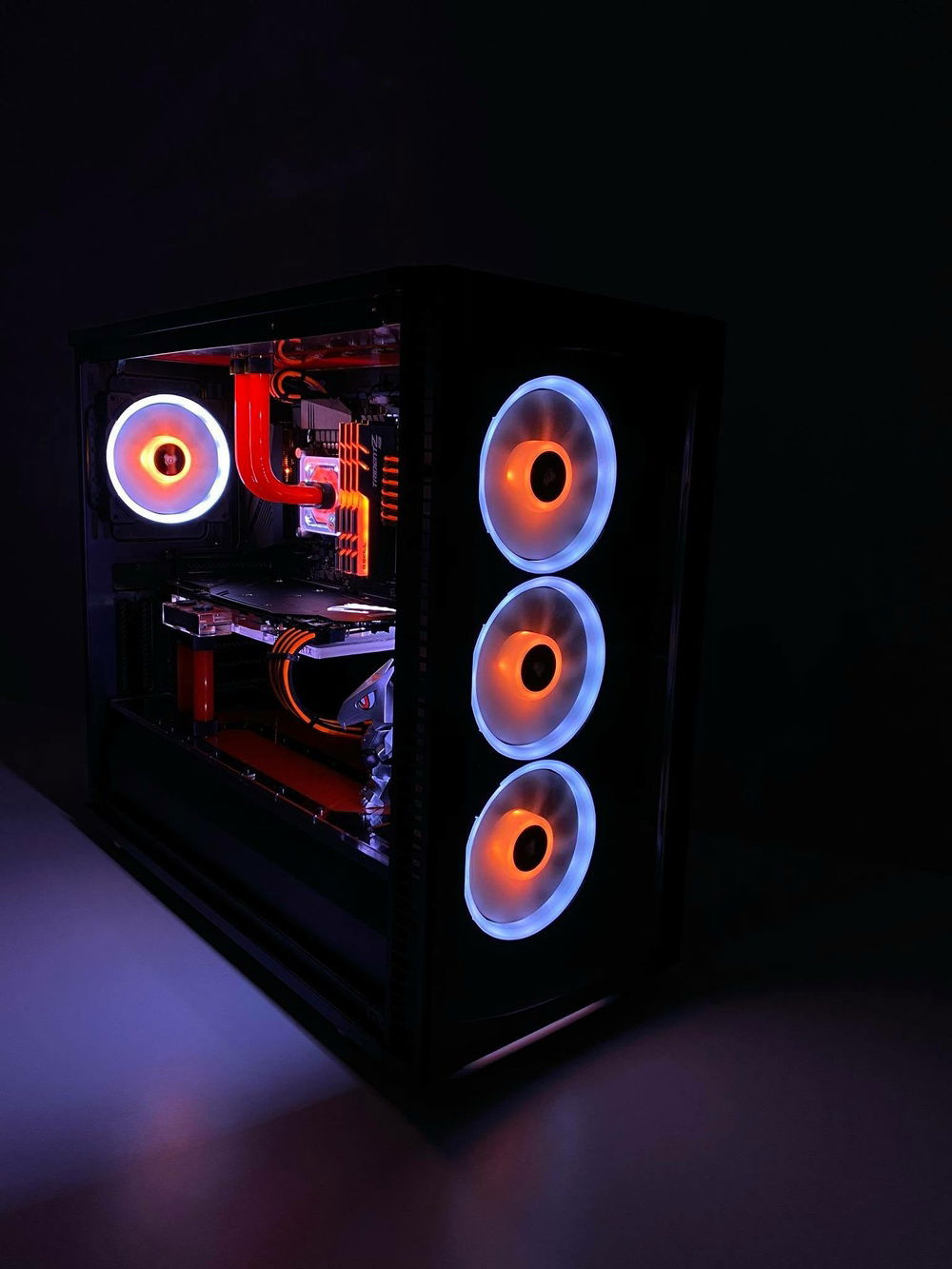

All Fractal Design fans were replaced with Corsair LL120 RGB fans connected to a Commander Pro.

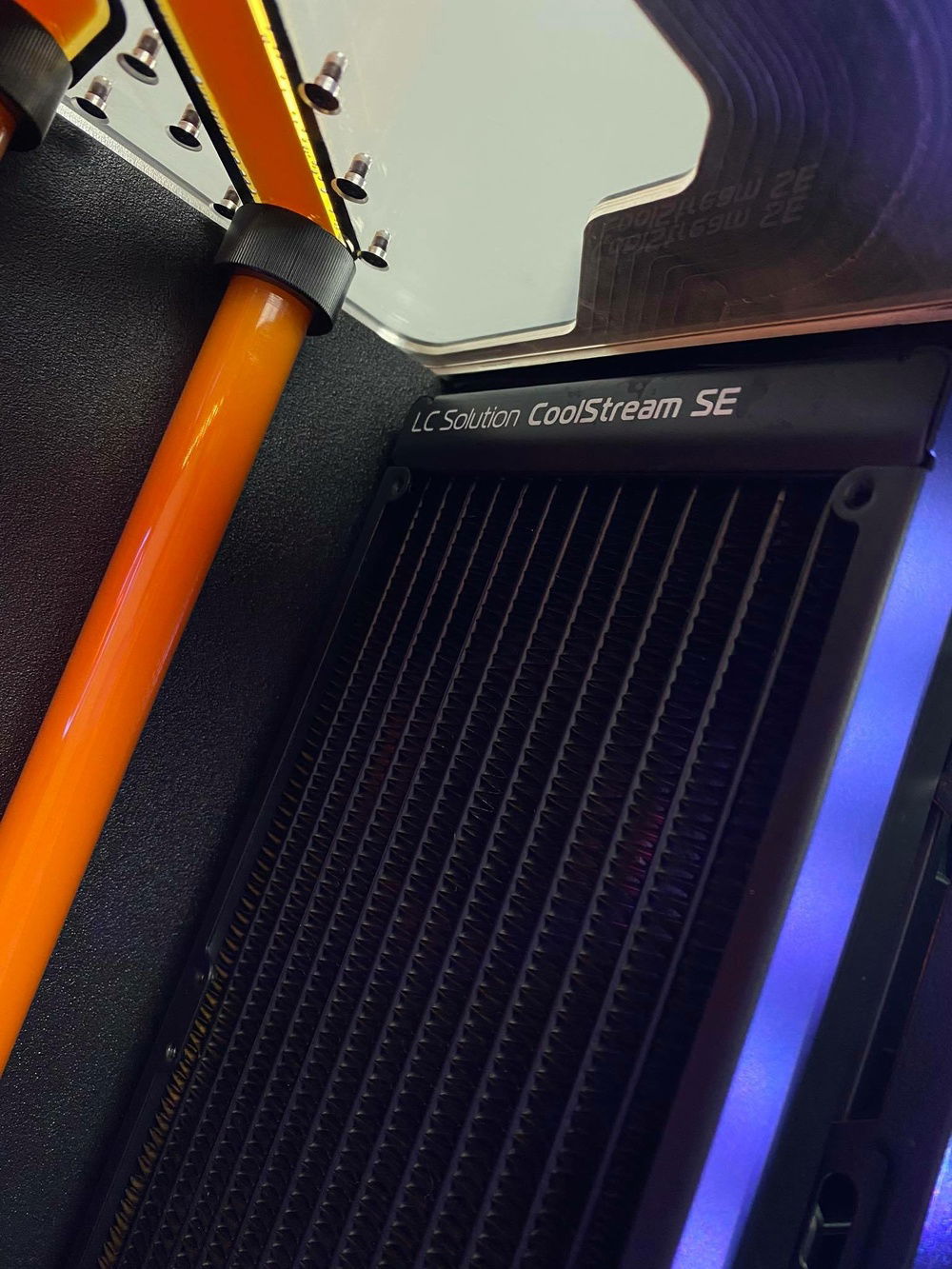

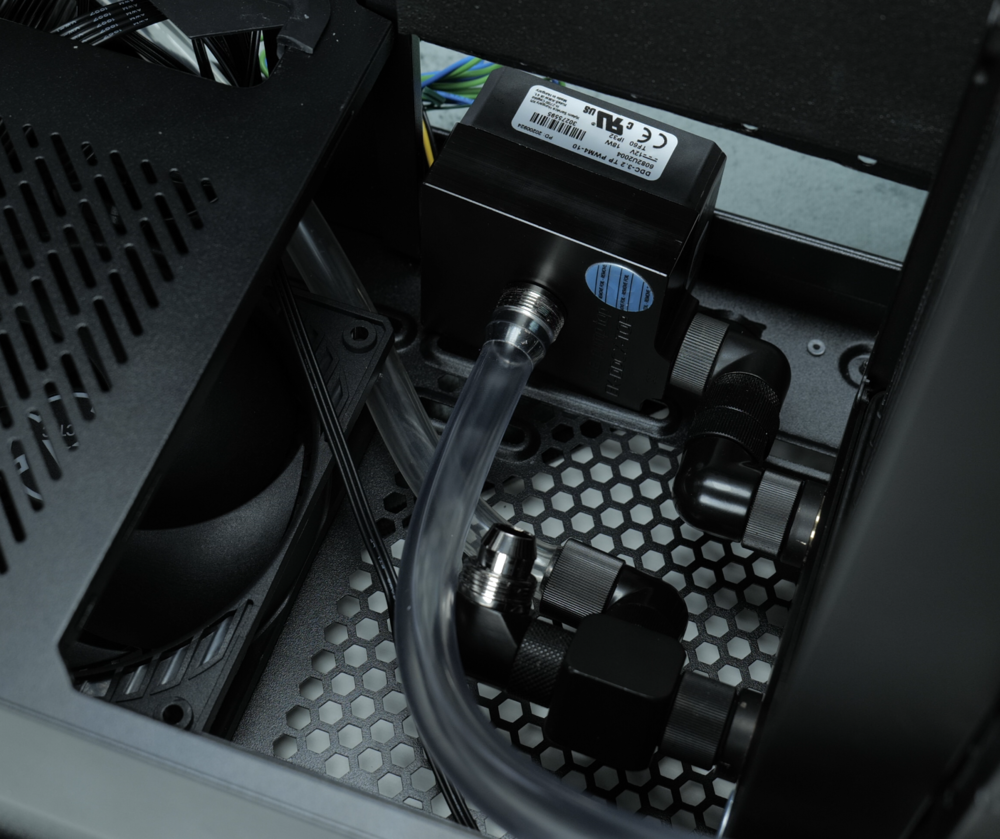

Under the PSU cover, there is Fractal Design's ION+ 760W PSU, an Arctiv PWM PST 120mm fan, and the EK DDC pump with the EK XTOP. The pump outlet leads to the EK SE 360 radiator and after this follows a T piece including drain.

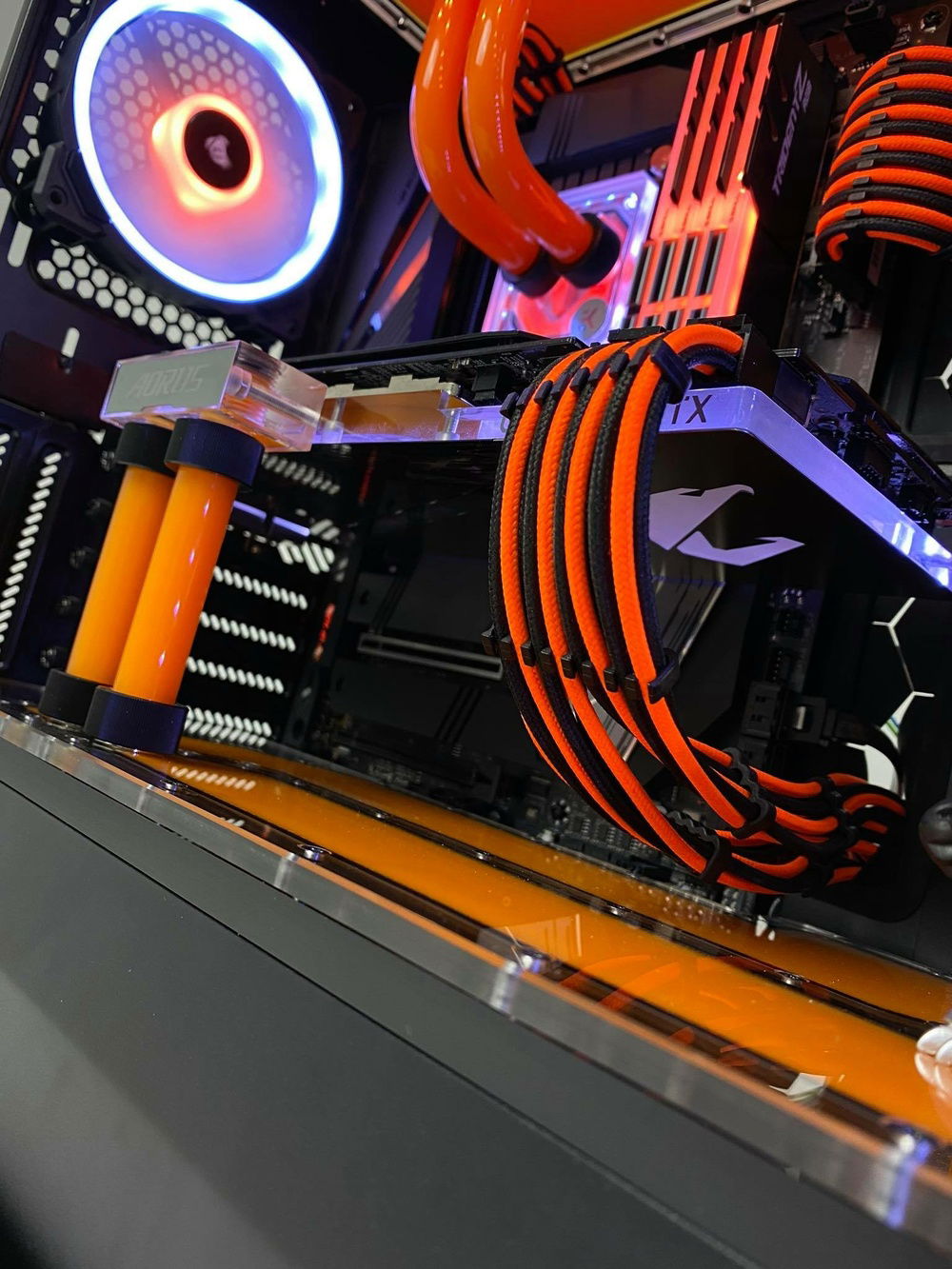

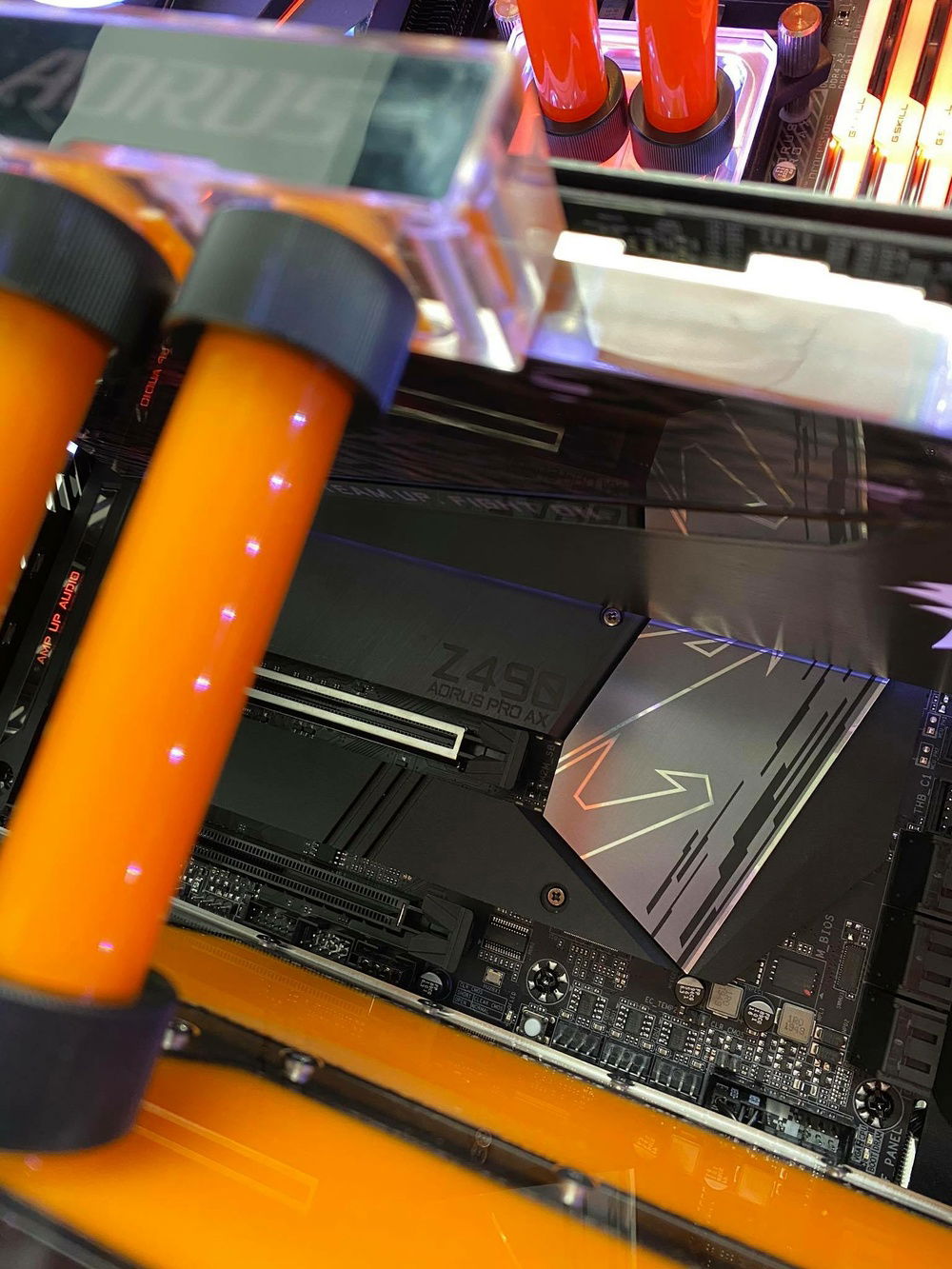

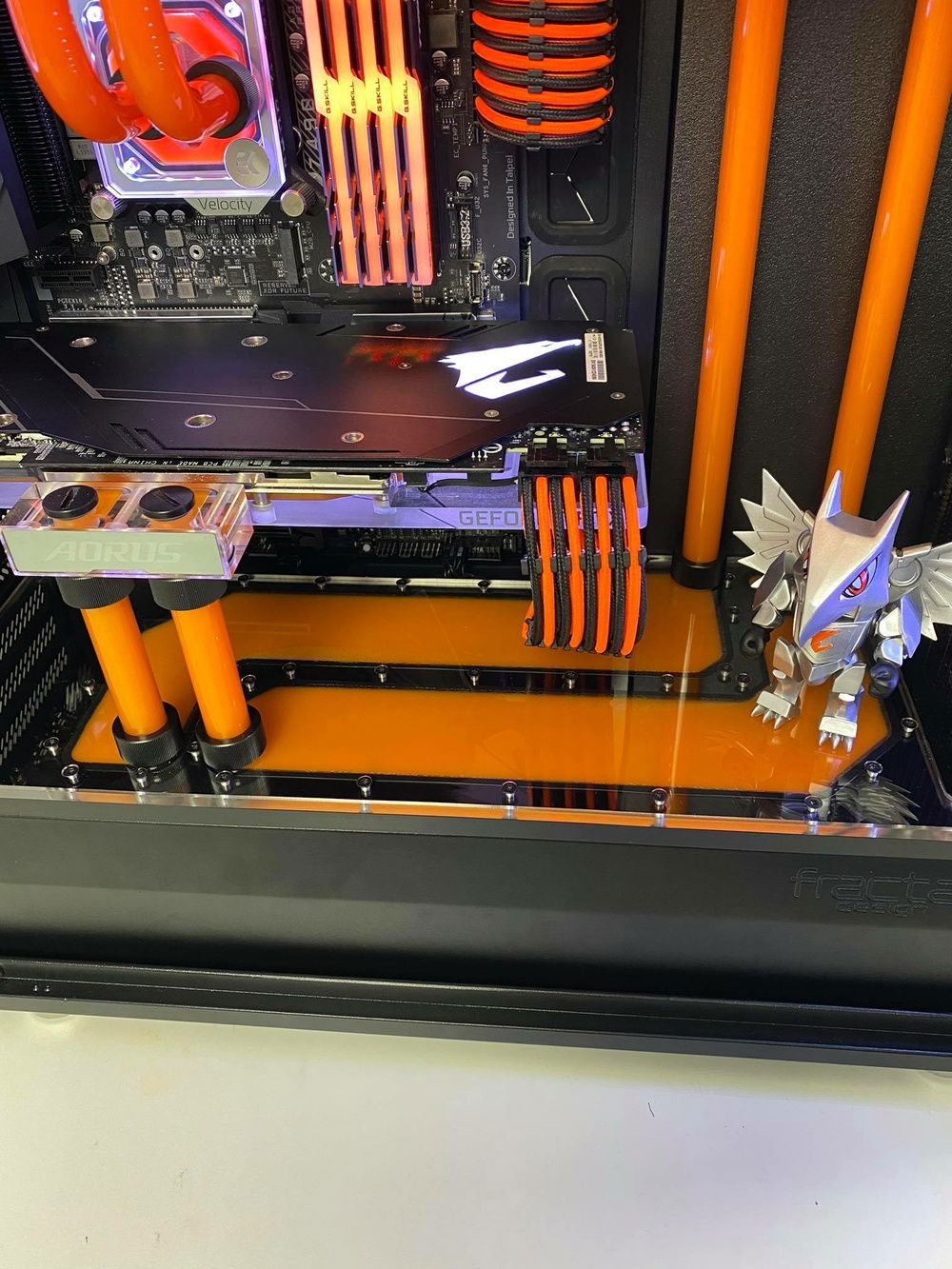

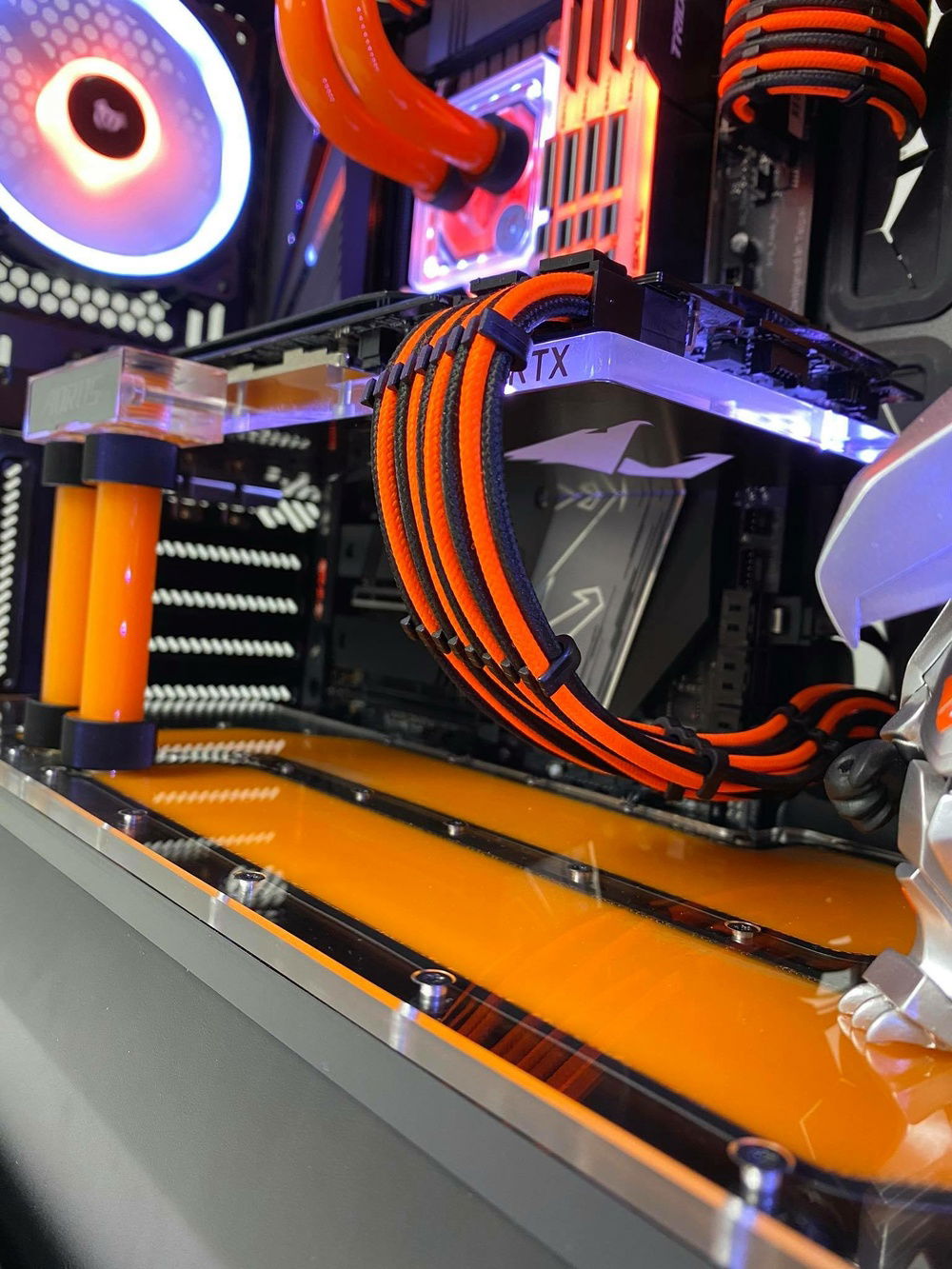

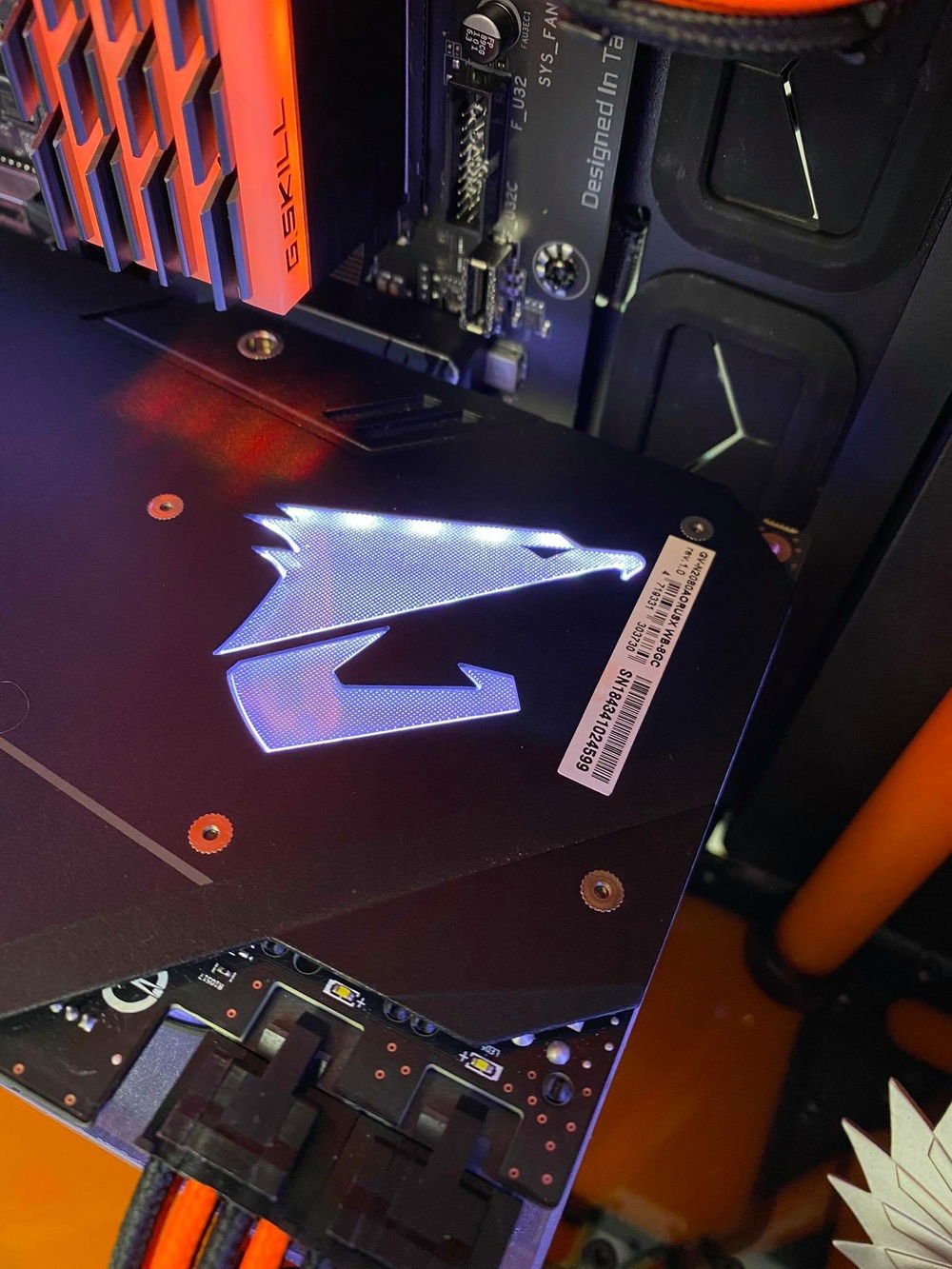

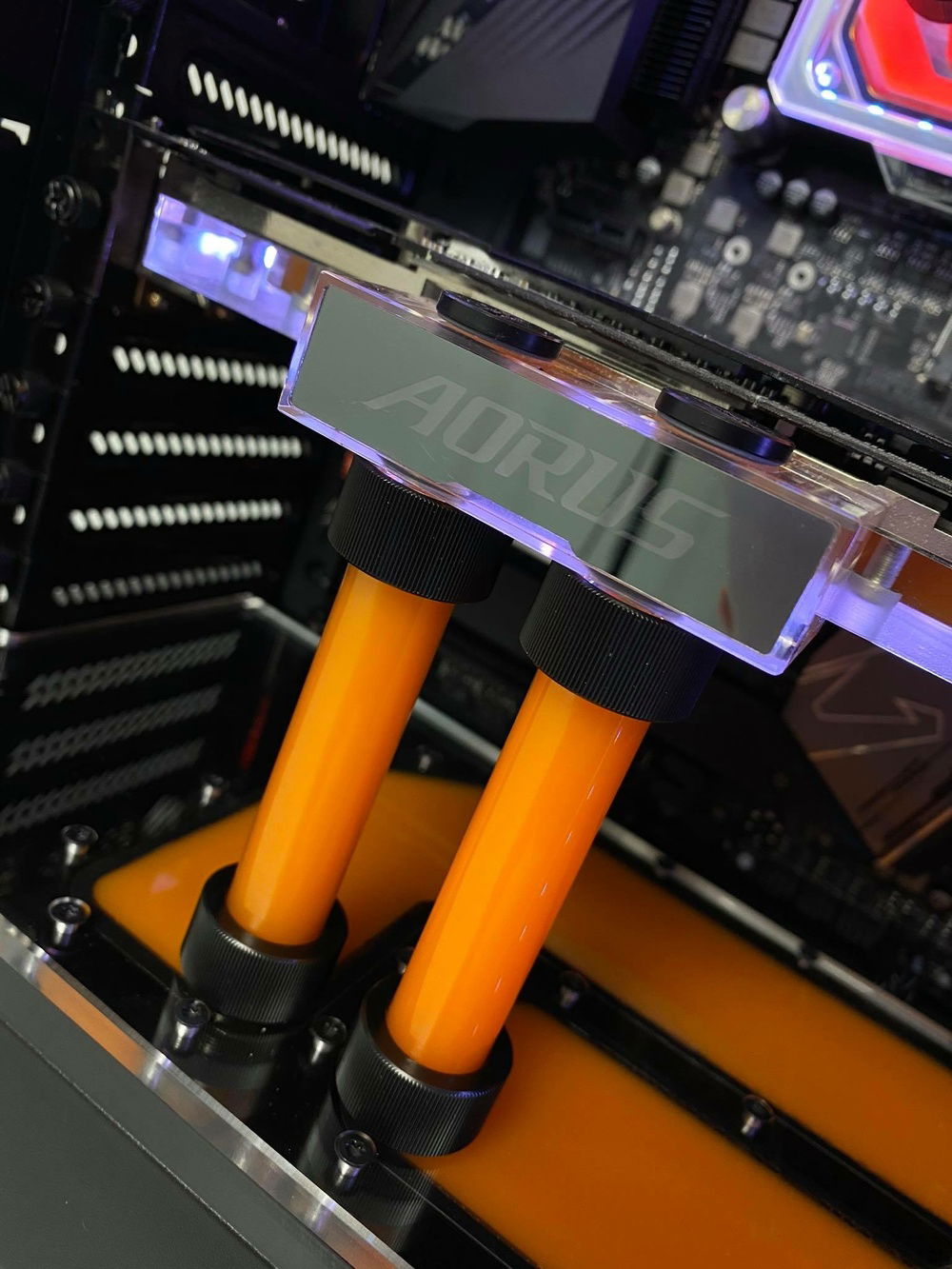

From there it goes to the first distroplate, which supplies the RTX 2080 Waterforce WB with the EK Cryofuel Orange Fluid.

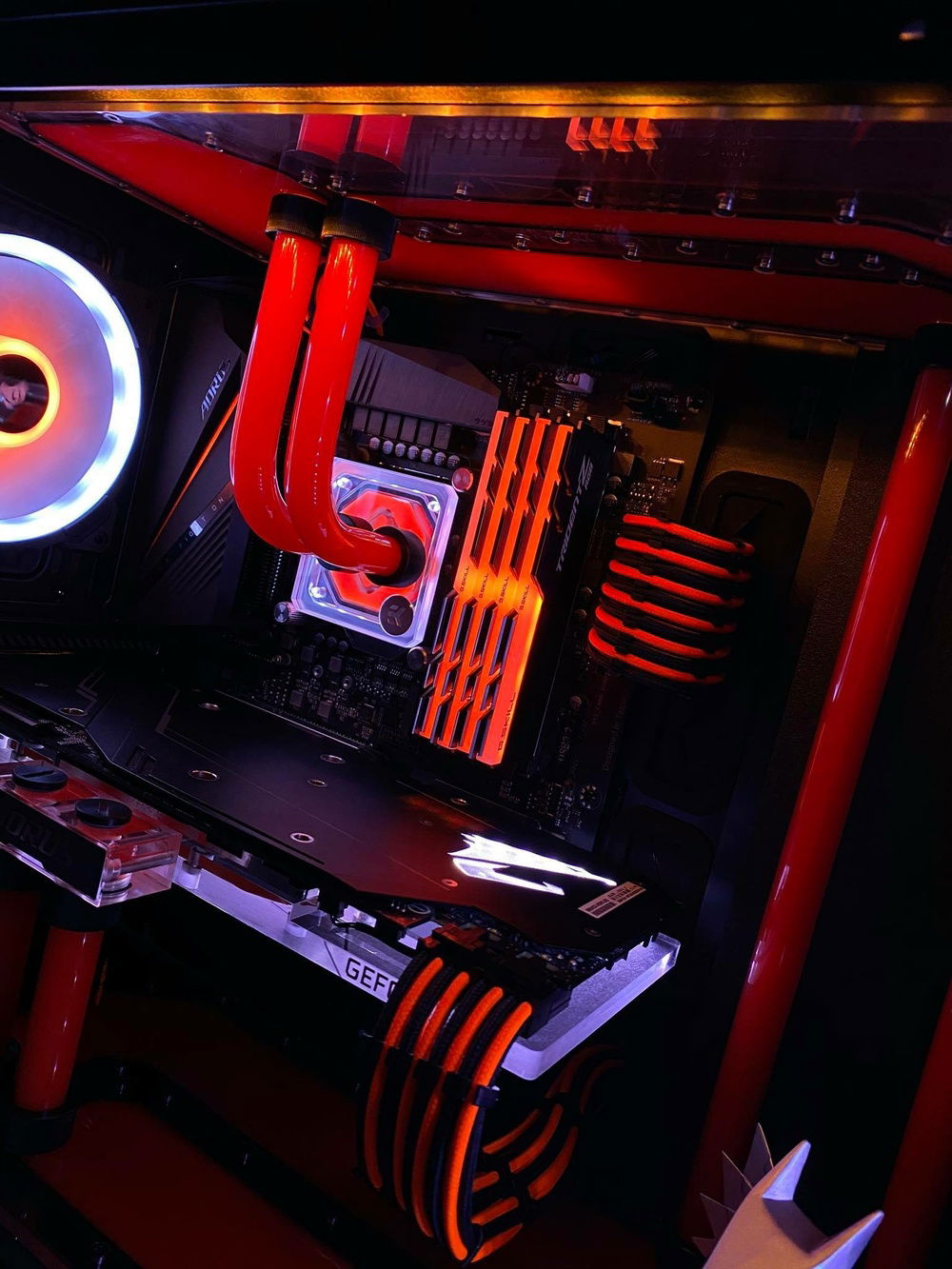

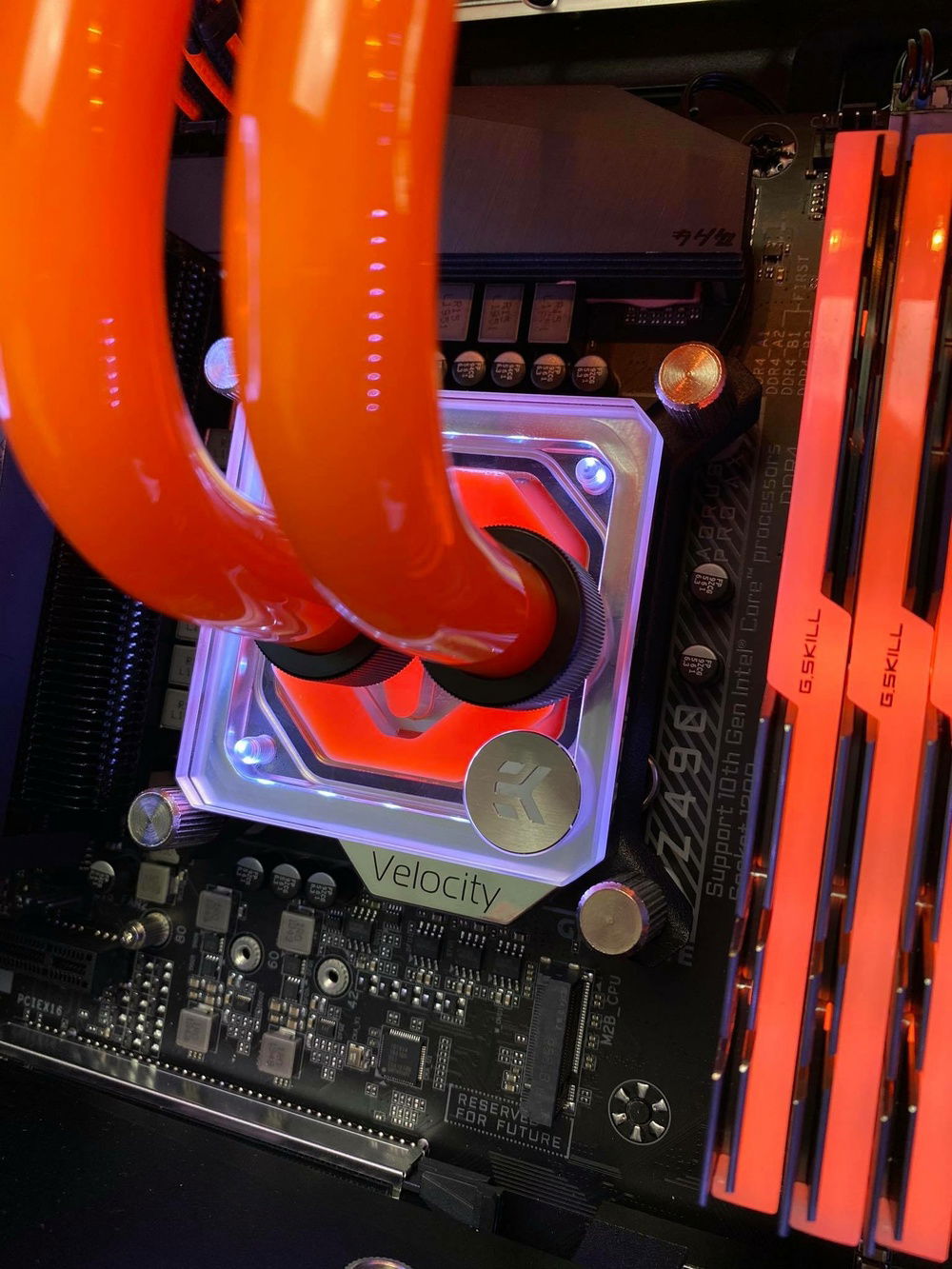

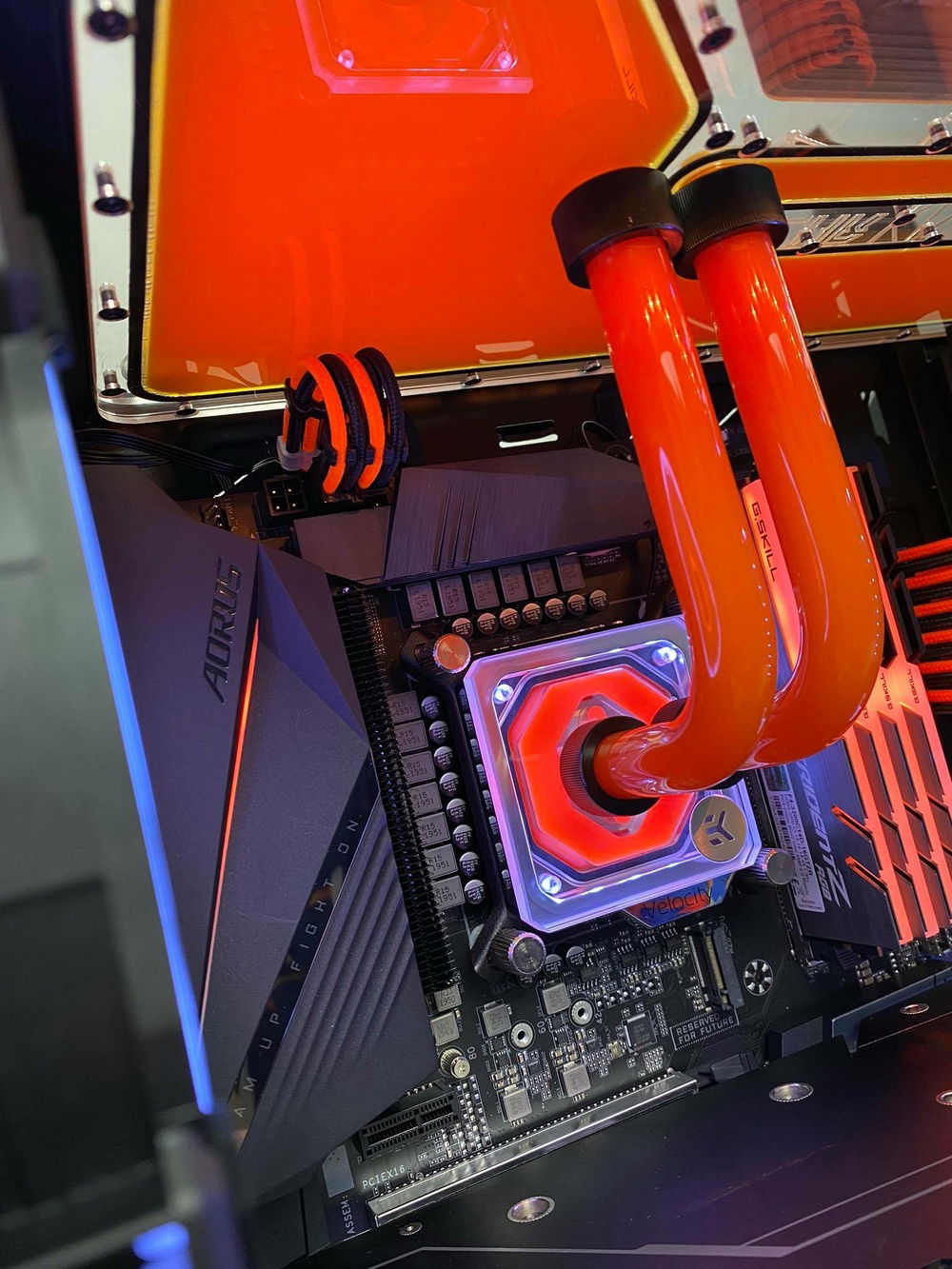

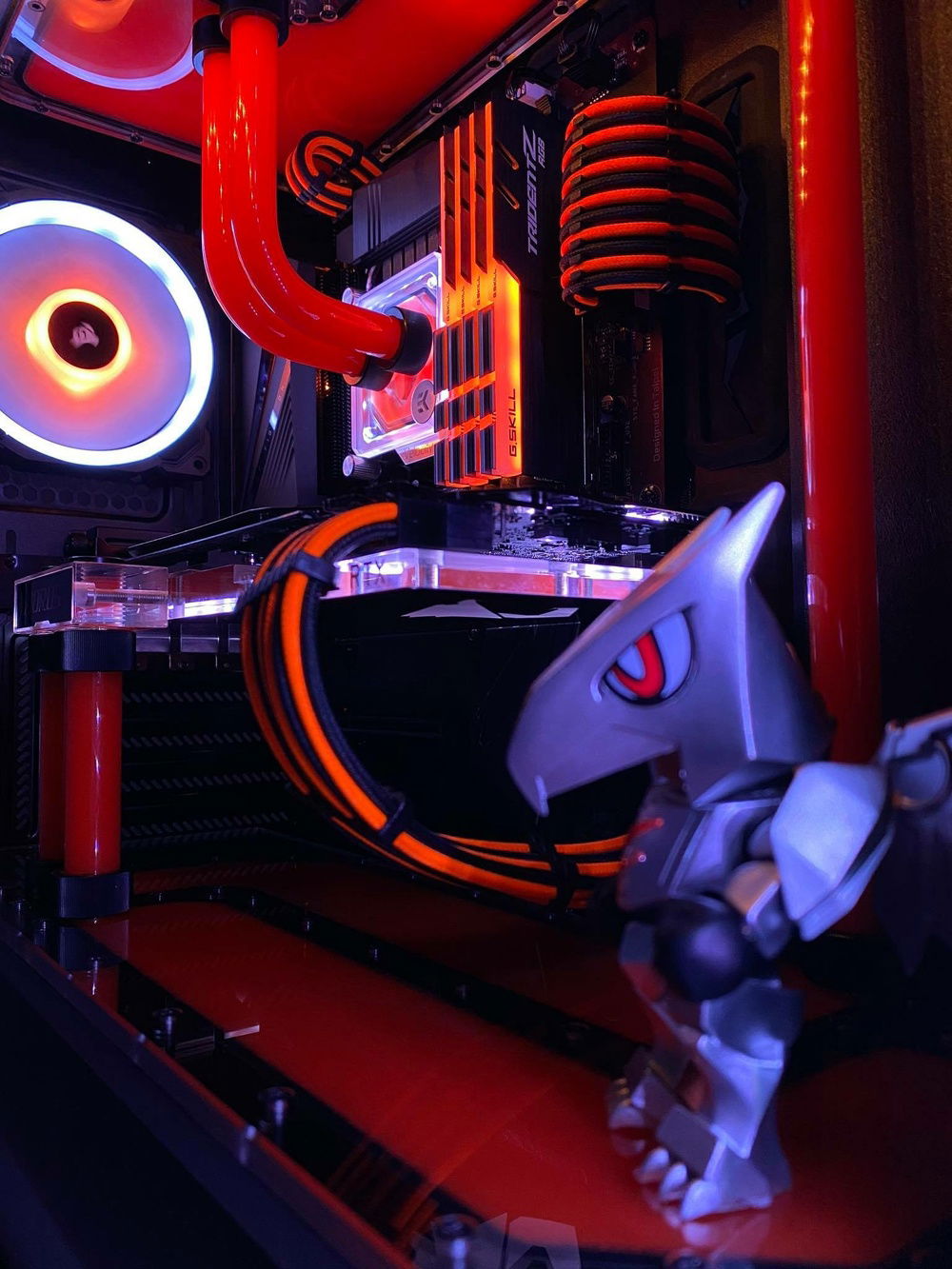

After that, it goes up to the second distro, which then integrated the CPU block with the i9 10850K sitting underneath it into the loop. After that it goes back to the lower distro, to the pump inlet and with that the loop is complete.

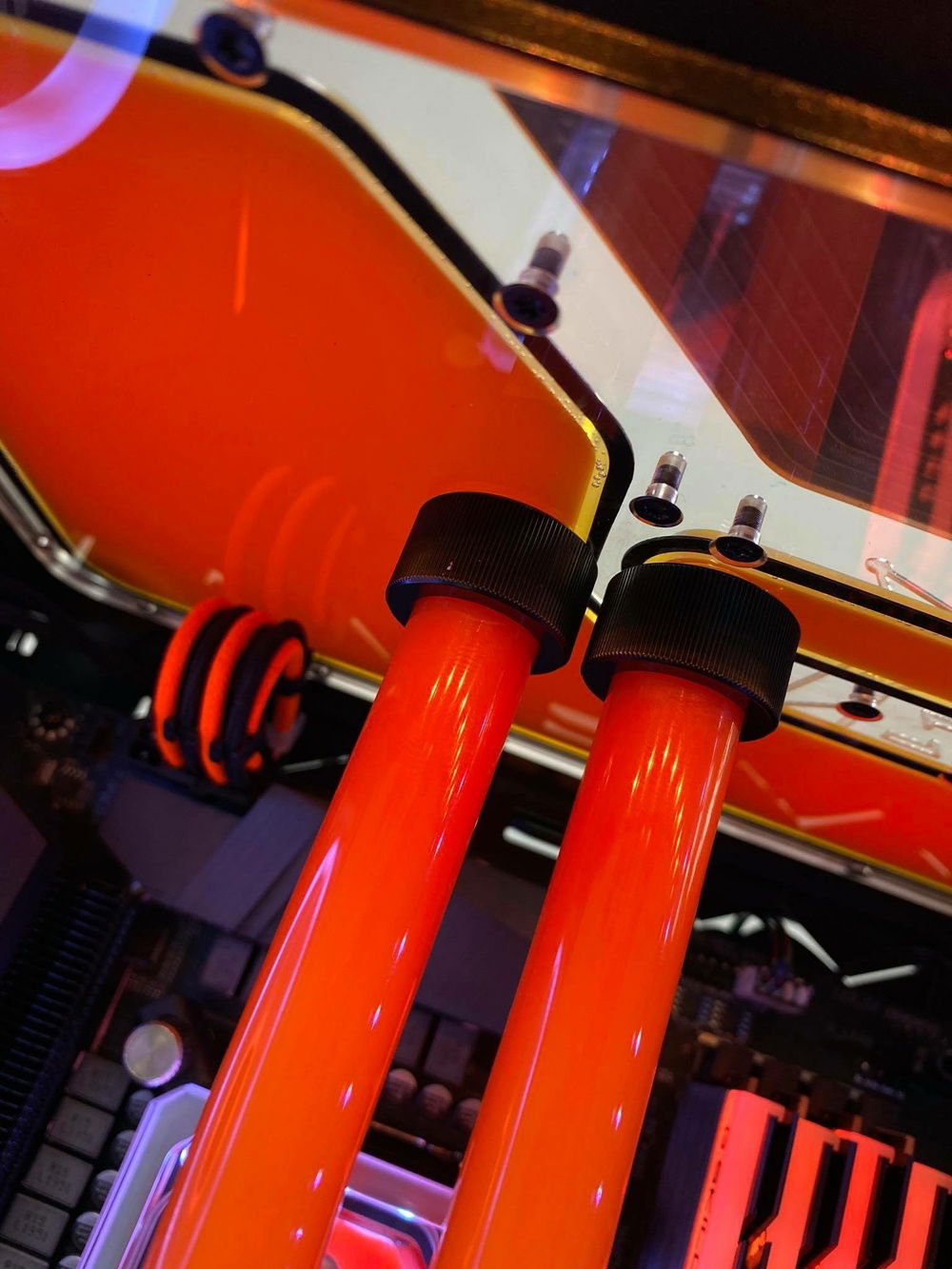

The loop is filled by the upper distro plate.

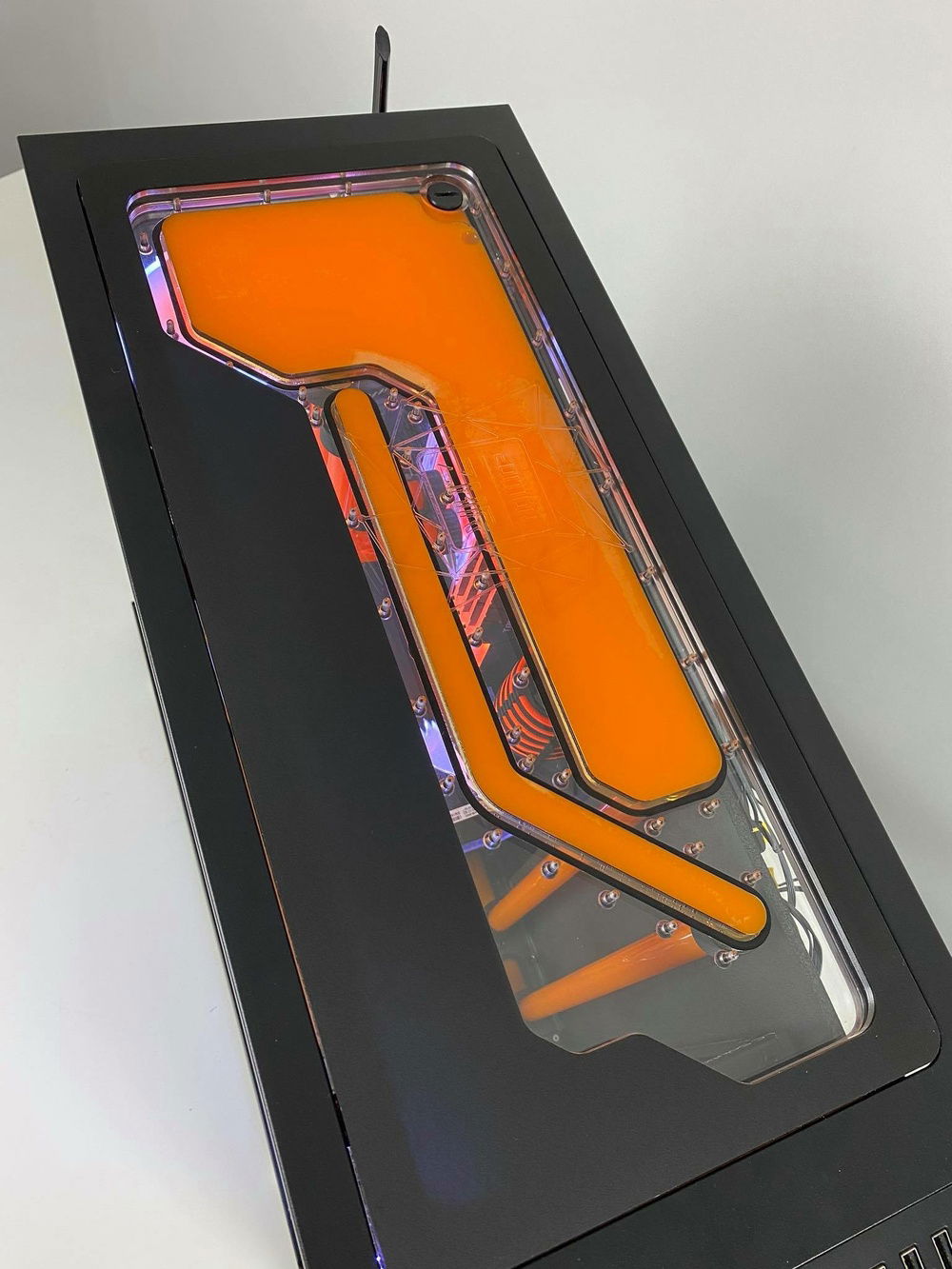

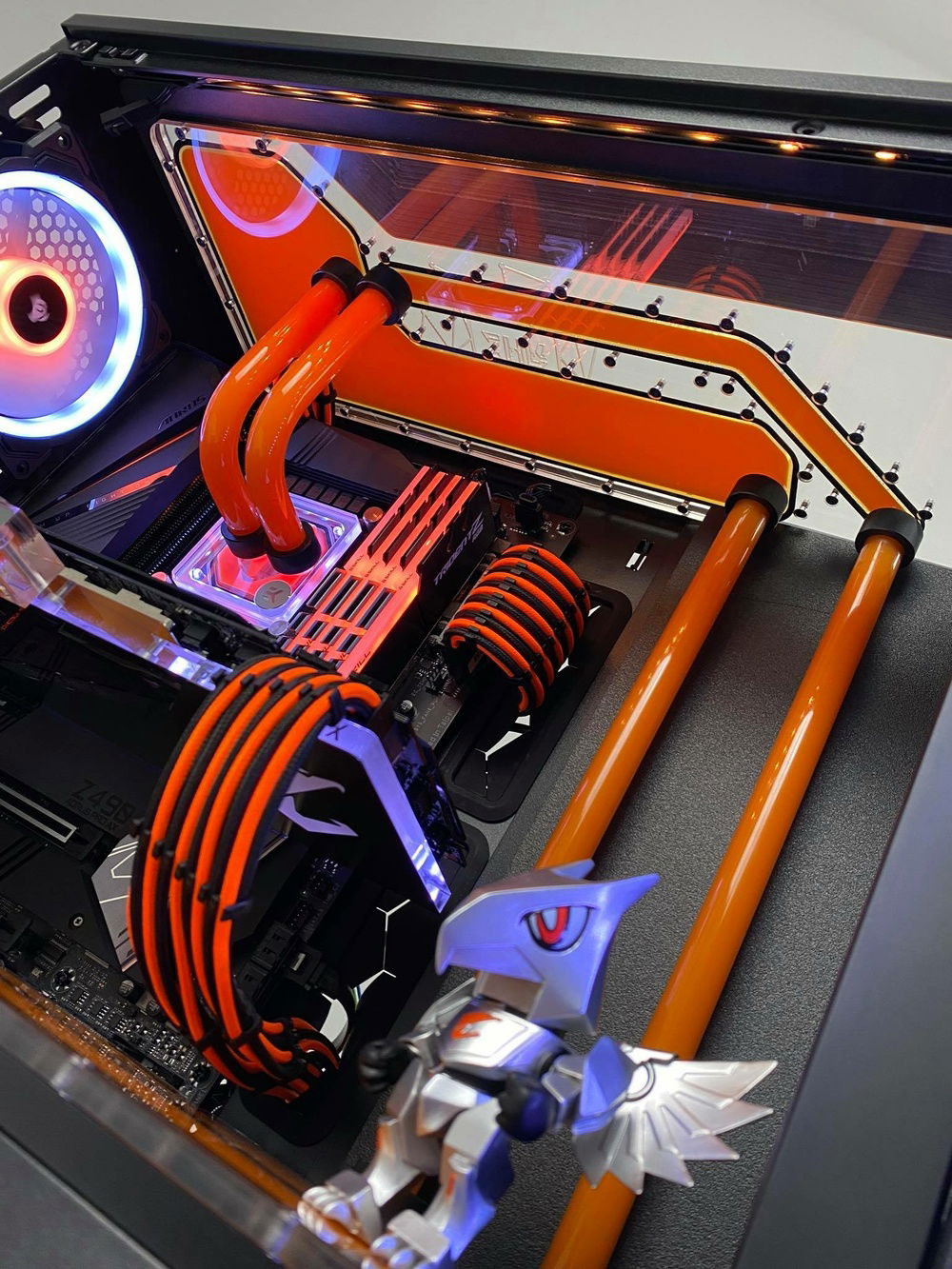

The upper distro plate is installed in exactly the same way as the original viewing window of the Fractal Design Vision.

And now have fun with the pictures!

Zenchilli
Color(s): Black Orange
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Brand
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 399.77
Intel - Core i9-10850k
Socket: LGA 1200
Cores: 10
Integrated Graphics: Yes
Motherboard
$ 274.99
Gigabyte - AORUS Pro AX
Chipset: Z490
CPU Socket: LGA 1200
Size: ATX
Memory
$ 239.99
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
Gigabyte - AORUS Extreme Waterforce WB
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 80.99
TeamGroup - GX2
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 246.00
TeamGroup - T-Create Classic PCIe
Form Factor: M.2
Interface: PCIe x1
Capacity: 1 TB
PSU
$ 140.00
Fractal Design - Ion+
Wattage: 860
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 227.00
Fractal Design - Define S2 Vision Blackout
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
ARCTIC - F12 Pro (PWM PST)
Size: 120 mm
Case Fan
$ 158.44
Corsair - LL120 (RGB) (Black) (4x)
Size: 120 mm
Cooling
$ 83.89
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Cooling
EKWB - EK-Torque HTC-16 (Black) (12x)
Type: Fittings
Cooling
$ 149.99
EKWB - EK-XTOP DDC 3.2 PWM Elite
Type: Water Cooling
Accessories
$ 74.29
