Geeek A60 mini-itx RTX 2080 9900k Powerhouse - compact and shiny

It all started as a simple “I will upgrade only my CPU...” and as a result there is basically nothing left of my original hardware :-)
I picked up Silverstone Raven RVZ03 as my first case of choice - reviews were mostly positive, visual appeal was fine and I decided that it could be a right case for my new rig.
Unfortunately, although quality and all were good, temperatures were too high using Cryorig C1 as CPU cooler, Palit GameRock 1080ti and SF600 plus 2 120mm case fans - as a result random shutdowns under average gaming load. PC was overheating quite fast even in open case scenario.
As I mentioned before, I bought Corsair SF600 because it is a well known SFF choice. And I was really really disappointed - for some reason Corsair engineers decided that everyone is obsessed with noise level, so under average load(200w) PSU fans are not spinning at all. It is nice and all, but this psu overheats in a few hours... without turning fans on. They stay idle even when temp inside PSU is 50+ degrees! Quite a genius engineering solution to hardwire fans to incoming load and not to the temp sensor. Official chart says that you have to drain at least 240w to get fans spinning....
Bought SFX PSU from Silverstone and it is much much cooler - no overheating under my usual load. And fans do spin, yey.

In a few weeks I decided to change case to one of “sandwiched motherboard/GPU” style cases plus water cooling to get temps even lower. Geeek A60 appeared to be a good choice and I did not regret even once neither during assembly process nor afterwards.
Main cons is that case is fully(almost) made of acrylic glass. Main pros is that it supports 240mm AIO, huge cards and is really well-thought. Personally I would be glad to pay extra 100-150 bucks to get fully-aluminum version with tempered glass side panels with better ventilation. It is easy to create custom side panels, but replacing internals, which are plastic as well, would be much harder.

As a cooling solution I picked Kraken240, competition was Corsair
AIO, but reviews said that tubing there is much more rigid and I was afraid that it will be hard to fit everything in there. I did never regret about my choice - kraken works and looks awesome. Fitting tubes was kinda hard but manageable

Next problem was that my old GPU won’t fit into the new case, it was expected because GameRock 1080ti is a really huge card. 2080 cards selection for this case is pretty limited atm, so I had to pick either EVGA Gaming, Gigabity OC or Asus Strix. Strix won, although I am still not sure about my choice - card is fairly noisy in comparison to the old one, which was almost silent even under load.

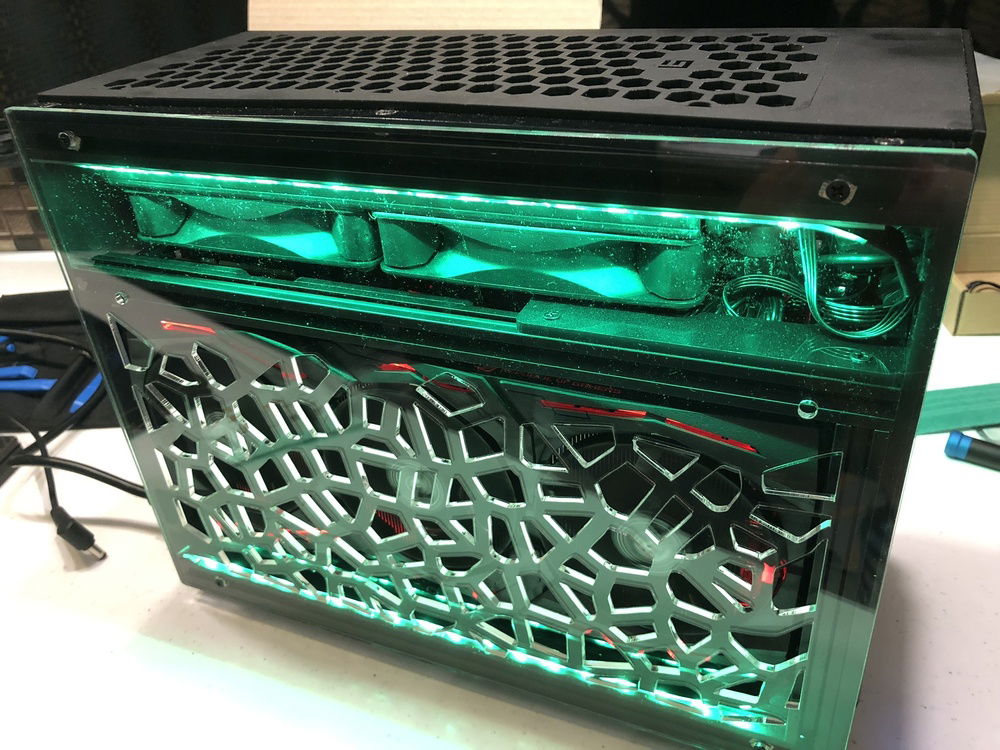

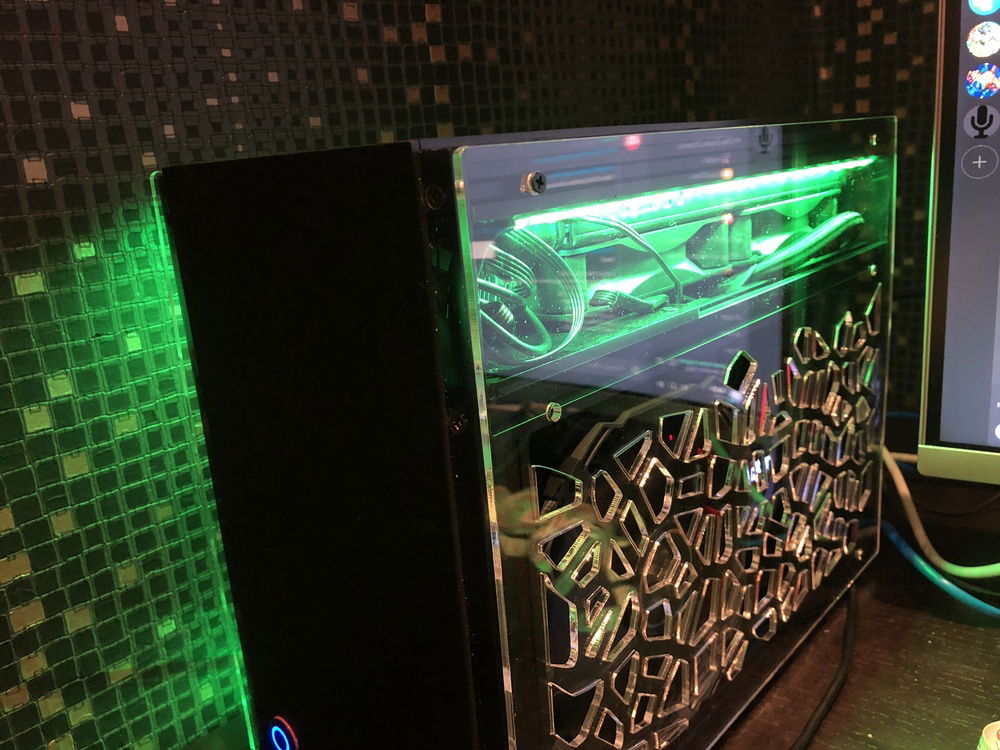

And of course I had to add RGB . Otherwise it’s not a gaming case, right ? So a few strips of two sided tape, Deepcool RGB LEDs and more cable management and I got remote-controlled lights ! Note that temps got 2-3 degrees higher after turning highlighting on. Definitely manageable, but worth noting.

Temps on idle: 30-34c cpu, 30 gpu
under average (most of my games, i.e. PathOfExile 3.5k on ultra) load: 50-60 cpu, 55-65 gpu
under stress(furmark) load: cpu 65, gpu 75+ aaaand it shuts down after 25-30 minutes, probably due to PSU overheating - still thinking how I could improve cooling in this part of the case. One of the options would be to install 120mm x 13mm case fan right on top of psu. I have ordered a custom 3d printed side panel with improved ventilation and few additional moutning points. Still waiting for it to arrive though, will update this post as soon as I'll install them


Color(s): Blue Green Purple
RGB Lighting? Yes
Cooling: AIO Cooling
Theme: Technology
Size: Mini-ITX

Contests

This build participated in 1 contest.

Rank Contest Date
#2058 The builds.gg 10K Challenge ended

Hardware

Category Brand / Part Info
CPU Intel - Core i9-9900K
Cores: 8
Socket: LGA 1151
Motherboard ASRock - Z390 Phantom Gaming-ITX/ac
Chipset: Z390
Memory Support: DDR4
Size: Mini-ITX
Memory Corsair - Vengeance LPX
Capacity: 32 GB
Type: DDR4
Storage Samsung - 970 PRO
Capacity: 1 TB
Form Factor: M.2
Type: SSD
Graphics ASUS - ROG Strix
Chip: RTX 2080
Chip Manufacturer: NVIDIA
PSU SilverStone Technology - SFX SX700-G
Efficiency: 80+ Gold
Form Factor: SFX
Modularity: Fully-Modular
Case GEEEK - A60
Motherboard Support: Mini-ITX
Side Panel: Window
Type: Mini-Tower
Cooling NZXT - Kraken X52
Compatibilty: AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1155, LGA 1156, LGA 1366, LGA 2011, LGA 2011-3
Type: AIO
Accessories DeepCool - RGB 360
Monitor Samsung - CF791
Native Resolution: 3440 x 1440
Panel: VA
Refresh Rate: 100 Hz
Keyboard Razer - Ornata Chroma
Interface: Wired
Key Switch Type: Razer Green
Type: Full Size
Mouse SteelSeries - Sensei - Wireless
Interface: Wireless
