First custom water cooled build with 4090FE

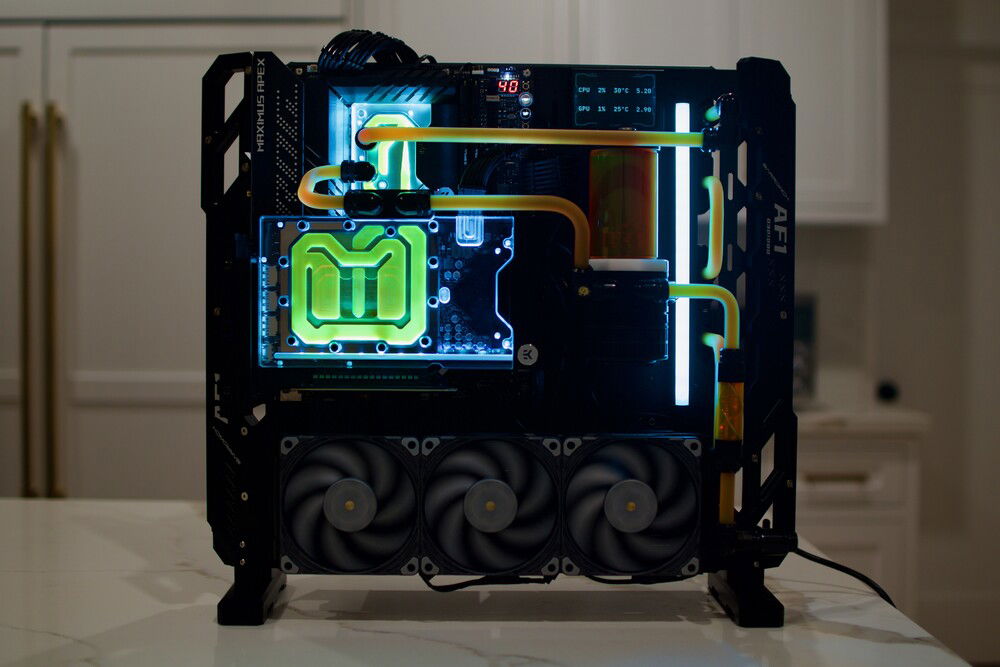

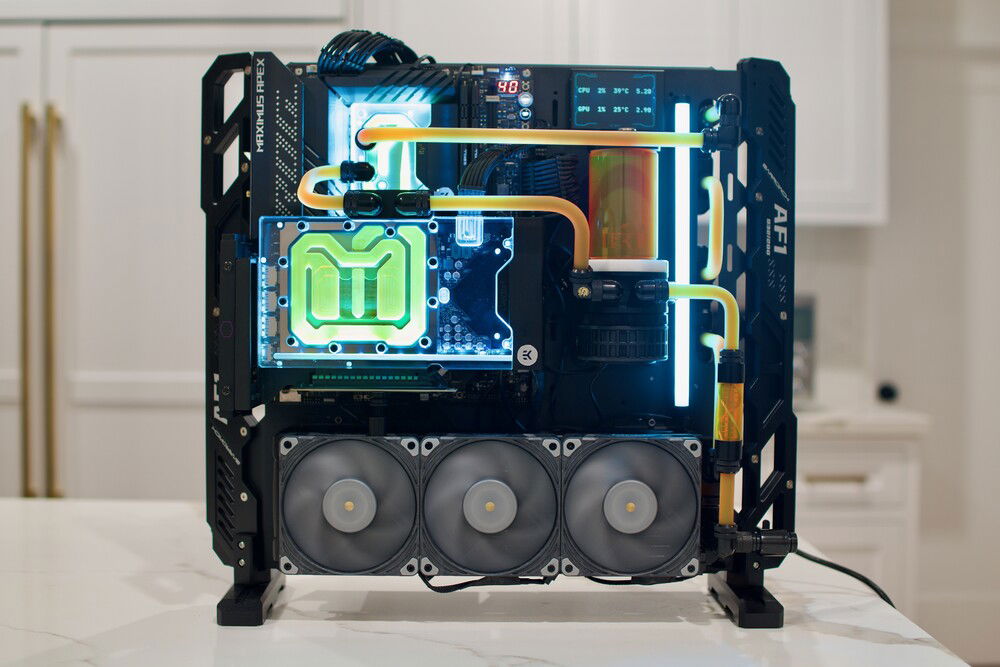

Excited to share my first ever custom water cooling build with the community. I’m happy with the performance, noise profile and aesthetics. The open chassis (Barrowch AF1) design means there are no obstructions for air. It puts the components on full display. I’m able to get 2955Mhz VCore and +1700Mhz Memory OC with the 4090FE (on air I could only do 2900Mhz Core). I’m using a custom fan curve based on coolant temp with Rem0o FanControl. During gaming loads, fans stay around 40%. It runs very quiet during regular gaming loads.

Temps:

CPU Gaming Temp: 55C avg

GPU Gaming Temp: 45-50C avg (max 60C with Furmark pulling 570W)

Coolant Temp: 25C idle, 33C max

Ambient Temp: 23C

Pump: 75% Fixed

Fans: Custom curve set with Rem0o FanControl

Watercooling Components:

CPU and GPU Block: EK Velocity 2 and Vector 2 (GPU block is non ABP)

Pump: EK Quantum Kinetic TBE 200 D5

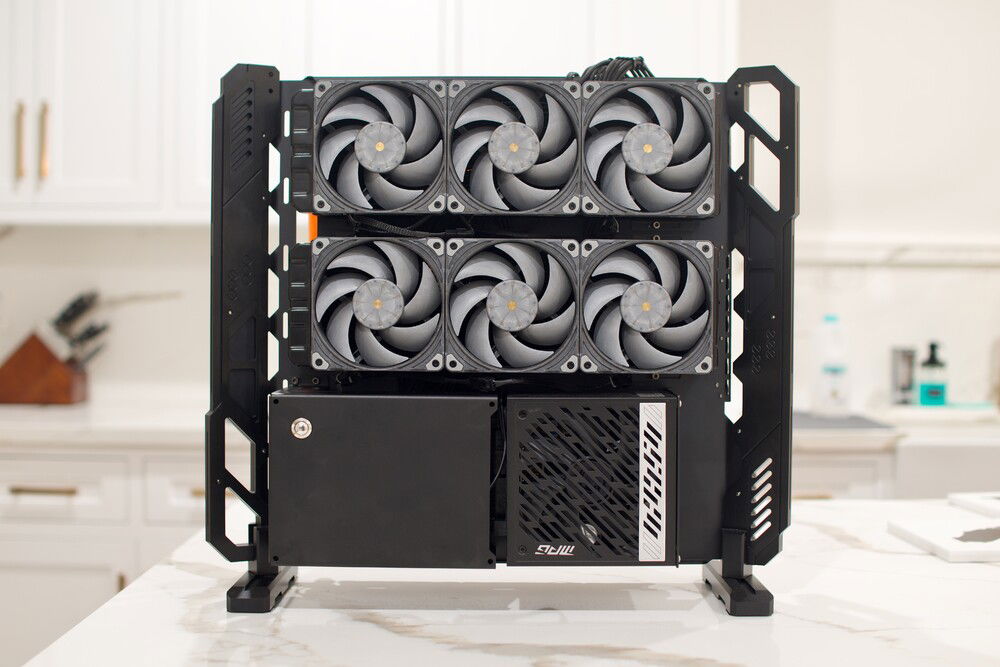

Radiator: 3x Corsair XR7 360mm

Fans: Phanteks T30

Fittings: Bitspower 12mm Hardline Fittings + some Barrow connectors

Tubing: Corsair 12mm Satin Hardline Tube

Coolant: Distilled Water + Primochill Utopia + XSPC UV Orange Dye
Color(s): Black Orange
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 370.99
Intel - Core i7-13700k
Socket: LGA 1700
Cores: 16
Integrated Graphics: Yes
Motherboard
ASUS - ROG Maximus Apex
Chipset: Z690
CPU Socket: LGA 1700
Size: ATX
Memory
G.Skill - Flare x5 (6000mhz)
Type: DDR5
Capacity: 32 GB
Graphics
$ 2,084.99
NVIDIA - GeForce Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 4090
Interface: PCIe x16
Storage
$ 89.95
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 159.99
MSI - MPG A1000G
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
Barrowch - AF1
Type: Open Air
Side Panel: Open
