Evolv Shift Water Cooling

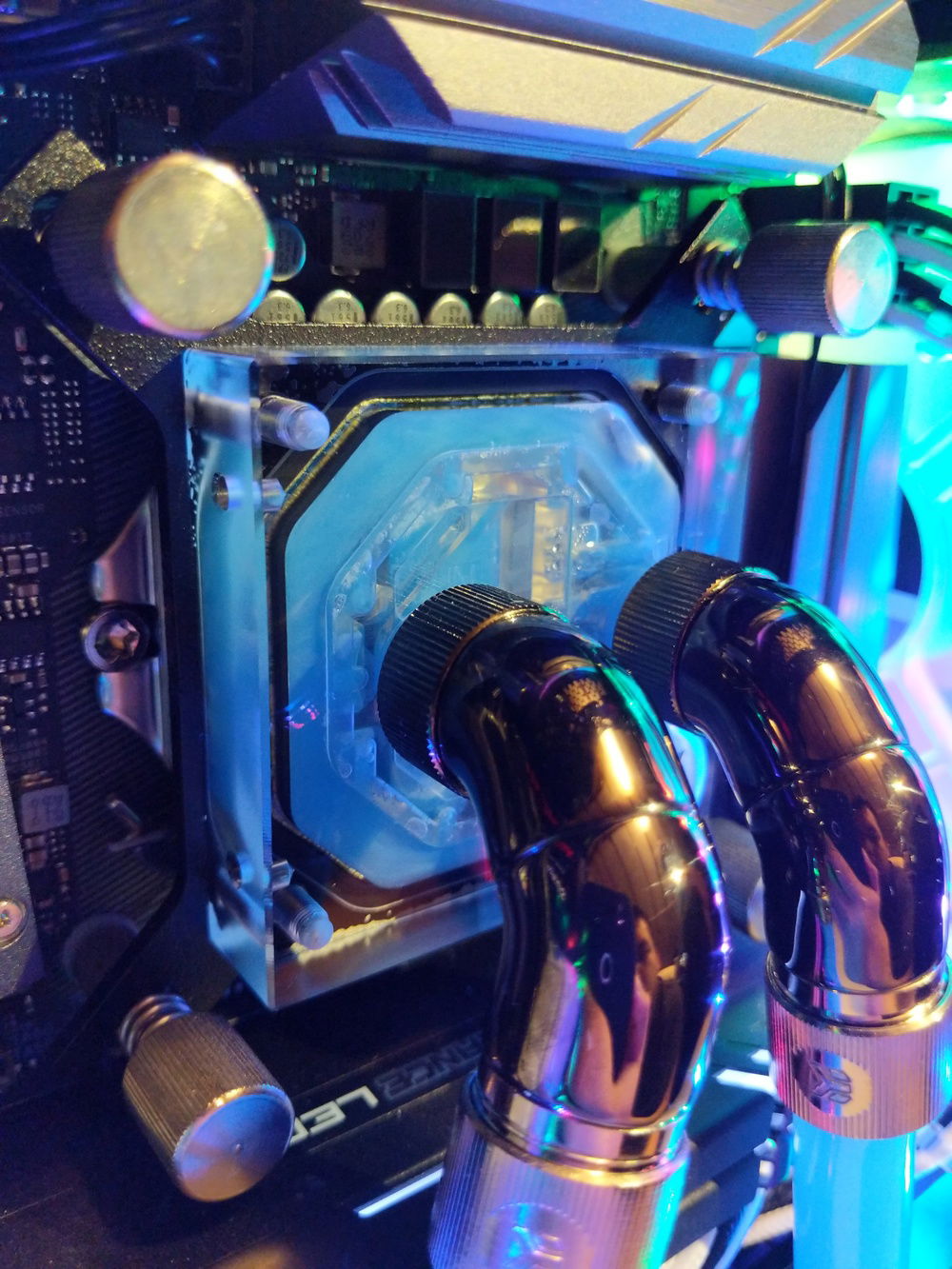

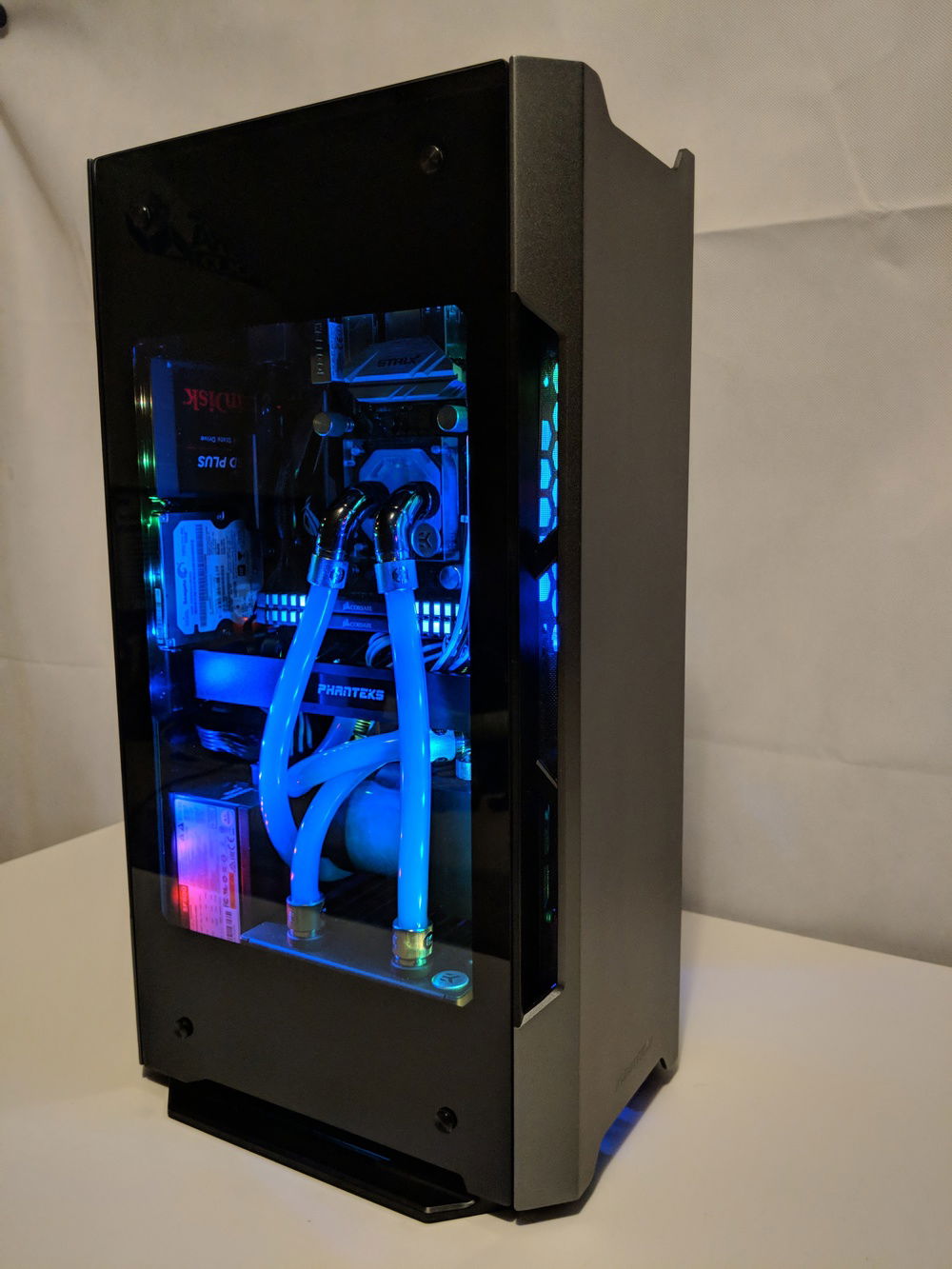

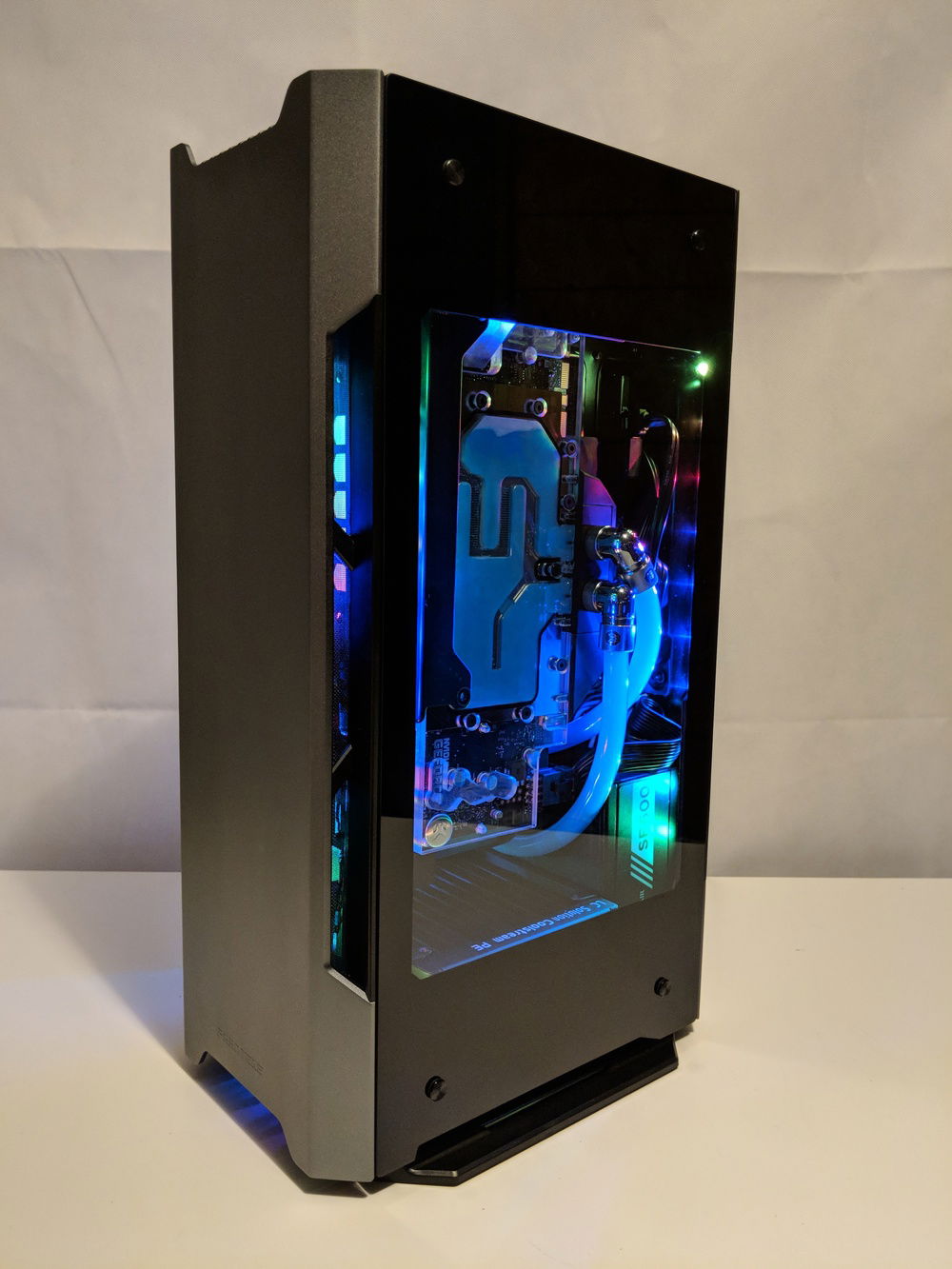

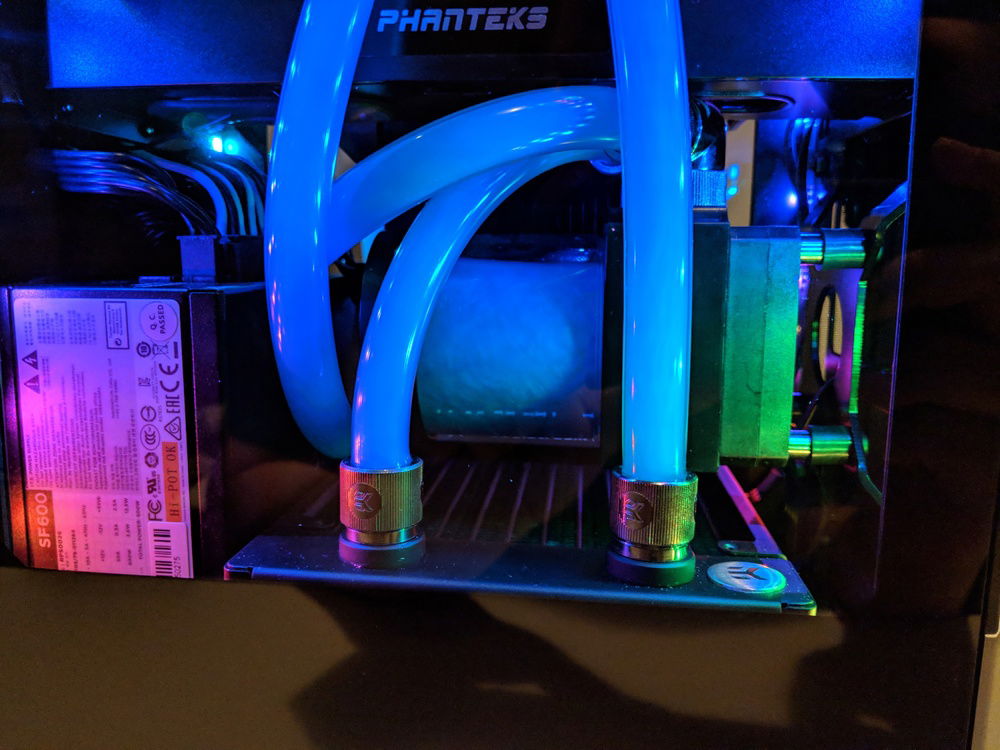

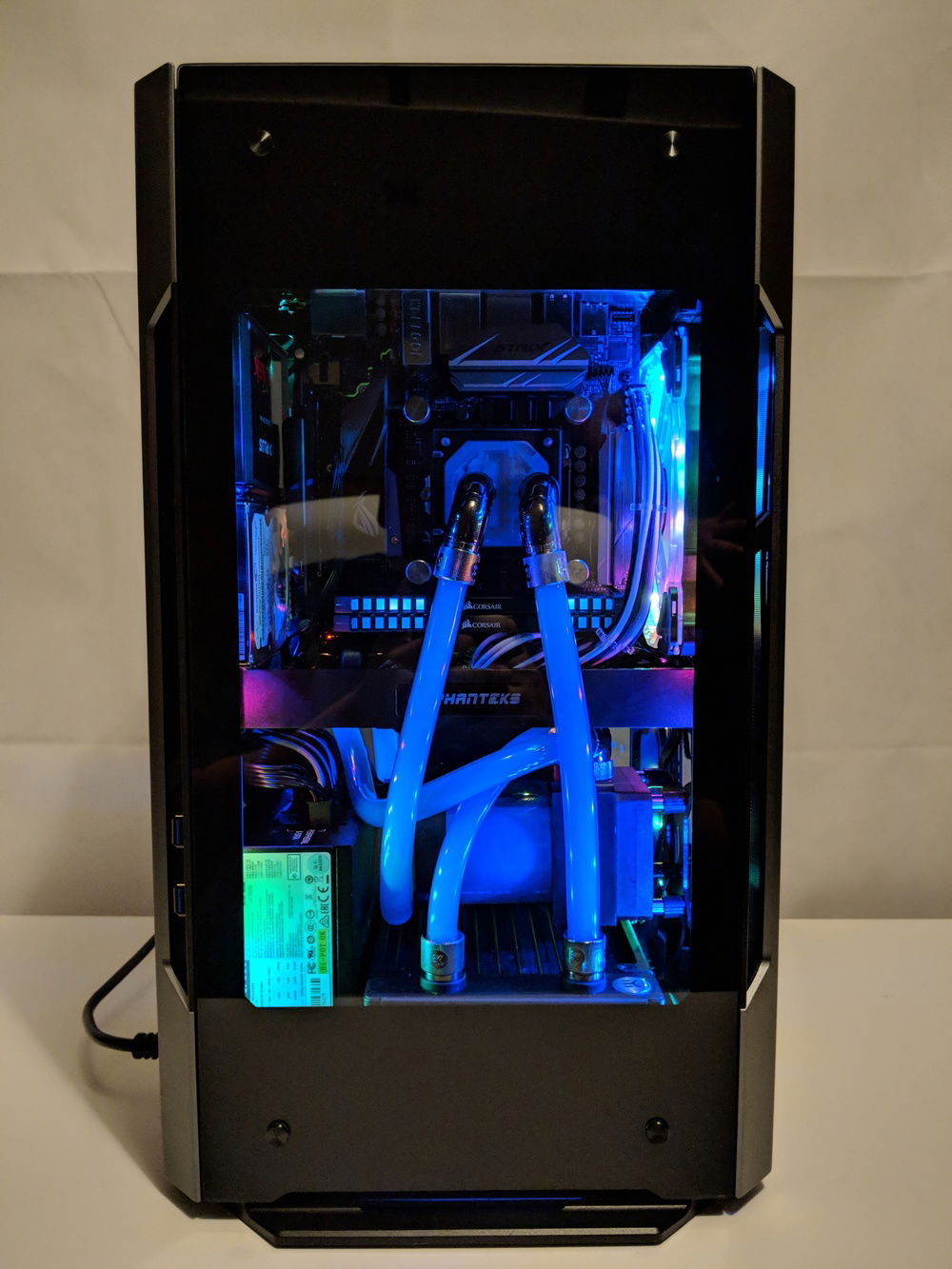

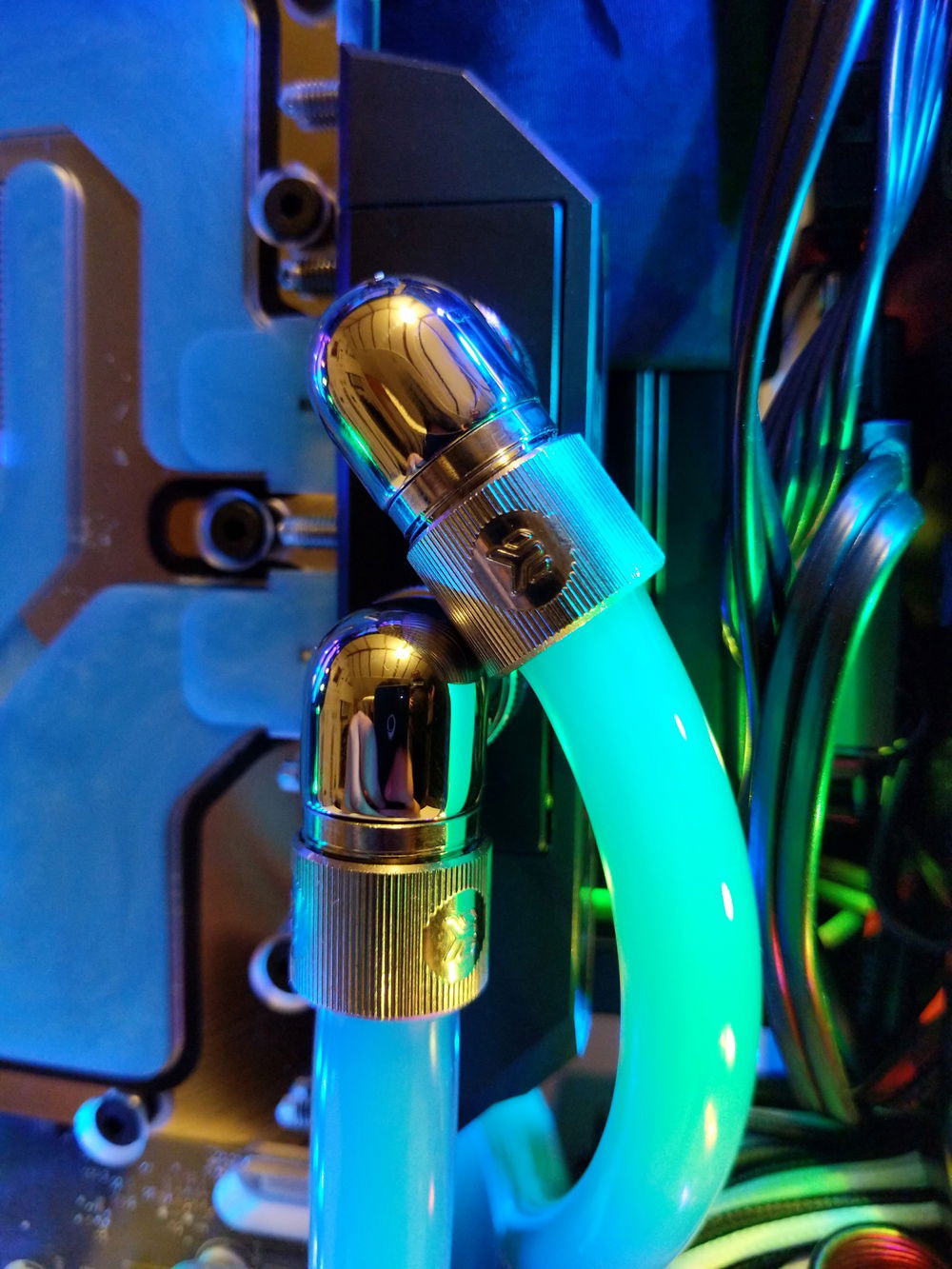

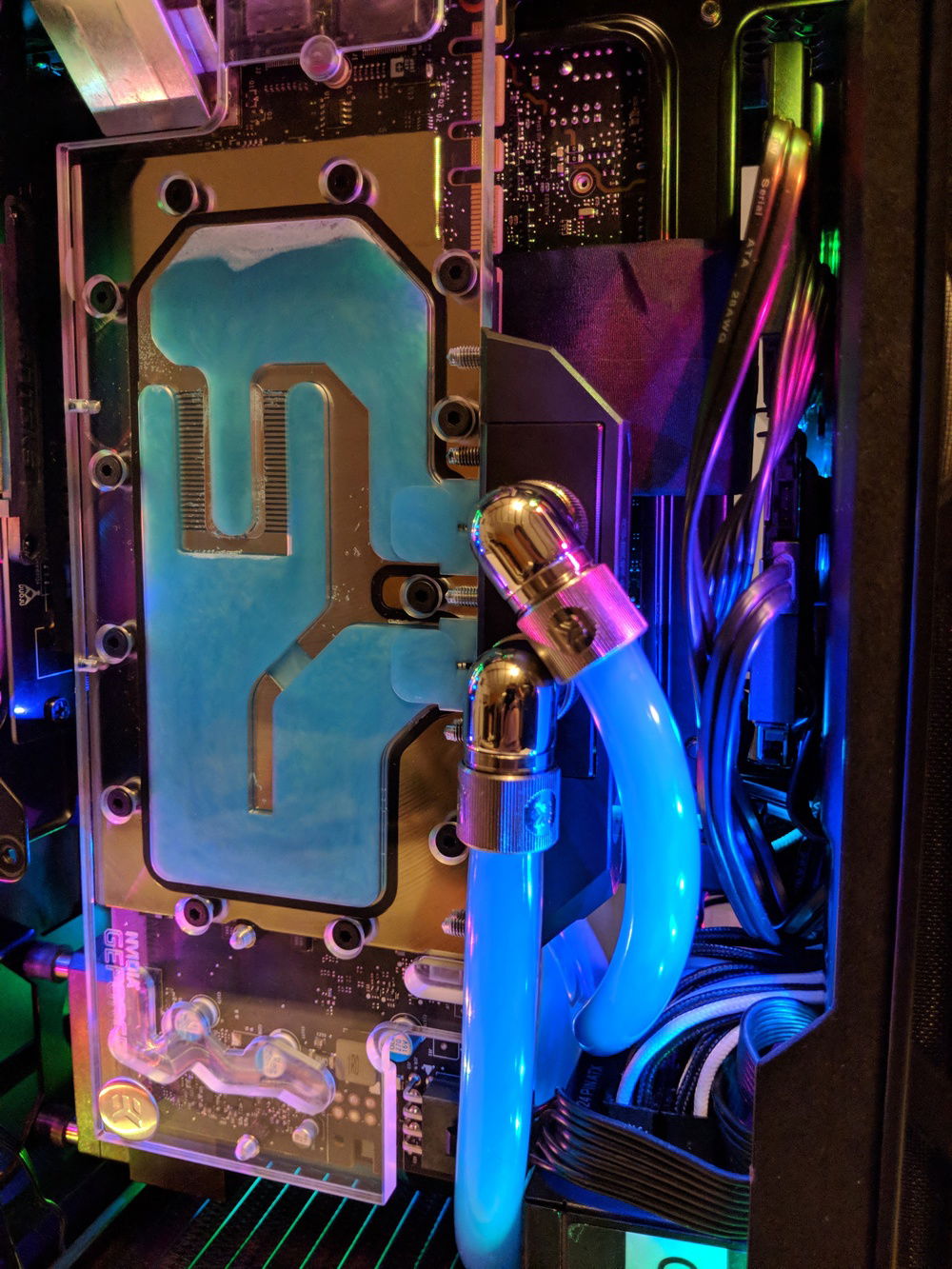

This build was challenging for me. Getting all these water cooling parts to fit in a small case is no easy task. The tubing is soft and the fittings, reservoir, cpu and gpu block are all from EKWB. The fluid is the Primochill Vue light blue which did start to break down after a month of use so I switched it out with XSPC blue fluid. you might be thinking how thermals are in this since there is only one thick radiator in this case? Well they are surprisingly good. The CPU hovered around 75C in most games while the GPU hovered around 65C. This was a surprise to me because I did not think that the single 120 radiator would be able to handle that. But I did have fun with this build.


Color(s): Black Gray Light Blue
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: none
Size: Mini-ITX

Hardware

Category Brand / Part Info
CPU Intel - Core i7-6700K
Cores: 4
Socket: LGA 1151
Motherboard ASUS - ROG STRIX Z270i
Chipset: Z270
Memory Support: DDR4
Size: Mini-ITX
Memory Corsair - Vengeance LED
Capacity: 16 GB
Type: DDR4
Storage Inland Professional - 256GB SSD
Capacity: 256 GB
Form Factor: PCIe x2
Type: SSD
Storage SanDisk - SSD Plus
Capacity: 1 TB
Form Factor: 2.5 Inch
Type: SSD
Graphics NVIDIA - Founders Edition
Chip: GTX 1070
Chip Manufacturer: NVIDIA
PSU Corsair - SF600
Efficiency: 80+ Platinum
Form Factor: ATX
Modularity: Fully-Modular
Case Phanteks - Evlolv Shift
Motherboard Support: Mini-ITX
Side Panel: Tempered Glass
Type: Mini-Tower
Case Fans Corsair - HD120 RGB LED High Performance 120mm PWM
Size: 120 mm
CableMod CableMod - Sleeved Cables
Color: White
Mode: Custom
Sleeve: PRO ModFlex
