Evolv shift

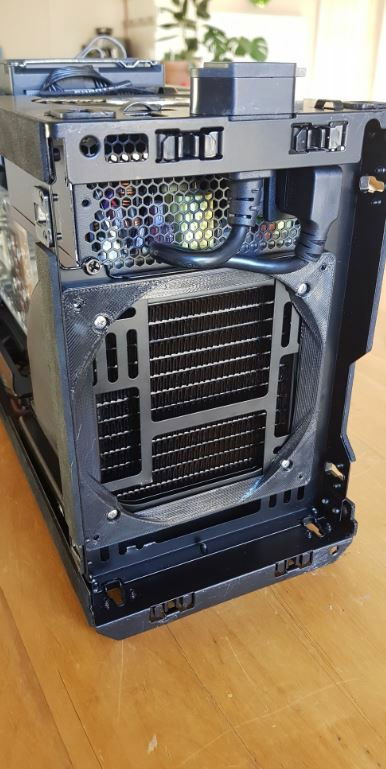

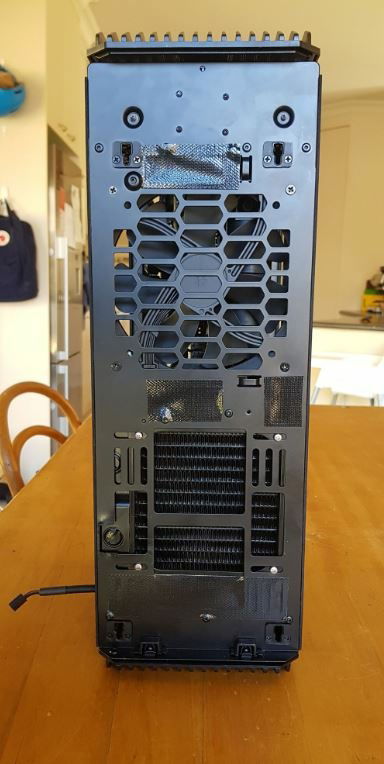

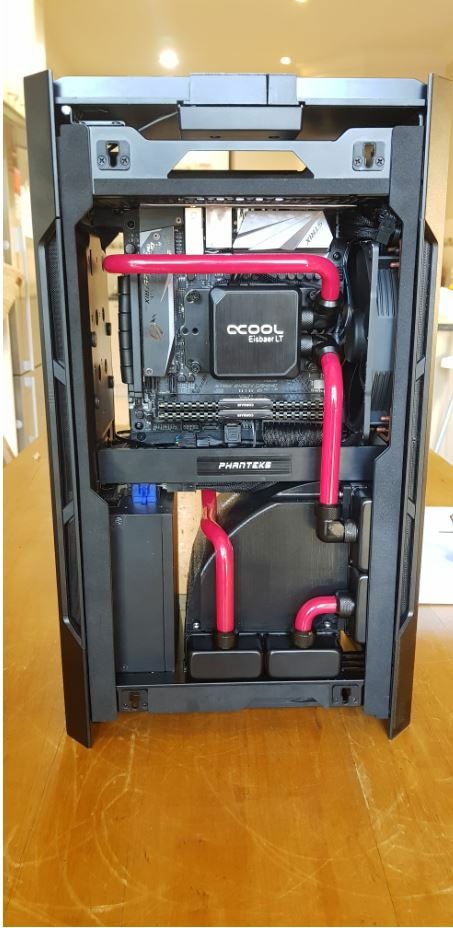

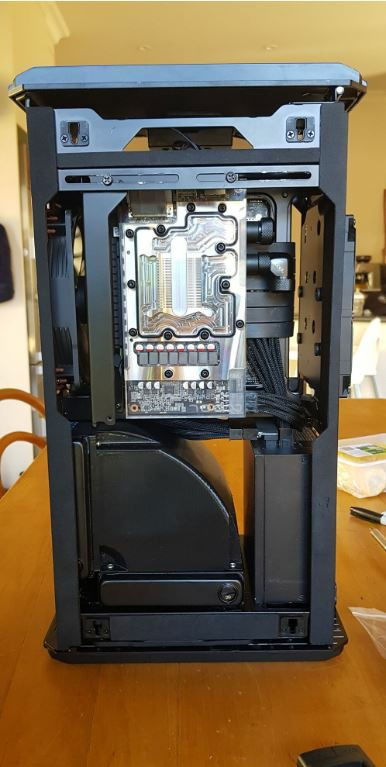

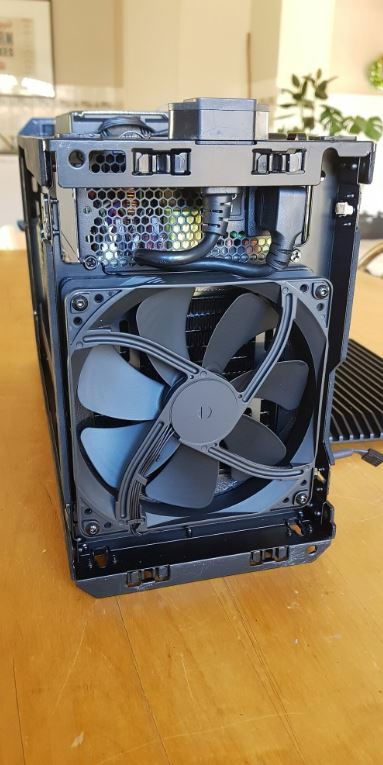

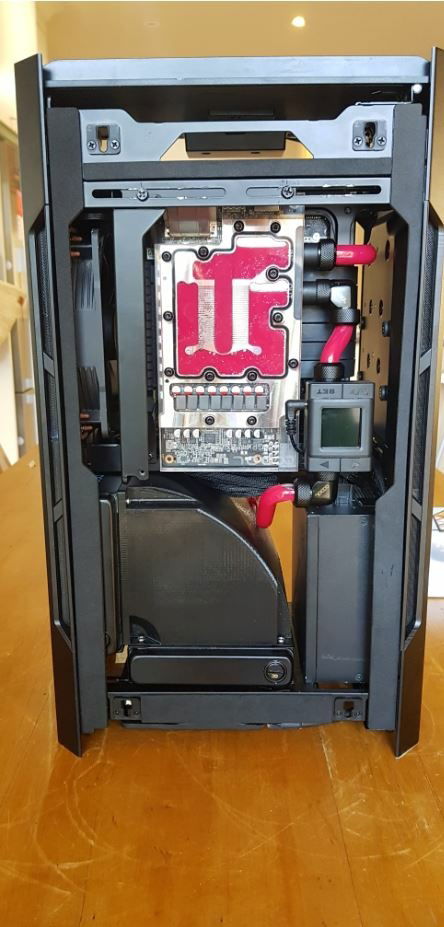

HTPC/gaming rig for the lounge and sits horizontal on a shelf, pulling air in through the I/O side and pushing it down the front panel (sealed up the mesh and chassis holes) and into the 1st rad, then ducting into the second rad and out the bottom via the 2nd 140mm fan. Still playing around with settings but so far it seems happy with the GPU @ 1980Mhz & CPU @ 3.95 Mhz, both running 60 degrees and the water loop hoovering around the 45-48 degree mark. This is a very quite setup at full load with the fans @ 1500rpm, during lite use/idle only the chassis fan is running @ 30%

Metro Exodus runs 70-80 FPS @ 2020Mhz with ultra detail, high RT, DLSS. #edit
Control runs 50-60 FPS @ 2010 at High settings, DLSS & RT tuned. #edit
Color(s): Black Red
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: none
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 222.00
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 252.39
ASUS - ROG Strix Gaming (B450-I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 33.99
Corsair - Vengeance LPX (Black) (3000MHz)
Type: DDR4
Capacity: 8 GB
Graphics
ZOTAC - Gaming OC Mini
Chip Manufacturer: NVIDIA
Chip: RTX 2070
Storage
$ 257.45
Intel - 660p
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 99.99
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 109.47
SilverStone Technology - SST-SX500-LG
Wattage: 500
Form Factor: SFX
Efficiency: 80+ Gold
Case
$ 276.99
Phanteks - Evolv Shift (Black)
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 21.95
Noctua - NF-A14 PWM
Size: 140 mm
Case Fan
$ 21.95
Noctua - NF-A14 PWM
Size: 140 mm
Cooling
Alphacool - Eisbaer Solo
Type: Pump
Cooling
Alphacool - Radiators
Type: Custom Loop
Unable to dertermine total build value (missing part value)
