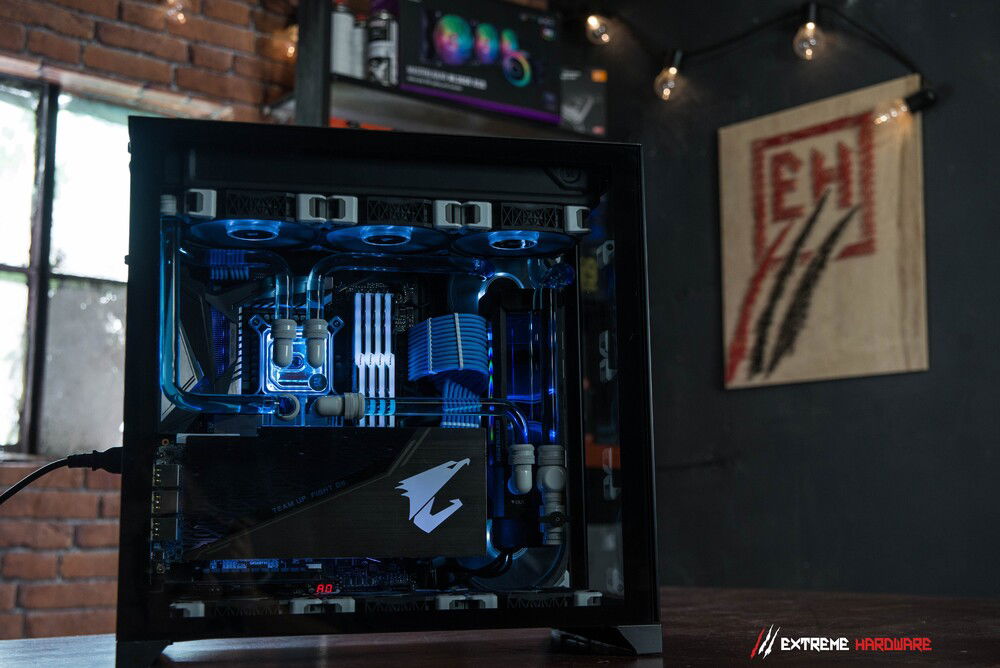

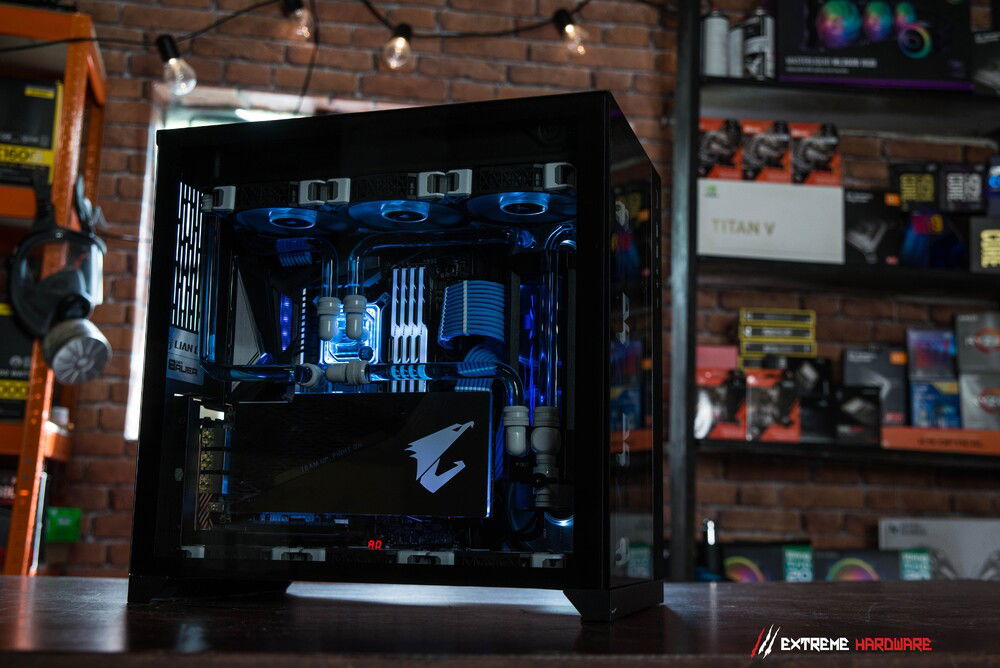

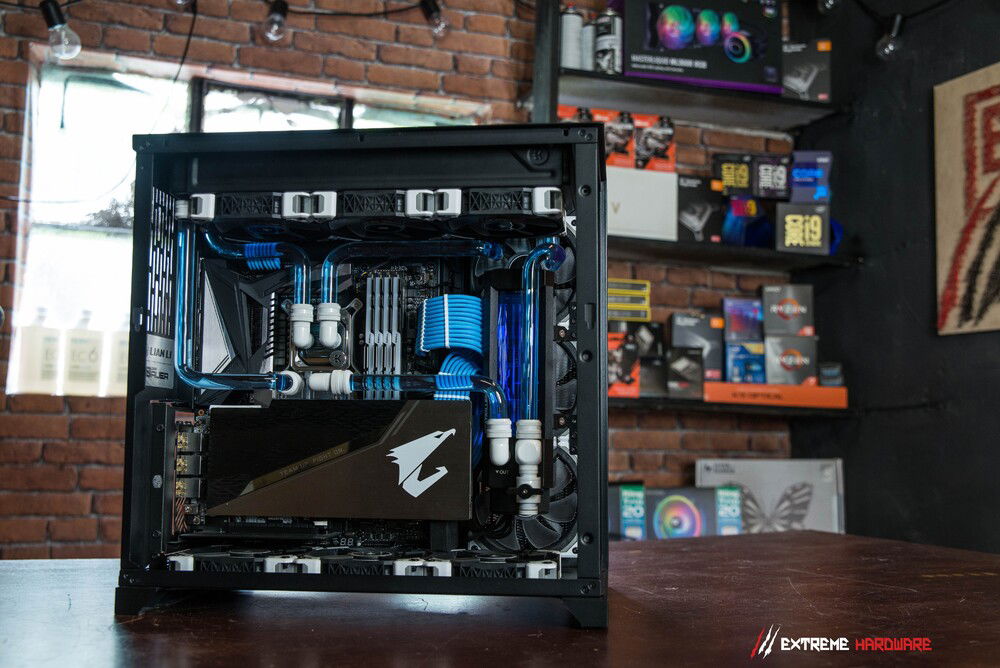

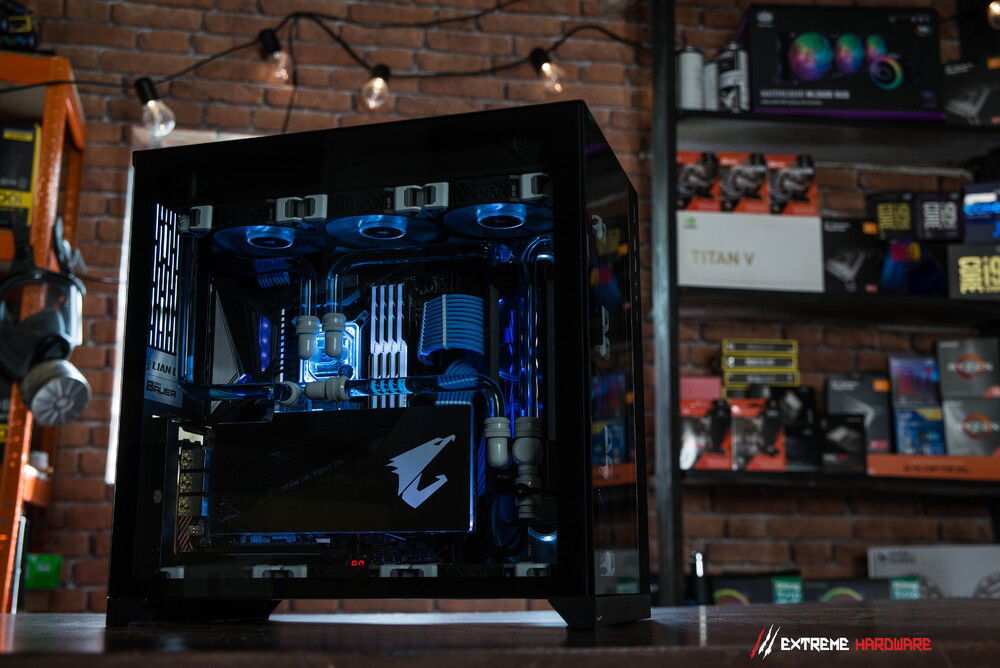

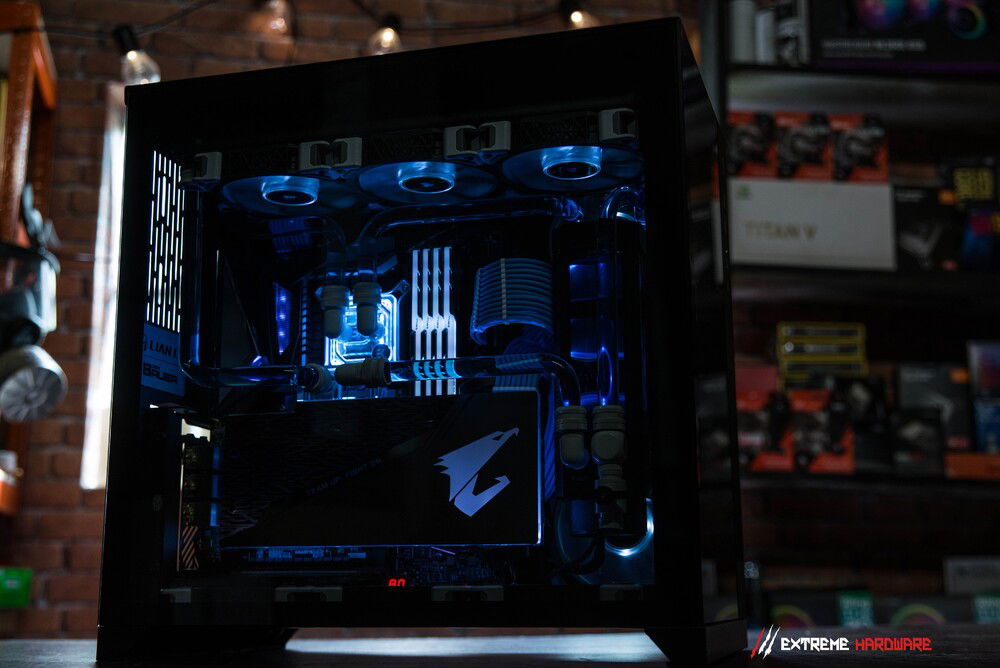

EH "ODYSSEY"

Metamorphosis of the viewer's PC

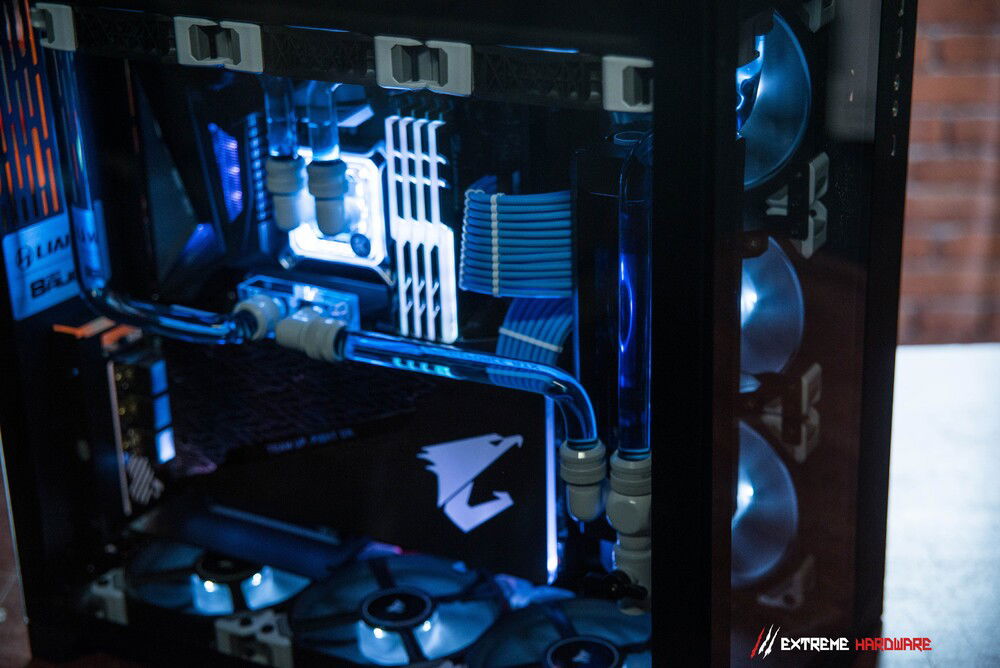

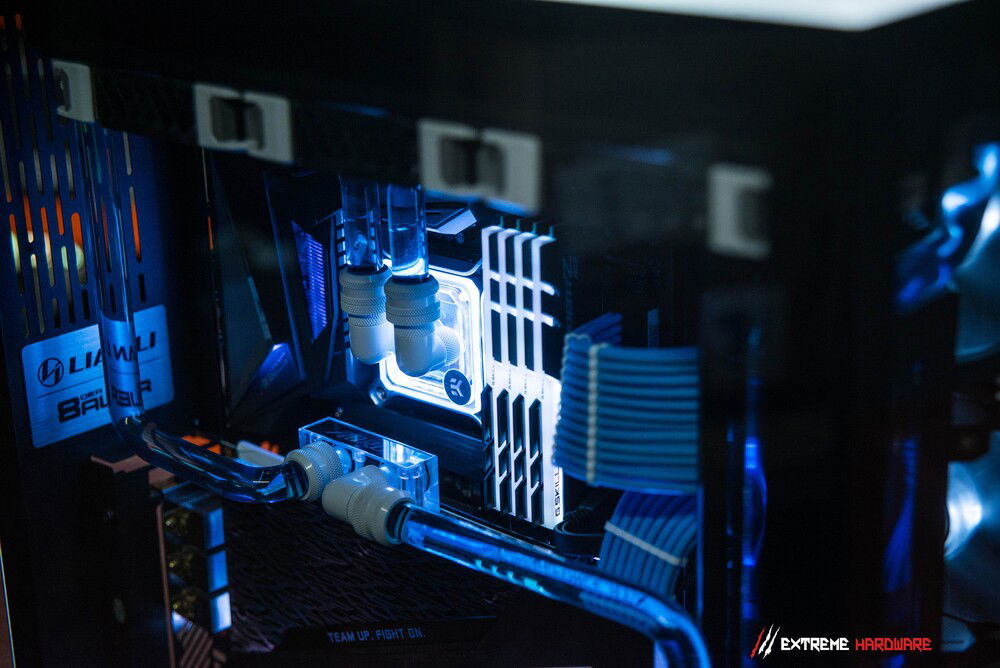

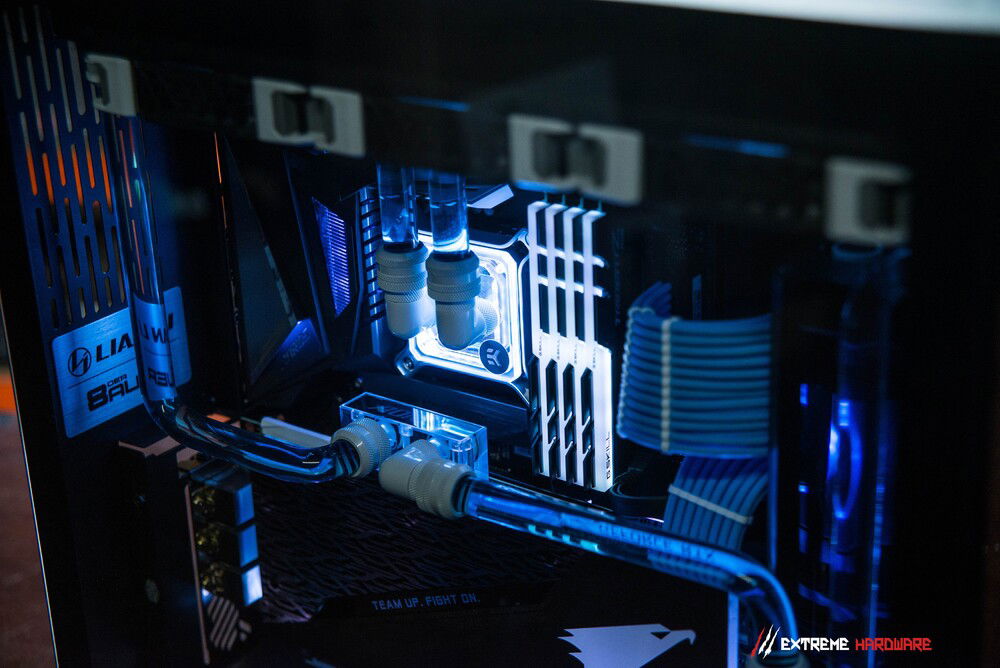

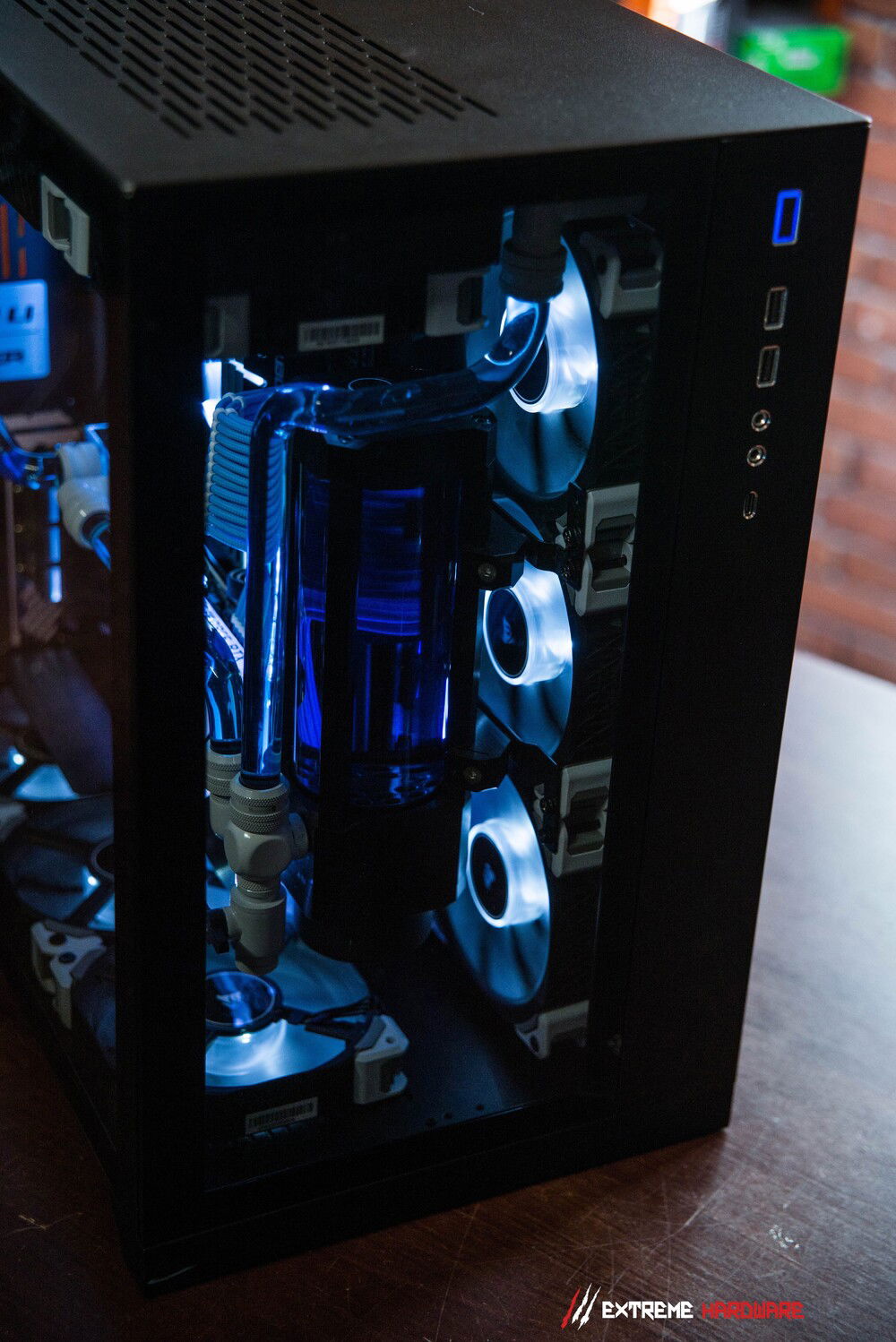

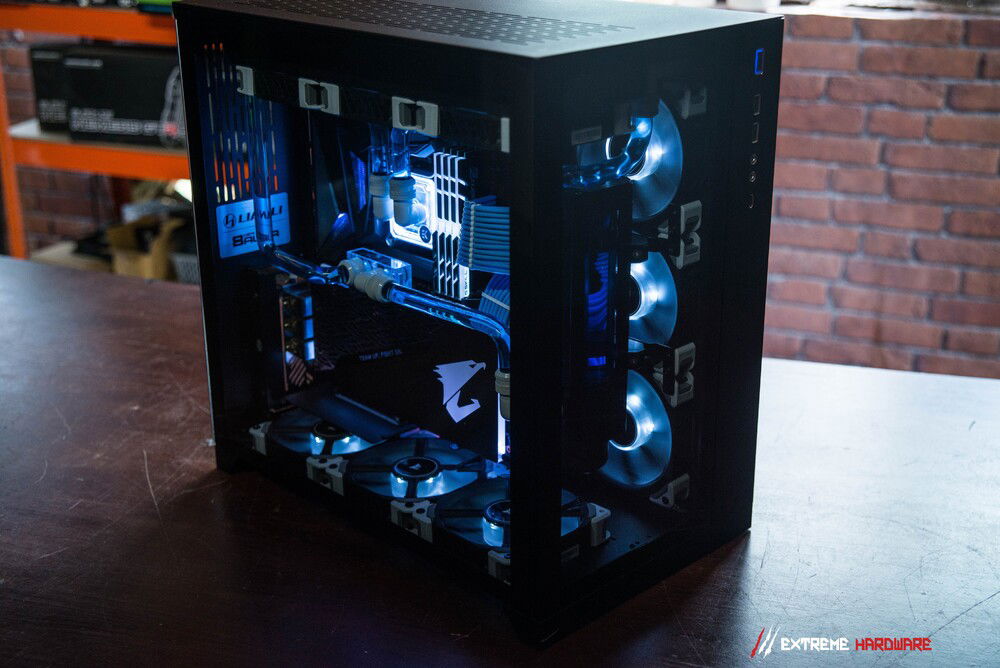

Tomasz asked us for help in improving both the LC system and calibrating the performance-voltage components. EK Velocity block in which the RGB leds stopped working, we replaced with EK Magnitude, the D5 Next pump, which liked to scare alarms, gave way to the classic D5. The proven Corsairy ML took the place of the Corsair LL, which were not optimal for LC systems

Due to the limited space in the Lian LI 011 and the RTX 2080 Ti Xtreme placed vertically, we stayed with the number of two radiators

Worklog video :

https://www.youtube.com/watch?v=FV_abZ2Ane4

EH "ODYSSEY" spec :

i9-9900K 5.0 GHz + 4.9 uncore
Z390 AORUS Master
4x8 G.Skill Trident Z 4266 CL19.19.19 (XMP) @4000 MHz CL16.16.16.32 T2 tRFC 270 + 2nd/3rd
RTX 2080 Ti AORUS Xtreme Waterforce WB @ + 120 / + 1000
1x Samsung 970 EVO Plus 1 TB
Seasonic 1000 Prime
Lian LI 011

Custom LC :

EK D5 + Watercoll Heatkiller 150
EK 360 PE
EK 360 SE
EK CPU - Magnitude - LGA 11xx / 12xx
EK GPU - VECTOR on AORUS RTX 2080 TI Xtreme
2x 1L XSPC Clear + dye
9x Corsair ML 120 PRO White
Fittings etc. Barrow
Color(s): Black Blue White
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 380.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 439.99
Gigabyte - Aorus Master
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 231.38
G.Skill - Trident Z (4266MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 499.99
Gigabyte - Aorus GeForce Xtreme Waterforce
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Storage
$ 109.23
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 299.00
Seasonic - Platinum-1000 (discontinued)
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 159.00
Lian Li - 011 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 119.00
Barrow - Fittings (17x)
Type: Custom Loop
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 50.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 109.13
Cooling
$ 2,222.46
Cooling
$ 100.00
Watercool - HeatKiller Tube 150 D5
Type: Custom Loop
Size (WxHxD): 150 mm
Cooling
$ 30.00
XSPC - Fluid (2x)
Type: Custom Loop
Estimated total value of this build:
$ 5,023.95
