EH "DARK KNIGHT"

Worklog video :

https://www.youtube.com/watch?v=mw9cVSSAjLU

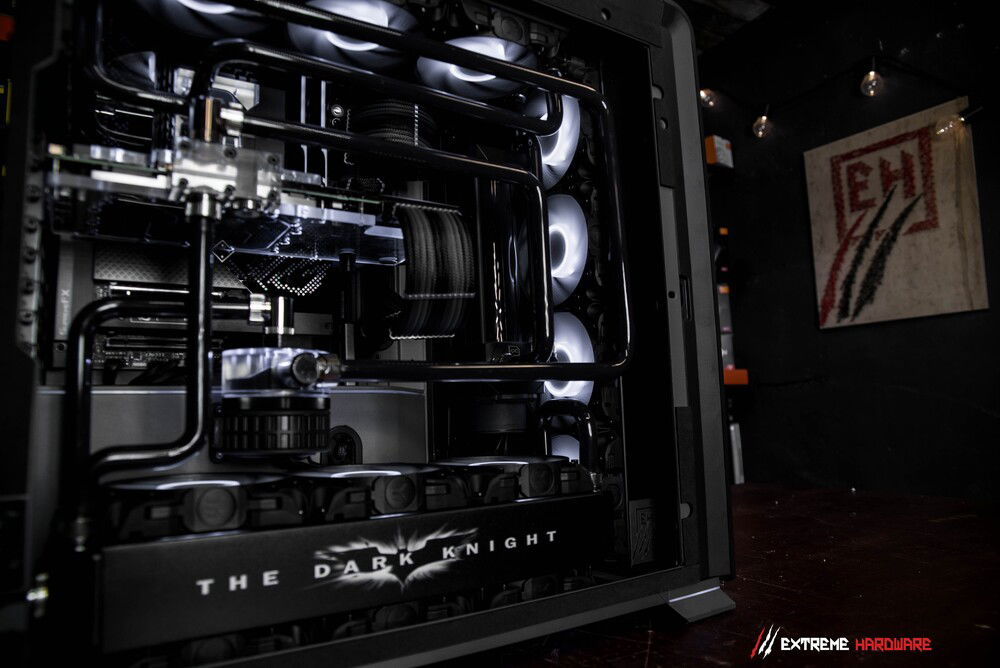

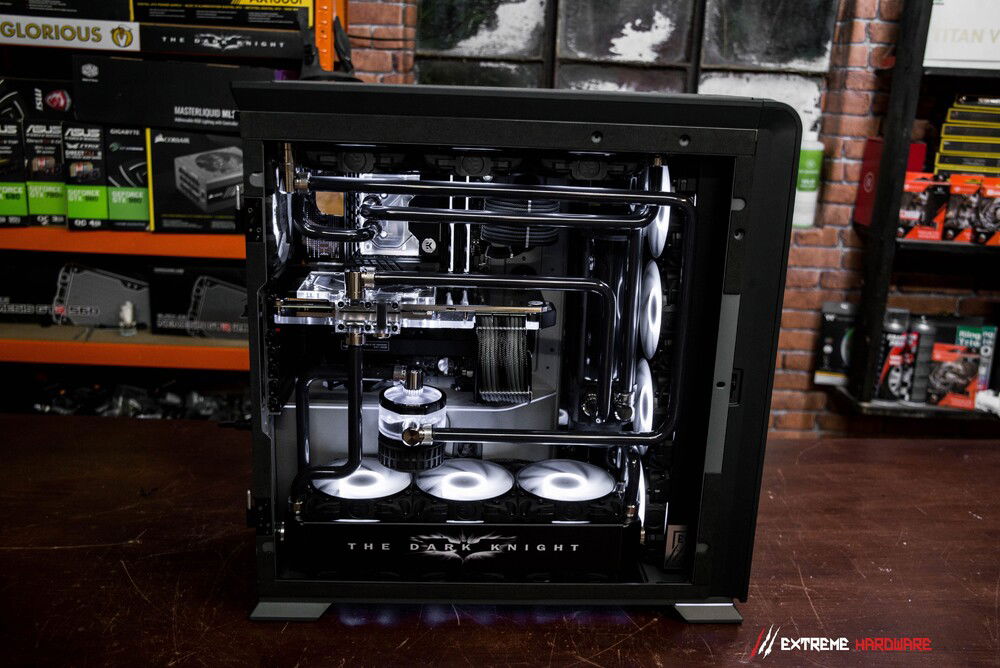

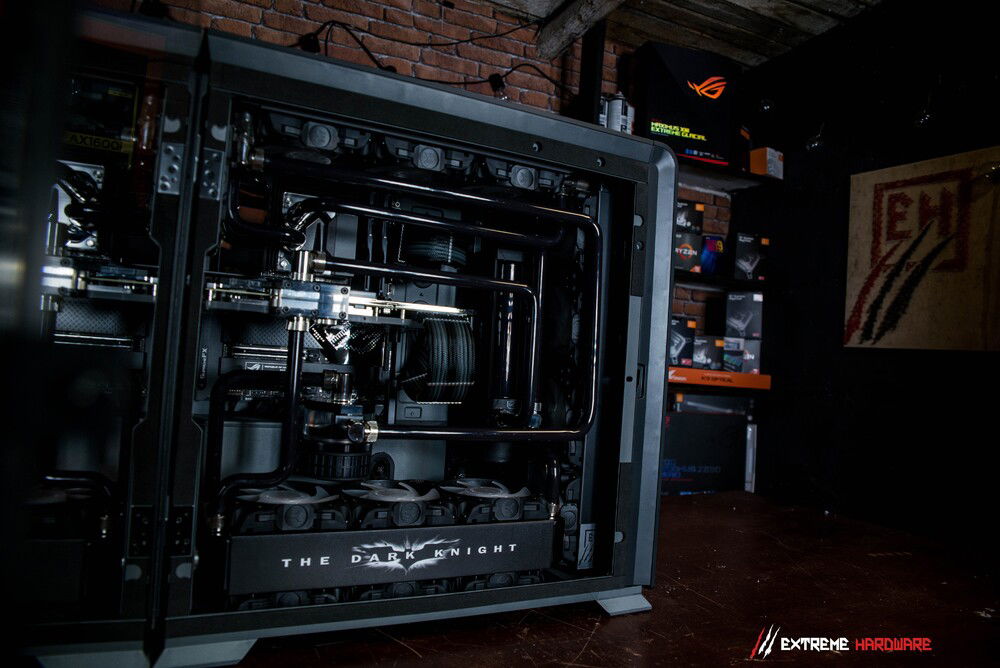

EH "DARK KNIGHT" left our forge a few months ago to provide a great gaming experience at 2560x1440p 144 Hz resolution and to ensure high performance when editing materials and capturing videos on the YT GregTV channel. All this is achieved while maintaining low component temperatures while maintaining a high work culture.

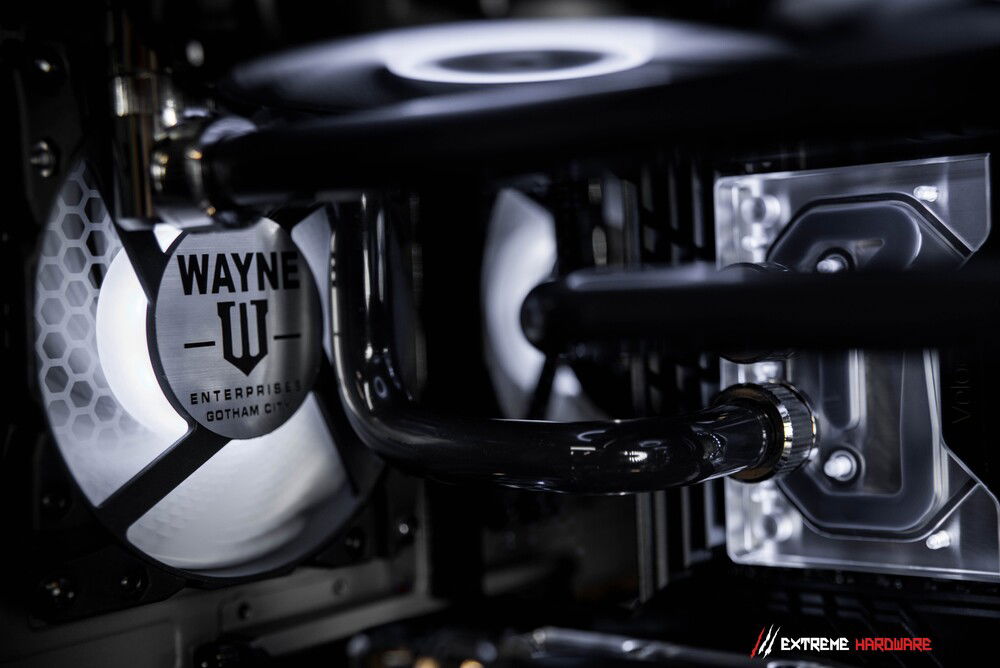

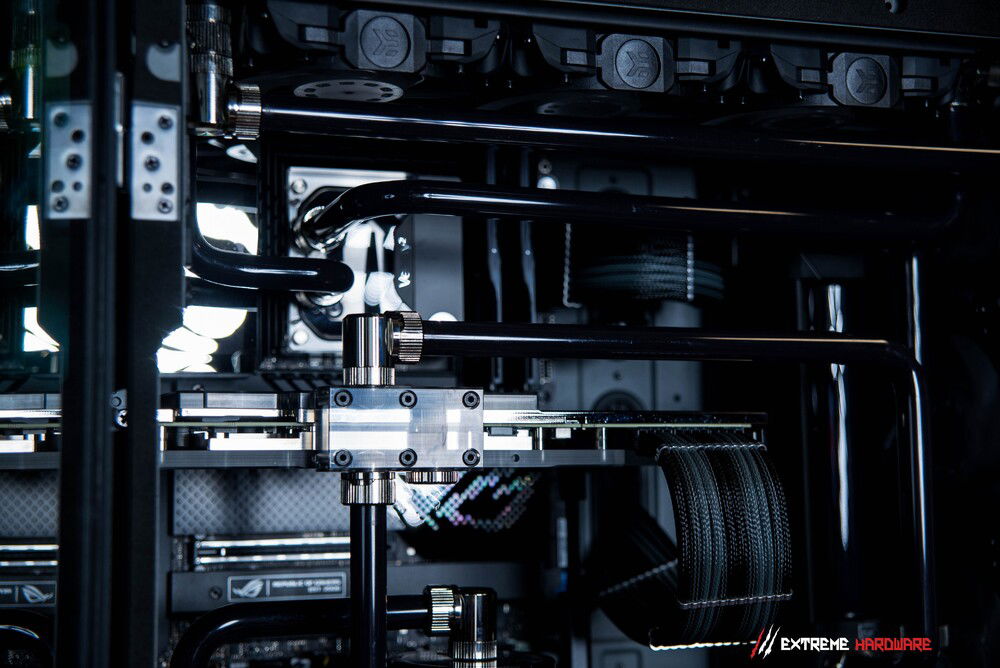

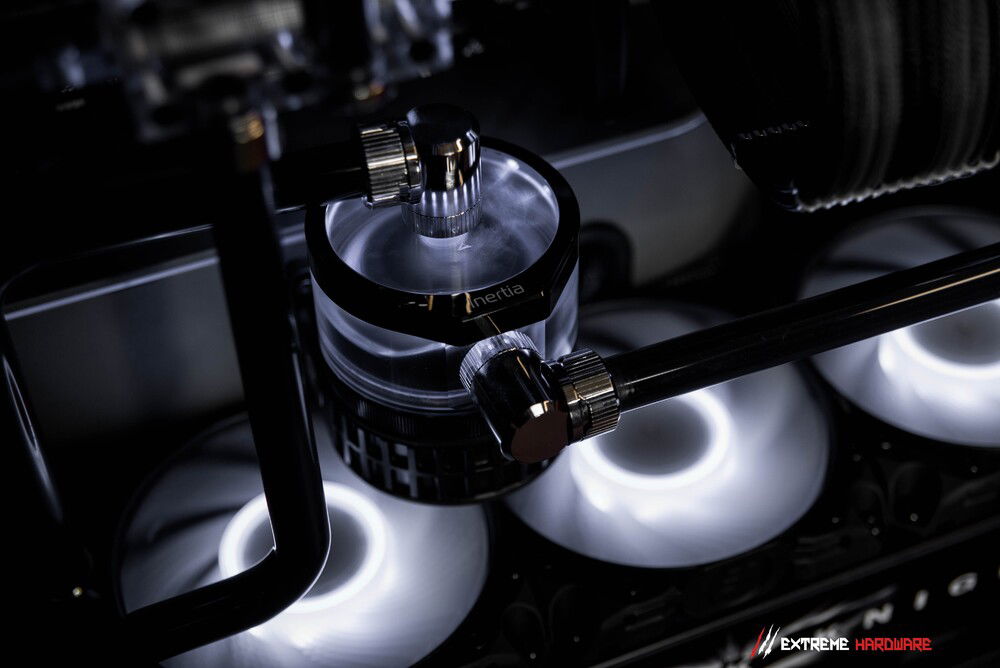

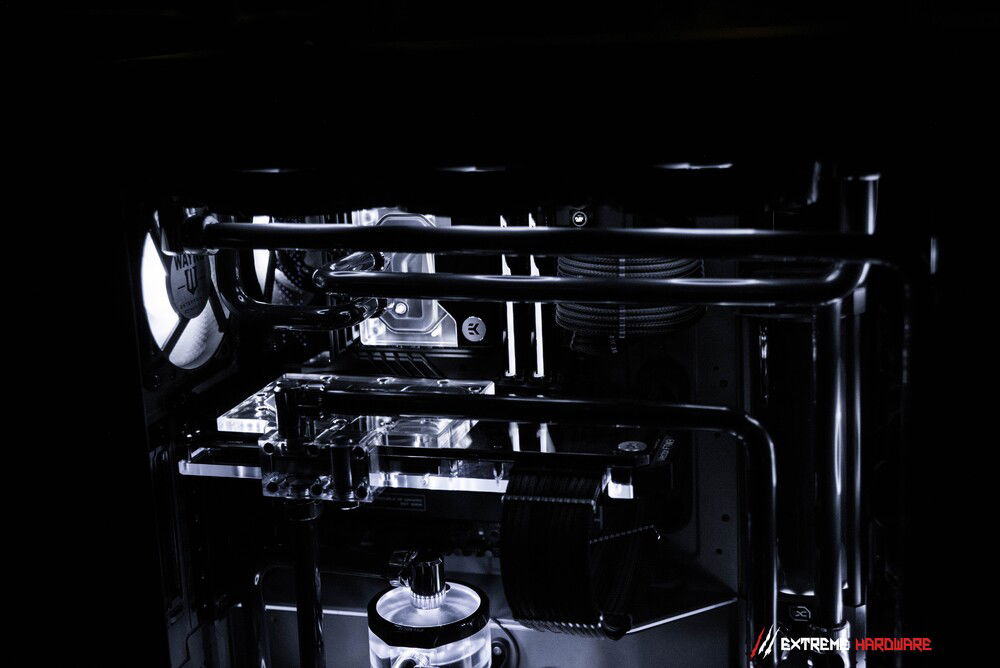

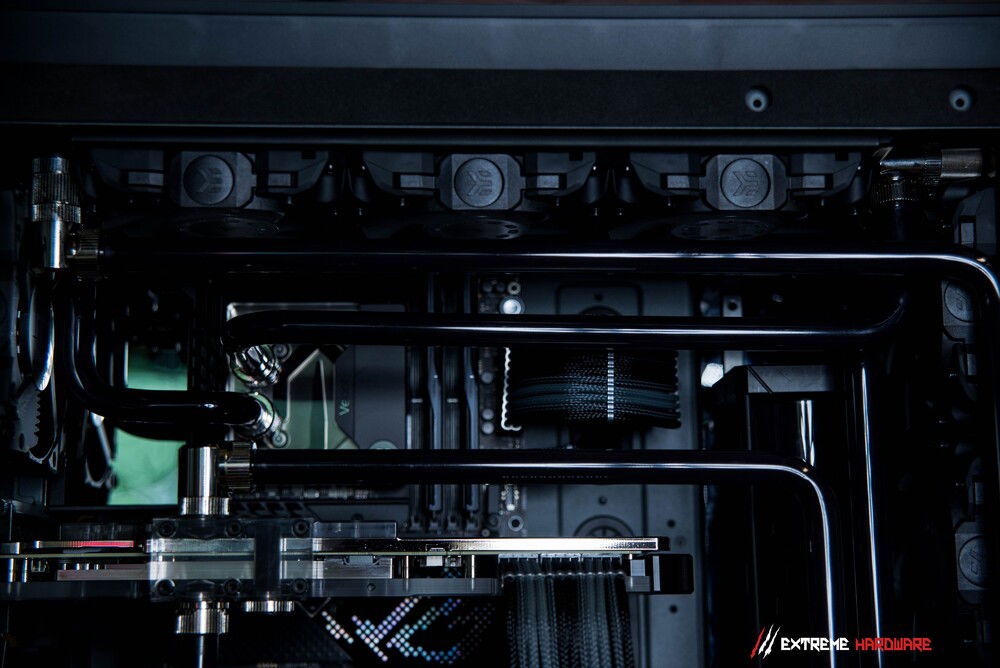

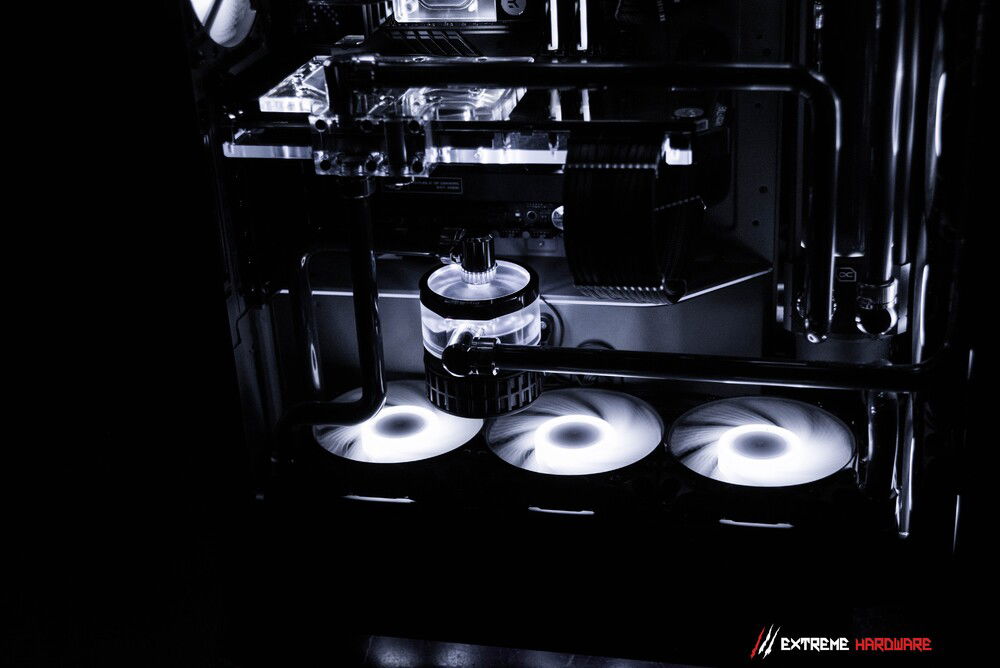

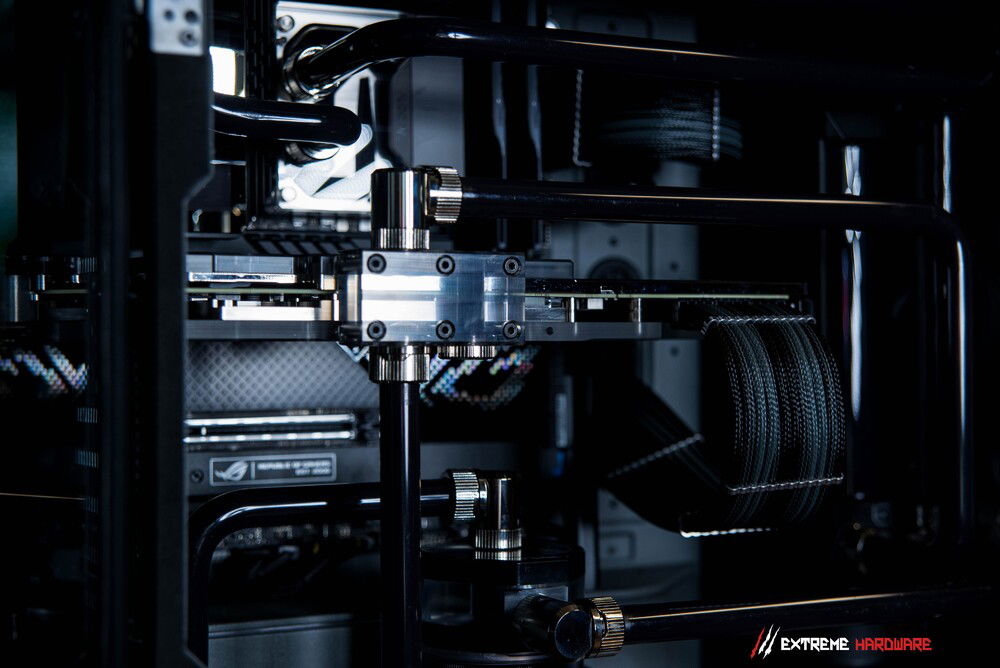

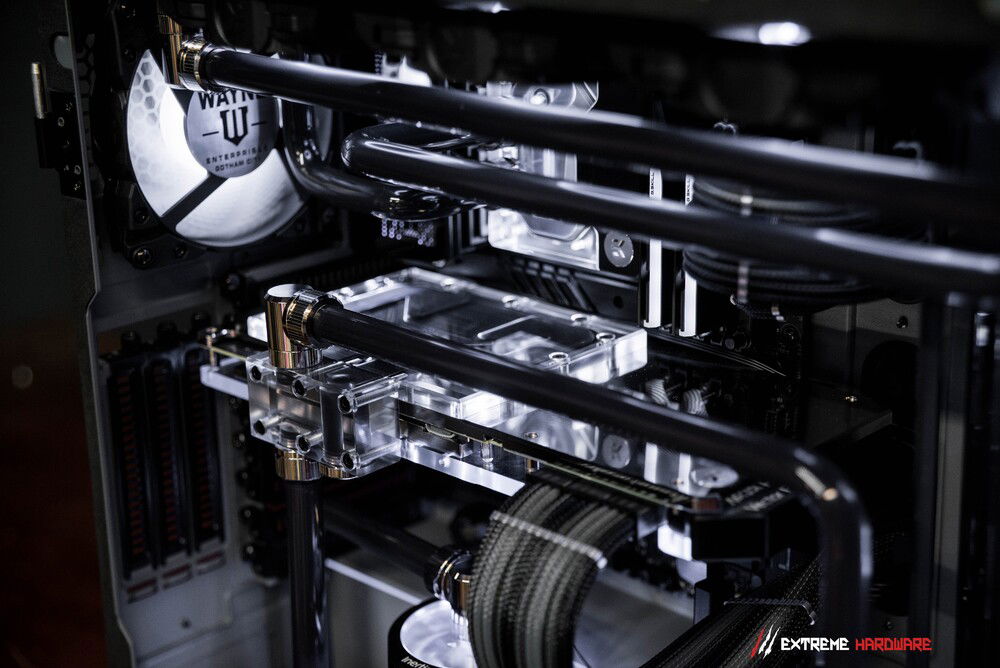

The LC system is equipped with two D5 pumps, the main EK G3 in the reservoir and the auxiliary D5 Inertia that allows you to eliminate the drop in the flow of liquid flowing through the GPU block, as well as an active backplate and lower radiator.

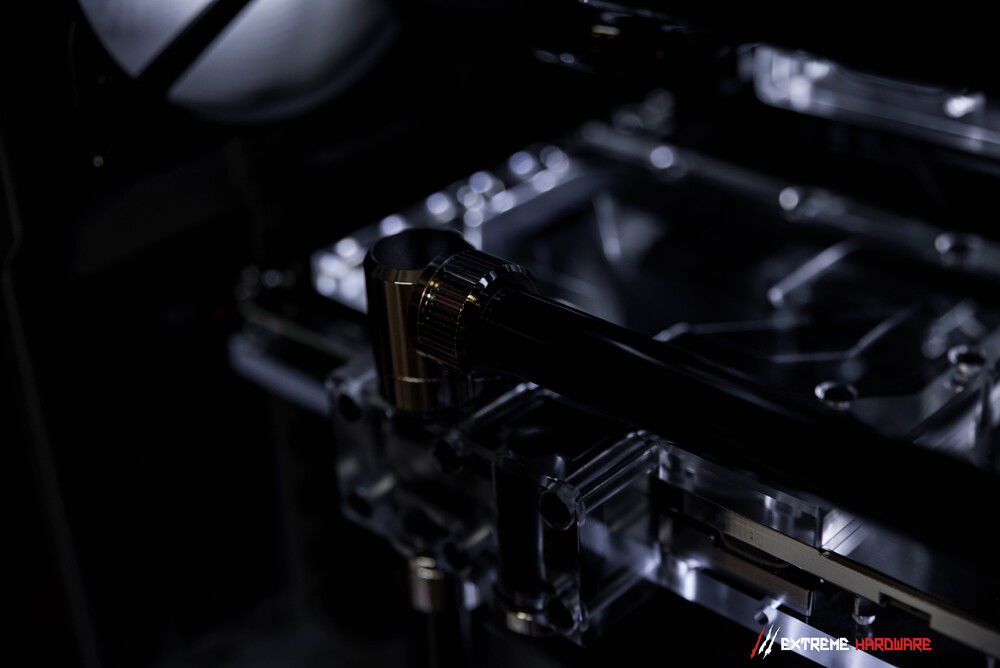

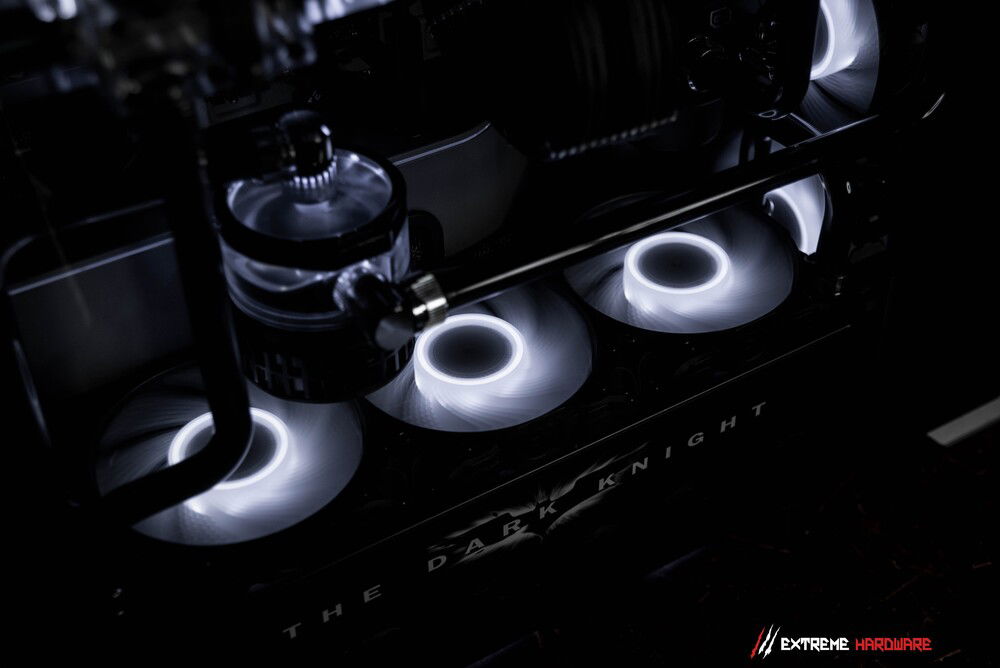

Active backplate (used here mainly for aesthetic reasons at the request of the PC owner) used even on the RTX 3080 more effectively removes heat from the pcb of the card, which translates into lower temperatures, unfortunately it naturally adds a restriction and pumps more heat to the system. The lower cooler is therefore equipped with a configuration of Push & Pull fans, which in turn effectively removes the generated heat outside the housing, thanks to these treatments the equipment remains cool and quiet even for many hours of continuous operation.

The early concept was to build a configuration based on several components that Bru ... Grzegorz provided us with, but these were inadequate to the machine's use, besides Greg finally wanted something more :)

The i7-12700K was replaced with the i9-12900K, the Z690 AORUS Elite DDR4 > to the Z690 Maximus XIV HERO. GIGABYTE RTX 3080 10 GB EAGLE with extremely low PT 345W has been changed to the very successful RTX 3080 12 GB FTW3 model with PT 450W from the EVGA stable. This translated into differences between the GPU performance up to 17% in favor of the FTW3.

RTX 3080 12 GB, apart from a wider memory bus (384 Bit instead of 320 Bit), also has 2 active SM blocks more, which translates into additional CUDA, TMU, TENSOR and RT cores compared to the RTX 3080 10 GB version. The added 2 GB of VRAM naturally also brings its benefits. Hardly anyone is aware of the fact that both the RTX 3080 12 GB and the RTX 3090 Ti are equipped with GDDR6X revisions that are newer than the previous Ampere, which allow for higher OC with a lower energy cost themselves, thus more power remains for more effective core clock management and translates into higher boost.
Naturally, the config is precisely adjusted, it has several OC profiles




EH "DARK KNIGHT" spec :

Hardware :

i9-12900K 5.2 GHz P / 4.1 E + 4.4 Uncore - SP P99
Z690 Maximus XIV HERO
2x16 G.Skill Trident Z5 bin 6000 CL40.40.40.96 (SAMSUNG)
@ 6200 CL32.34.34.68 T2 Gear 2 + 2nd/3rd
RTX 3080 12 GB FTW3 PT 450W OC + 100/+1000
1x SAMSUNG 970 EVO Plus 1 TB
1x Plextor 512 GB PX-512M9PEGN
Seasonic 1000 Prime
Phanteks Enthoo 719


Custom LC :

EK Velocity 2 LGA 1700 Nickiel + Plexi
EK Vector FTW3 RTX 3080/3090 Nickiel + Plexi
EK Vector FTW3 Active Backplate RTX 3080/3090 Nickiel + Plexi
EK Quantum Inertia D5 Plexi
EK D5 G3 PWM
EK Torque HTC-16 - Nickel x14
EK-AF Extender 20mm M-F G1/4 - Nickel x2
EK-AF Extender 6mm M-M G1/4 - Nickel x1
EK-Torque Angled 90° - Nickel x6
EK-Quantum Torque Drain Valve - Nickel x1
EK-AF T-Splitter 3F G1/4 - Nickel x1
EK Water Blocks EK-Cable Splitter 4-Fan PWM Extended x4
EK-Vardar X3M 120ER D-RGB (500-2200rpm) - Black x14
XSPC EC6 Premix Opaque Coolant - White x2
XSPC EC6 Concentrated ReColour Dye - Black UV x1
Gelid RGB 6-Way Splitter Cable x4
Alphacool NexXxoS XT45 Full Copper 480mm V.2 x1
Alphacool NexXxoS UT60 Full Copper Dual-Flow 360mm x1
Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm x1
Bykski 360/30 x1
Gelid GP-Ultimate thermalpad 120x20x1.5mm TP-GP04-R-C x1
Gelid GP-Ultimate thermalpad 120x20x2mm TP-GP04-R-D x2
Gelid GP-Ultimate thermalpad 120x20x1mm 2pcs TP-VP04-R-B x2
Thermal Grizzly Kryonaut Extreme 2g TG-KE-002-R
Thermal Grizzly Intel 12th Gen. CPU Contact Frame
Color(s): Black White
RGB Lighting? Yes
Theme: Comics
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 267.00
Intel - Core i9-12900K
Socket: LGA 1700
Cores: 16
Motherboard
$ 699.00
ASUS - ROG Maximus Hero
Chipset: Z690
CPU Socket: LGA 1700
Size: ATX
Memory
$ 92.99
G.Skill - Trident Z5 (6000MHz) (Black/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,200.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 49.00
Plextor - Dysk (PX-512M9PeY)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 115.98
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 299.00
Seasonic - Platinum-1000 (discontinued)
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 201.99
Phanteks - Enthoo 719 (Grey)
Type: Full-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 1,365.00
Cooling
$ 109.16
Alphacool - NexXxoS UT60 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 113.15
Alphacool - NexXxoS XT45 Full Copper
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 49.00
Bykski - B-RD360-TN
Type: Water Cooling
Cooling
$ 31.43
Cooling
$ 615.86
EKWB - EK-Quantum Torque HDC 16 (Nickel) (14x)
Type: Fittings
Cooling
$ 180.00
Cooling
$ 120.00
Cooling
$ 28.00
XSPC - Fluid (2x)
Type: Custom Loop
Cooling
$ 14.00
XSPC - Fluid
Type: Custom Loop
Estimated total value of this build:
$ 5,748.70
