Test System
Here is the stripped out HP donor case.

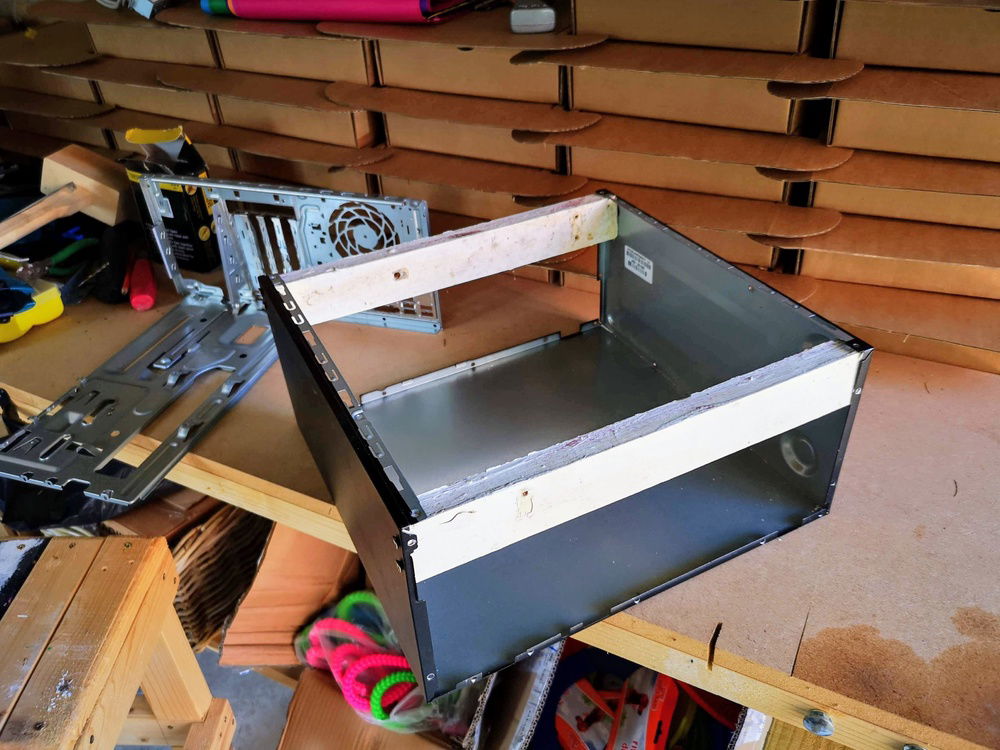

I took out the motherboard tray and I/o shield area. I added to wooden beams to create the base.

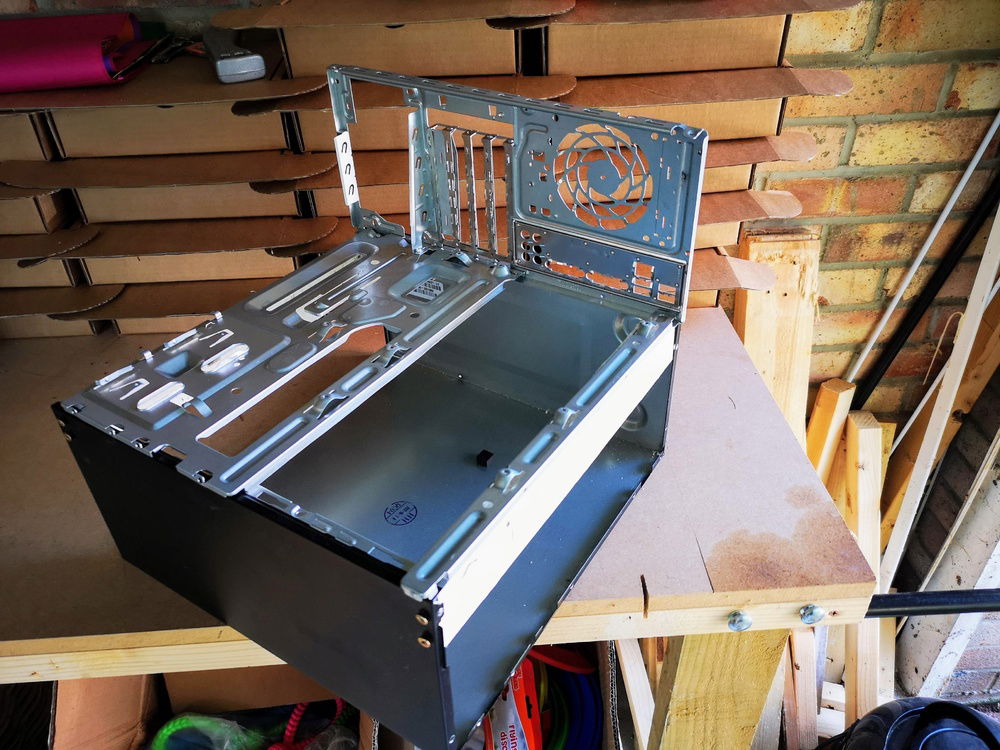

I laid out the try on top to see what it looked like.

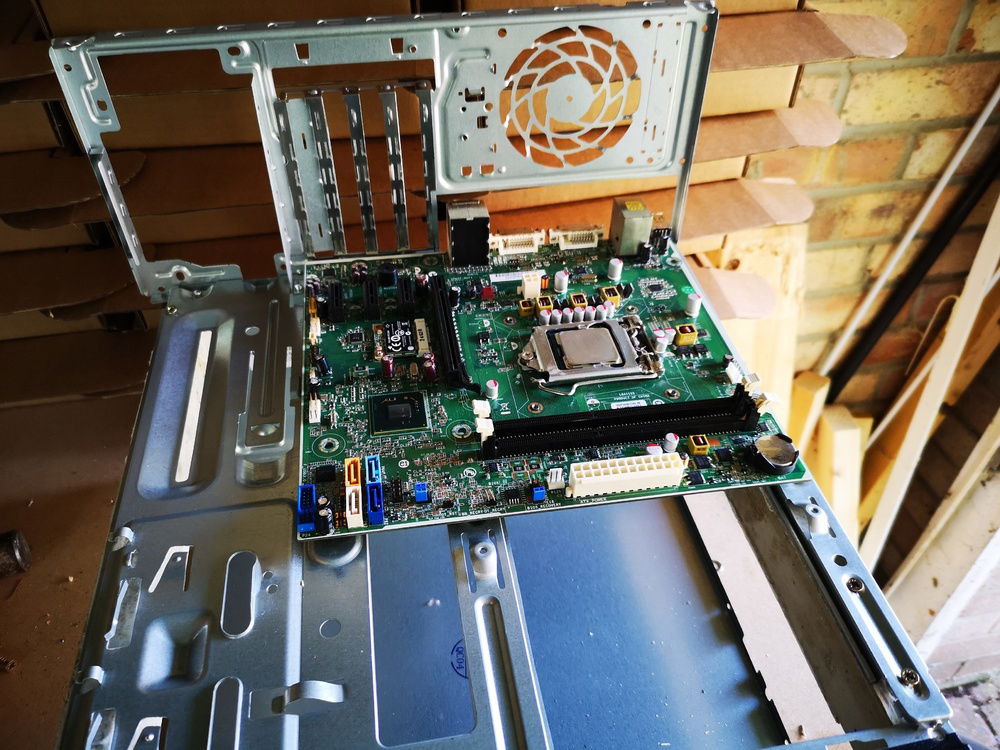

I used a motherboard to ensure the holes lined up.

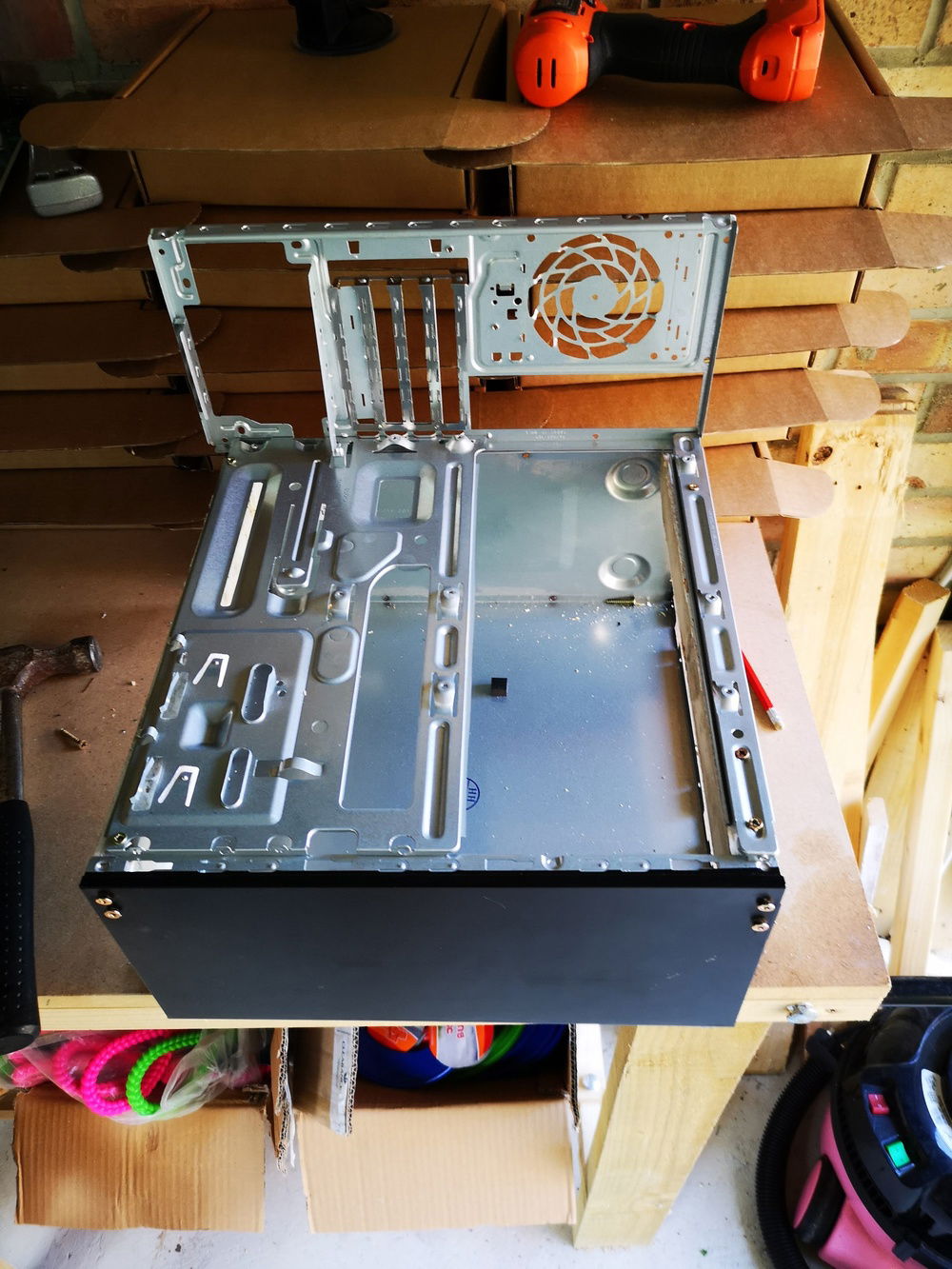

I screwed them in place. The open area under the board is really handy for access and back plates etc.

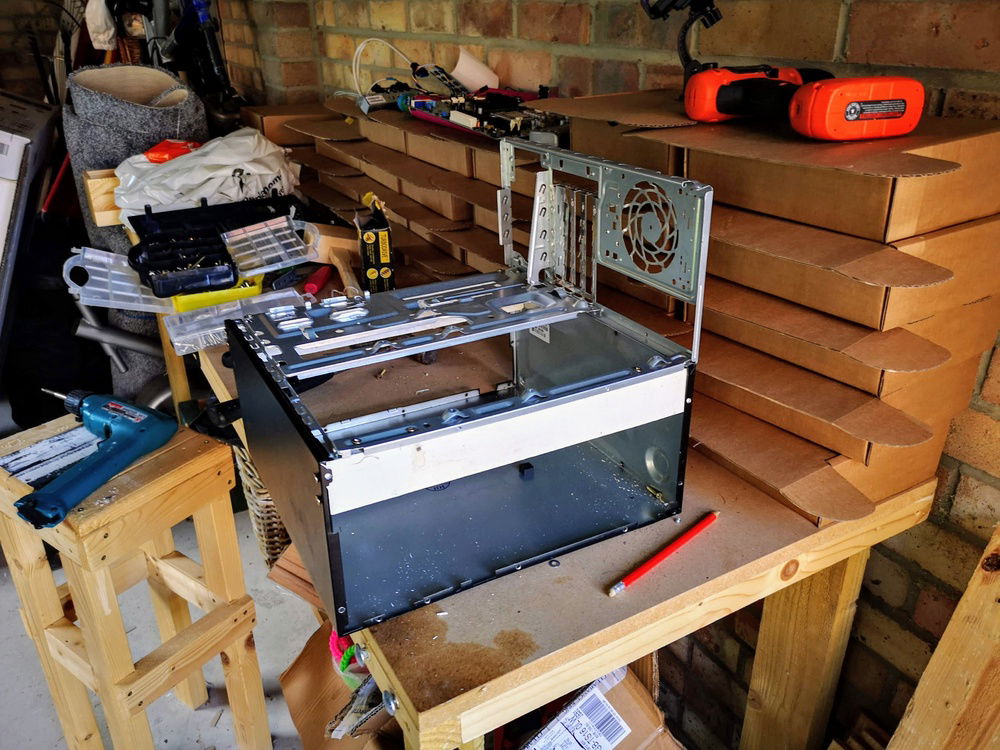

Here si the final design before paint.

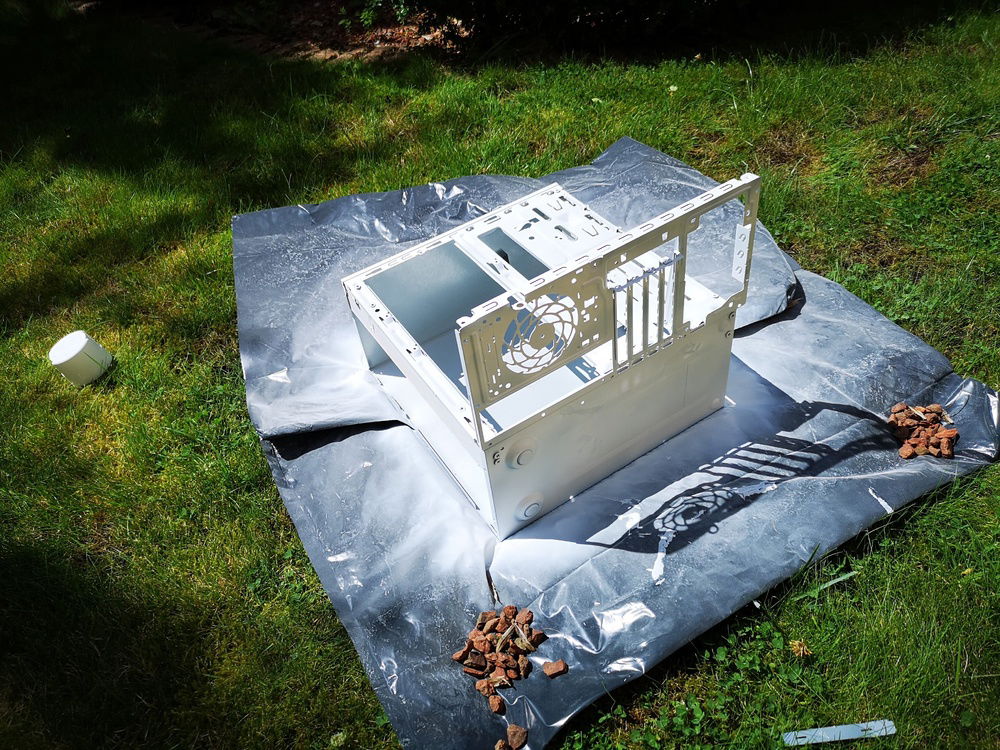

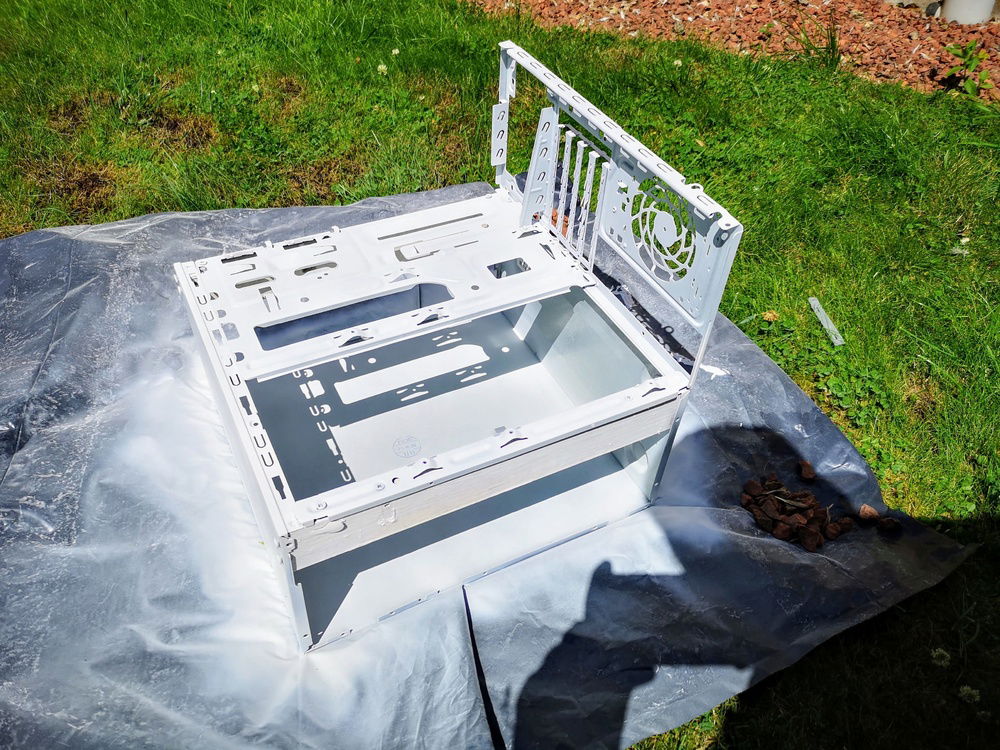

Base coat
Base coat

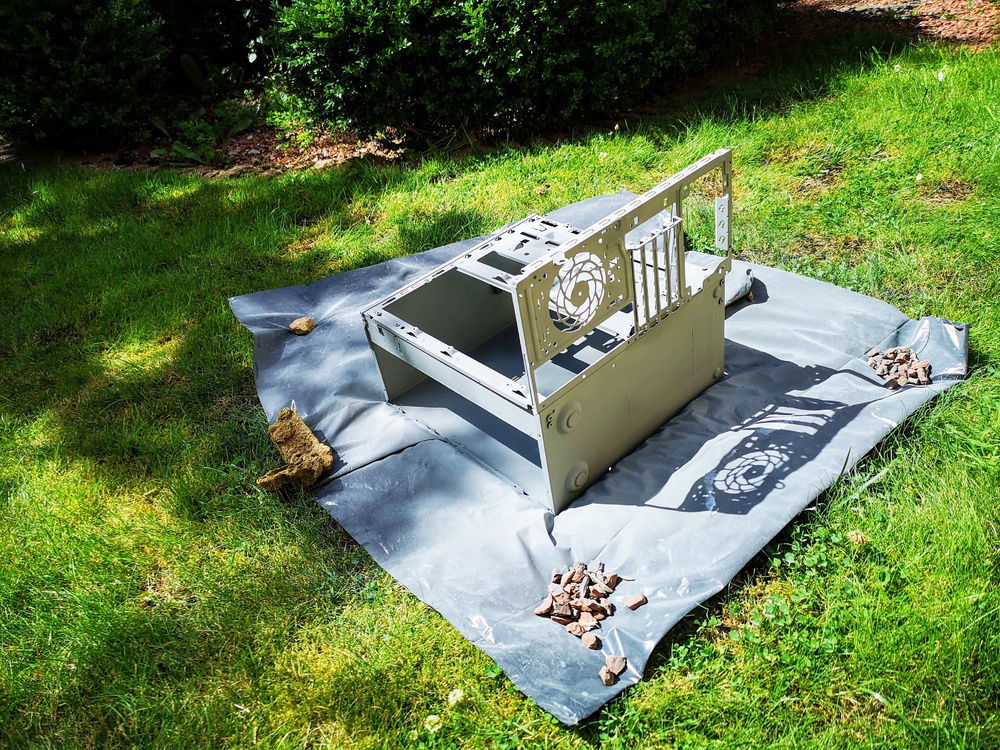

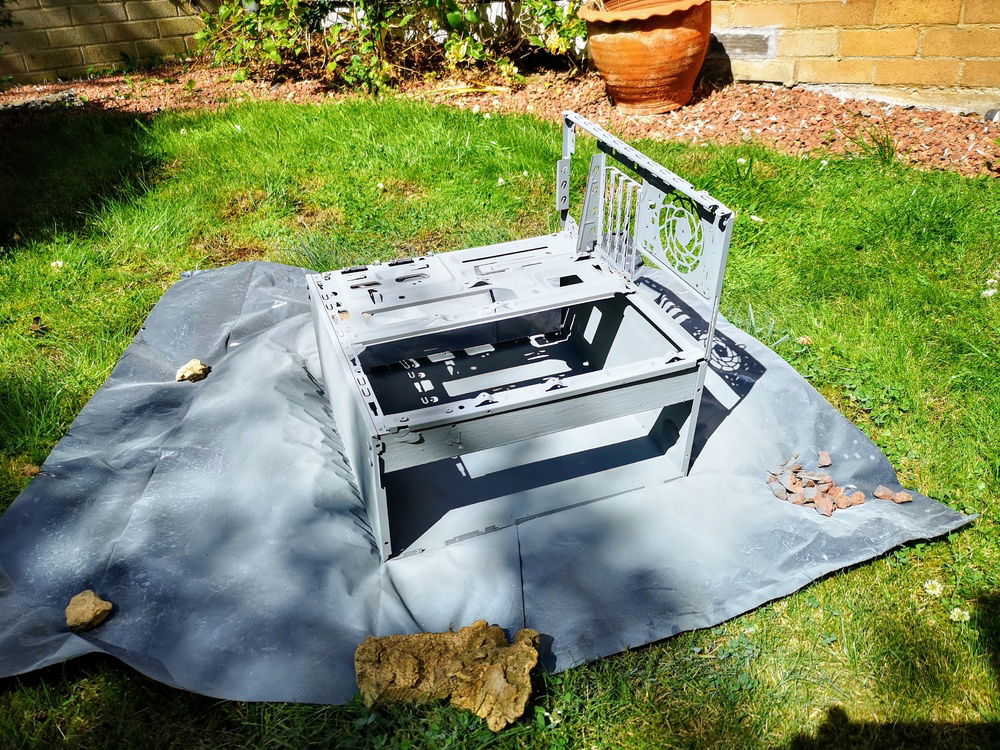

Gray Plastidip
Gray Plastidip

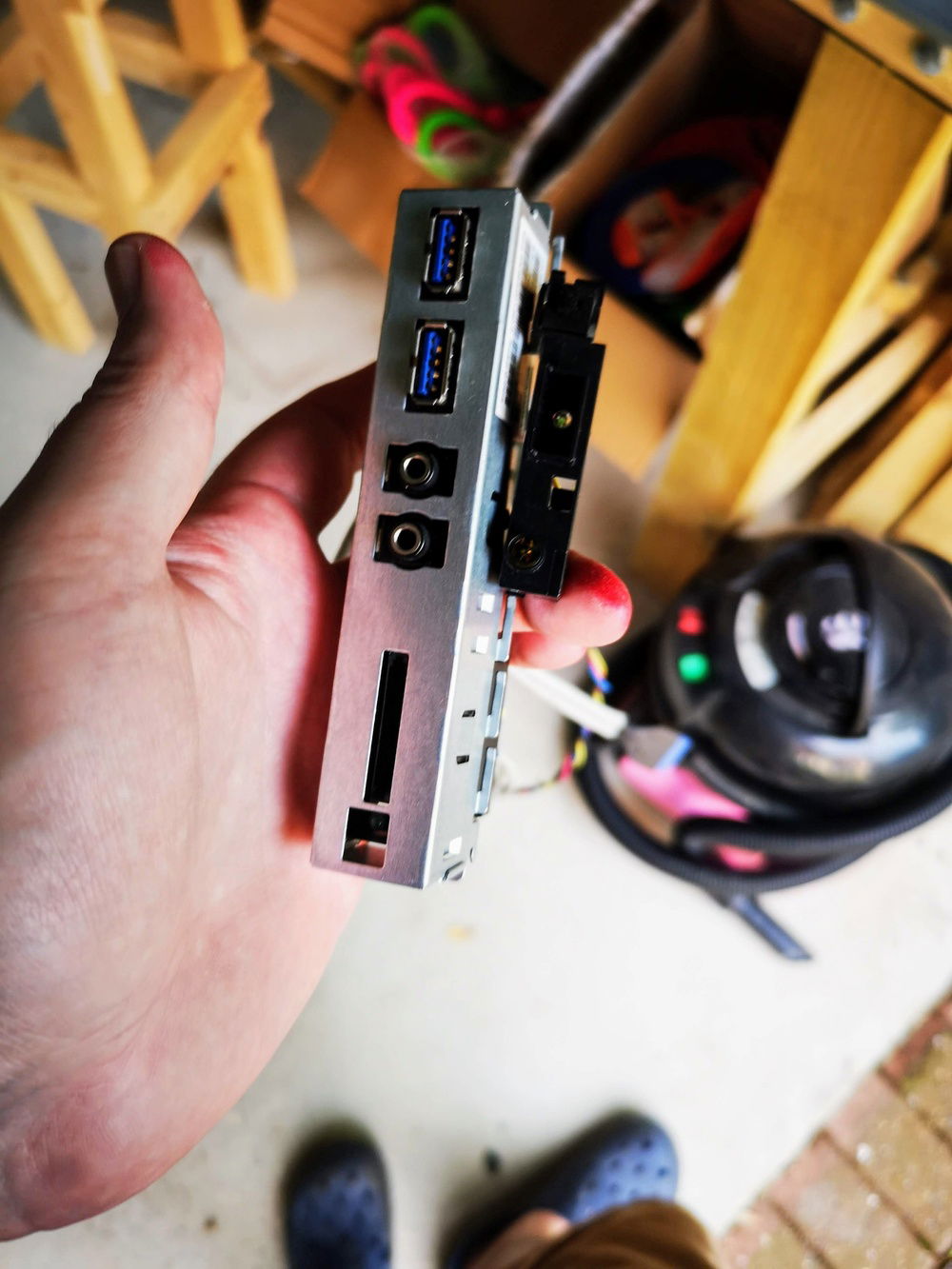

I kept the front IO and power switches

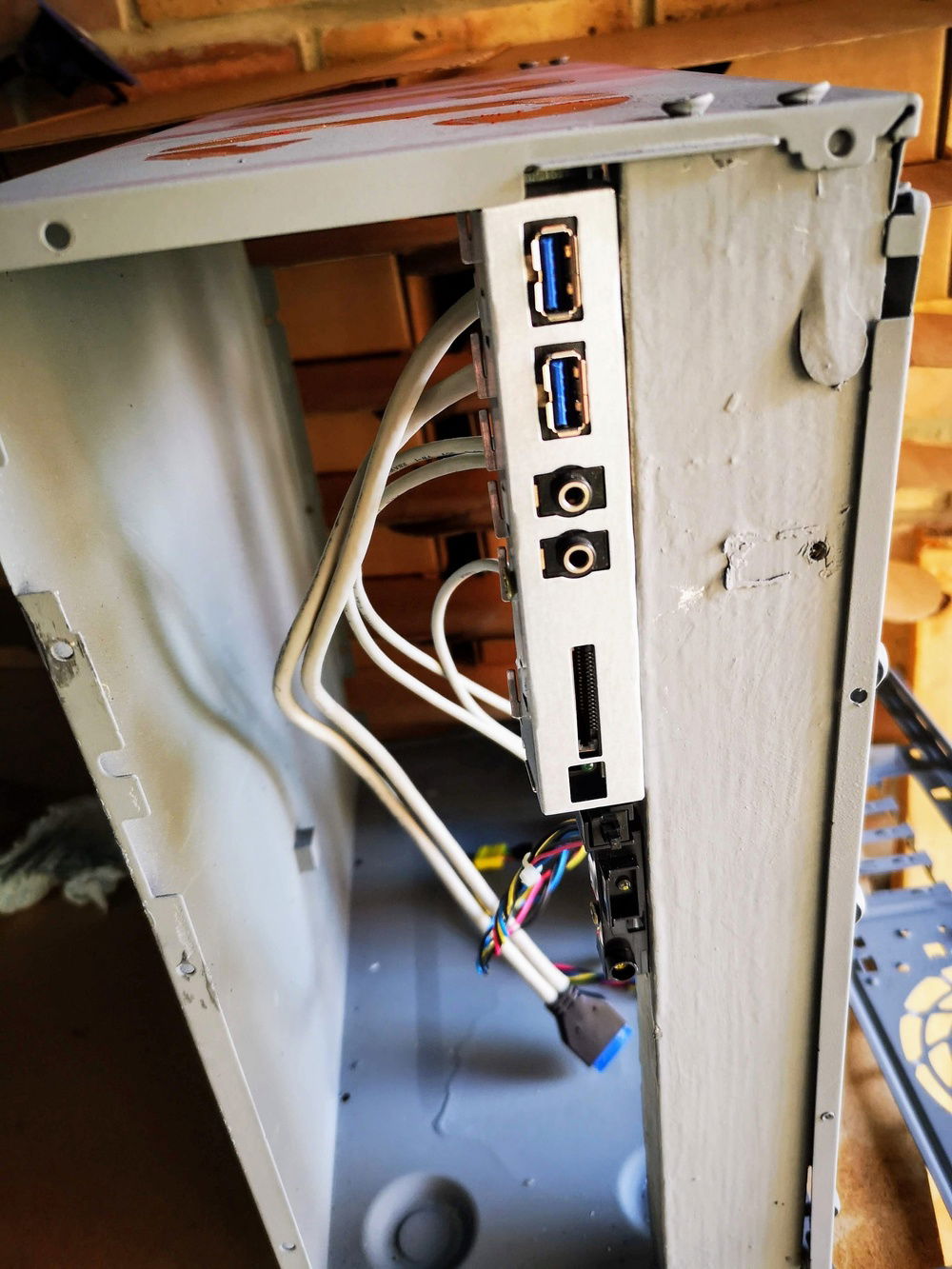

I attached the IO and switched under the wooden beam.

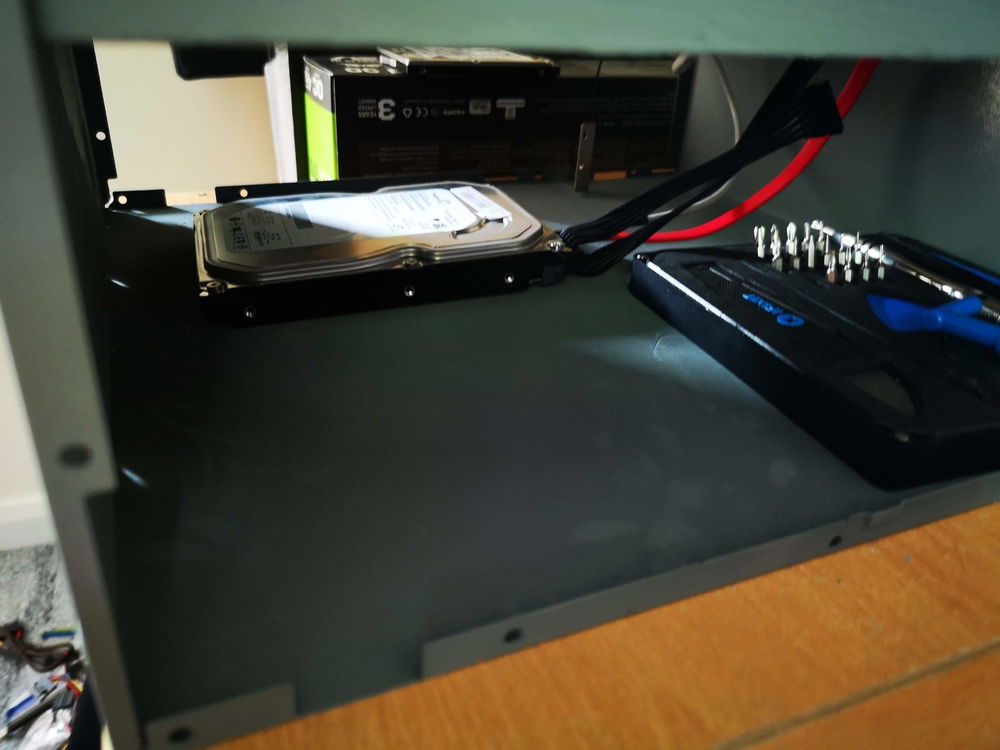

The tray underneath allows for loads of storage (hdd's and tools etc)

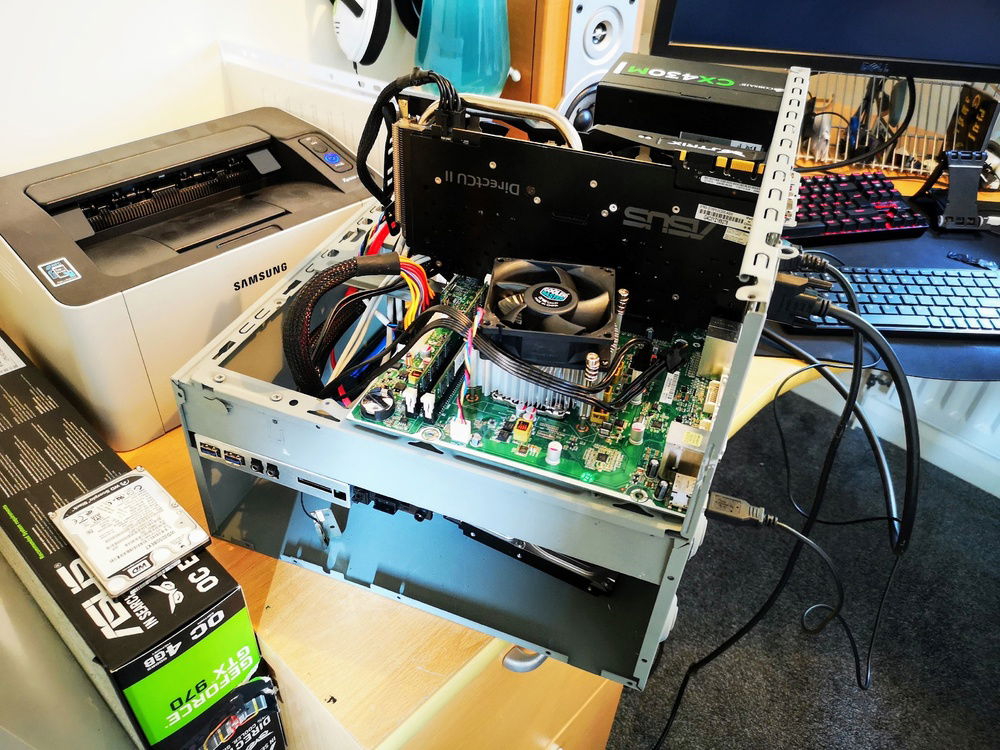

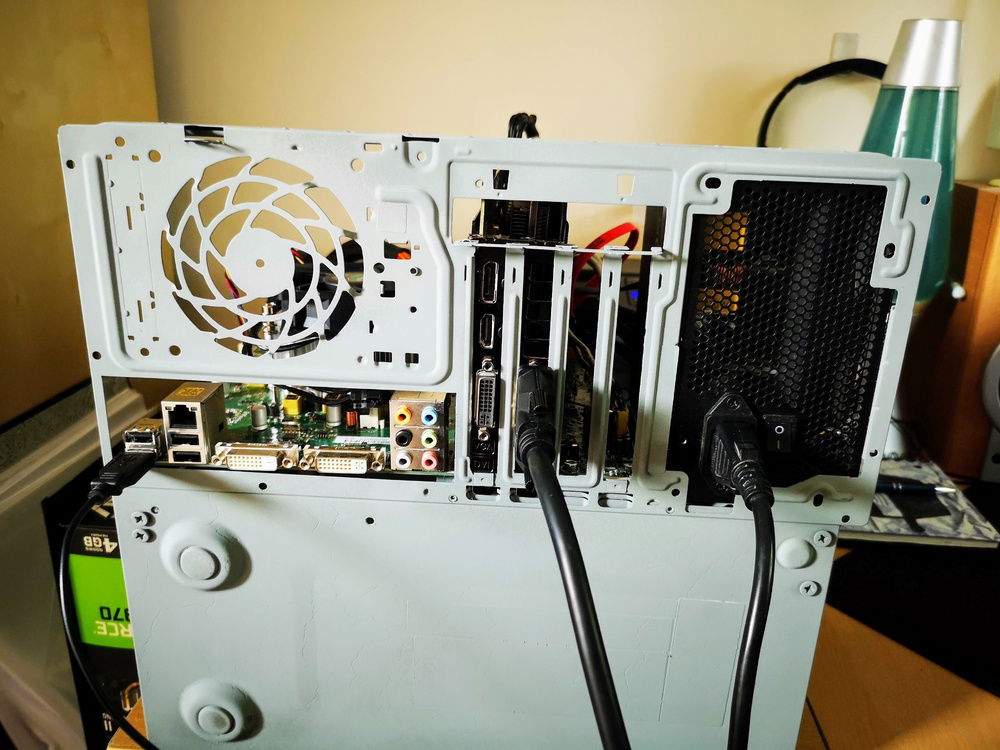

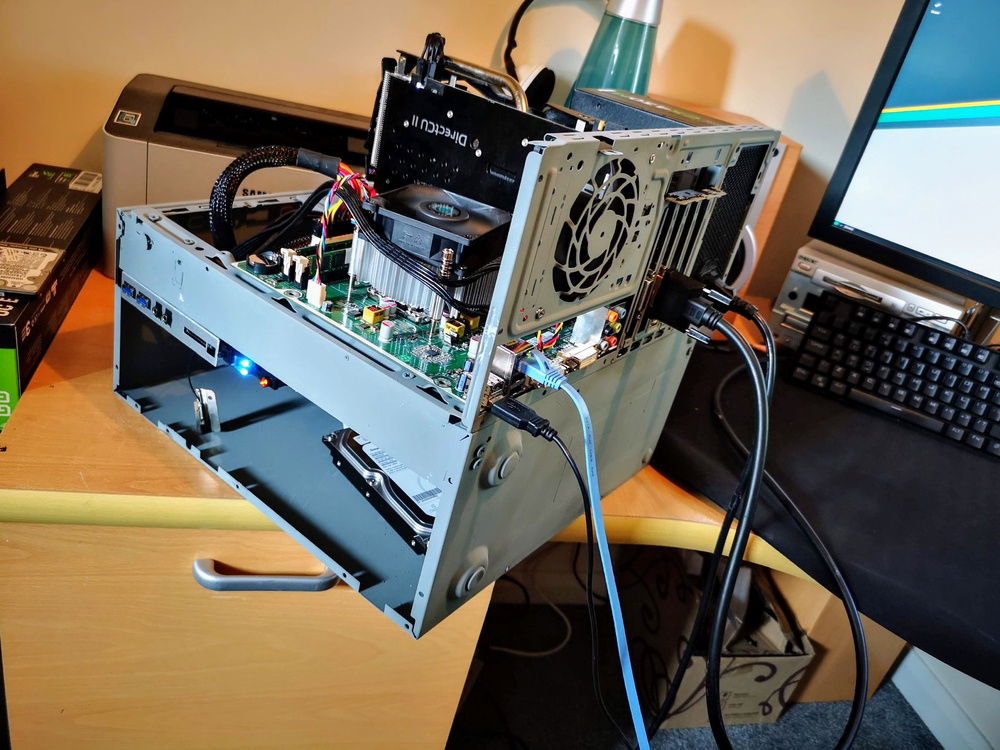

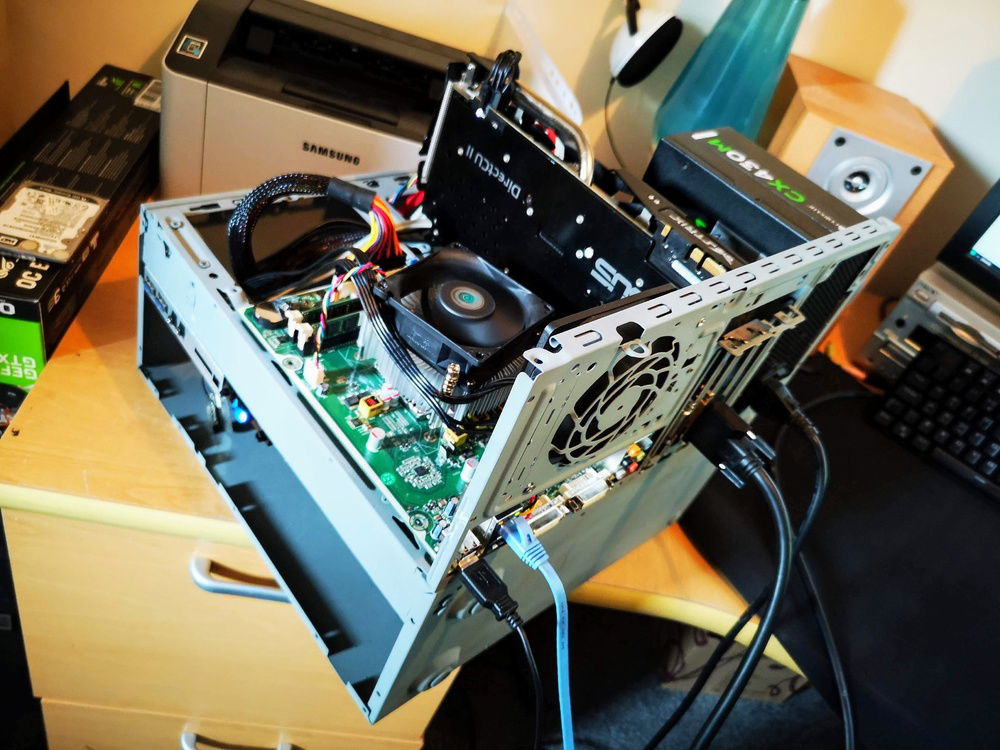

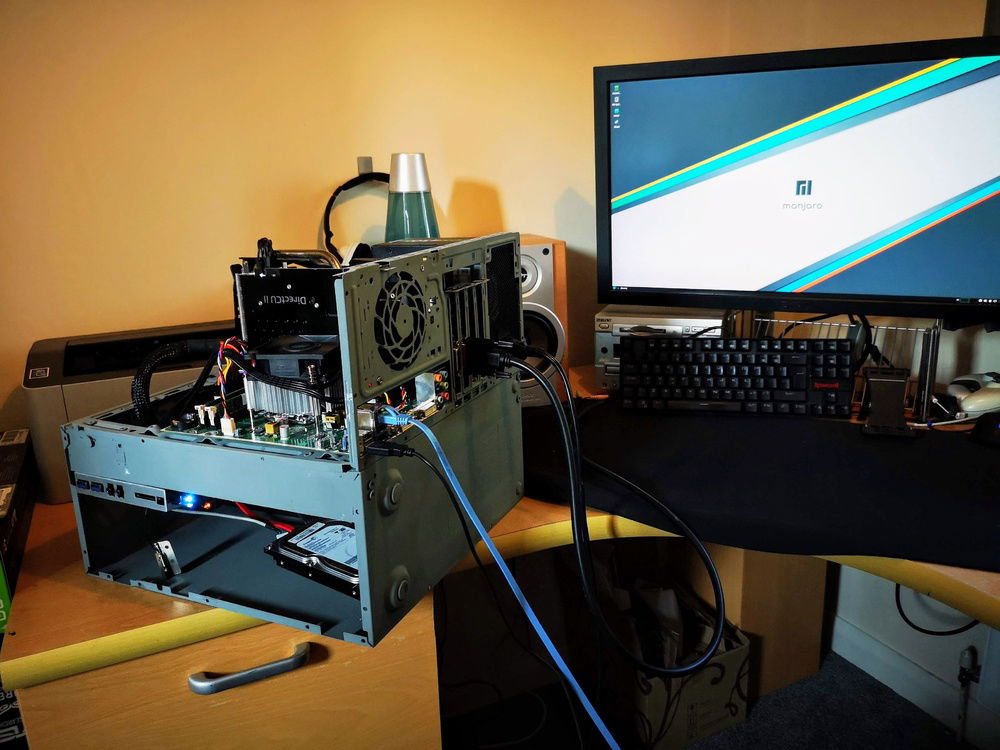

Here is a test system

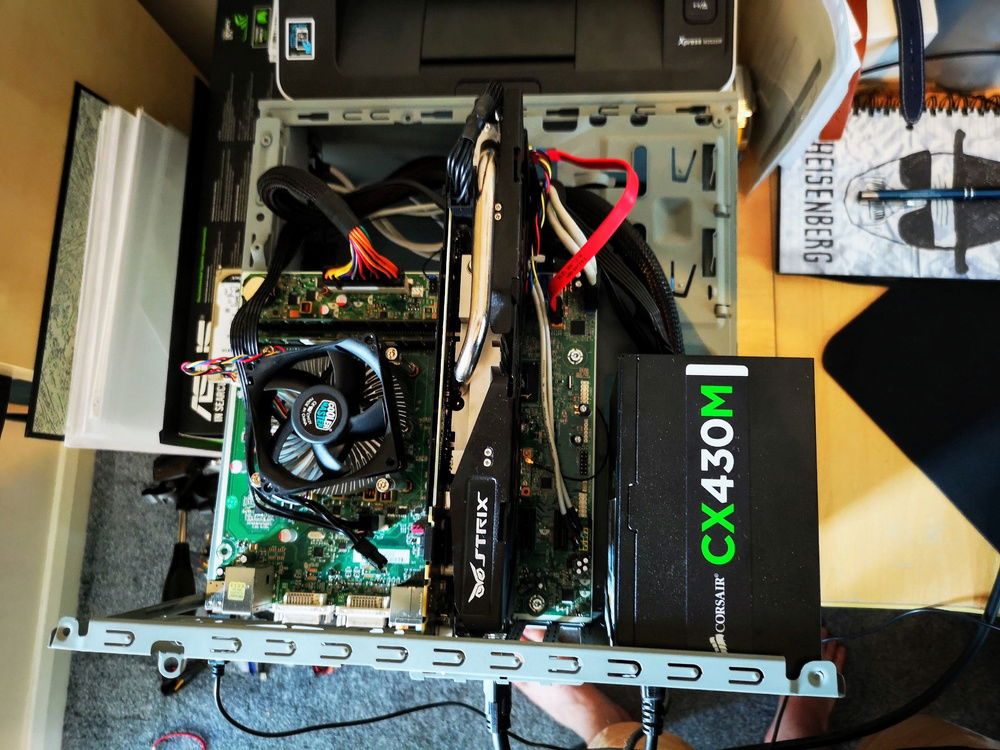

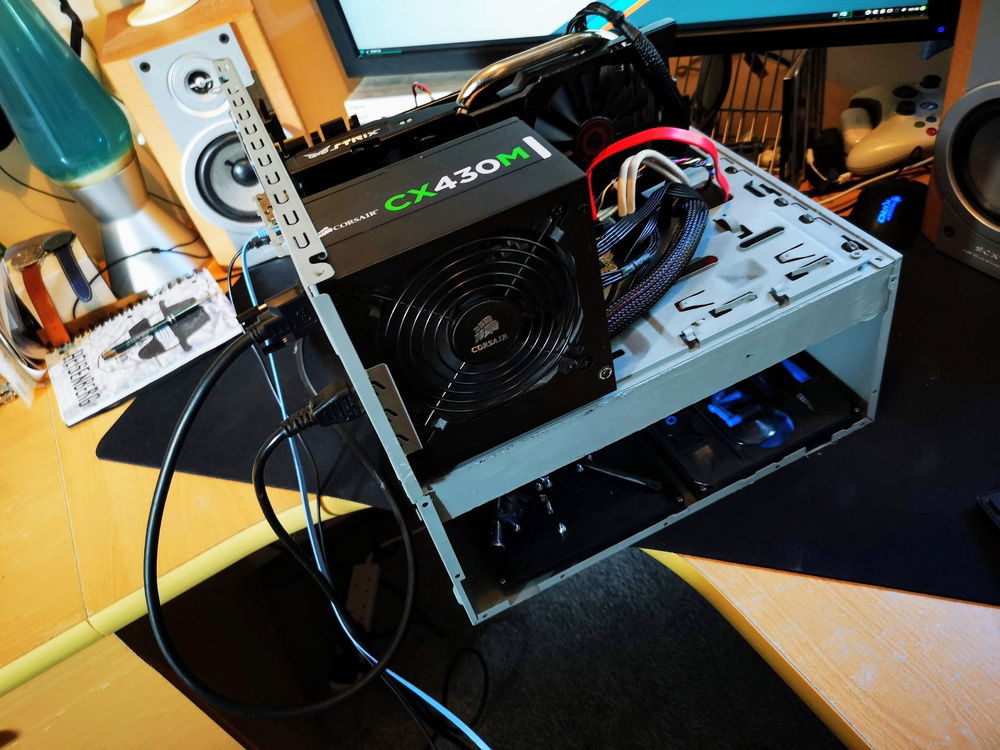

Test System
Test System
Test System
Test System
Test System
Test System
DIY PC TEST BENCH
I wanted a second PC and decided an open air test bench would be a cool toy. I didn't want to spend the £80-100 for the nice Lian Li case that seems popular. So I decided to make one. I was inspired by a Linus Tech Tips video called ''Free (or extremely cheap) DIY PC Testbench!''. I turned an old HP desktop into a really useful and versatile case!
https://youtu.be/UWvgAkCyZTA
https://youtu.be/UWvgAkCyZTA
Color(s): Gray
RGB Lighting? No
Theme: Technology
Cooling: Air Cooling
Size: Micro-ATX
Type: General Build
Hardware
CPU
$ 102.00
Motherboard
Graphics
$ 145.00
Storage
$ 65.99
