Dimastech BFD

Dimastech BFD - Big Friggen Desk The Boss' New Desk

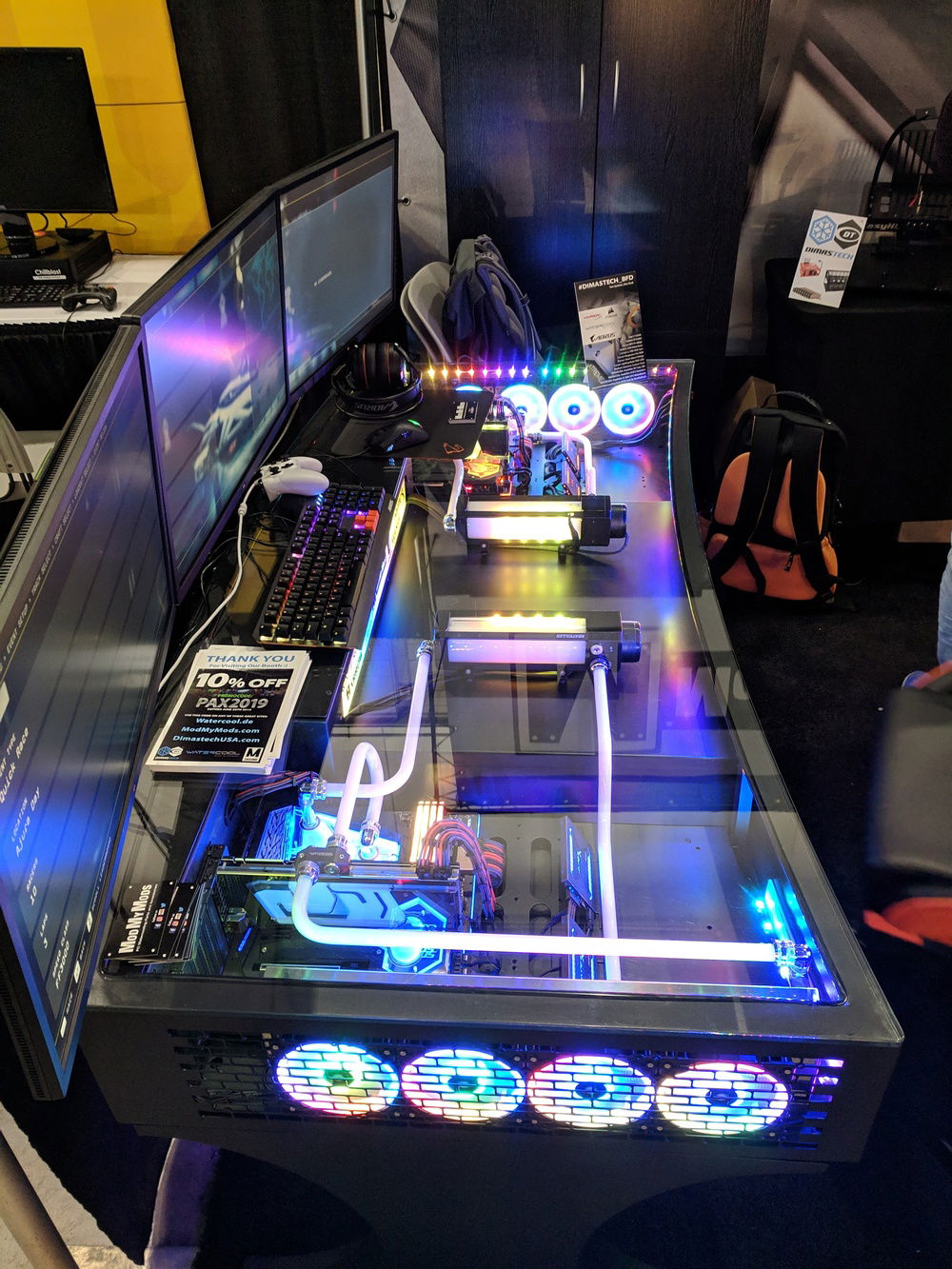

This is a prototype build featuring the newly designed Dimastech BFD. Hand crafted in Italy, the BFD you see is the first one ever produced by Dimastech. The original piece did not come ready to go out of the crate, it needed to be heavily modified and altered in order to make it reasonable to build in. The thought was to create a desk that supports all types of configurations and would be the last desk you'd ever need to buy. It would be made to order and configurable in many ways. The two sides of the desk have identical hardware and watercooling parts, but feature two examples of different configurations that the desk could be purchased in.

The left side supports a 420mm HSTF2 Watercool radiator (and will support larger in the future) and has a solid leg.
The entire build stays inside of the top area of the desk.

The right side supports a 360mm HTSF2 Watercool radiator (and will support larger in the future) and has the radiator mounted in the leg of the desk.

The desk was meant to be a showcase build for PAX 2019 and would then travel to Dreamhack Montreal later that year.
The desk now quietly operates in the mods warehouse operated by the big cheese himself. It's used for many of our daily work processes and provides computing power needed to run the warehouse.
Color(s): Black Gray Orange Silver
RGB Lighting? Yes
Theme: Brand
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 470.00
Intel - Core i7 9700K (2x)
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
Gigabyte - Aorus Xtreme Waterforce (2x)
Chipset: Z390
CPU Socket: LGA 1151
Size: E-ATX
Memory
$ 479.96
Corsair - Dominator Platinum (3200MHz) (Black/RGB) (4x)
Type: DDR4
Capacity: 8 GB
Graphics
Gigabyte - AORUS Extreme Waterforce WB (2x)
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Graphics
$ 599.98
Gigabyte - Gaming (2x)
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 346.00
Corsair - Force MP510 (2x)
Form Factor: M.2
Interface: PCIe x4
Capacity: 480 GB
Storage
$ 252.76
Kingston - HyperX Fury (RGB) (4x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 480 GB
PSU
$ 1,244.04
Corsair - AX1200i (2x)
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Custom - Custom (custom)
Case Fan
$ 396.10
Corsair - LL120 (RGB) (Black) (10x)
Size: 120 mm
Cooling
$ 75.92
Cooling
Barrow - Fittings (20x)
Type: Custom Loop
Cooling
$ 206.10
Watercool - HeatKiller Tube 200 D5 (2x)
Type: Reservoir
Cooling
Watercool - HTSF2 (2x)
Type: Custom Loop
Accessories
$ 148.58
Accessories
$ 389.94
Accessories
$ 59.98
Monitor
$ 1,418.61
Gigabyte - AORUS AD27QD (3x)
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 117.02
Gigabyte - Aorus K7
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 59.00
Gigabyte - AORUS M3
Interface: Wired
