Der Eiskreislauf - V2


Der Eiskreislauf - "The Ice Loop" Version 2.0

Originally built as a workhorse computer for BIGKevin (CMO of ModMyMods).

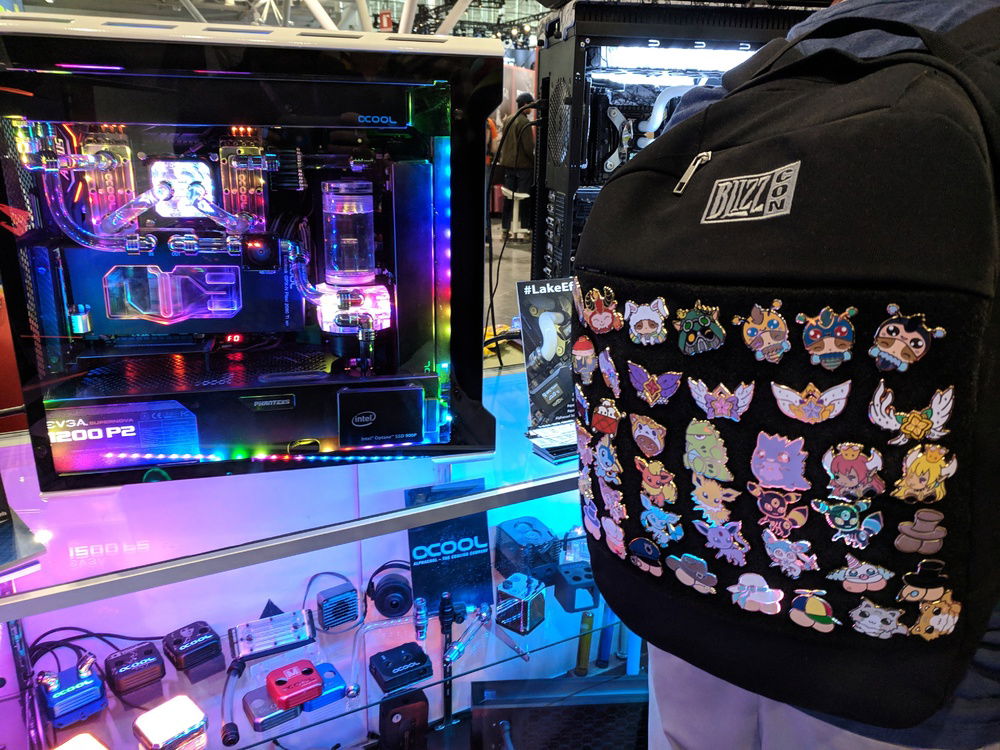

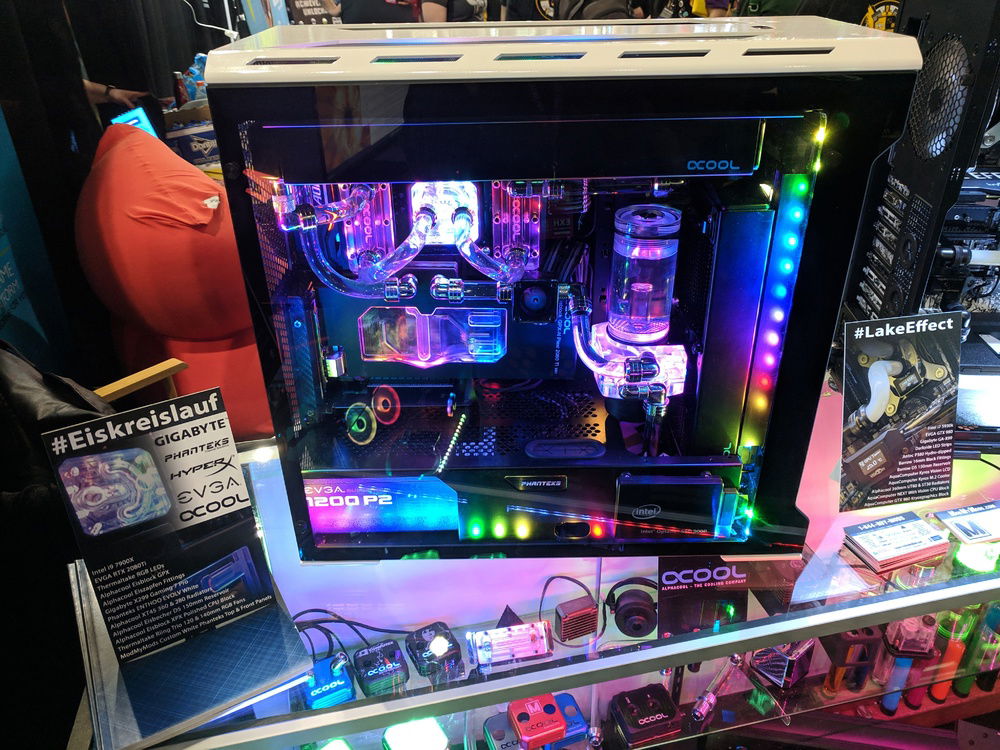

Version 2 was built and completed to put on display for PAX East 2019 at the ModMyMods booth.

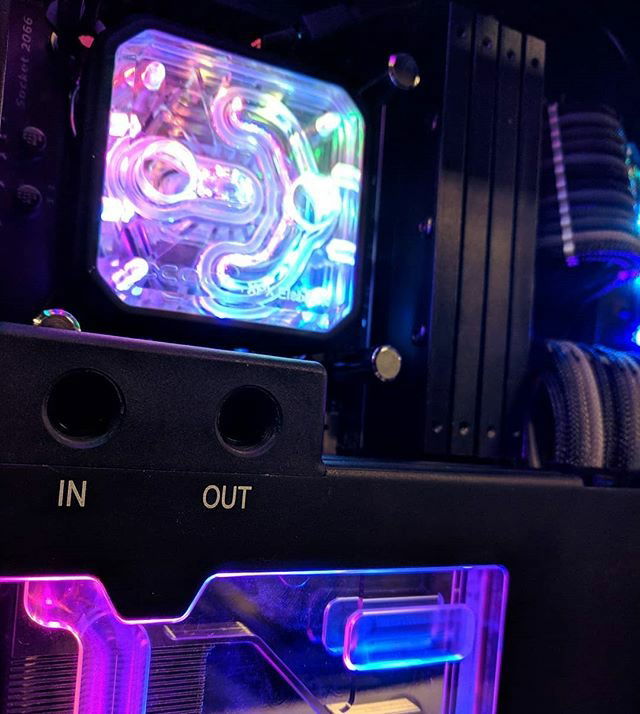

Featuring even more Alphacool goodies, the custom PC also includes various services that ModMyMods offers. We changed out the laser etching with a white powdercoat on the top & front panels of the Phanteks EVOLV ATX case and cut out our infamous "air flow" design using the CNC at the shop. We also replaced all of the radiators with proper UT60 and XT45 rads. Cleaned out and replaced the clogged CPU block with an updated version of the Eisblock. We then went ahead and replaced all RGB lighting with Thermaltake digital RGB LED strips and Riing Trio 120mm RGB Fans. There aren't very many pictures of this build because it was put together so quickly for the show. It would then get another revamp upon return due to a dead motherboard.

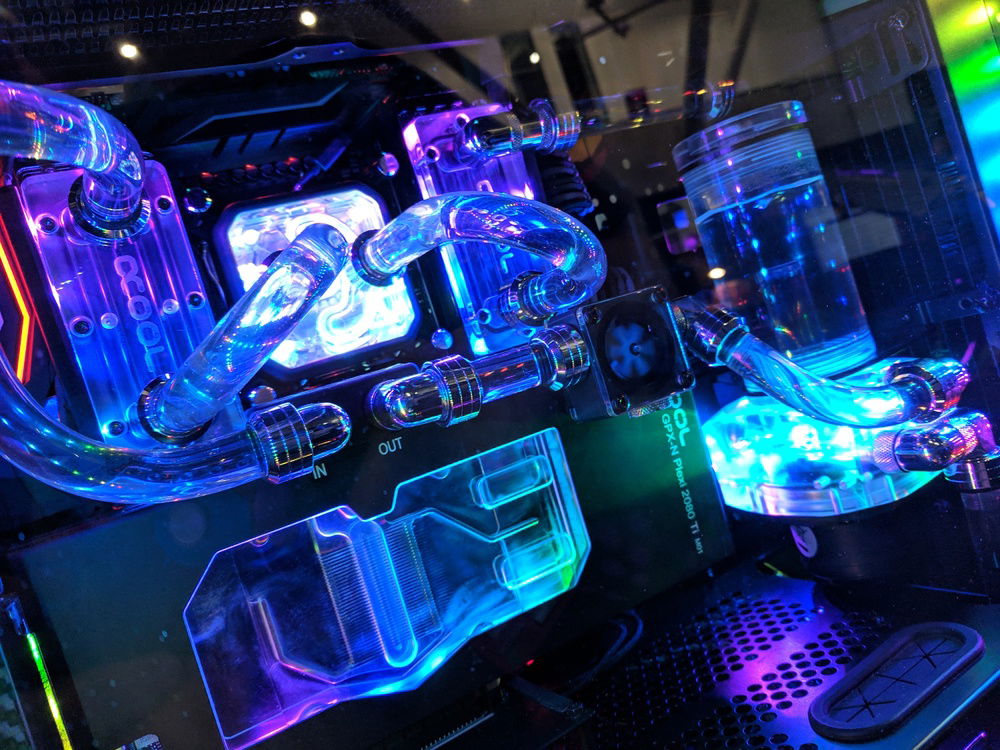

We replaced the Alphacool 755 pump with the standard 655. and changed the tubing runs. Now that we were educated in hard tube bending, we thought it best to replace the crazy amount of fittings with proper bent hard tube. We also replaced the hold GPX-N Eisblock for the new GPX Plexi for the 2080ti.

Color(s): Black Gray Silver
RGB Lighting? No
Theme: Brand
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 326.00
Intel - Core i9 7920X
Socket: LGA 2066
Cores: 12
Motherboard
$ 199.99
Gigabyte - AORUS Ultra Gaming Pro
Chipset: X299
CPU Socket: LGA 2066
Size: ATX
Memory
$ 1,514.56
Corsair - Vengeance (3000MHz) (Black/RGB) (4x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,499.99
EVGA - Black Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 177.94
Gigabyte - Aorus (RGB)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 937.36
Intel - Optane 900P (2x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 280 GB
PSU
$ 251.62
EVGA - SuperNOVA 1200
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Phanteks - Enthoo Evolv (Silver)
Type: Micro-ATX
Side Panel: Tempered Glass
Case Fan
$ 292.08
Case Fan
$ 53.58
