Tim

This system was supported to replace my NAS (that is named Toejam) but as I have decided to keep it its own system and make it 100% NAS so I need a new name for this one.
------------------------------------------------------------------------------------------------------------------

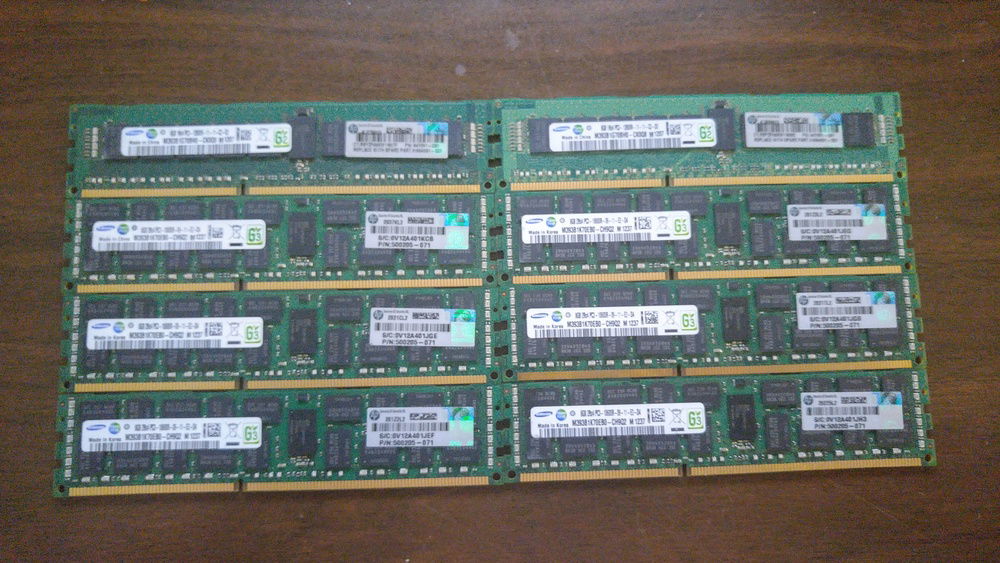

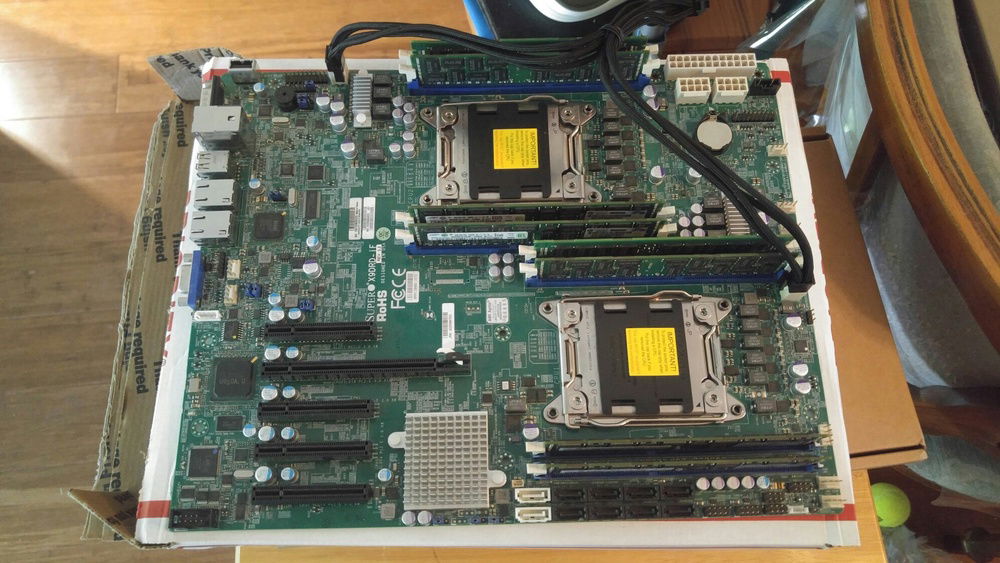

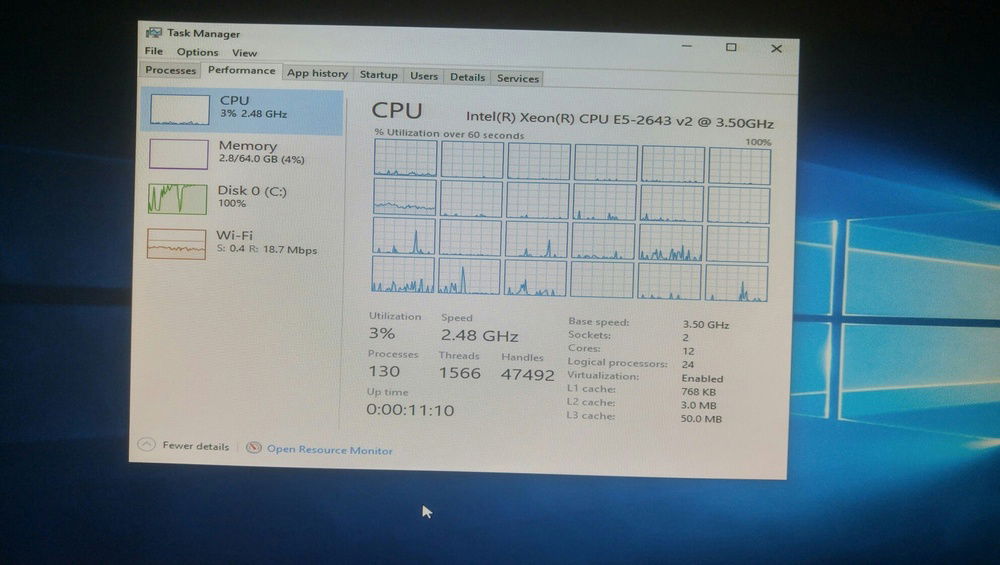

This is a dual Xeon E5-2643 V2 system on a Supermicro board with 64Gb ECC REG DDR3 and a refurbed HX1000I psu that I got when I ordered a refurb HX750i off amazon.
Its mostly a in home server to do whatever the hell I want to with.

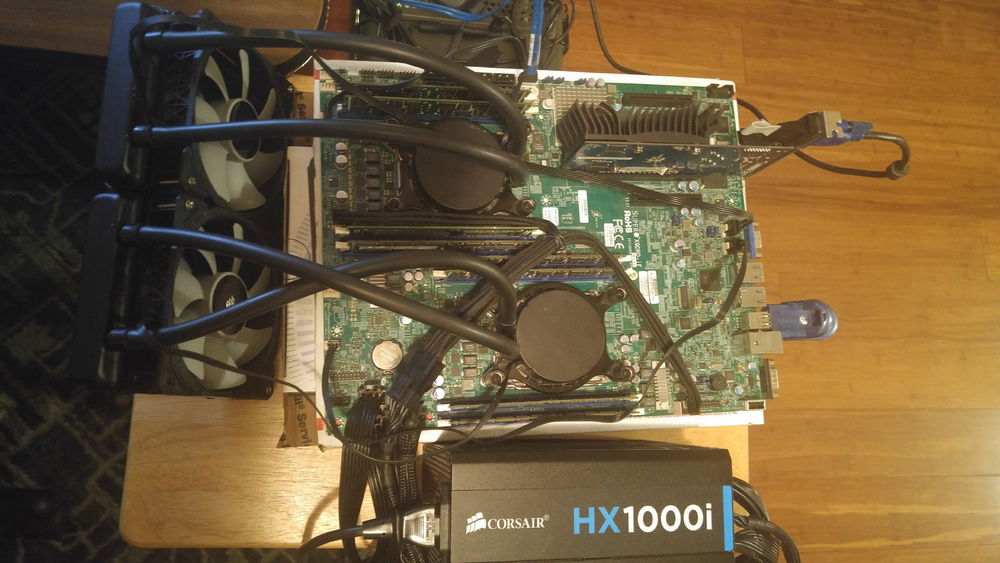

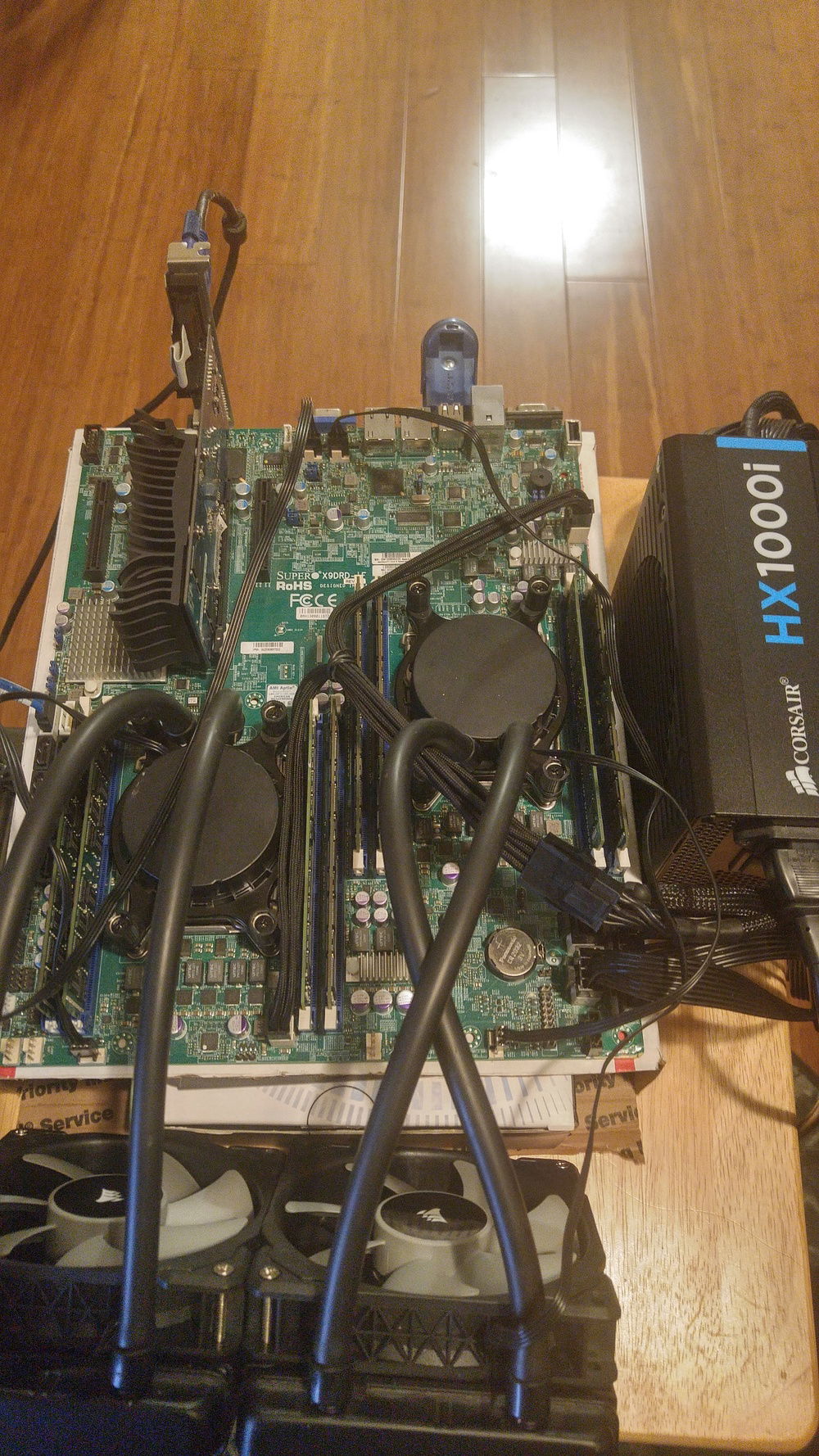

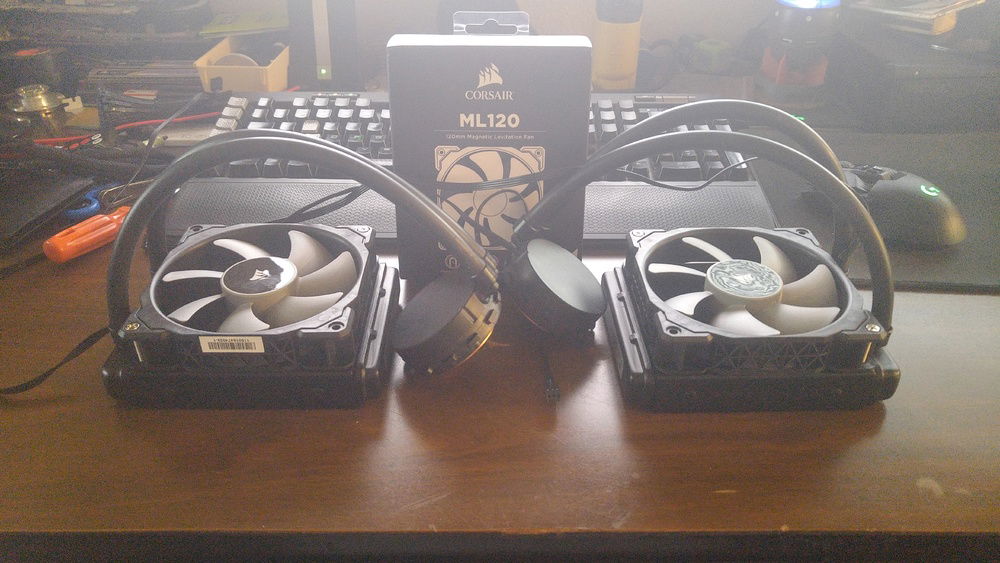

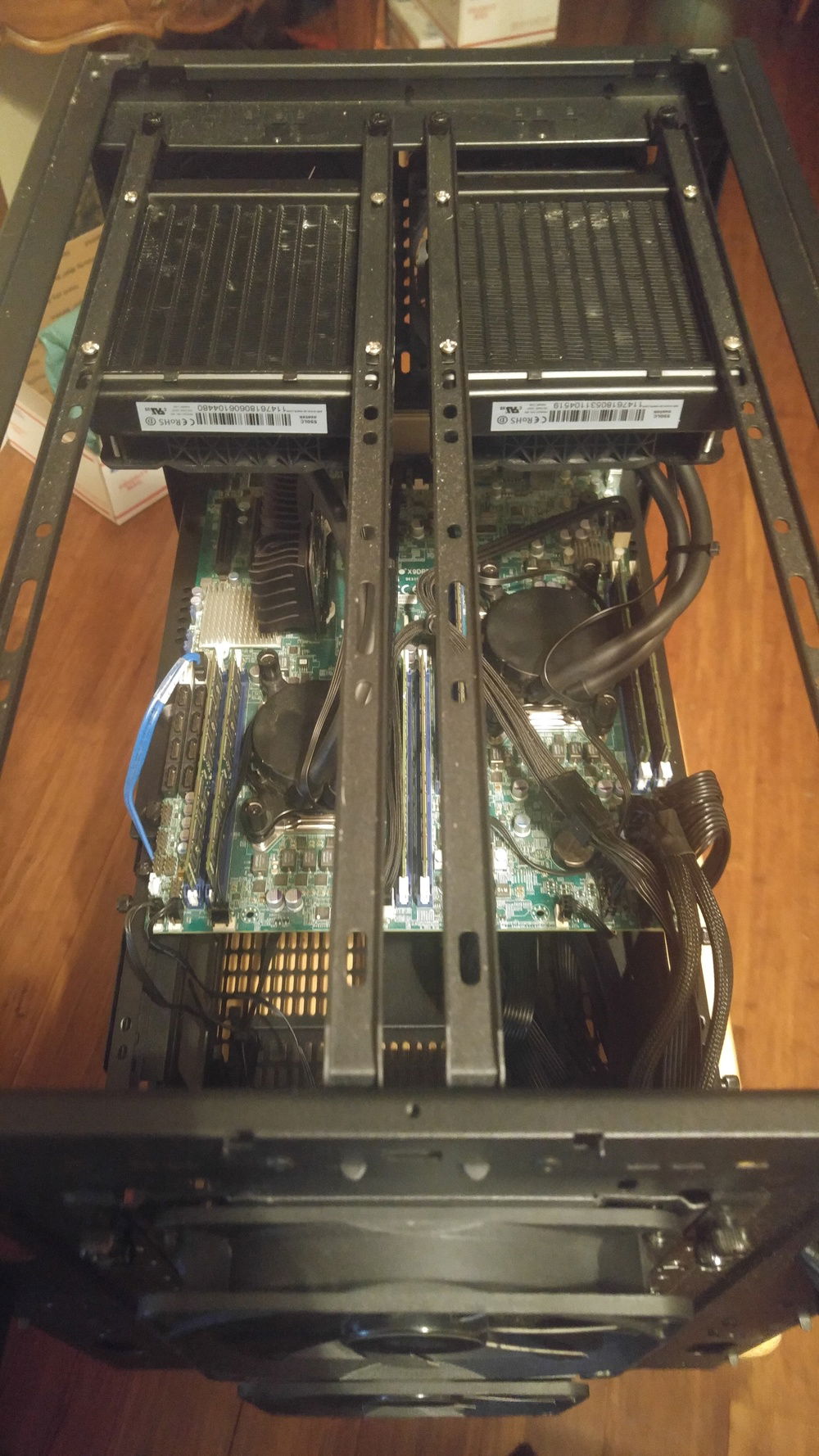

It is watercooled because it was actually cheaper to watercool it than it was to get air coolers. I got 2 refurbed Asetek 550LC from IBuyPower on ebay for like $35 with shipping. Now I did have to get the retention rings from Asetek directly because the motherboard ILM is LGA2011 narrow and what normal person is going to put a watercooler on that. (If any one needs 2 rings for LGA115x let me know)

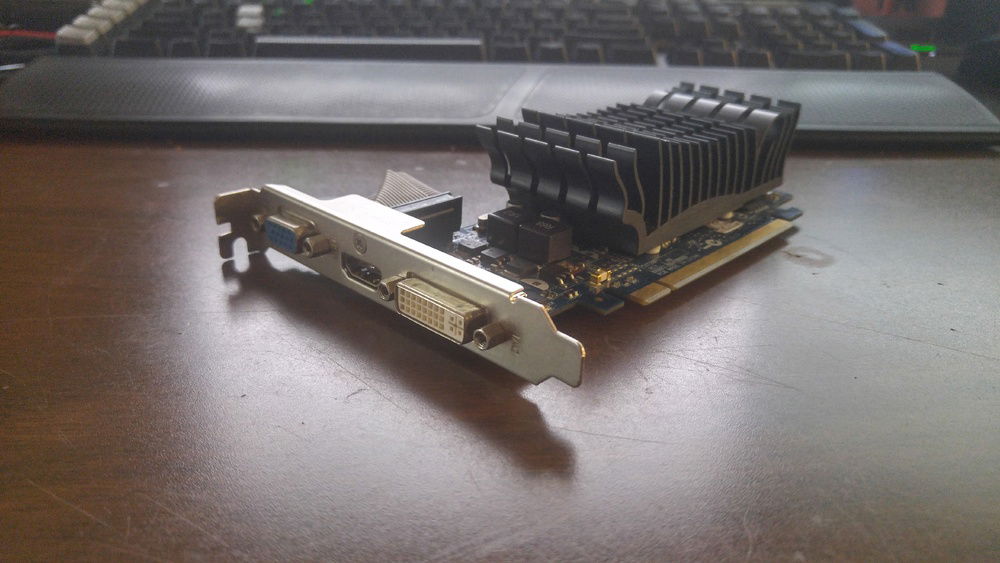

The gt 210 is mostly just so I have more output options when setting the system up and to output at 1080p (and its just floating around my desk with two 8800GTXs a dead 750TI and a dead 9500GT)

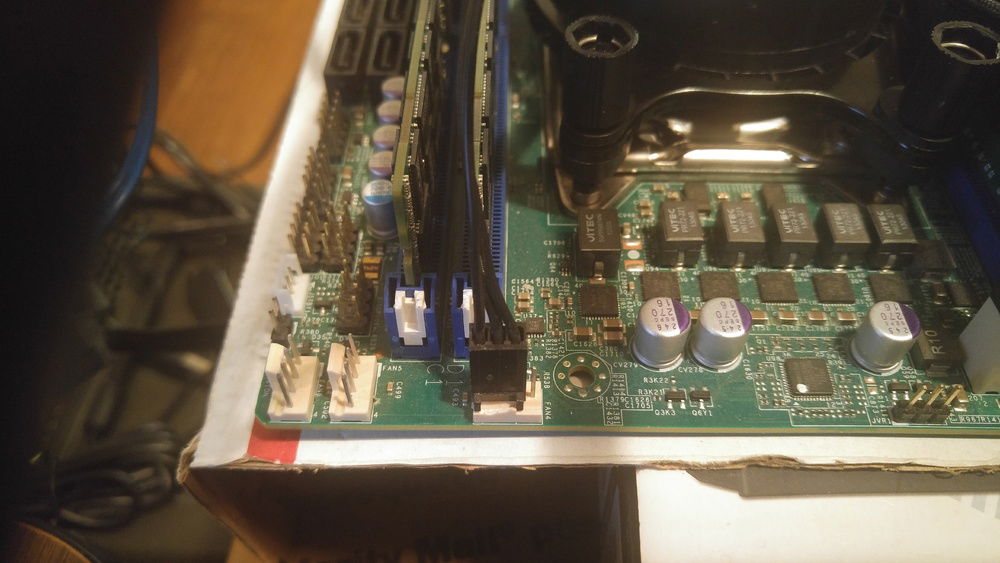

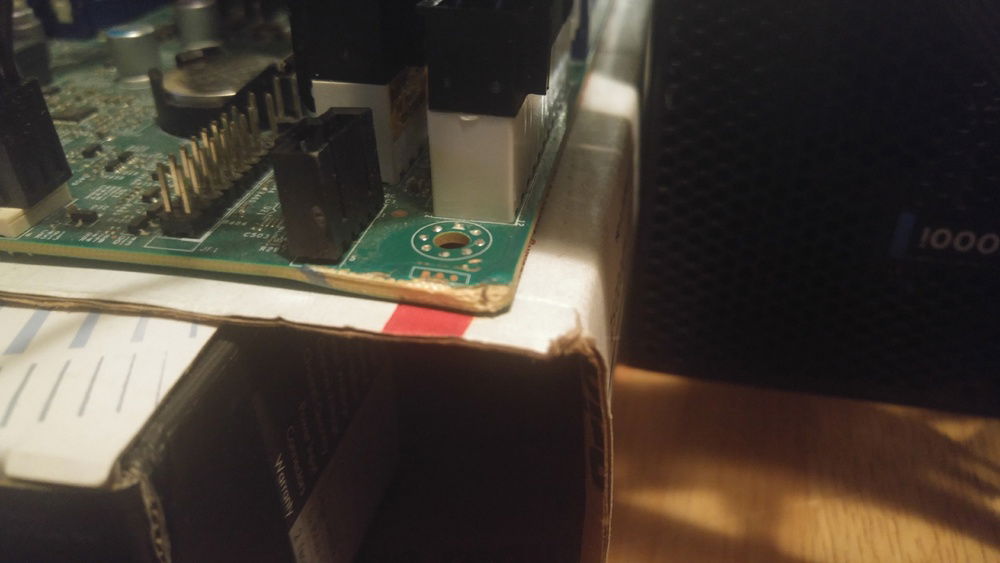

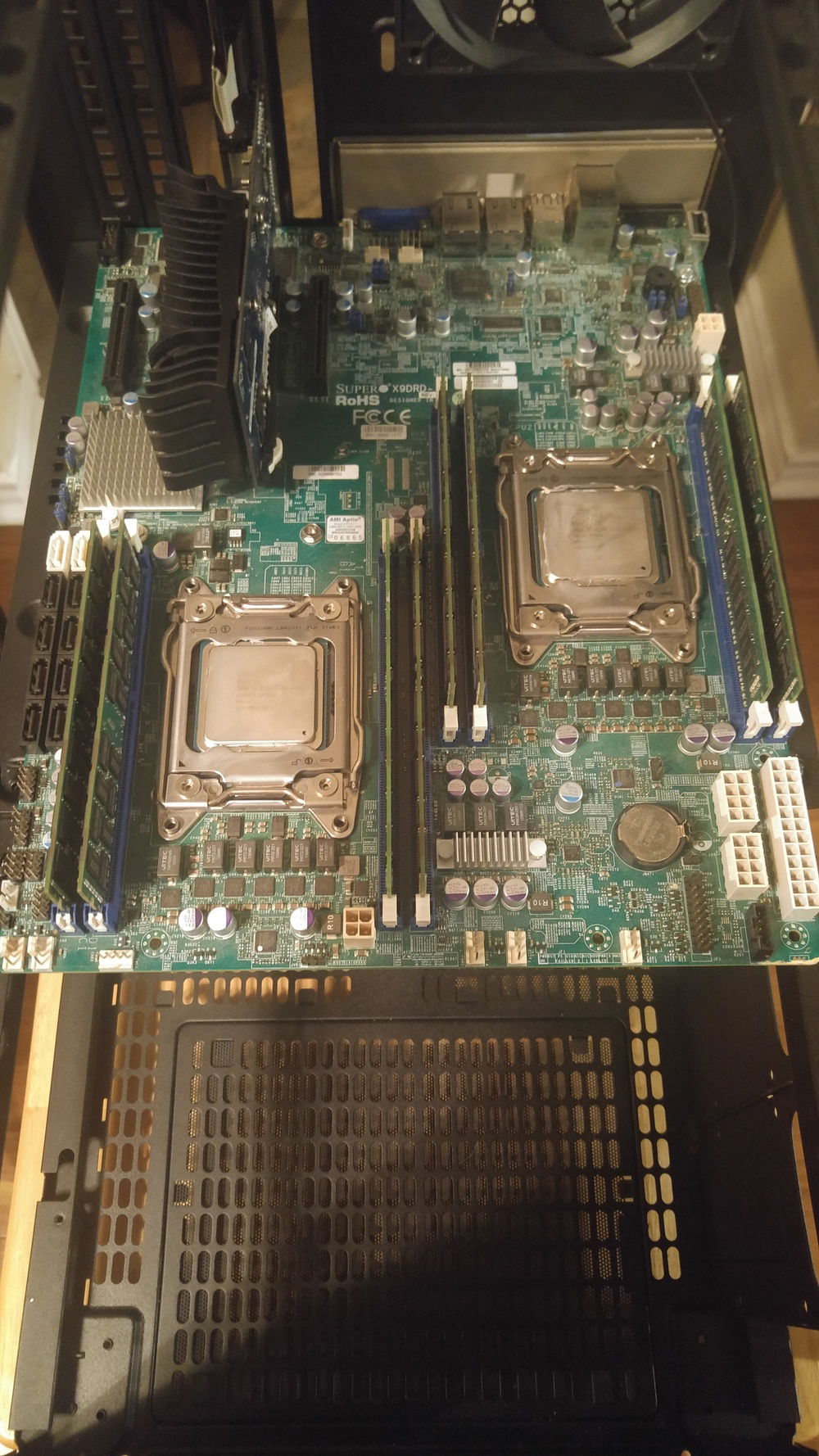

I did buy a "broken" board (see photos) the previous owner managed to brake 2 RAM latches, a fan header clip, and bent the corner of the board by the 24pin. The dude said it all works fine and so far thats what iv experienced.
Color(s): Black
RGB Lighting? No
Cooling: AIO Cooling
Theme: none
Size: XL-ATX
Type: General Build

Build Updates

Name and more photos

Old description

Hardware

CPU
$ 207.34
Intel - E5-2643 v2 (2x)
Cores: 6
Socket: LGA 2011
Motherboard
Supermicro - X9DRD-iF
Chipset: C602
Interfaces Available: M.2 (M), mSATA, PCIe x1, PCIe x4, PCIe x8
Memory Support: DDR3
Memory
ADATA - DDR3 1600 Unbuffered DIMM (8x)
Capacity: 8 GB
Type: DDR3
Graphics
ASUS - GeForce
Chip: GTX 210
Chip Manufacturer: NVIDIA
Storage
$ 24.99
Inland Professional - SSD
Capacity: 120 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 9.31
Western Digital - WD800JD75MSA3
Capacity: 80 GB
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
PSU
$ 284.13
Corsair - HX1000i
Efficiency: 80+ Platinum
Form Factor: ATX
Modularity: Fully-Modular
Case
$ 129.99

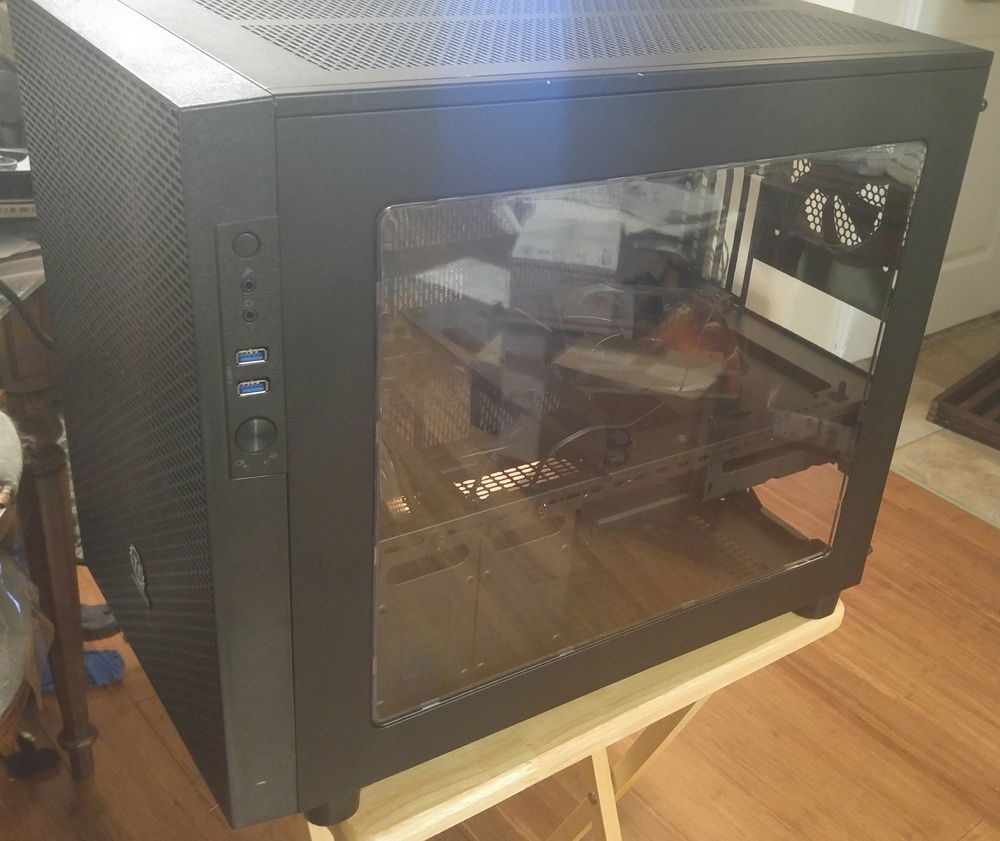

Thermaltake - Core X2
Maximum Cooler Height in mm: 230
Maximum Length for Graphics Card in mm: 330
Motherboard Support: Micro-ATX, Mini-ITX
Case Fans
$ 34.99
Corsair - ML120 Premium 2-pack
Size: 120 mm
Cooling
$ 115.90
Asetek - 550LC (2x)
Compatibilty: LGA 1155
Type: AIO
Unable to dertermine total build value (missing part value)
