The way it is just now.
The way it is just now.
A while back before I redid the loop with an RMA replacement EK Monoblock. It had broken LEDs.
A while back before I redid the loop with an RMA replacement EK Monoblock. It had broken LEDs.

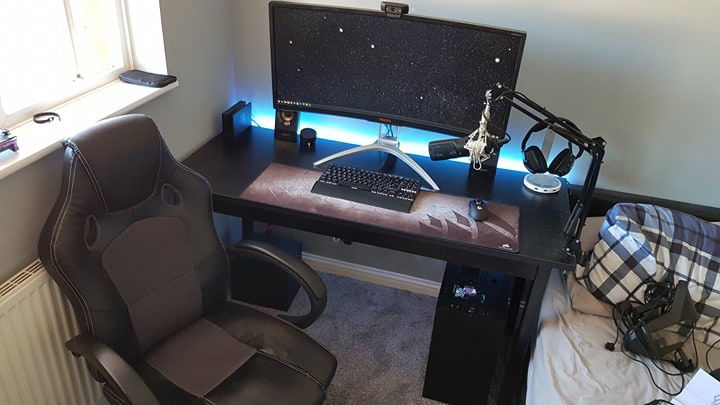

The Whole setup.
The Whole setup.

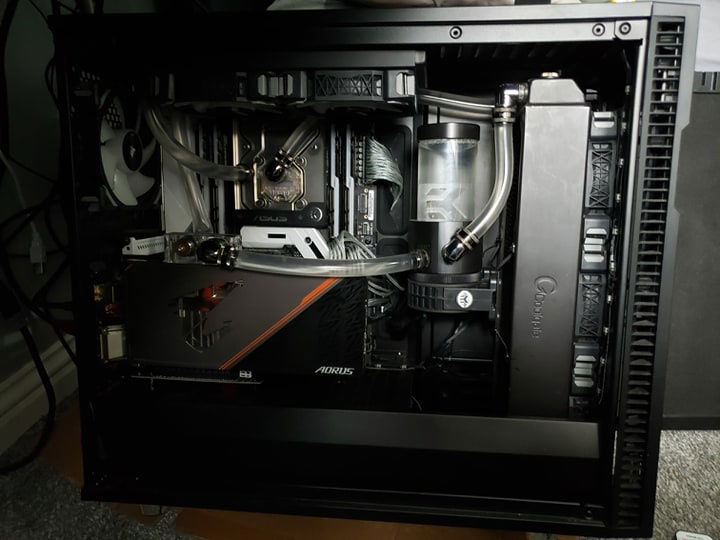

PC While it's off.
PC While it's off.
The day I first built it.
The day I first built it.
A nice subtle warm LED effect I like using.
A nice subtle warm LED effect I like using.
The first picture taken right after it's first leak test.
The first picture taken right after it's first leak test.
A nice deep blue, before I vertically mounted the GPU.
A nice deep blue, before I vertically mounted the GPU.
A picture of the PC, the day I first did the loop, it;s just getting ready to be plugged in for the first time in the setup.
A picture of the PC, the day I first did the loop, it;s just getting ready to be plugged in for the first time in the setup.

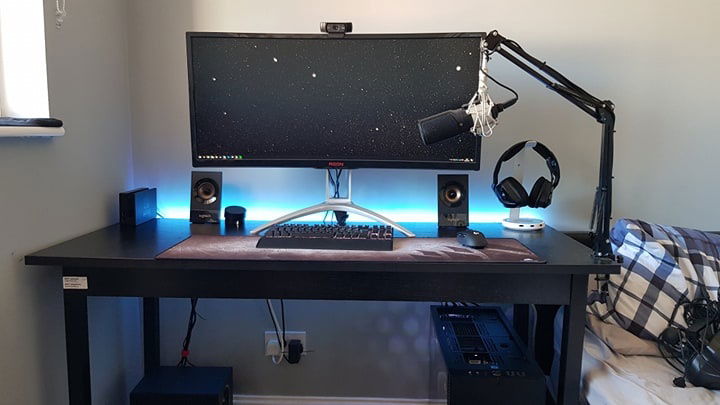

My view.
My view.
With the front panel open, showing the 3 front fans too.
With the front panel open, showing the 3 front fans too.

Define R6 Custom Watercooled Build

My first ever custom loop.
Intel Core i9 7900X 10-Core @ 4.8ghz
Aorus Extreme Waterforce GTX 1080ti
Asus X299 Deluxe Extreme Motherboard
32gb 4x8gb G.Skill Trident RGB 3600mhz
Corsair HX1200 80+ Platinum Modular PSU
EK X299 Deluxe RGB Monoblock
Fractal Design Define R6 TG Edition
Fractal Design PCI-E Vertical Mount
1TB Crucial P1 NVME SSD
2x Samung 850 EVO 500GB SSDs
WD Green 2TB HDD
WD Black 4TB HDD
EK X-RES D5 RGB Pump/Reservoir
Monster 360x60mm Radiator
EK Slim 240mm Radiator
6x Corsair ML120 Pro RGB Fans
Corsair Lighting Node Pro RGB Kit
Color(s): White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 325.00
Intel - Core i9 7900X
Socket: LGA 2066
Cores: 10
Motherboard
$ 2,718.58
ASUS - Prime (X299-Deluxe)
Chipset: X299
CPU Socket: LGA 2066
Size: ATX
Memory
$ 498.00
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 615.00
Gigabyte - AORUS Waterforce Xtreme
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 115.97
Crucial - P1
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 109.00
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 109.00
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
Western Digital - WD Green Desktop
Form Factor: 3.5 Inch
Capacity: 2 TB
PSU
$ 415.00
Corsair - HX1200 Platinum
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 225.20
Fractal Design - Define R6, Black TG
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 46.78
Corsair - ML120 PRO RGB LED 120MM PWM Premium Magnetic Levitation
Size: 120 mm
Cooling
EKWB - EK-FB Asus Prime X299 (RGB)
Type: Monoblock
Cooling
$ 124.99
EKWB - EK-XTOP Revo D5 RGB PWM Acetal
Type: Custom Loop
Accessories
$ 92.18
Corsair - RGB LED Lighting PRO Expansion Kit
Monitor
$ 1,488.88
AOC - Agon (AG352UCG)
Size: 35 Inch
Panel: VA
Refresh Rate: 100 Hz
Keyboard
$ 144.58
Corsair - K65 LUX RGB
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Tenkeyless
Mouse
$ 78.00
Logitech - G900
Interface: Wired/Wireless
