Data Mining AI/ML rig

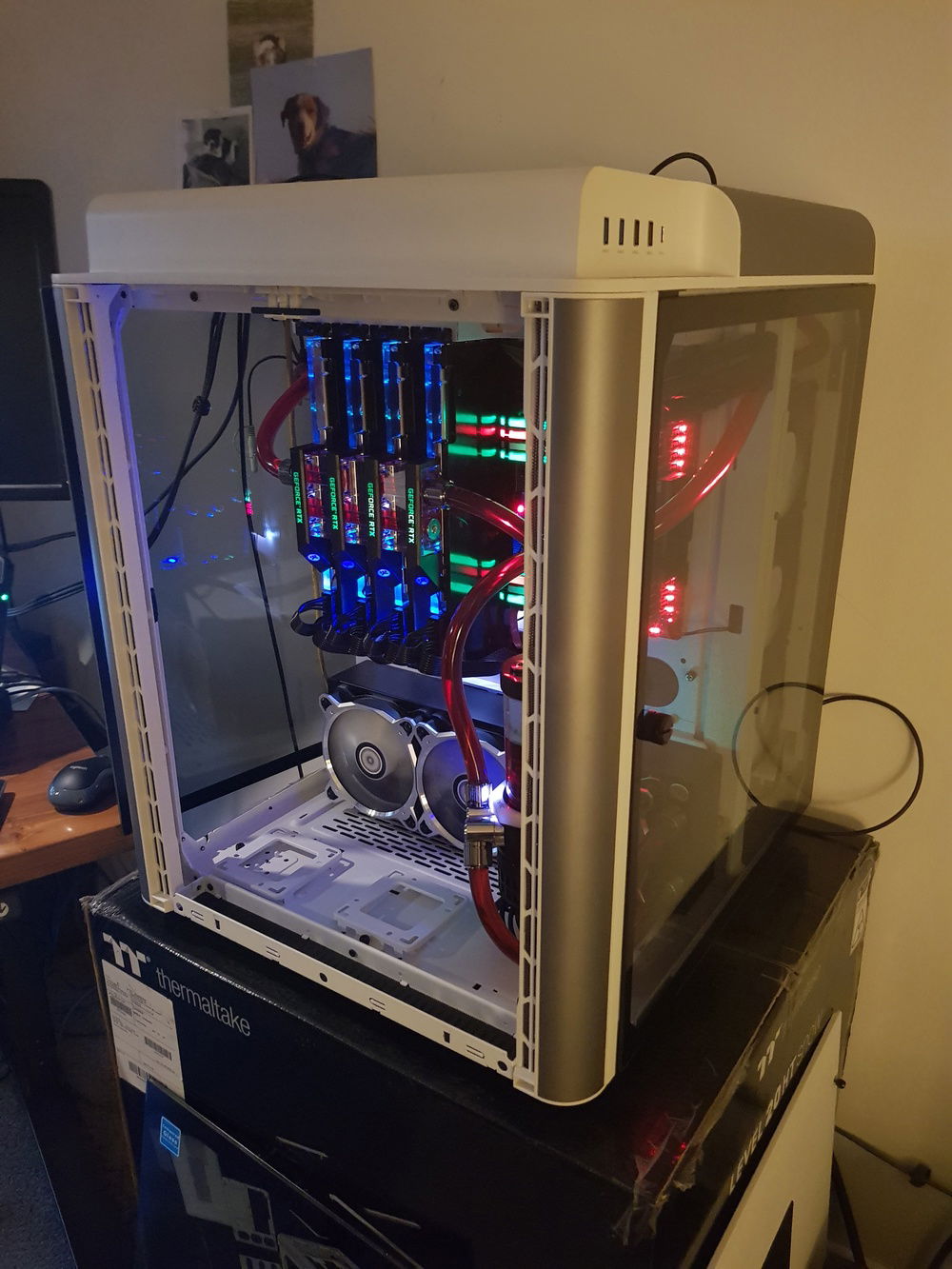

AMD Treadripper 1920X 3.5 GHz 12-core in an MSI X399 Gaming Pro ATX motherboard with 128 Gb Corsair Vengeance RGB, couple of TB SSD recently upgraded to 4 ASUS RTX 2080 TI GPUs all water-cooled in a single loop with a slim 360 rad and a XE 360 rad, all EK gear, housed in a Thermaltake Level 20 HT snow housing.

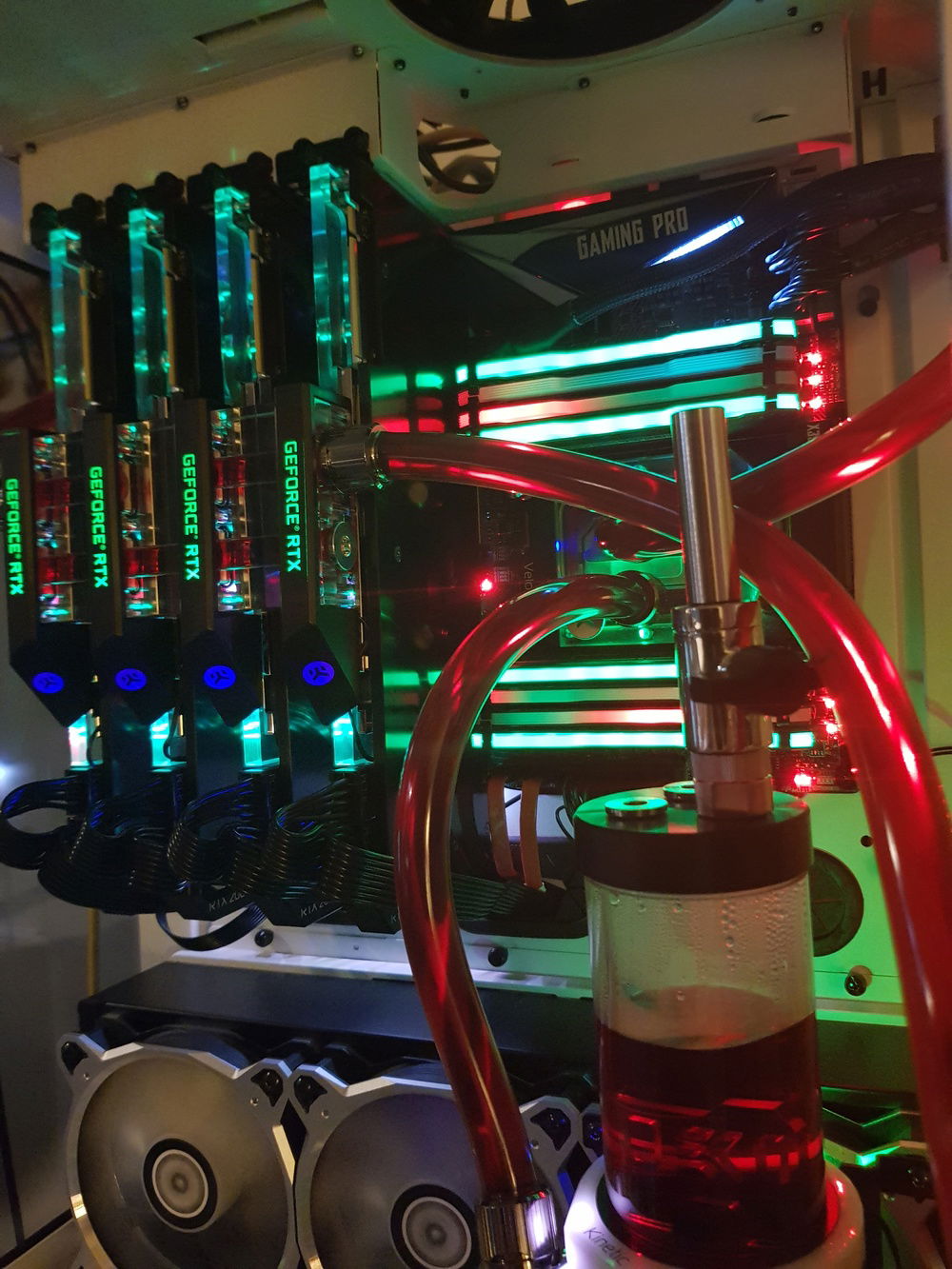

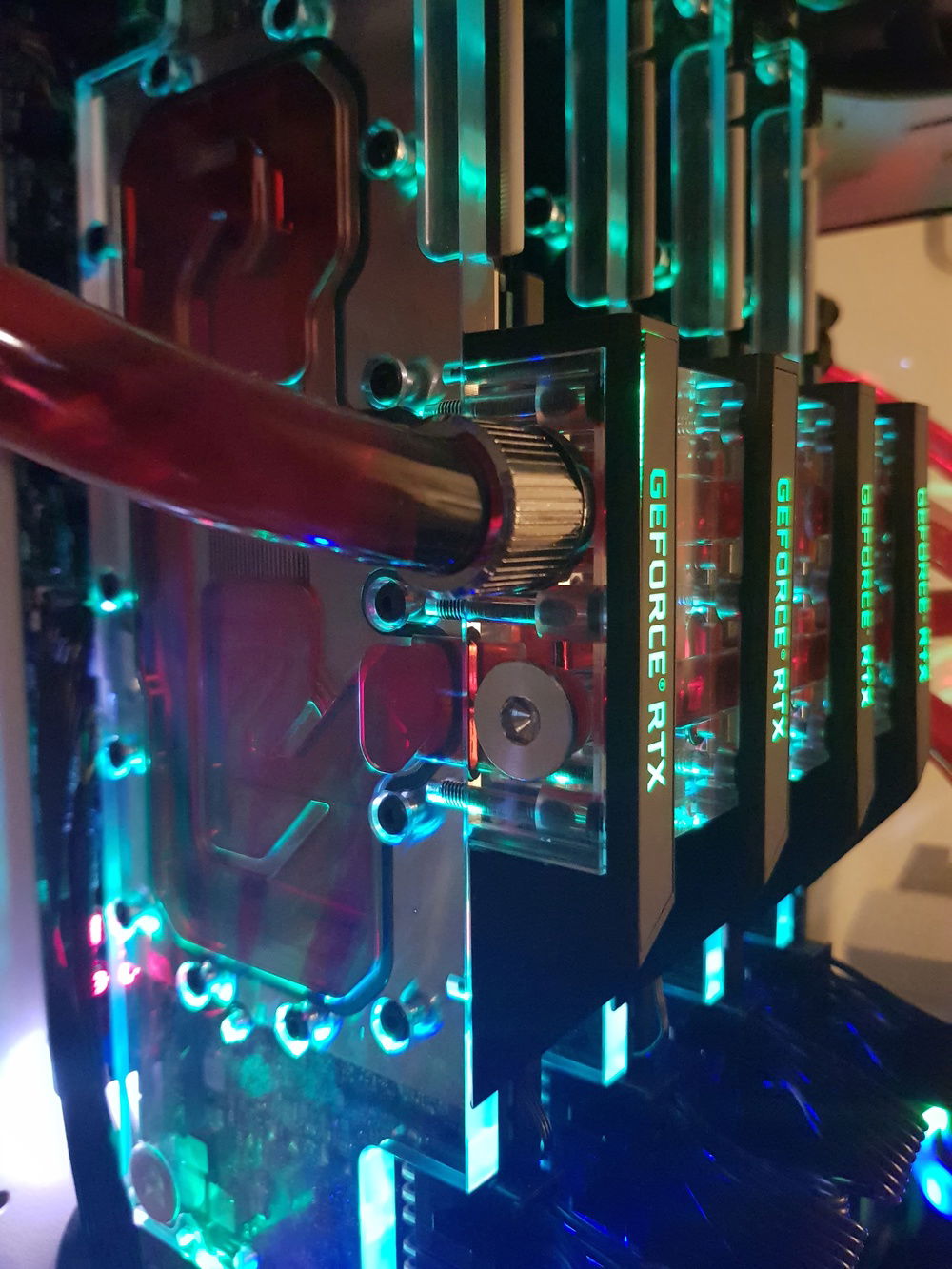

While you could game on this, this is data mining for data processing and machine learning applications, e.g. running inference of up to 4 different neural networks at the same time, training larger neural networks on multiple GPUs. The system runs on the latest Ubuntu with Cuda 11 and happily sucks 11 A out of the power grid when fully loaded. The cooling loop keeps the GPUs and CPU at 60C under full load. Installation and bleeding of the 4 GPUs connected with the EK-Scalar Quad in the vertical configuration was a bit of a challenge, as well as the installation of a 1600W power supply. But that is a Thermaltake HT issue. The system is running well.
Color(s): Green Light Blue Red
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Video

Hardware

CPU
$ 260.00
AMD - Threadripper 1920X
Socket: TR4
Cores: 12
Motherboard
$ 335.15
MSI - Gaming Pro Carbon AC
Chipset: X399
CPU Socket: TR4
Size: ATX
Memory
$ 799.92
Corsair - Vengeance Pro (4000MHz) (Black/RGB) (8x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 9,956.00
ASUS - GeForce Turbo (4x)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Storage
$ 152.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 339.99
EVGA - SuperNOVA P2
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 304.84
Thermaltake - Level 20 HT (Snow)
Type: Full-Tower
Side Panel: Tempered Glass
Cooling
$ 50.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 118.95
EKWB - CoolStream XE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 229.58
Cooling
$ 639.96
Cooling
$ 59.99
Cooling
$ 159.96
EKWB - EK-Vector RTX Backplate (Black) (4x)
Type: Backplate
Estimated total value of this build:
$ 6,687.74
