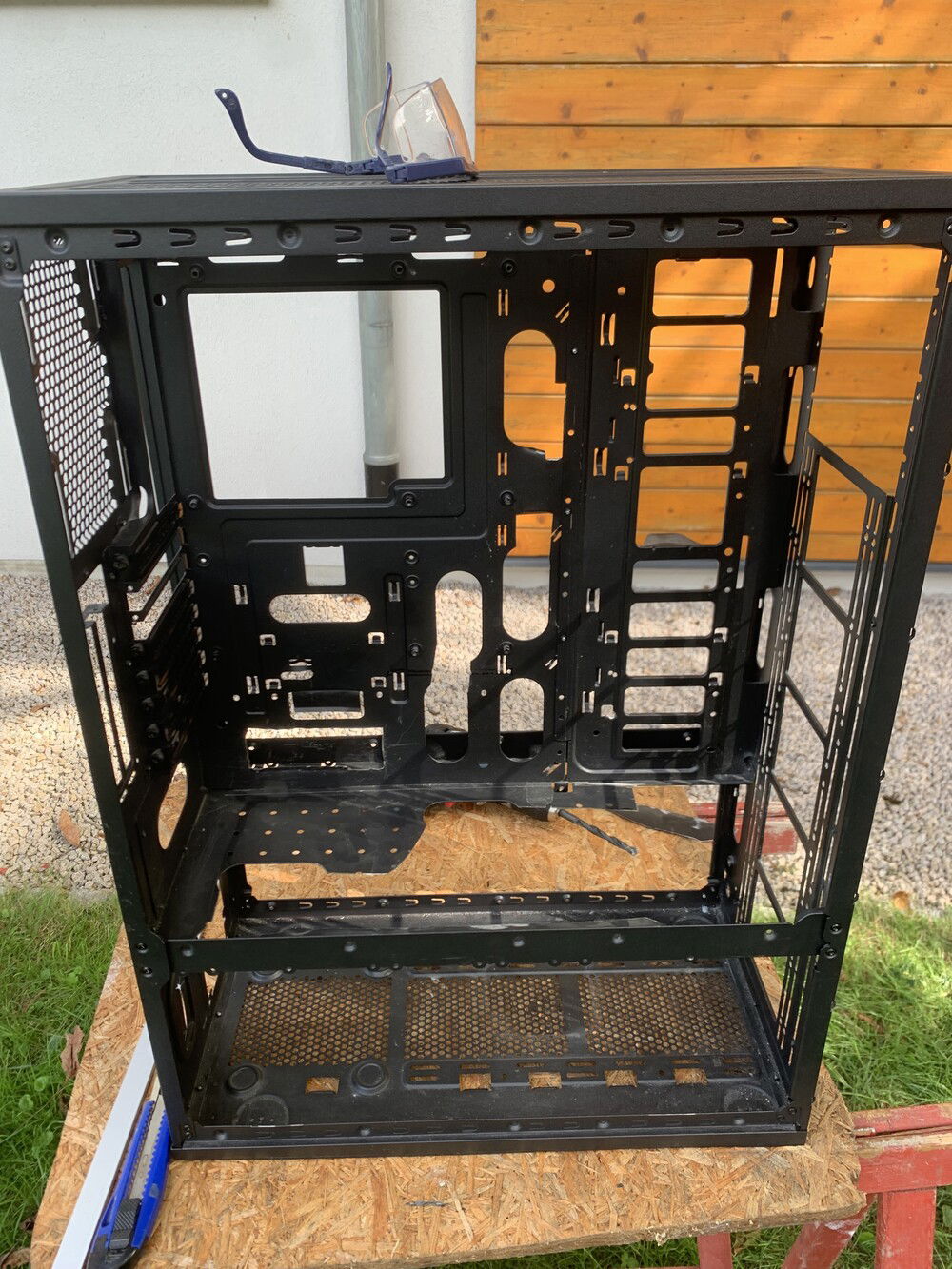

Now some pictures of the building process. At first, I cut out some parts of the case to make room.
Now some pictures of the building process. At first, I cut out some parts of the case to make room.

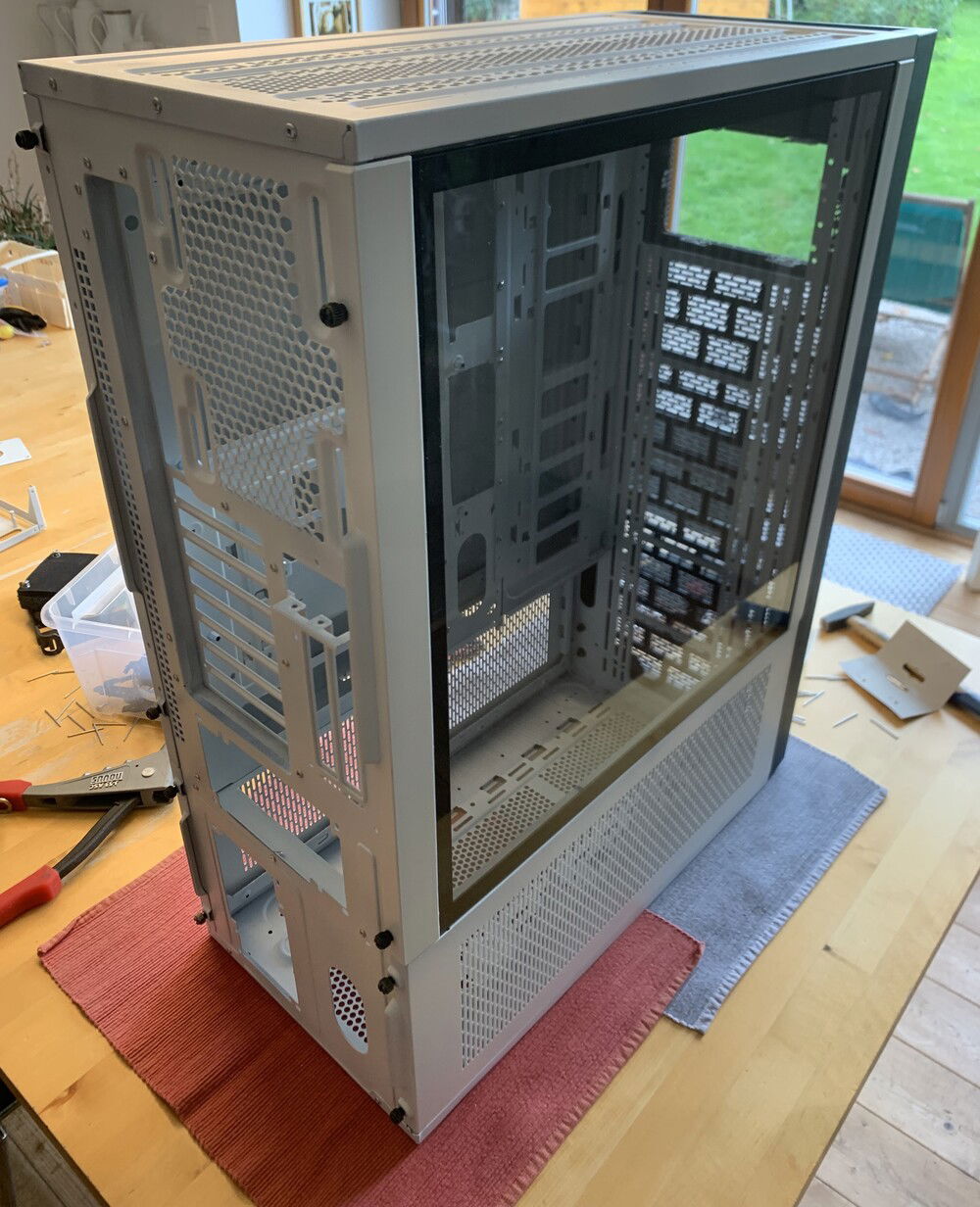

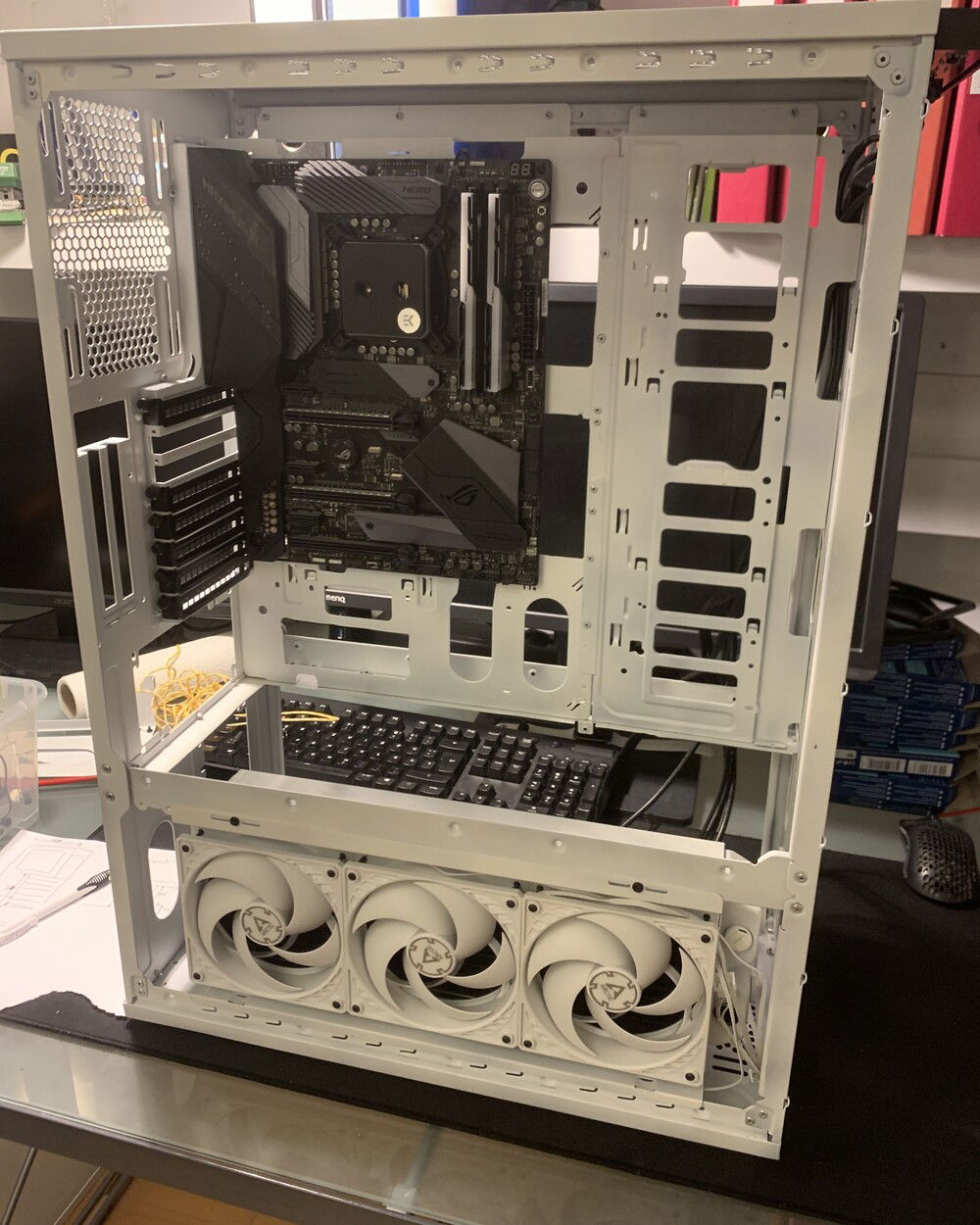

I used white spray paint, this was the final result.
I used white spray paint, this was the final result.

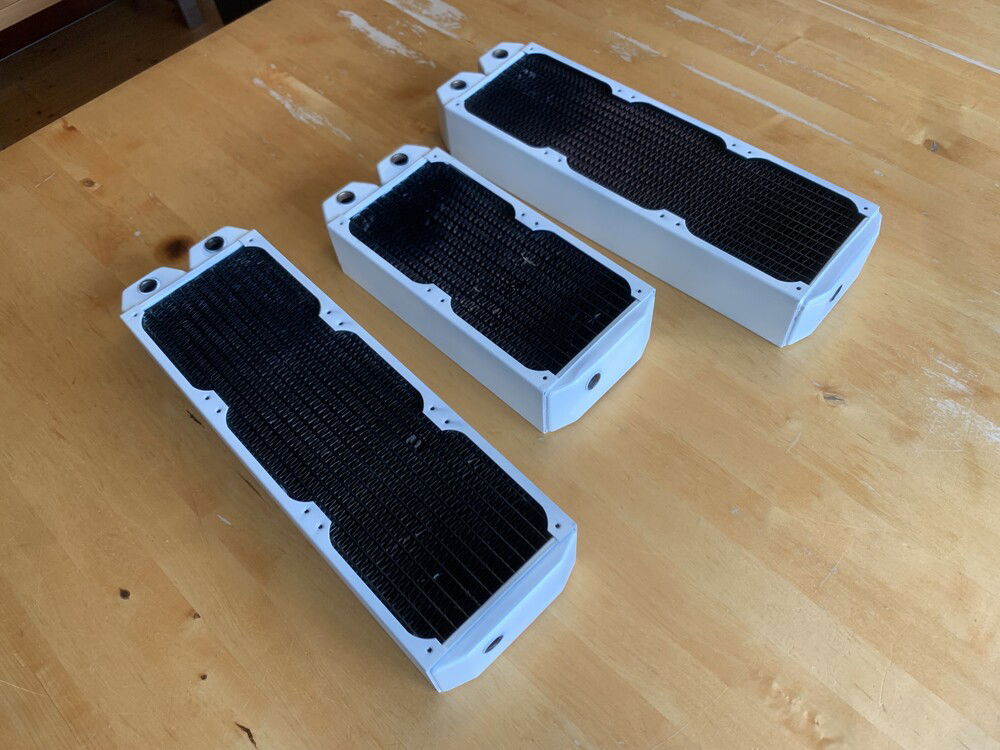

Same thing with the radiators.
Same thing with the radiators.

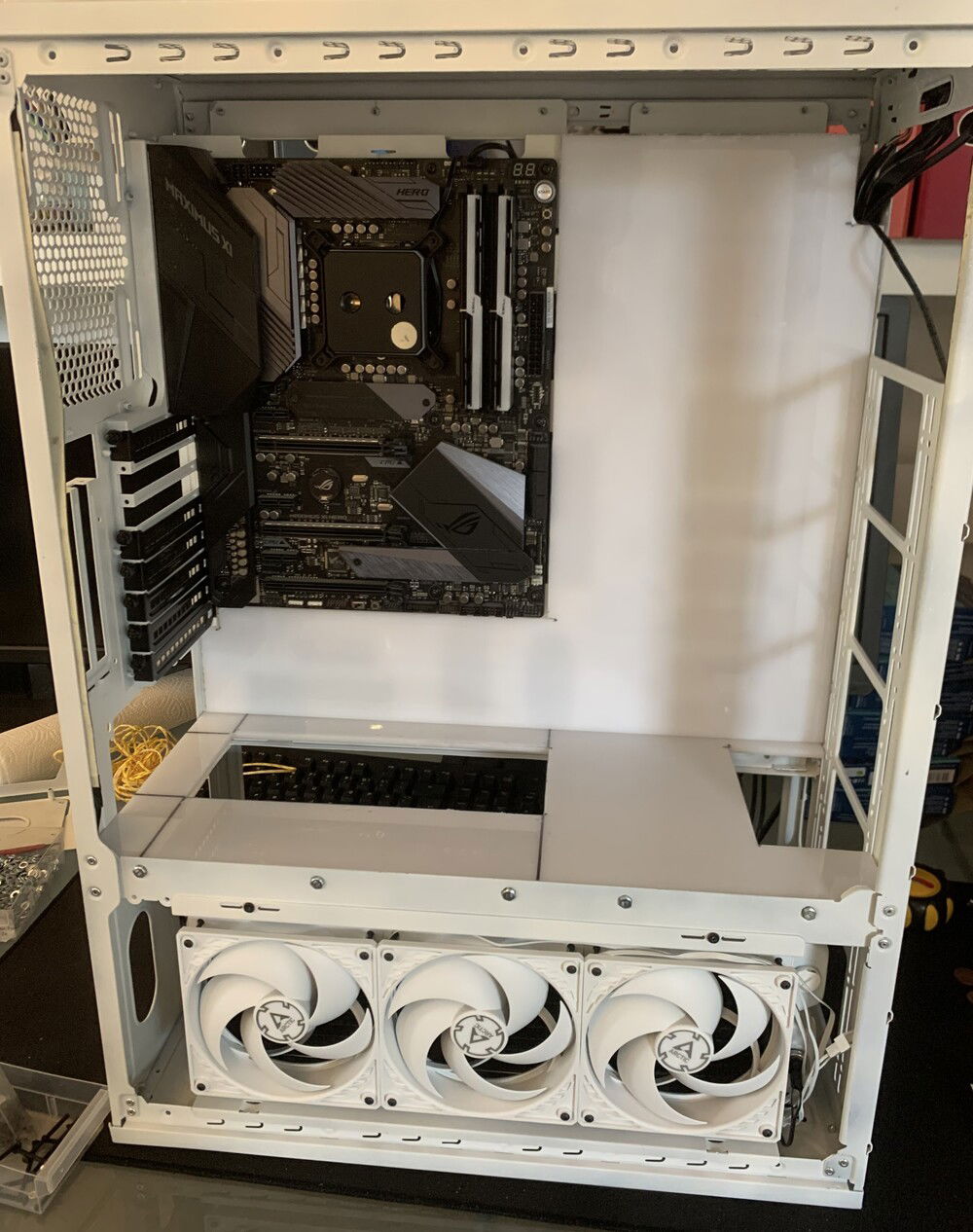

I took some measurements and created a bottom plate and a plate for the mainboard tray. The material is solid polystyrene which I cut with a fine jigsaw.
I took some measurements and created a bottom plate and a plate for the mainboard tray. The material is solid polystyrene which I cut with a fine jigsaw.

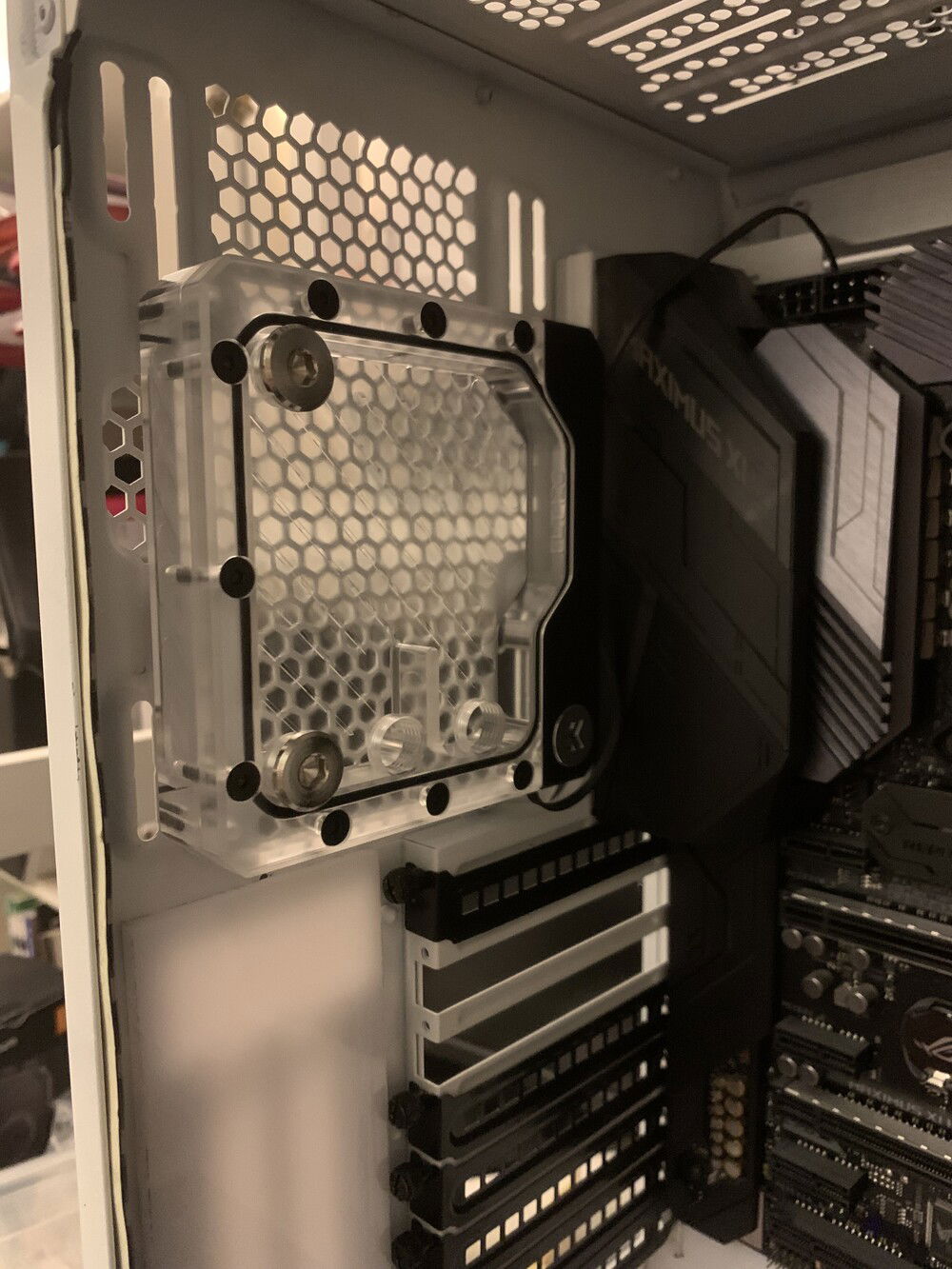

I wanted to a break from the usual 120mm rear fan, so I went with an EK FLT 120 reservoir, which is also proofed to be convenient for filling the system.
I wanted to a break from the usual 120mm rear fan, so I went with an EK FLT 120 reservoir, which is also proofed to be convenient for filling the system.

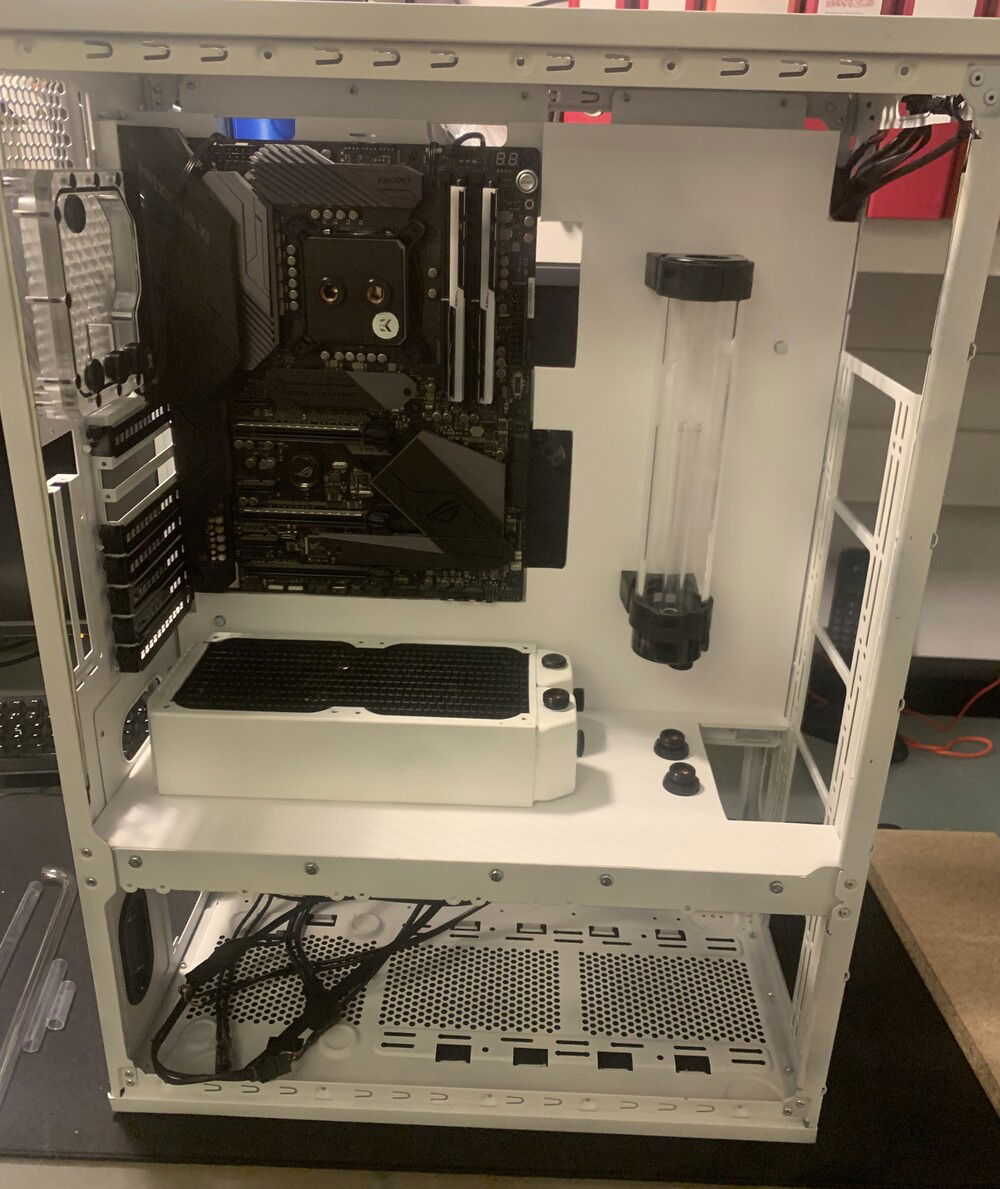

One 240mm radiator sits on the bottom plate, the reservoir is mounted on the wall with regular screws.
One 240mm radiator sits on the bottom plate, the reservoir is mounted on the wall with regular screws.

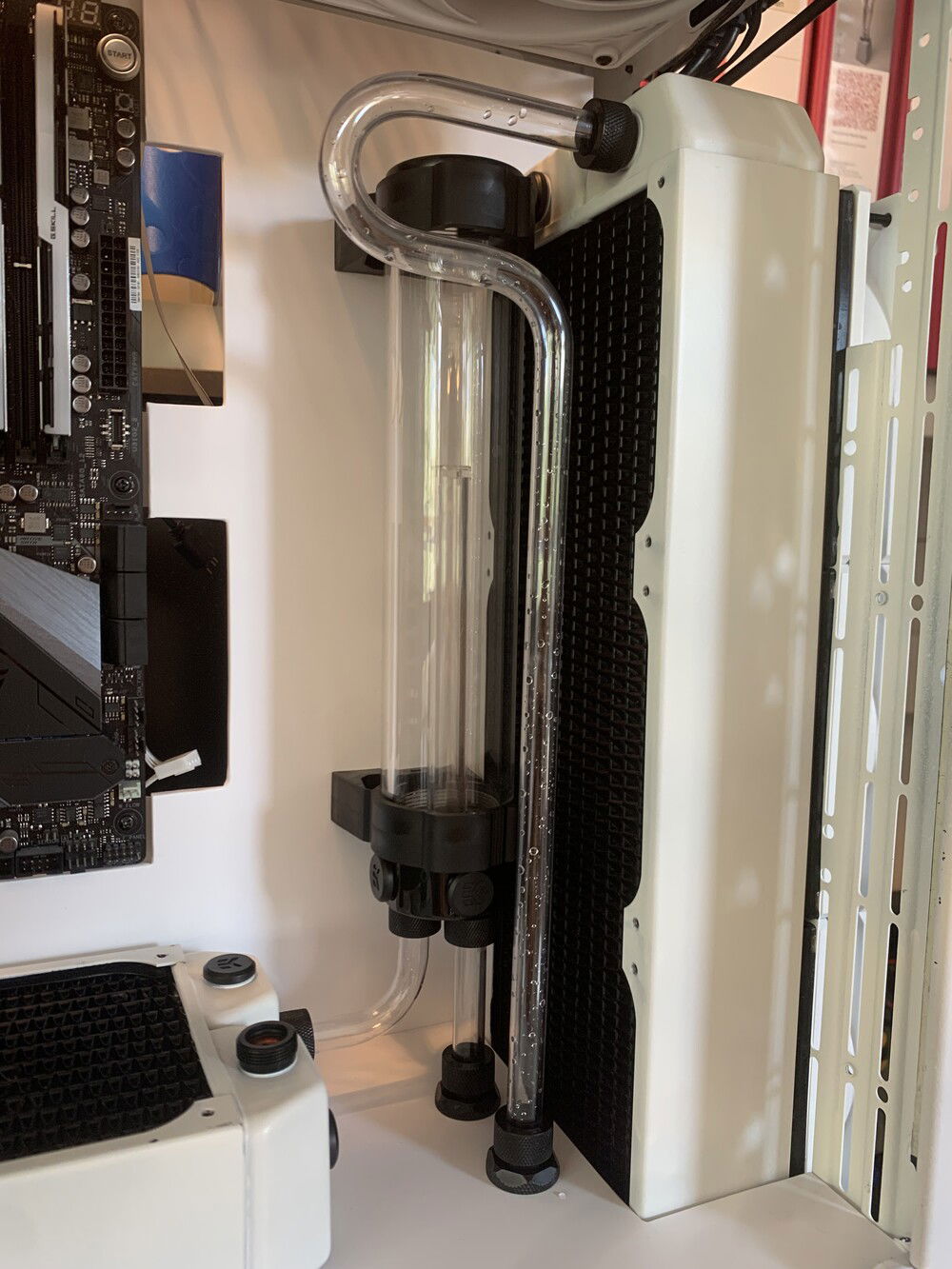

After having installed the front 360mm radiator, I realised that the holes on the bottom plate are to close to use a 90 degree fitting or bend, so I had to improvise a litte...
After having installed the front 360mm radiator, I realised that the holes on the bottom plate are to close to use a 90 degree fitting or bend, so I had to improvise a litte...

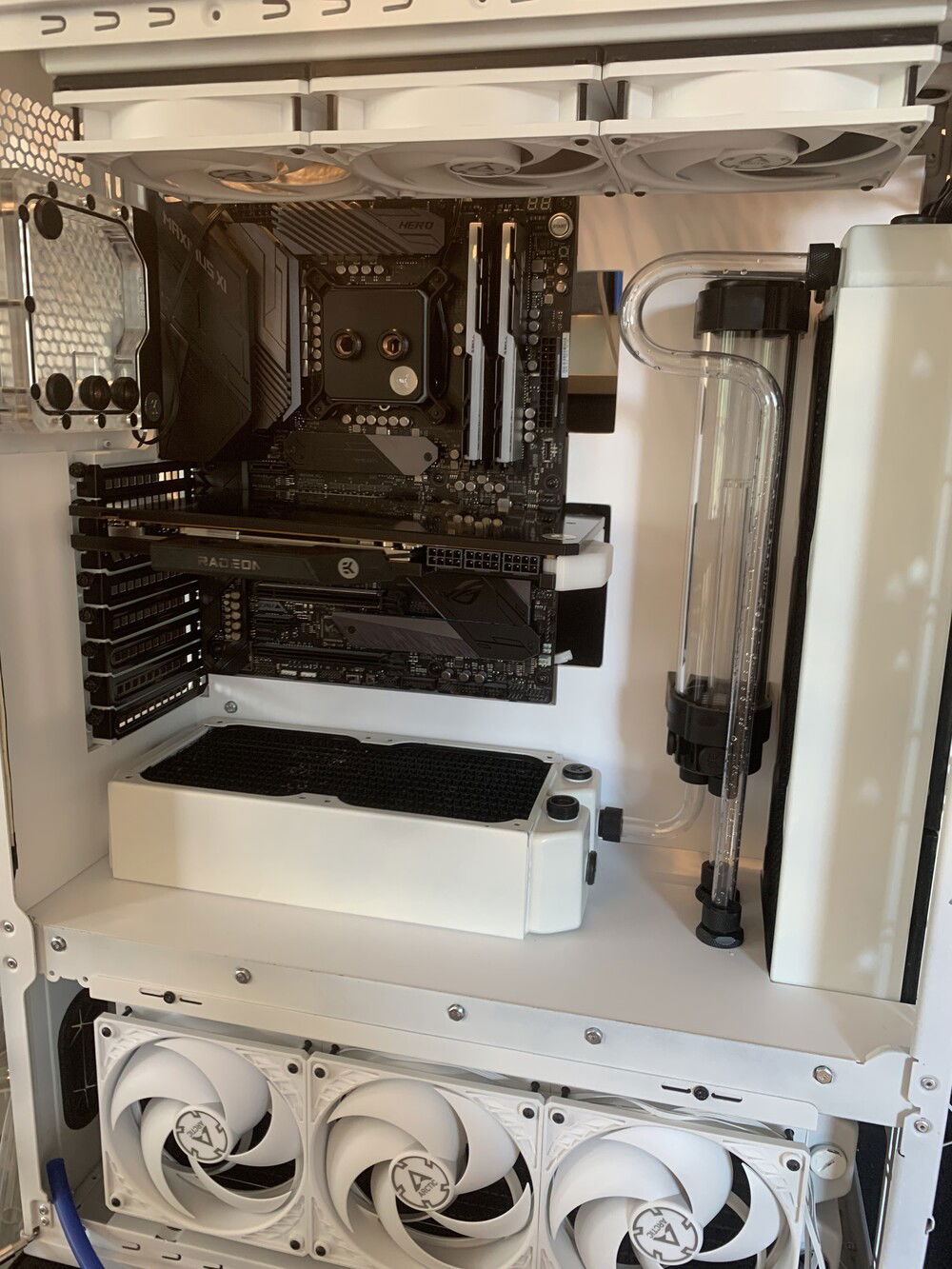

First look with all the radiators in place. The 6900XT is sagging a litte which is unfortunate.
First look with all the radiators in place. The 6900XT is sagging a litte which is unfortunate.

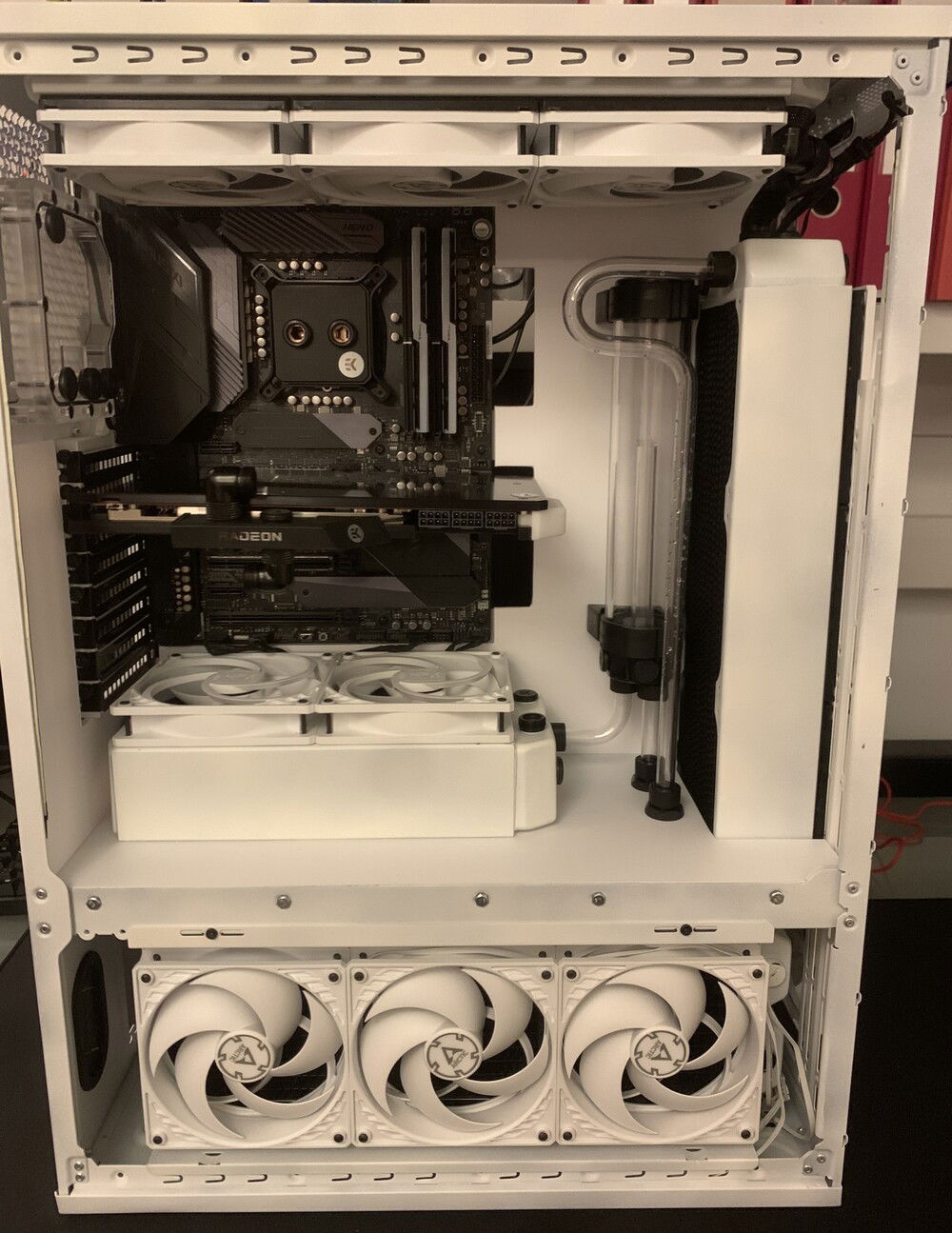

Plugging in the lower connectors on the motherboard wasn't easy with the fans installed on the radiator but it worked.
Plugging in the lower connectors on the motherboard wasn't easy with the fans installed on the radiator but it worked.

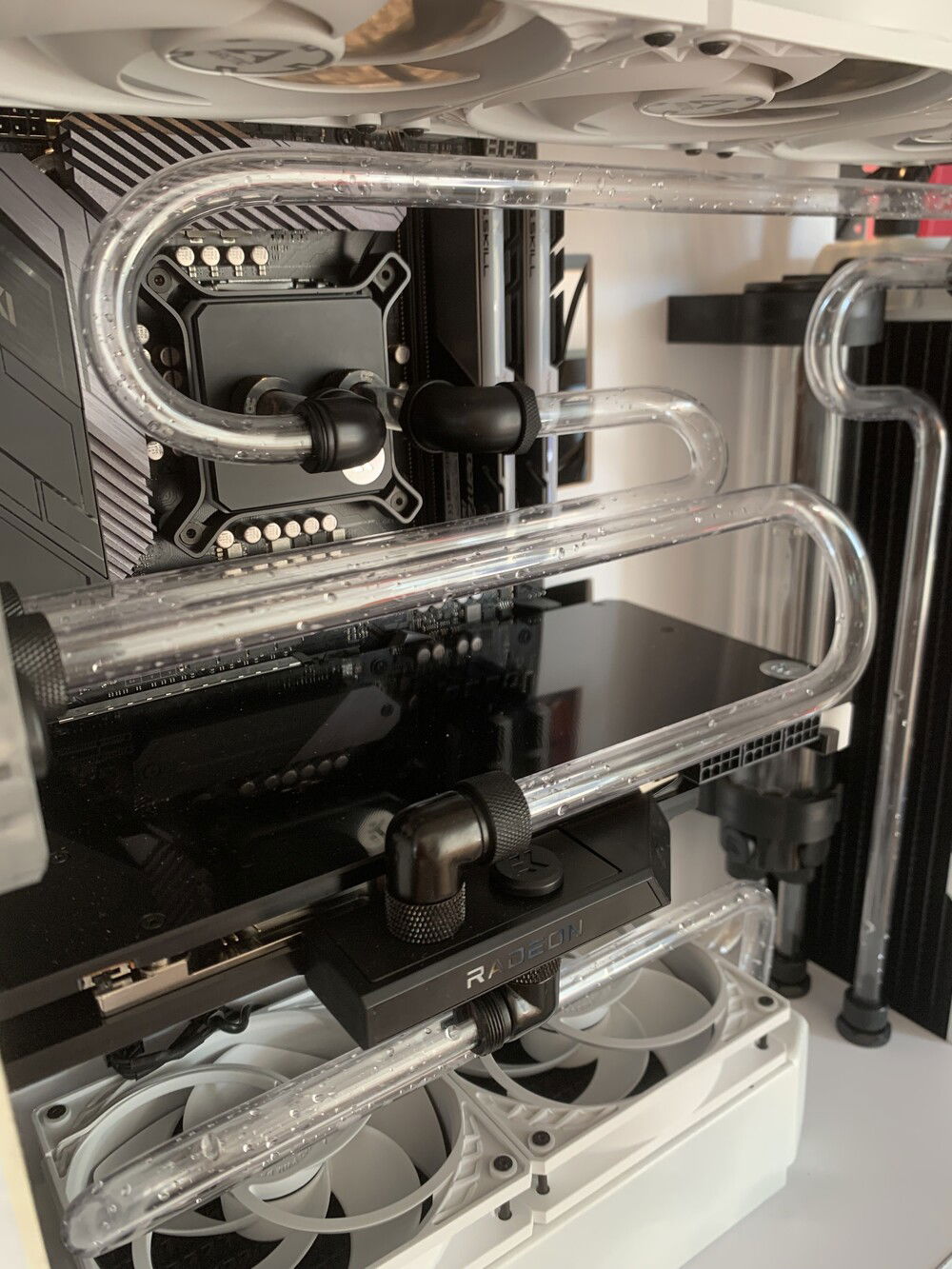

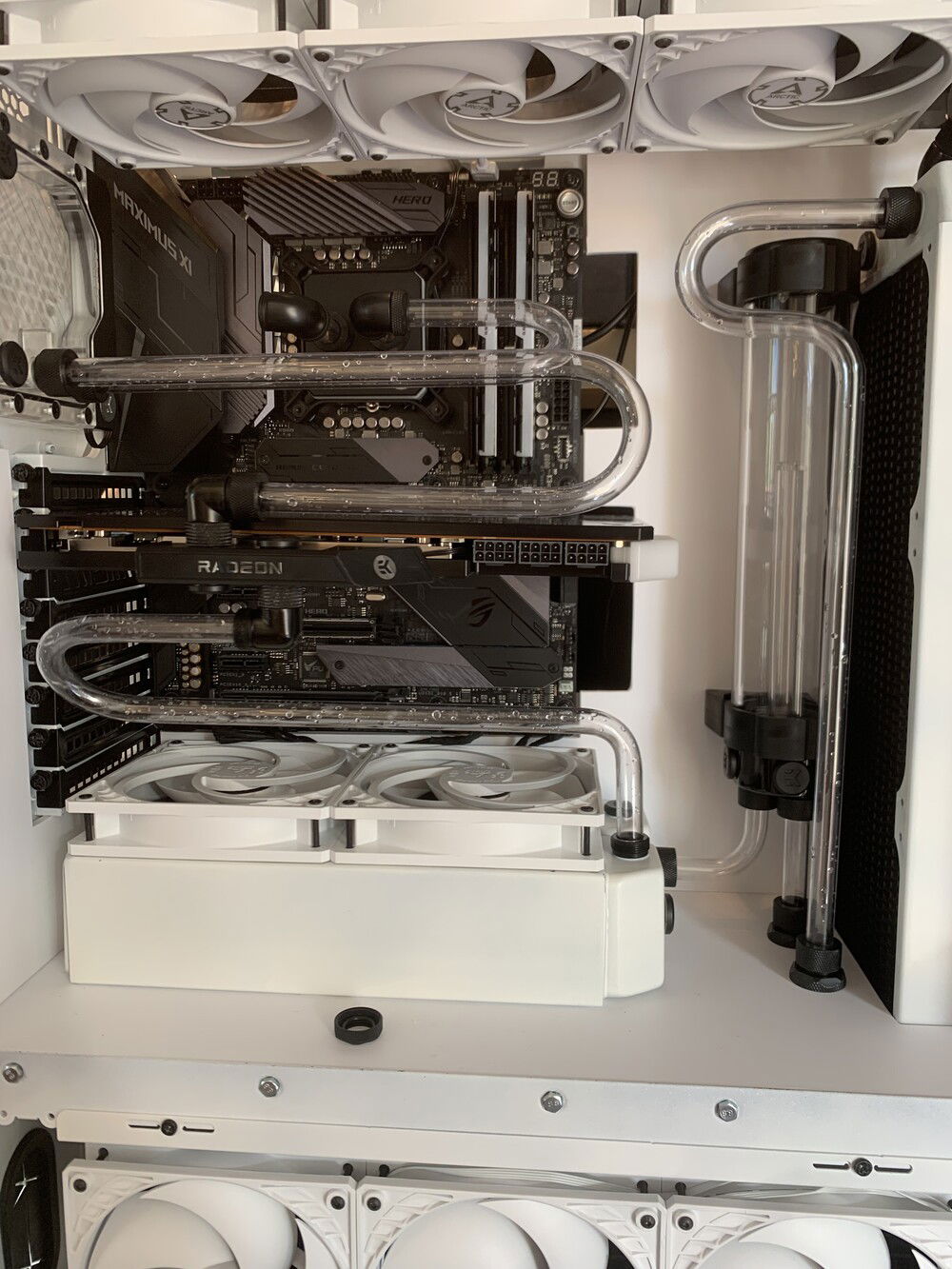

After having mostly straight, parallel tubes in my previous builds, I wanted to try out more complicated bends this time.
After having mostly straight, parallel tubes in my previous builds, I wanted to try out more complicated bends this time.

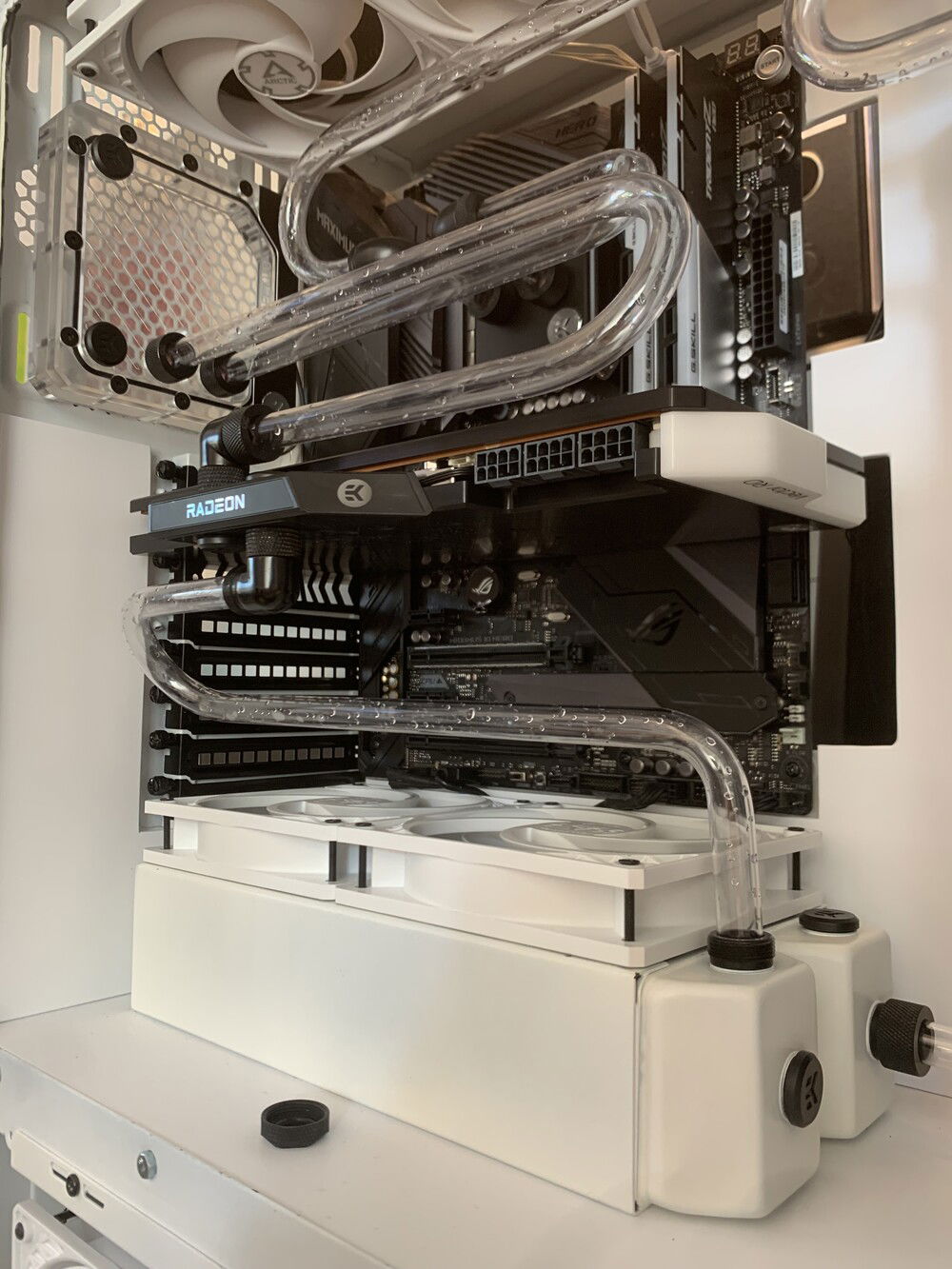

The final 180 degree bend also finished.
The final 180 degree bend also finished.

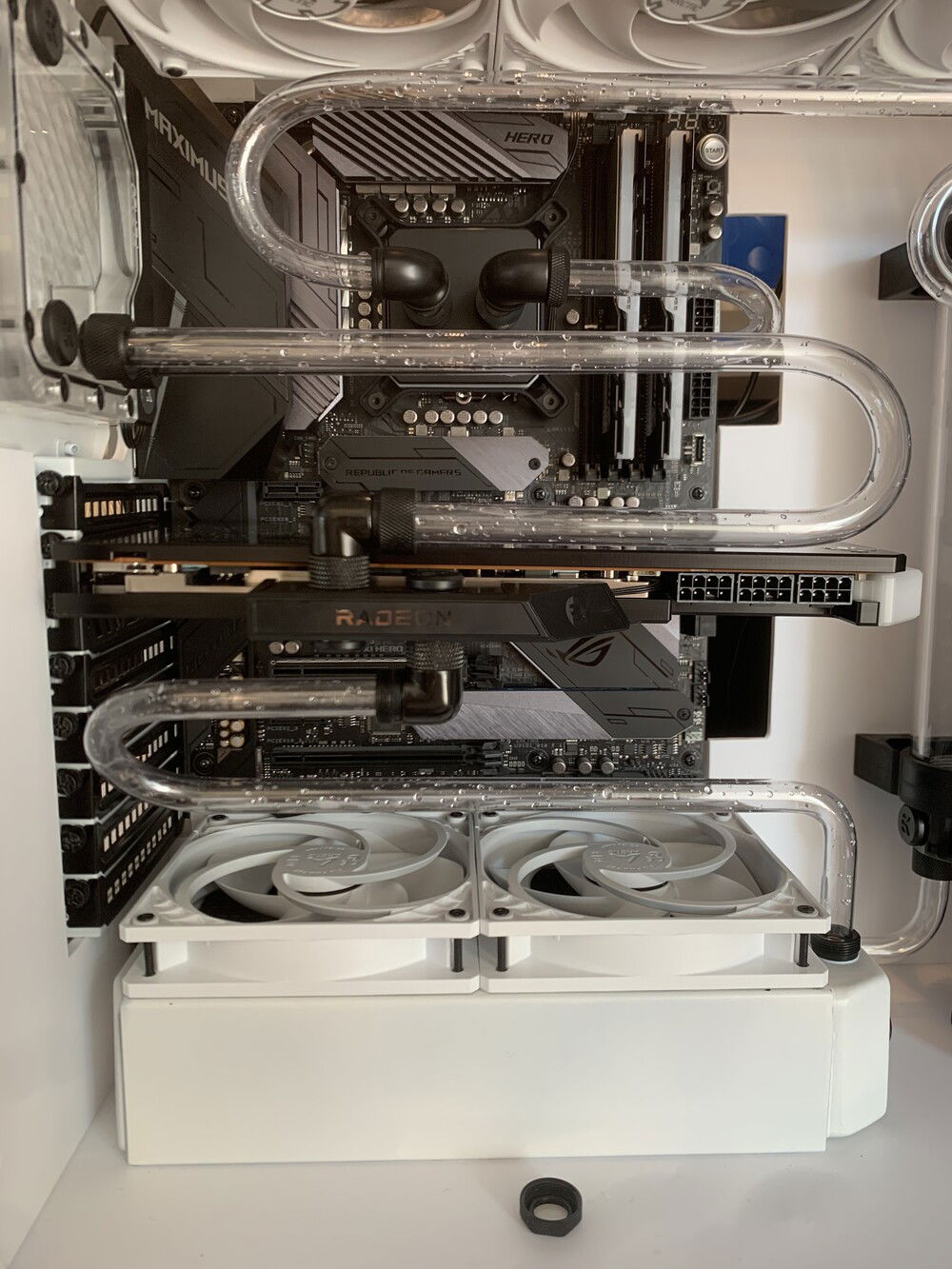

It was tricky to bend 180 degrees with the right radius so that the tubes run parallel, but I'm quite happy with the result.
It was tricky to bend 180 degrees with the right radius so that the tubes run parallel, but I'm quite happy with the result.

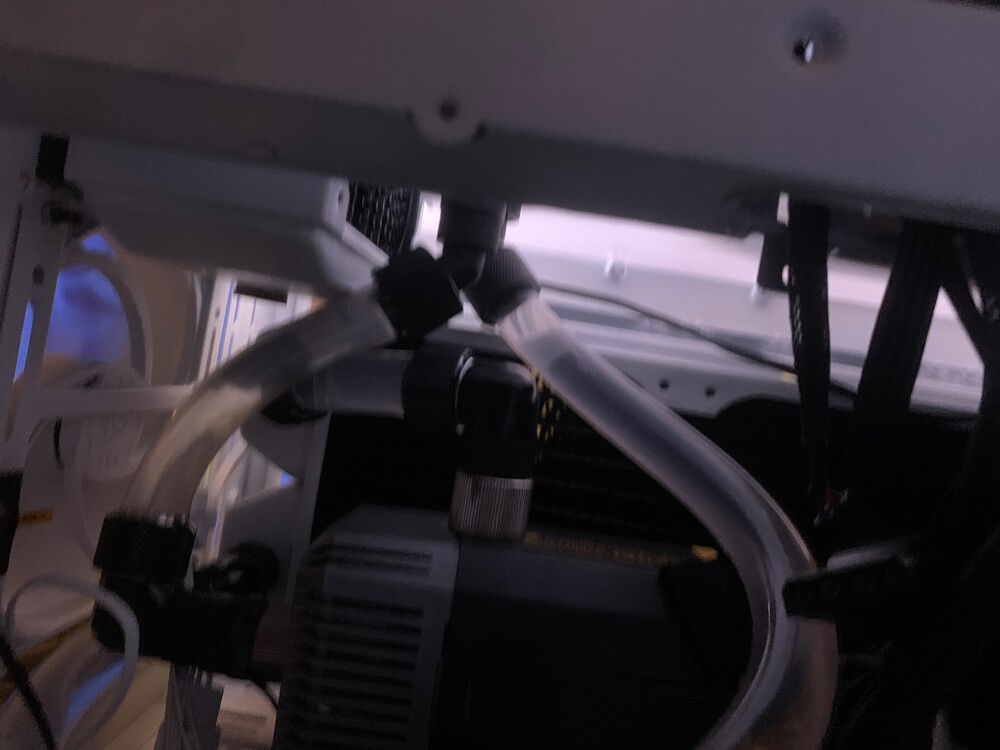

I used soft tubes in the chamber to connect the pump and radiators.
I used soft tubes in the chamber to connect the pump and radiators.

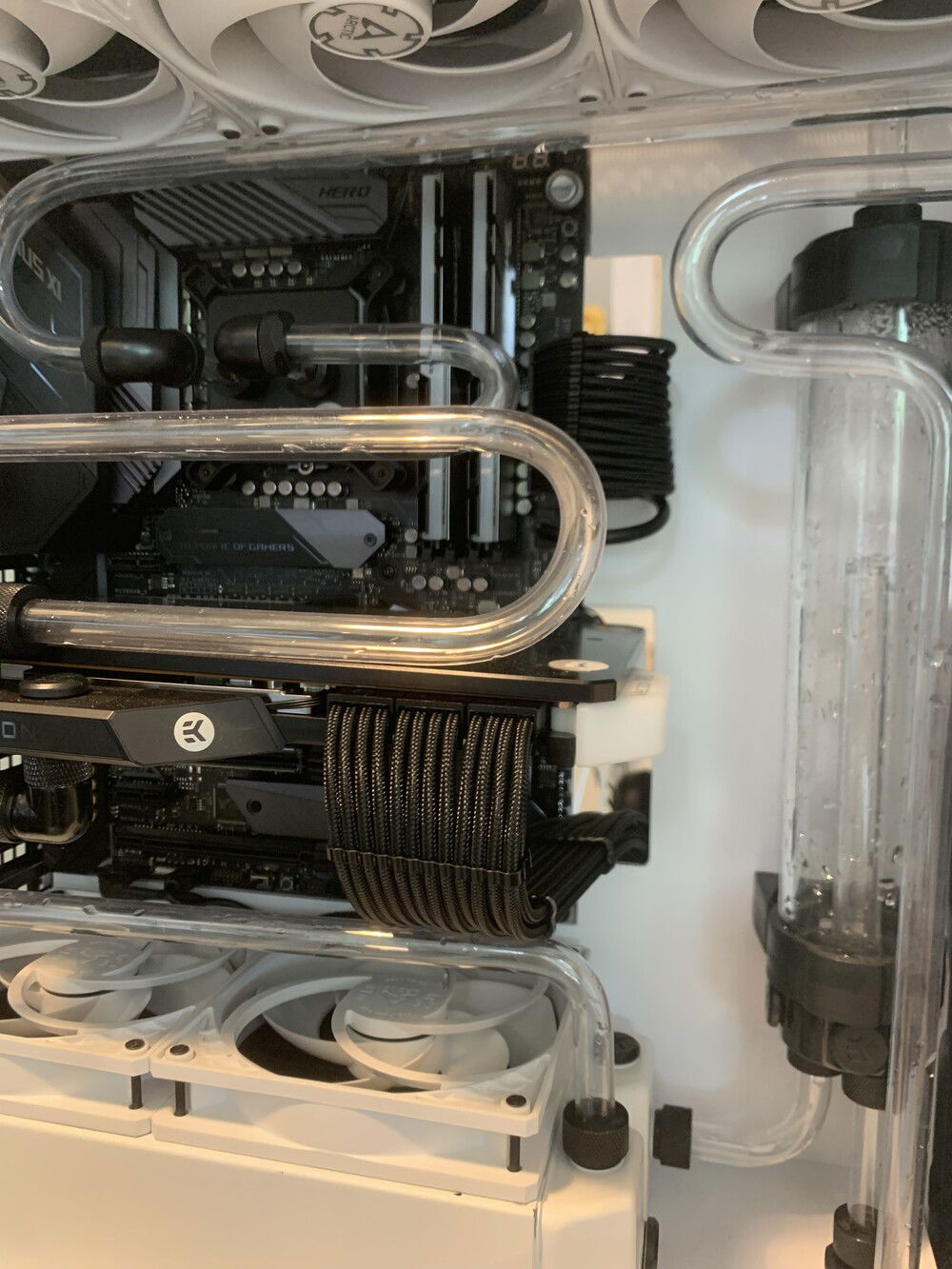

First look with the CableMod kit in place.
First look with the CableMod kit in place.

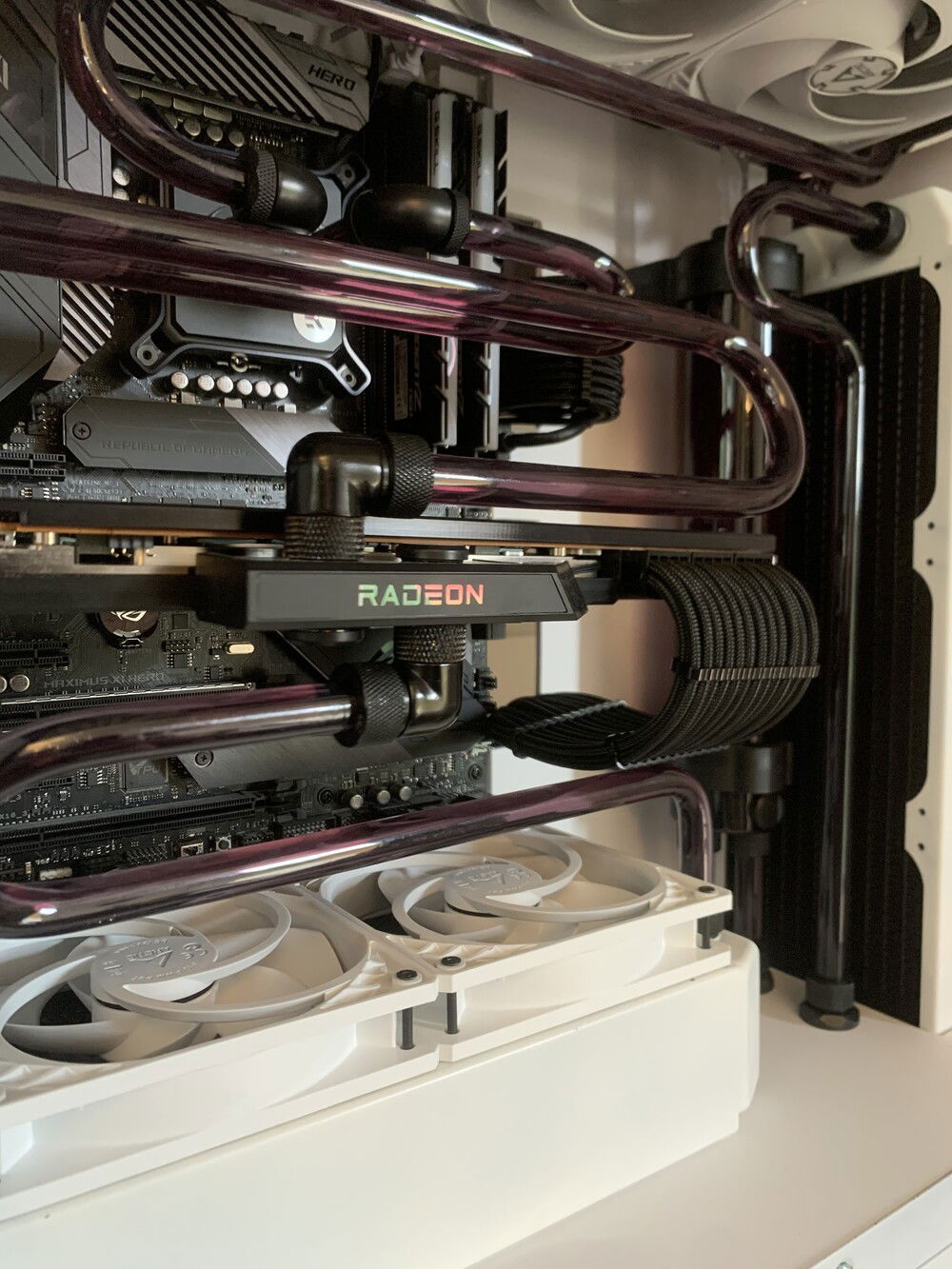

First bottle of Mayhems Pastel X1 UV Black concentrate. I immediately ordered another one because I wasn't happy with the Coke / red wine look of the coolant. The loop simply contains too much water for only one 250ml bottle of concentrate to make it look opaque.
First bottle of Mayhems Pastel X1 UV Black concentrate. I immediately ordered another one because I wasn't happy with the Coke / red wine look of the coolant. The loop simply contains too much water for only one 250ml bottle of concentrate to make it look opaque.

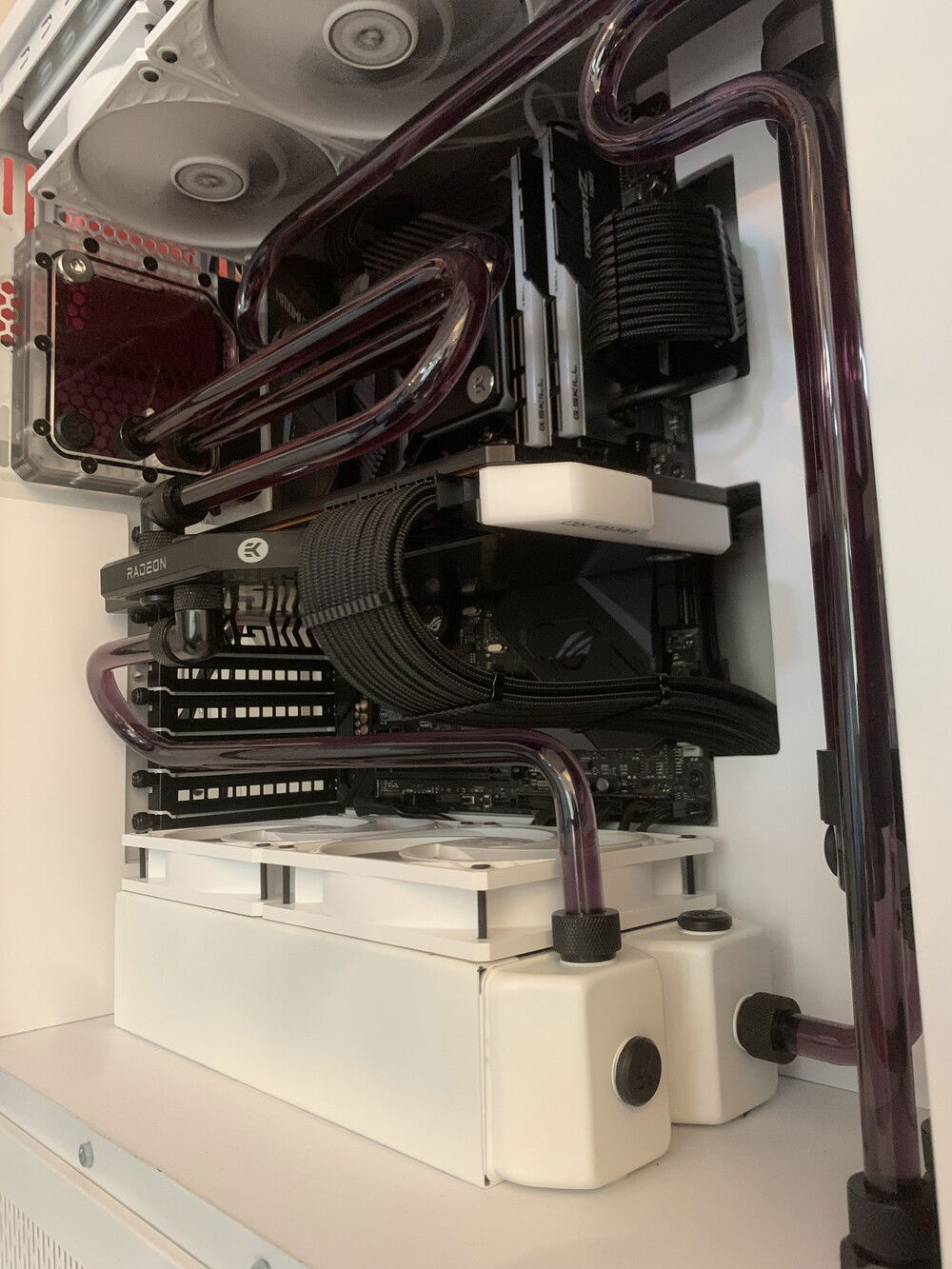

Apart from that though, I looks really good.
Apart from that though, I looks really good.

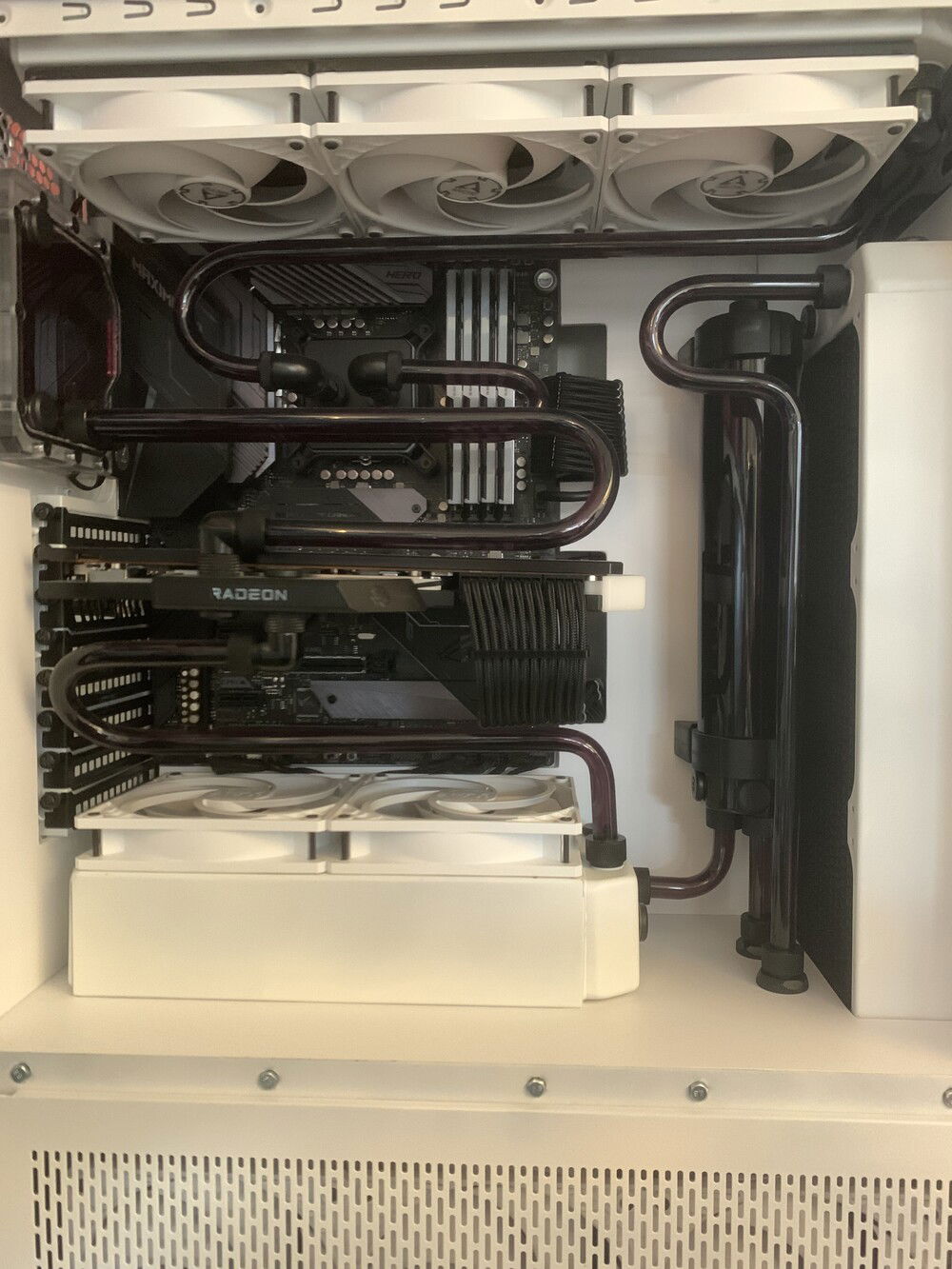

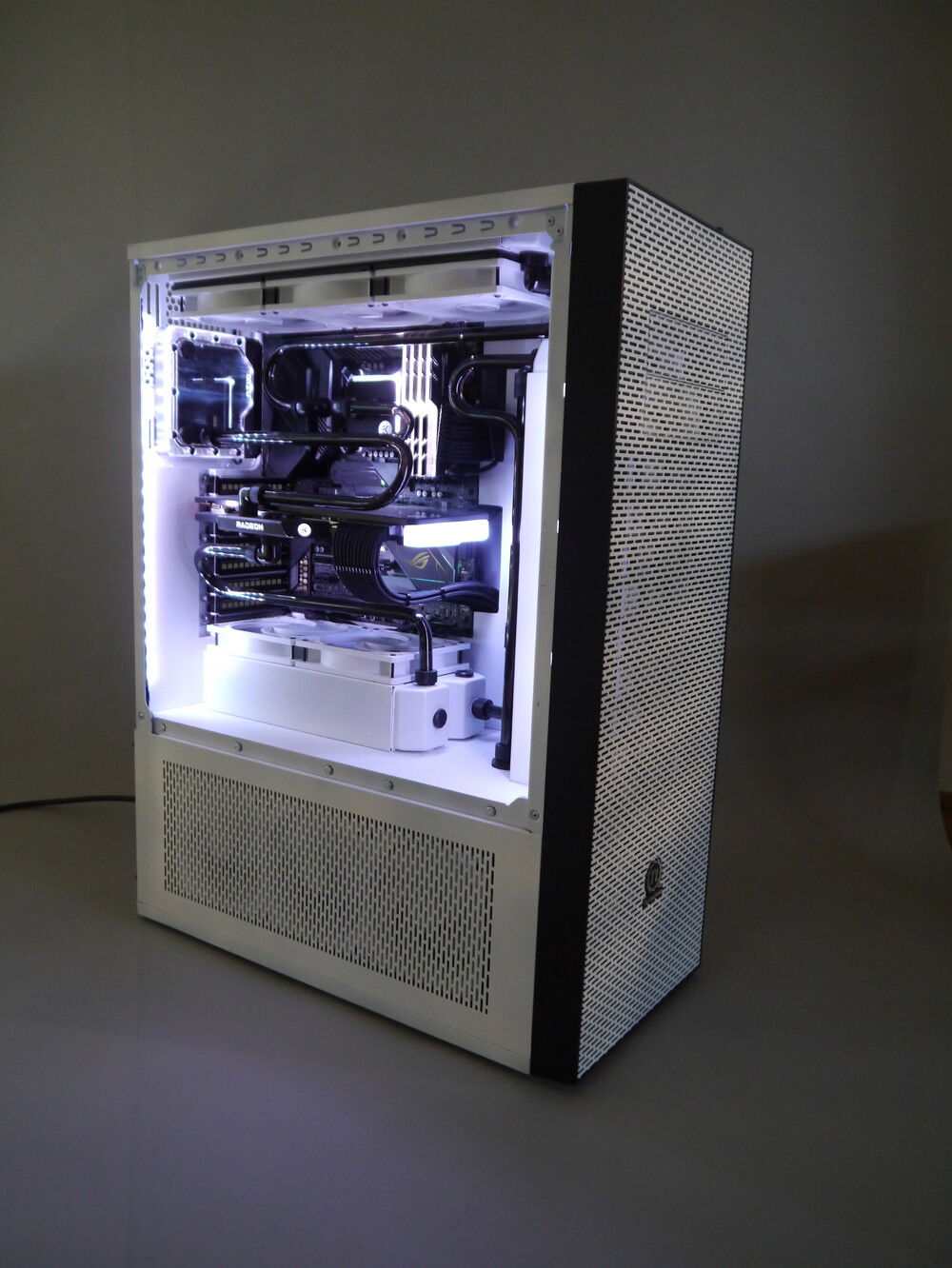

Result after the second bottle of Mayhems X1. I also added another 16GB of DDR4.
Result after the second bottle of Mayhems X1. I also added another 16GB of DDR4.

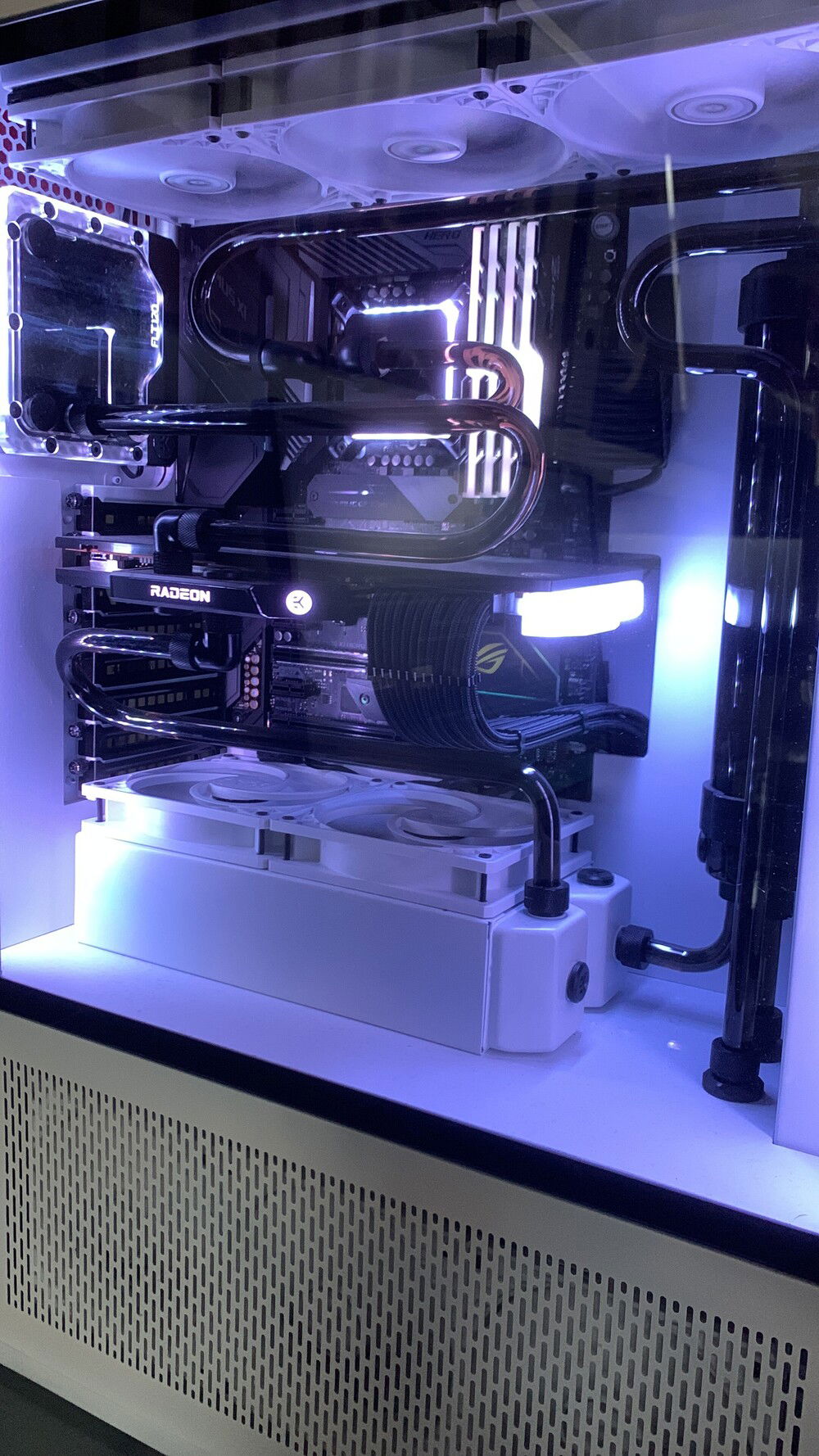

Thanks for reading!
Thanks for reading!

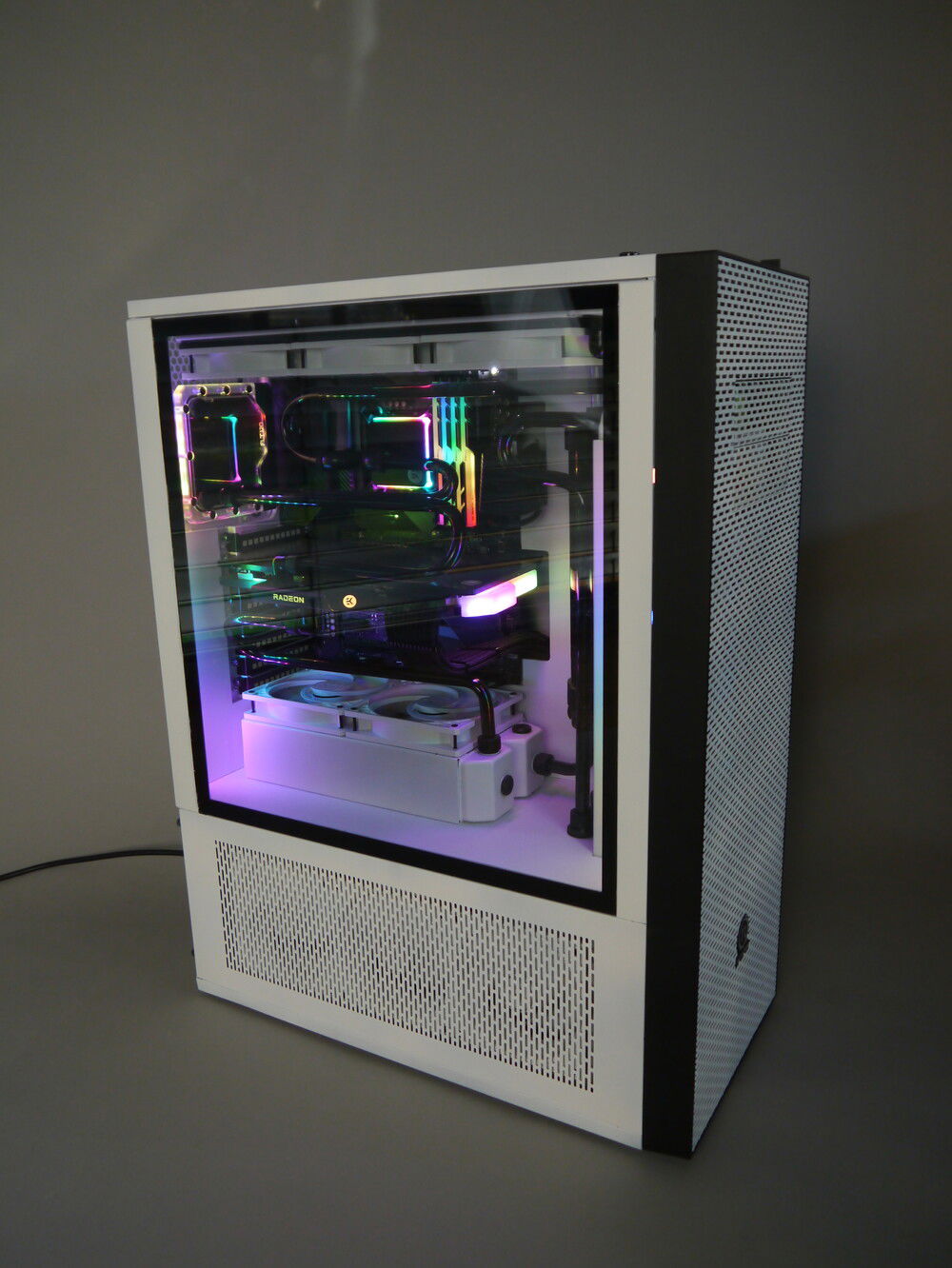

CUSTOM WHITE THERMALTAKE X71

Custom white painted Thermaltake X71 TG with high end gaming system and black liquid hard tube cooling.
Color(s): Black White
RGB Lighting? Yes
Theme: Case Mod
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 449.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 199.99
ASUS - ROG Maximus XI Hero
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 729.98
G.Skill - Trident Z Neo (3600MHz) (White/Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,599.99
POWERCOLOR - Radeon Red Devil Ultimate
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 149.99
Gigabyte - Aorus NVMe Gen4 (Copper)
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 262.07
Sabrent - Rocket (Nvme PCIe)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 296.40
Corsair - HX850 Platinum
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 149.99
Thermaltake - Core X71 TG
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 125.88
Arctic - P12 PWM PST (White) (12x)
Size: 120 mm
Cooling
$ 61.75
Alphacool - Cape Crop Coolplex Pro 25 LT
Type: Reservoir
Cooling
$ 79.99
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 249.98
Alphacool - NexXxoS UT60 Full Copper (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 99.99
Alphacool - NexXxoS UT60 Full Copper
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 167.89
Aquacomputer - Aquastream XT Pump
Type: Custom Loop
Cooling
$ 189.95
EKWB - EK-Quantum Magnitude D-RGB - 115x Nickel + Acetal
Type: CPU Block
Cooling
$ 150.00
EKWB - EK-Quantum Vector RX 6800/6900 - Black
Type: Backplate
Cooling
$ 91.56
EKWB - EK-Quantum Volume FLT 120 D-RGB - Plexi
Type: Reservoir
Size (WxHxD): 120 mm
Cooling
$ 15.00
Mayhems - Fluid
Type: Custom Loop
Accessories
$ 42.16
Aquacomputer - Aquaero 5
Estimated total value of this build:
$ 5,069.40
