I'm happy with the overall aesthetic, it came together pretty nicely.
I'm happy with the overall aesthetic, it came together pretty nicely.
Between the heavy GPU and slightly flexible vertical mount, there was a bit of GPU sag. This was resolved with an Antec support bracket (visible under the card.
Between the heavy GPU and slightly flexible vertical mount, there was a bit of GPU sag. This was resolved with an Antec support bracket (visible under the card.

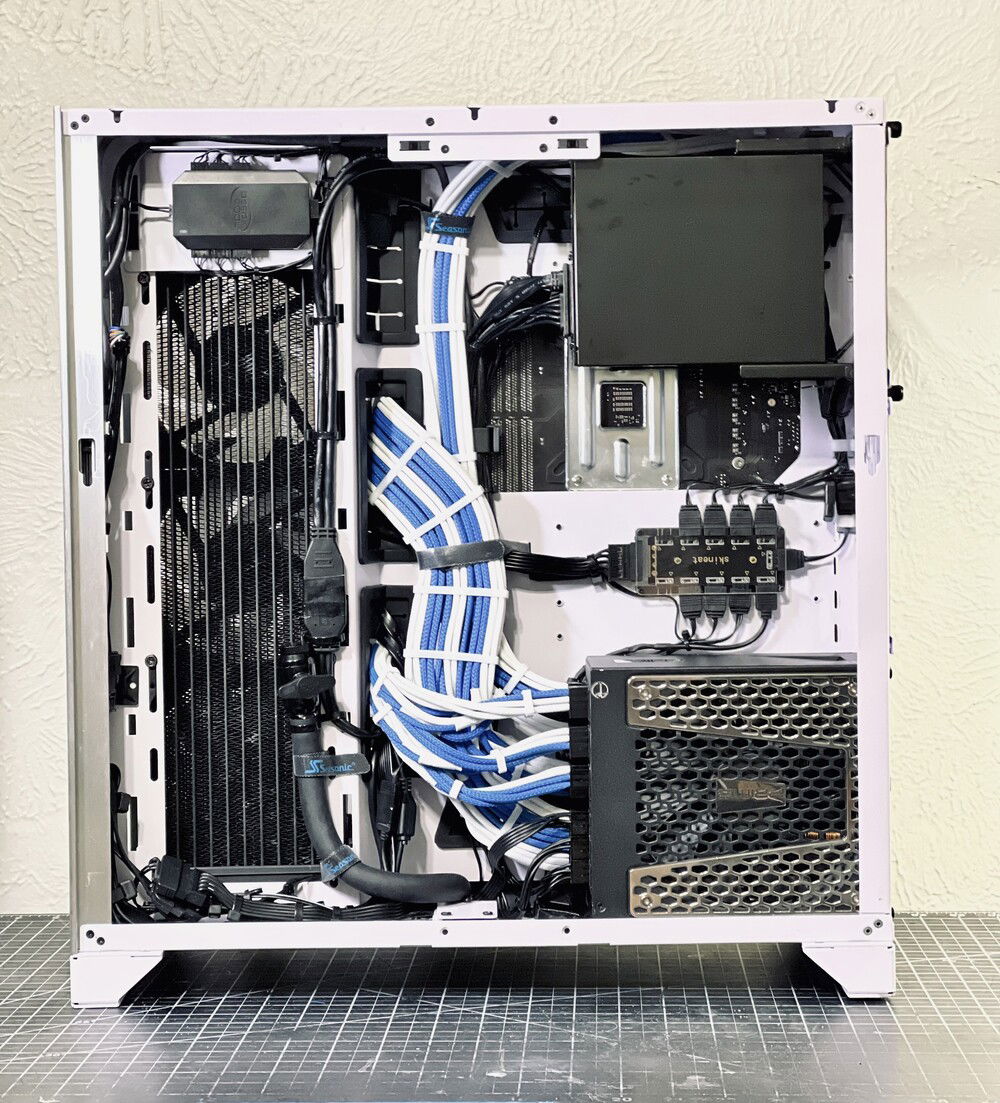

The drain port was really hard to reach, so I attached a drain tube that goes out the back of the case. Its secured up and out of the way with velcro straps.
The drain port was really hard to reach, so I attached a drain tube that goes out the back of the case. Its secured up and out of the way with velcro straps.

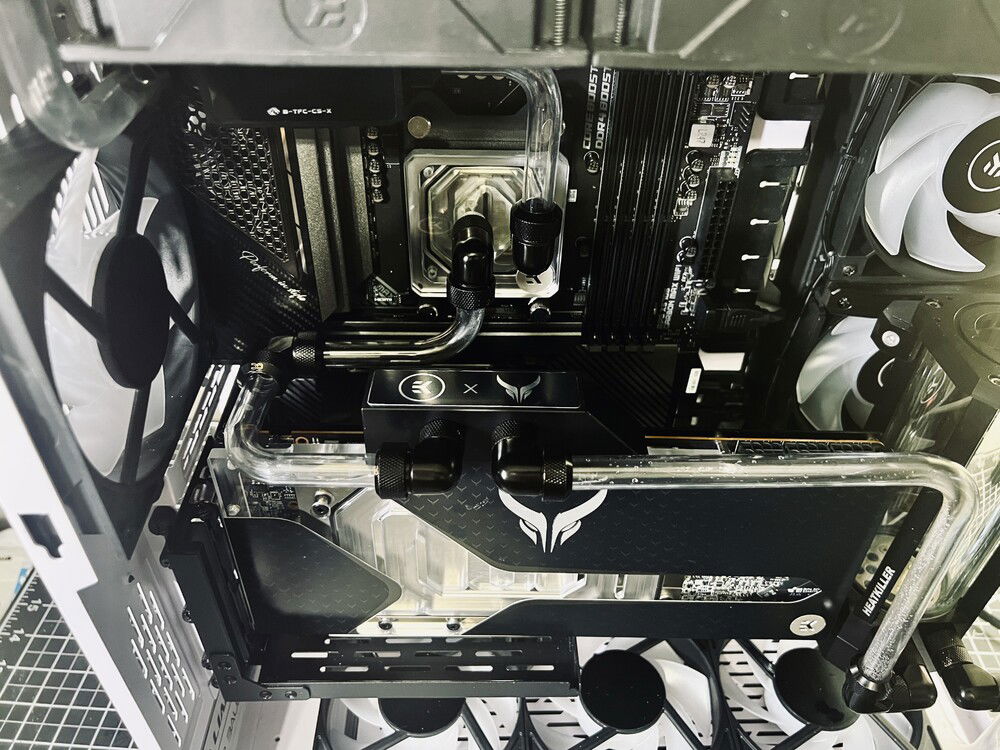

Detail of the tube run around the GPU and into the CPU block.
Detail of the tube run around the GPU and into the CPU block.

Custom loop with the Liquid Devil 7900 XTX

Color(s): Black White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 313.95
AMD - Ryzen 7 5800X3D
Socket: AM4
Cores: 8
Motherboard
$ 305.68
MSI - MPG Carbon Max (X570S) (WiFi)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
Corsair - Vengence RT (3600Mhz) (Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,467.39
POWERCOLOR - Liquid Devil Radeon RX 7900 XTX 24GB
Chip Manufacturer: AMD
Chip: RX 7900 XT
Interface: PCIe x16
Storage
$ 169.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 307.89
Seasonic - Prime PX
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 199.99
Lian Li - O11 Dynamic XL ROG
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
EKWB - EK-Vardar S 120ER D-RGB
Size: 120 mm
Cooling
Alphacool - Fittings
Type: Custom Loop
Cooling
EKWB - EK-Quantum Velocity - Nickel + Plexi
Type: CPU Block
Cooling
Primochill - Tubing
Type: Custom Loop
Cooling
$ 95.48
Watercool - Heatkiller Tube 200mm
Type: Pump/Reservoir Combo
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 219.90
XSPC - EX Crossflow V3 (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
XSPC - Fittings
Type: Custom Loop
Accessories
$ 15.99
Antec - Graphics Card GPU Brace Support Video Card Sag Holder Holster Bracket Anodized Aerospace Aluminum (Gray)
Accessories
Bykski - Digital display Flow Meter (B-TFC-CS-X)
Accessories
$ 19.99
DeepCool - FH-10 Fan Hub
Accessories
$ 36.30
Lian Li - Lancool II-1X (Vertical GPU Kit)
Accessories
$ 10.99
XSPC - G1/4" Plug with 10k Sensor
