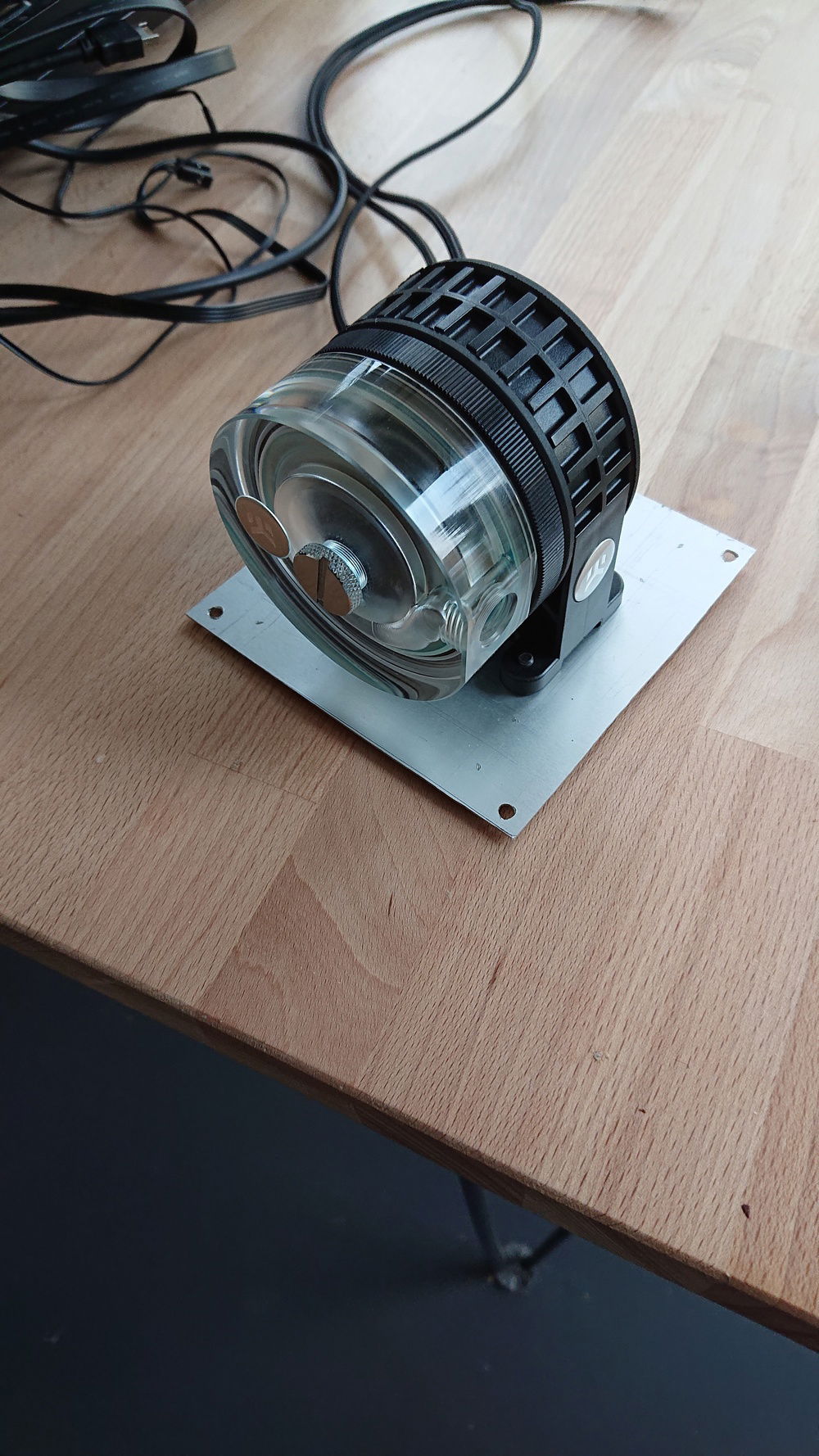

fixation of the d5 pump used under the psu shroud (attached to a 120mm fan location)
fixation of the d5 pump used under the psu shroud (attached to a 120mm fan location)

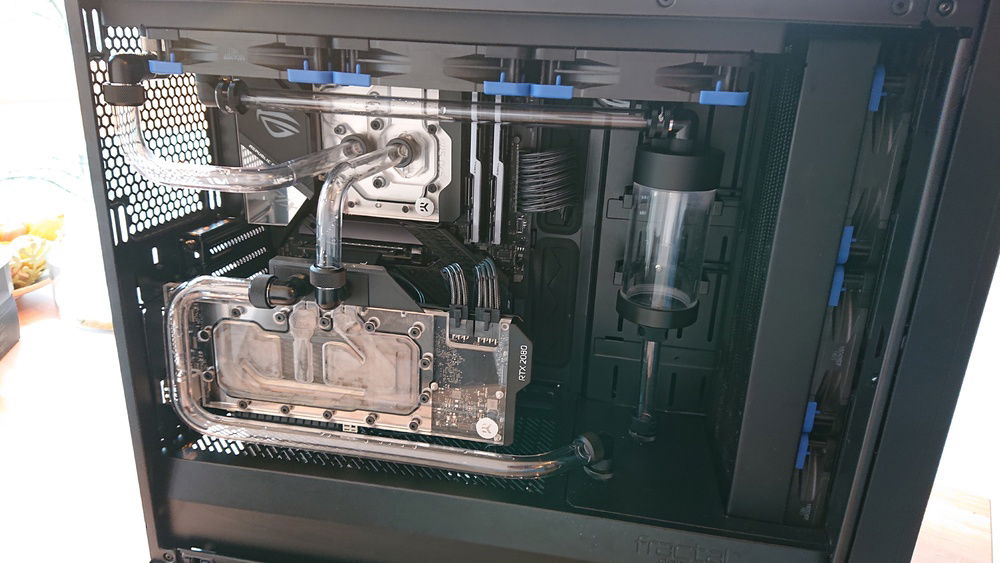

First pipe routing -> I decided to change the connection between CPU and GPU
First pipe routing -> I decided to change the connection between CPU and GPU

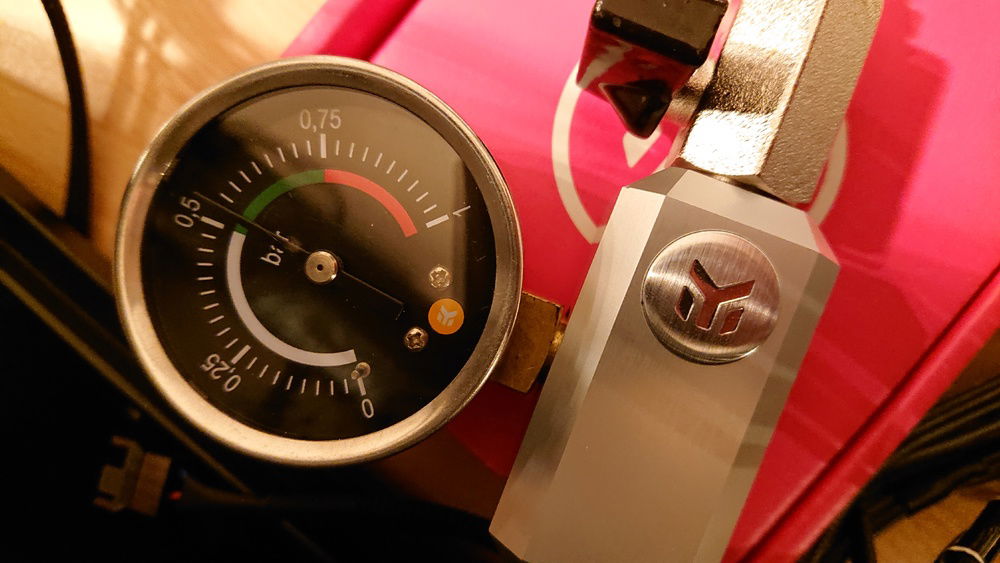

Very convenient tool !
Very convenient tool !

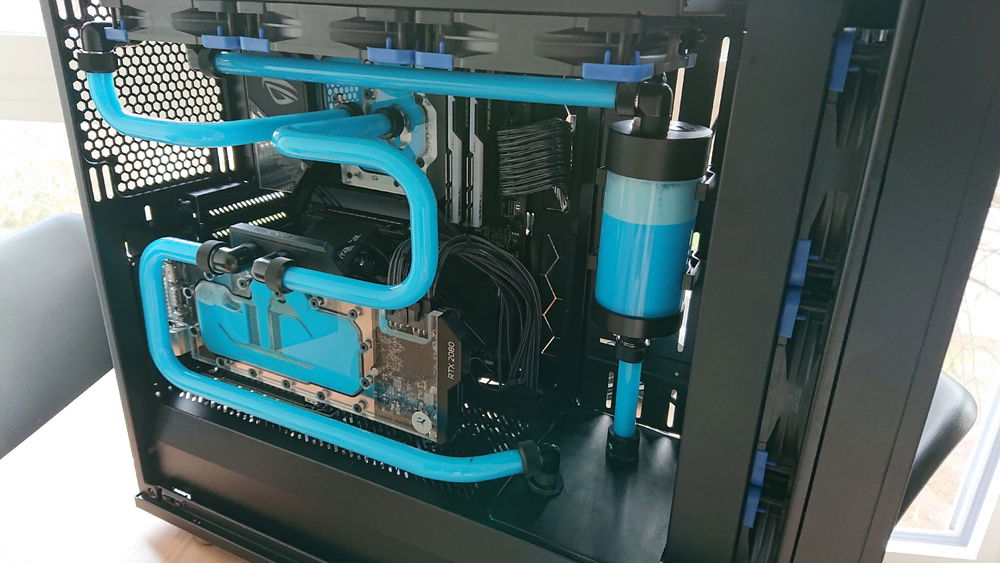

Air bleeding
Air bleeding

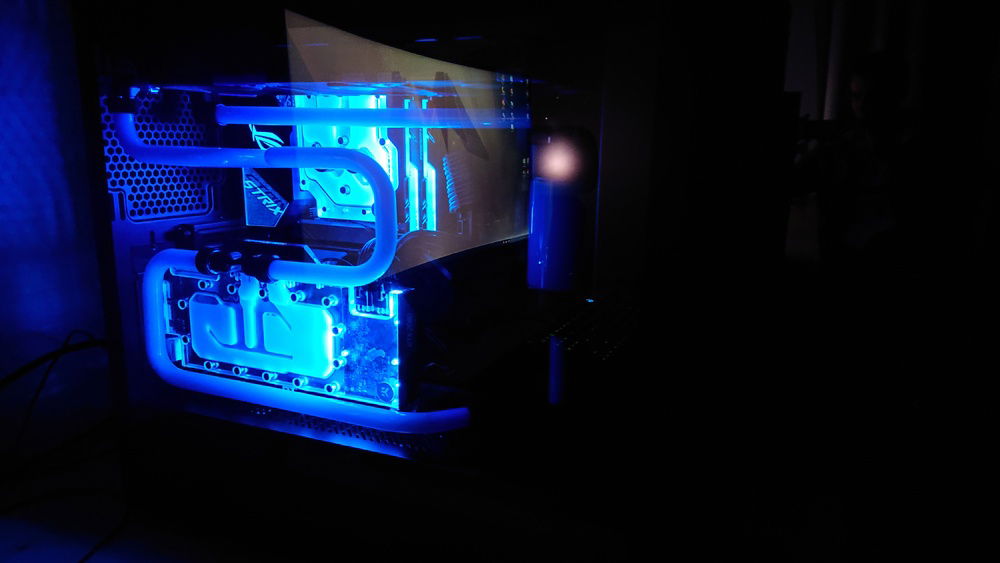

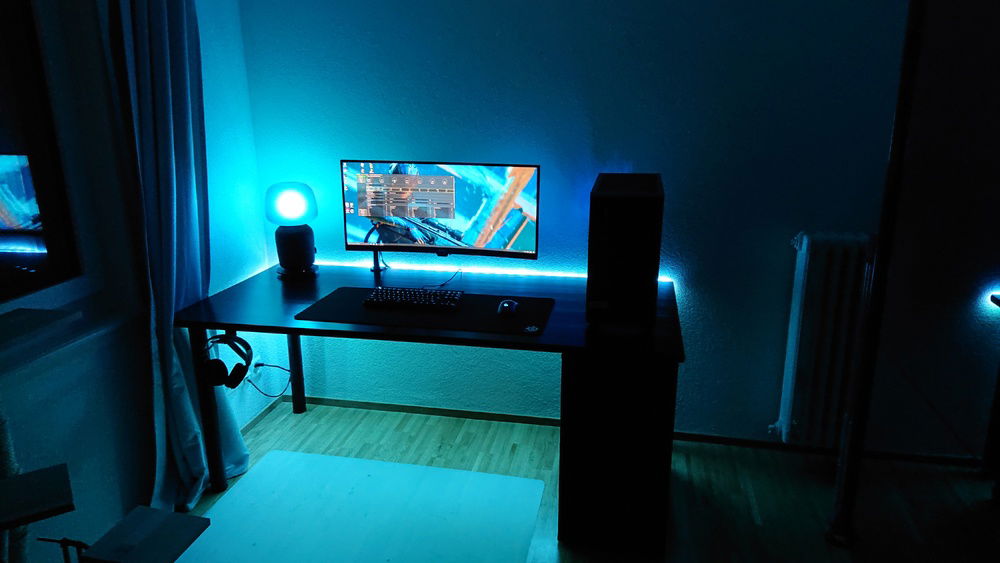

Complete setup
Complete setup

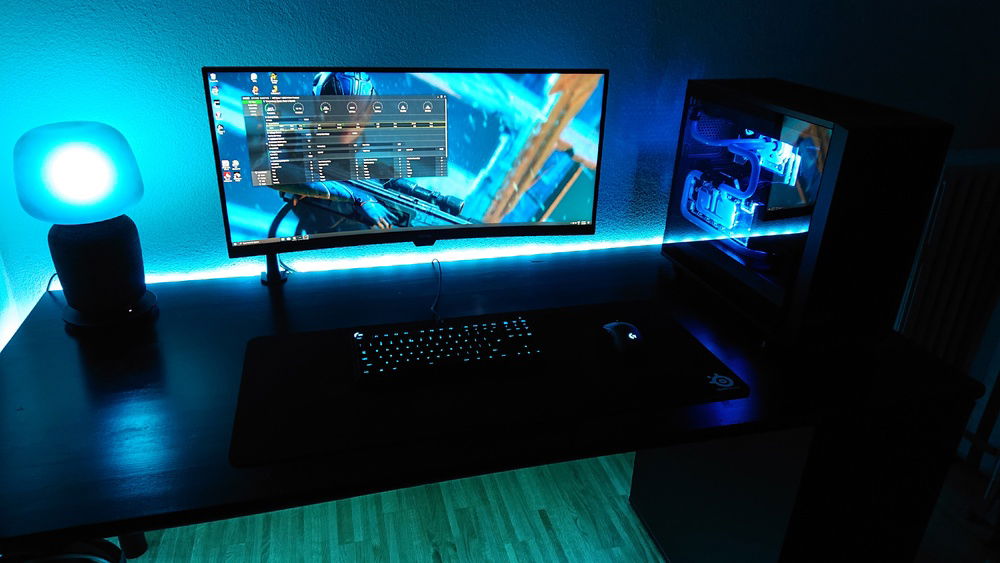

Complete setup
Complete setup

Blue meshify

My build using the meshify S2 slightly modded (to accommodate the pump under the PSU shroud).
I have used EK and Barrow fittings (tube diameter = 16mm).


I have also used CableMod RT carbon cables.
Color(s): Blue
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 134.89
AMD - Ryzen 7 (3800X)
Socket: AM4
Cores: 8
Motherboard
$ 327.68
ASUS - ROG Strix Gaming (X570-F)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 269.98
G.Skill - Trident Z (3200MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 599.99
NVIDIA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 171.23
Corsair - Force MP510
Form Factor: M.2
Interface: PCIe x4
Capacity: 960 GB
Storage
$ 89.99
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 139.98
Seagate - Barracuda (ST3000DM008) (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
PSU
$ 268.68
Seasonic - Focus Plus
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 319.00
Fractal Design - Meshify S2 (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 131.70
Noctua - NF-F12 PWM (6x)
Size: 120 mm
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 50.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
EKWB - EK-CryoFuel Navy Blue Concentrate
Type: Custom Loop
Cooling
$ 98.99
EKWB - EK-D5 PWM G2 Motor
Type: Pump
Cooling
EKWB - EK-Quantum Momentum ROG Strix X570-E D-RGB - Plexi
Type: Monoblock
Cooling
$ 60.00
EKWB - EK-RES X3 150
Type: Reservoir
Cooling
$ 212.41
EKWB - EK-Vector RTX 2080 RGB - Nickel + Plexi
Type: Waterblock
