Up and running! What a beast.
Up and running! What a beast.
The case is 80% assembled and I'm done painting. The stripe sure came out great. I love the gloss/matte contrast between the two paints.
The case is 80% assembled and I'm done painting. The stripe sure came out great. I love the gloss/matte contrast between the two paints.

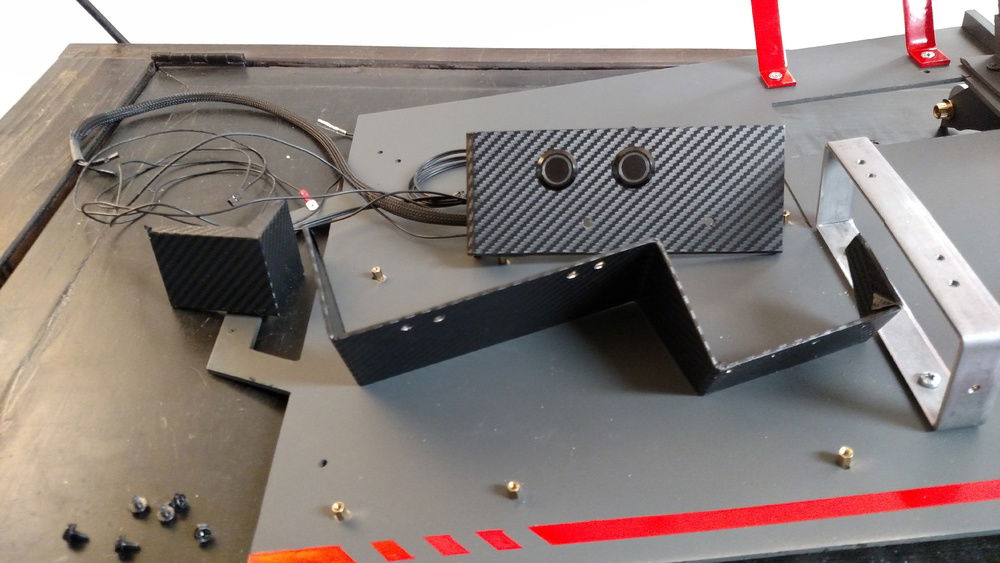

A little faux carbon wrap around the bent aluminum housings. Ready to hide the IO panel behind a nice clean look.
A little faux carbon wrap around the bent aluminum housings. Ready to hide the IO panel behind a nice clean look.

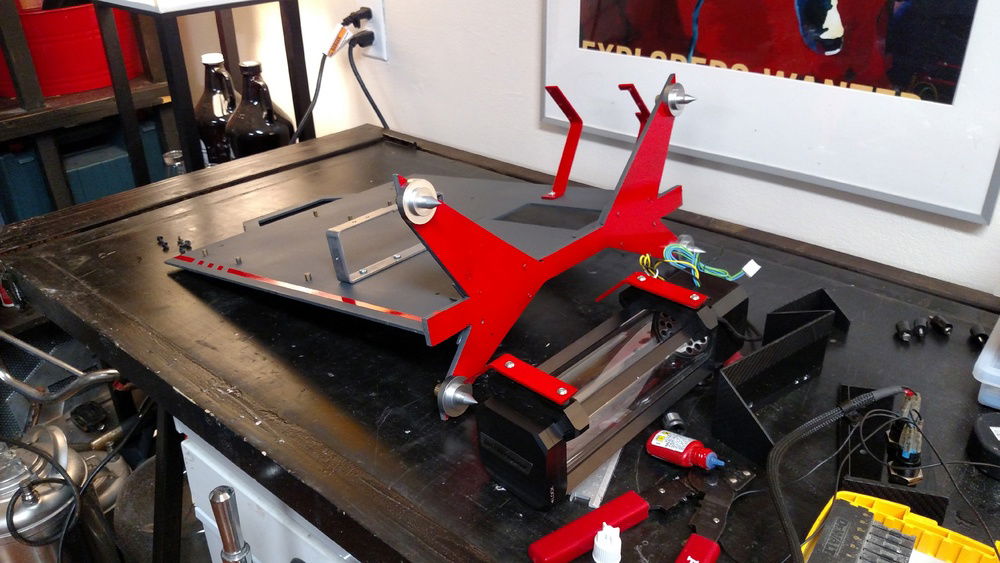

I wanted the bottom to look like those really expensive women's shoes with the glossy red heel.
I wanted the bottom to look like those really expensive women's shoes with the glossy red heel.

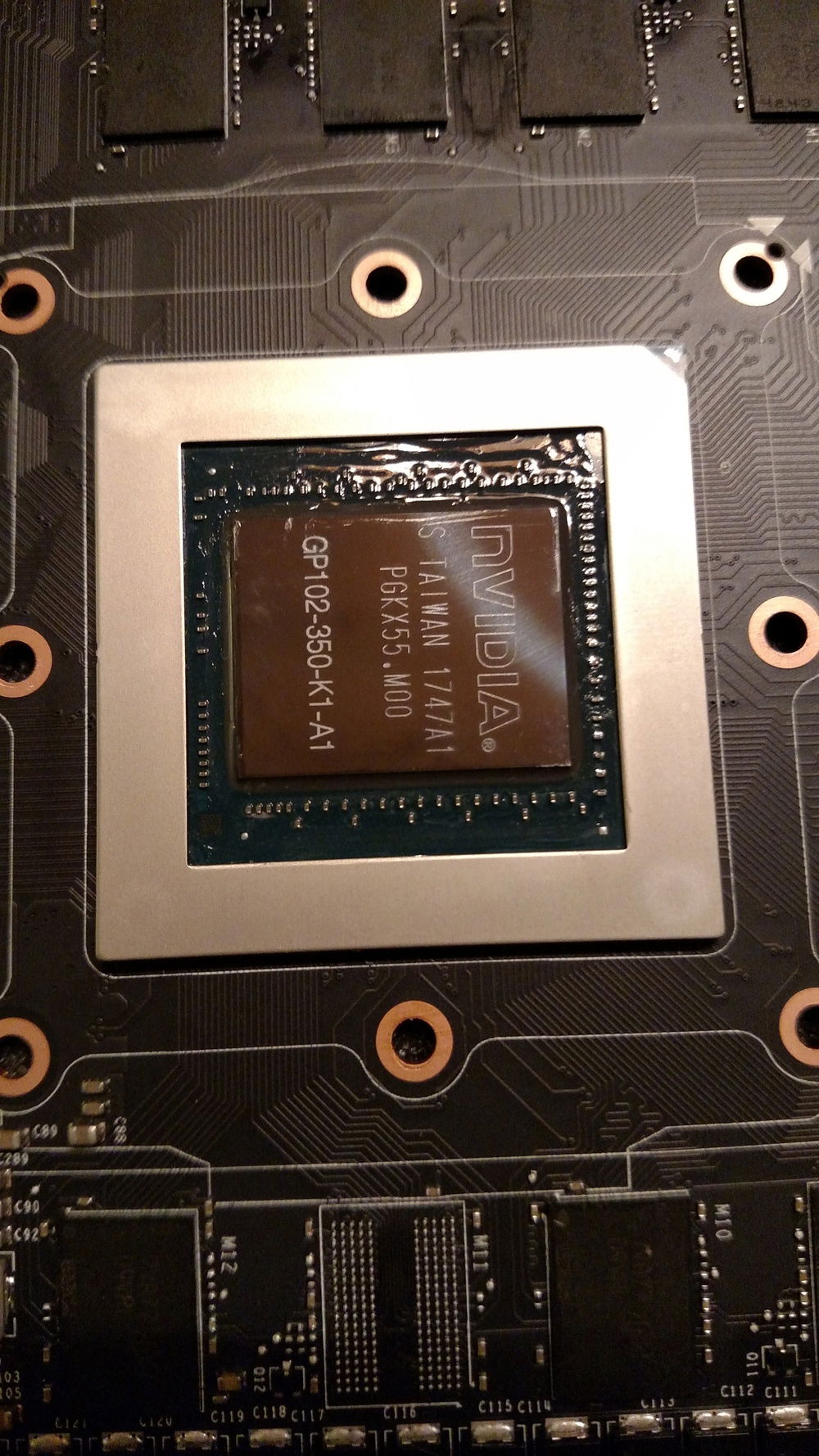

GeForce 1080Ti is all clean and ready for the liquid metal interface.
GeForce 1080Ti is all clean and ready for the liquid metal interface.

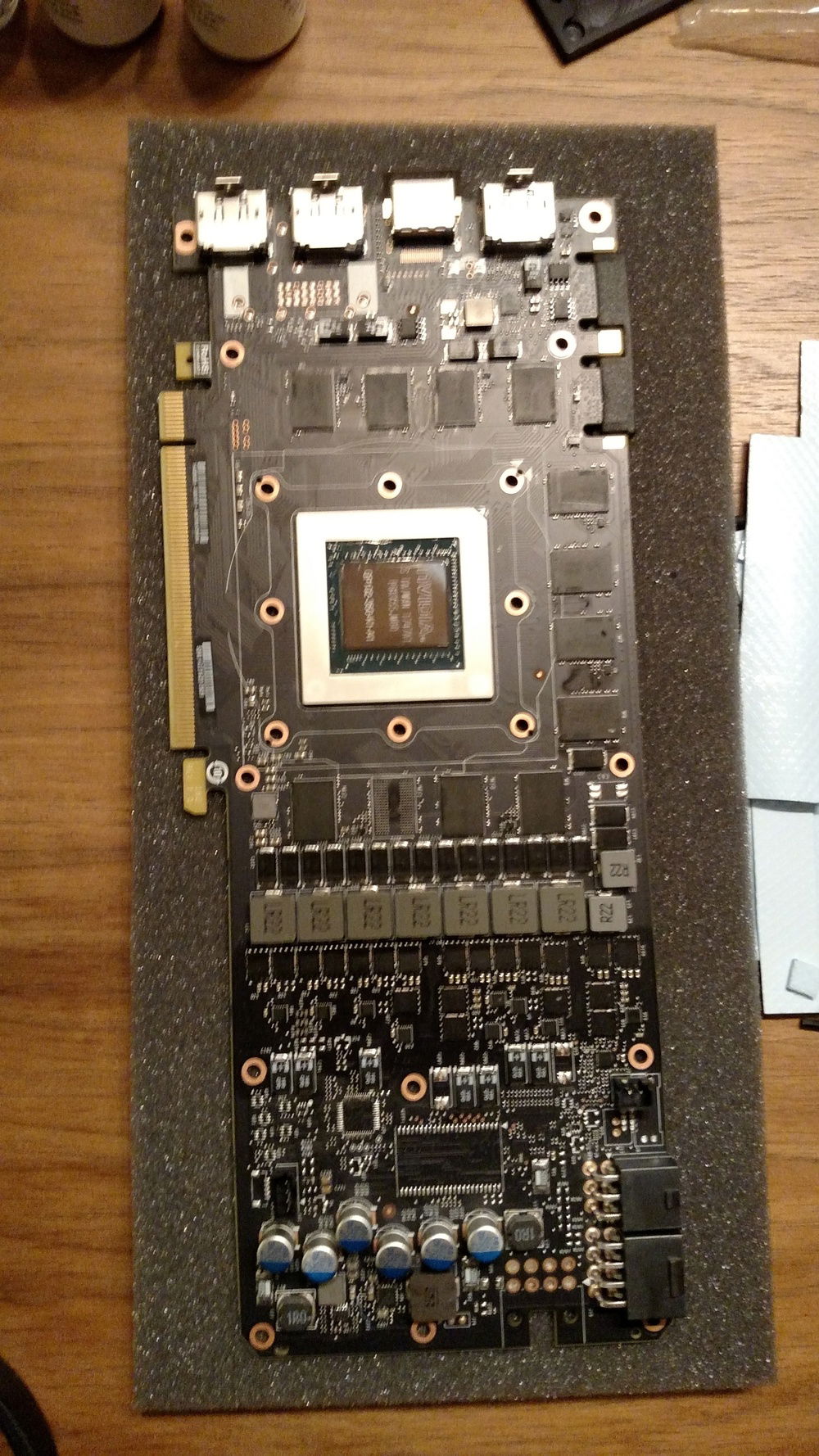

Continuing work on the 1080Ti waterblock setup.
Continuing work on the 1080Ti waterblock setup.

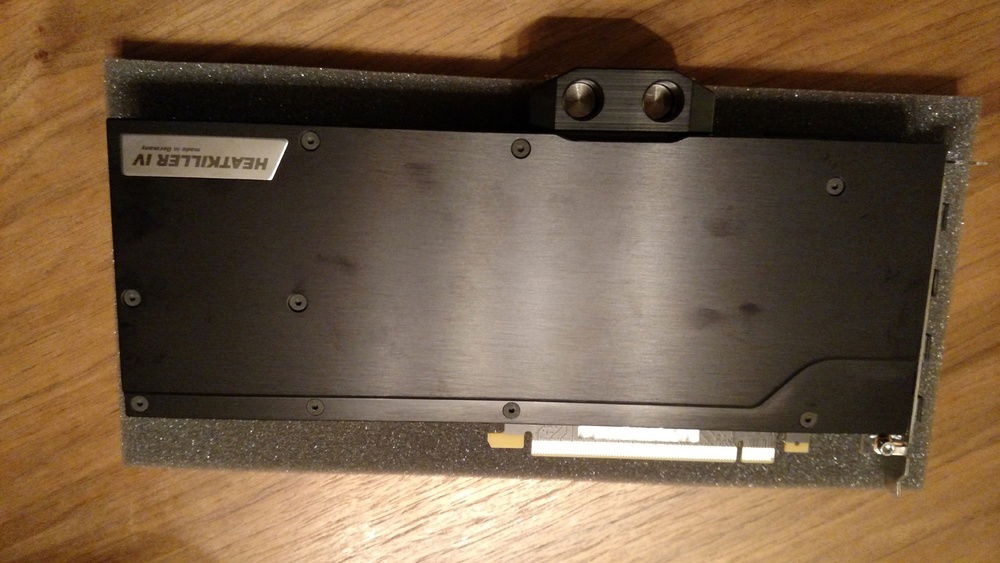

Waterblock on! Darn fingerprints. What a beautiful piece of metal!
Waterblock on! Darn fingerprints. What a beautiful piece of metal!

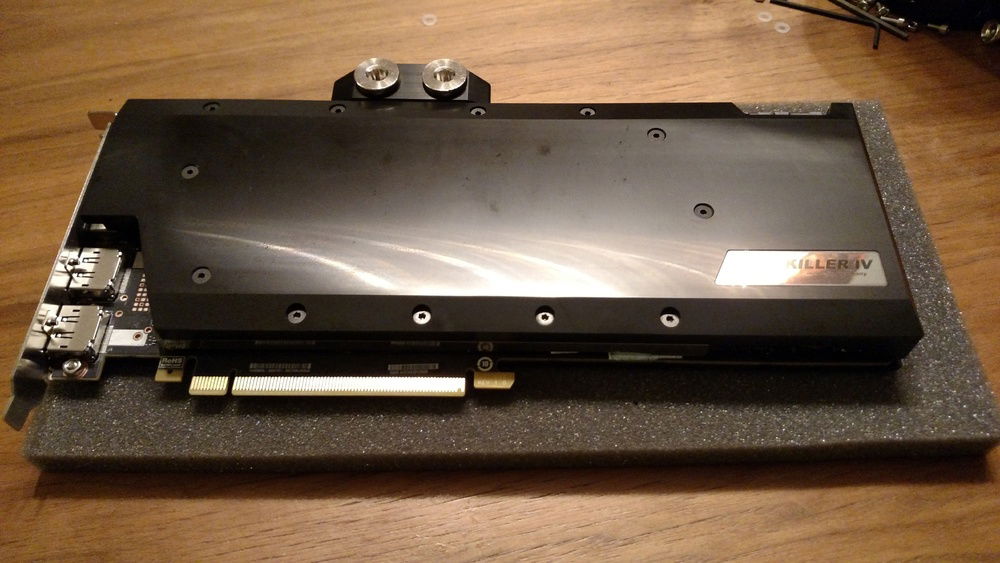

You really can't beat Watercool for the absolute prettiest and most efficient water blocks out there. I've tried half a dozen other brands and will never go back.
You really can't beat Watercool for the absolute prettiest and most efficient water blocks out there. I've tried half a dozen other brands and will never go back.

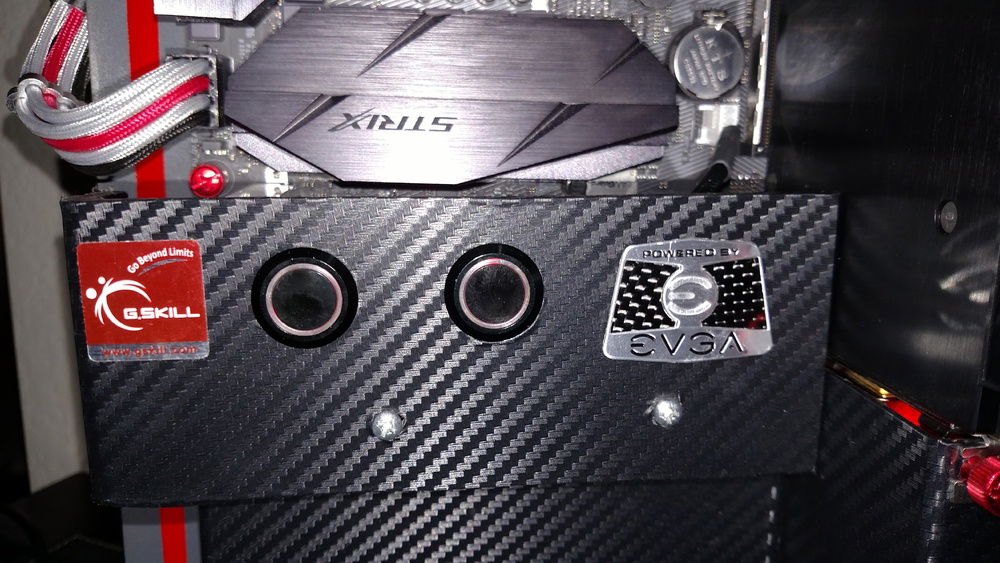

Power on the right. The fan toggle on the left. Custom cable sleeving (The first build where I didn't do it myself; it's so time-consuming that was well worth the money to go commercial)
Power on the right. The fan toggle on the left. Custom cable sleeving (The first build where I didn't do it myself; it's so time-consuming that was well worth the money to go commercial)

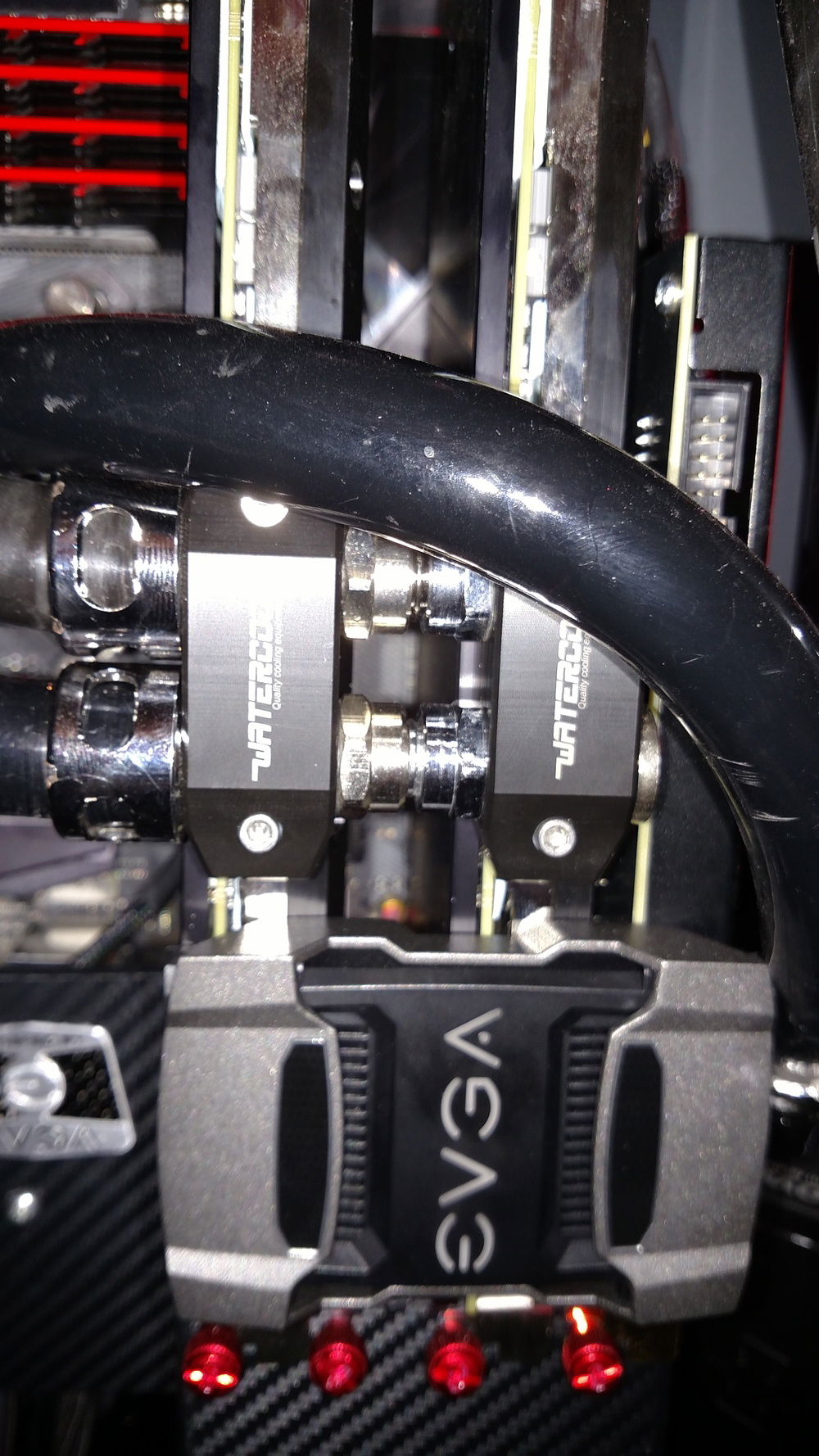

SLI passthrough on the GPU's
SLI passthrough on the GPU's

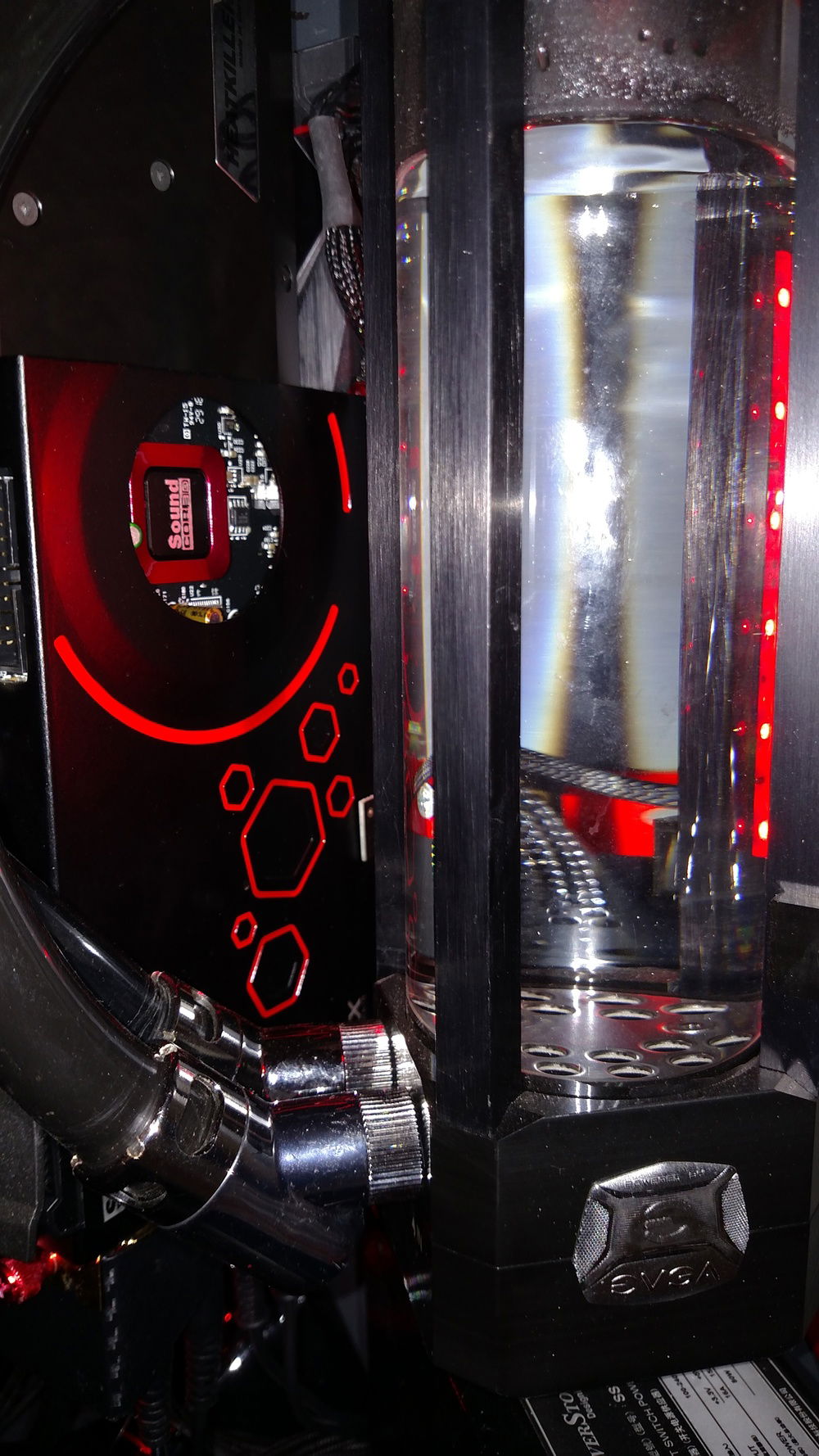

A soundcard able to run a 600 Ohm headphone driver. Audio is pristine.
A soundcard able to run a 600 Ohm headphone driver. Audio is pristine.

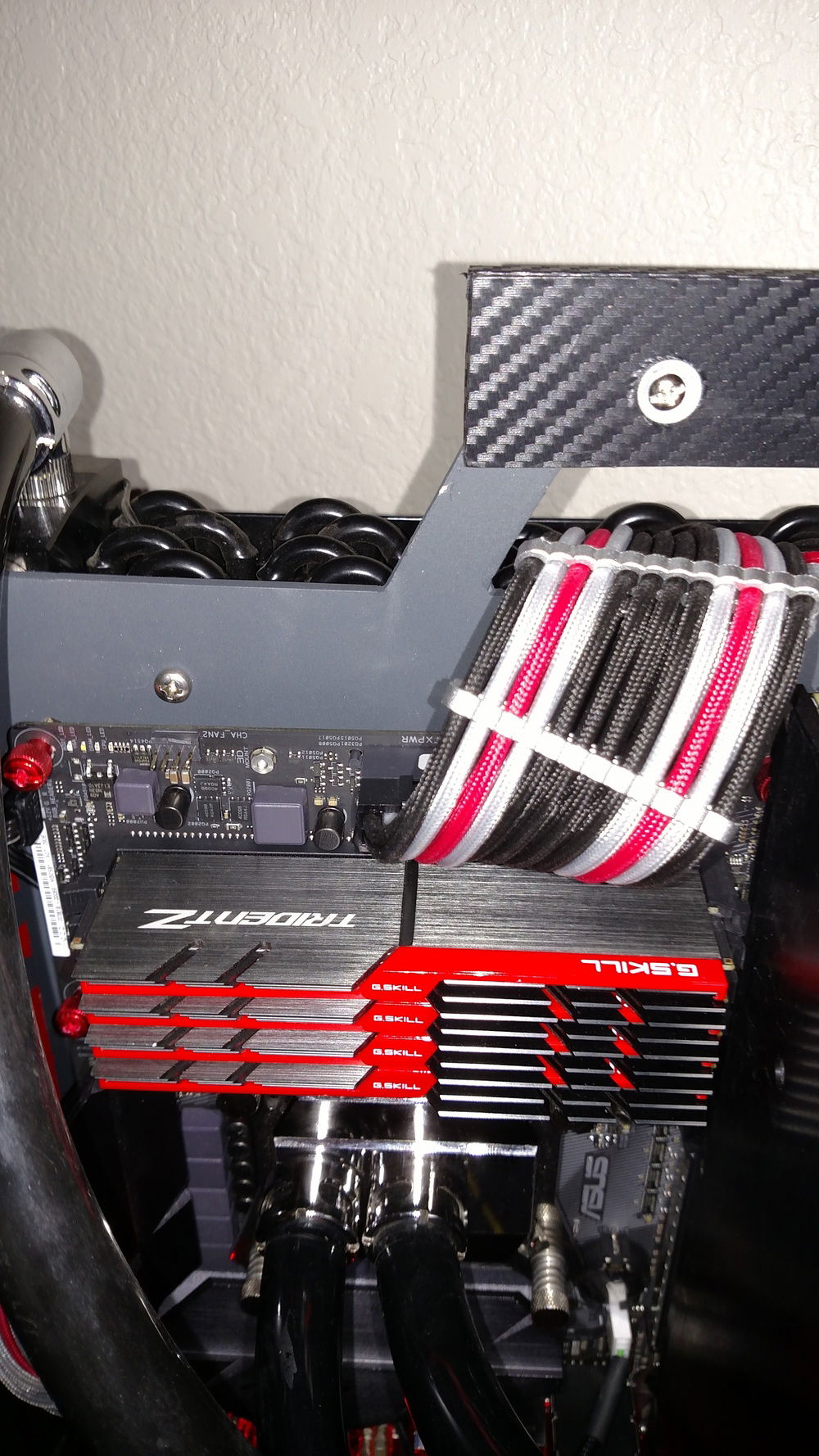

Top view.
Top view.
Side view.
Side view.

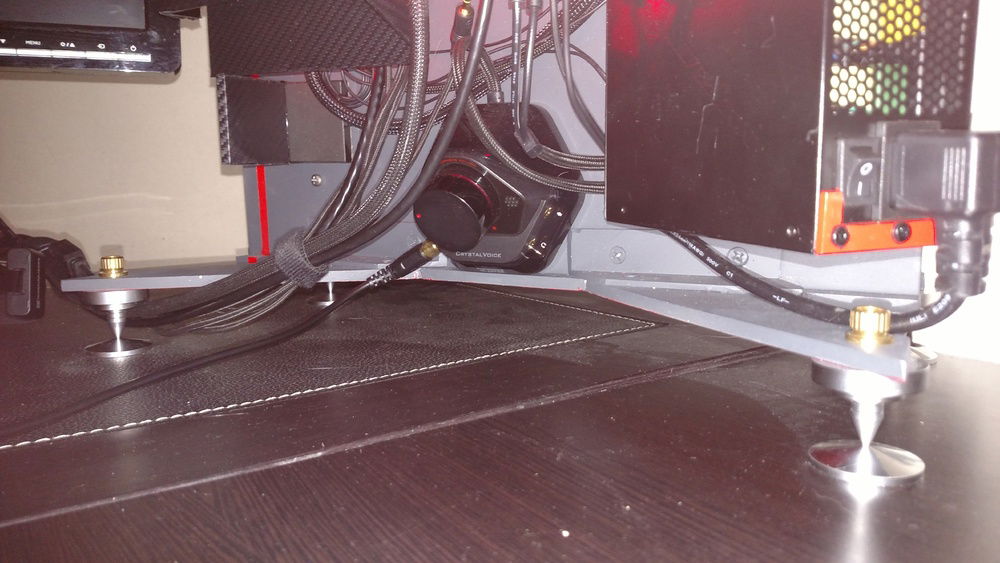

Bottom view. Build in volume control, and a whole lot of power out of a little SFX power supply which is rated to 800W. Under peak load, I draw 675 on my current overclock/overvoltage.
Bottom view. Build in volume control, and a whole lot of power out of a little SFX power supply which is rated to 800W. Under peak load, I draw 675 on my current overclock/overvoltage.

Battlestation

This is actually the third time I've built this type of computer, each time with a custom steel or aluminum scratchbuild. The first two times, I just wasn't quite happy with it all and scrapped it. I think it's been a six-year project now.

The entire system was inspired by the original (Level 10) work of art, and is centered around the giant 360mm radiator for the custom water loop. I wanted enough cooling to run fanless under even a moderate load, and keep everything quiet and efficient. For high loads, I have a car radiator fan which I can kick on with the go-baby-go button. :)

Case
  • Scratchbuilt, hand-tool only fabricated steel and aluminum backplane.
  • Sound isolation' spike casefeet.
  • Matte grey paint with high gloss red striping.
  • Faux carbon fiber accents, bezeled power switch, and a fan on/off toggle


Primary Hardware
  • i7-7700k Intel Processor
  • ASUS ROG Strix Z270G LGA1151 mATX Motherboard
  • EVGA GeForce 1080 Ti x2 in SLI
  • SAMSUNG 950 PRO M.2 2280 512GB PCI-Express 3.0 x4 Internal Solid State Drive x2 in RAID 0
  • G.SKILL TridentZ Series 64GB (4 x 16GB) 288-Pin DDR4 3200 in XMP mode


Sound
  • Creative Sound Blaster ZxR PCIe 124dB SNR Sound Card with 600ohm Headphone Amp
  • Beyerdynamic DT 880 Premium 600 OHM Headphones


Cooling
  • Watercool MO-RA360 radiator mounted to the back of the case
  • Watercool Heatkiller-IV Pro nickel-plated CPU block
  • Watercool Heatkiller-IV Pro nickel w/ black backplate for GPU's
  • Watercool Tube 200 reservoir w/ integrated Laing DDC pump
  • CPU delid, and liquid metal thermal paste for both the CPU and GPU's.
  • A 360mm car radiator fan (voltage lowered so it doesn't blow everything off my desk or wake up the neighbor). Except under benchmark level loads, I can usually run passive-cooling only, though.


With the CPU overclocked to a 4.9GHz and a light overclock on the GPU's as well (my 24/7 settings), it gets a FireStrike Ultra score of 13196 on 3D mark. Not bad! The twin M2 SSD's in RAID 0 are also blazing fast, until one of them thermally throttles, and then they're just really really fast.
Color(s): Black Gray Red Silver
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 183.16
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 139.99
ASUS - ROG Strix Gaming (Z270F)
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Graphics
$ 400.00
EVGA - GeForce FTW3
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Graphics
$ 400.00
EVGA - GeForce FTW3
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 399.00
Samsung - 950 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 399.00
Samsung - 950 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 136.96
SilverStone Technology - SX700-LPT
Wattage: 700
Form Factor: SFX
Efficiency: 80+ Platinum
Case
Custom - Custom (custom)
Cooling
$ 159.99
Watercool - Heatkiller IV 1080/1070 FTW/FTW2
Type: Custom Loop
Cooling
$ 149.73
Watercool - HeatKiller IV Pro Intel - Copper NI
Type: Custom Loop
Cooling
$ 93.60
Watercool - HeatKiller Tube 200 DDC
Type: Reservoir
Size (WxHxD): 200 mm
Cooling
Watercool - MO-RA3 360 LT (Black)
Type: Custom Loop
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: ModFlex
Color: Gray
