Apocalypse

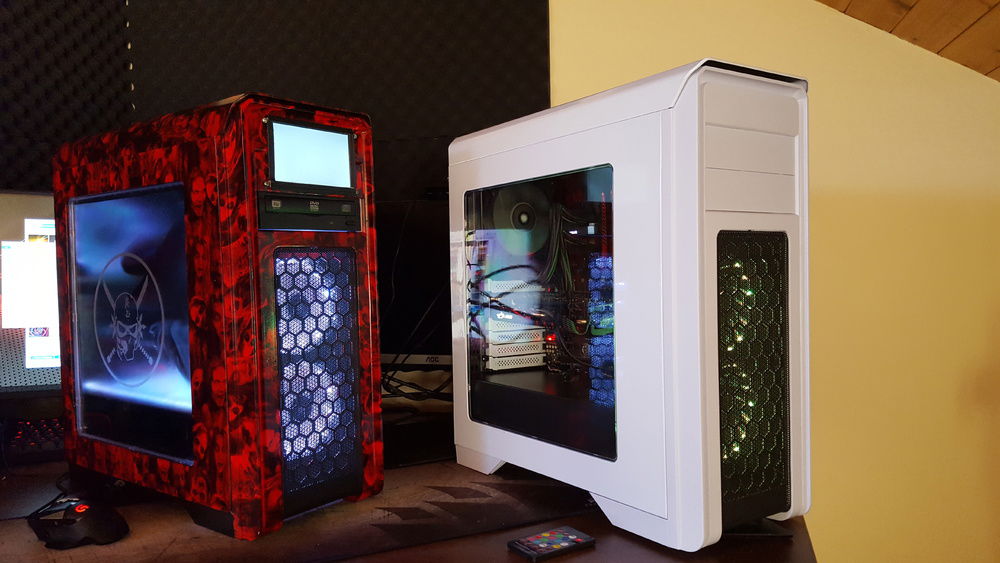

My current build as detailed below is sitting inside a modded GameMax Falcon case.

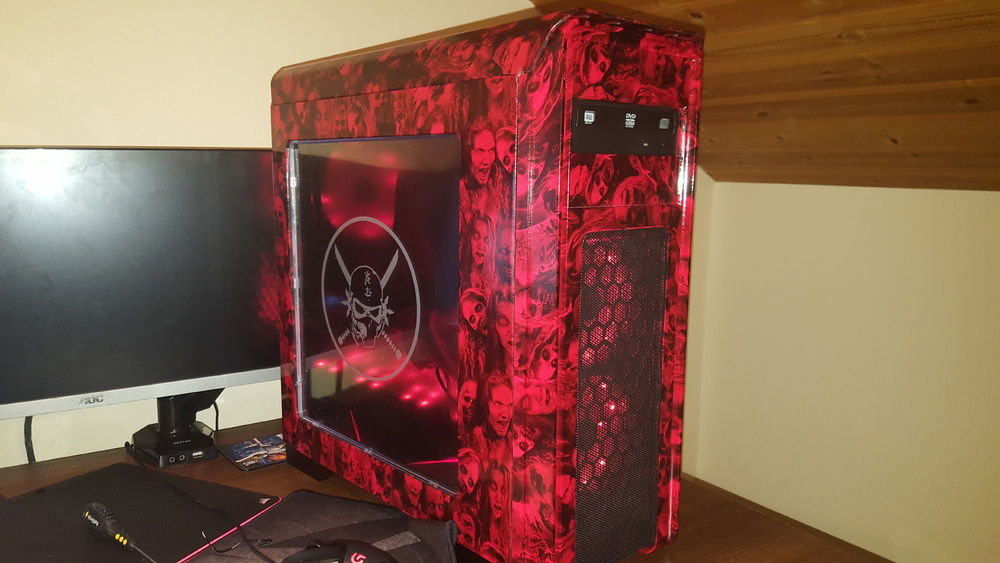

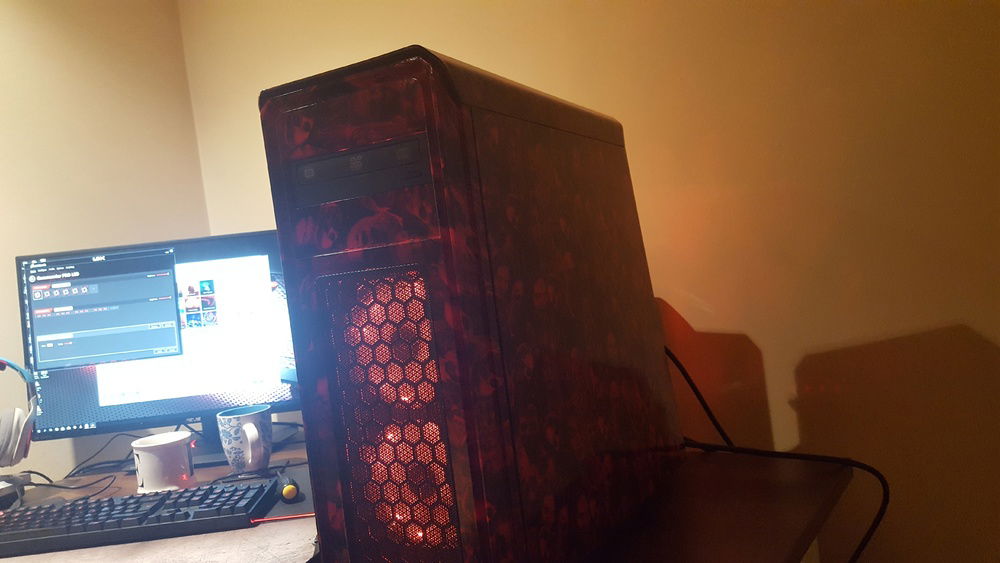

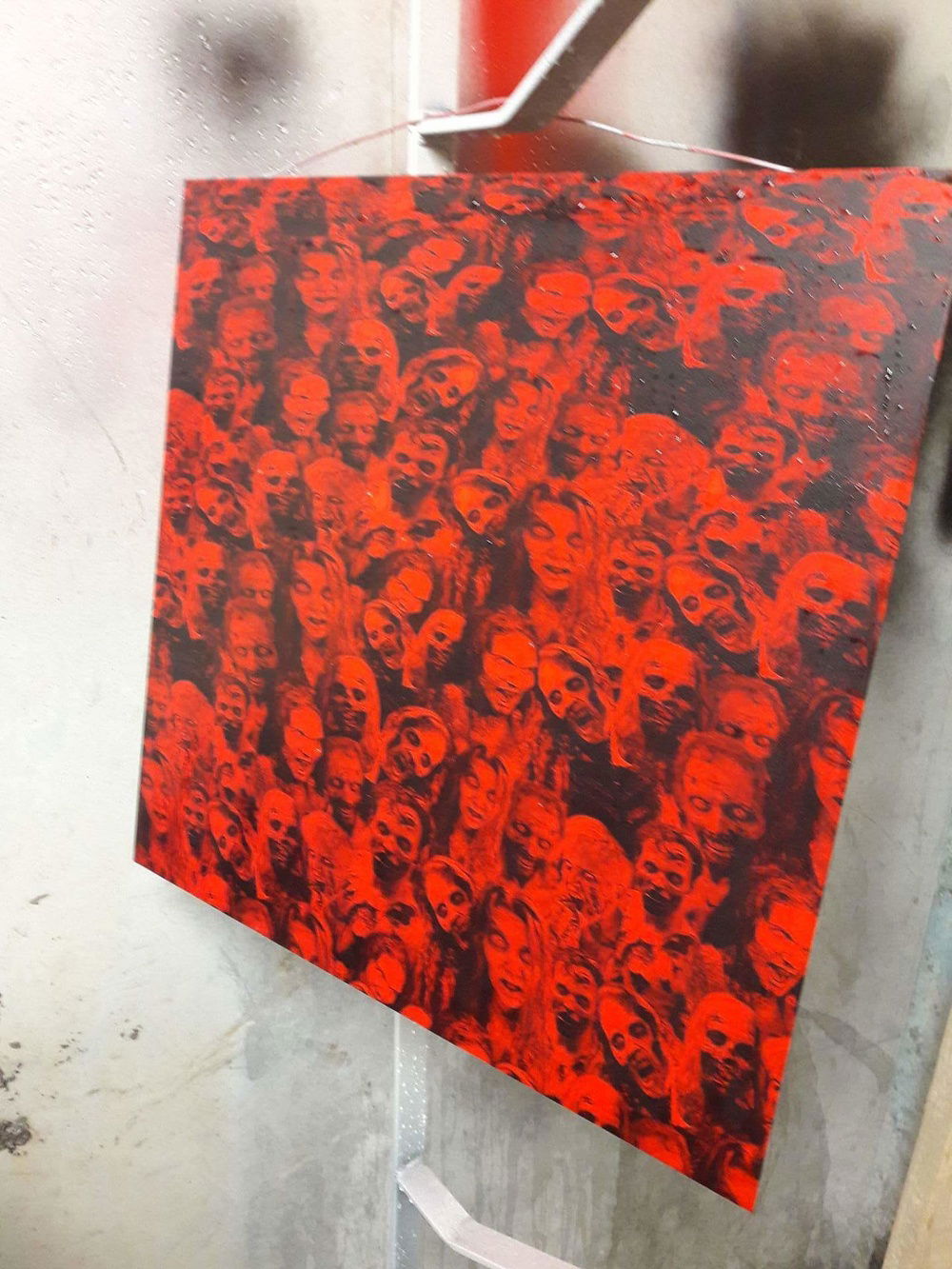

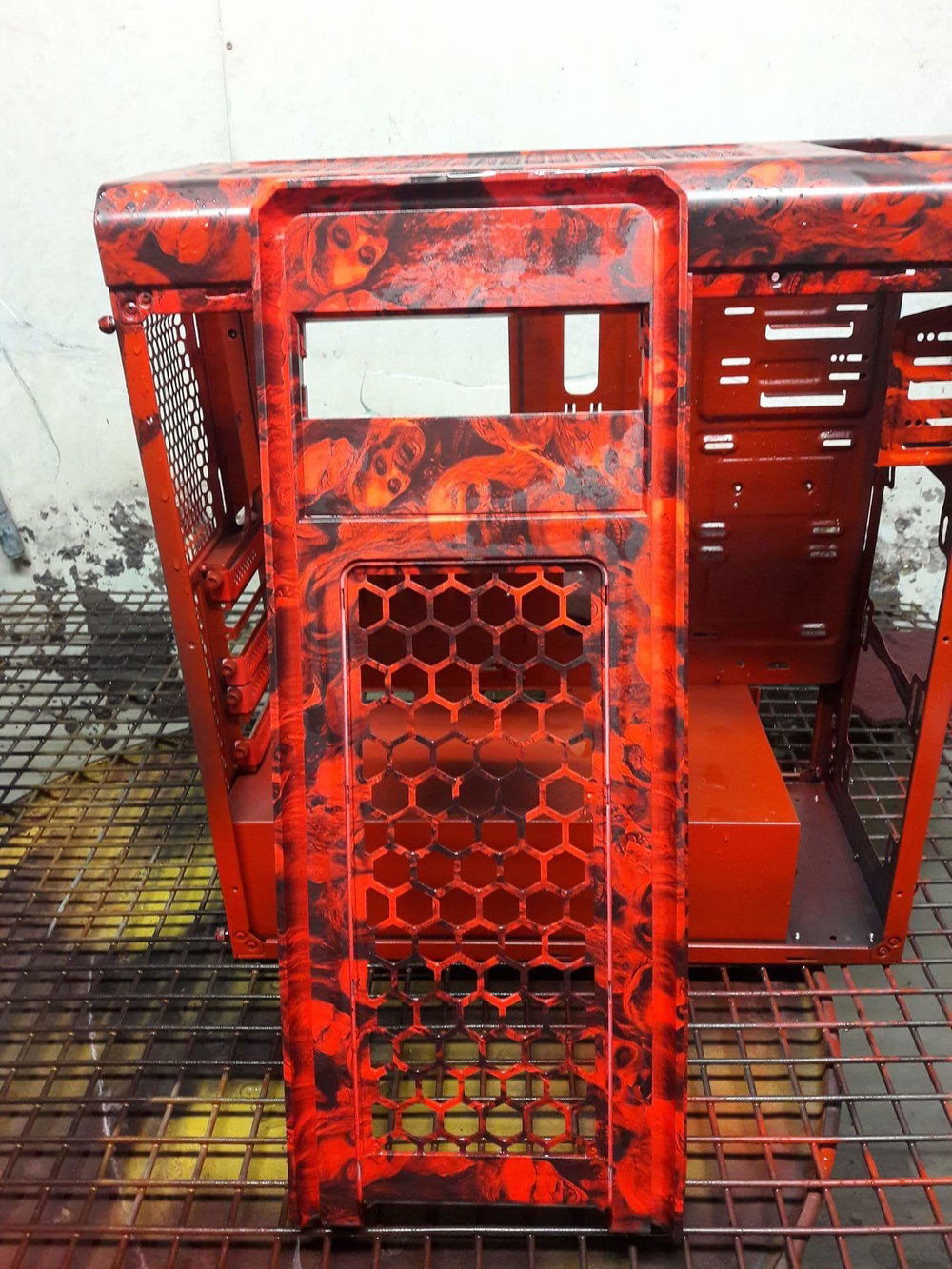

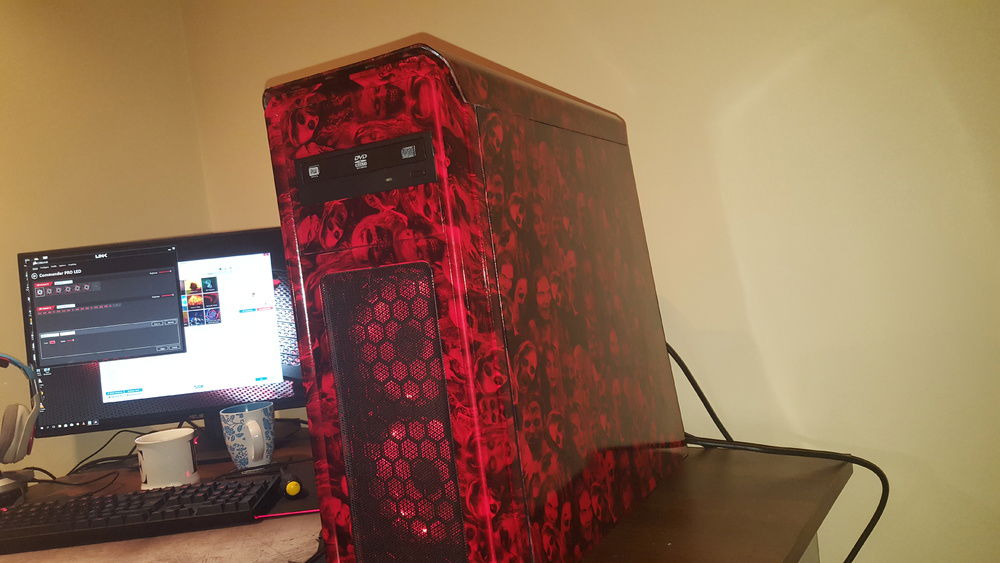

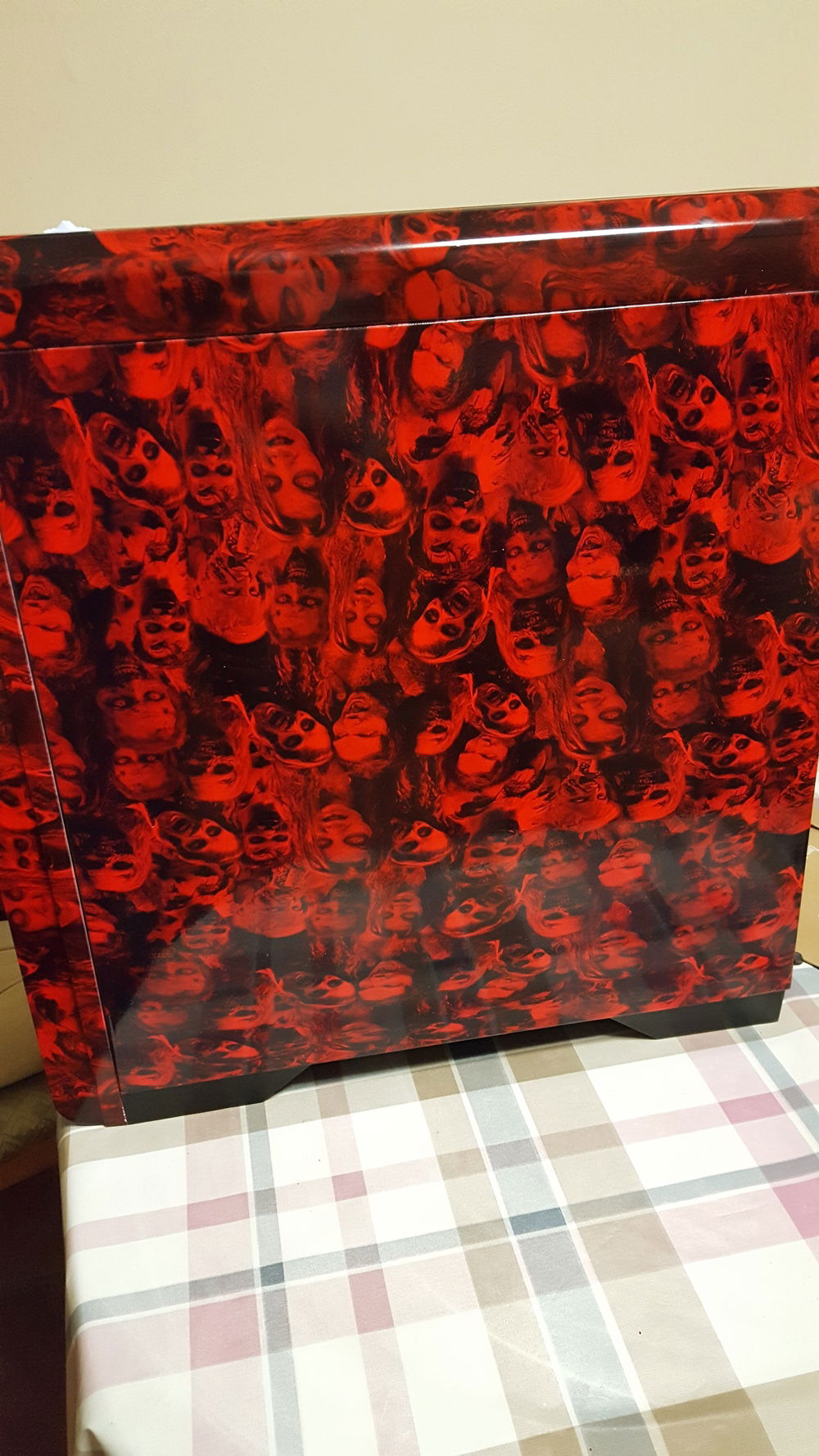

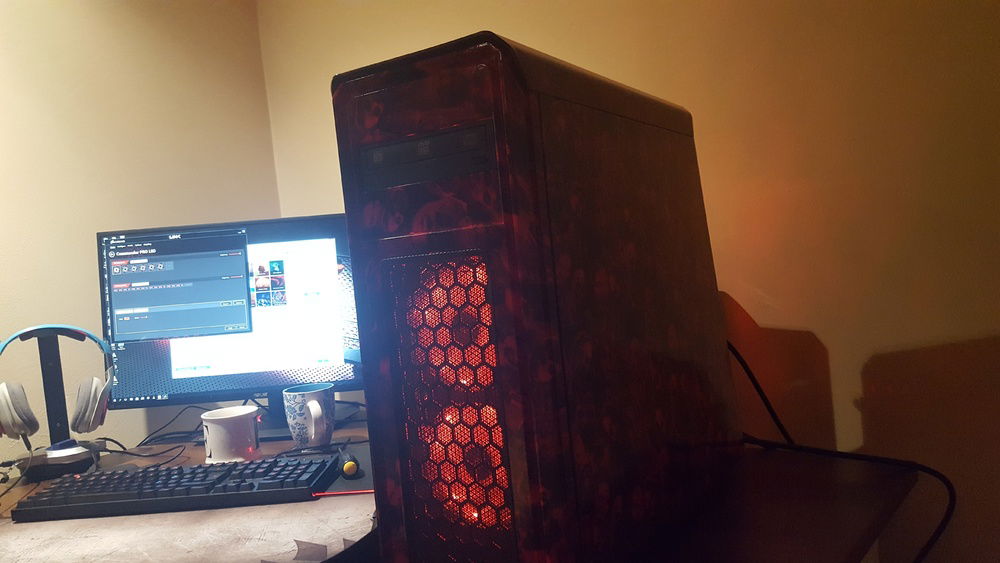

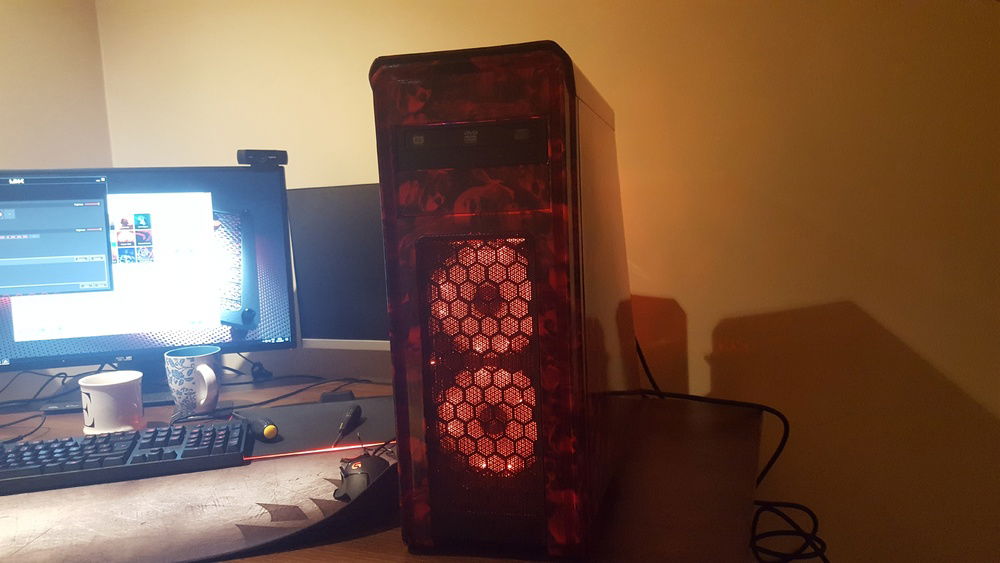

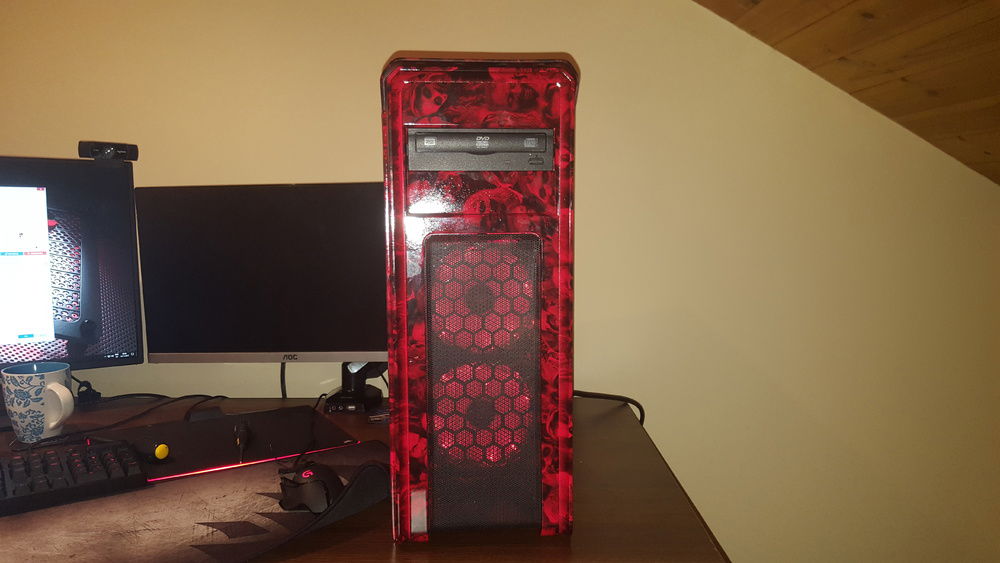

The case has received 2 under coats of deep red. A Hydrodipped 'living dead' print is placed on top of the undercoat. A clear finish coat is also applied.

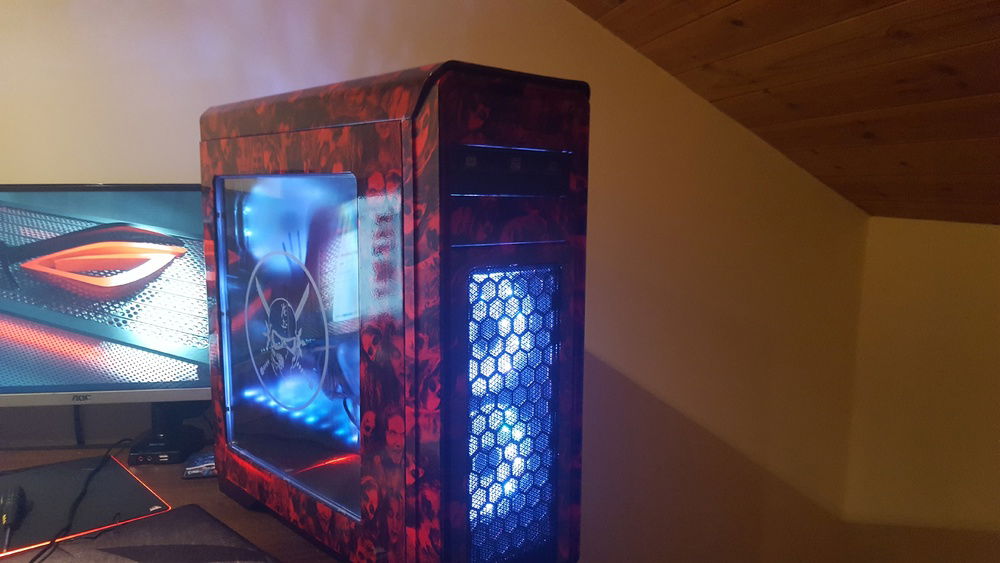

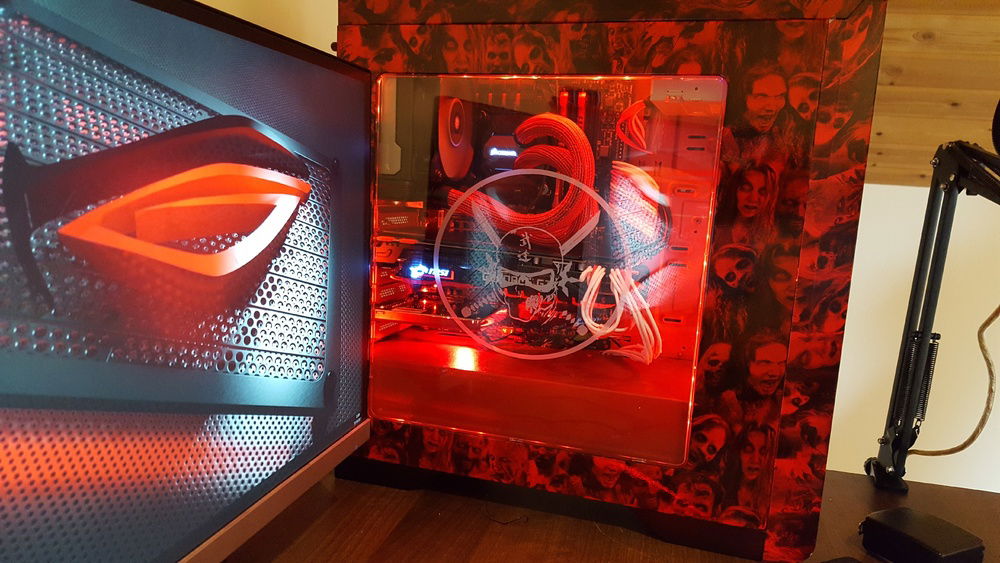

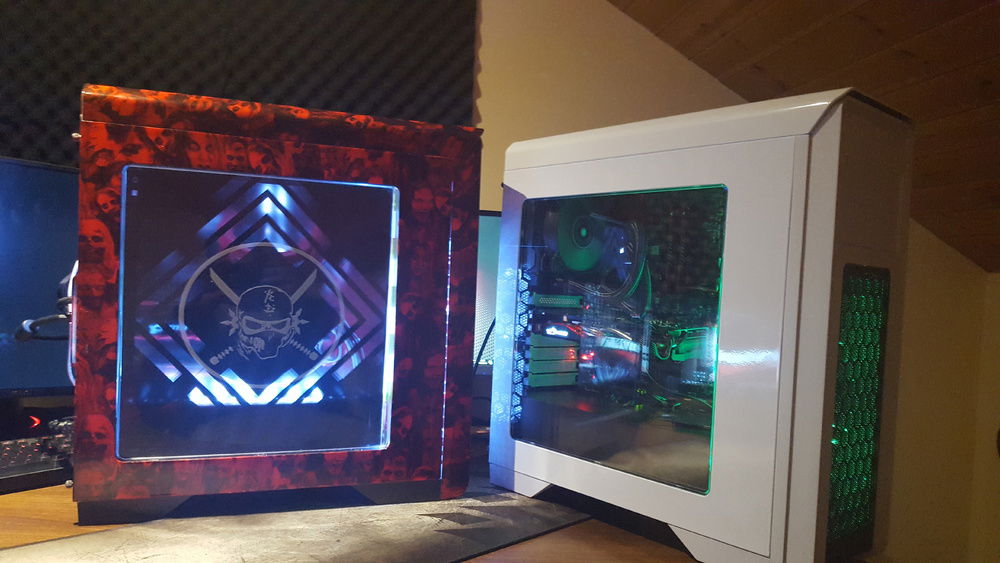

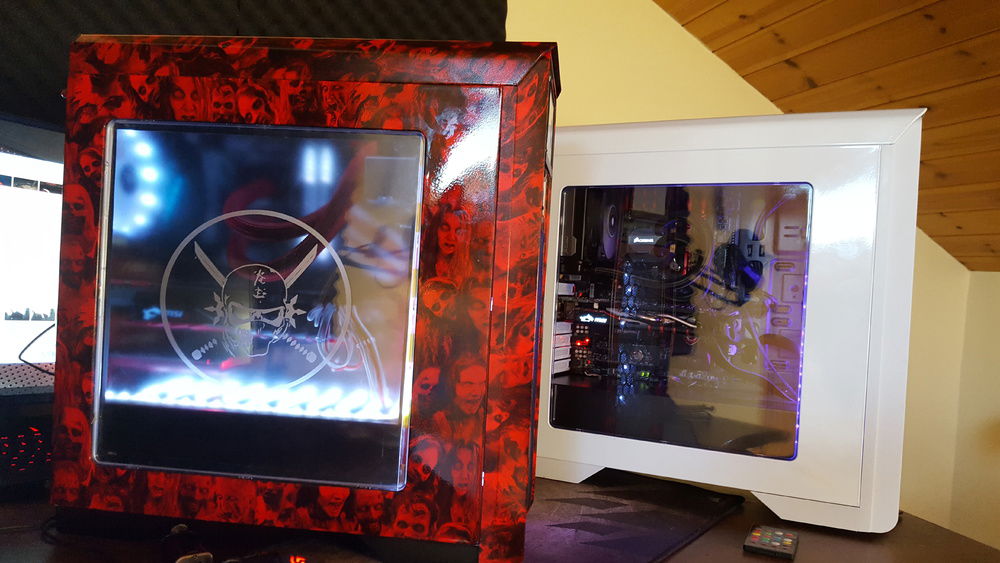

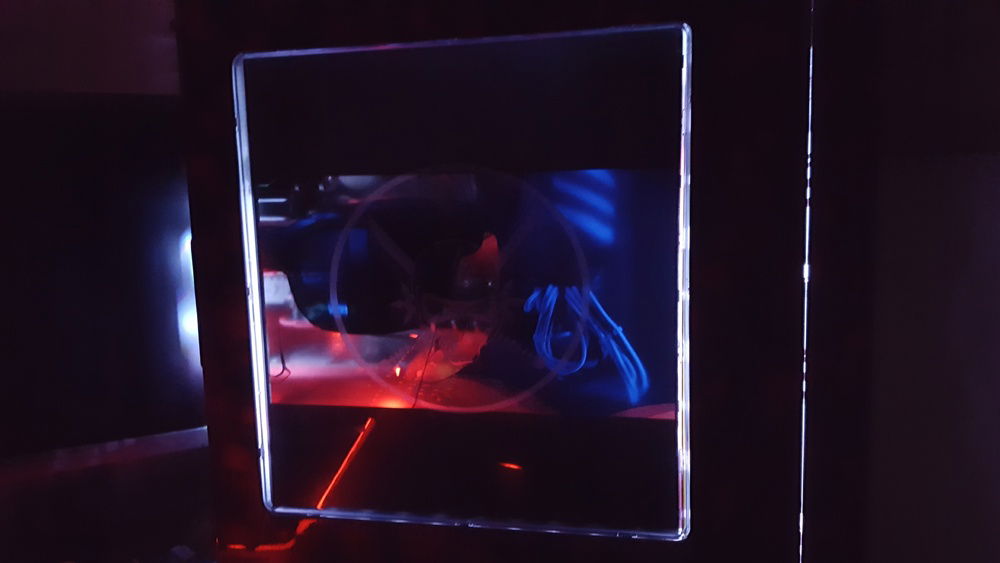

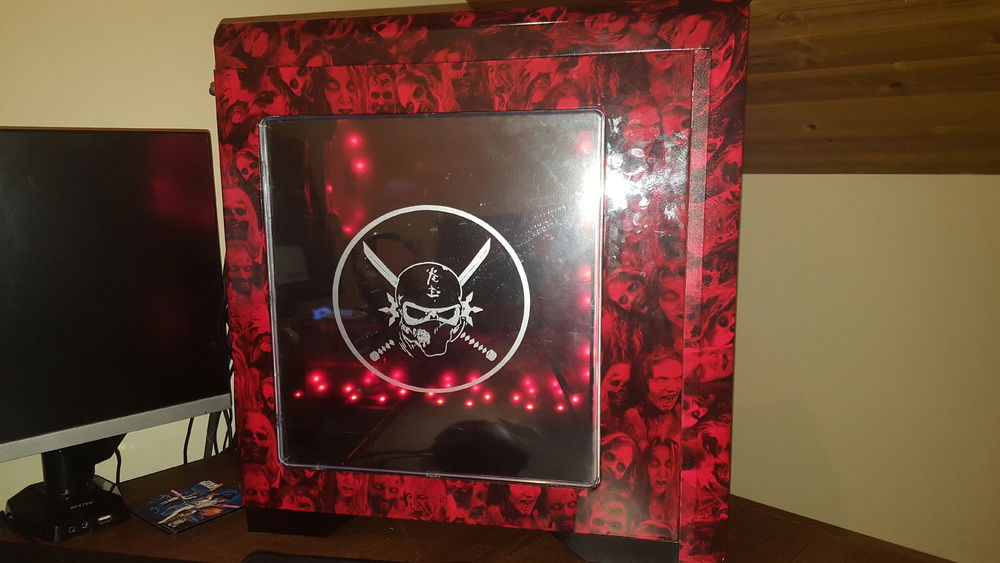

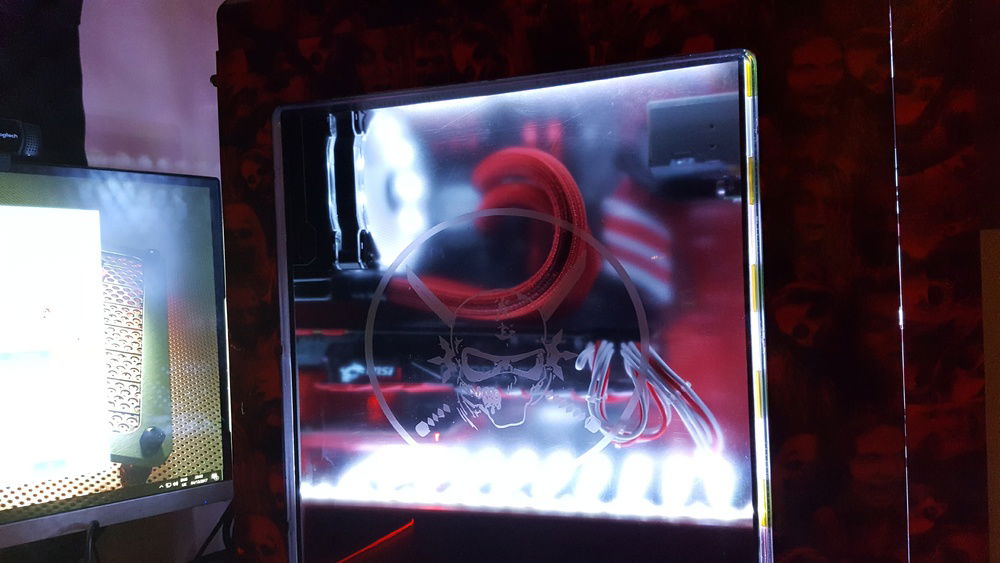

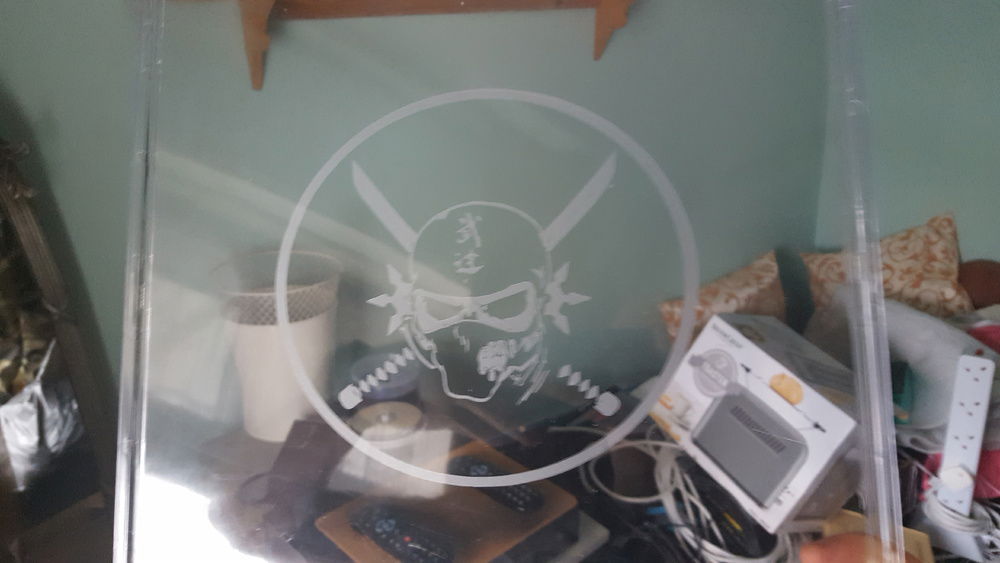

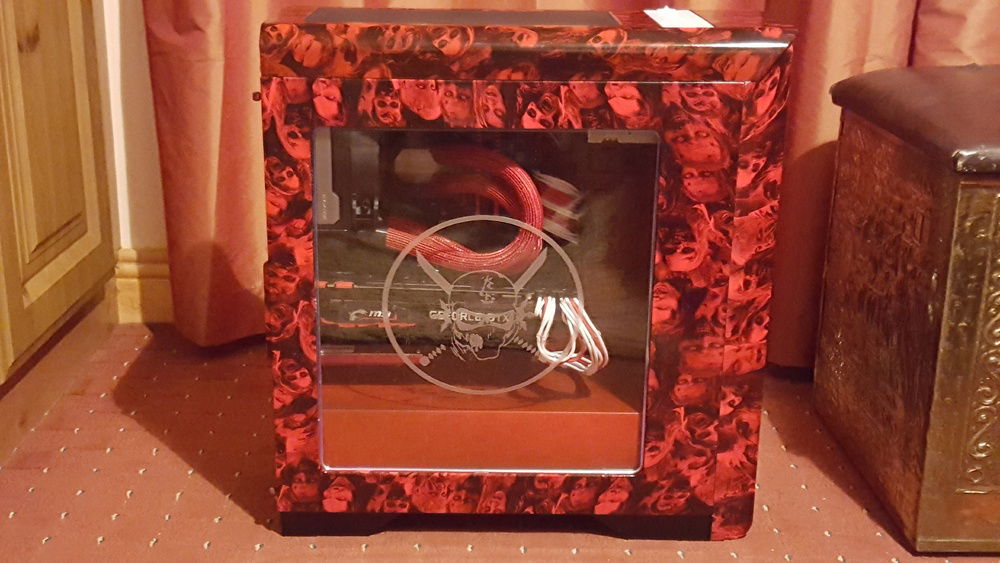

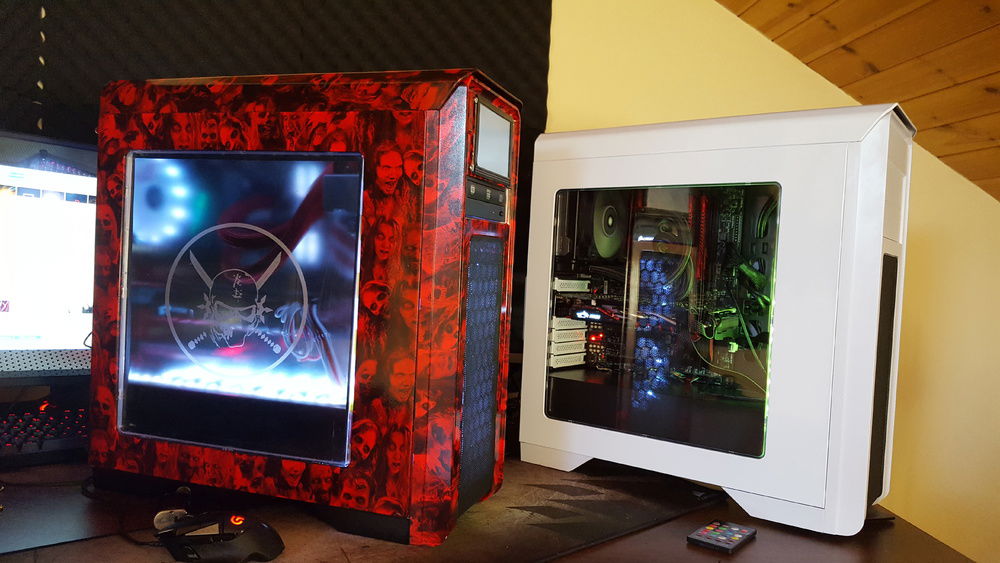

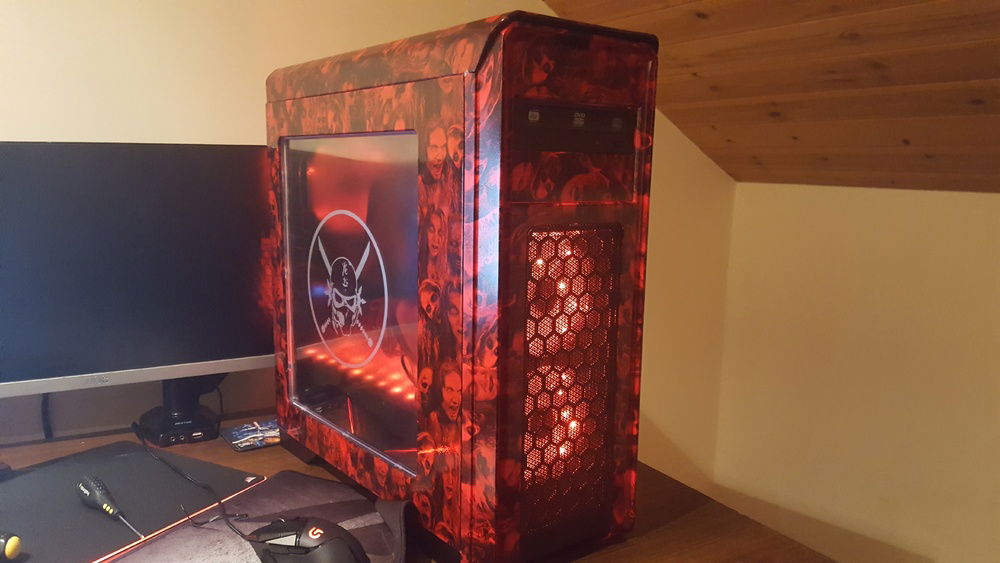

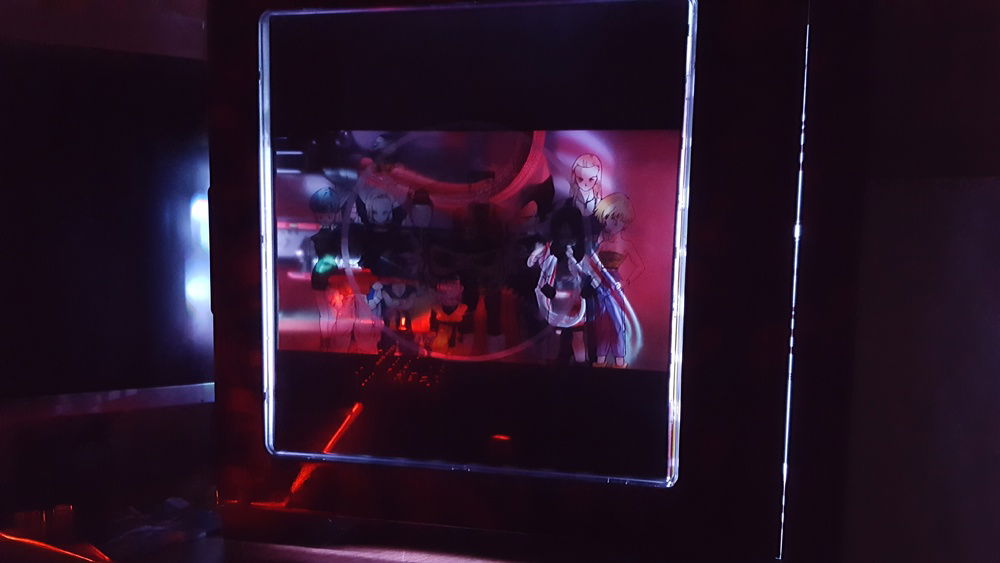

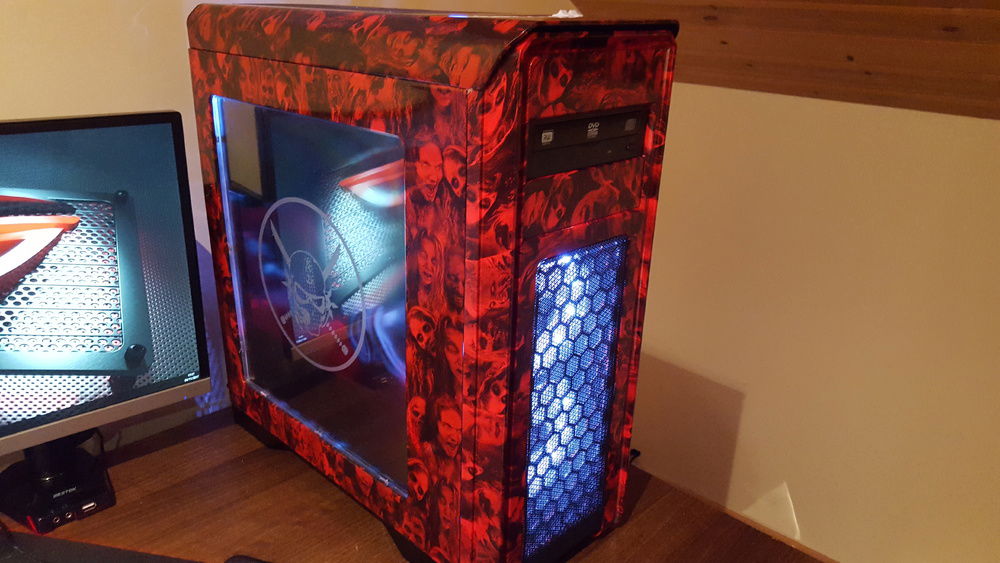

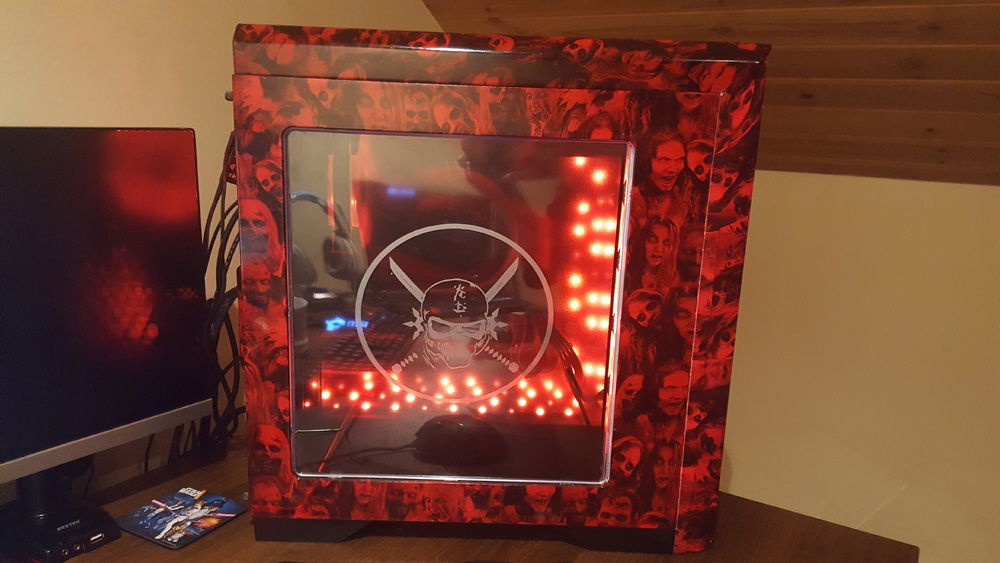

The side panel has my YouTube logo etched into it. The side panel itself has also been customised with a LCD side panel (snowblind mod). I took a old Dell 19 inch monitor. Took out the internals and removed the back panel. Then fitted it in place on my side panel and wired it to be powered by Molex connector.

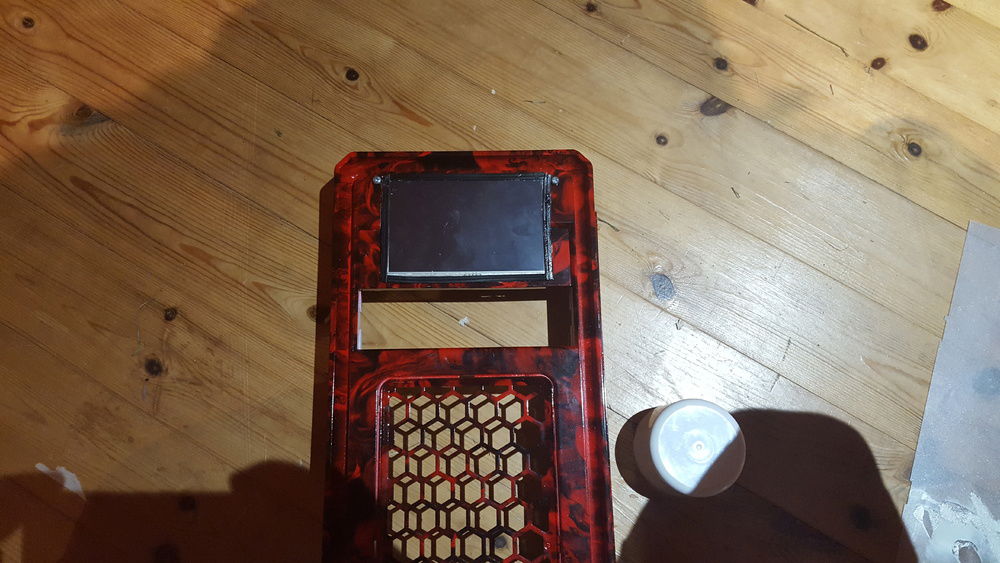

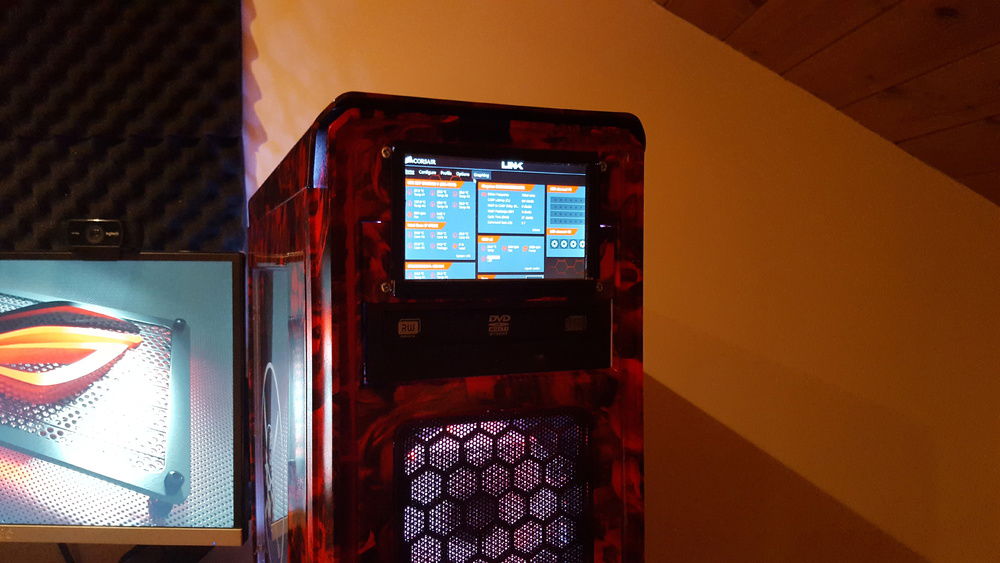

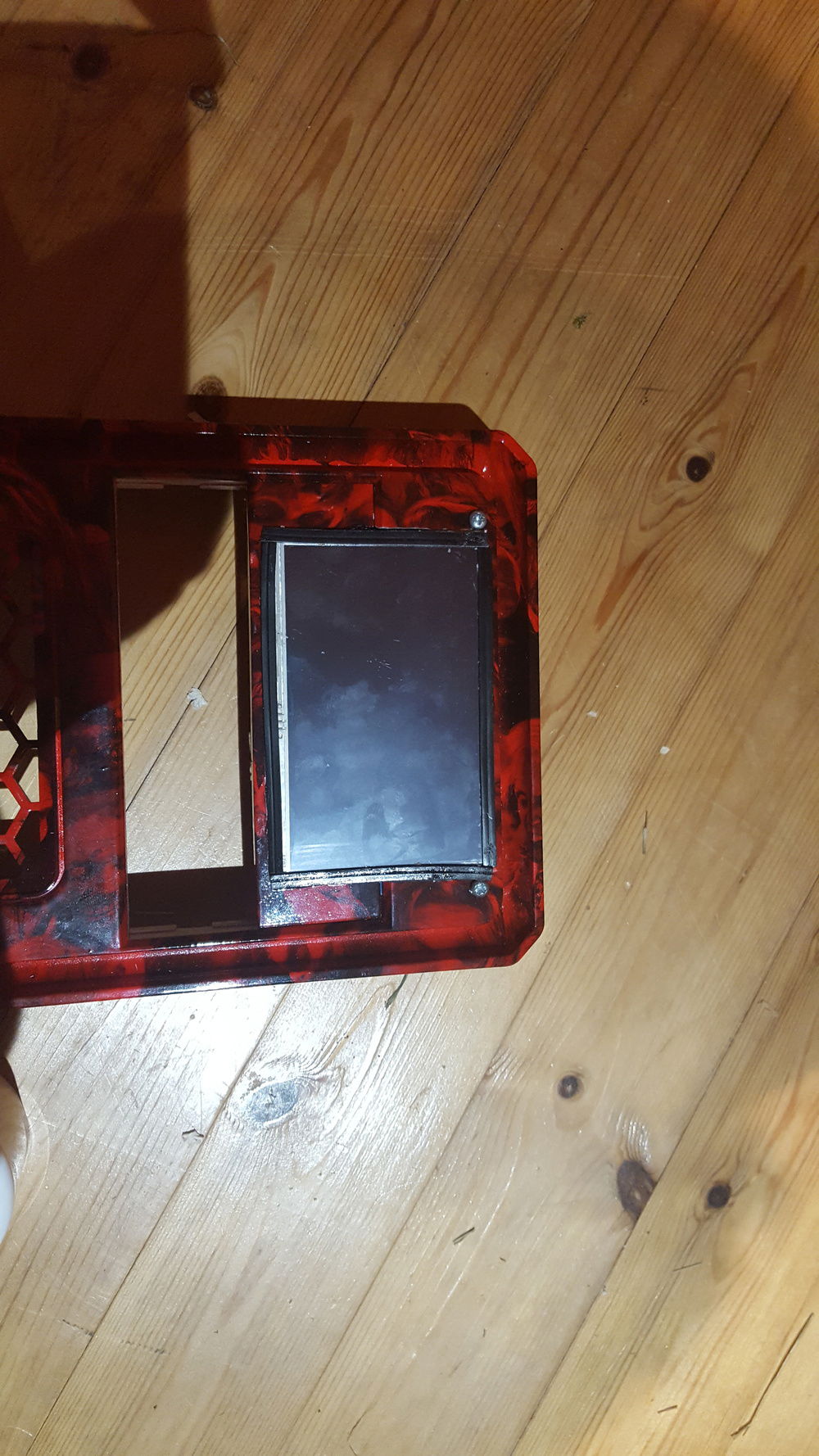

A 5 inch Rasberry Pi touchscreen has been added to the front panel as a temperature and performance display. This is connected to the motherboard HDMI output for display, and USB for touchscreen features. The screen runs Corsair link program to display information and plays the same side panel logo as a screensaver when idle.

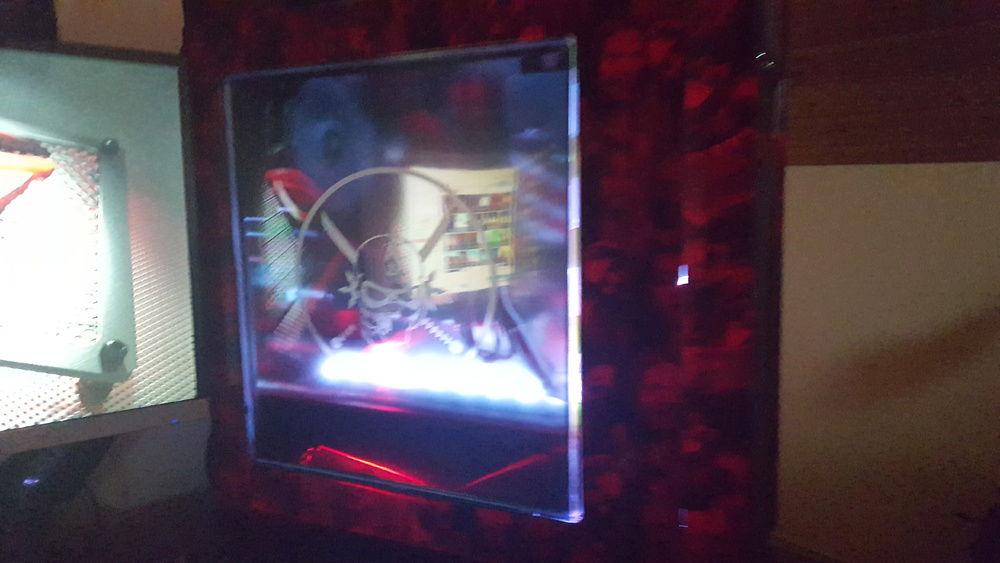

Finally additional 'super bright' white LEDs have been fitted to create a strong backlight for the LCD side panel. They are wired to a Molex connector and are controller by 2 switches on the top of the case which were initially meant for fan control.

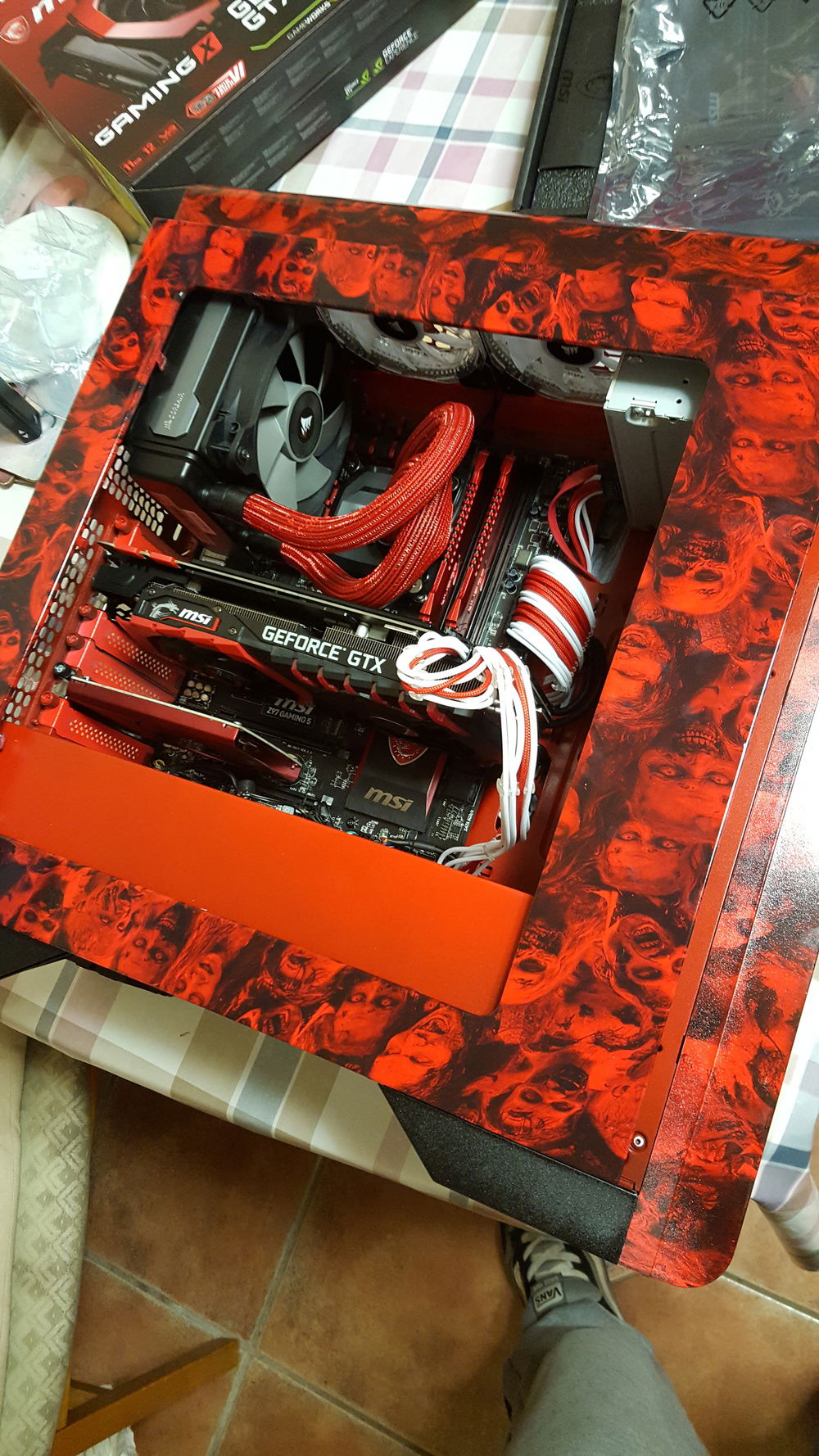

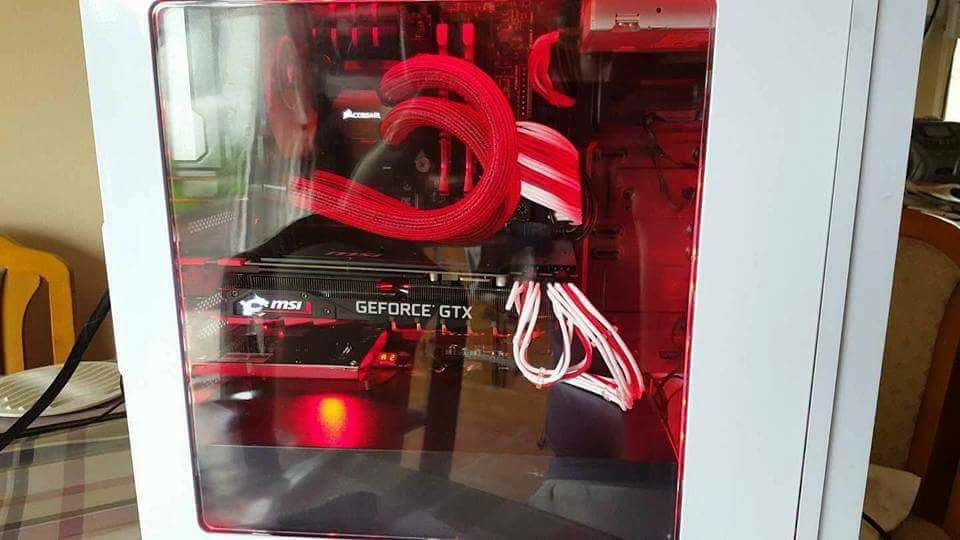

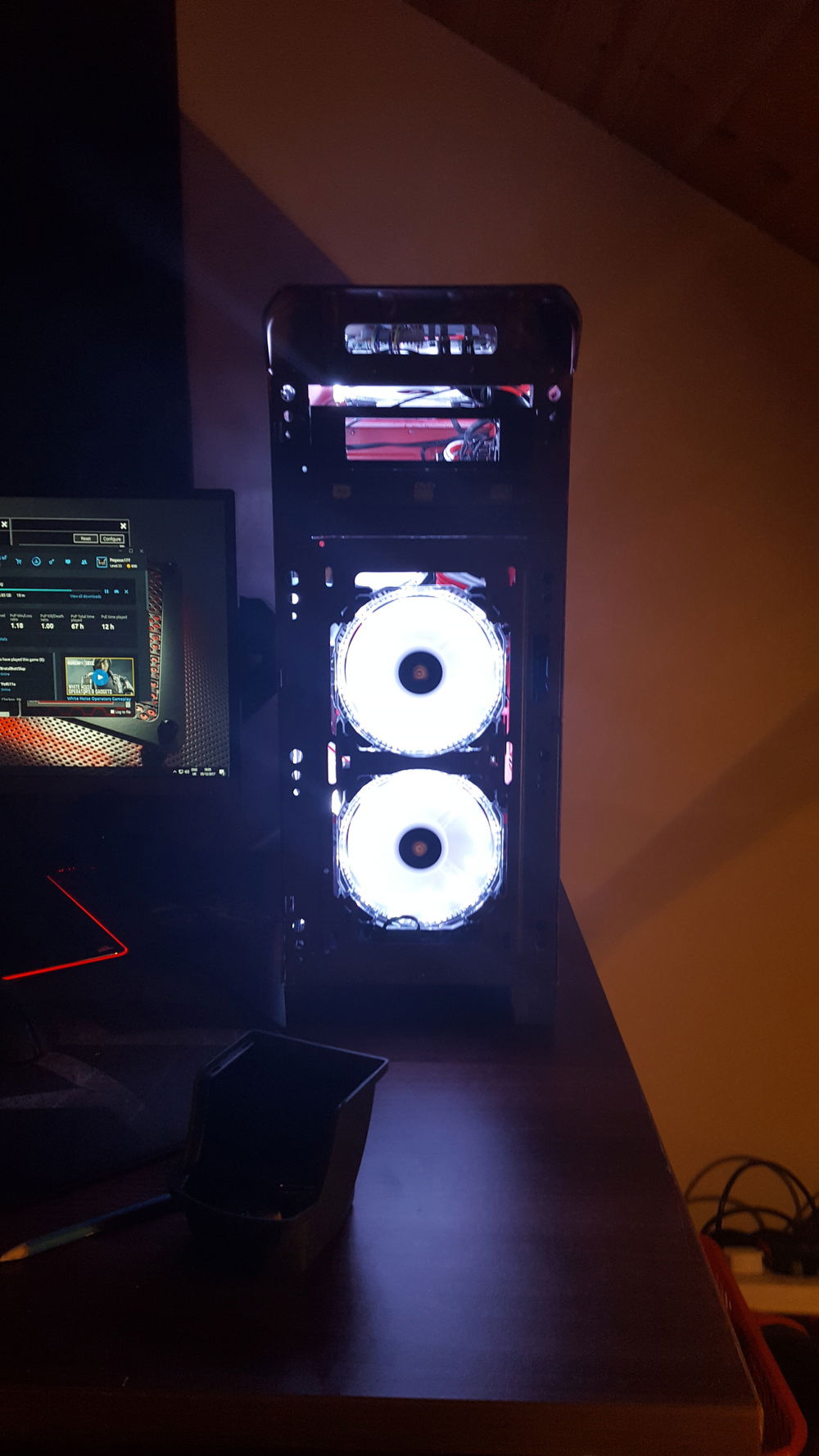

The build is fitted with 6 Corsair HD120 RGB fans ( 2 mounted on radiator, the rest on the case for air flow) and 12 LED strips all controlled by the Corsair Commander Pro and Lighting Node Pro.
Color(s): Black Red
RGB Lighting? Yes
Theme: Event
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 193.00
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 243.80
ASUS - ROG Maximus X Hero (Wi-Fi AC)
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 55.99
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 8 GB
Graphics
$ 297.99
MSI - Gaming X
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 108.50
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 94.98
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 182.60
Seagate - Barracuda Pro (ST2000DM009)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 418.96
Corsair - RM1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
Game Max - Falcon
Type: Mid-Tower
Side Panel: Acrylic
Case Fan
$ 78.00
Cooling
$ 122.00
Corsair - Hydro H100i v2
Type: AIO
CableMod
$ 19.90
CableMod - AIO Sleeving
Color: Red
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModMesh
Color: Red
Accessories
$ 74.29
Accessories
$ 64.99
Monitor
$ 299.98
ASUS - PG278QR
Size: 27 Inch
Panel: TN
Refresh Rate: 165 Hz
Keyboard
$ 134.00
Logitech - G810
Interface: Wired
Key Switch Type: Romer-G
Type: Full Size
Mouse
$ 45.74
Logitech - G502 Proteus Spectrum
Interface: Wired
