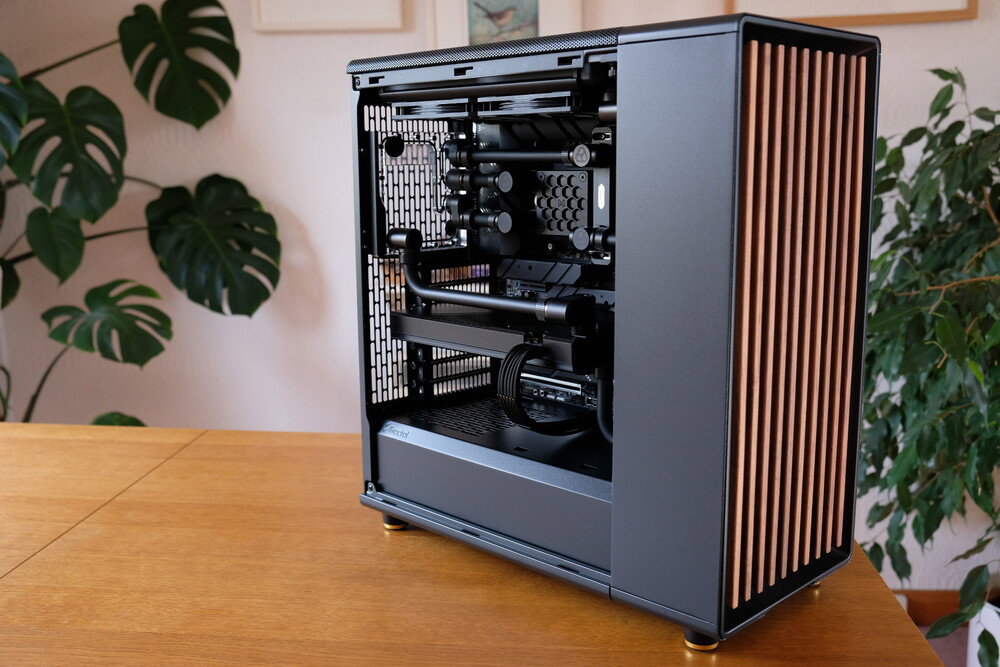

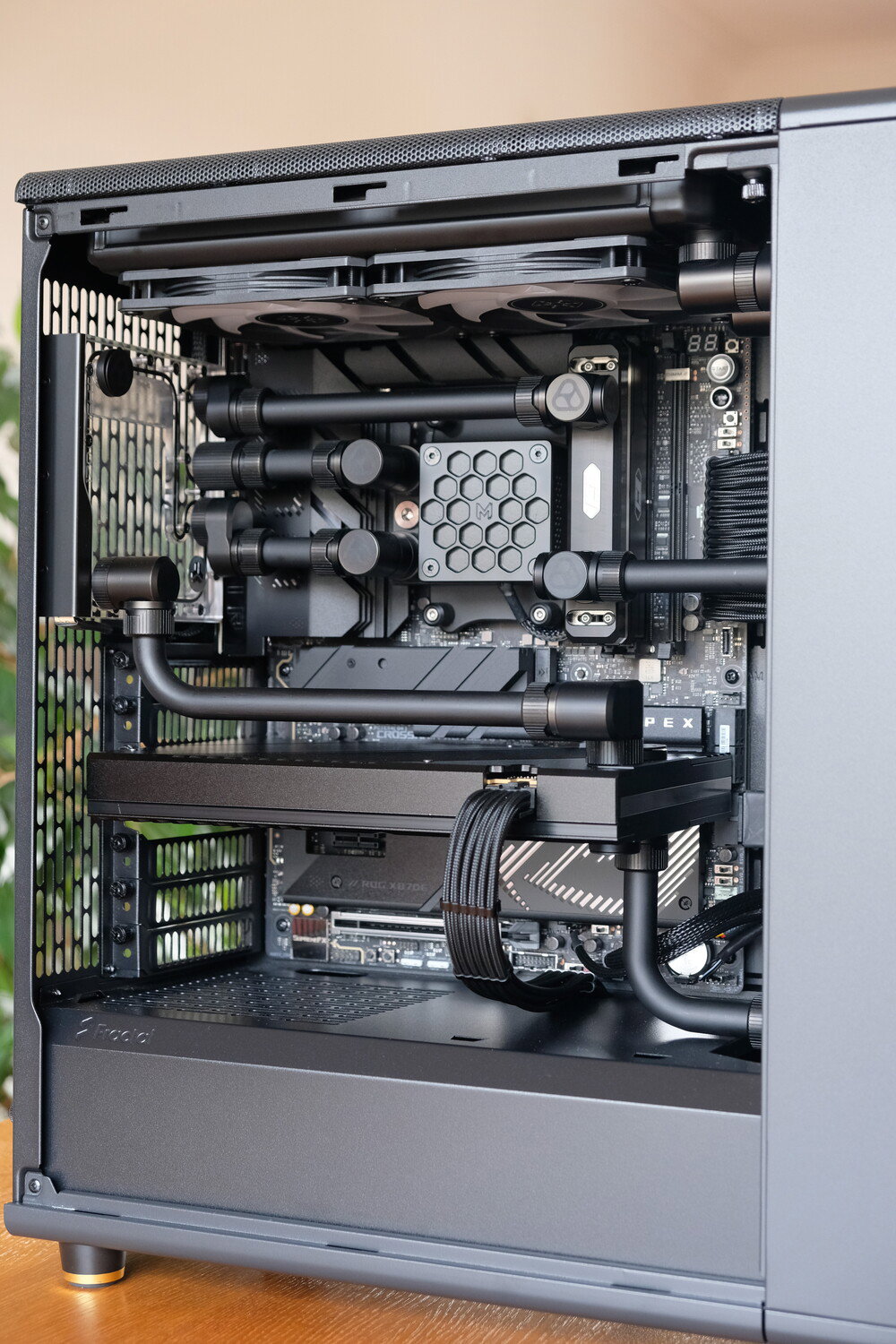

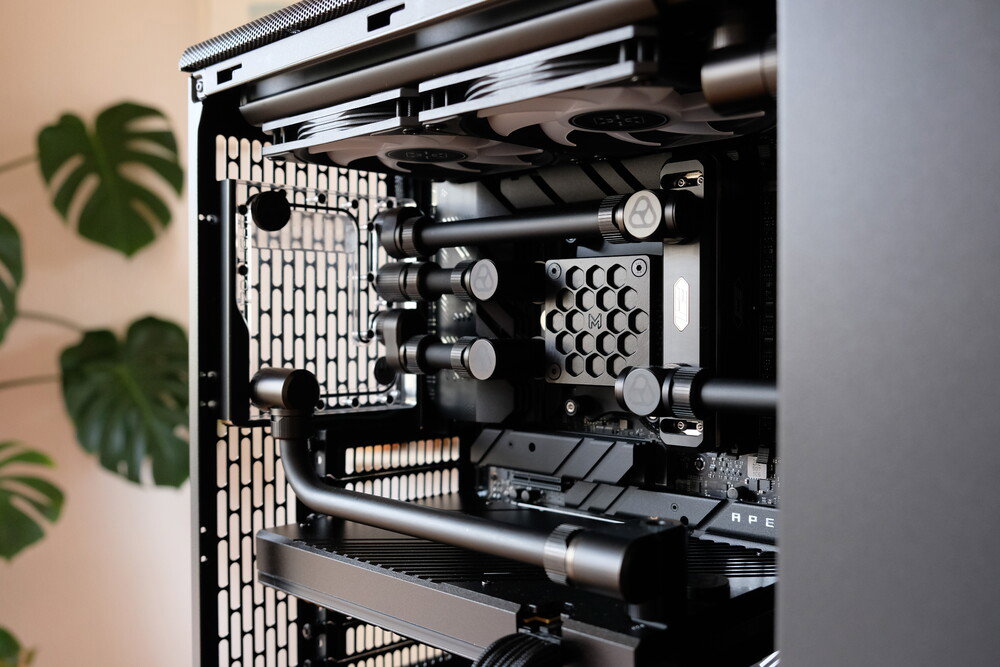

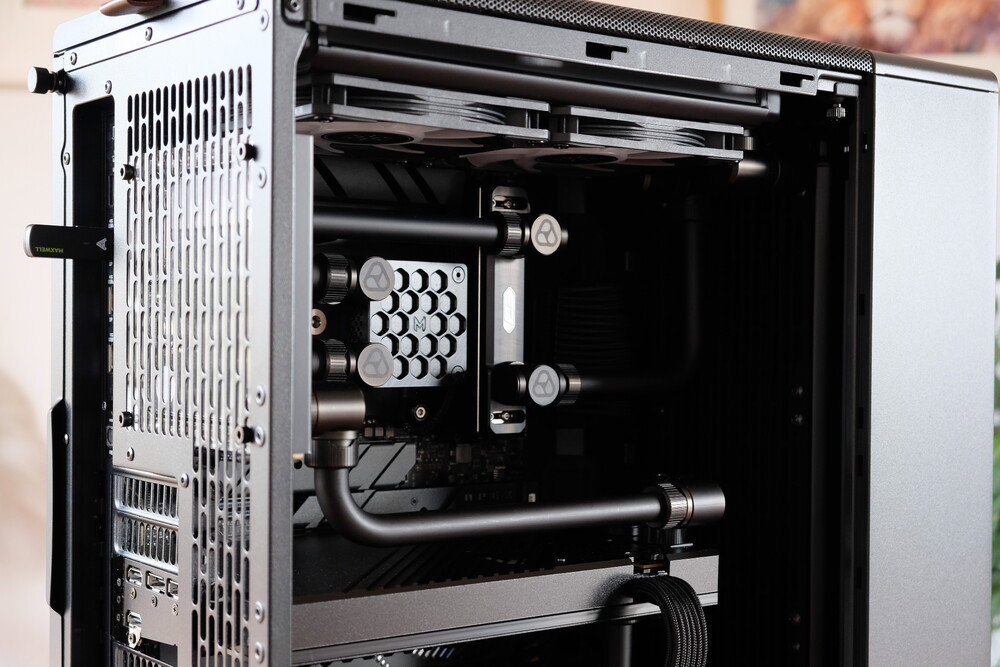

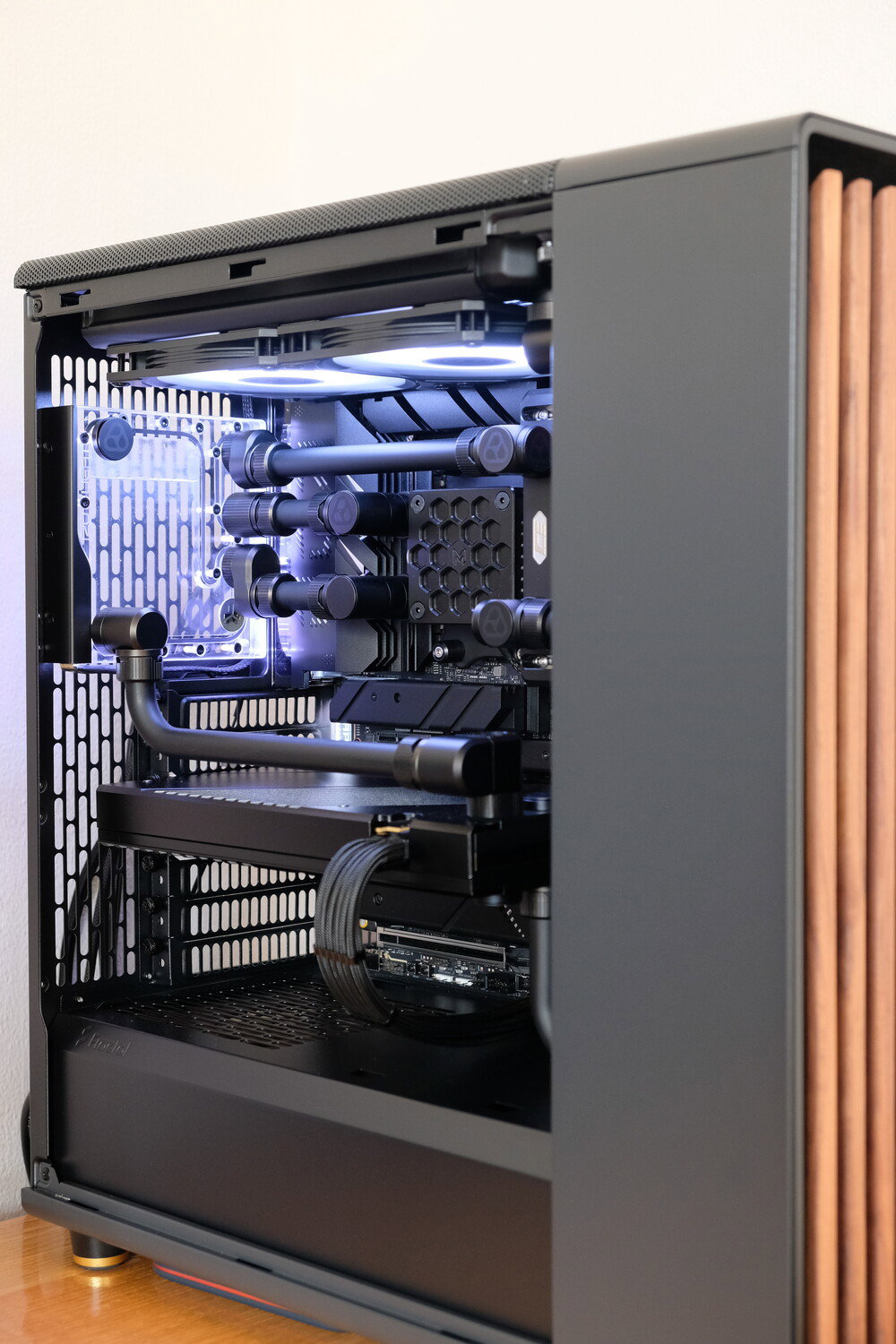

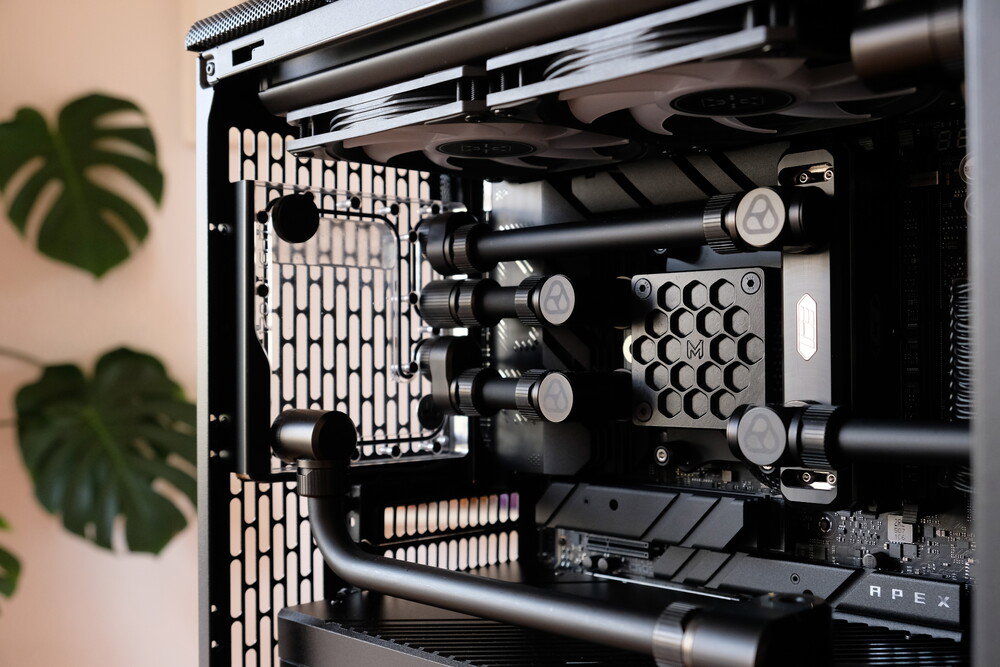

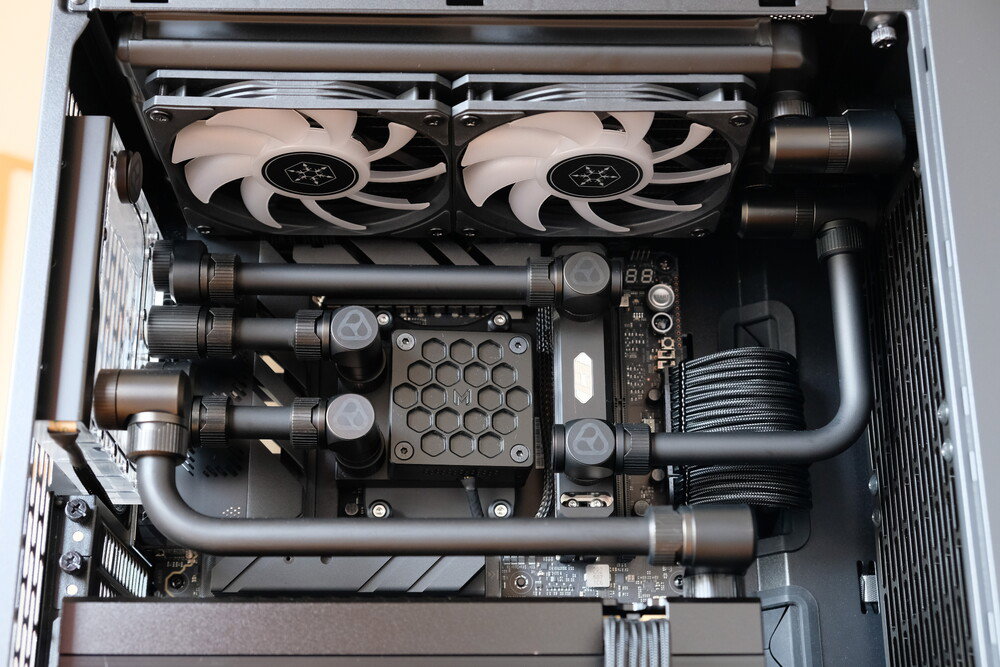

This is the result of 3+ months of effort trying to build a stealthy, black-out syle hardline custom loop build with the fewest bends possible so as to achieve a clean look. I reconfigured it four times and swapped out countless fittings before I finally ended up with a build I was happy with.

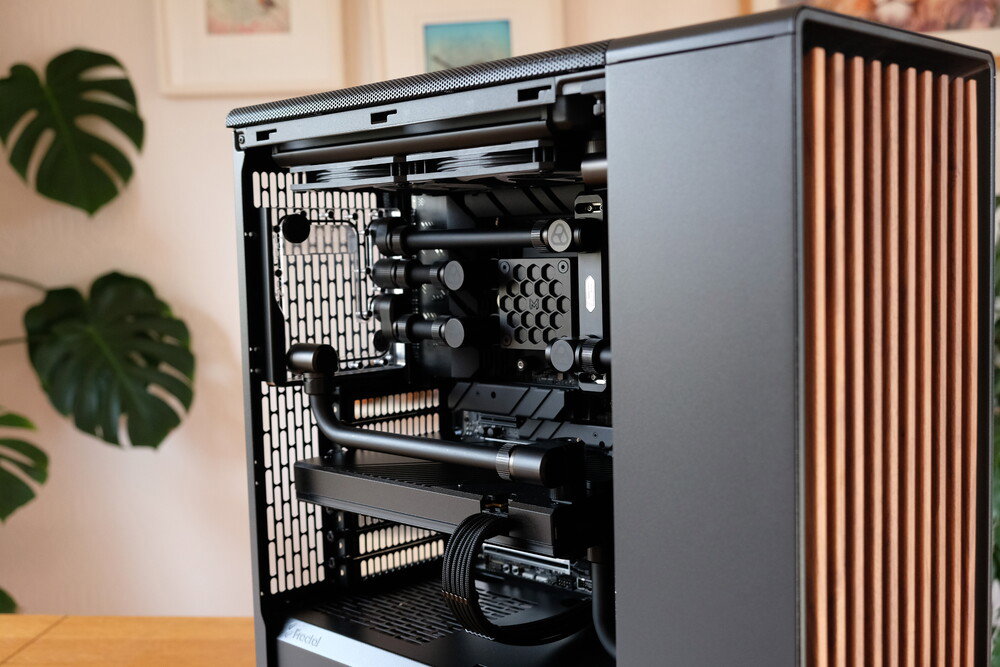

It's my second custom loop build and was so much more tricky than the first due to the Fractal North being a fairly small ATX case but overall I'm really happy with how it turned out.

The full list of watercooling parts is as follows:

• CPU Block: Modultra LOBO

• GPU Block: Granzon RTX 4090 ASUS STRIX / TUF Waterblock

• RAM Block: IcemanCooler Dual Channel RAM Copper Water Block

• RAM Block: IceManCooler DDR5 Aluminum Armor Vest

• Distro: Stealkey 120 Light Distroplate D-RGB

• DDC Pump: Laing Xylem DDC-Pump 12V DDC 4.2 PWM

• Radiator: Black Ice Nemesis GTS 360 XFlow

• Radiator: Black Ice Nemesis GTS 240

• Tubing: Corsair Hydro X Series XT Hardline 14mm Tubing

• Temperature Sensor: Alphacool Eiszapfen Temperature Sensor G1/4

• Drain Valve: EK-Quantum Torque Drain Valve

• Fittings: EK-Quantum Torque 6-Pack HTC 14 (x 2)

• Fittings: EK-Quantum Torque HTC-14 (x2)

• Fittings: EK-Quantum Torque Rotary 90° (x5)

• Fittings: EK-Quantum Torque Splitter 3F T (x2)

• Fittings: EK-Quantum Torque Rotary Offset 3

• Fittings: EK-Quantum Torque Rotary Offset 7

• Fittings: EK-Quantum Torque Rotary Offset 14

• Fittings: EK-Quantum Torque Double Rotary Offset 21

• Fittings: EK-Quantum Torque Double Rotary Offset 28

• Fittings: EK-Quantum Torque Extender Static MF 14 (x3)

• Fittings: EK-Quantum Torque Extender Static FF 14

• Fittings: EK-Quantum Torque Extender Static MF 7 (x2)

• Fittings: EK-Quantum Torque Extender Static MM 7 (x4)

• Fittings: Thermal Grizzly DeltaMate Rotary - 90° (x2)

• Fittings: Thermal Grizzly DeltaMate Rotary - T (x2)

• Fittings: Thermal Grizzly DeltaMate Extender - MF10 (x2)

• Fittings: Thermal Grizzly DeltaMate Extender - MF7 (x2)

• Fittings: Thermal Grizzly DeltaMate Plug (x5)

• Fittings: EK Water Blocks EK-Plug
