Annihilation

My custom workstation that I use everyday.

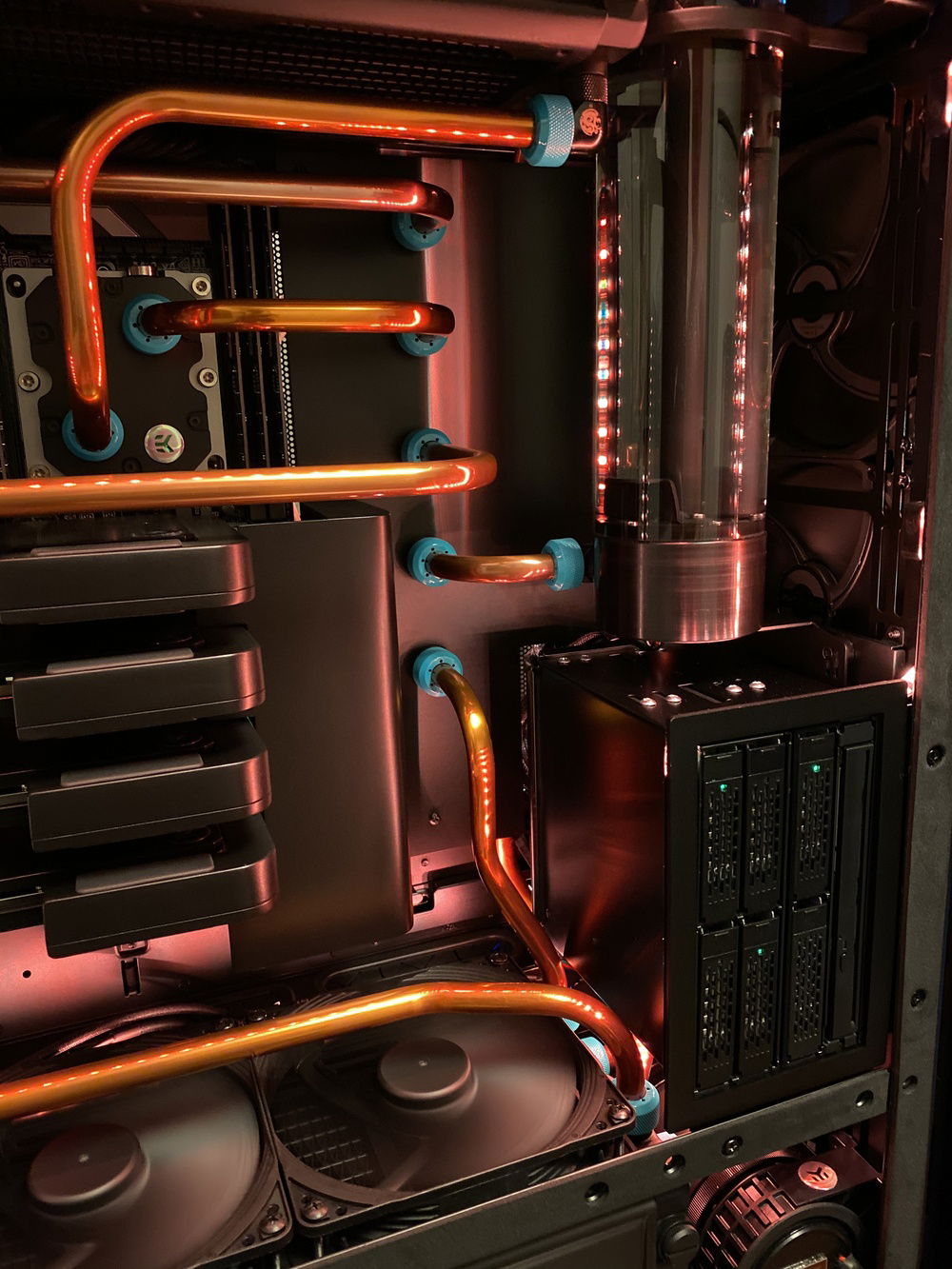

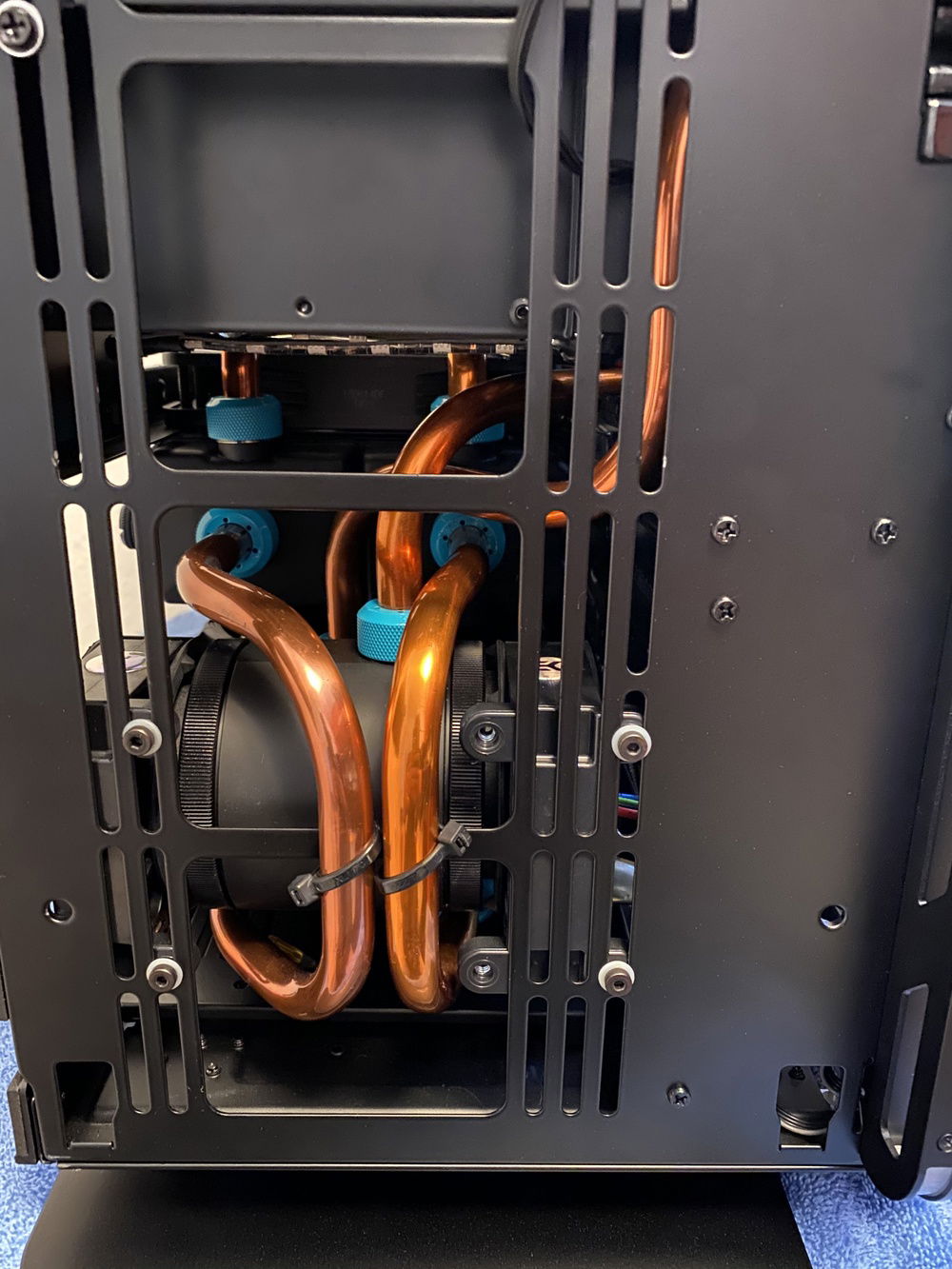

Many of the parts had to be modified in order to work, some were made completely from scratch when needed. All the tubing is real polished heat treated copper that has been hand bent and painted with automotive clear tinted with various pearls for added luminescence.

Problems when building were numerous and time consuming but worth it in the end. I hope everyone can appreciate the hardware I packed into this thing. Enjoy!

Main Features.
- Dual Processors
- Dual Boot Ubuntu (Main) and Windows 10
- 56 Cores with Mild Overclock (112 Threads Total)
- Hot Swap hard drive trays
- Almost 20 TB storage between all drives
- Custom polished heat treated copper tubing with pearl tinted clear
- Aquacomputer water management
- Visually wireless components
- Quad RTX2080ti
- Custom teal paint on fittings

NOTE: I cant choose most of the hardware I have below, I chose best I could so the build would be published. Please see the following hardware for specifics:

CPU: Intel Xeon P-8136 (x2) (BIOS patched with micro code to work)
Memory: 384GB DDR4 (32gb x 12, 6 Channel 2666)
Motherboard: Asus Sage C621E Workstation
Storage: Intel Optane 905 500gb (x2), Intel 750 1.2tb, WD 14tb HC530, Samsung 850 PRO 2tb, Samsung EVO 1tb
GPU: Nvidia RTX2080ti (x4)
Case: Modified Phanteks Enthoo Elite
PSU: Corsair AX1600 Titanium
Fans: Noctua (x12)
Cables: Cablemod, EVGA Power Link
Radiators: Hardware Labs 420mm SR2 (x3)

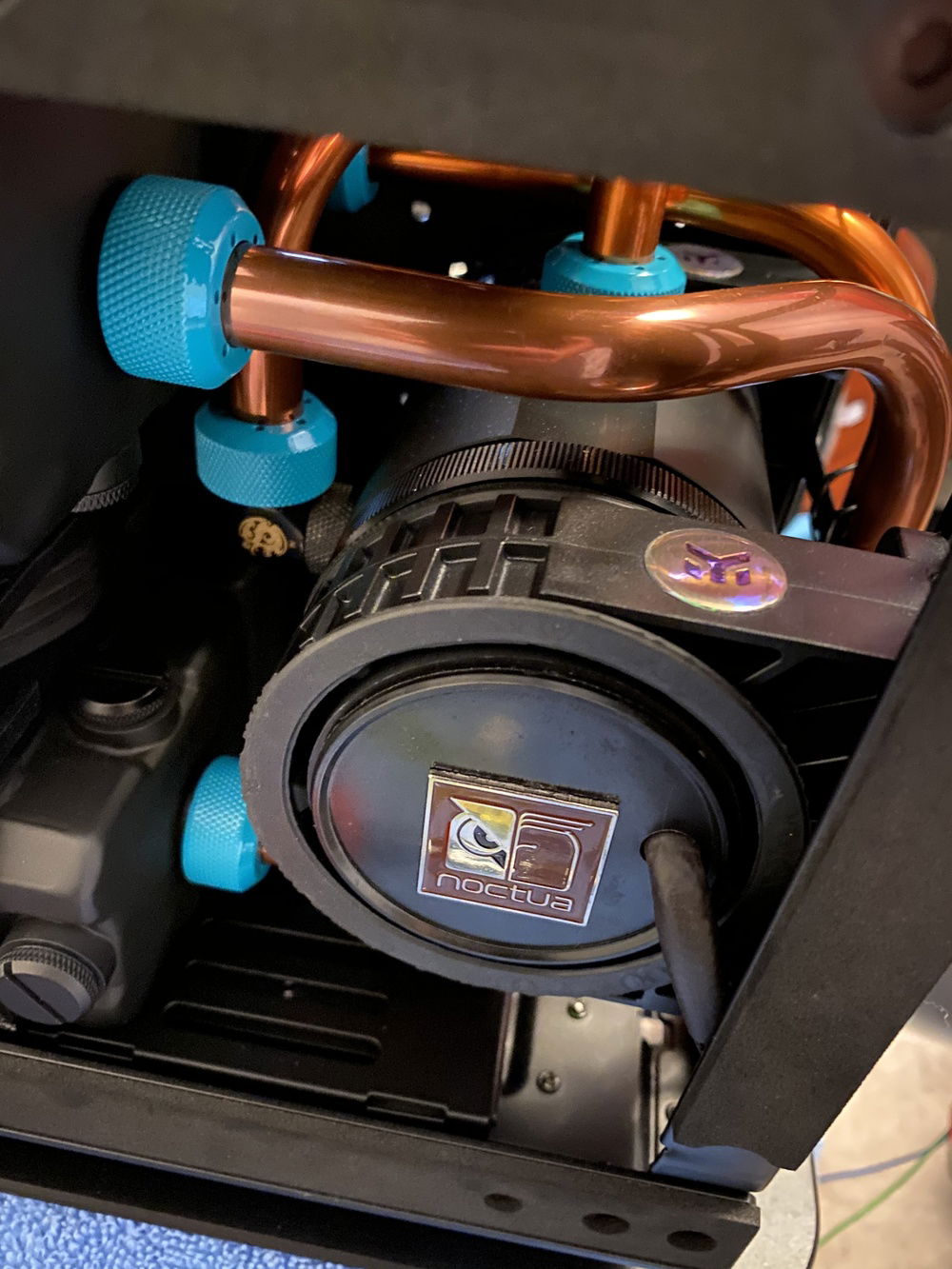

Water Pump: EK D5 (x2)
Water Blocks: EK
Tubing: Copper and Rubber
Fittings: PrimoChill + Bitspower
Coolant: H2O + Mayhems Biocide and Corrosion Inhibitor
Drive Trays: Icy Dock Backpanes (x2)
Disk Drive: Slim DVD-RW Blue Ray Combo
Water Management: Aquacomputer reservoir, fill sensors, temp sensors, flow sensors, rgb controller, fan splitter, usb splitter
Color(s): Black Blue Copper Green
RGB Lighting? Yes
Theme: Art
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 2 contests.

Build Updates

10gb SPF+ and Fiber

Hardware

CPU
$ 1,403.94
Intel - Xeon Platinum 8168 (2x)
Socket: LGA 3647
Cores: 24
Motherboard
$ 639.35
ASUS - WS C621E SAGE
Chipset: C621
CPU Socket: LGA 2066
Size: EEB
Memory
Samsung - M471A4G43MB1 (12x)
Type: DDR4
Capacity: 32 GB
Graphics
$ 4,876.00
NVIDIA - Founders Edition (4x)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 2,388.88
Intel - 750 Series
Form Factor: PCIe x4
Interface: PCIe x4
Capacity: 1.2 TB
Storage
$ 1,259.42
Intel - Optane 905P (2x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 480 GB
Storage
$ 235.00
Western Digital - Ultrastar
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 14 TB
PSU
$ 729.00
Corsair - AX1600i
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 899.99
Phanteks - Enthoo Elite
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 287.40
Noctua - NF-A14 PWM (12x)
Size: 140 mm
Cooling
EKWB - CPU Blocks (discontinued) (2x)
Type: Custom Loop
CableMod
CableMod - PRO C-Series RMi & RMx Cable Kit
Mode: Custom
Sleeve: ModMesh
Monitor
$ 1,299.96
ASUS - PA329Q (2x)
Size: 32 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 200.00
Corsair - K95 (RGB)
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Mouse
$ 79.99
Logitech - G502 Lightspeed Wireless
Interface: Wireless
