2019 Purple Water

  1. Home
  2. /
  3. Builds
  4. /
  5. Build
Leo
  • Early Member
Member since
Build Views
118
Build Approvals
8
Fistbumps
1
Followers
1
Posts
1
The whole thing.
The whole thing.

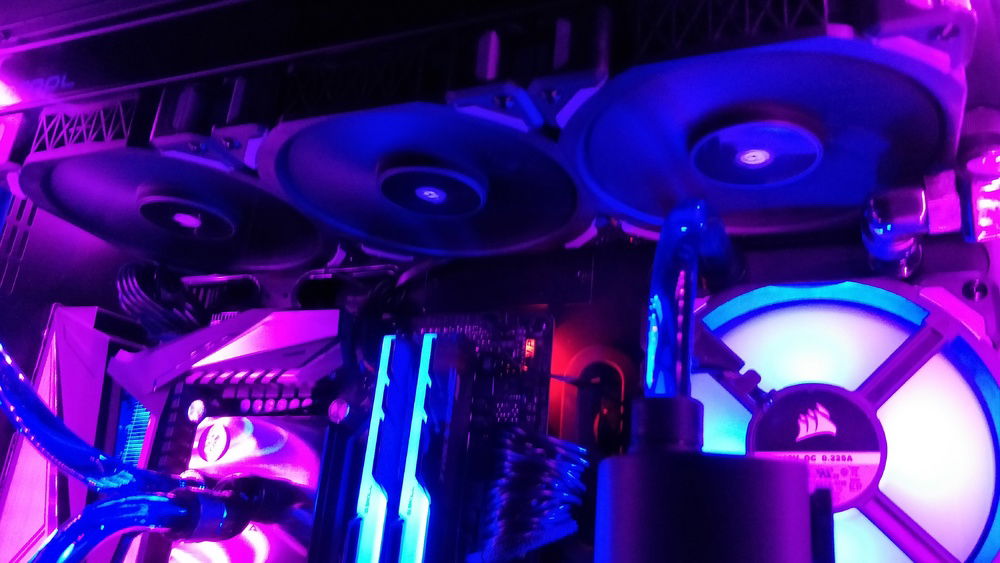

Zoomed in a bit. Corsair fan stickers are always put on wobbly, so their intakes must never be visible, always with their backs to us in shame.
Zoomed in a bit. Corsair fan stickers are always put on wobbly, so their intakes must never be visible, always with their backs to us in shame.

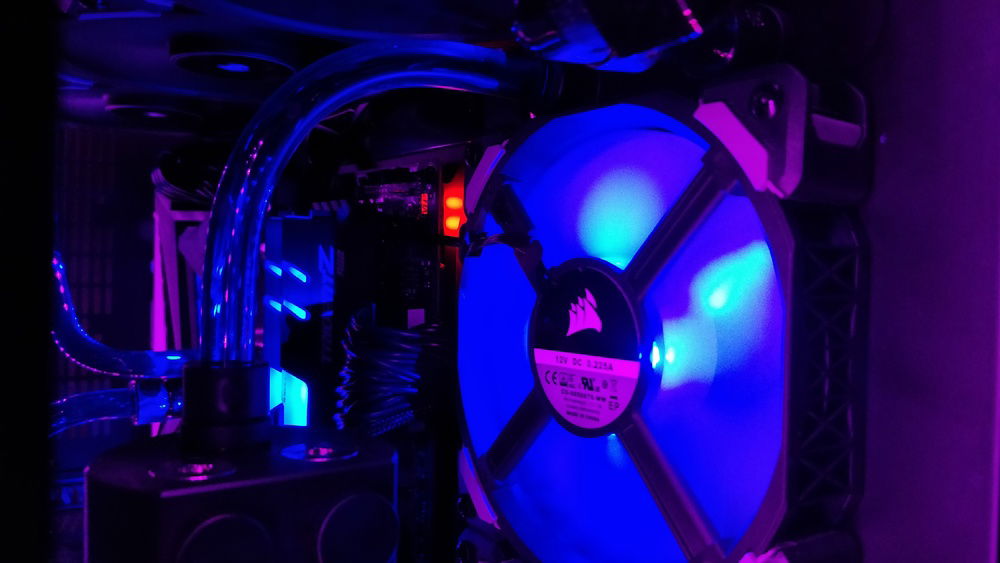

Tube into res.
Tube into res.

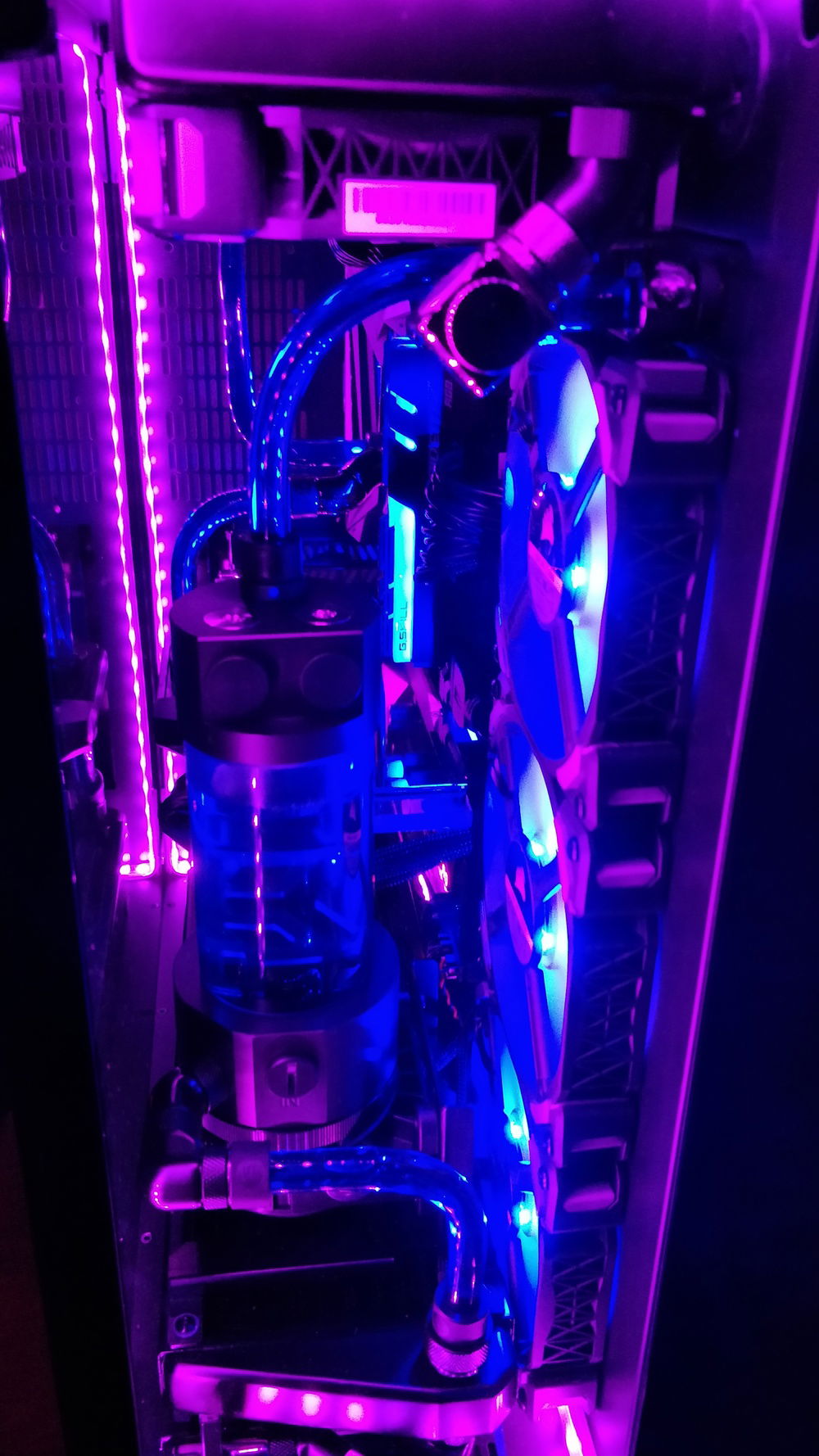

Front.
Front.

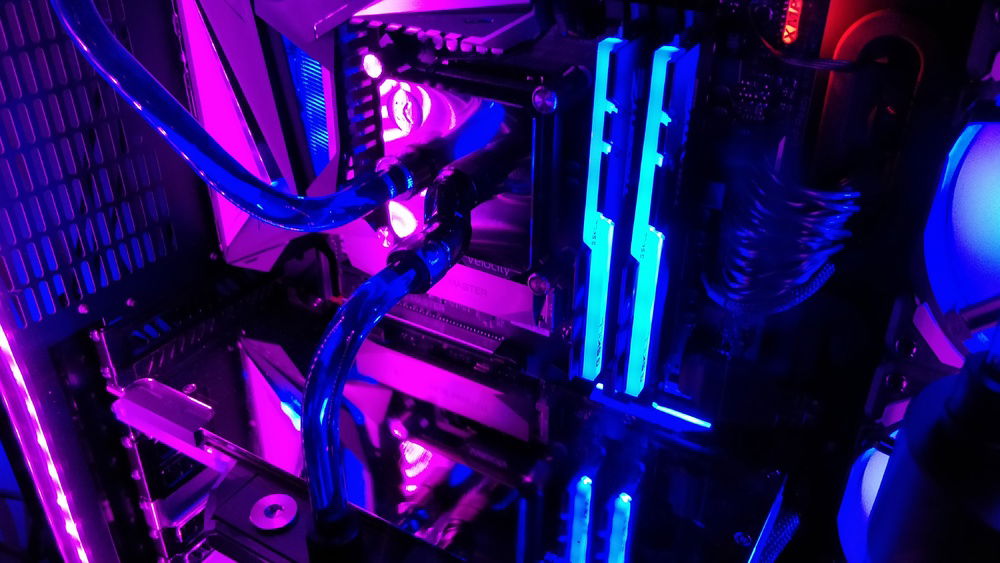

CPU/GPU/RAM
CPU/GPU/RAM

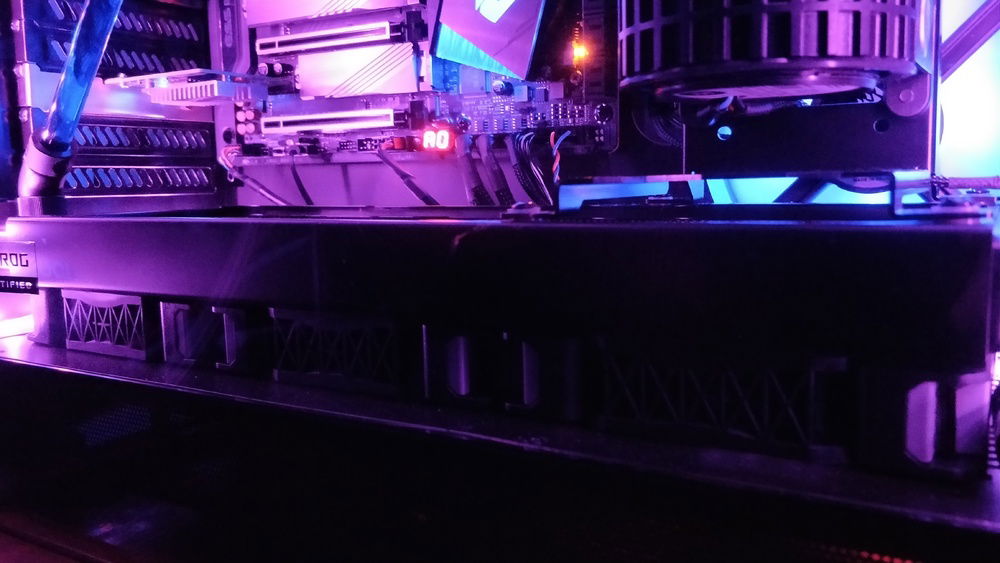

The Gigabyte logo I never see under my GPU.
The Gigabyte logo I never see under my GPU.
After initial test/drain with old fluid. EKWB Velocity block, flipped over. Destroyed the original EK logo in the process. Replacement does not let the RGB behind it shine through. Oh well.
After initial test/drain with old fluid. EKWB Velocity block, flipped over. Destroyed the original EK logo in the process. Replacement does not let the RGB behind it shine through. Oh well.

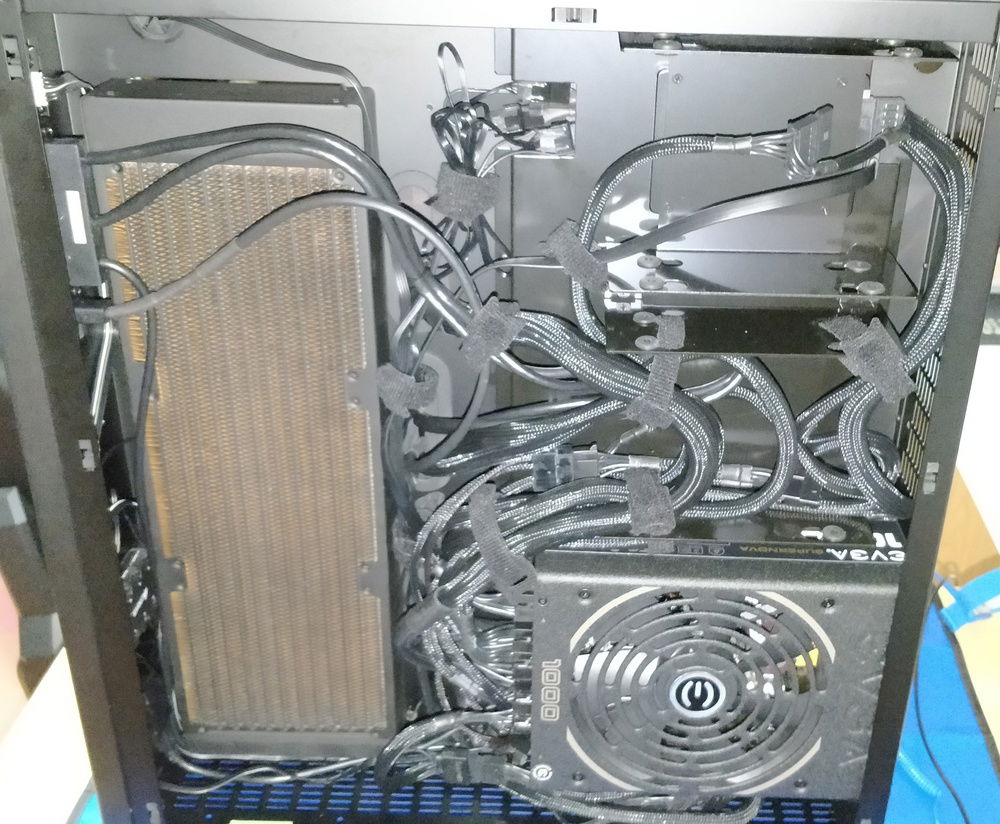

Cable management around the back. I refuse to pay as much for custom-length cables as the PSU+cables cost in the first place. Unused HDD bay makes a good place to tie down extra length.
Cable management around the back. I refuse to pay as much for custom-length cables as the PSU+cables cost in the first place. Unused HDD bay makes a good place to tie down extra length.

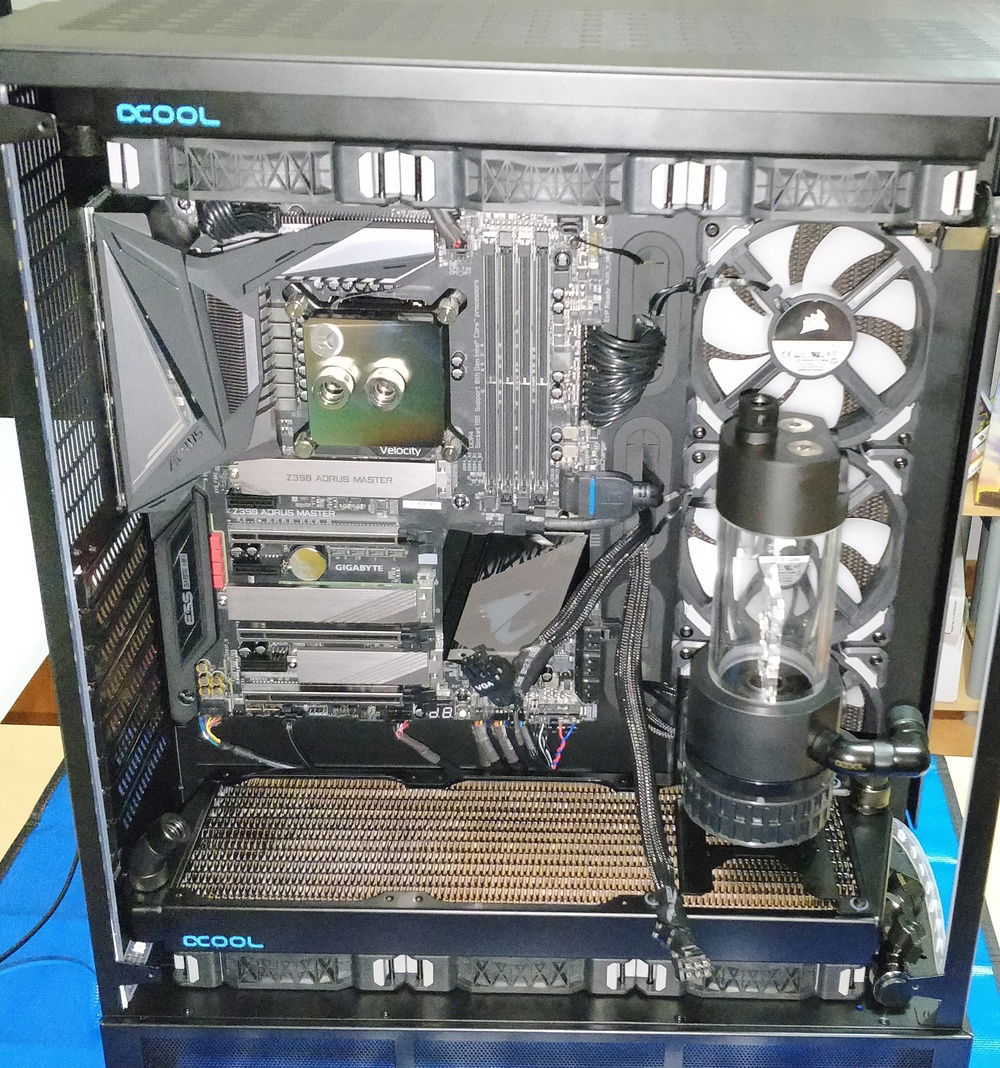

Before tubes.
Before tubes.
M.2 drives before being covered and hidden forever.
M.2 drives before being covered and hidden forever.
Tight bend. Fittings. Whatever.
Tight bend. Fittings. Whatever.

2019 Purple Water

i9-9900K, 1080ti. 32GB 3200-CL14, 3 x slim 360 rads, 9 x ML120 Fans, EK and AlphaCool water bits, 500MB NVMe, 2TB + 500MB SATA SSDs (had to select 1TB as no 2TB M.2 option in the list). EVGA P2 PSU (1000W, overkill, but 850W wasn't in stock anywhere except for the same price).
Color(s): Black Blue Purple
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 449.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 309.99
Gigabyte - Aorus Master
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 338.68
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 398.00
EVGA - SC2
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 274.00
Samsung - 860 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 149.99
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 209.90
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 288.02
EVGA - SuperNOVA P2
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 414.17
Lian Li - PC-O11WGX
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 63.00
Corsair - ML120 PRO 120mm PWM Premium Magnetic Levitation
Size: 120 mm
Case Fan
$ 46.78
Corsair - ML120 PRO RGB LED 120MM PWM Premium Magnetic Levitation
Size: 120 mm
Cooling
$ 89.99
Alphacool - NexXxoS ST30 Full Copper X-Flow
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
EKWB - EK-FC1080 GTX - Acetal/Nickel
Type: Custom Loop
Cooling
$ 124.99
EKWB - EK-XTOP Revo D5 RGB PWM Acetal
Type: Custom Loop
Cooling
EKWB - Fluid
Type: Custom Loop
