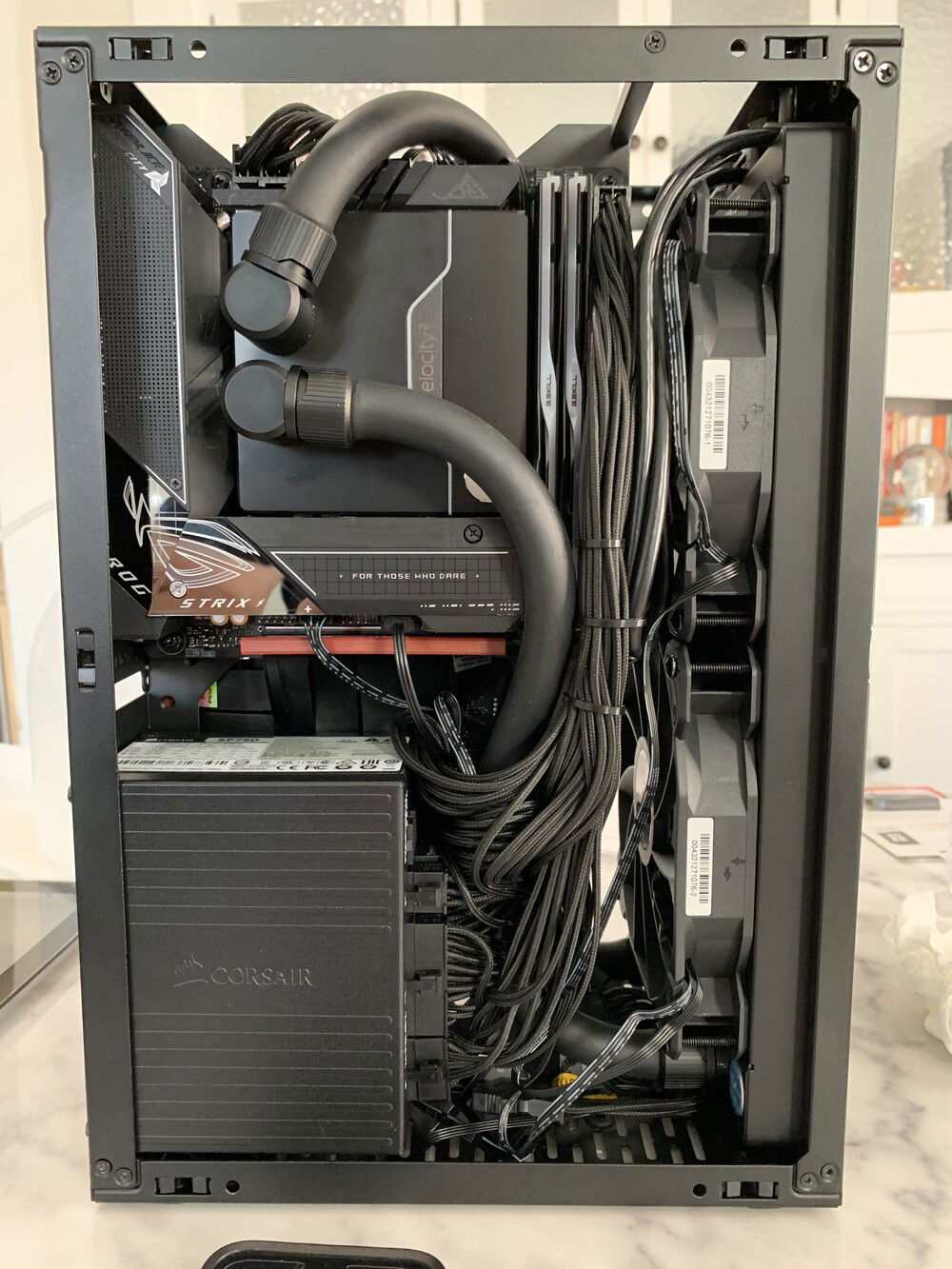

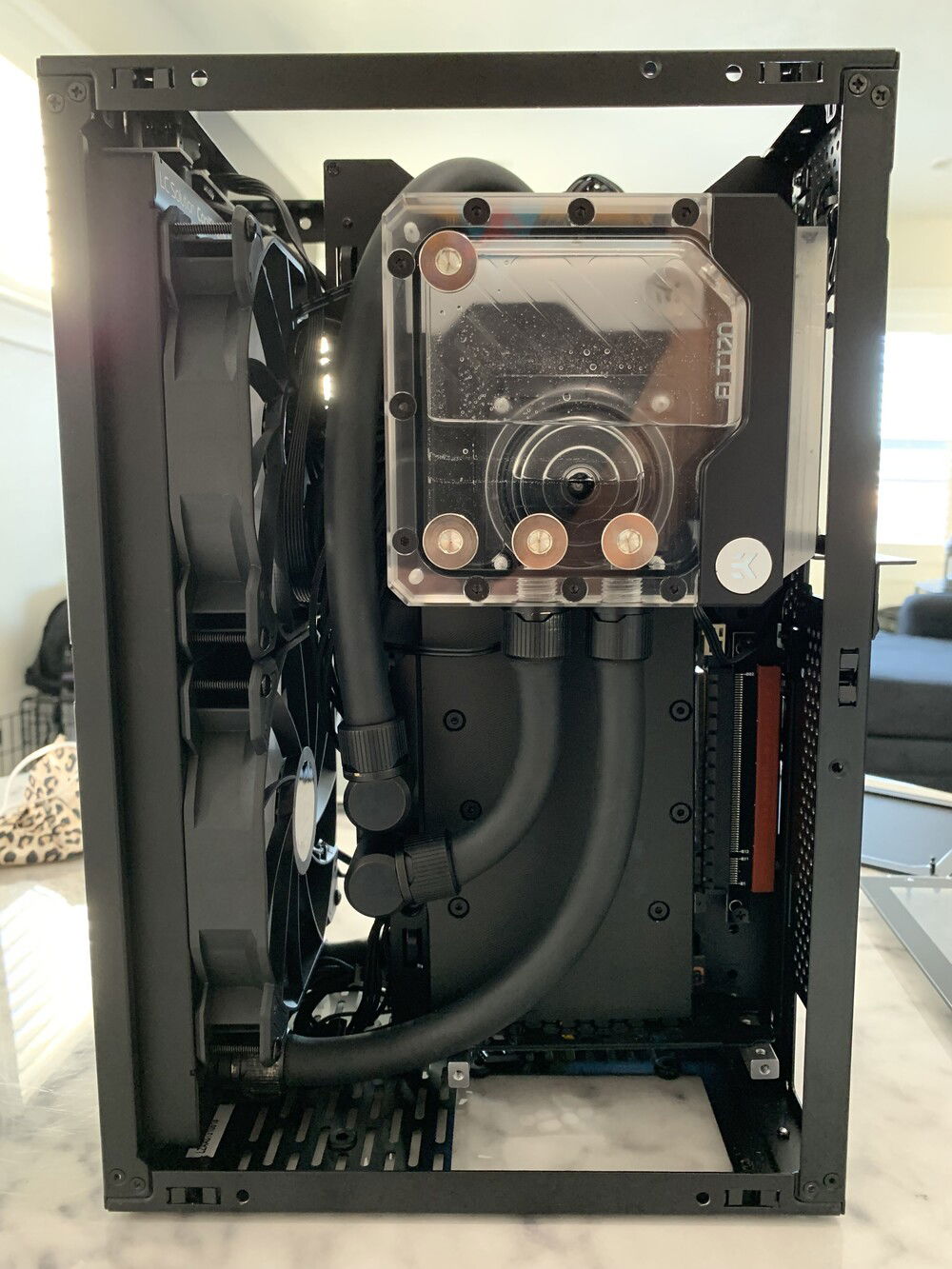

Completed my watercooled Meshlicious build. Very happy with the outcome of this SFF. I had my friend fab a bracket out of aluminum profile to mount the res brackets on it so that I can mate it to the pcie bracket and hang it. This was my only option since I am not using an FE card. Thank you to GTS81 for all the help and recommendations!

I am enjoying 25C on both the GPU and CPU under light load. Currently seeing about 52C when gaming on 1080 @ 240HZ. I have set the fans to 1200RPM, and the pump at 3200RPM. This build was completed last night so I need to have more time to play around with fan curves and optimize timings. So far I'm very satisfied with the almost silent operation. No coil whine from the GPU to report as well! I also have XMP enabled. Definitely won the lottery on these components as I have been seeing a lot of problems with z690 and ddr5.


Please feel free to comment any questions down below. I'll do my best to answer them. Also to note that all panels fit with no problem!

Parts list:

EVGA RTX 3070 XC Black Edition

Intel i5 12600k

ASUS ROG STRIX Z690-I

SSUPD Meshlicious TG PCIE3.0

EK-Quantum Torque Rotary 90

EK-Quantum Torque Static FF 90

EK-CryoFuel Clear

EK-Quantum Torque STC-10/16

EK-Tube ZMT Matte Black

EK-Quantum Kinectic FLT 120 DDC PWM D-RGB- Plexi

EK-Coolstream SE 280 (Slim Dual)

EK-Quantum Vector XC3 RTX 3070 D-RGB - Nickel + Acetal

EK-Quantum Velocity2 D-RHB -1700 Nickel + Acetal

Corsair SF750

G.SKILL Trident Z5 RGB 32GB (2 x 16GB) DDR5 6000 CL40

Sabrent Rocket 4 Plus 1TB

Sabrent Rocket Q 2TB

LINKUP PCIe 4.0 Riser Cable

Corsair 140m RGB Fans
