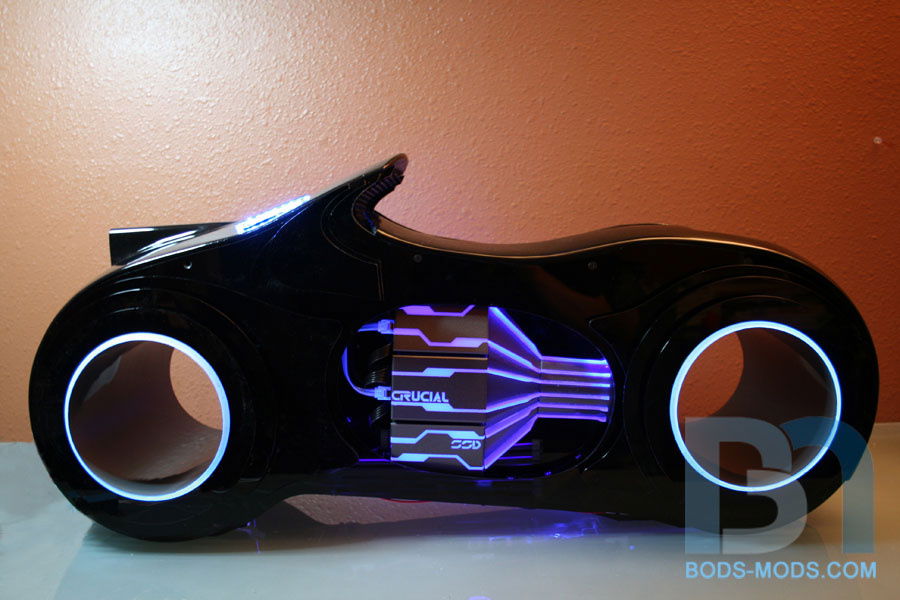

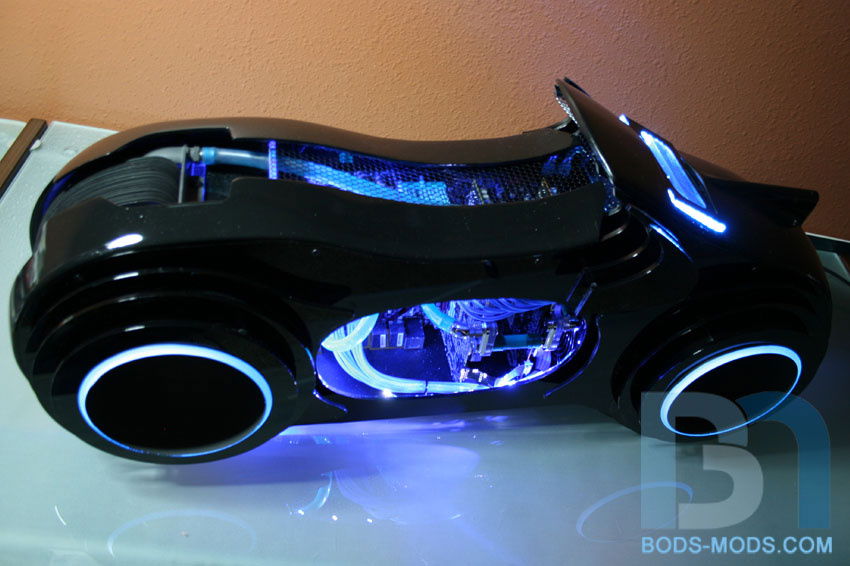

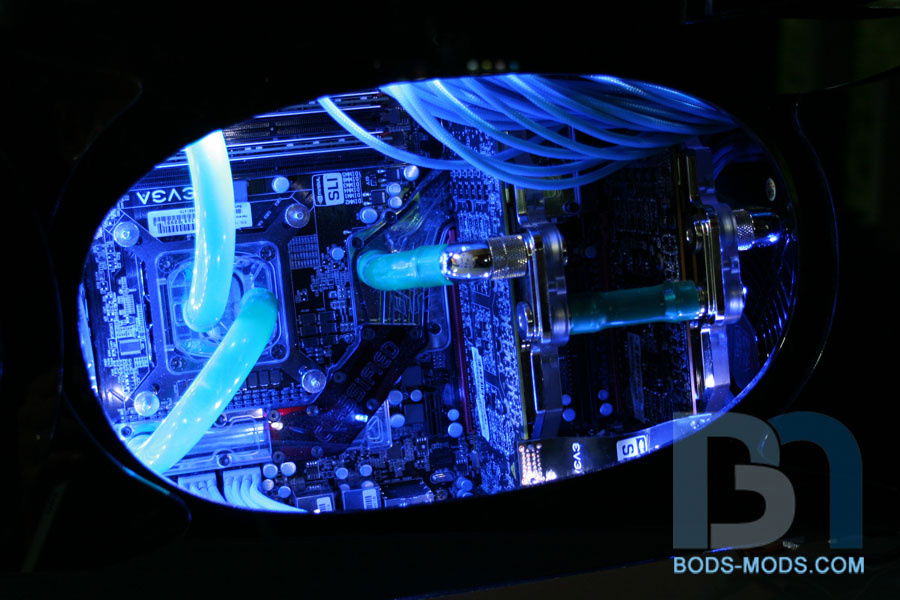

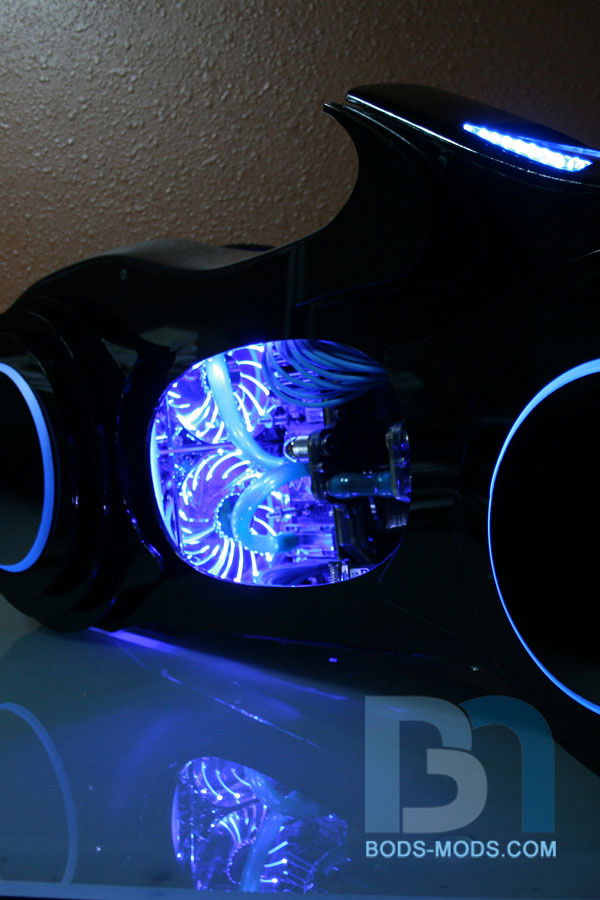

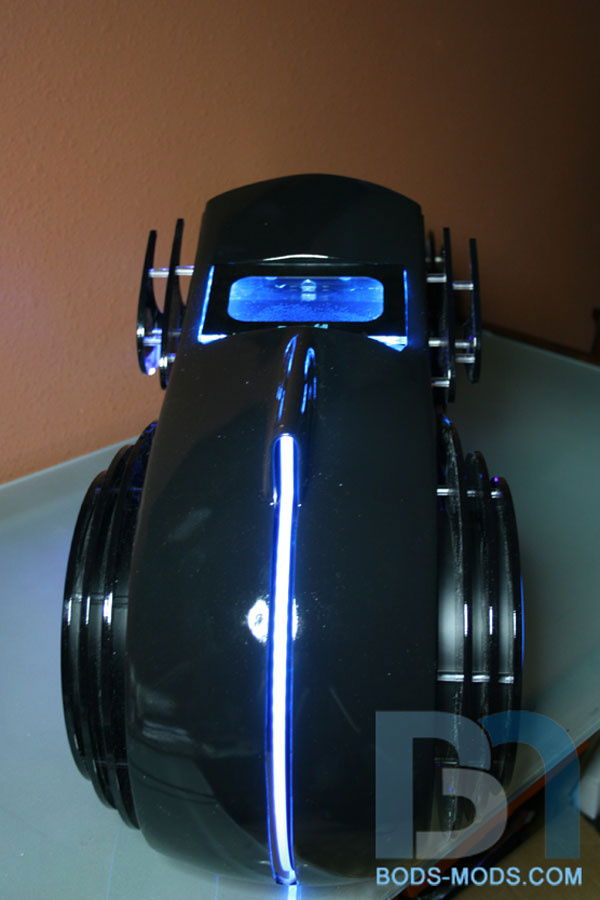

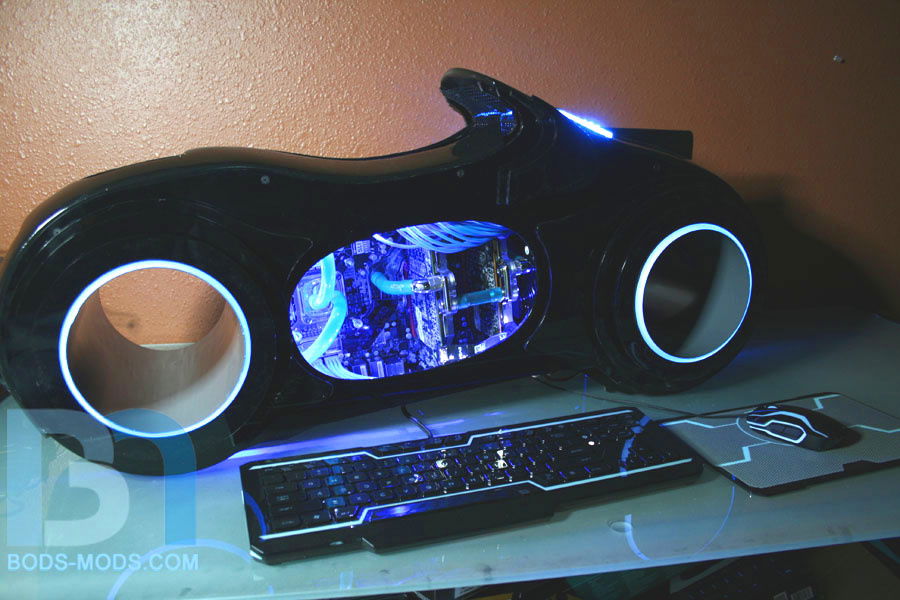

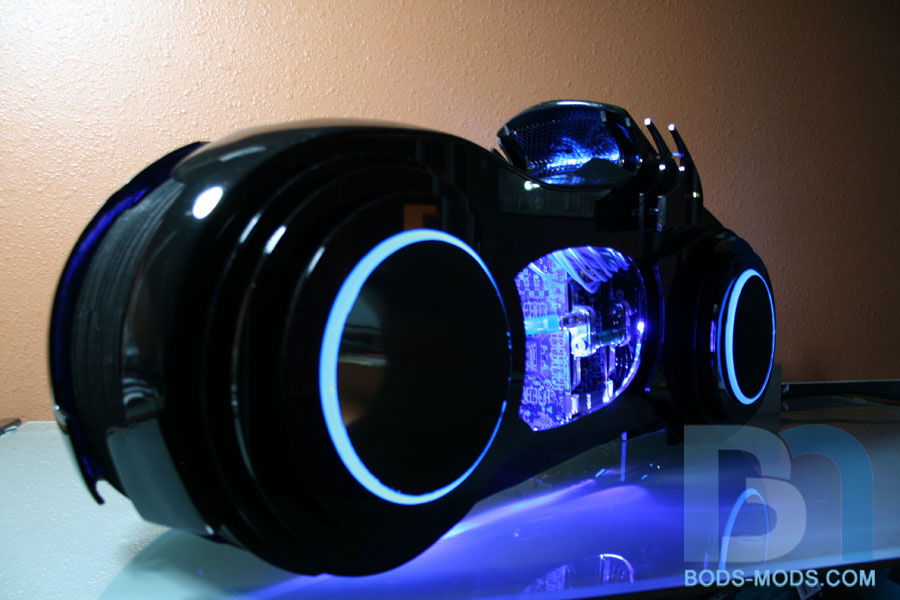

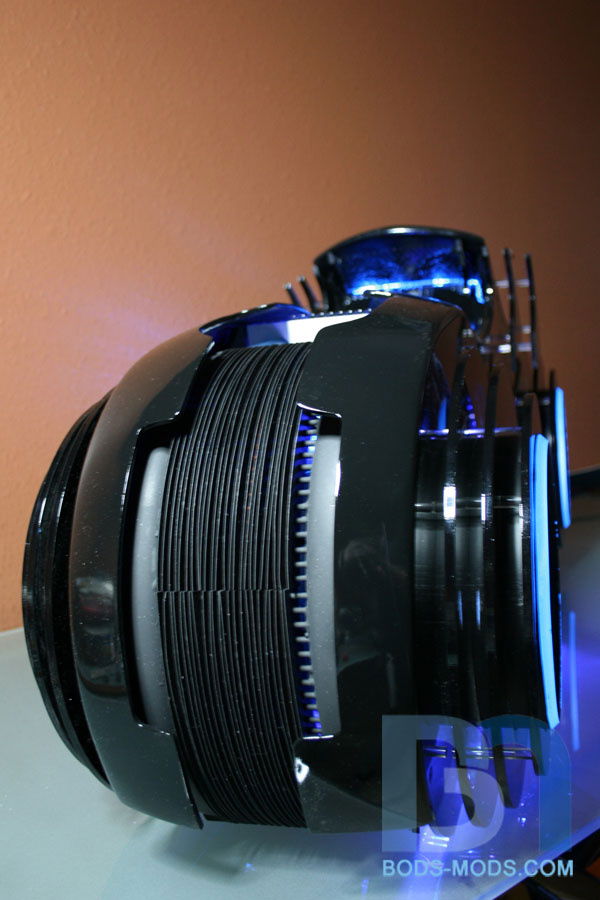

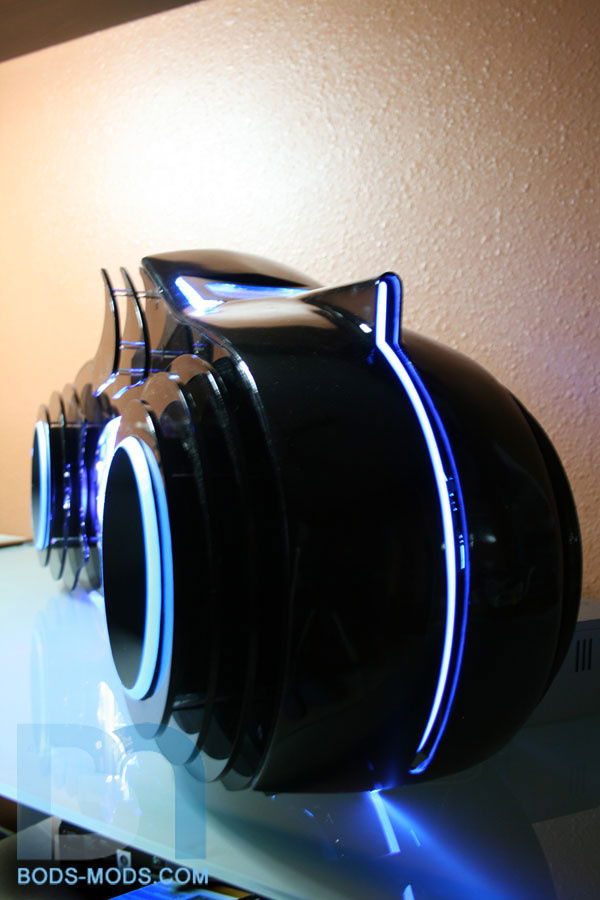

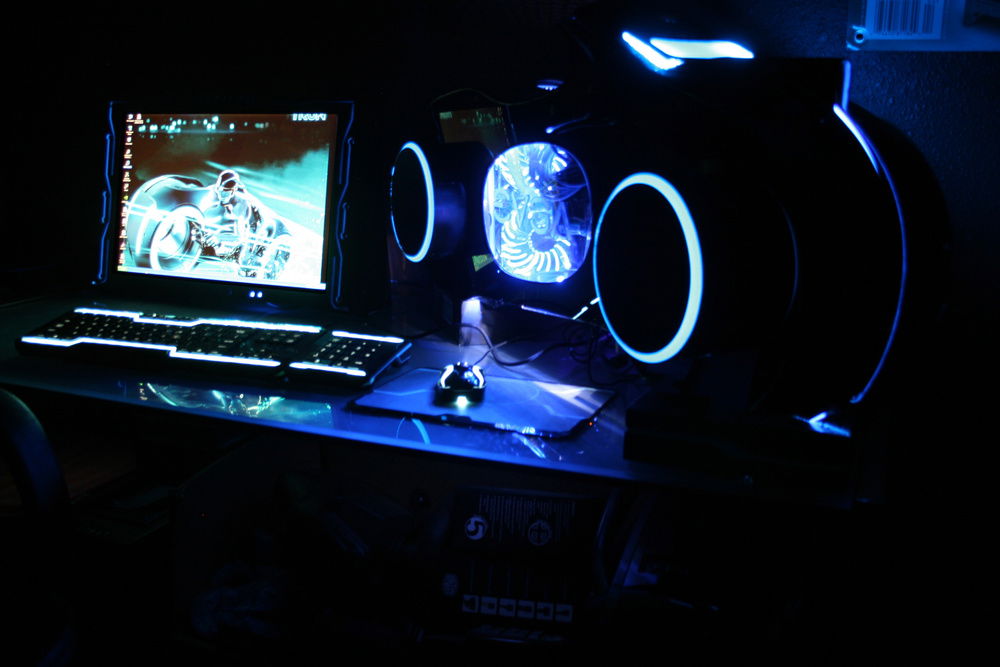

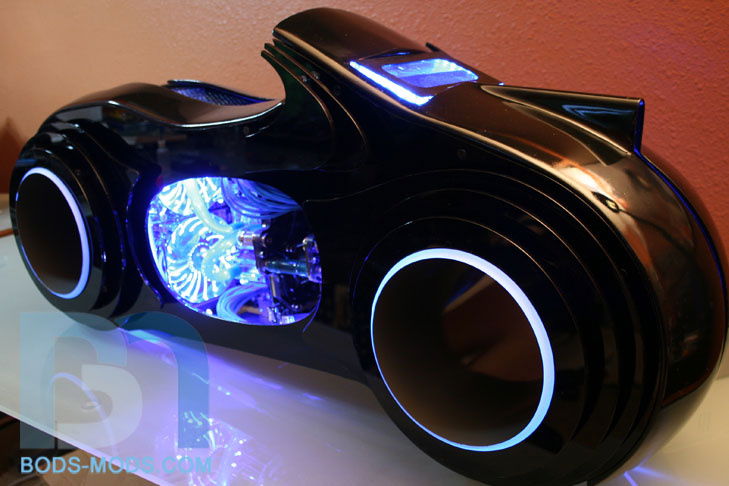

This was my entry into Cooler Master's Case Mod Contest in 2011, for the scratch build category. Fabricated out of acrylic sheet and tubes, with the hardware mounted in the center. The tubes were edge-lit, as well as the light wall emitter on the rear of the bike. A custom curved radiator was made to fit around the front tube. the "engine" was also made from acrylic, and houses three Crucial SSD's. The front and rear fairings were fabricated using Plasti-Paste (a 2-part plastic fiberglass resin). Razer was kind enough to support the build with their TRON themed gaming keyboard and mouse. Thanks for reading!
Color(s): Black Blue
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: TV & Movie
Size: ATX
Type: General Build

Hardware

CPU
$ 998.95
Intel - Core i7 965 Extreme Edition
Socket: LGA 1366
Cores: 4
Motherboard
EVGA - X58 Classified
Chipset: X58
CPU Socket: LGA 1366
Size: ATX
Memory
Crucial - Ballistix Tactical Tracer
Type: DDR4
Capacity: 8 GB
Graphics
EVGA - GTX 580 (2x)
Chip Manufacturer: NVIDIA
Chip: GTX 580
Storage
$ 600.06
Crucial - M550 (3x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
PSU
$ 294.99
Cooler Master - V850
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case Fan
Enermax - TB Vegas Blue 140mm (3x)
Size: 140 mm
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
EVGA - Hydro Copper (2x)
Type: GPU Waterblock
Cooling
$ 29.99
Keyboard
Razer - Tron
Interface: Wired
Type: Full Size
Unable to dertermine total build value (missing part value)
