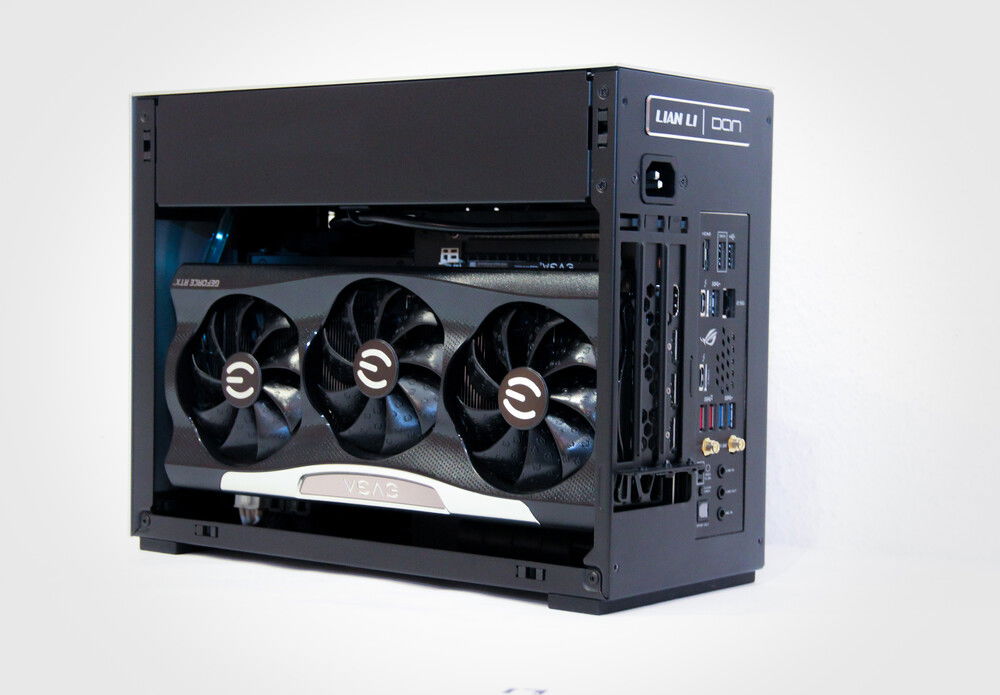

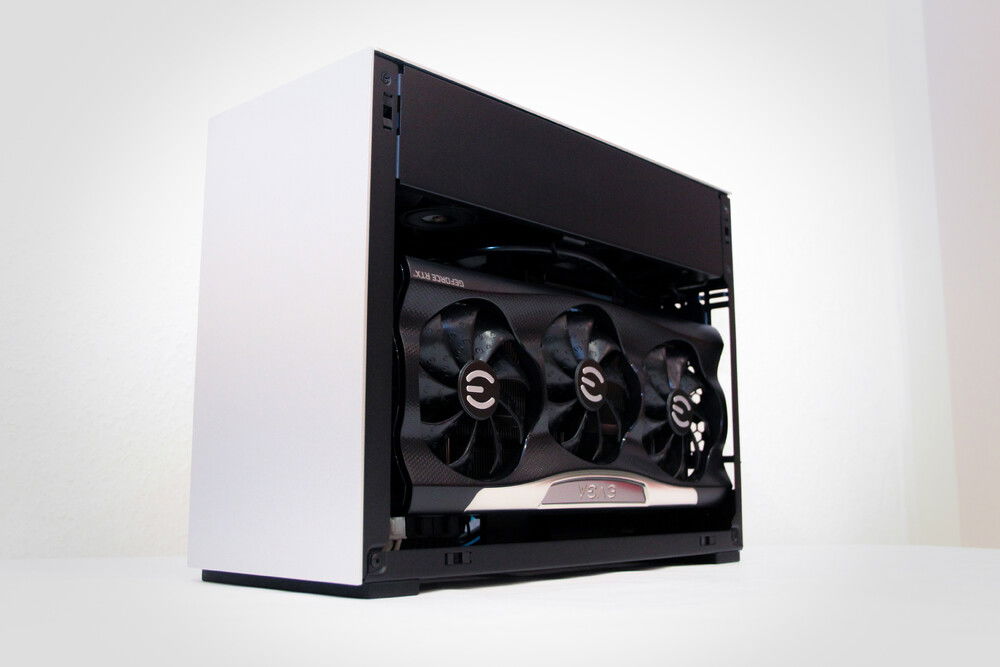

DAN A4 H2O / ITX Monster

12900K@125W (P: 5GHz/E: 4GHz@1.34V) ~74C max.
3090@250W (1.8GHz@780mV) ~72C max.

Radiator Fan Speed: 750RPM fixed / Pump Speed 2300RPM fixed.
GPU uses Custom Fan Curve with 900RPM max, stays under 70C during Gaming.
In desktop mode, the PC is not noticeable and is still fairly quiet even under full load.

I have previously tested various AiOs with Asetek pumps, which were all far too loud (NZXT, Phanteks...) no matter how low they were turned down. But at maximum pump speed it was unbearable. Therefore, the Eisbaer Solo had to be installed, which plays in a different universe than the currently available AiOs in terms of volume.
Color(s): Aluminum Black Blue
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Hardware

CPU
$ 276.70
Intel - Core i9-12900K
Socket: LGA 1700
Cores: 16
Motherboard
$ 179.95
ASUS - Rog Strix Z690-I Gaming 6E (WiFi)
Chipset: Z690
CPU Socket: LGA 1700
Size: Mini-ITX
Memory
$ 96.99
TeamGroup - T-Force Delta (6400MHz) (Black/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,650.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 198.50
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
DAN Cases - A4-SFX
Type: Mini-Tower
Side Panel: Solid
Case Fan
$ 11.86
ARCTIC - P12
Size: 120 mm
Cooling
$ 60.00
Alphacool - Eisbaer LT (Solo)
Type: Water Cooling
Cooling
$ 70.74
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Monitor
$ 746.99
Alienware - Curved Gaming (AW3821DW)
Size: 38 Inch
Panel: IPS
Refresh Rate: 144 Hz
