Project Dark Trooper - In Progress

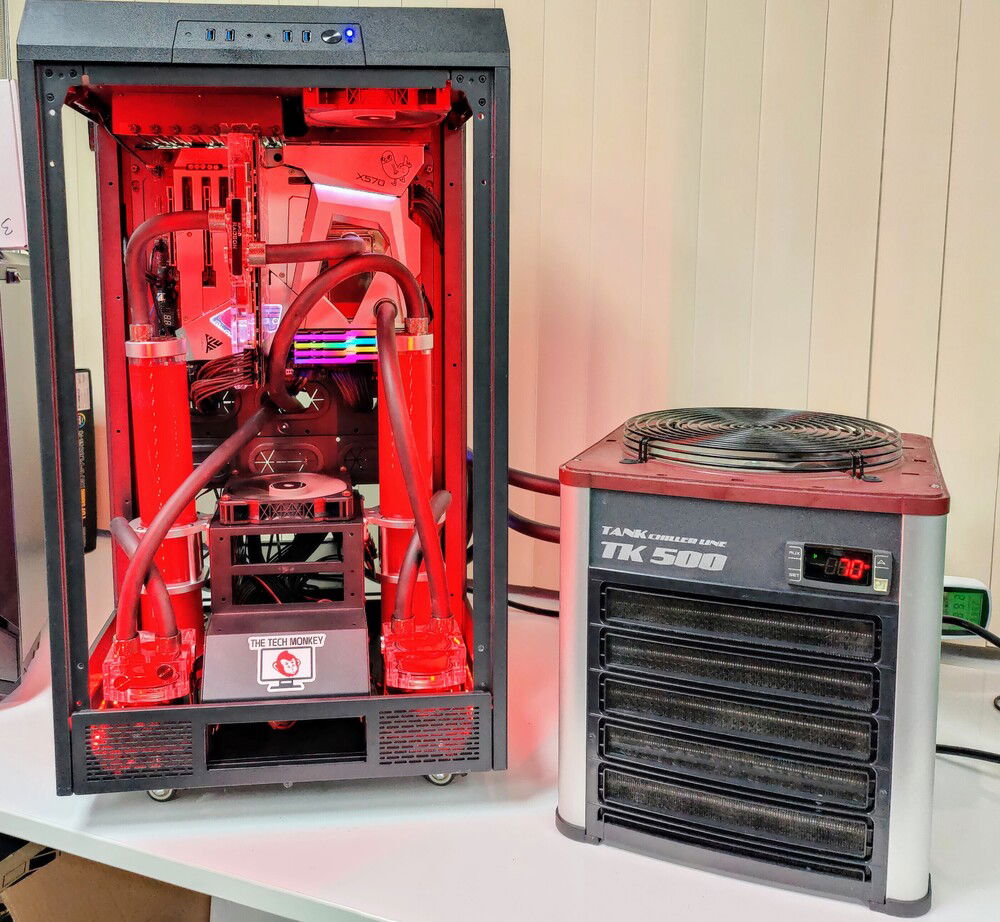

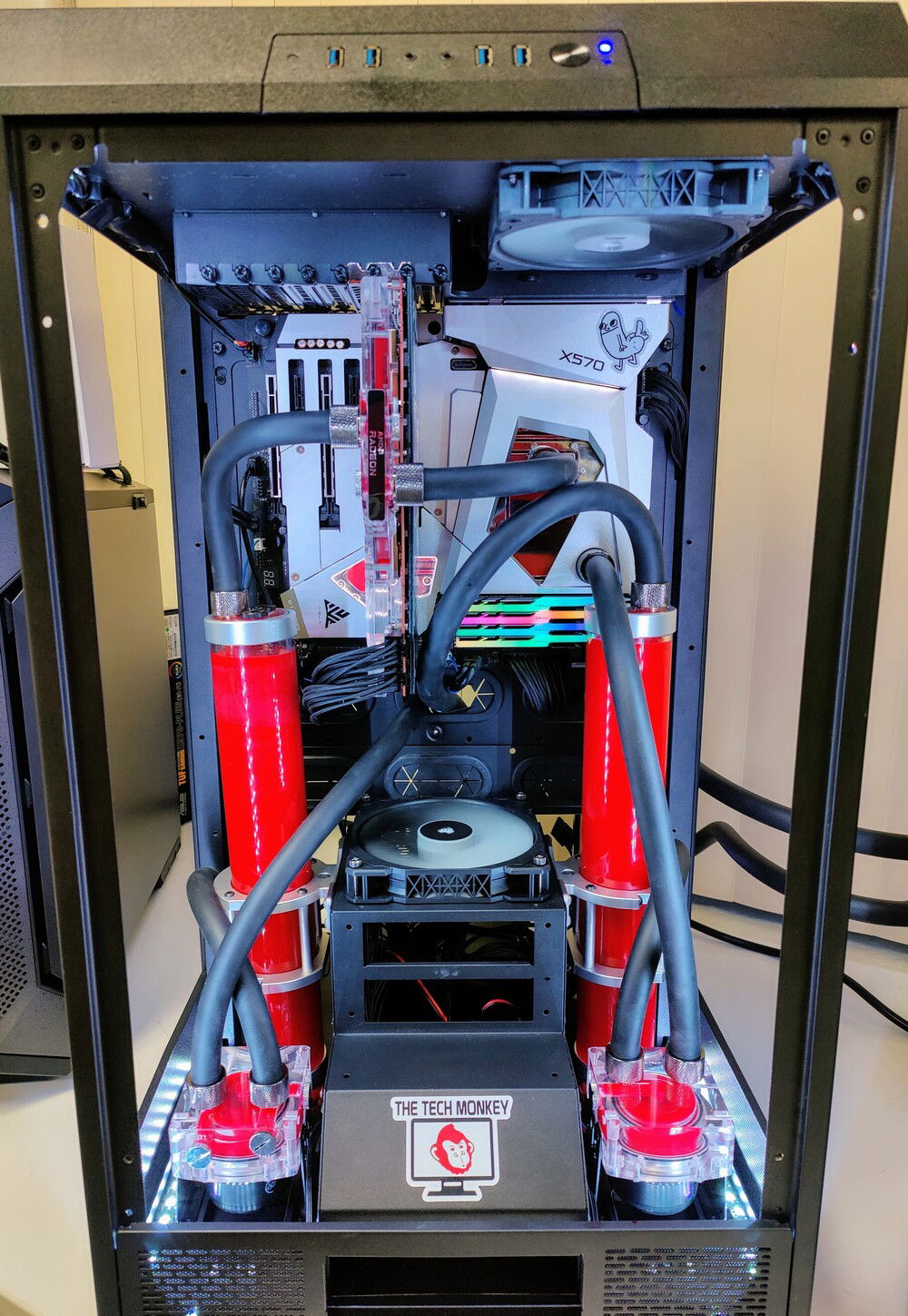

UPDATE: 09-15-2021 - System has been getting put through its paces. It currently has a R134a Aquarium Chiller in line with Q/Ds to allow the system to run with or without the chiller. The system will also have a 480mm Cross-flow Radiator in an Ice bath to chill the unit to far below ambient and achieve below freezing temperatures. The over-all goal of this system is to get back into OCing and eventually teach people how to water cool, chill, overclock, tune, etc a Custom PC.

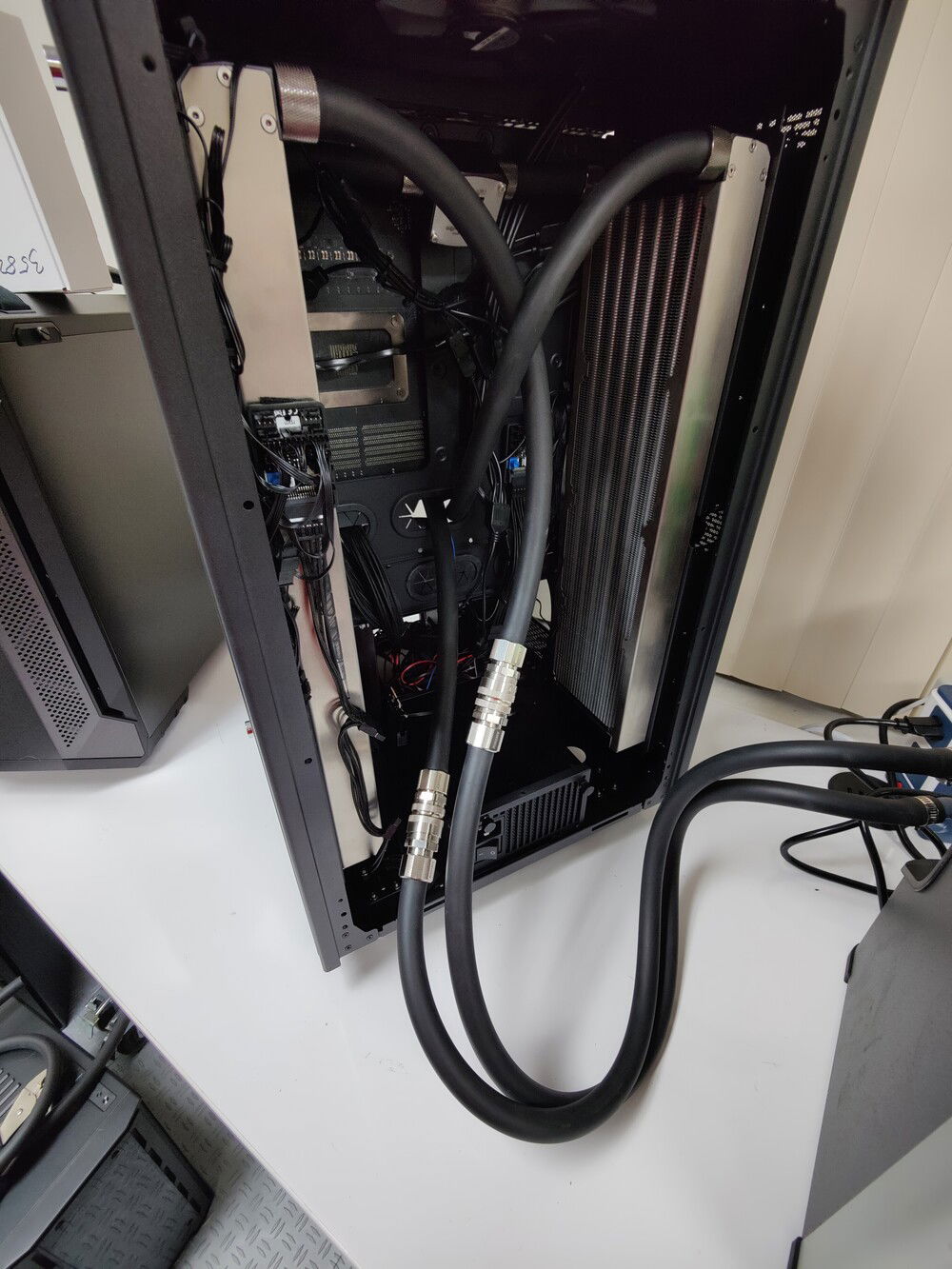

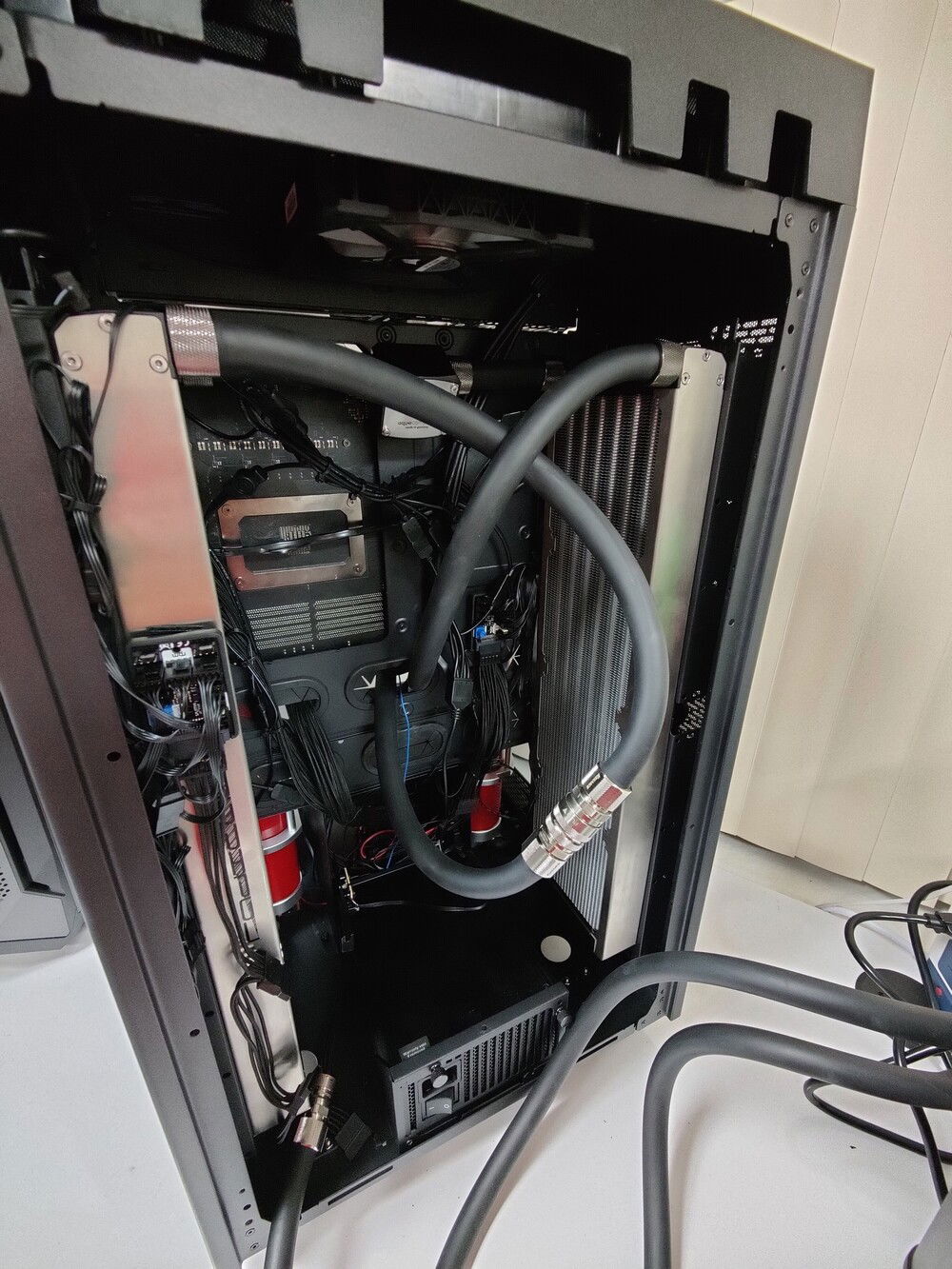

Currently the system maintains about 26ºC-32ºC on the chiller under back to back to back stress tests and benchmarks. The entire system uses Q/Ds to allow any combination of cooling. The final, end result will include the PC Loop, Chiller and Ice Bath with a 3rd Radiator. Entire system hold about 3.5L of fluid.

Nerd Specs: Still tuning - 4.60Ghz All Core @ 1.385V, RAM @ 3.8Ghz C14 @ 1.5V, GPU @ anything I throw at it.


Original: So, we recently helped Sponsor the Carolina Games Summit. We built a PC at the show and traded.

We built:

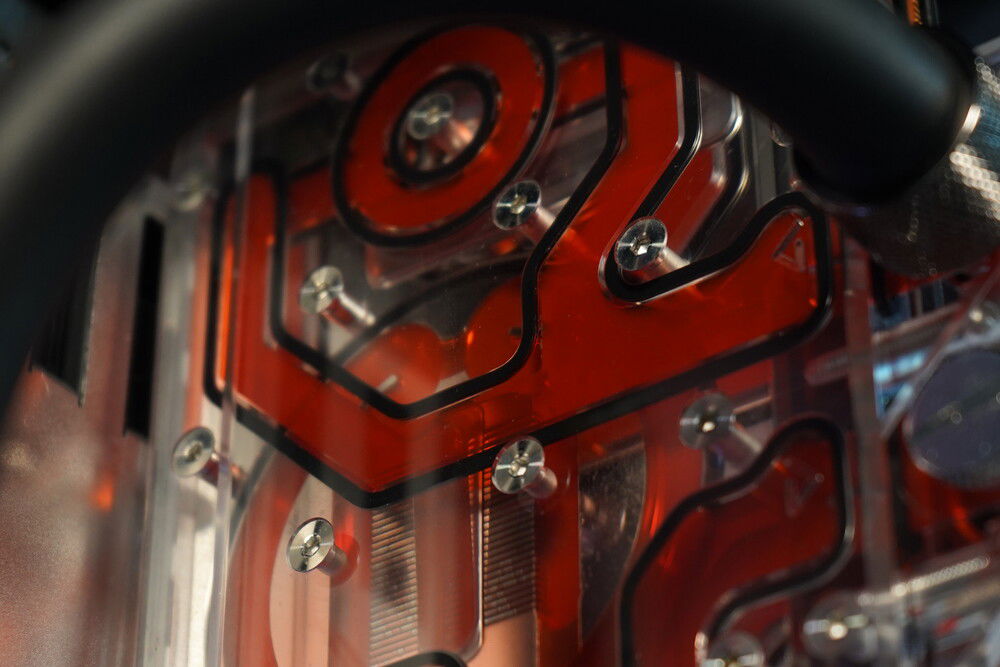

5950x/EK Monoblock on a X570 Dark hero
RTX 3090 FTW3 w Optimus Block
1200w Be Quiet! Platinum
EKWB D5 Pump/Res
Alphacool 420mm x 60mm

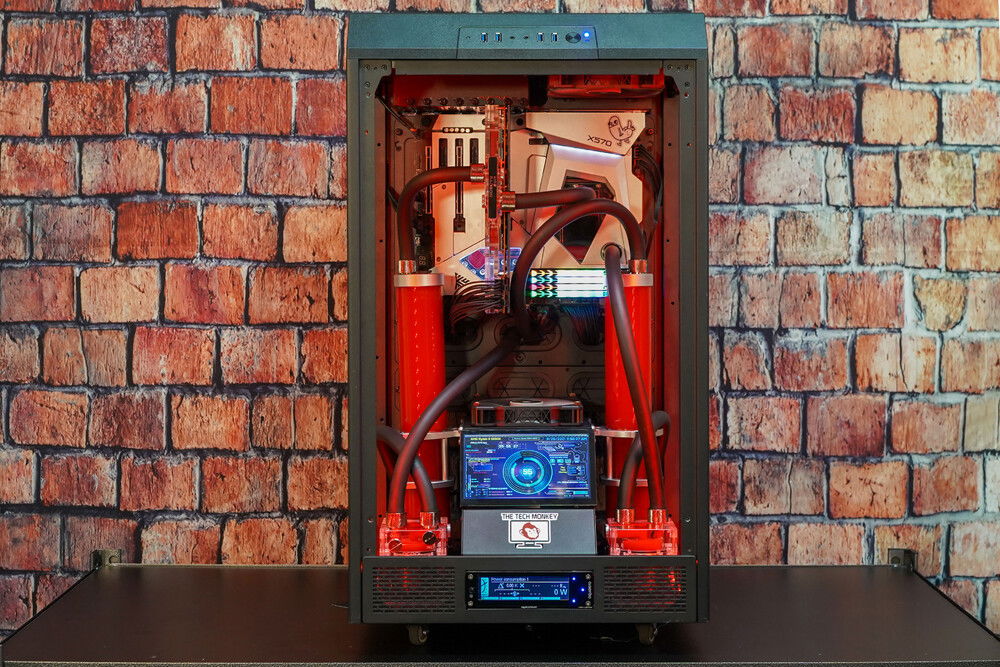

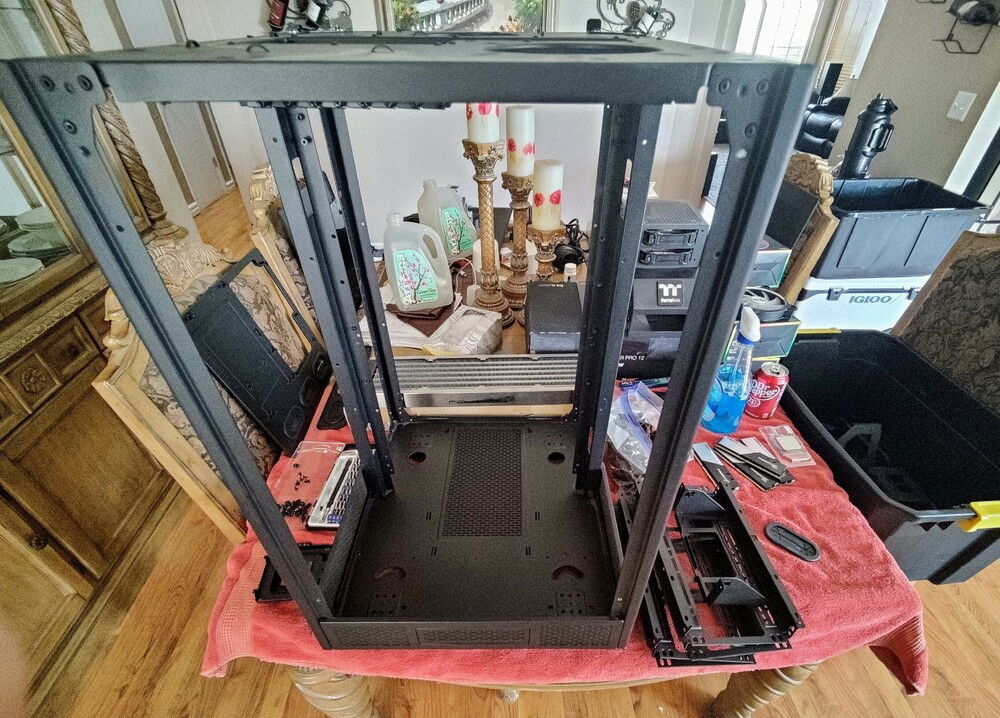

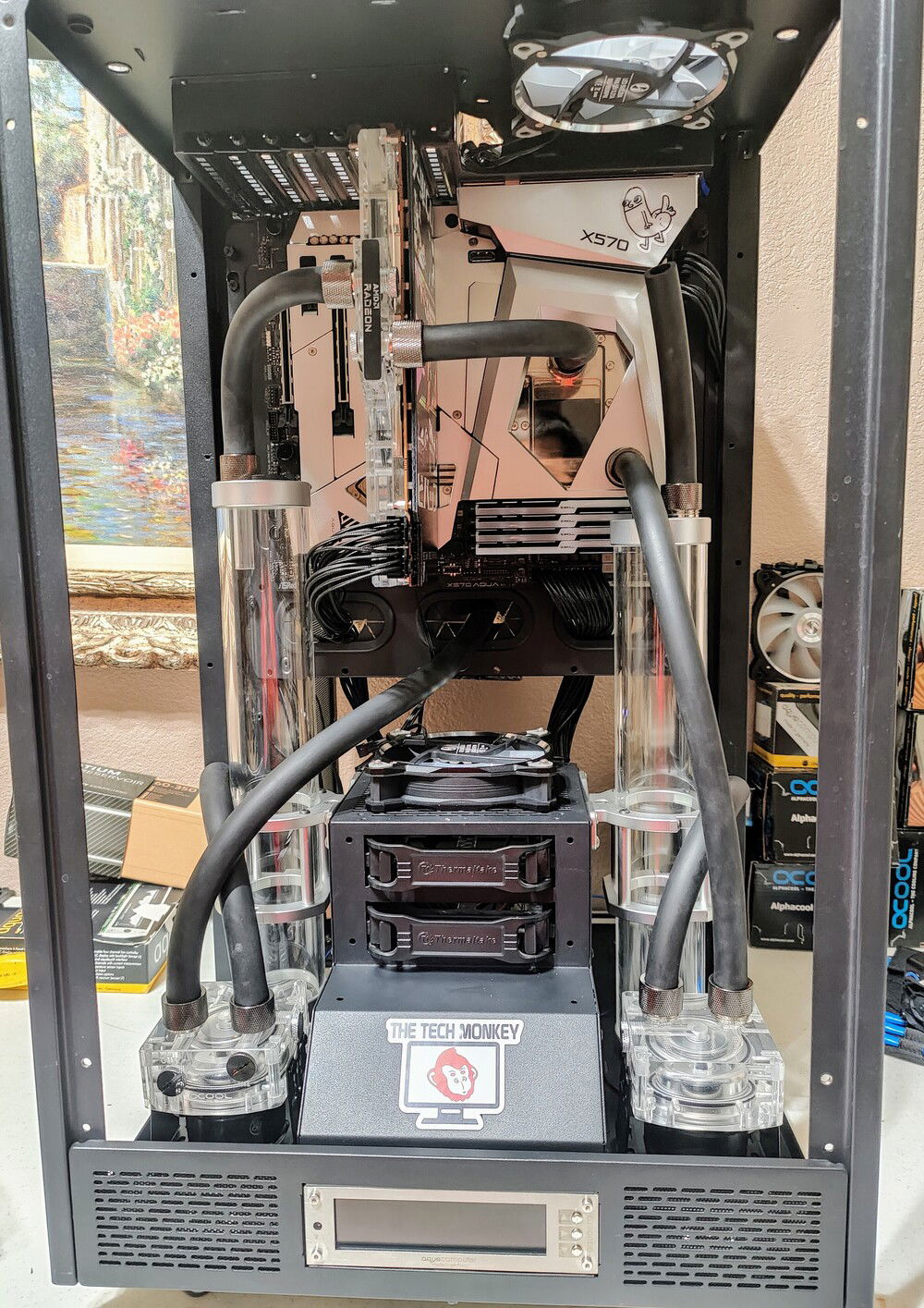

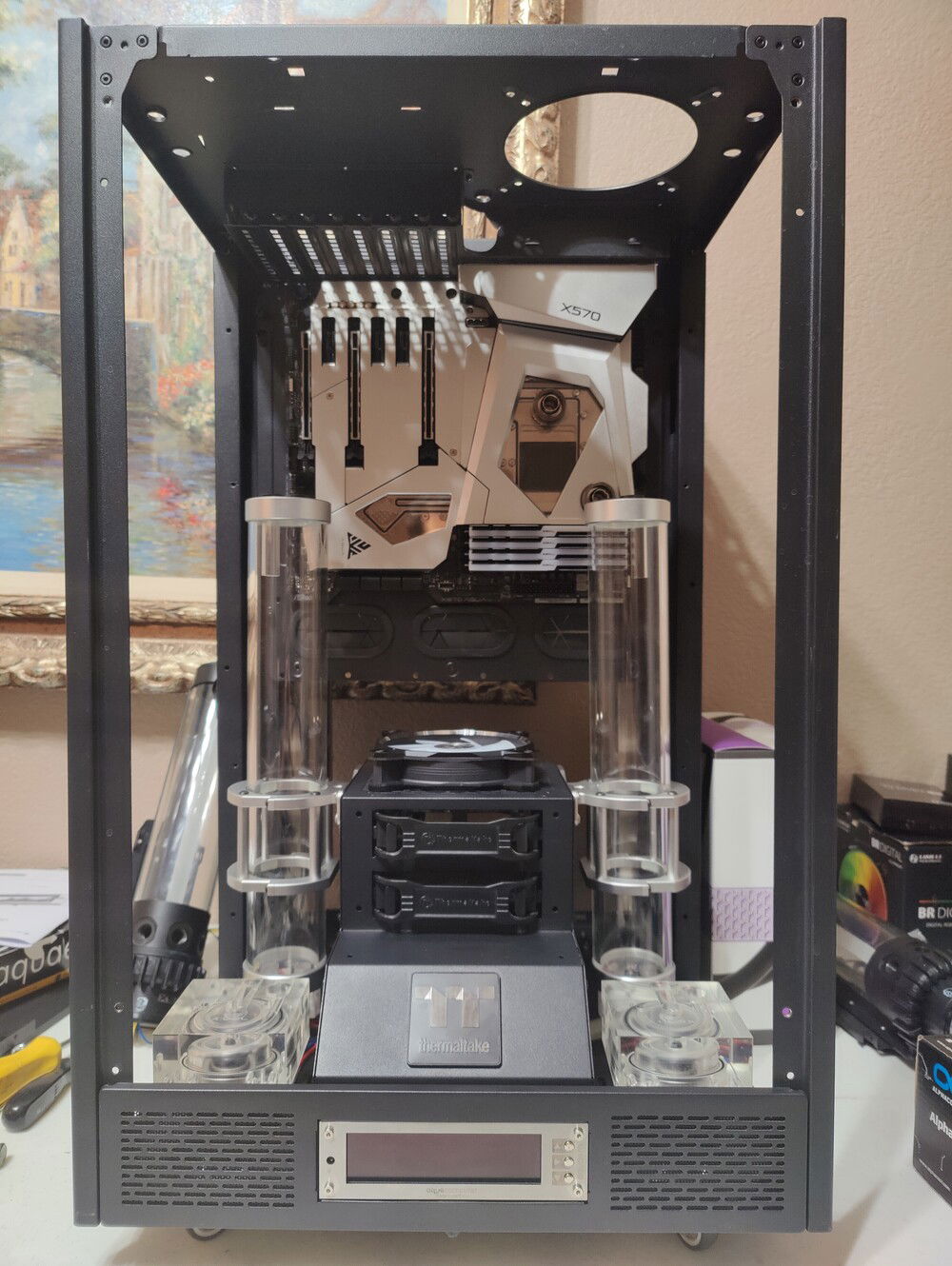

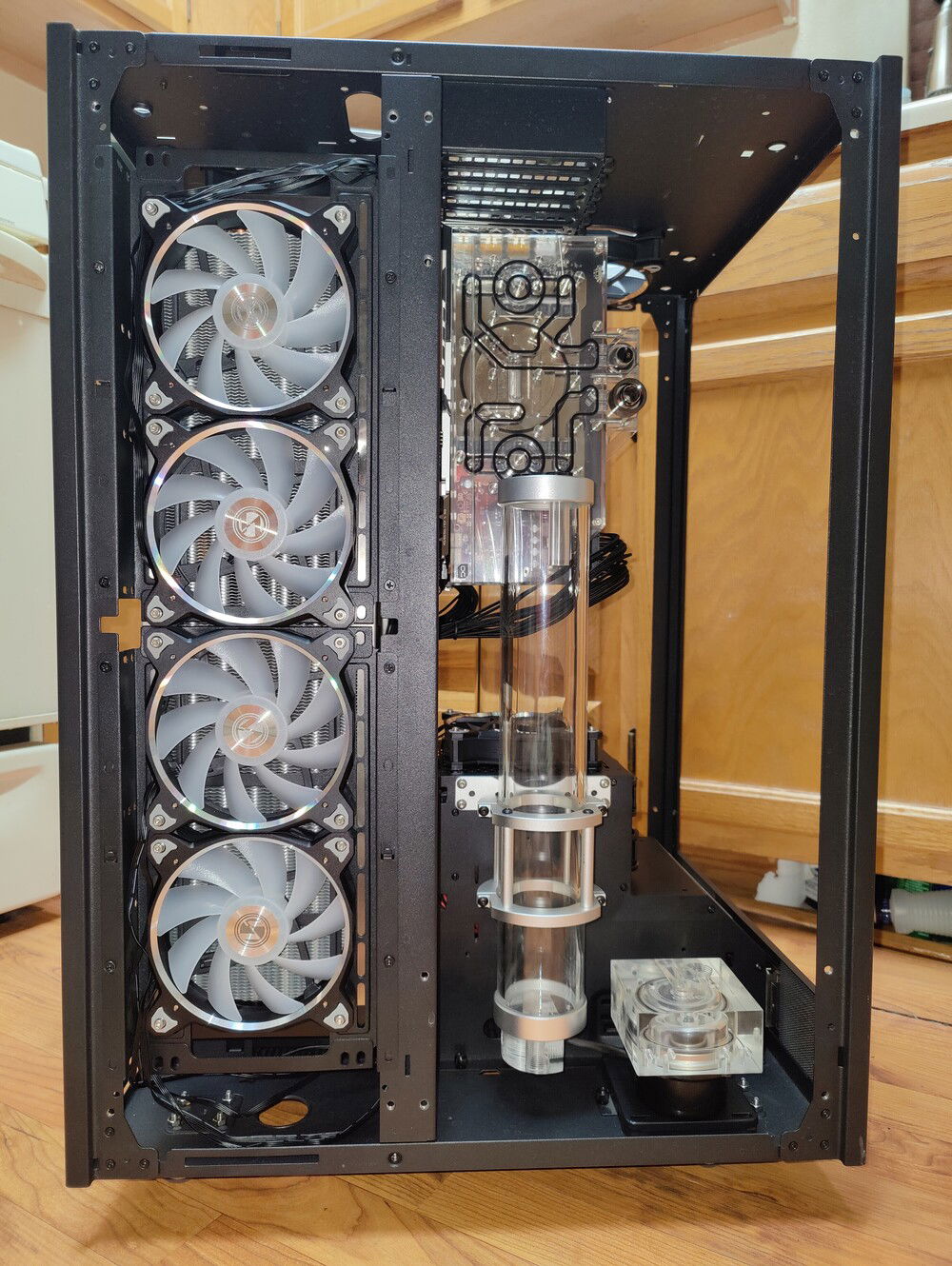

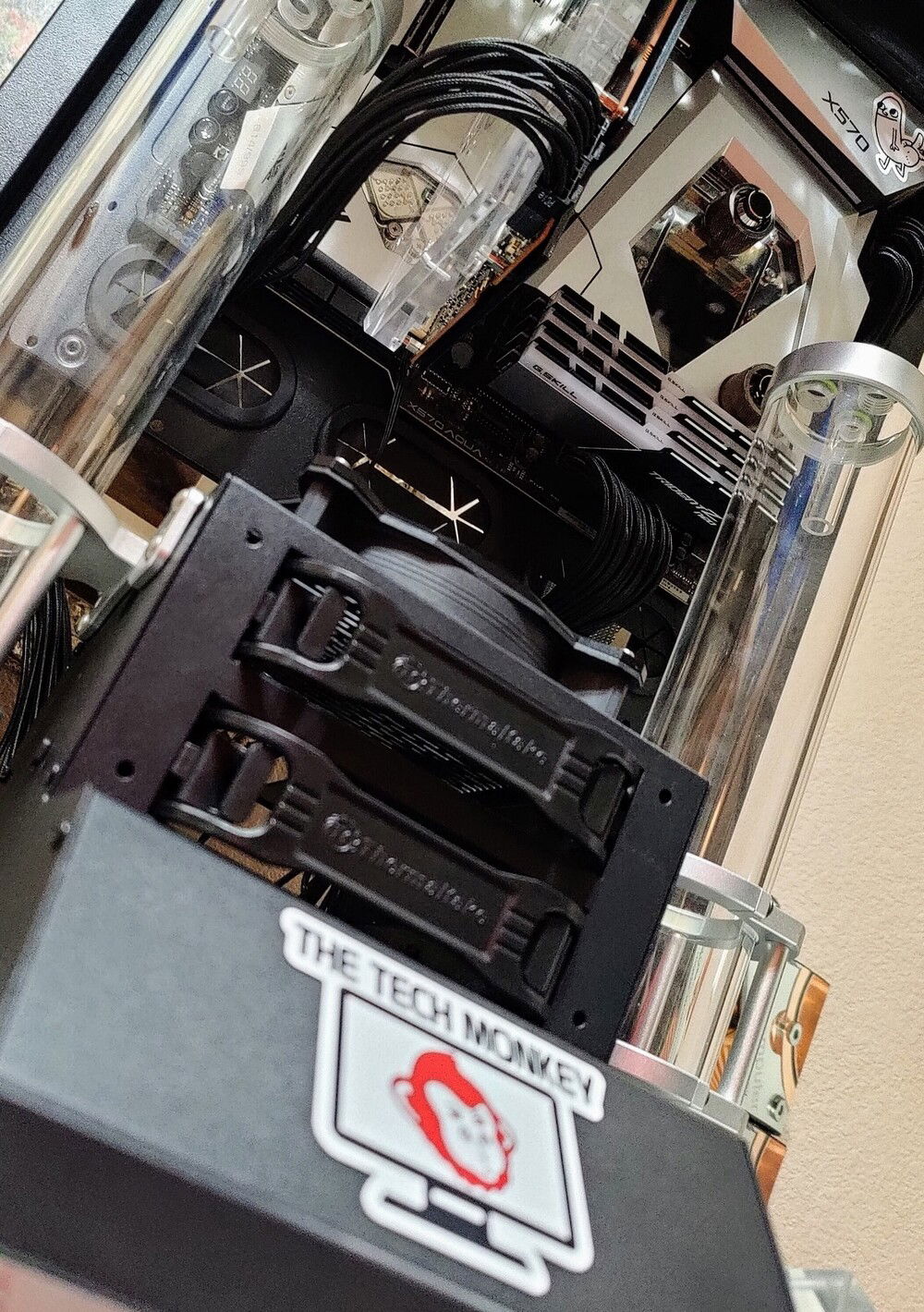

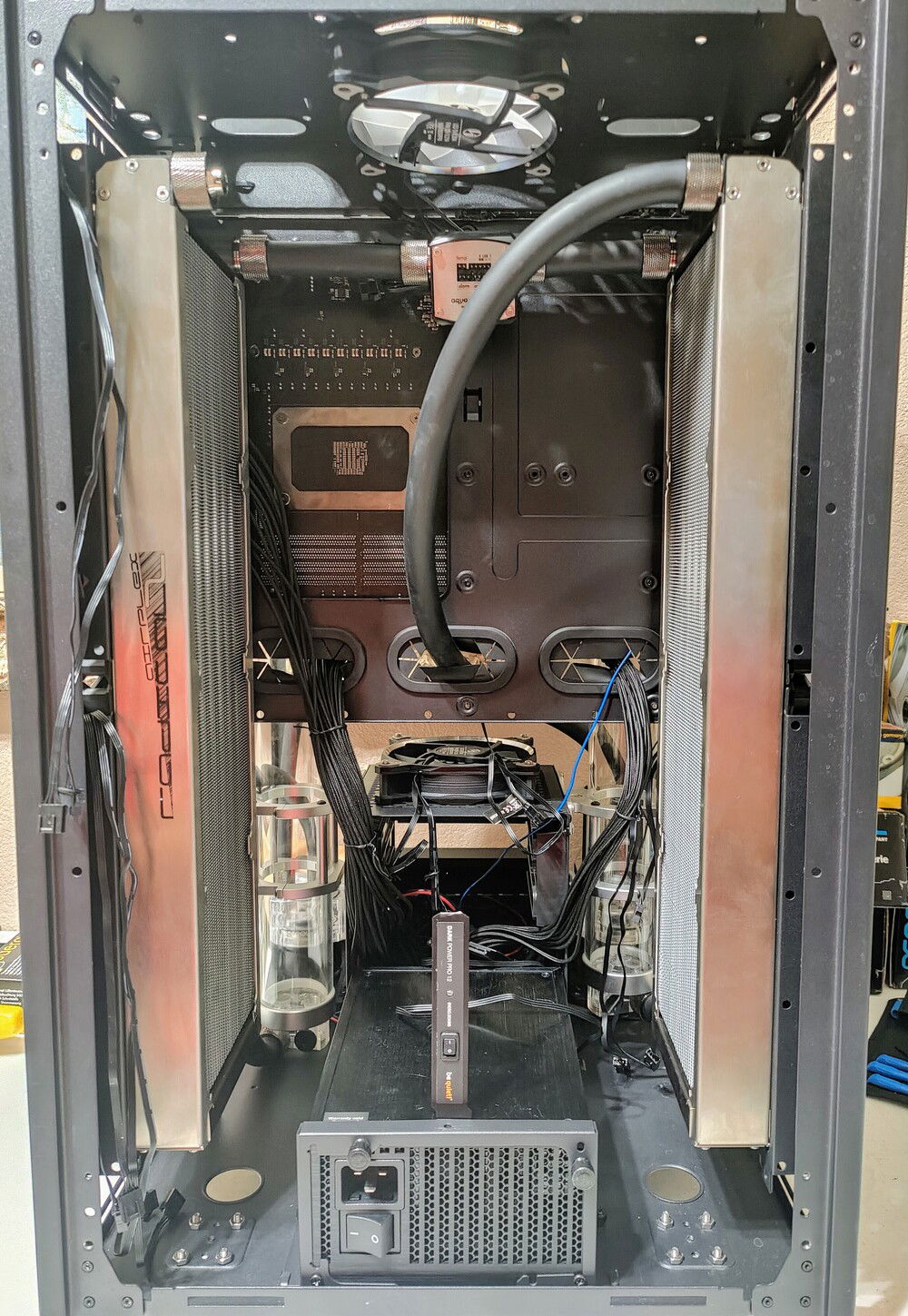

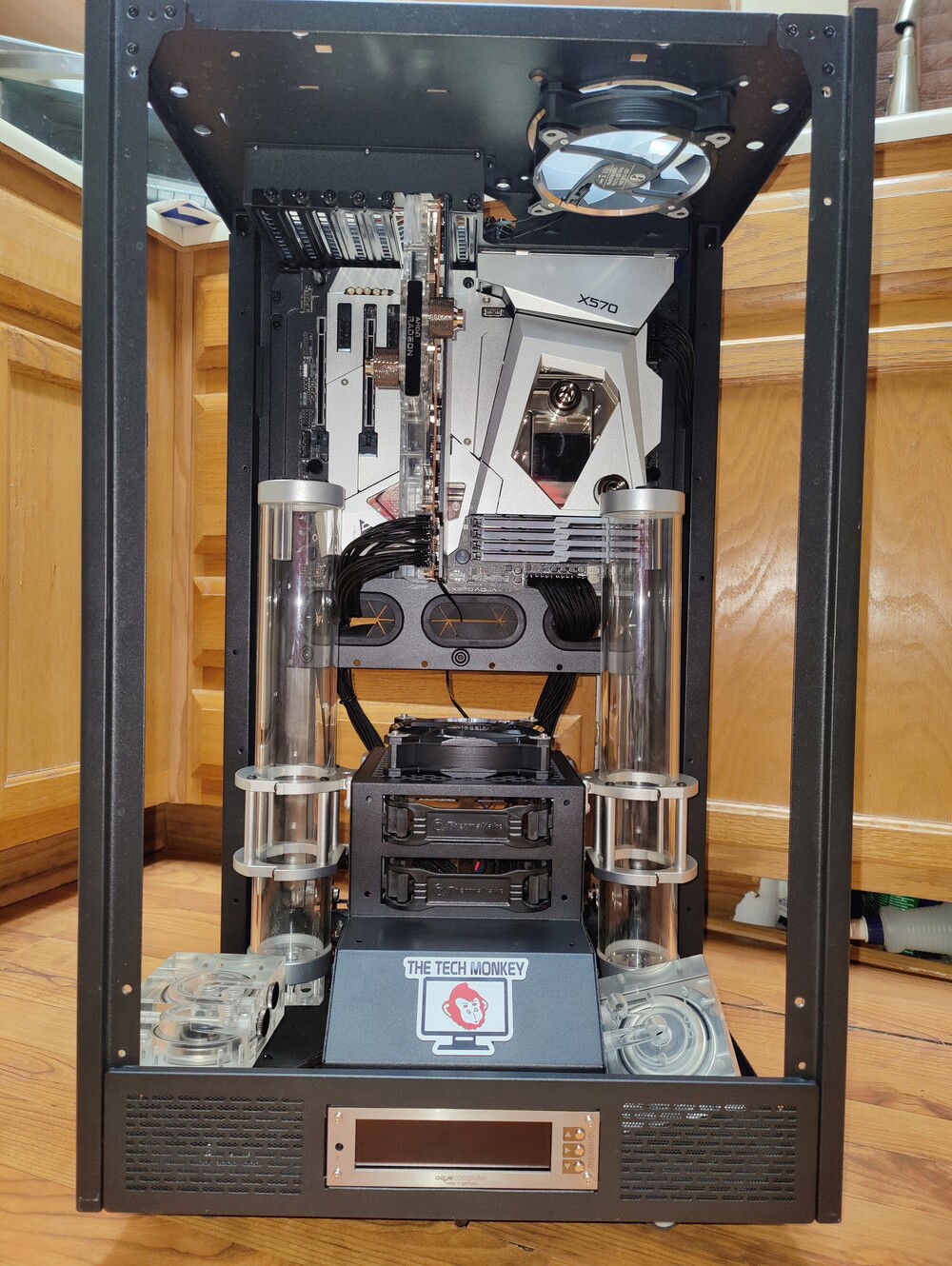

We received this! It will be transplanted into a Customized Black Tower 900. Build is In-Progress, but overall 95% complete.
Color(s): Black Red Silver
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 799.99
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 1,199.99

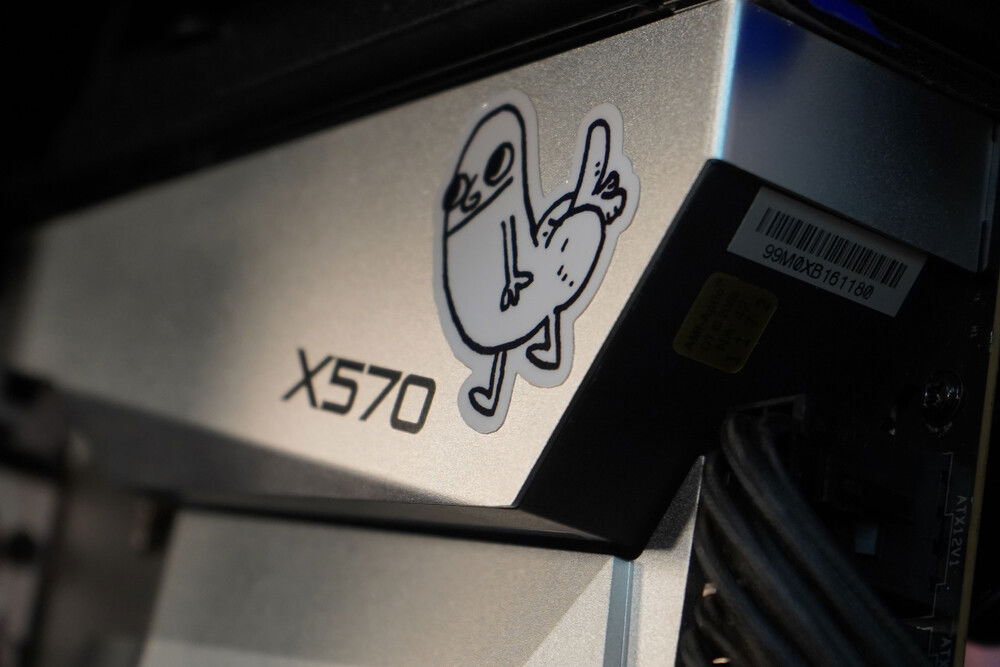

ASRock - Aqua
Chipset: X570
CPU Socket: AM4
Size: E-ATX
Memory
$ 439.96

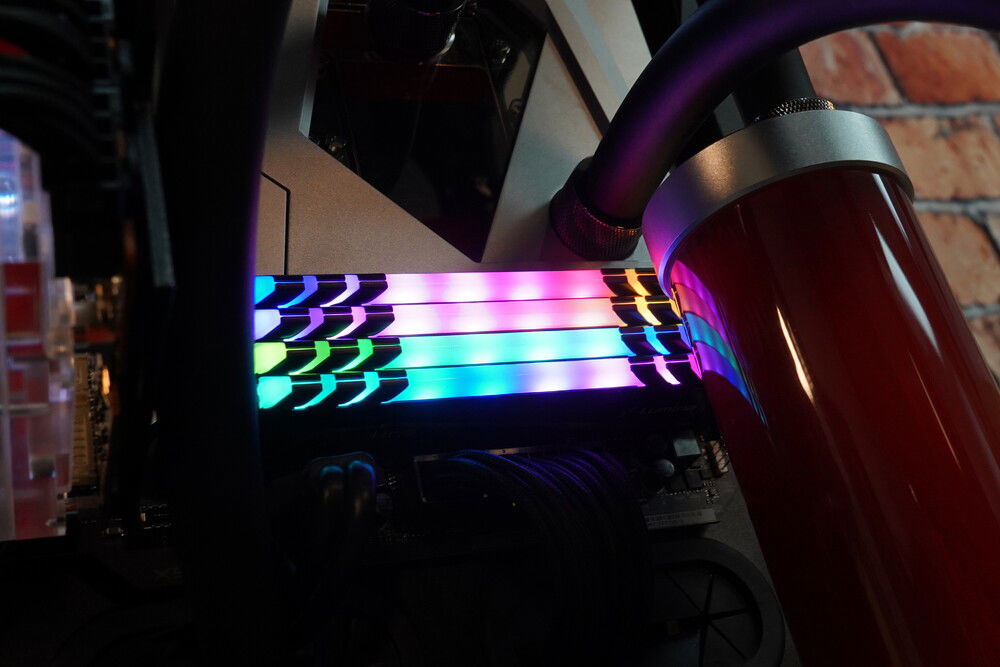

Mushkin - Redline (4x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 2,199.99
Sapphire - Radeon Nitro+
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 411.98
Western Digital - WD Black SN850 (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 404.14
be quiet! - Dark Power Pro 12
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 365.76

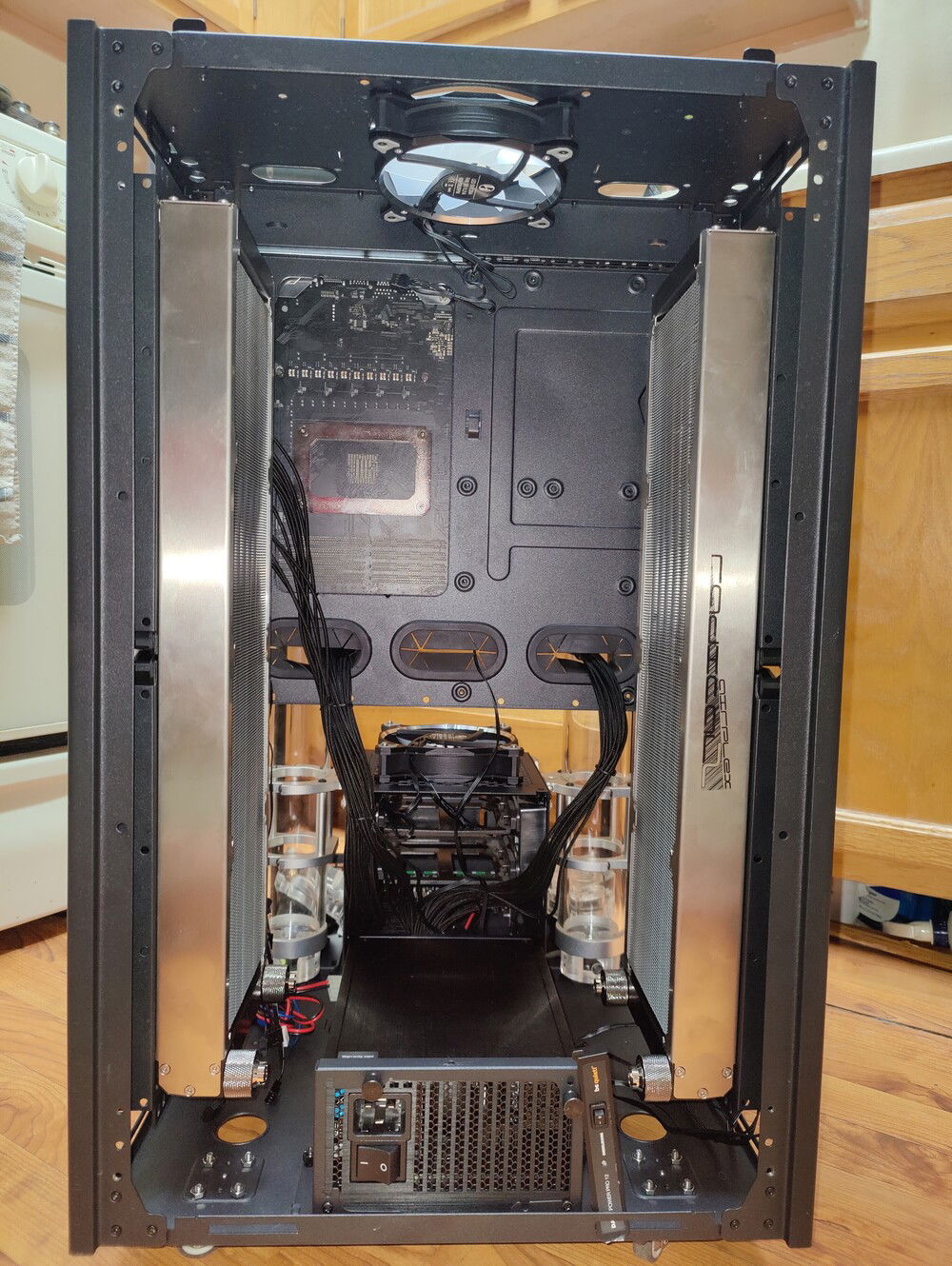

Thermaltake - Tower 900, Black
Type: Super-Tower
Side Panel: Tempered Glass
Case Fan
$ 306.95
Corsair - ML140 Pro (Black) (5x)
Size: 140 mm
Case Fan
$ 95.92

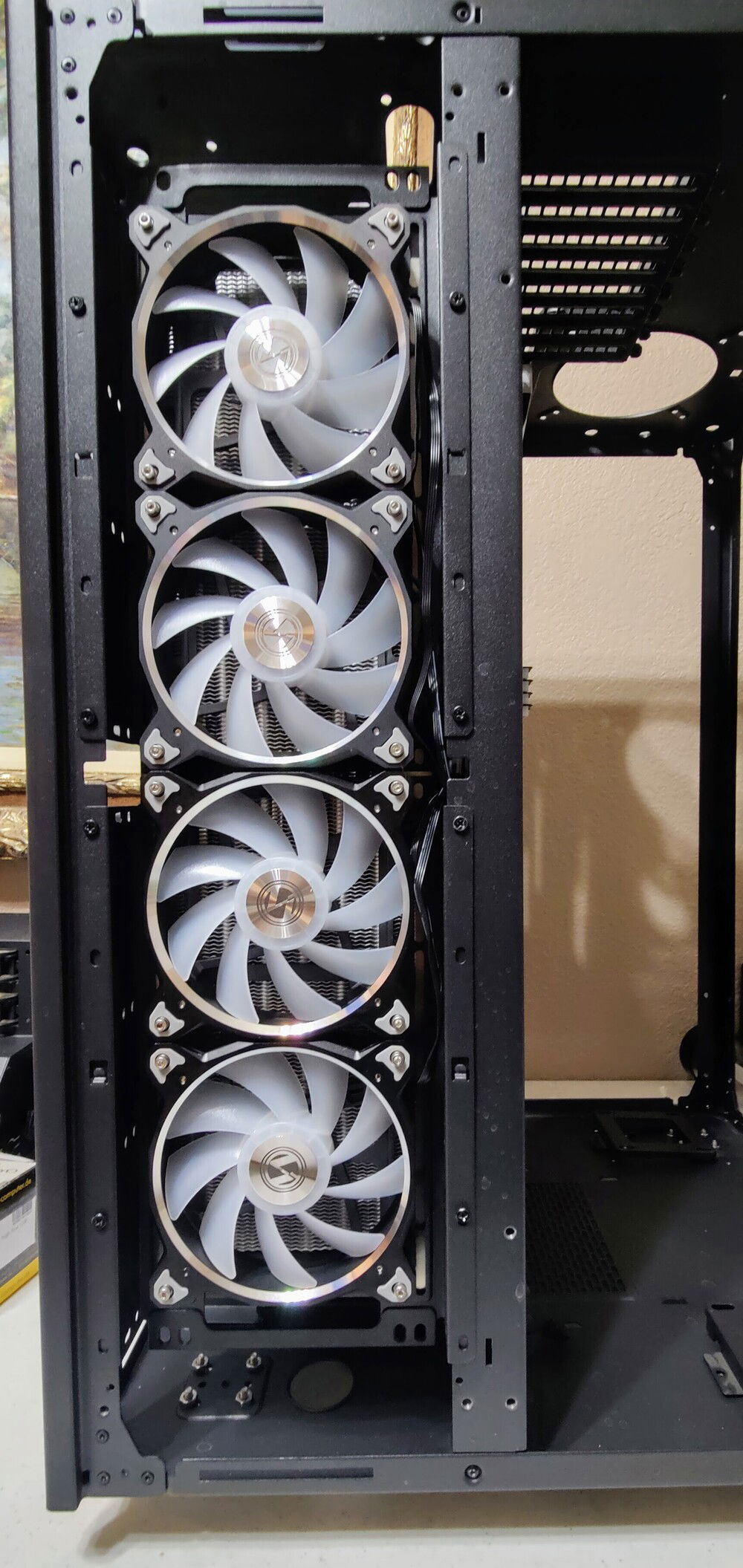

Lian Li - Bora (Black/RGB) (8x)
Size: 120 mm
Cooling
$ 170.54
Alphacool - Eisdecke VPP655 PWM - Pump Top (2x)
Type: Custom Loop
Cooling
$ 211.95
Alphacool - NexXxoS UT60 Full Copper X-Flow
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 399.98
Aquacomputer - Airplex Radical 2 Aluminum (2x)
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 137.12
EKWB - EK-Tube ZMT (4x)
Type: Tubing
Cooling
$ 203.88
Koolance - Fittings (12x)
Type: Custom Loop
Cooling
$ 161.82
Primochill - Fittings (18x)
Type: Custom Loop
Cooling
$ 259.98

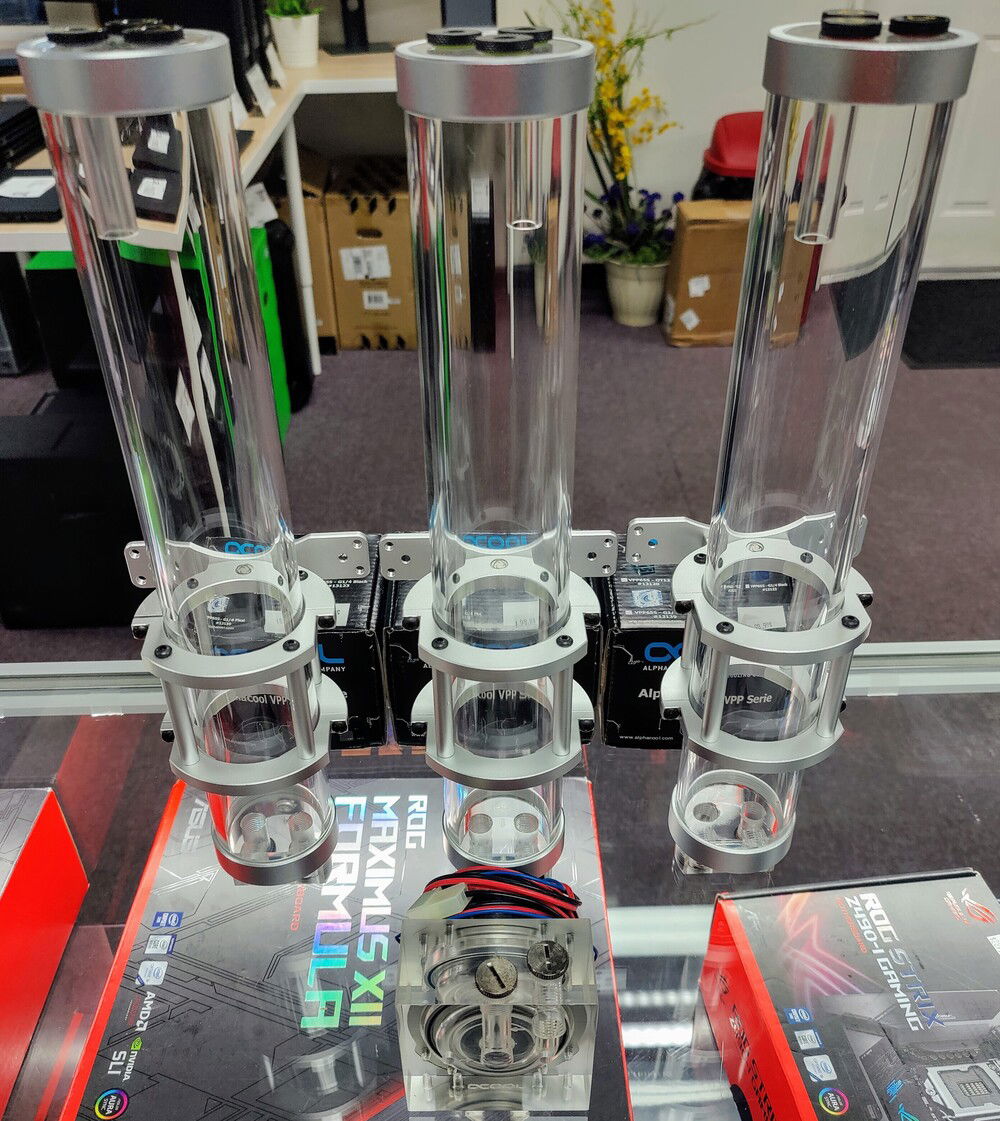

Singularity Computers - Reservoir (2x)
Type: Custom Loop
Cooling
$ 151.92
XSPC - Fluid (8x)
Type: Custom Loop
Estimated total value of this build:
$ 7,917.54
