Motherboard & Epoxy Gaming Desk

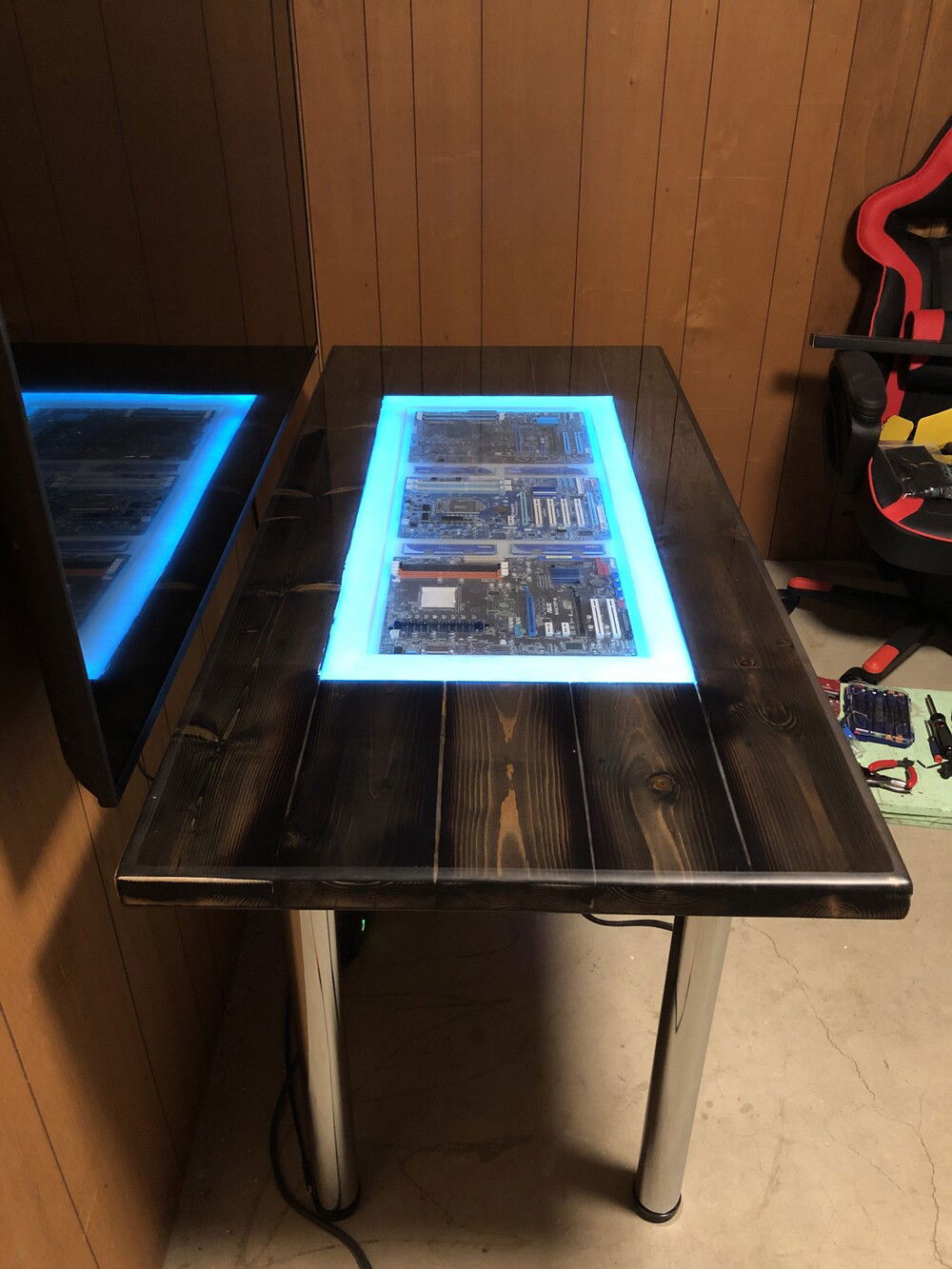

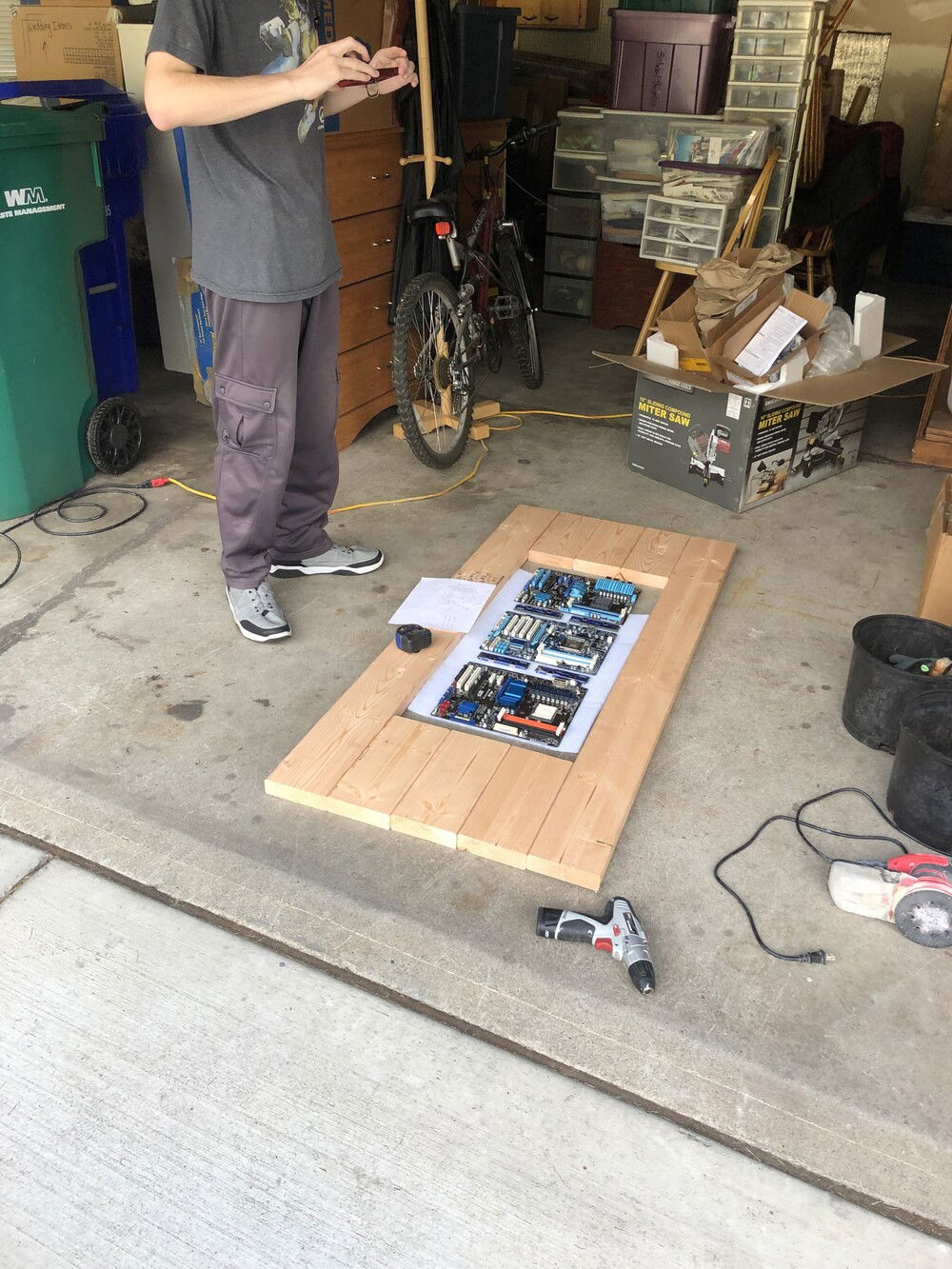

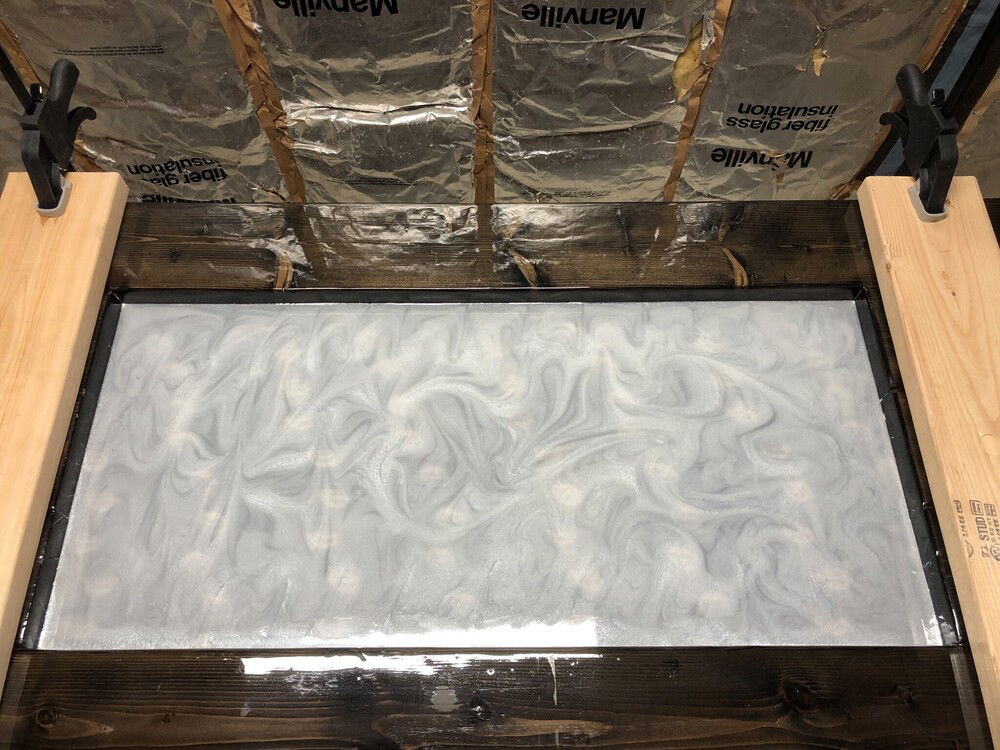

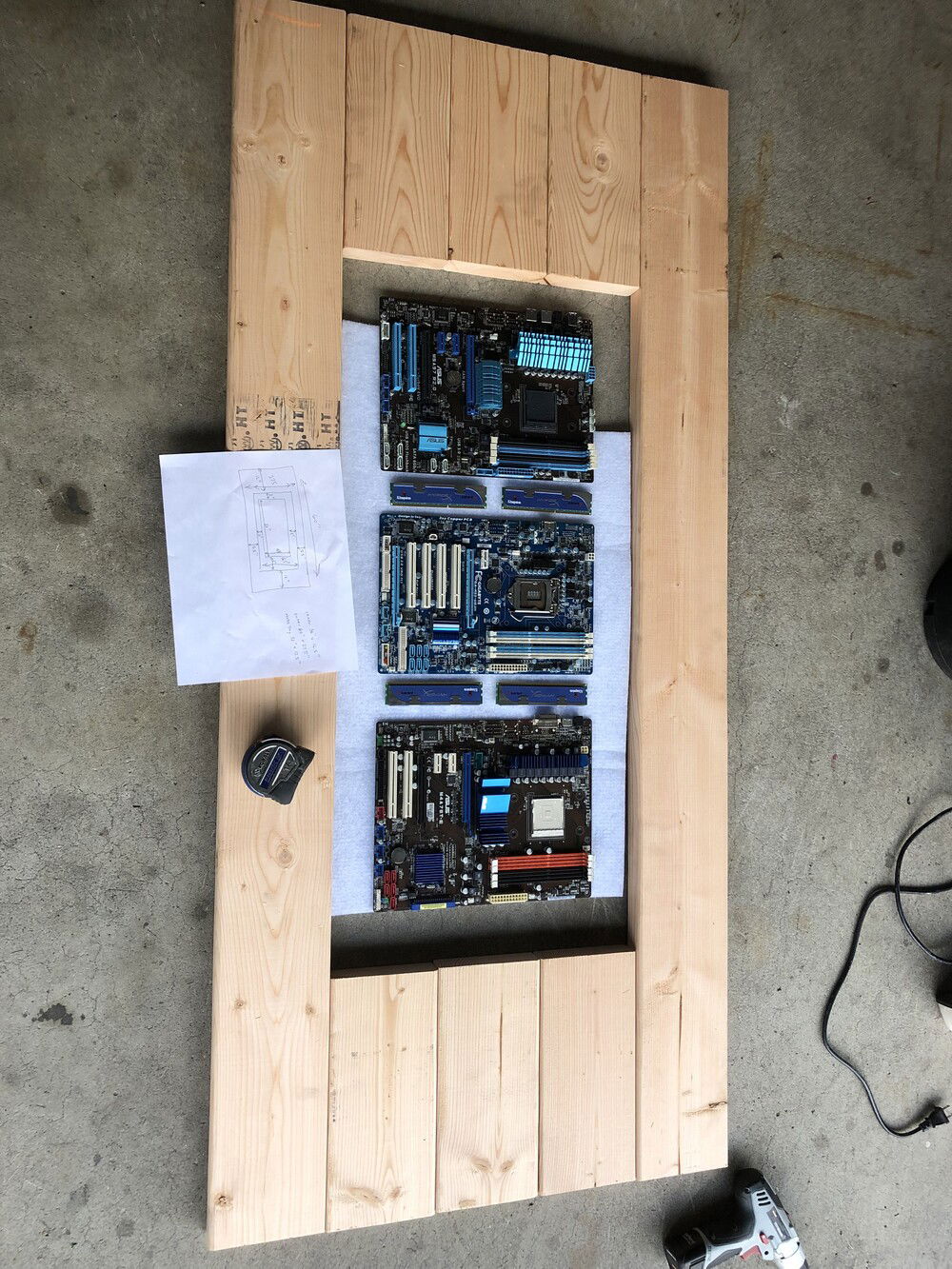

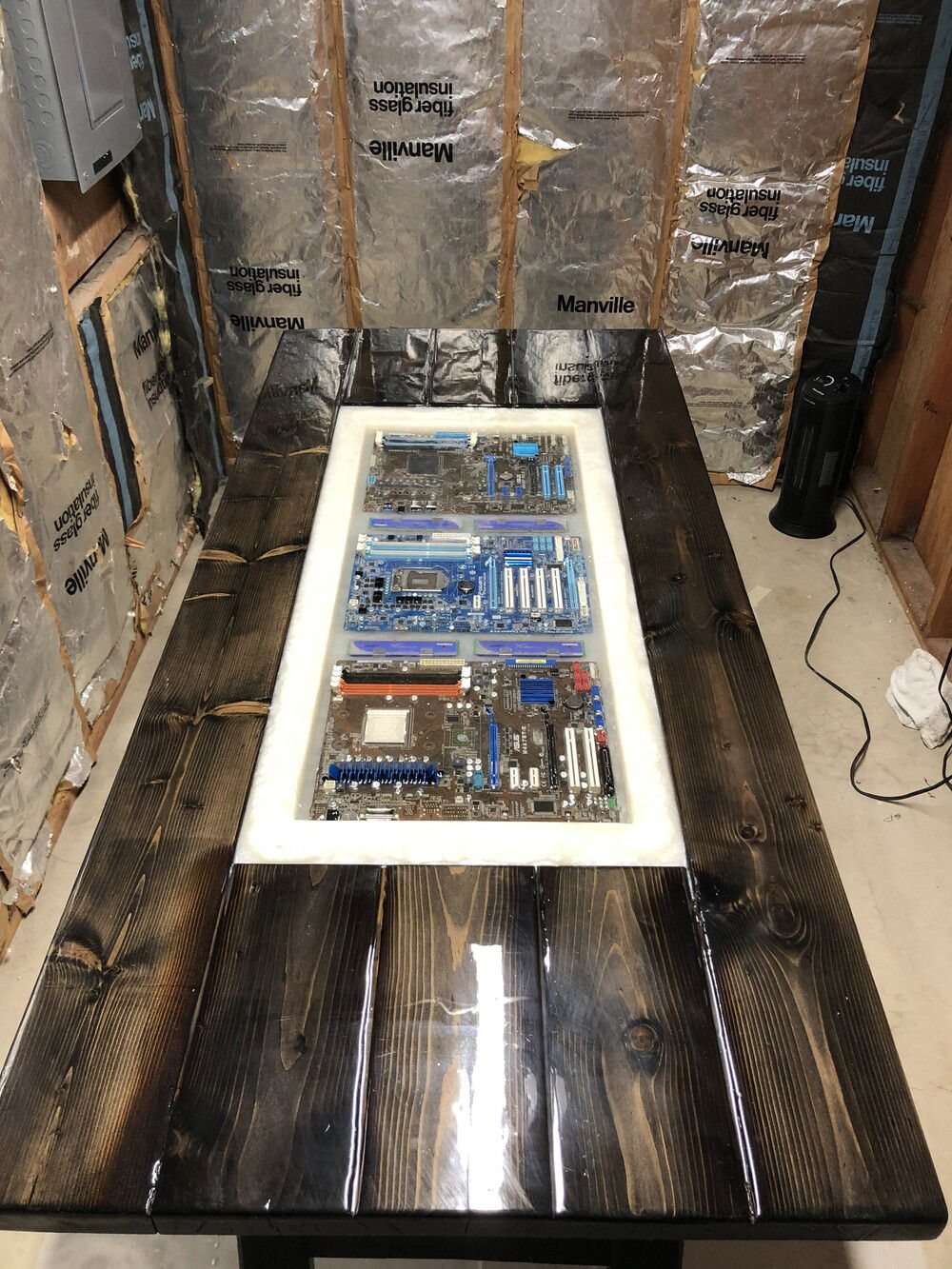

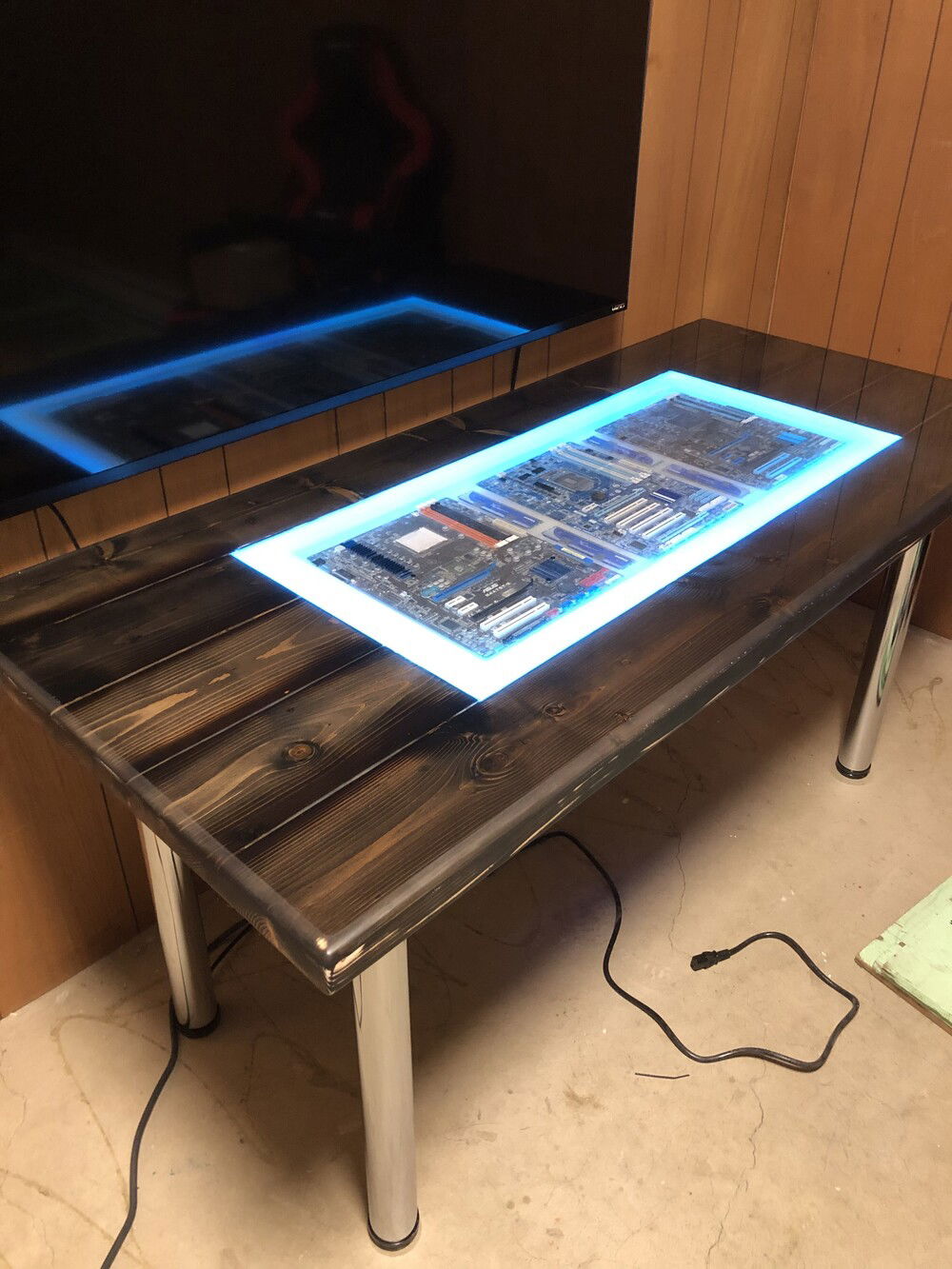

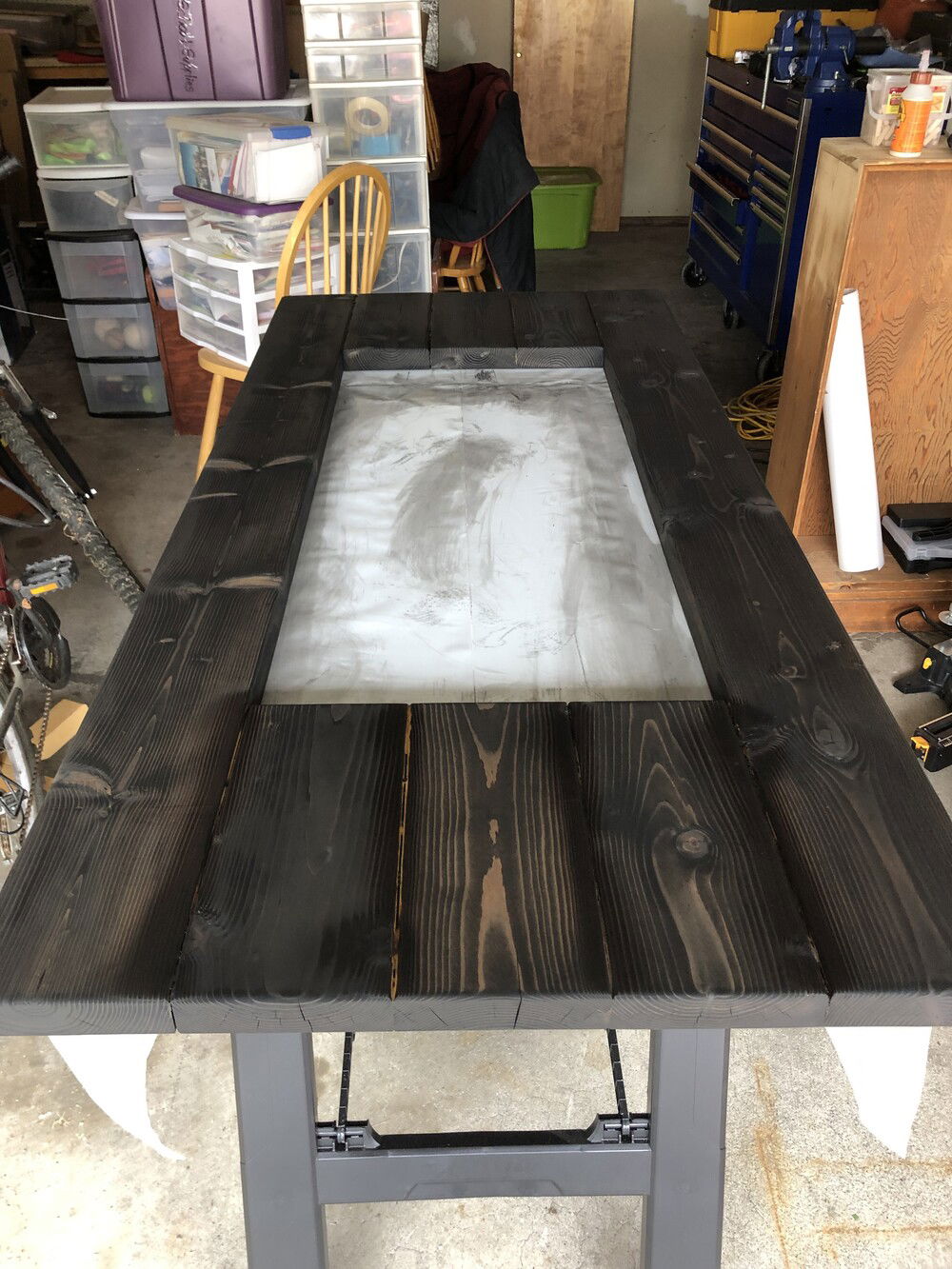

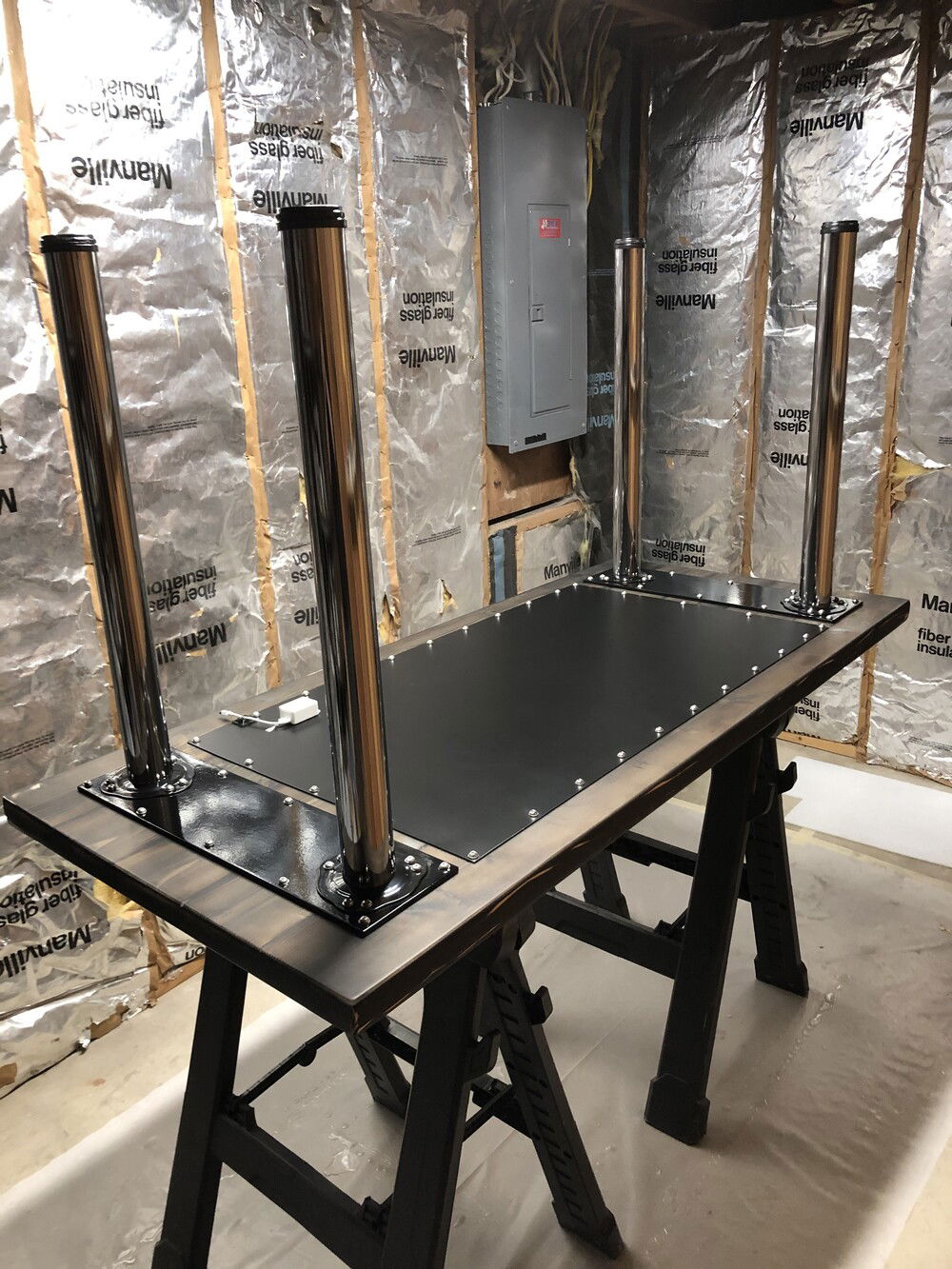

I started there with Five 2x6 and cut them to 60" length, sanded them smooth and put them together with dowels and wood glue. We stained them black and laid out the seal coat of epoxy on them. We then placed the project on a flat surface that we sealed and covered with tuck tape to help it release once we poured the center epoxy. I mixed in some pearl white mica powder and poured a thin first layer in the center of the table. After that was cured we placed a mold in the center to block out for the surrounding edge of white pearl epoxy we would be pouring. Once cured we pulled out the mold and placed the non-working motherboards into the center along with 4 sticks of DDR3 DRAM then continued pouring clear epoxy till the entire surface was flat and covered. Last I routed the edges and gave them a scuffing to make them look frosted. I mounted the legs and routed out a channel on the underside for the RGB strips and placed an aluminum cover over to prevent light bleed.
Color(s): Black Silver
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Passive Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 8.88
Intel - Q6600
Socket: LGA 775
Cores: 4
Motherboard
MSI - 760GM-P34(FX)
Chipset: 760G
CPU Socket: LGA 1155
Size: Micro-ATX
Memory
OCZ - DDR3
Type: DDR3
Capacity: 4 GB
Graphics
EVGA - 8800 GTS (discontinued)
Chip Manufacturer: NVIDIA
Chip: 8800 GTS
Storage
$ 118.68
Seagate - Barracuda (5400RPM)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 120 GB
PSU
Rosewill - Fortress
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Cooler Master - Stacker
Type: Full-Tower
Side Panel: Solid
Chair
$ 399.99
Arozzi - Verona V2
Material: Hybrid Leather
Color: Black, Red
Desk
UPLIFT Desk - V2
Material: Metal, Wood
Color: Black
Height Adjustable: Yes
