Parallel World

Custom watercooled PC build

Lian Li O11 Dynamic XL | EKWB | CableMod | Vertical GPU | ROG

Started with purchasing the most popular Lian Li Dynamic XL ( ROG Certified ). Since the day 1, I wanted to do mount my GPU vertically ( I know it's has just aesthetic benefits when it comes to watercooling ). So, I've used Lian Li O11DXL-1 Upright Display Card Kit.

Below are the list of component I've used in my build with the explanation why I've chosen them. You may have different opinion on them, if so please share them as a comment.

ASUS ROG MAXIMUS XII HERO (WI-FI)

  • Great built in OC features
  • Z490 latest chipset
  • 10th gen CPU socket
  • Built-in WiFi6
  • Great amount of headers (2xARGB, PWM water-pump, water temp/flow sensors, plenty of PWM fan headers, 2xUSB 3.2 a.k.a TypeC, etc.)


ROG STRIX RTX2080S O8G

  • TI was over the budget :(
  • Next best GPU with OC capability
  • EKWB waterblock support


TEAMGROUP T-Force Delta RGB DDR4 16GB (2x8GB) 3200MHz

  • Cheaper but good build quality
  • Beyond 3200Mhz is not going to give a big improvement
  • ARGB support


Samsung 970 EVO Plus 500GB4 NVMe - M.2

  • Great performance
  • Read speed is almost same as the PRO version but less heat generation


Deepcool CF120 Plus 3 fan set x 2

  • No doubt, these are not good as EK-Vardar fans
  • Cheaper for a ARGB + PWM supported fans
  • ARGB and PWM fan hub
  • Great air pressure (2.08 mmAq) and low noise (≤28.8 dB(A)) even thought it's a case fan


EKWB watercooling parts

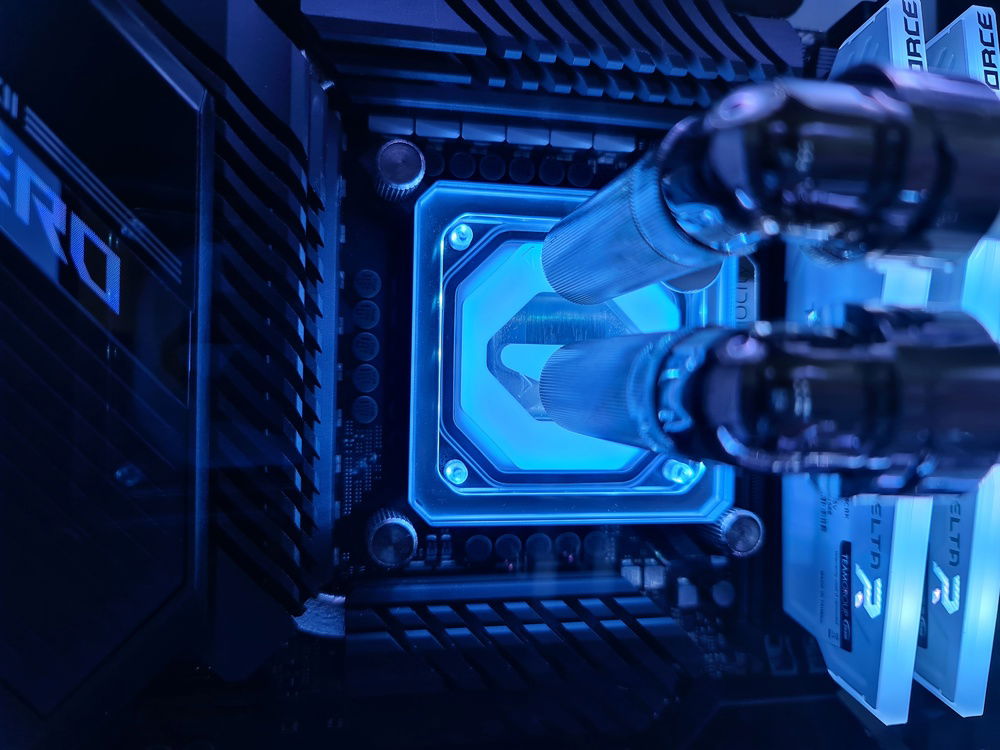

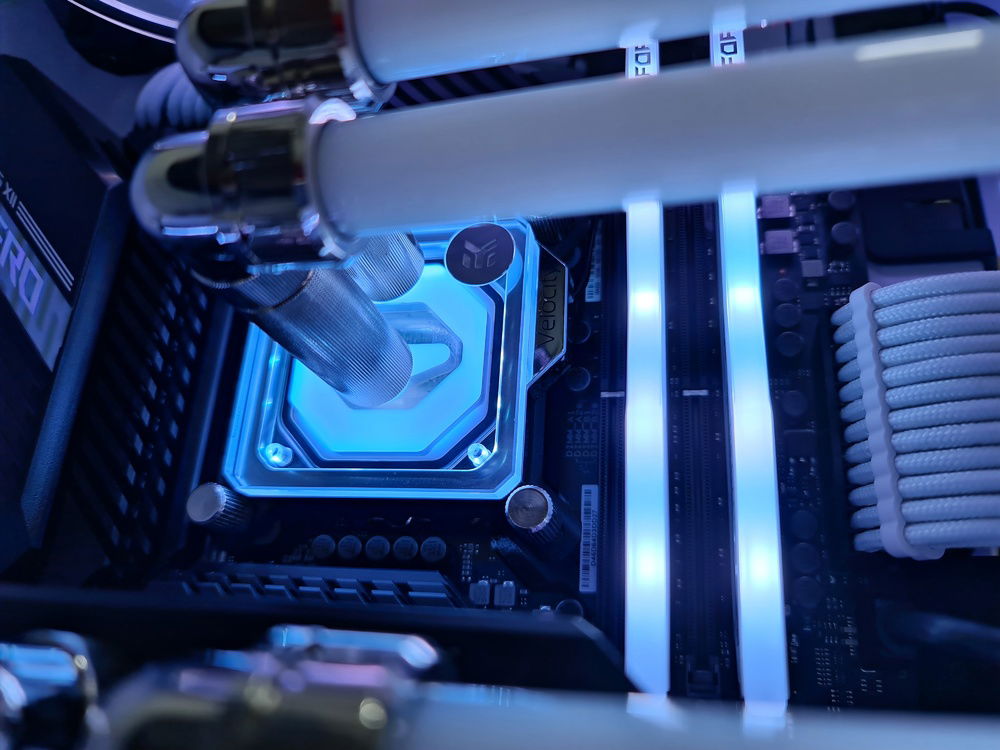

  • EK-Quantum Velocity D-RGB - Nickel + Plexi

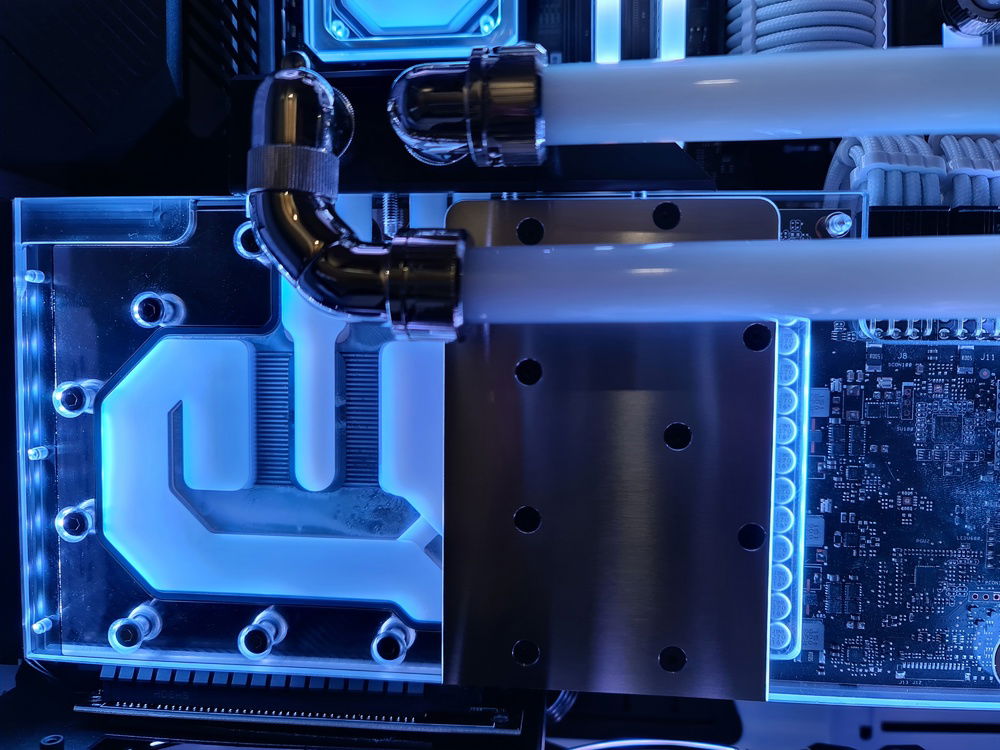

  • EK-Quantum Vector Strix RTX 2080 D-RGB - Nickel + Plexi
  • EK-Classic DP Side PC-O11D G1 D-RGB + DDC 3.2 PWM
  • EK-CoolStream Classic PE 360
  • EK-CoolStream Classic SE 360
  • K-Quantum Torque 6-Pack HTC 16 - Nickel x 3
  • EK-HD PETG Tube 12/16mm 500mm x 3
  • EK-HD PETG Insert 12/16mm (10pcs) x 2
  • EK-CryoFuel Solid Cloud White (Conc. 250mL)
  • EK-AF Angled 2×45° G1/4 Nickel
  • EK-AF Classic Angled 90° - Nickel x 4
  • EK-AF Extender 50mm M-F G1/4 - Nickel x 2


CableMod PRO cable extensions

  • Enhance your build to a whole new level
  • Easy cable management from from and back


Lian Li O11DXL-1

  • 100% matches with the casing
  • Multiple GPU mounting capability
  • high quality riser cable


Build video :
Watercooling PC Build : Lian Li O11 Dynamic XL | EKWB | Vertical GPU | CableMod
Color(s): Black White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 236.00
Intel - Core i7-10700K
Socket: LGA 1200
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 429.99
ASUS - ROG Maximus XII Hero Z490 (WiFi 6)
Chipset: Z490
CPU Socket: LGA 1200
Size: ATX
Memory
$ 47.99
TeamGroup - T-Force Delta (3000MHz) (White/RGB)
Type: DDR4
Capacity: 16 GB
Graphics
$ 898.86
ASUS - GeForce ROG Strix (Black)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Interface: PCIe x8
Storage
$ 65.35
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 238.65
Seagate - IronWolf Pro NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
PSU
$ 116.43
Seasonic - Focus GX
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 219.00
Lian Li - O11 Dynamic XL (White)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 419.94
DeepCool - CF120 (6x)
Size: 120 mm
Cooling
$ 77.99
Cooling
Cooling
$ 17.09
Cooling
Cooling
Cooling
Cooling
$ 58.40
EKWB - EK-HD PETG Tube 12/16mm
Type: Tubing
Cooling
$ 43.99
Cooling
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: White
Accessories
Monitor
ASUS - TUF Gaming (VG27AQ)
Size: 27 Inch
Panel: IPS
Refresh Rate: 165 Hz
