Dell Inspiron 660 Swap To SAMA Maxcool-BK

CAN CONFIRM. This board WILL accept 16gigs of ram !!

https://www.amazon.com/dp/B07XFGKY2V

I honestly think, if you're gonna upgrade an old board, then push it to it's limits in the RAM.


Video 1 & 2 are now available.

Remember, you can upgrade your Windows 7 Dell 660 to Windows 10 for free! Update the BIOS before trying different CPU's or adding an SSD.

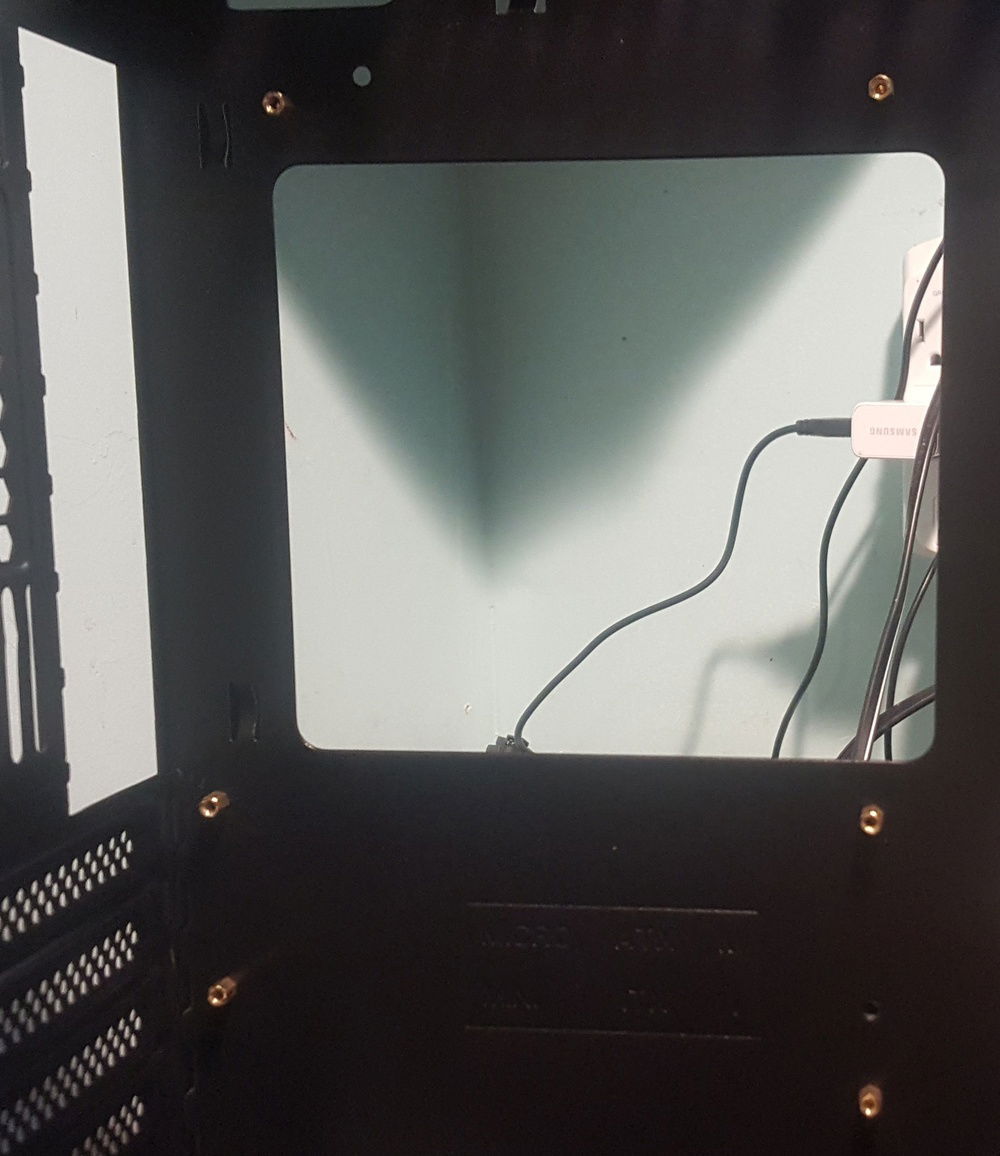

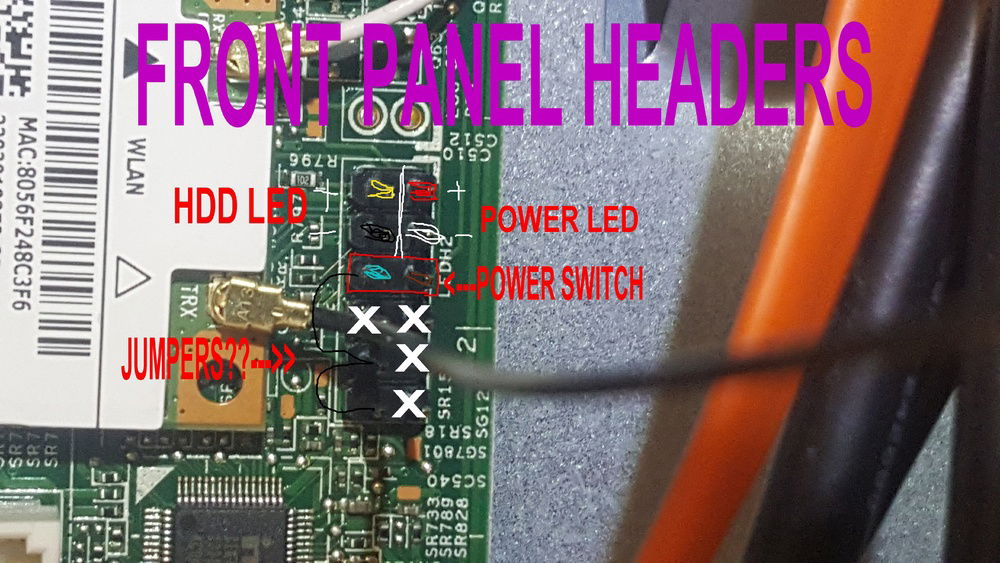

In this series of videos, I'll show you how to swap a Dell Inspiron 660/660s or Vostro 270 motherboard into a more modern case while still retaining all of it's original functionality, and even give it some originality!!

PART 1

PART 2


Have an old Dell 660 or 270 you can get your hands on? See what others are using on it here: https://www.userbenchmark.com/System/Dell-Inspiron-660/1869

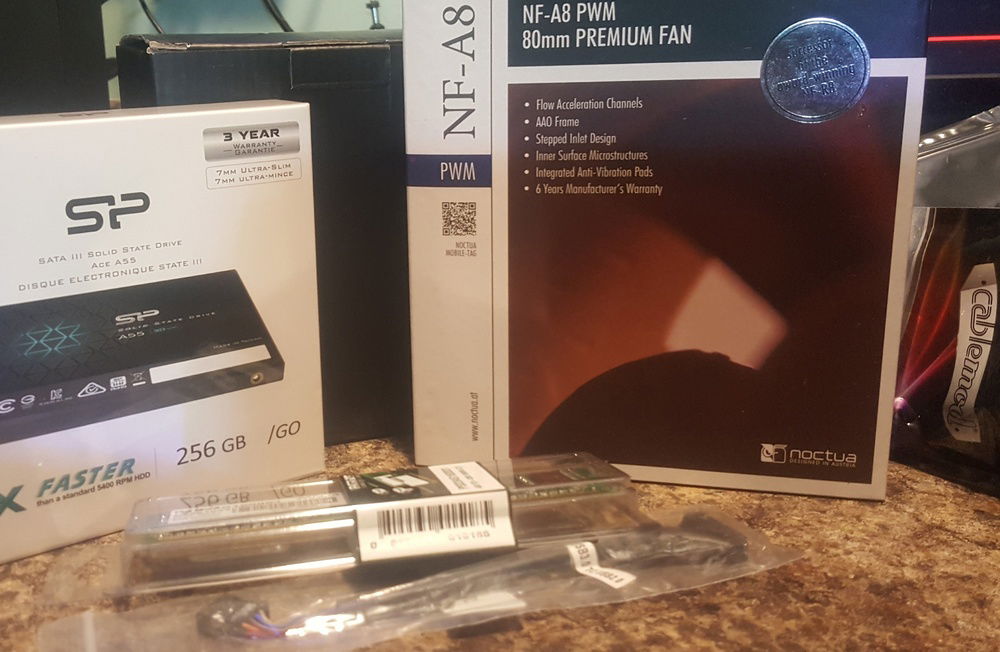

**EXTRA PARTS USED ON THIS BUILD**
CableMod extension:
https://www.amazon.com/gp/product/B077QXY219

CNCT 19-Pin USB3.0 to USB2.0 Adapter Header Cable:
https://www.amazon.com/gp/product/B00V3F44JO
Color(s): Black Green
RGB Lighting? No
Theme: none
Cooling: Air Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 95.00
Intel - Core i5 3450
Socket: LGA 1155
Cores: 4
Motherboard
$ 62.00
Memory
Dell - TVJ7F
Type: DDR3
Capacity: 4 GB
Memory
$ 37.42
Patriot - Signature
Type: DDR3
Capacity: 4 GB
Graphics
$ 106.96
ZOTAC - GT 730
Chip Manufacturer: NVIDIA
Chip: GT 730
Storage
$ 34.04
Silicon Power - A55
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
Storage
$ 27.94
Western Digital - Blue 7200RPM
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 61.35
EVGA - 100-BR-0500-K1
Wattage: 500
Form Factor: ATX
Efficiency: 80+ Bronze
Case
Sama - Maxcool-BK-15 (discontinued)
Type: Mid-Tower
Side Panel: Acrylic
Case Fan
$ 13.99
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: ModFlex
Color: Green
