19" Rack Build 8RU

Pictures below build specs, Rack size 16" x 20" x 18" (H x W x D) 4.5" higher with wheels

Purchased 2020 during the pandamic with the CPU/PSU/GPU shortage. Couldn't get a 3080 ti, 5900X, or the PSU i wanted. However I proceeded with the build and it turned out great. the best part is its portability, with wheels i can move it, an all encompassing enclouse to house my computer, all my networking equipment, media equipment and backup solutions. On the ToDo list is a Capture card for the PayTV and Nintendo Switch, so I can output it on the computer, right now they are going through a 32" TV.

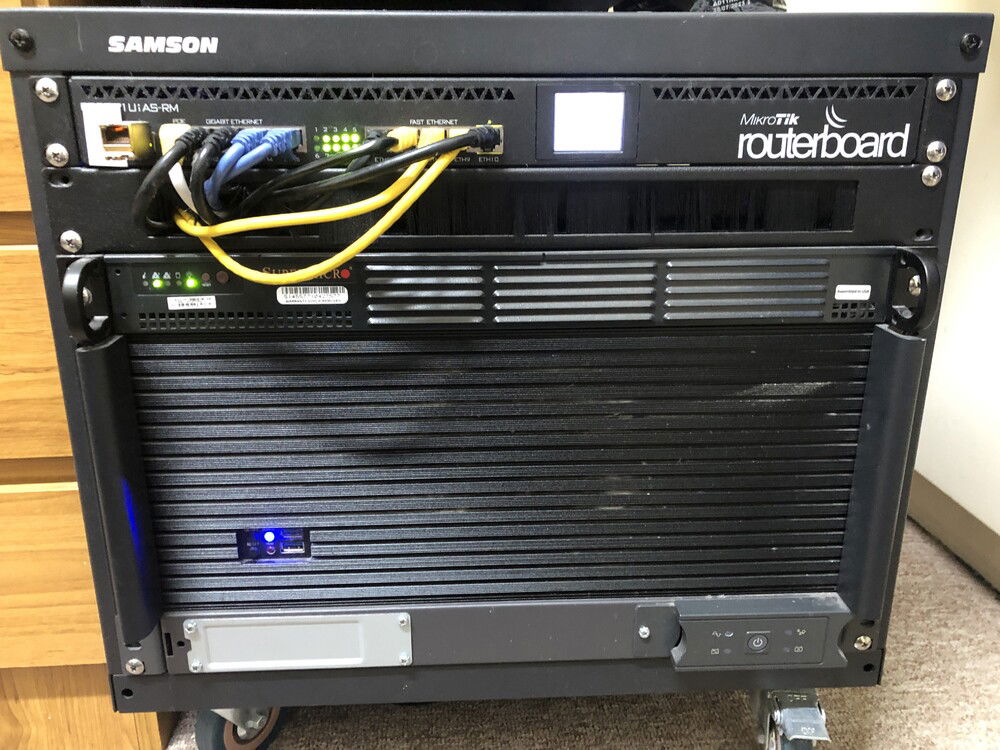

Rack Samson SRK8 8-Unit Universal Rack Stand w/ Locking Casters

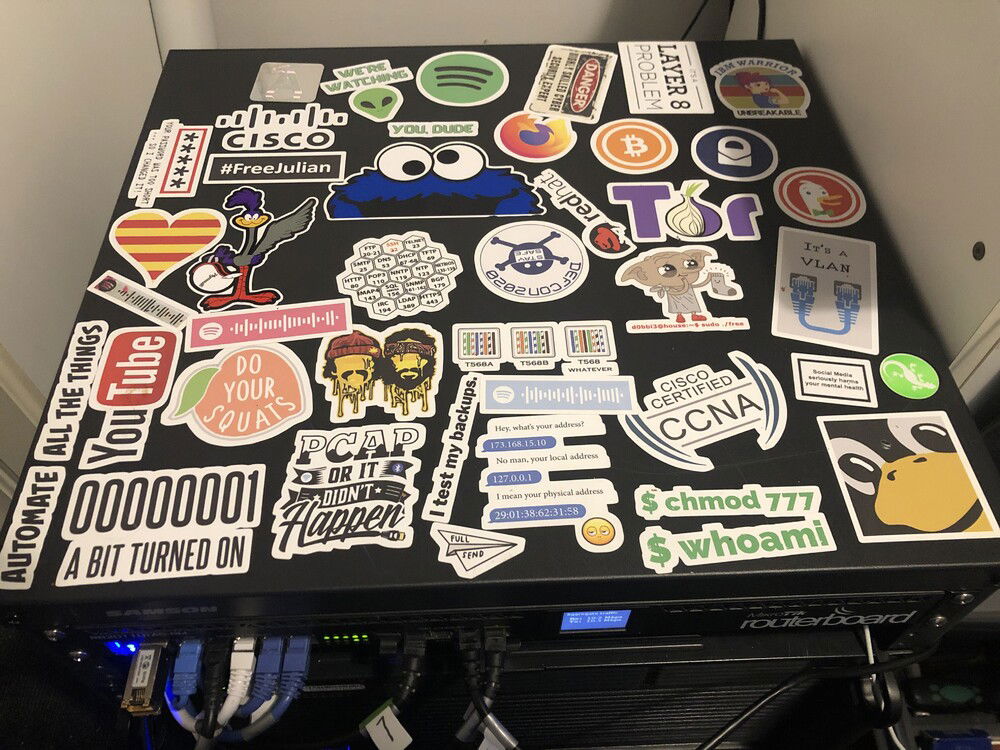

Slot #1 Mikrotik Router
  • RouterBOARD 2011UiAS (5x1000BaseT, 5x100BaseT)
  • sfp1 PS180-T: Proscend (for internet connections requiring a phone line)

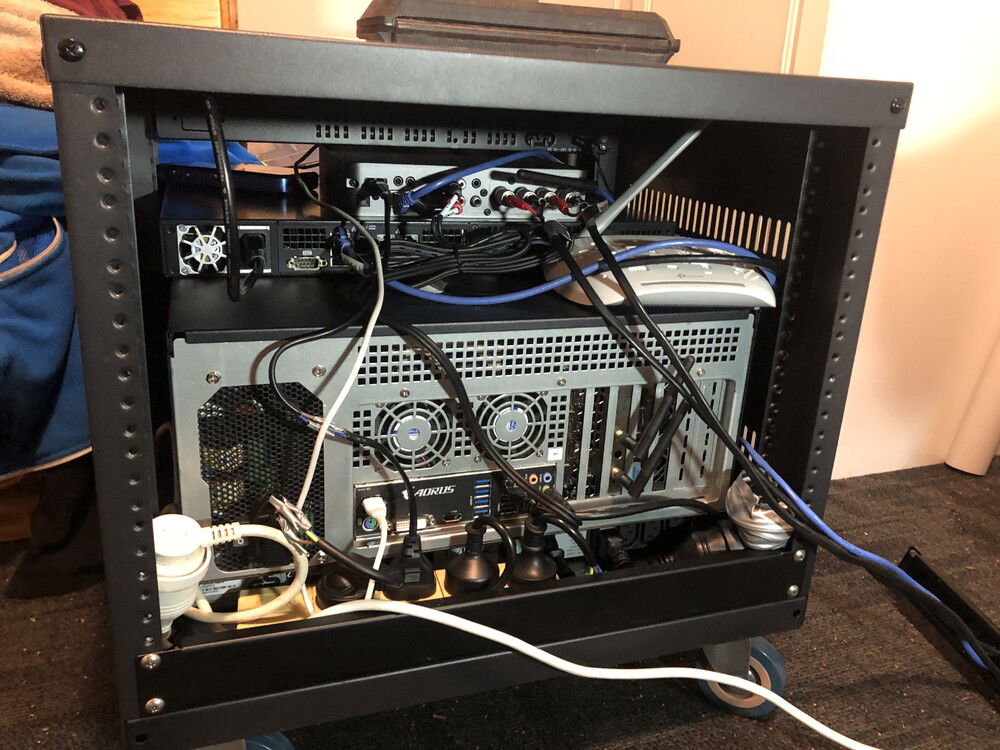

Slot #2 Shelf Devices (not all devices shown in picture, but they all fit in the empty space at the back)
  • Telstra 5G Wi-Fi Pro (backup cellular internet)
  • TP-Link 300Mbps AP (to connect to any public WiFi for internet)
  • Apple TimeCapsule (backups and private WiFi network)
  • Yamaha WXA-50 (100w 2.1 channel amplifier with internet radio)
  • Foxtel iQ5 (PayTV set-top box)

  • OS: Windows 2012 R2
  • CPU: Intel Atom Processor C2750
  • MoBo: Super A1SAi-2750F
  • RAM: 8GB DDR3-1600
  • SSD: 120gb 850 evo
  • HDD: Seagate BarraCuda 4TB

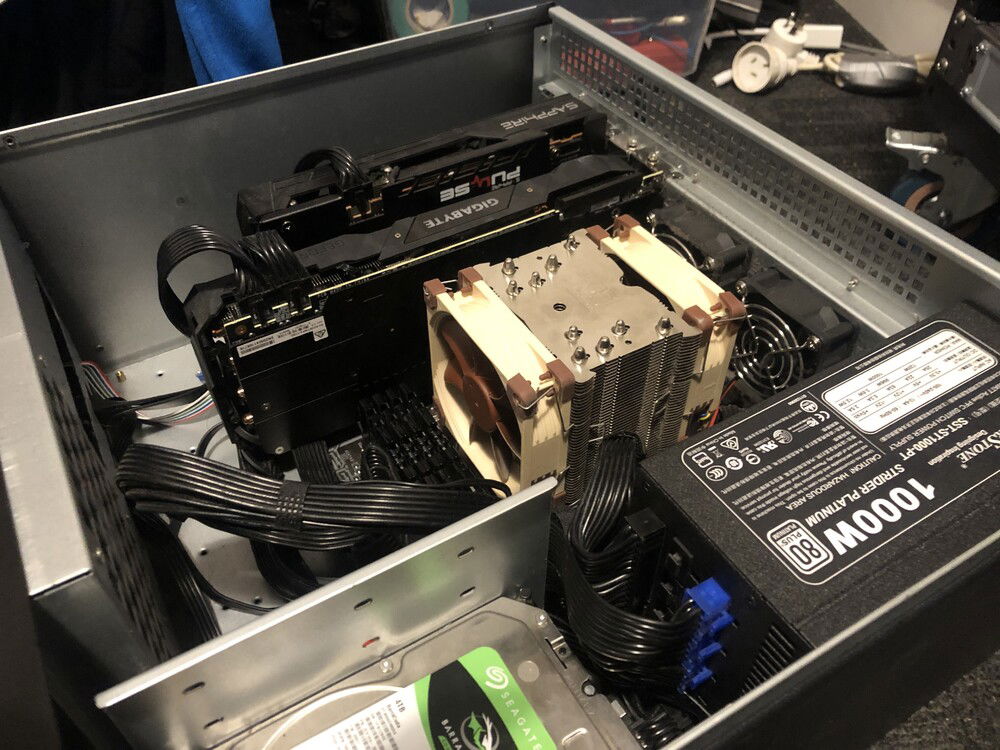

Slot #4-7 4U Generic
  • OS: Windows 10 Education
  • CPU: AMD Ryzen 7 5800X
  • MoBo: B450 AORUS M (AM4)
  • RAM: 32GB CL14 B-Die 3200Mhz
  • SSD OS: 500GB TEAM TM8FP4512G
  • HDD: Seagate BarraCuda 8TB
  • GPU1: GeForce RTX 2080 Ti
  • GPU2: Radeon RX 5500 XT
  • PSU: SilverStone ST1000-PT
  • Cooling: Noctua NH-U12S (plus a rear fan)
  • Fans: 120mm intake, 2x60mm exhaust
  • WiFi Card

Slot #8 UPS
  • APC Smart-UPS SC 450VA 230V
  • If the power goes out, theory is my network devices will stay running and my laptop and phone can access the internet on the failover network which is cellular.

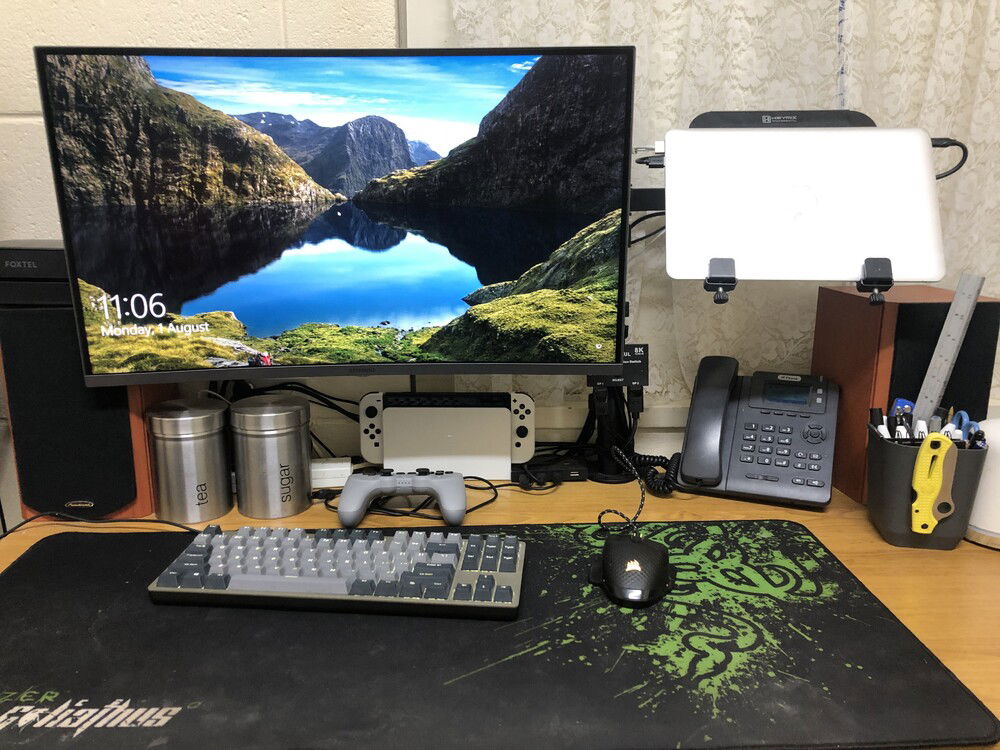

  • Monitor: C27JG5x (144Hz, 1ms, 1440p, curved)
  • Monitor Arm: Zumist Dual Monitor Stand with Laptop Tray (for Macbook Air 11" 2014)
  • Mouse: G604 & Dark Core RGB
  • Keyboard: DROP ENTR
  • Controller: 8BitDo Pro 2
  • KVM switcher (laptop and workstation)
  • IP Phone with 2 lines
  • Presonus Temblor T10 10" Active Studio Subwoofer, it's rated at 250 watts AB class
  • 8ohm, 100w, 87db sensitivity passive bookshelf speakers
  • Sony XM4's
Color(s): Black
RGB Lighting? No
Theme: Industrial
Cooling: Air Cooling
Size: ATX
Type: General Build


AMD - Ryzen 7 (5800X)
Socket: AM4
Cores: 8
$ 89.99
Gigabyte - AORUS M
Chipset: B450
CPU Socket: AM4
Size: Micro-ATX
$ 104.99
Corsair - Vengeance LPX (3200MHz) (Black) (4x8)
Type: DDR4
Capacity: 32 GB
$ 369.98
Gigabyte - Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 2080
TeamGroup - TM8FP4001T0C101
Form Factor: M.2
Capacity: 256 GB
$ 344.84
SilverStone Technology - ST1000-PT
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
TBD/To Be Determined - TBD/To Be Determined (custom)
