Tiny Beast

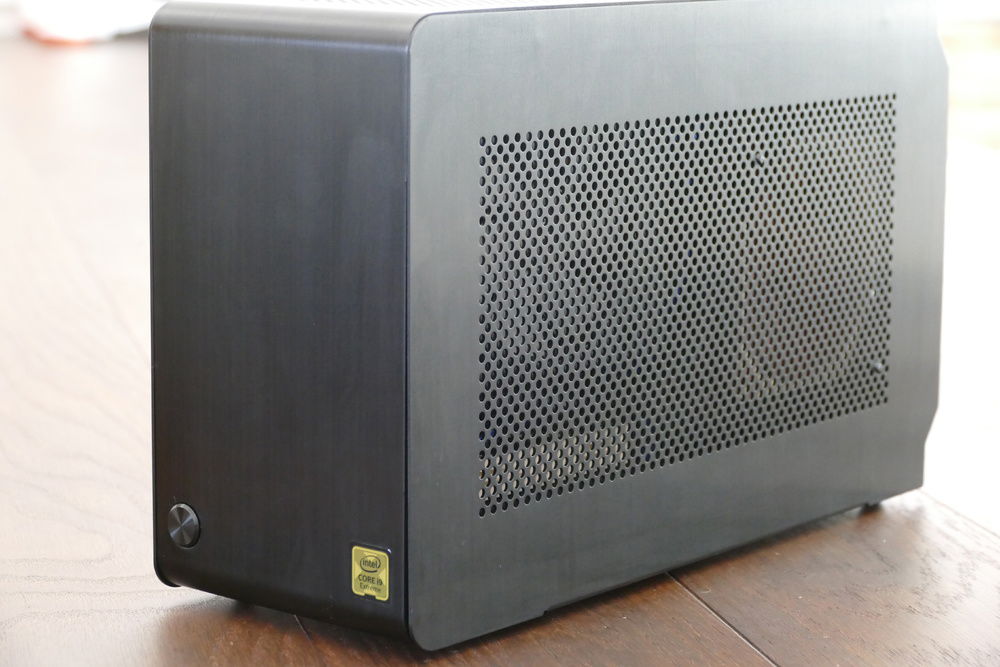

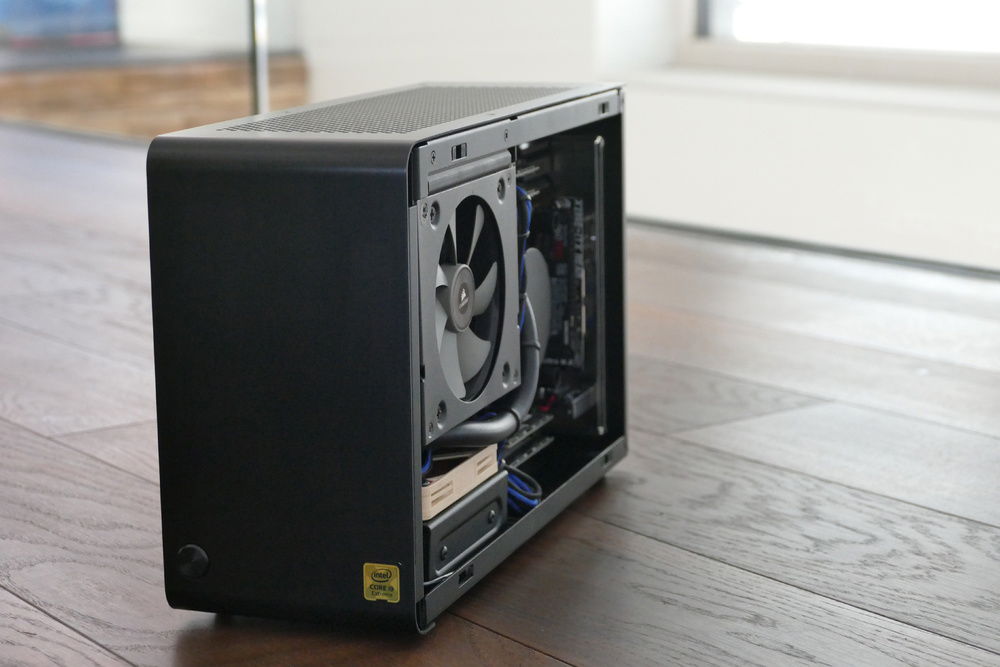

I tried to build the smallest most powerful gaming PC possible. First step was to find the right case - so i went for the DAN A4 (this build uses V2, i started with V1, now already building a new one in V3).

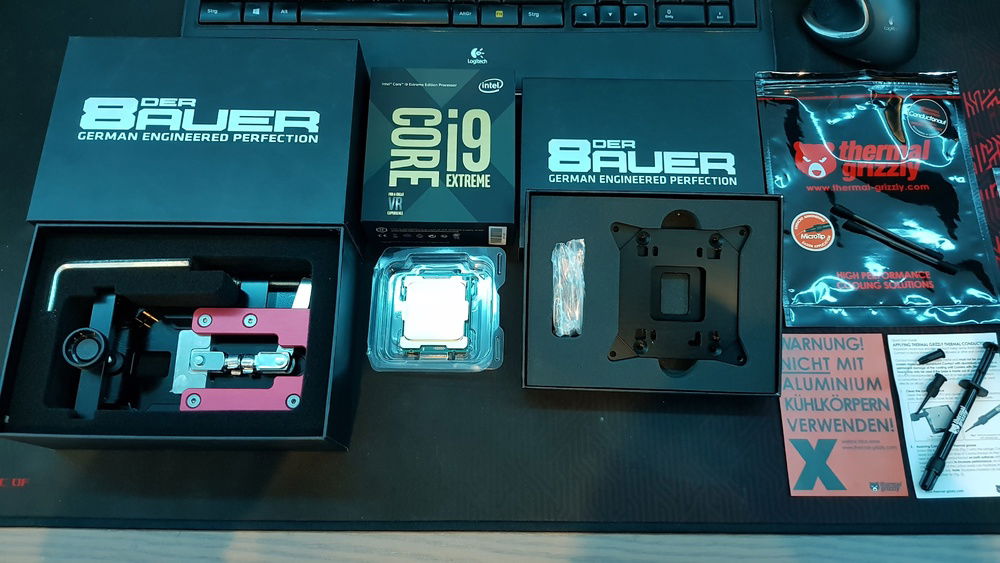

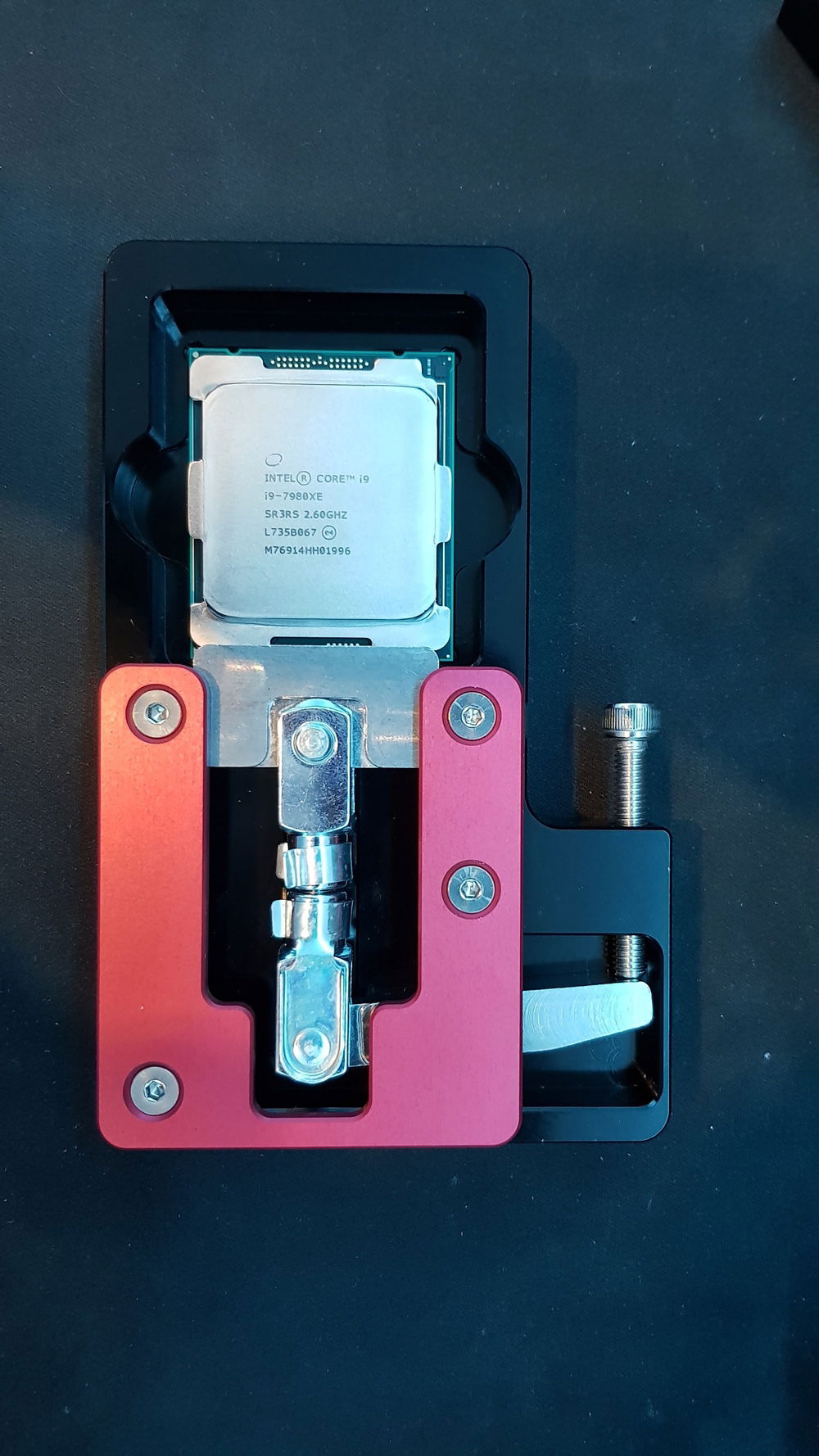

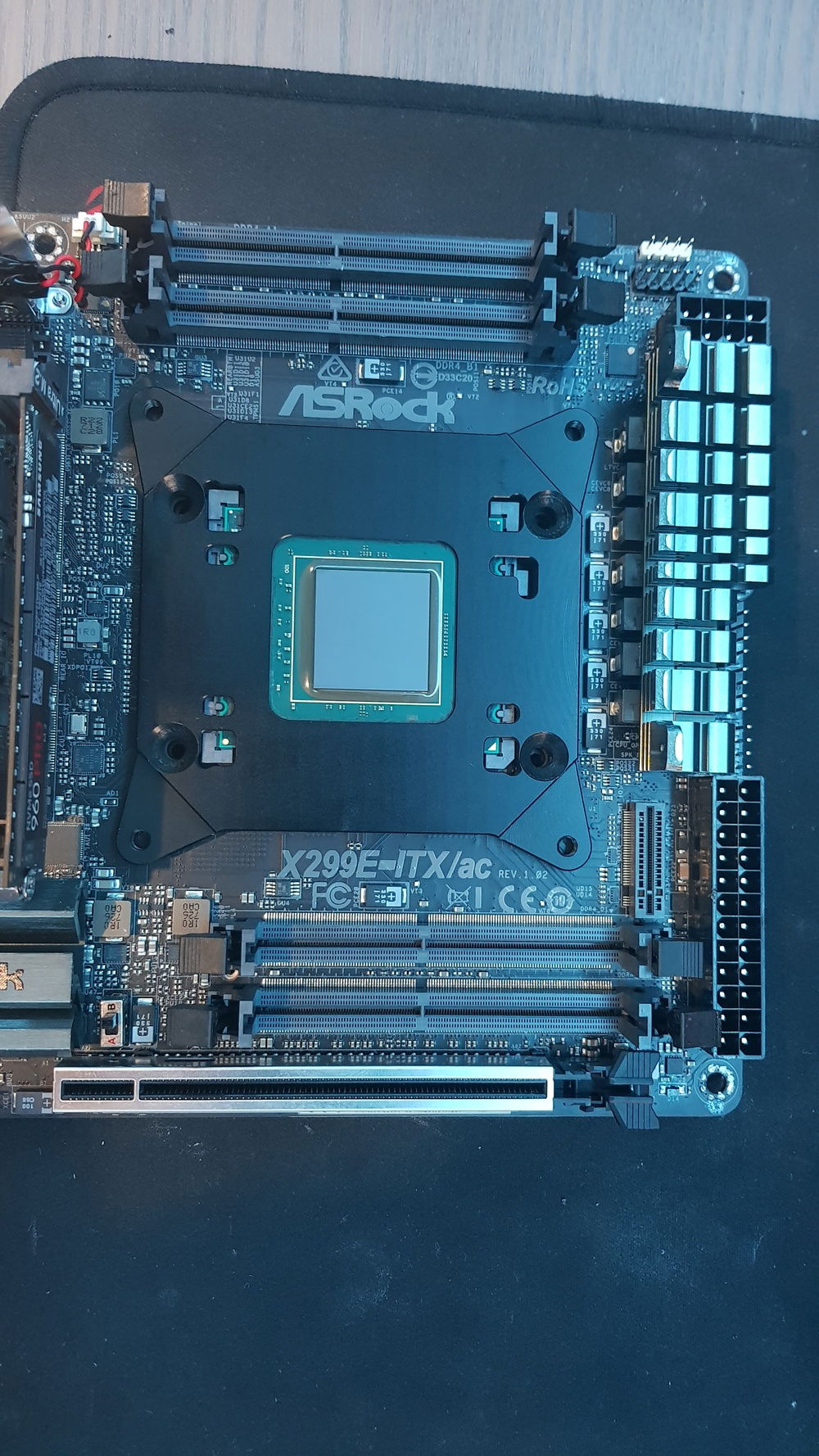

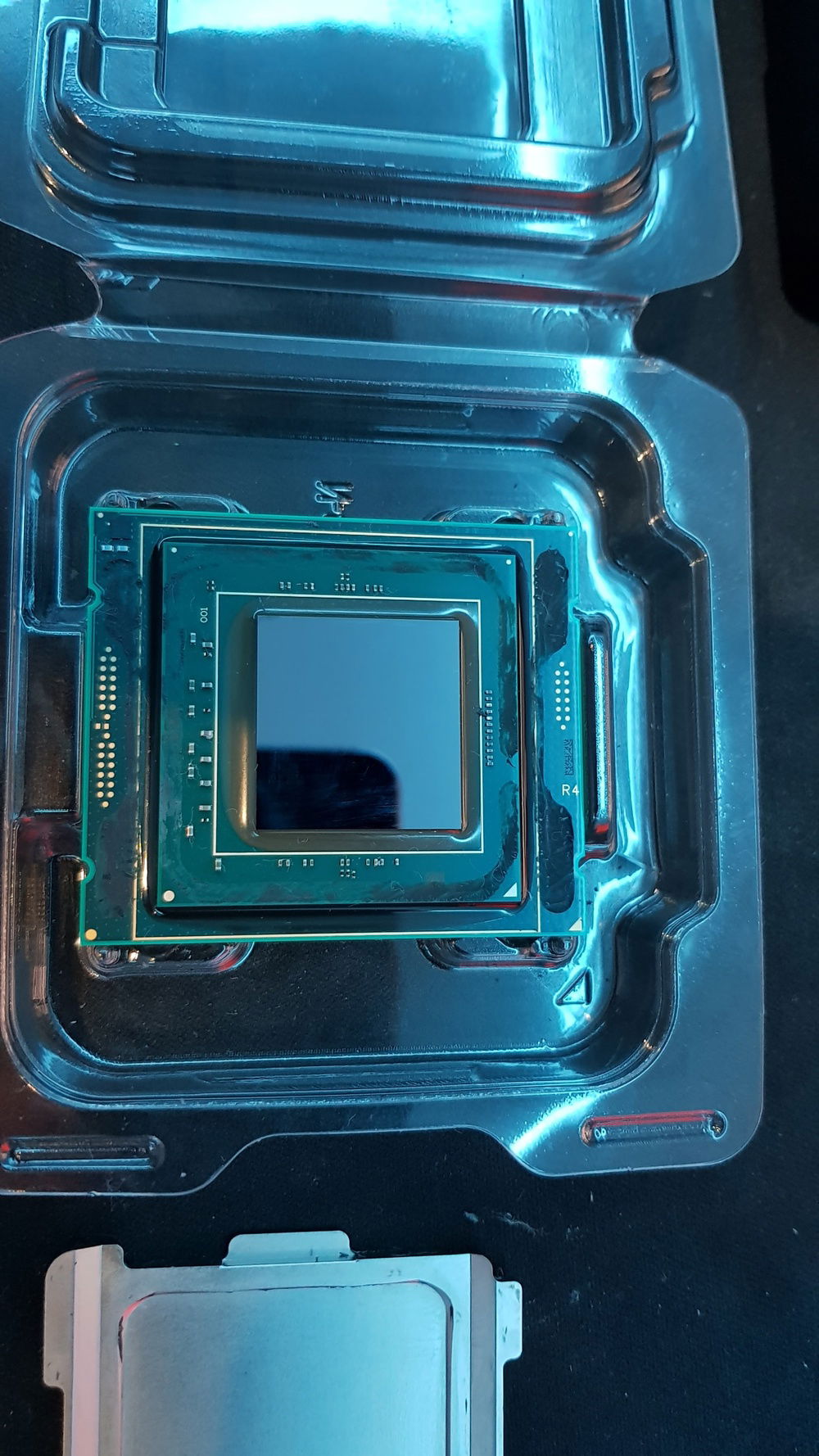

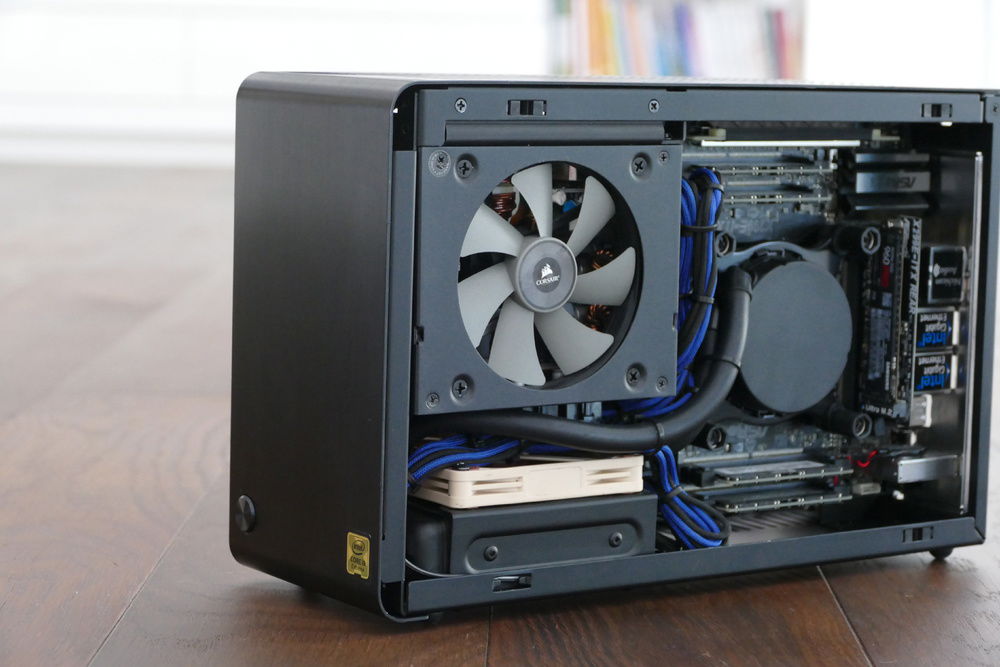

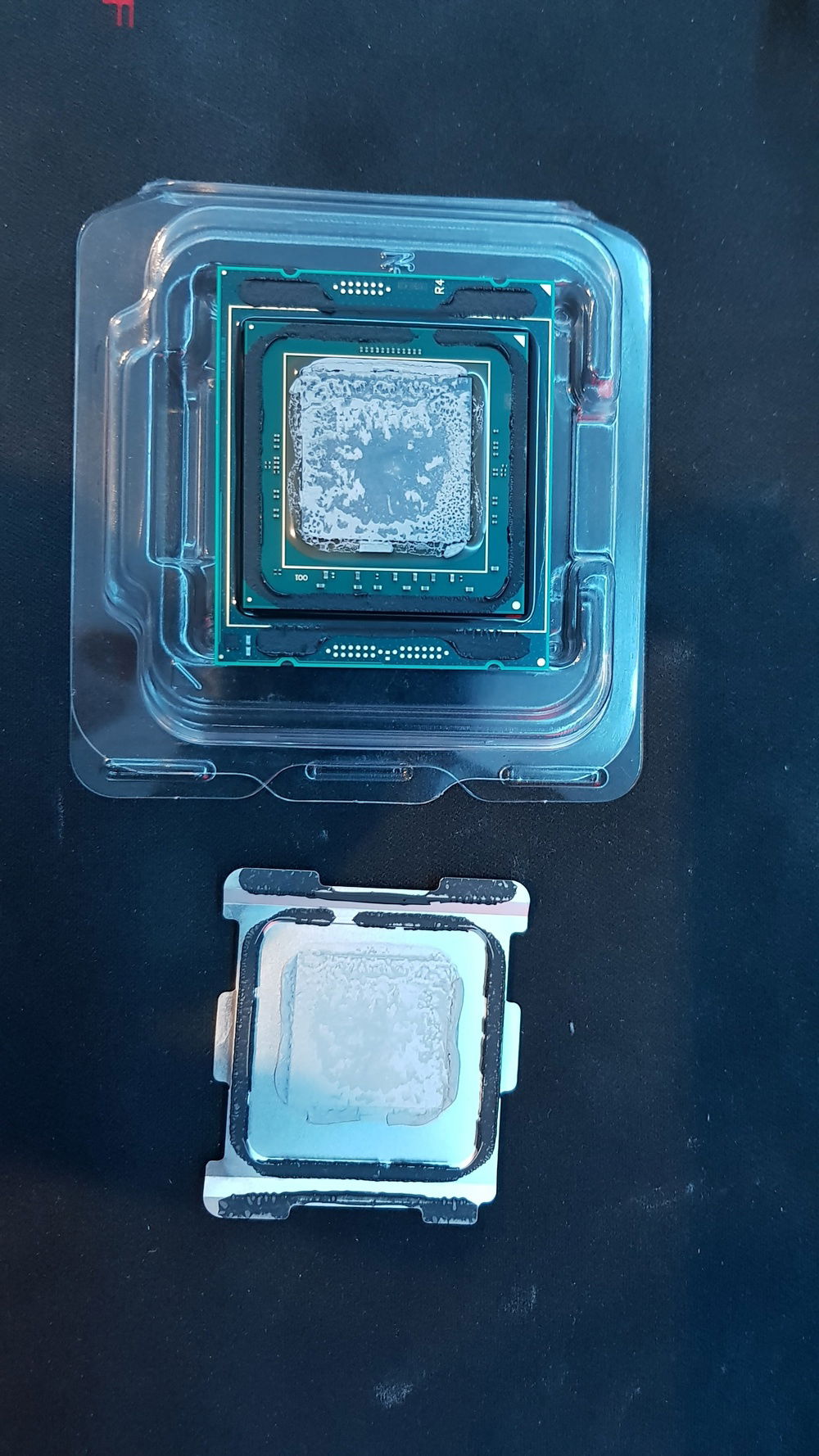

In order to proper cool the CPU i did my first delid using the tools from der8auer (Delid-Die-Mate-X) and installed the direct-die cooling frame. So the AIO Cooler from the Asetek 545LC is directly on the CPU die (with liquid metal in between). Even under heavy tests (Prime95, 3DMark etc.) i reached max 88°C.

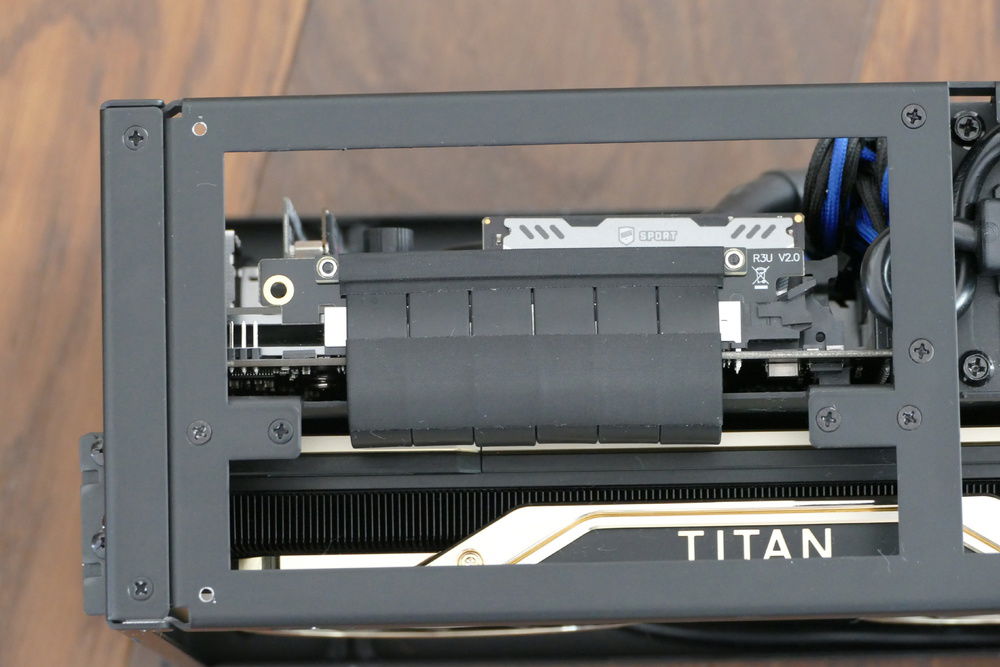

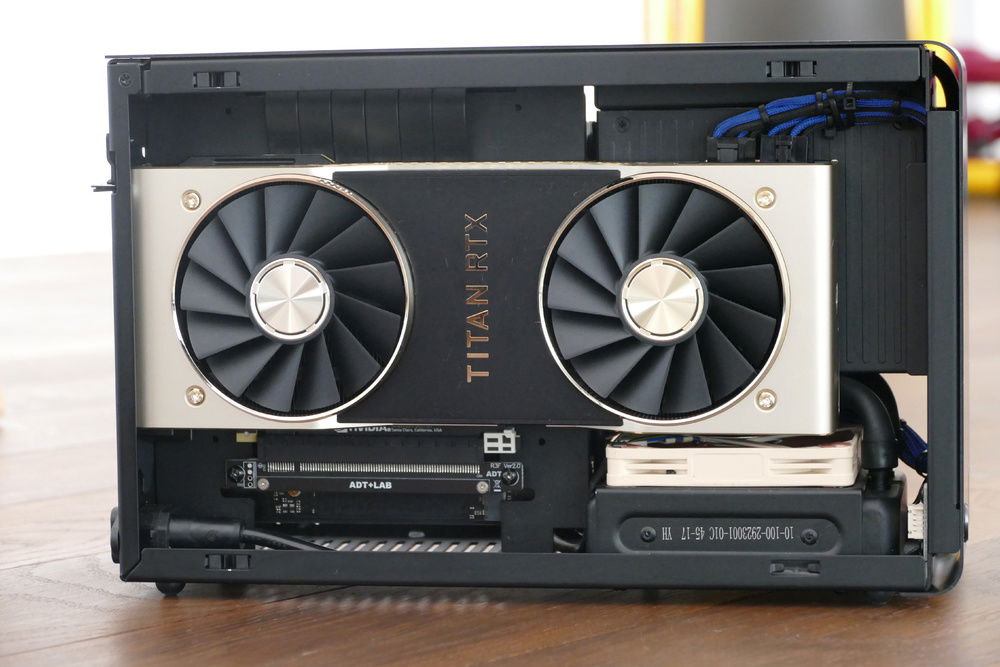

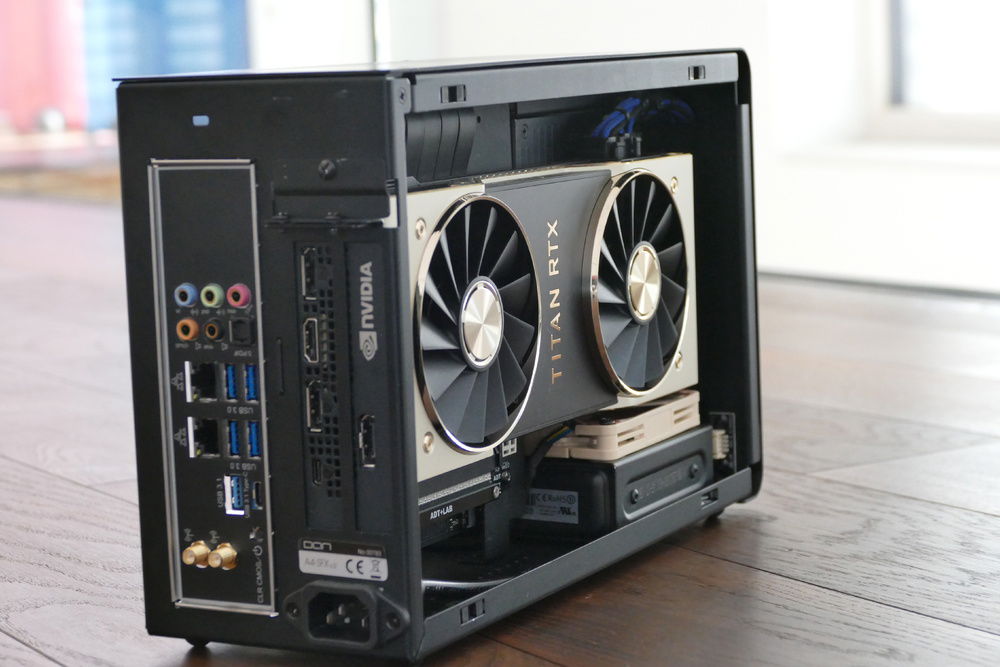

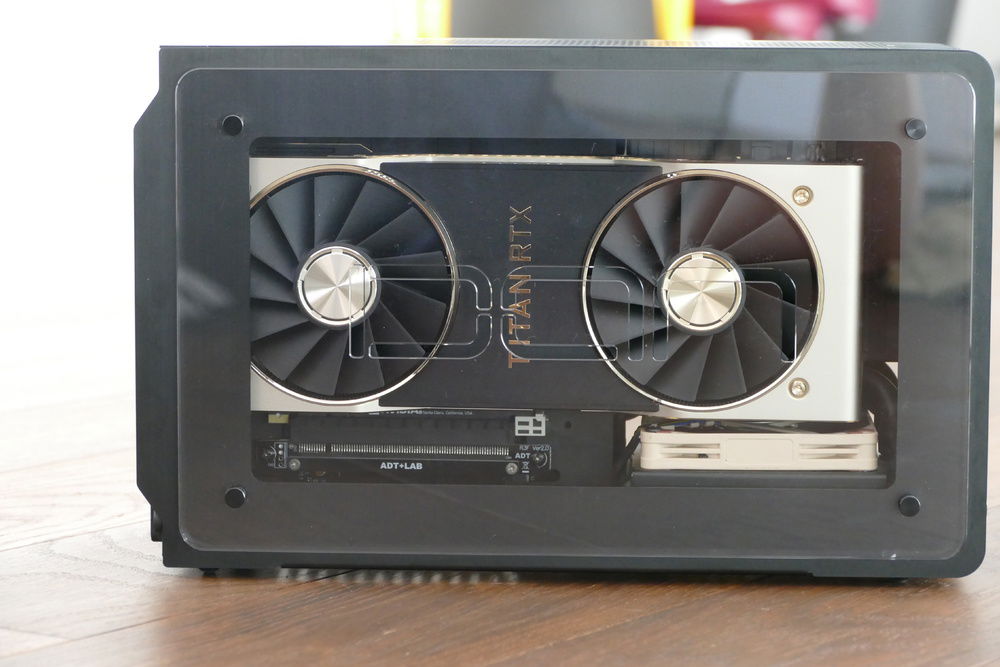

On the Graphics Side the build starte with the GTX1080Ti FTW3 from EVGA, then i went for a TitanV and now just at Christmas I received my Titan RTX. I'm still working on proper settings to keep it both powerful and quiet, cause the Titan RTX is louder than the TitanV and the 1080Ti in this case, but optimizing takes some time.

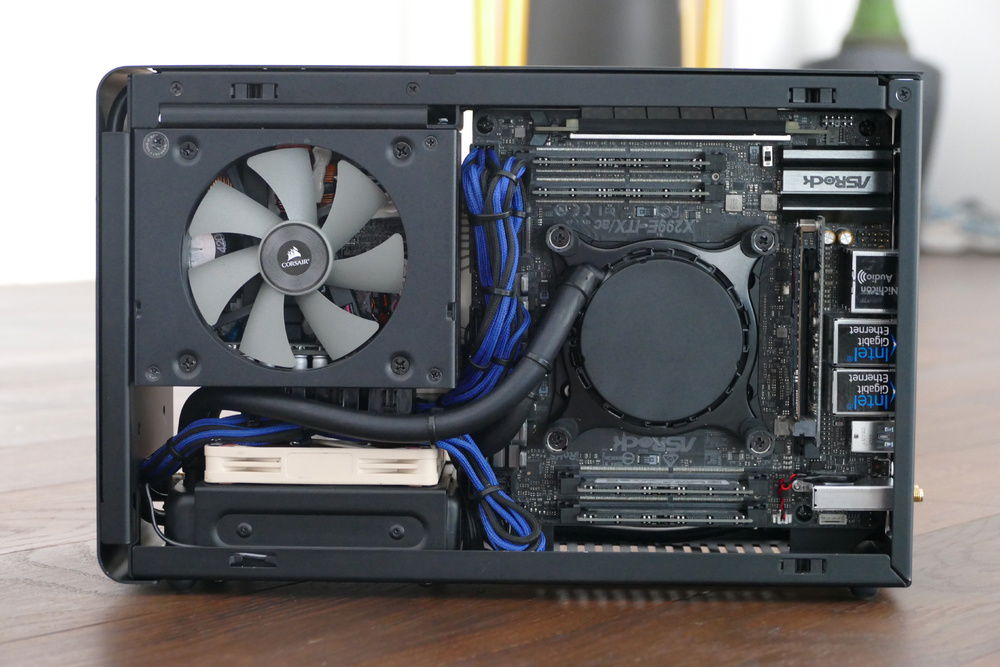

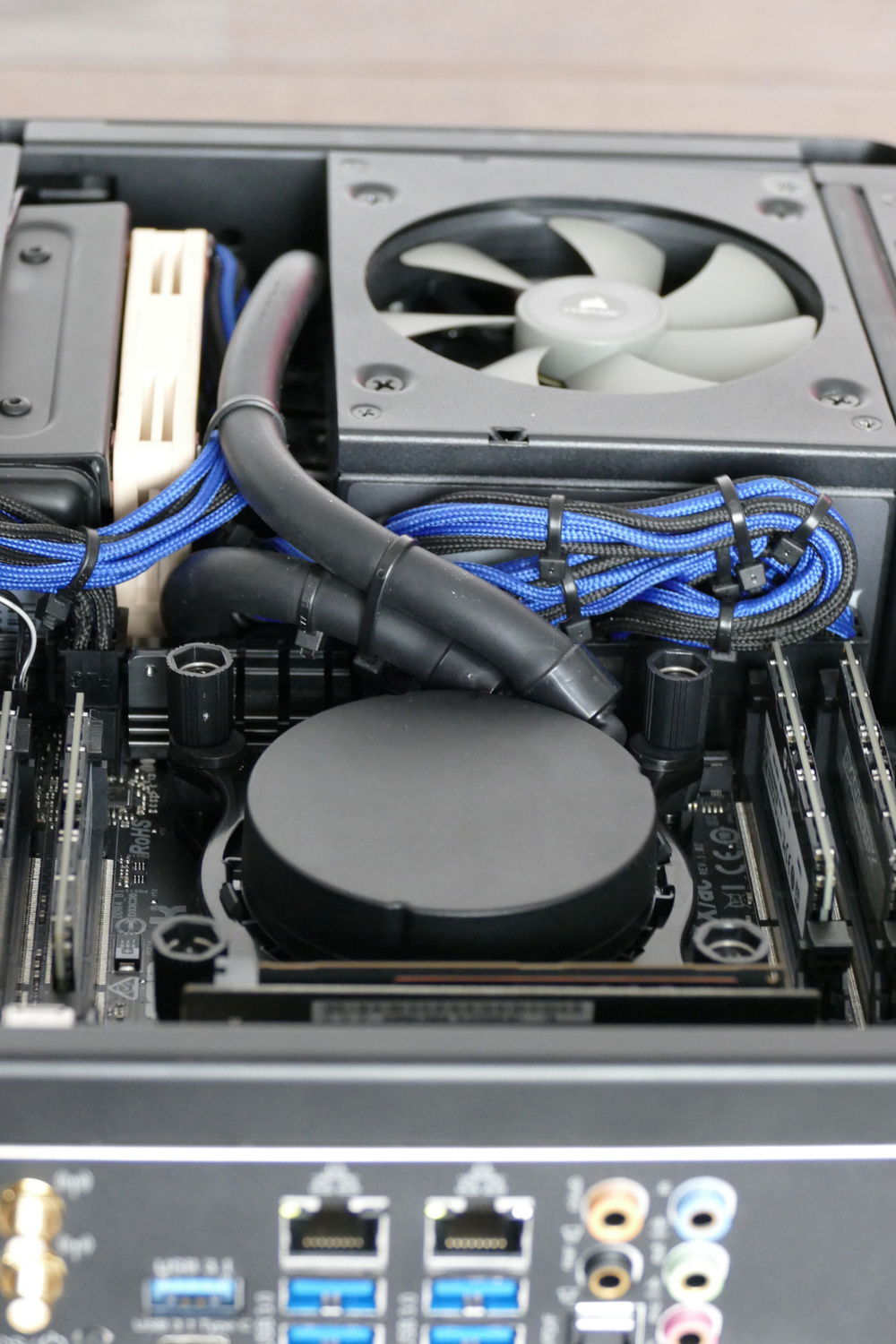

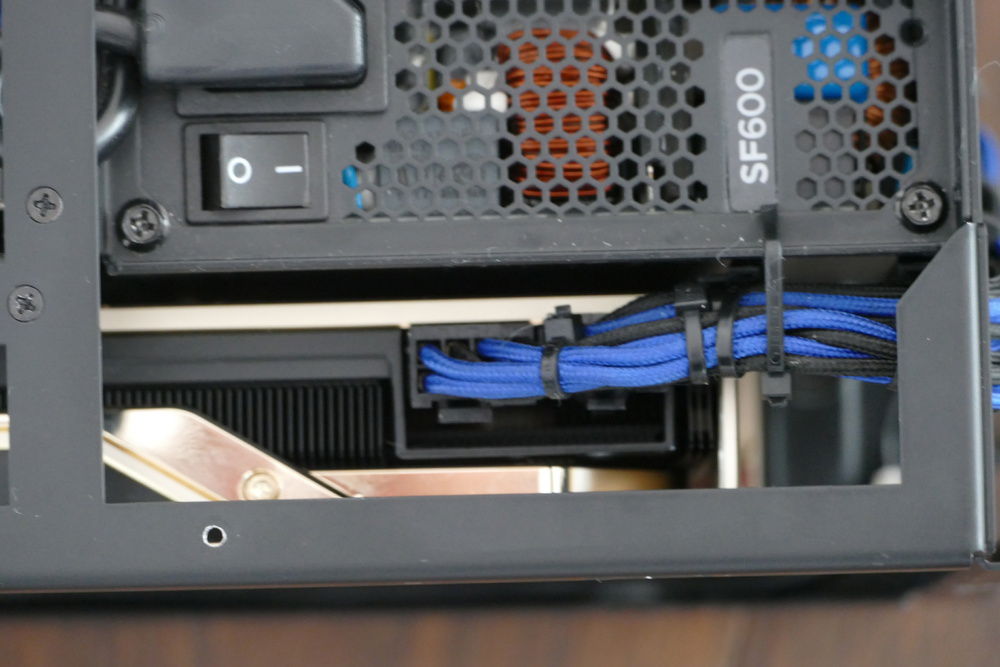

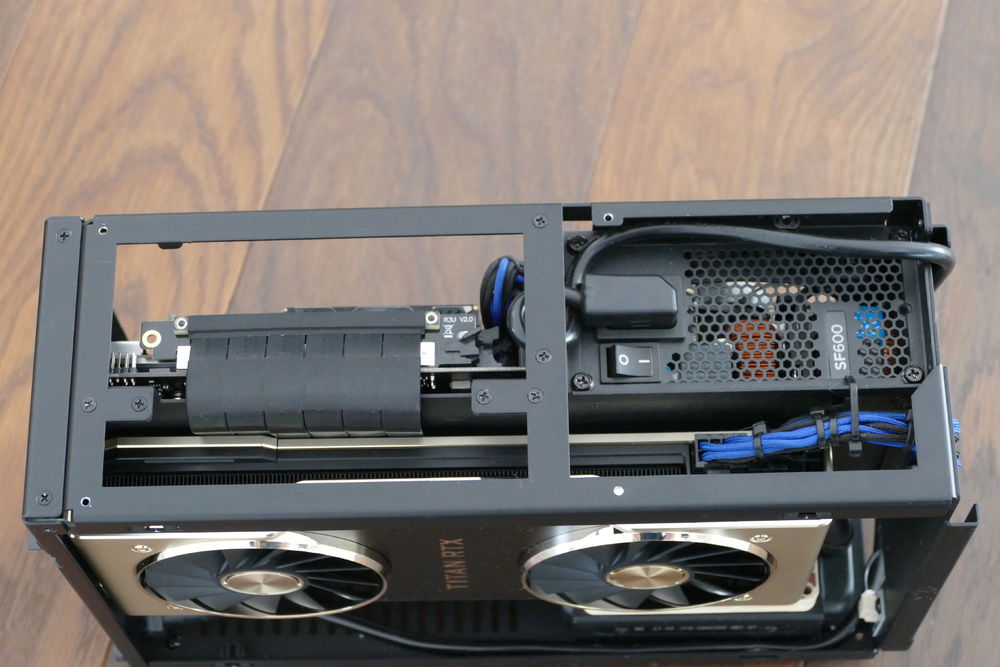

Routing the cables for the PSU was quite tricky, but thanks to the very short custom length cables from CableMod I got it pretty nice and clean. Maybe I'll install some RGB lighting too, but that's it for now.
Color(s): Black
RGB Lighting? No
Cooling: AIO Cooling
Theme: none
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 1,499.80
Intel - Core i9 7980XE
Cores: 18
Socket: LGA 2066
Motherboard

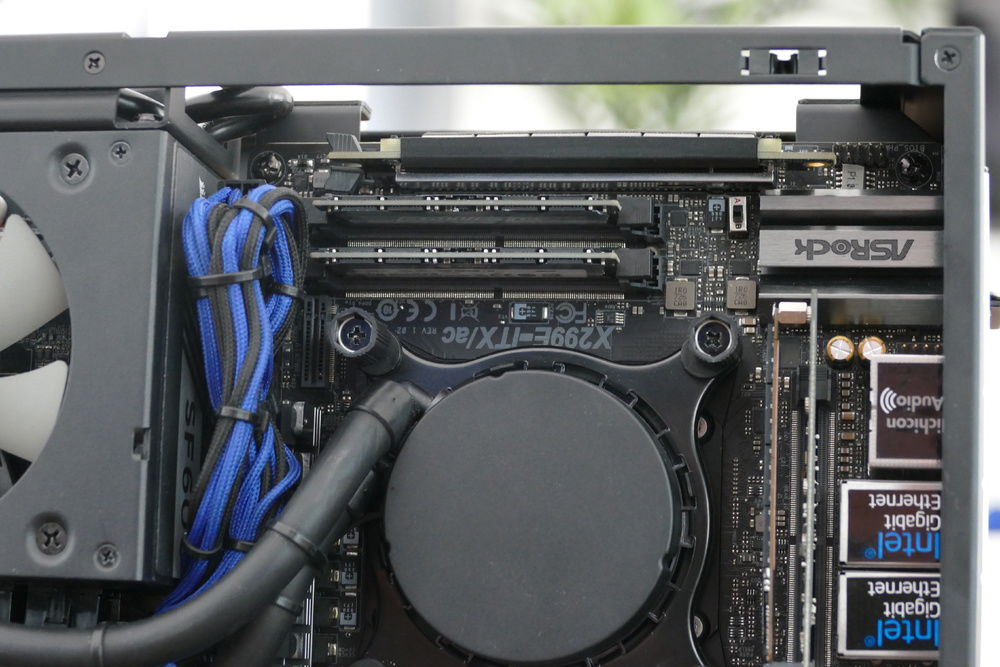

ASRock - AC X-Series
Chipset: X299
CPU Socket: LGA 2066
Interfaces Available: M.2 (M), PCIe x16, PCIe x2, PCIe x4, SATA 6 Gb/s
Memory
Crucial - Ballistix Sport LT
Capacity: 64 GB
Type: DDR4
Storage
$ 1,879.99
Samsung - 960 PRO
Capacity: 2 TB
Form Factor: M.2
Interface: M.2 (M)
Graphics
$ 2,489.99
NVIDIA - Titan RTX
Chip: Titan
Chip Manufacturer: NVIDIA
PSU
$ 141.40
Corsair - SF600
Efficiency: 80+ Gold
Form Factor: SFX
Modularity: Fully-Modular
Case
DAN Cases - A4-SFX
Motherboard Support: Mini-ITX
Side Panel: Solid
Type: Mini-Tower
Case Fans
$ 15.95

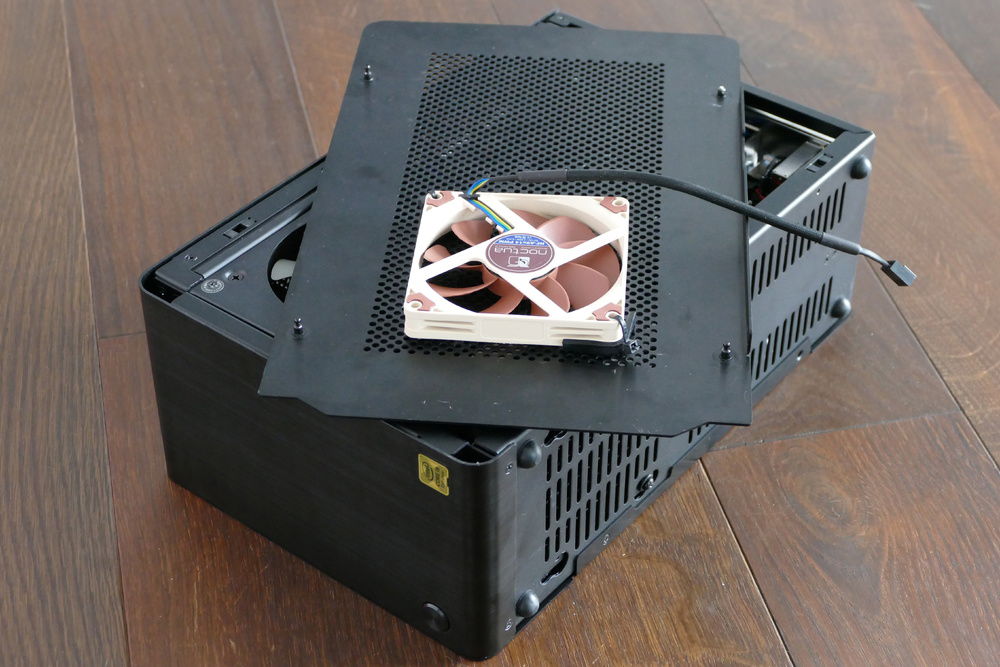

Noctua - NF-A9x14 PWM
Size: 92 mm
Cooling
Asetek - 545lc 92mm
Type: AIO
CableMod
CableMod - Sleeved Cables
Color: Black
Mode: Custom
Sleeve: ModFlex
CableMod
CableMod - Sleeved Cables
Color: Blue
Mode: Custom
Sleeve: ModFlex
Unable to dertermine total build value (missing part value)
