Project:Sidepiece

Project:Sidepiece

Overview:

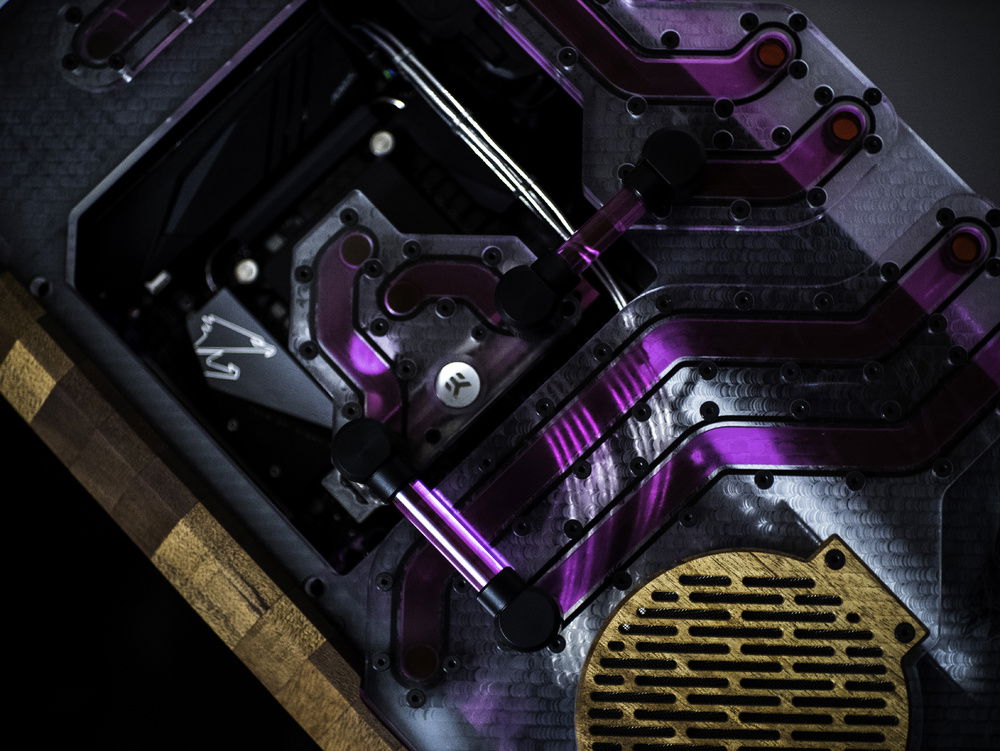

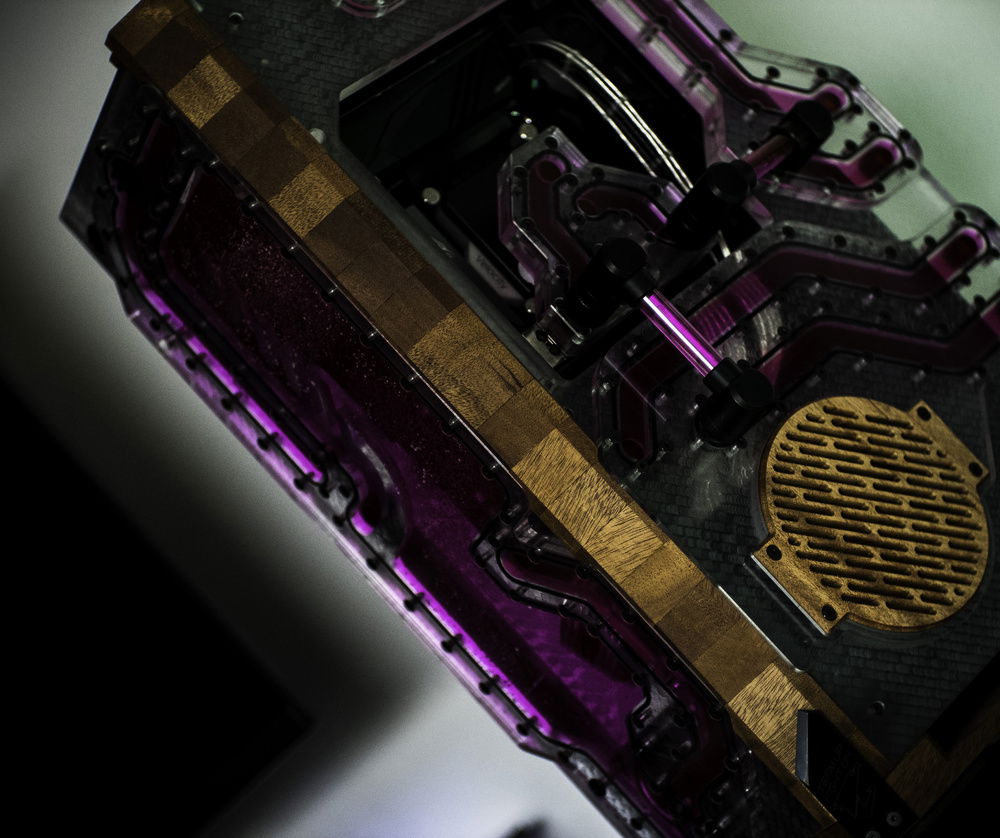

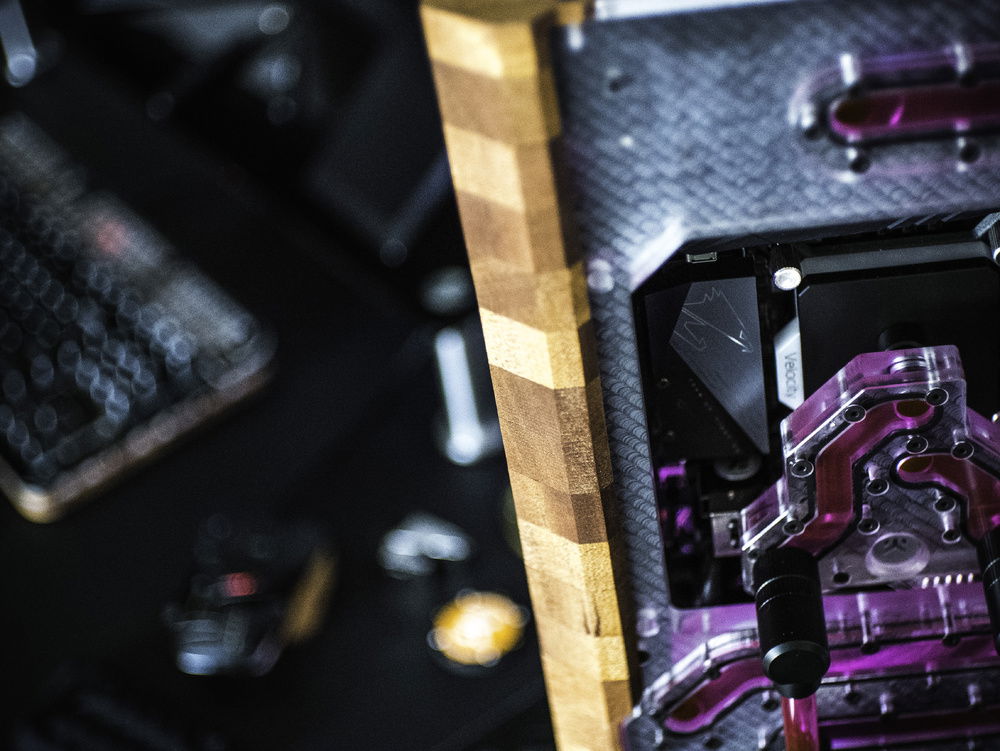

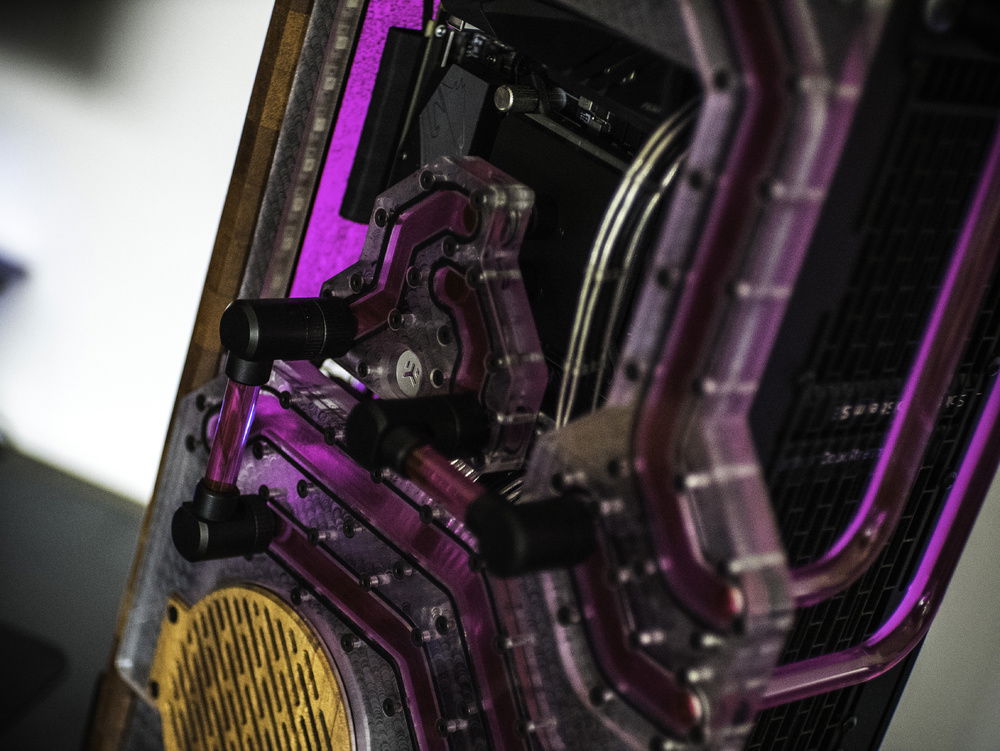

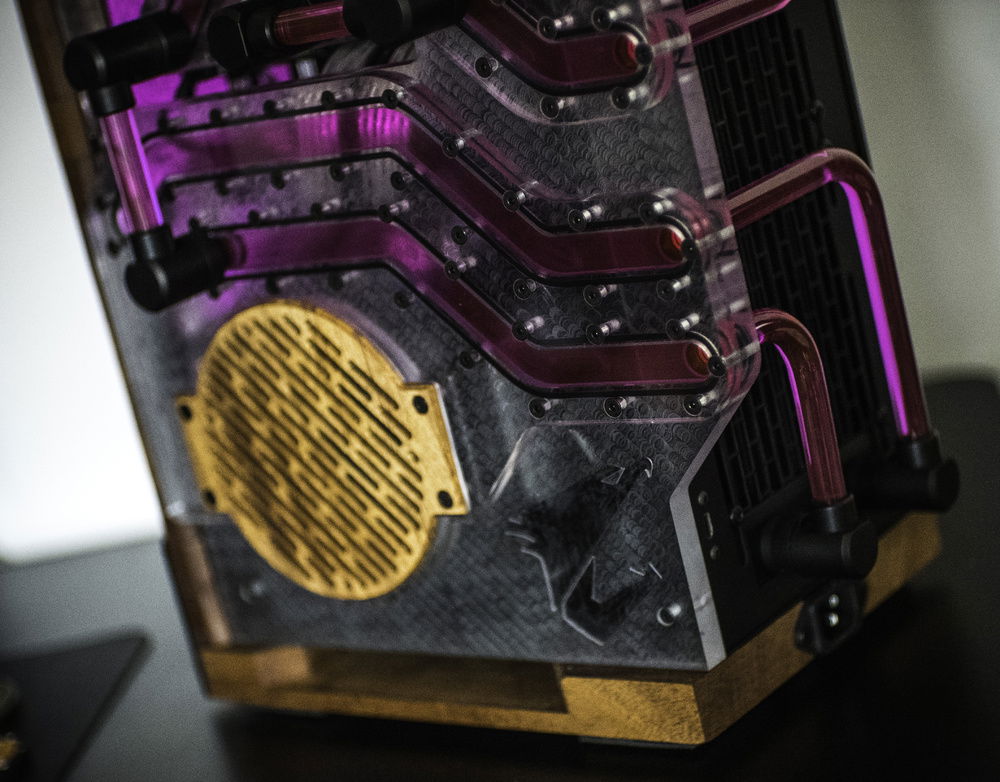

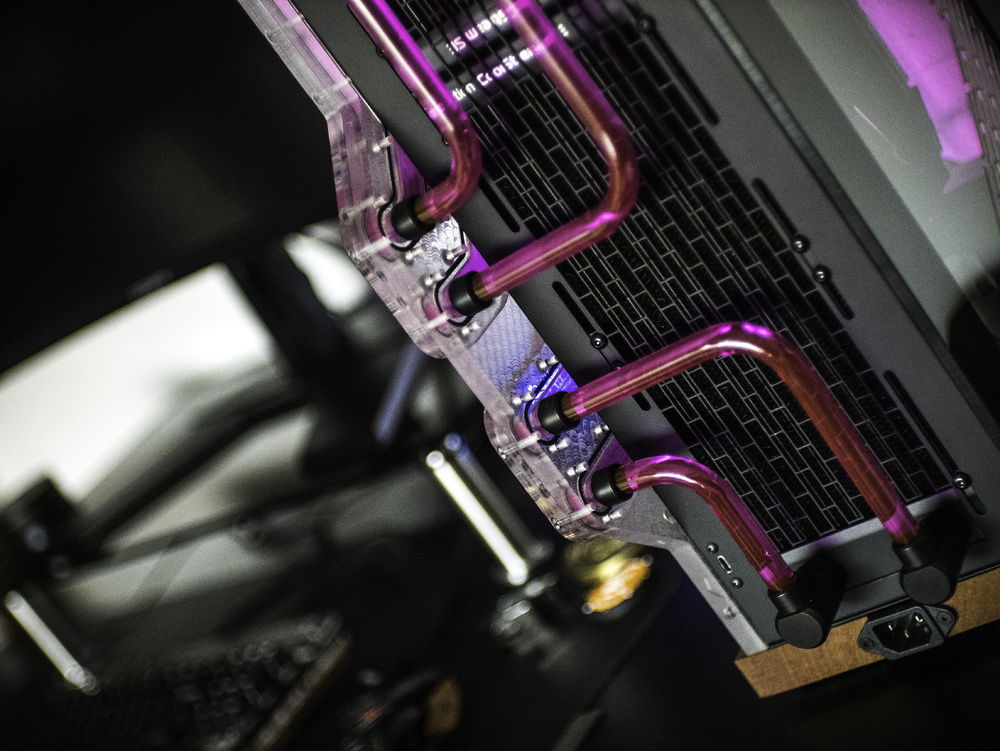

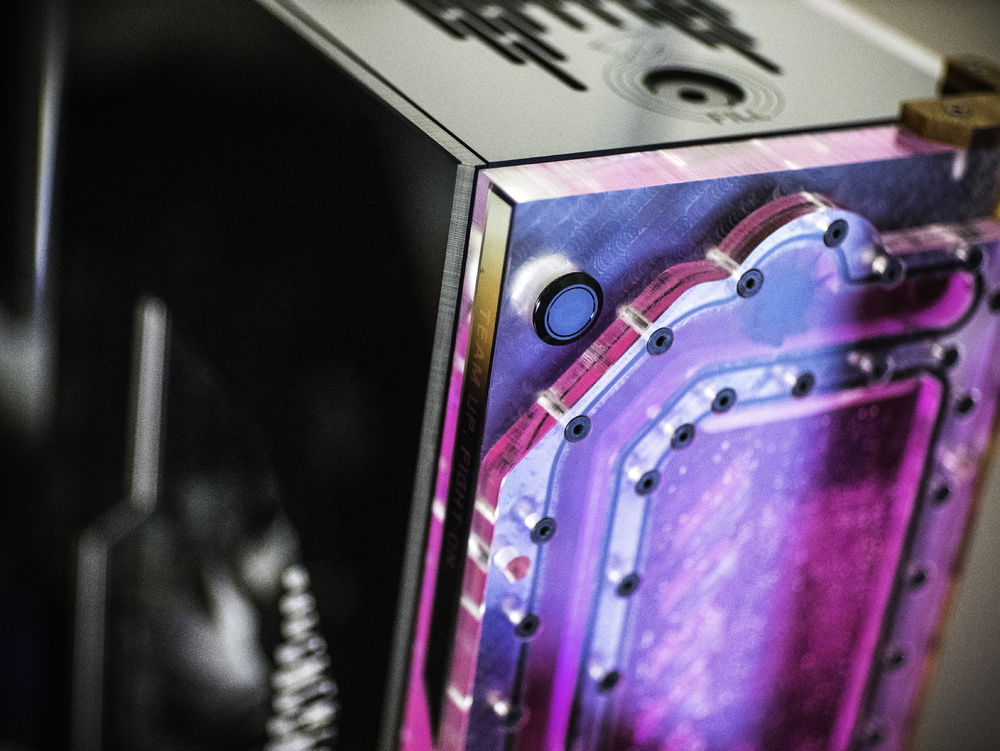

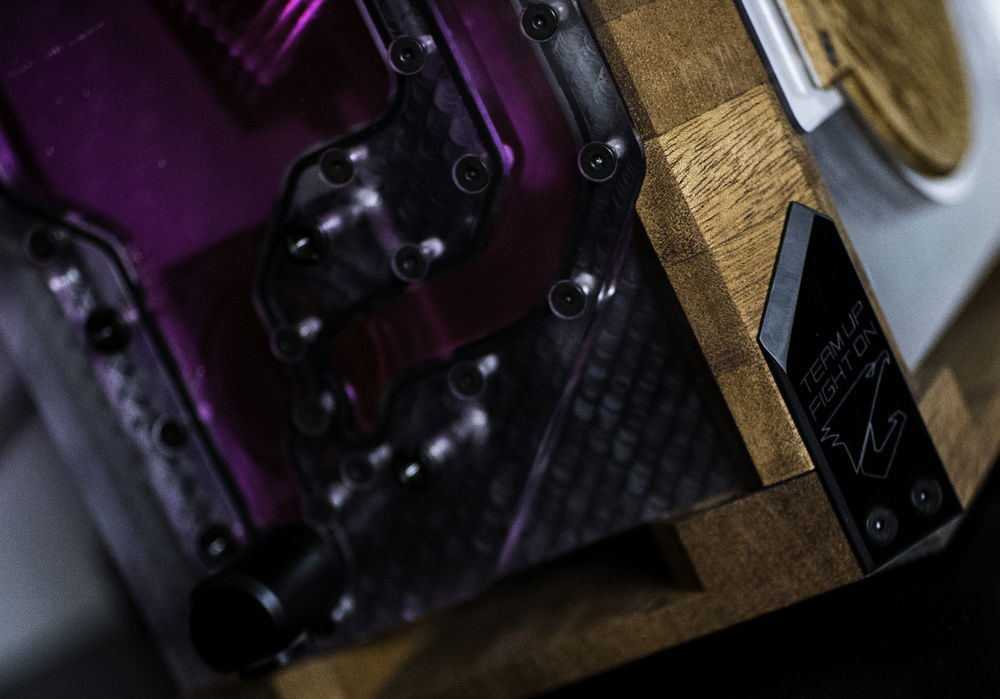

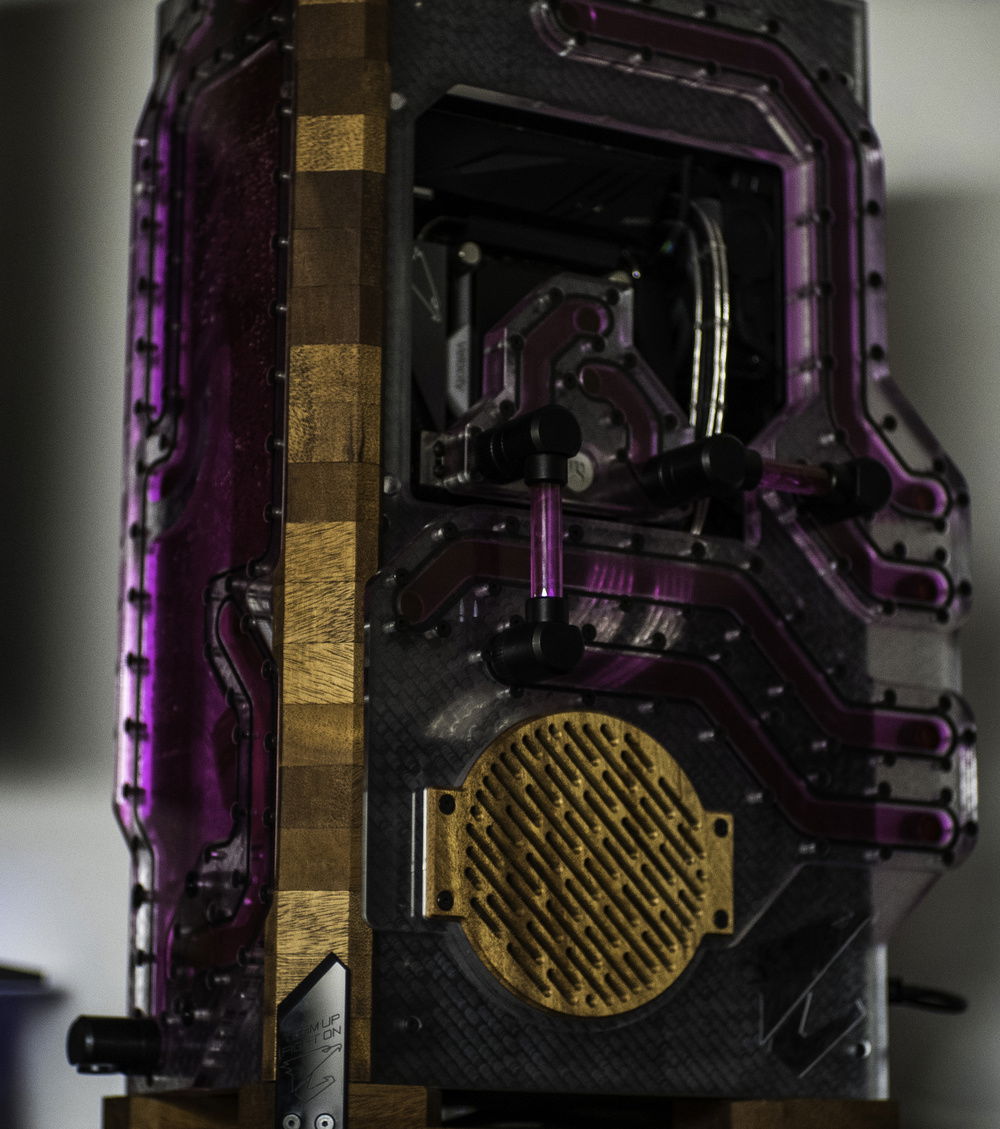

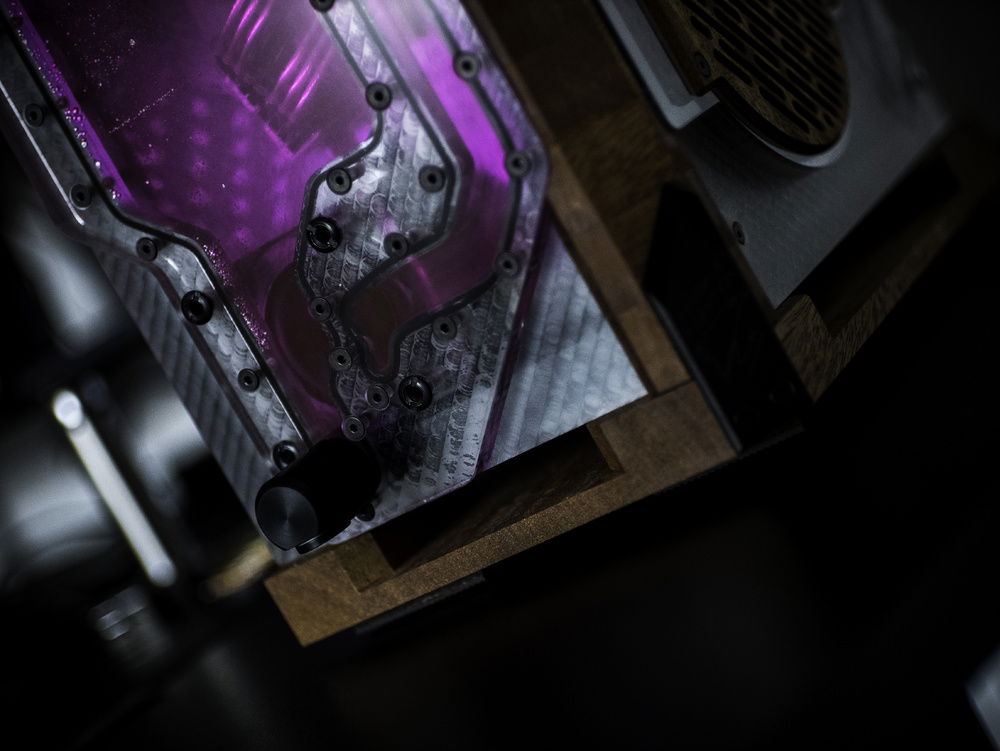

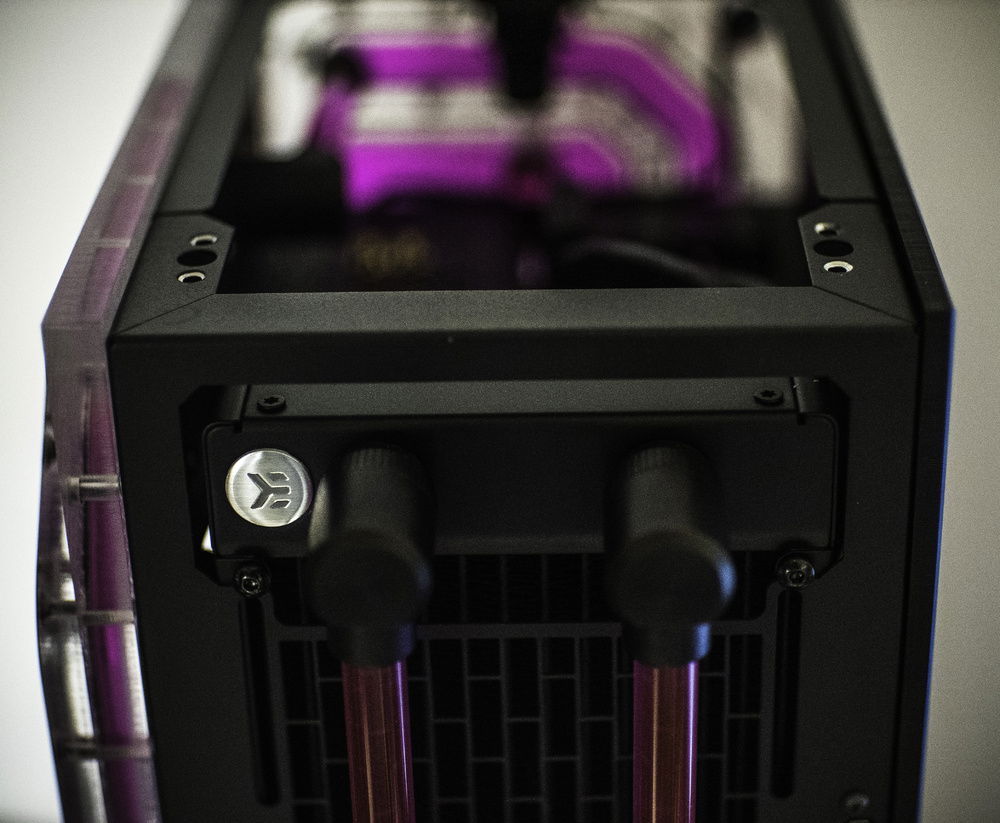

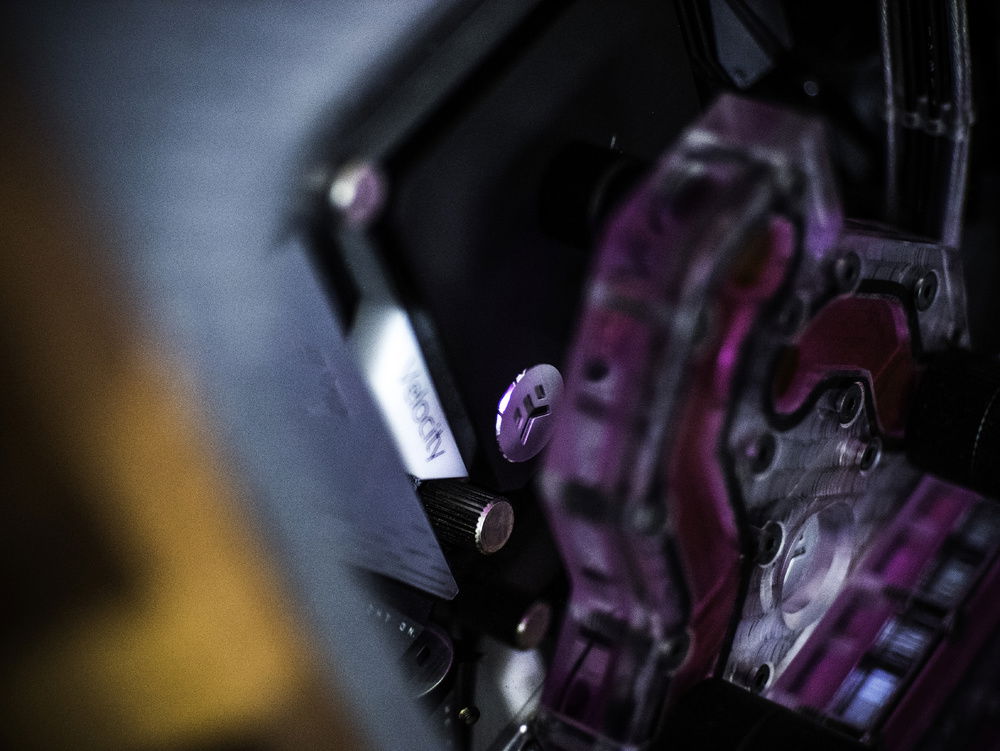

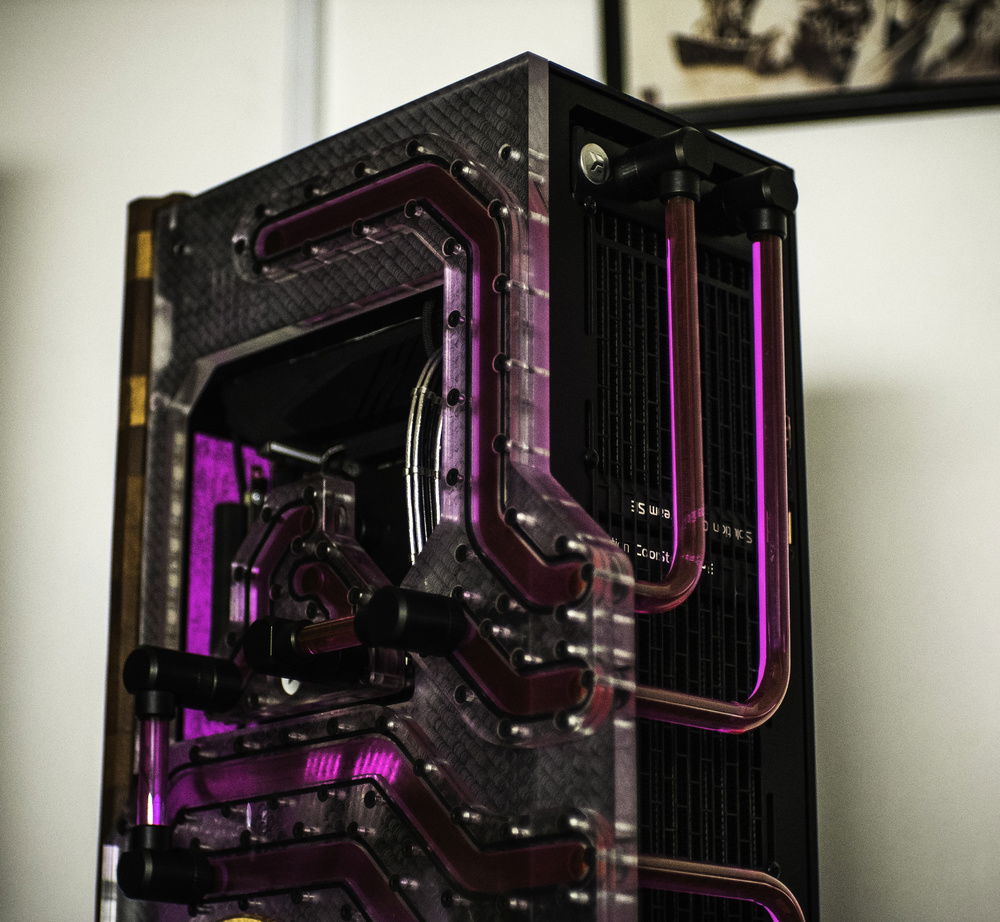

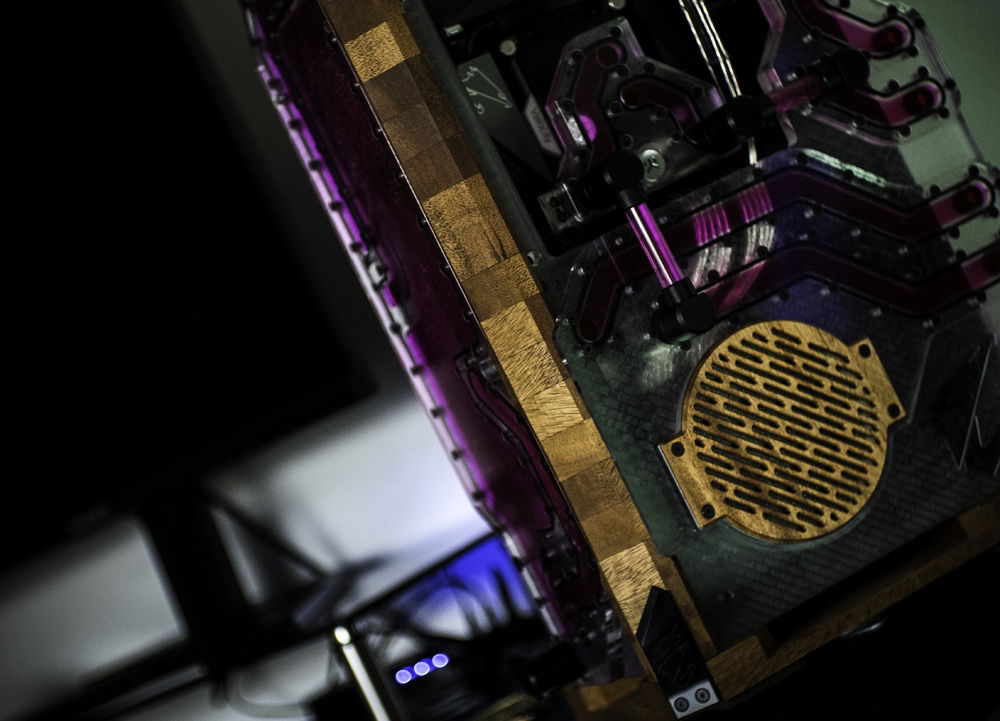

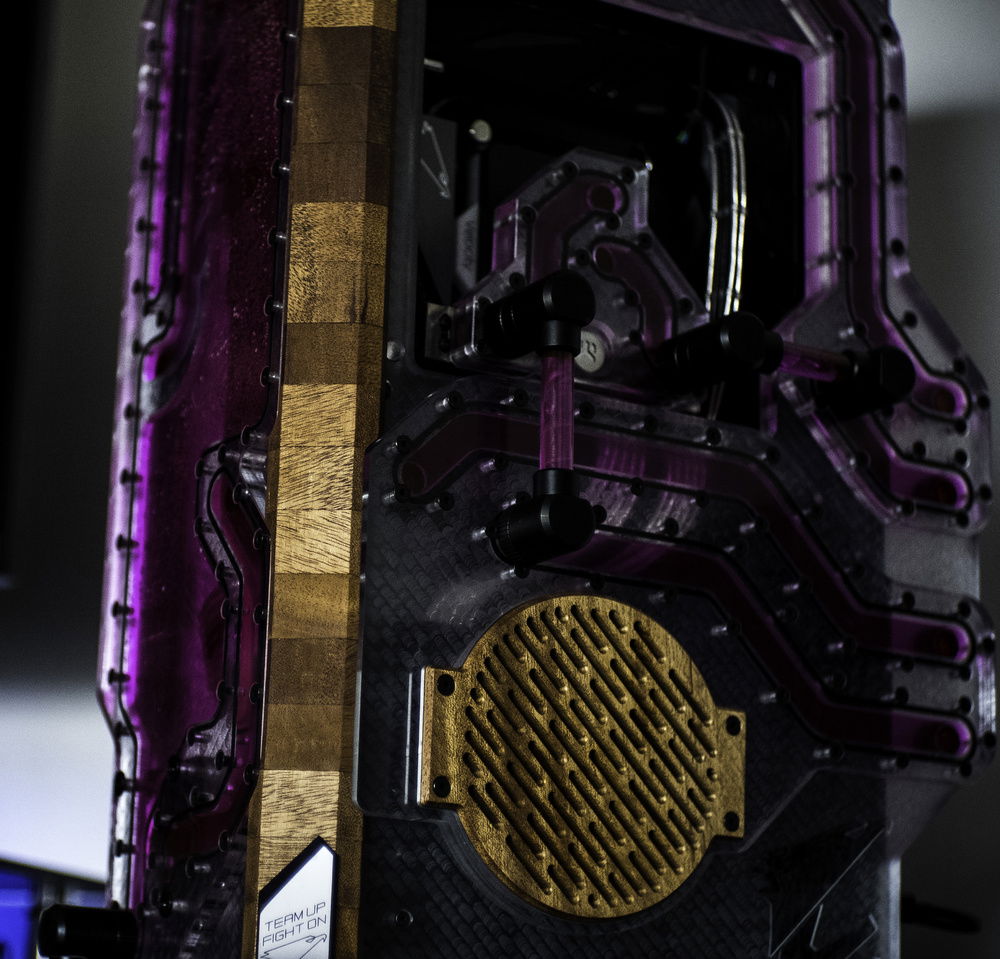

This build is based on the Sliger SV590 case (a shout out to @OrcaleModz for the case). At first, the design was going to have a bifurcated gpu and nvme pcie hard drive. Well, obviously that wasn’t what happened! LOL I wanted something different. Something that I haven’t really done. Especially on this Sliger platform. After overlooking the case, with all of the panels removed, the decision to make two outside mounted distro was where I was going with it. Later on, during mounted mockups of the distros, the thought of making a memory cooler to cpu block distro came to mind. After a few dimensional runs on wood, the final iteration came out great. Removed an old EK emblem from an old Velocity block and mounted it to my mini distro. Looks great if I do say so! I’m realizing most of my designs and builds aren’t planned for the most part. They just flow from one idea to another. Can’t say it has let me down yet. I hope you all enjoy this build and the peripherals that were modded and created to compliment this build as a suite. Peripherals will be in the specs.

Enjoy and mod on!!

Specs:
AORUS Z490i Ultra (being replaced with Z590i Ultra)

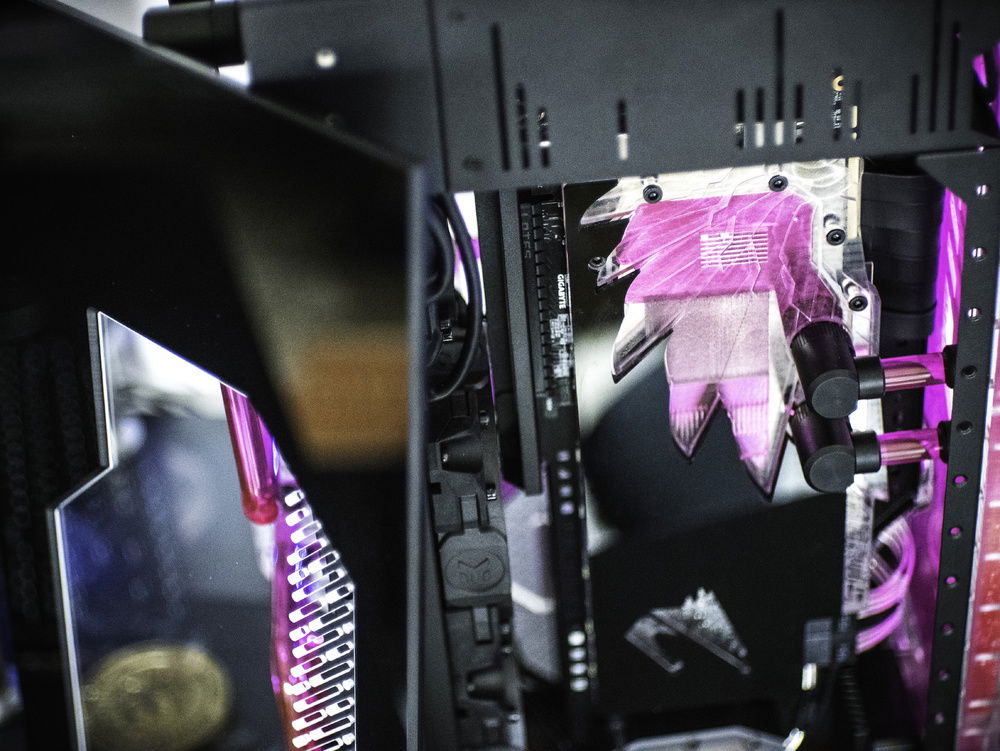

AORUS 2080Super WF with modified coldplate cover (Thanks to Kim Bouchard with the initial concept art for the AORUS Droid Wing)
TeamGroup Extreme 3600 with EK Monarch Mem Cooler and Custom Distro Block
AORUS 500gb NVME
SilverStone SX650 (with complete custom cable set)
3 EK X3M RGB 120mm fans
EK 3.2 DDC Pump
Sliger PC Cases SV590 (Big thanks to OracleModz for letting have a crack at this case)
Custom RGB Controller by killRMODZ

Watercooling:
EK Torque 90’s
EK Torque Spacers
EK Micro Fittings for 12mm PETG through out the whole build
1 x 120 EK Coolstream SE
1 x 240 EK Coolstream PE
EK Velocity Acetal for Intel

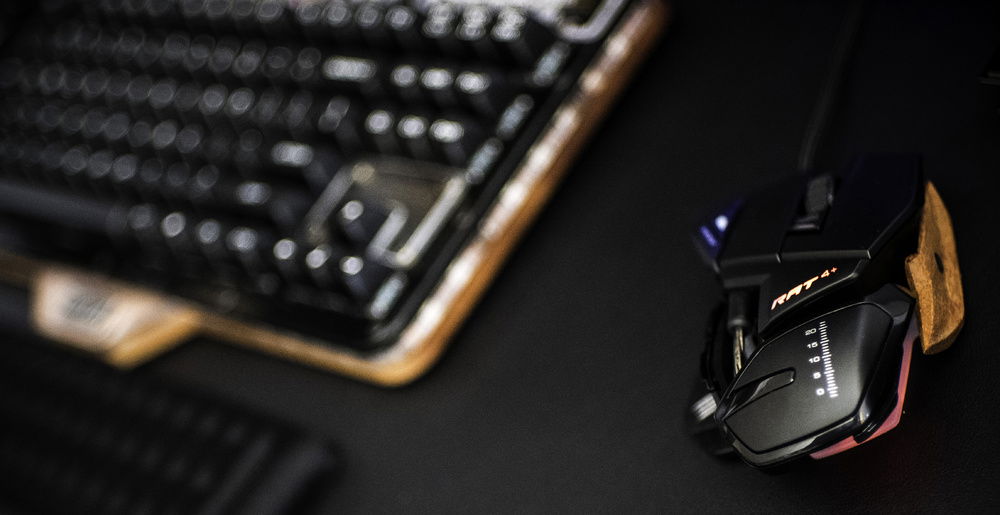

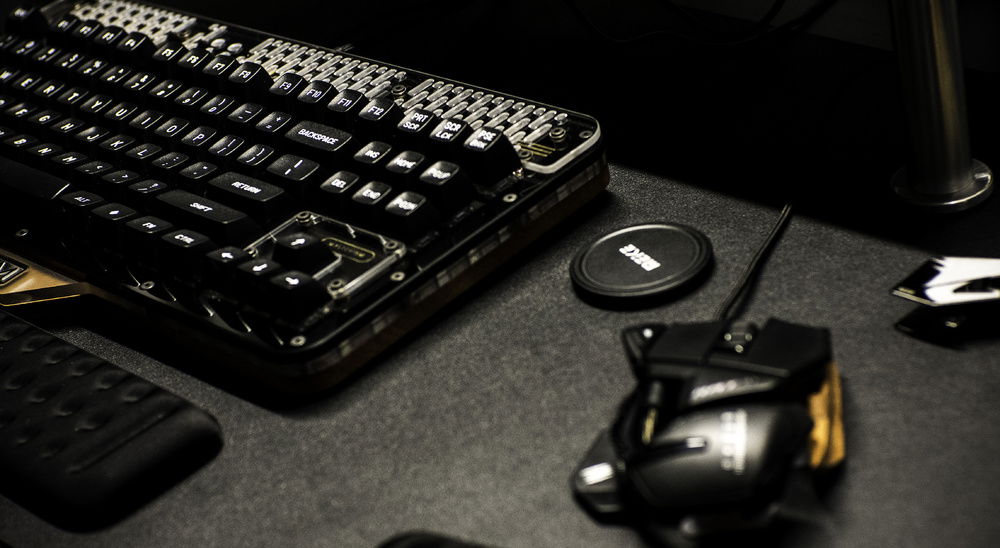

Peripherals:
CKFTB Mysterium Keyboard TKL - https://www.cftkb.com/shop/mysterium-tkl-diy-keyboard-kit
MADCATZ RAT4+

AORUS EK Water Blocks Sliger PC Cases

#aorus #teamupfighton #soartonewheights #ek #ekwatercooling #torque #velocity #sligerpccases #sliger #itx #SV590 #watercooling #modding #custompc #teamgroup #cftkb #madcatz
Color(s): Black
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 3 contests.

Hardware

CPU
$ 550.00
Intel - Core i9-10900K
Socket: LGA 1200
Cores: 10
Motherboard
$ 338.68
Gigabyte - AORUS Ultra (Z490I)
Chipset: Z490
CPU Socket: LGA 1200
Size: Mini-ITX
Memory
$ 188.99
TeamGroup - T-Force Xtreem (3200MHz) (Blue)
Type: DDR4
Capacity: 16 GB
Graphics
Gigabyte - AORUS Extreme Waterforce WB
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 119.99
Gigabyte - Aorus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 120.51
SilverStone Technology - SST-SX650-G
Wattage: 650
Form Factor: SFX
Efficiency: 80+ Gold
Case
Sliger - SV590
Type: Mini-ITX
Side Panel: Mesh
Case Fan
$ 292.50
Cooling
$ 89.99
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 58.99
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
Cooling
$ 70.21
Cooling
EKWB - EK-RAM Monarch X2 - Nickel
Type: Waterblock
Monitor
$ 459.99
Gigabyte - Curved Gaming (G34WQC-SA)
Size: 34 Inch
Panel: VA
Refresh Rate: 144 Hz
Mouse
$ 29.99
madcatz - R.A.T 4
Interface: Wired
