Krinn = μ0I/(2πr)

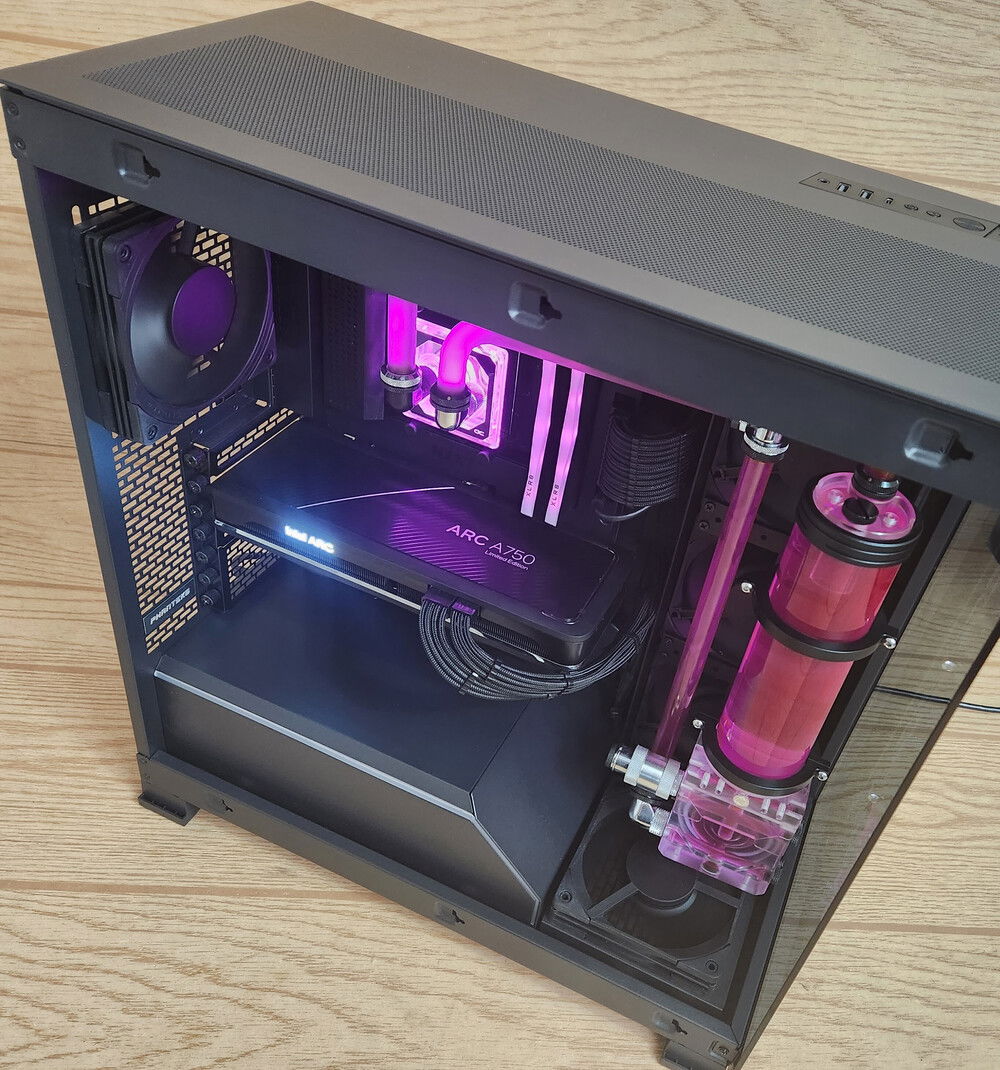

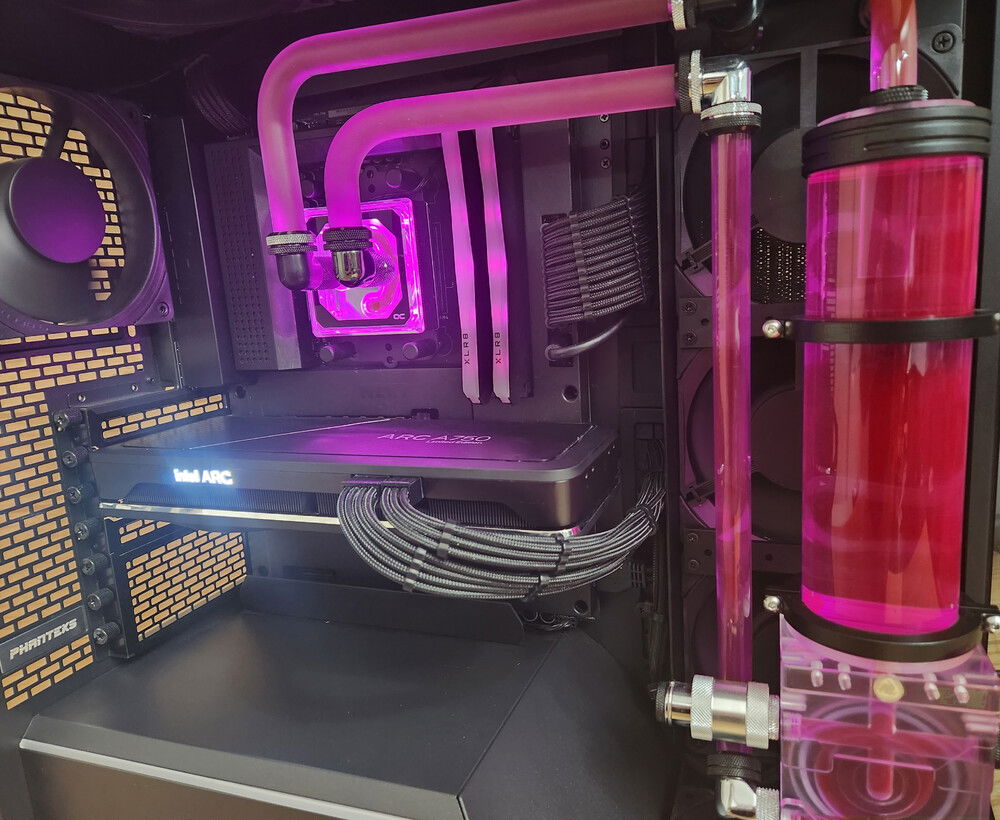

Quick build I threw together because I wanted to build in the NV5 to test fitments while I waited for the actual parts to arrive for a customer build in the case. I also wanted to do some more ARC testing so I figured I'd make it somewhat clean and take some pictures of it while I had it together. There are definitely a few misses with the NV5 but it's certainly up there as one of the top two best values at typical street prices for watercooling. The other being the NZXT H7 Flow. For the vast majority of end users, they are the best balance of cooling potential, size, ease of build, overall quality, and price

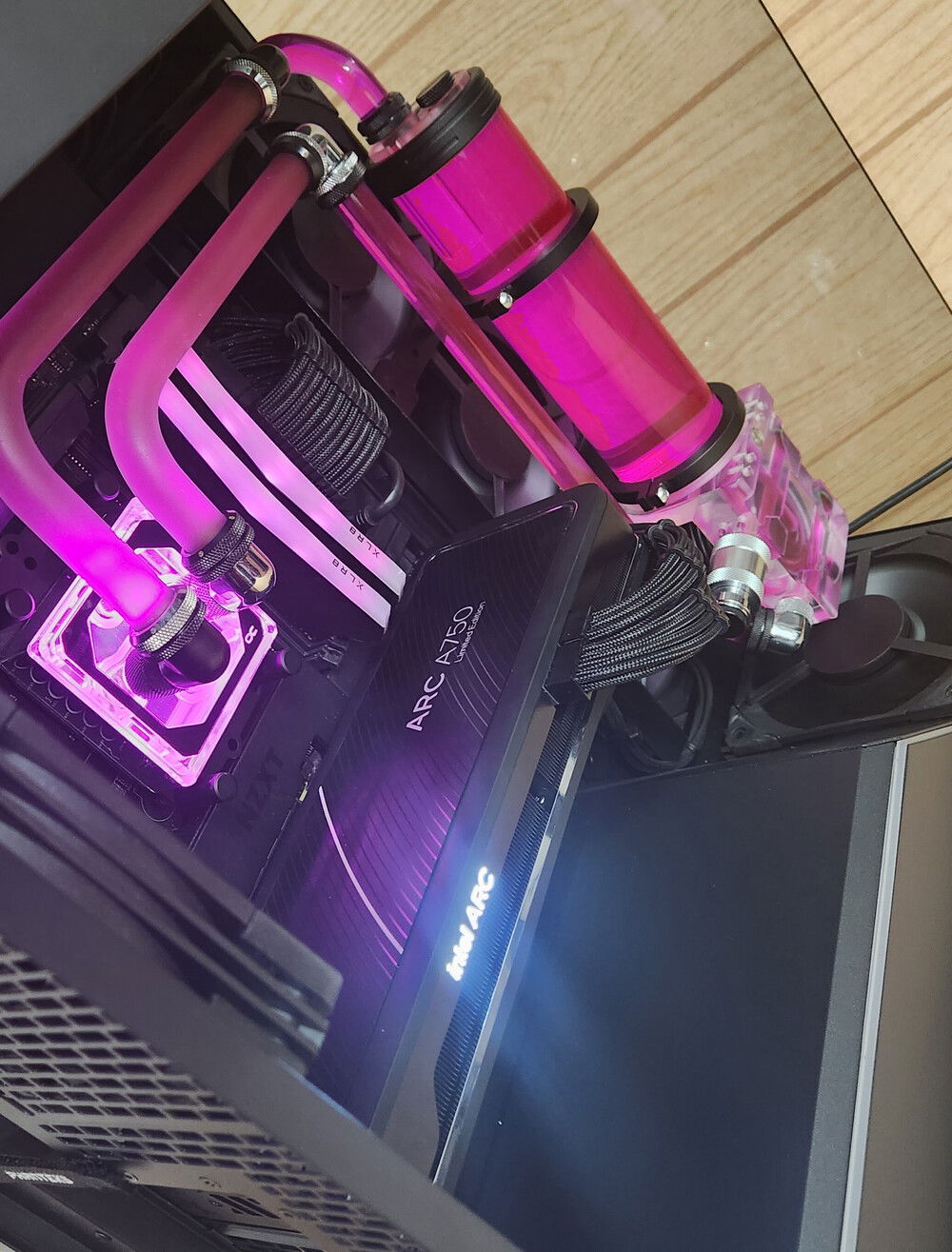

Coolant is just distilled water with Liquid Utopia and pink, and a bit of purple, Mayhems dye.

Fans are Thermalright TL-B12. I maintain these are amazing for the sub $10 price. I use the thumbnuts they come with all the time for other things than mounting the fans.

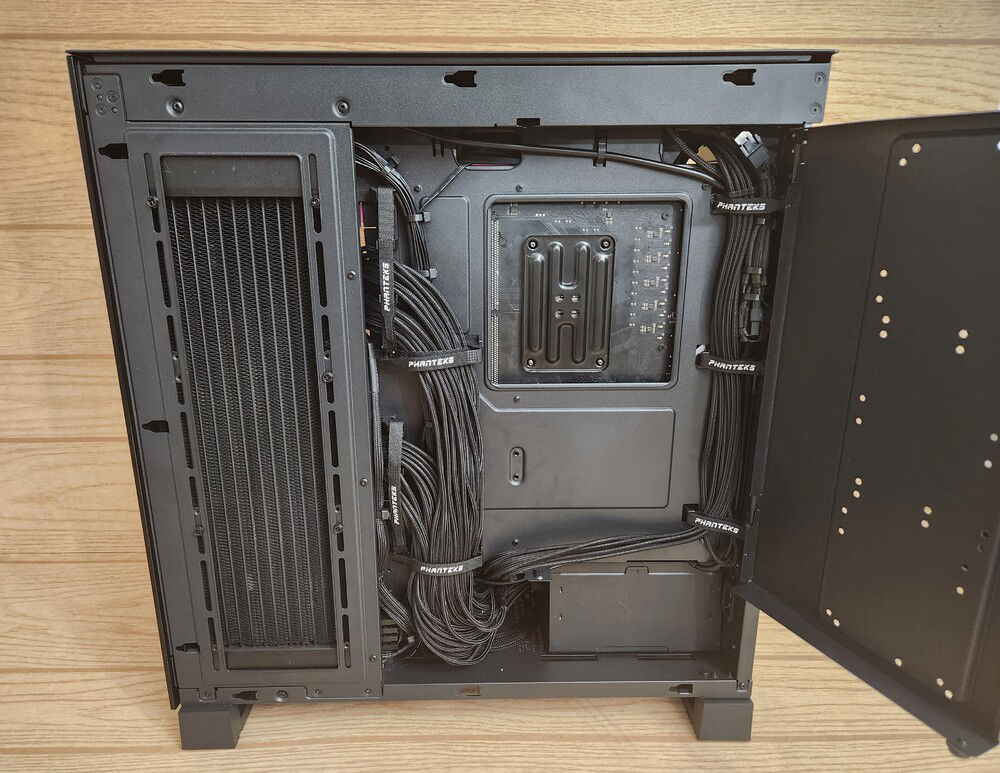

Cablemod Modmesh cables in black.

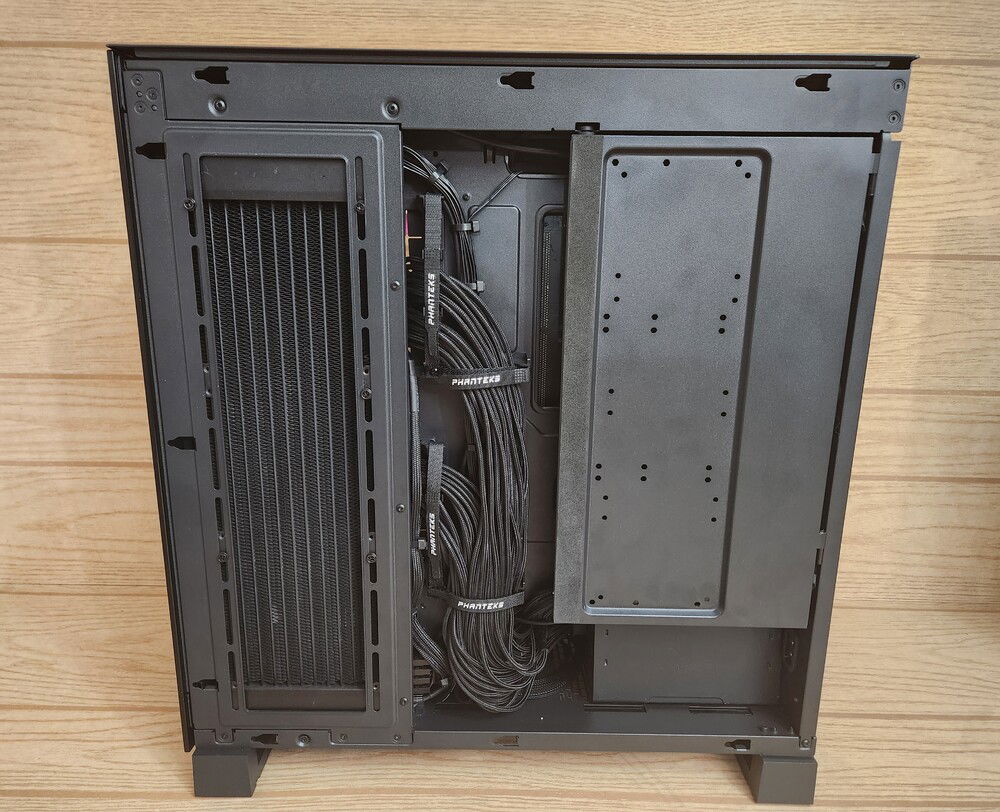

A few pieces of aluminum to cover some of the cables but nothing requiring any effort since this was thrown together.

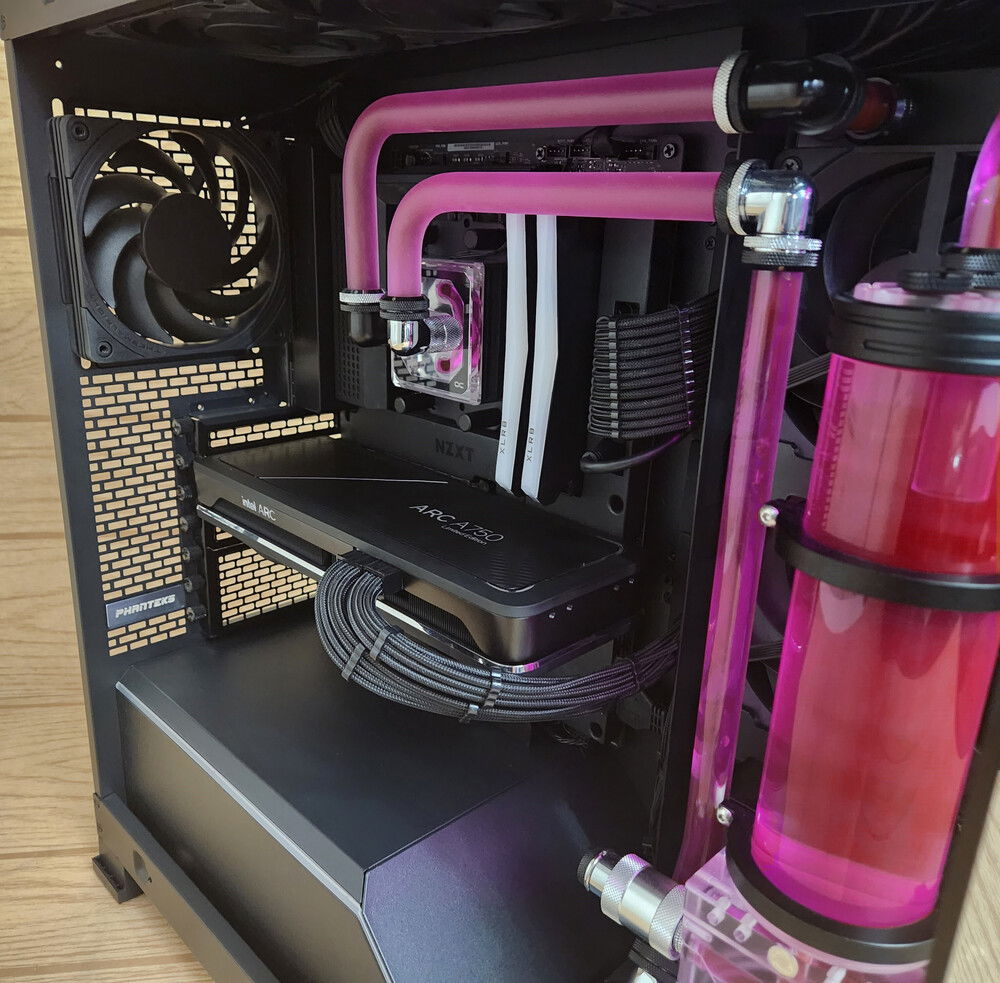

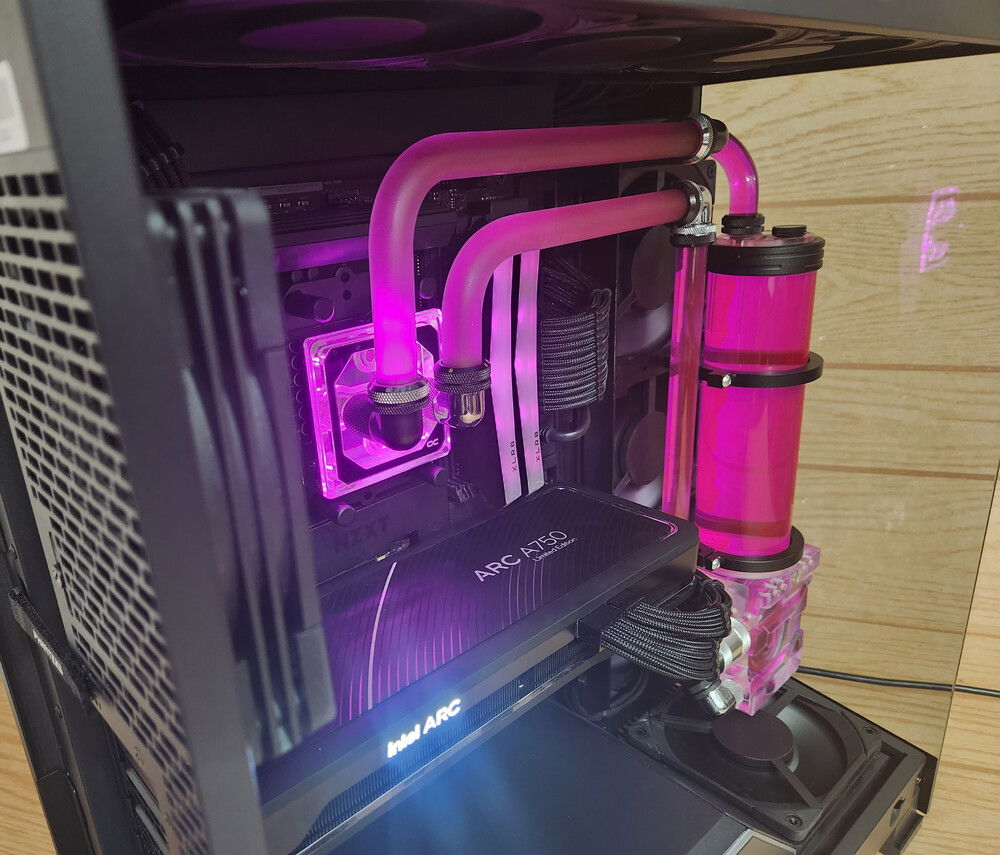

Singularity Protium 2.0 Reservoir/pump. I picked this up for cheap from TitanRig. This thing looks way better in person than in photos online. I used to not like this design at all, but since I've used them, they've grown on me. They are ridiculously functional. I still mostly prefer the Protium 1.0 design over the 2.0 and 3.0 because I prefer simplicity, but dang people really missed out on this thing and I'm one of them.

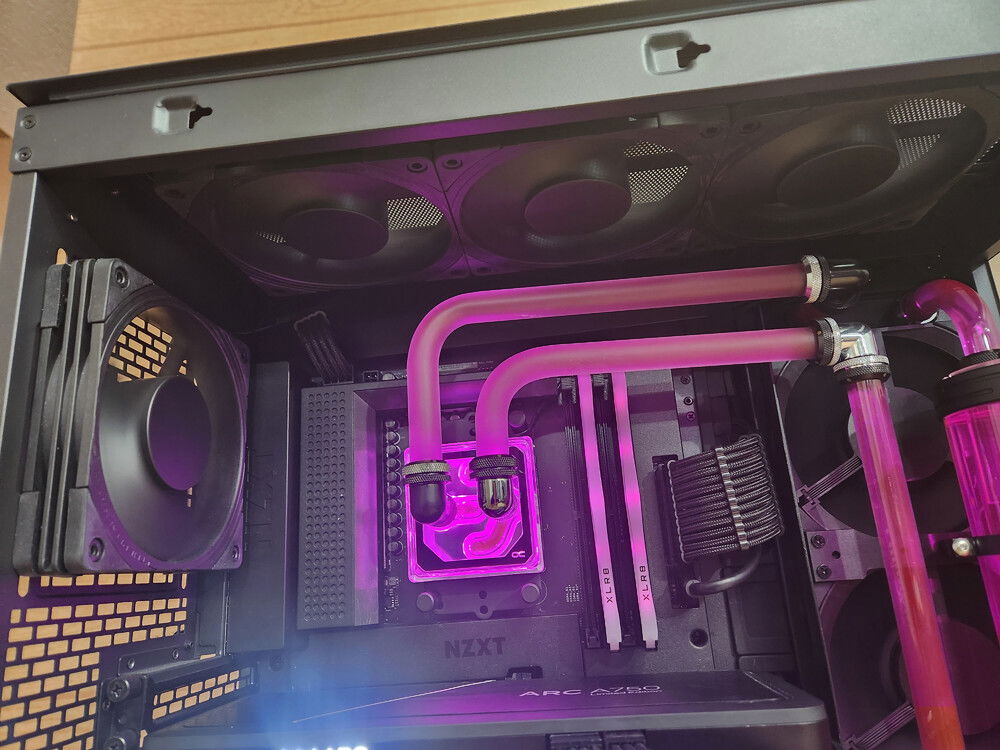

Motherboard and CPU were bought damaged from ebay then fixed. Alphacool Aorura Edge CPU block, currently back in my main build, and EK PE 360 I also bought used online for stupid cheap. I buy most RAM from best buy simply to use up my rewards points. This set is no different. I usually have $40 - $80 in rewards monthly so it's great to be able to reinvest it directly into parts.
Color(s): Black Chrome Pink
RGB Lighting? No
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 149.99
AMD - Ryzen 7 5700X
Socket: AM4
Cores: 8
Motherboard
$ 389.00
NZXT - N7 (Black)
Chipset: B550
CPU Socket: AM4
Size: ATX
Memory
$ 36.99
PNY - XLR8 Gaming Epic-X (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 16 GB
Graphics
$ 678.86
Intel - Arc A770 Limited Edition
Chip Manufacturer: AMD
Chip: GTX 770
Interface: PCIe x16
Storage
$ 148.84
Western Digital - WD Blue SN550 (WDS100T2B0C)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 228.84
EVGA - SuperNOVA G3
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 107.99
Phanteks - NV5
Type: Mid-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 52.14
Thermalright - TL-C12PRO (6x)
Size: 120 mm
Cooling
$ 60.75
Alphacool - Eisblock XPX Aurora Edge
Type: Waterblock
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
Bykski - Fittings
Type: Fittings
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Singularity Computers - Protium D5 Reservoir Combo
Type: Pump/Reservoir Combo
Size (WxHxD): 150 mm
CableMod
CableMod - Classic E-Series G3 / G2 / P2 / T2
Mode: Stock
Sleeve: ModMesh
Color: Black
