fuchur NAS server

I replaced my old QNAP TS-419P2 (noisy 4-bay server with slow ARM cpu, too less memory, etc) with a custom built server running GNU/Linux Debian (stretch).

It mainly serves as file storage (smb), but is also my test environment for several projects I work on with these services enabled:

  • sshd
  • samba
  • nginx webserver
  • postgres database
  • custom debian repository


The mainboard supports up to 4 SATA devices of which one (SSD) contains the OS and two form a software RAID level 1 (mirroring), resulting in 4TB net storage space. The main reason for only having 4 SATA ports is that I wanted the server to be as silent as possible; the mainboard with the integrated CPU has passive cooling, the case fans do enough airflow to keep the CPU, RAM and storage devices cool.

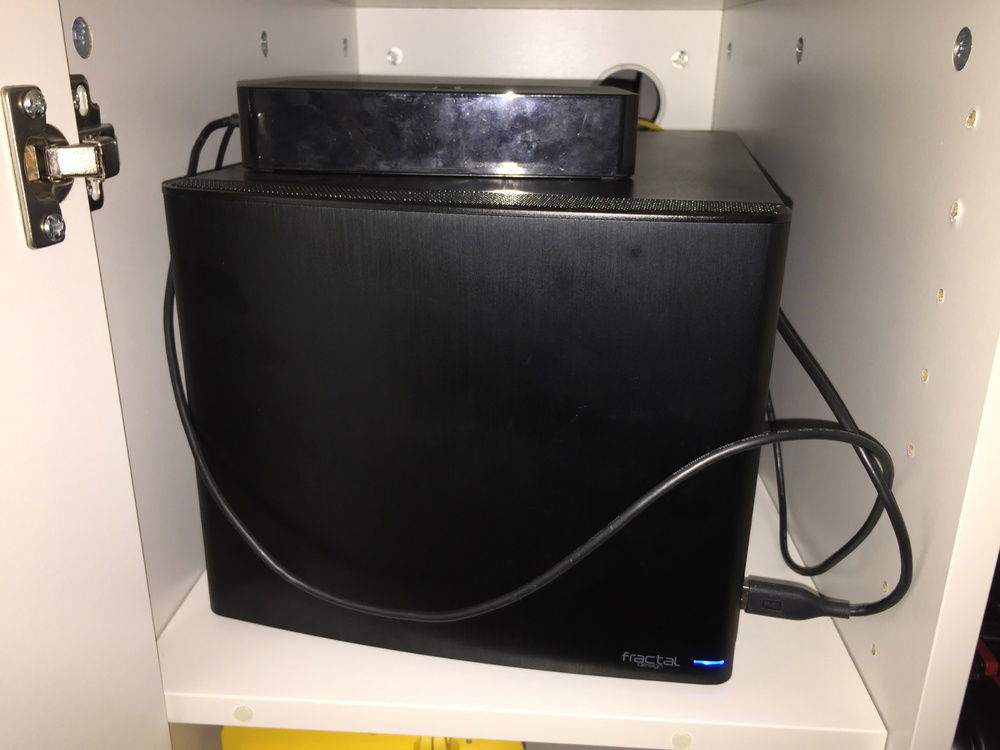

Additionally there is an old external USB-connected harddrive with 500 GB of backup space.


This project is running stable, but (as always) stuff is eating up storage space. So I am currently looking for another mainboard/CPU combination with low TDP and support for at least 6 SATA devices.


Donations are very welcome, especially if you like me, the project or just are generous:
https://www.amazon.de/hz/wishlist/ls/VWN8BRYCE3YZ?&sort=default
Color(s): Black
RGB Lighting? No
Cooling: Air Cooling
Theme: none
Size: Mini-ITX
Type: General Build

Hardware

CPU
Intel - Pentium® J4205
Socket: BGA 1296
Cores: 4
Motherboard
$ 168.98
ASRock - J4205-ITX
Size: Mini-ITX
Memory
$ 72.22
Kingston - KVR16N11K2/16
Type: DDR3
Capacity: 16 GB
Storage
$ 152.39
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 120 GB
Storage
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
PSU
$ 112.73
SilverStone Technology - SST ST30SF
Wattage: 300
Form Factor: SFX
Efficiency: 80+ Bronze
Case
$ 107.54
Fractal Design - Node 304, Black
Type: Mini-Tower
Side Panel: Solid
Case Fan
$ 42.39
Case Fan
$ 12.99
Unable to dertermine total build value (missing part value)
