X58 build

this has been my main rig for quiet some time, its always been reliable lol and its unnamed

Specs because most of it has to be approved :/
CPU: X5675 @4.2GHz
GPU: R9 390X strix with shim mod
MOBO: Gigabyte X58 UD7
RAM 18gb Kingston and patriot in tri channele
Storage: too many hdds
PSU: CM silent pro 700W

The cpu and gpu are both overclocked, the cpu is running at 4.2Ghz (it wont do 4.4Ghz no matter how much voltage i throw at it) and the uncore is running at 3600MHz with a 200MHz BCLK

The gpu is running at 1100MHz on the core with a 25MV under voltage and the memory is at stock speeds and has had a copper shim mod done to it to pull down temps due to strix cooler being a load of crap and not making good contact with the GPU die

The memory is running in triple channel even though it does look mix 'N' match

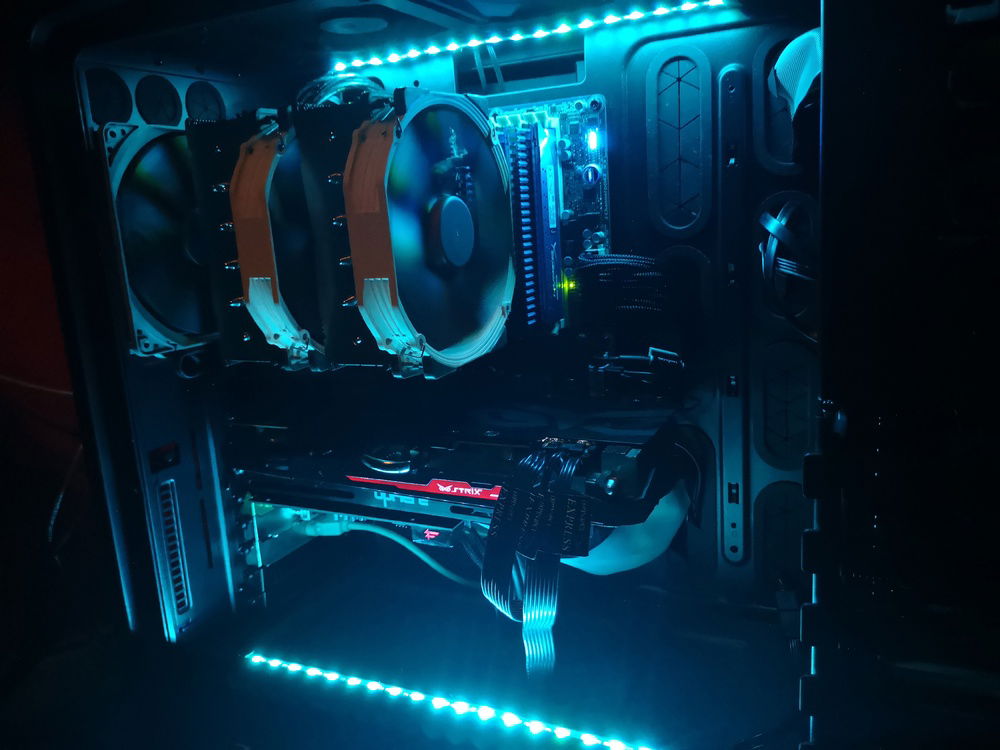

the only reason i was able to get an NH-D15 to mount on X58 was because i got a 1366 mounting kit from noctua




thats about it.
Color(s): Black Blue
RGB Lighting? Yes
Cooling: Air Cooling
Theme: none
Size: ATX
Type: General Build

Hardware

CPU
Intel - Xeon X5675
Cores: 6
Socket: LGA 1366
Motherboard
Gigabyte - GA-X58A-UD7
Chipset: X58
Memory Support: DDR3
Size: ATX
Memory
Kingston - HyperX Genesis
Capacity: 12 GB
Type: DDR3
Memory
$ 141.00
Patriot - Viper
Capacity: 6 GB
Type: DDR3
Graphics
$ 240.10
ASUS - R9 390X Strix 8GB
Chip: R9 390X
Chip Manufacturer: AMD
Storage
$ 89.99
Dell - LITEON LCS-256M6S
Capacity: 256 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 18.73
HGST (Hitachi) - HDS725050KLA360
Capacity: 500 GB
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 121.48
HGST (Hitachi) - HTS545050B7E660
Capacity: 500 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 54.99
HGST (Hitachi) - HTS547564A9E384
Capacity: 640 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 26.99
Seagate - ST3250820AS
Capacity: 250 GB
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 41.62
Seagate - ST3500312CS
Capacity: 500 GB
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 41.62
Seagate - ST3500312CS
Capacity: 500 GB
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Storage
Toshiba - MQ01UBD100
Capacity: 1 TB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 10.73
Western Digital - WD3200BPVT
Capacity: 320 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
PSU
Cooler Master - Silent Pro 700W
Efficiency: 80+ Bronze
Form Factor: ATX
Modularity: Semi-Modular
Case

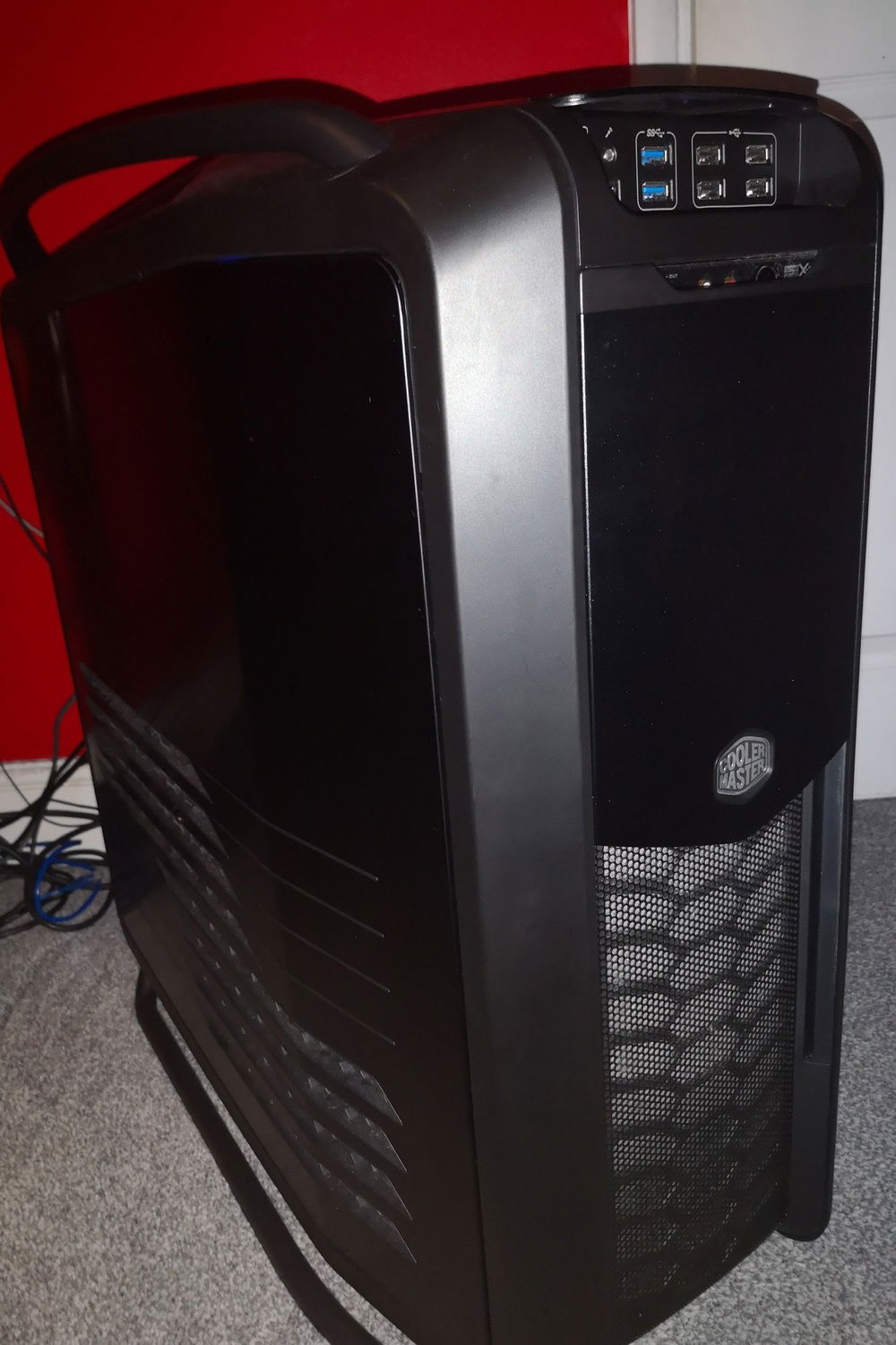

Cooler Master - Cosmos II
Motherboard Support: XL-ATX
Side Panel: Solid
Type: Full-Tower
Case Fans
$ 14.95
Cooling
$ 89.95
Noctua - NH-D15 Premium
Compatibilty: AM2, AM2+, AM3, AM3+, FM1, FM2, LGA 1151, LGA 1155, LGA 1156
Type: Air Cooler
Accessories
$ 100.00
Monitor
$ 179.15
AOC - G2260VWQ6
Native Resolution: 1920 x 1080
Panel: TN
Refresh Rate: 75 Hz
Monitor
BenQ - GL2250
Native Resolution: 1920 x 1080
Panel: TN
Refresh Rate: 60 Hz
Keyboard
$ 92.72
Cherry - G80-3000, Black
Interface: Wired
Key Switch Type: Cherry MX Blue
Type: Full Size
Mouse
Razer - DeathAdder
Interface: Wired
