Viserion was inspired by the undead Ice Dragon from Game of Thrones, resurrected by the Night King.

The eerie light blue glow of the dragons eyes and breath were of particular inspiration. I wanted the case to literally "breathe" like a dragon, so I modified the front of the Defince C TG, which is normally a blank flat faux anodized brushed aluminum look. To do this I cut a hole in the front panel, and created custom acrylic pieces on the sides to clamp in the filtered front. This to me helped maintain the feel of the Fractal Design Define C, TG while allowing the eerie blue "eye like" glow to emanate from the front. In addition, from a functional standpoint it allowed for much higher airflow potential to help cool the front mounted HWLabs 360GTS radiator.

Next to tie in the theme of the Ice Dragon Viserion even more, I decided to vertical mount the GPU to show off the MSI Dragon logo. The Define C TG does not support vertical mounted GPUs, however, so it was necessary to modify the back of the case as well. I used a custom 2 slot mount from MountainMods, which I cut up and attached to the rear air vent to the side of the normal PCI slots of the case. I then used a rubber grommet to make for a cleaner look from the rear and to protect the cables from rubbing on the cut out.

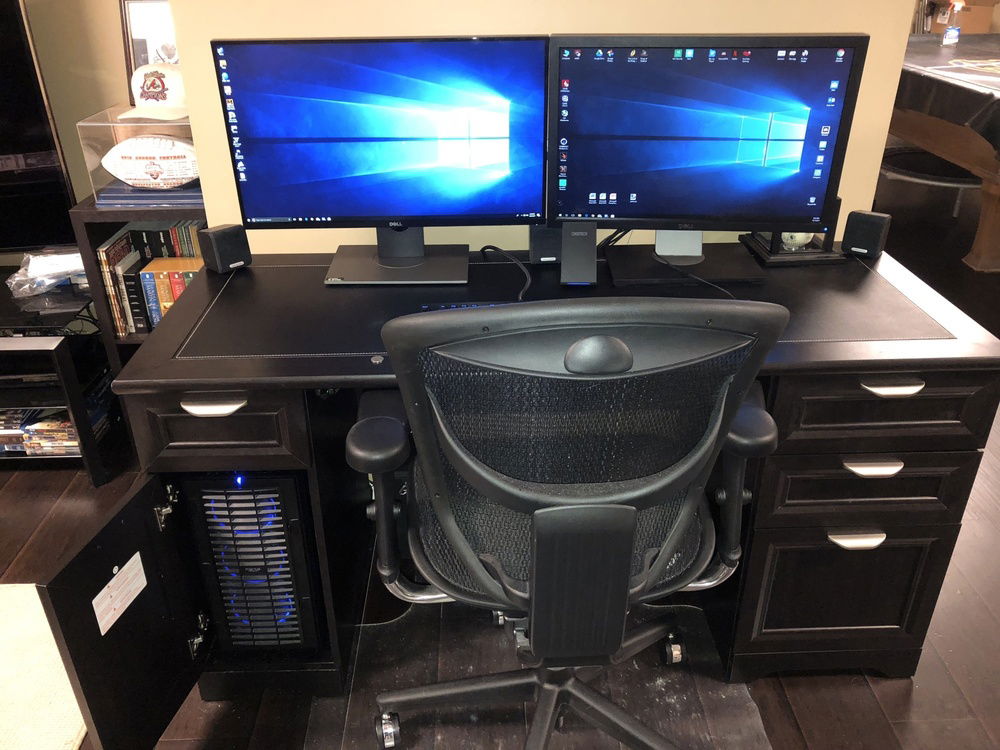

Mounting the GPU Vertically increased the space within the case a lot, allowing a full 250mm tall EKWB D5 pump/res to be tucked behind the GPU. Virtually every inch of space in this build had a purpose. With this build intended to be stored in a desk cubby, cooling was a priority, so the 8700k was delidded and a copper IHS was added with Thermal Grizzly Conductonaut liquid metal.

For the final aesthetic touch, the RGB fans and strip are configured to phase from white to blue to signify Viserion's transformation from a White Dragon to his final undead form signified by the eerie blue color.
Color(s): Black Blue Silver White
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Fantasy
Size: ATX
Type: General Build

Hardware

CPU
$ 279.99
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 179.00
ASUS - Prime (Z370-A)
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 219.99
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 709.99
MSI - Sea Hawk EK X
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
$ 69.99
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 169.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 144.38
Western Digital - WD Black Mobile
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 164.95
Seasonic - Focus Plus
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 99.99
Fractal Design - Define C, Black
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 56.95
Case Fan
$ 9.00
Cooling
Cooling
$ 65.99
EKWB - EK-RES X3 250
Type: Reservoir
Cooling
EKWB - EK-XRES 140 Revo D5 PWM
Type: Pump/Reservoir Combo
Cooling
Hardware Labs - Black Ice GTS
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Cooling
$ 54.89
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Monitor
Dell - S2716DGR
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 110.50
Dell - UltraSharp (U2410)
Size: 24 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 169.99
Corsair - K70 LUX RGB
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 95.98
Logitech - G502
Interface: Wired
Unable to dertermine total build value (missing part value)
