vGPU Server

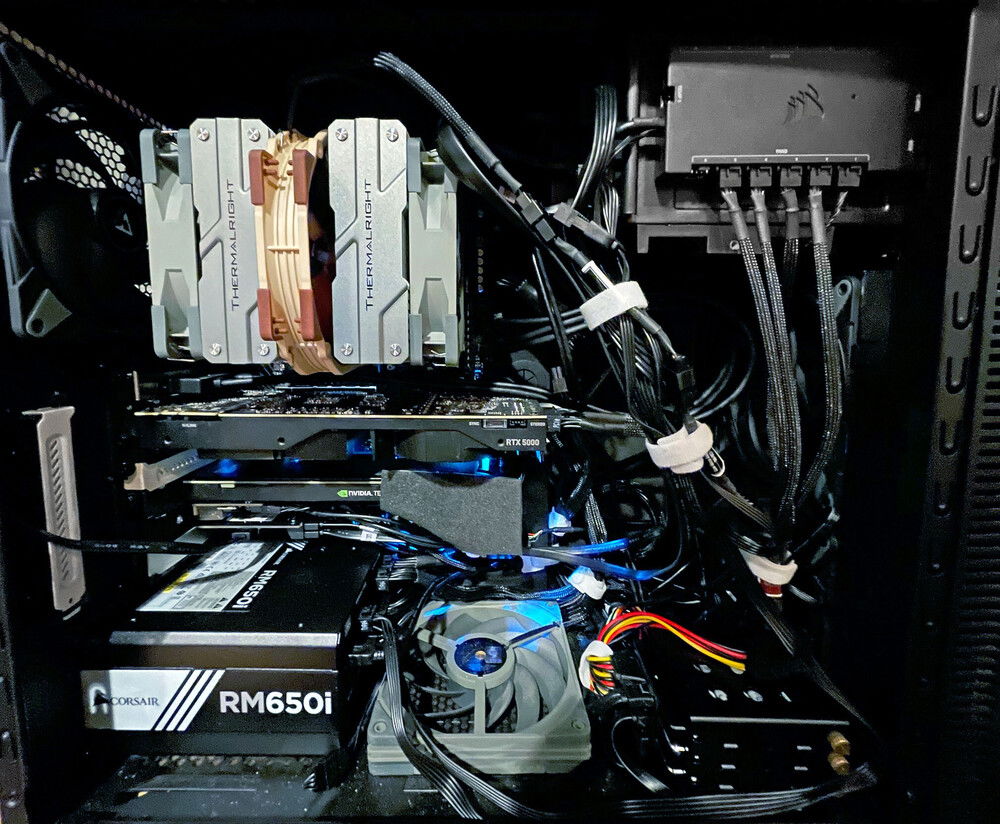

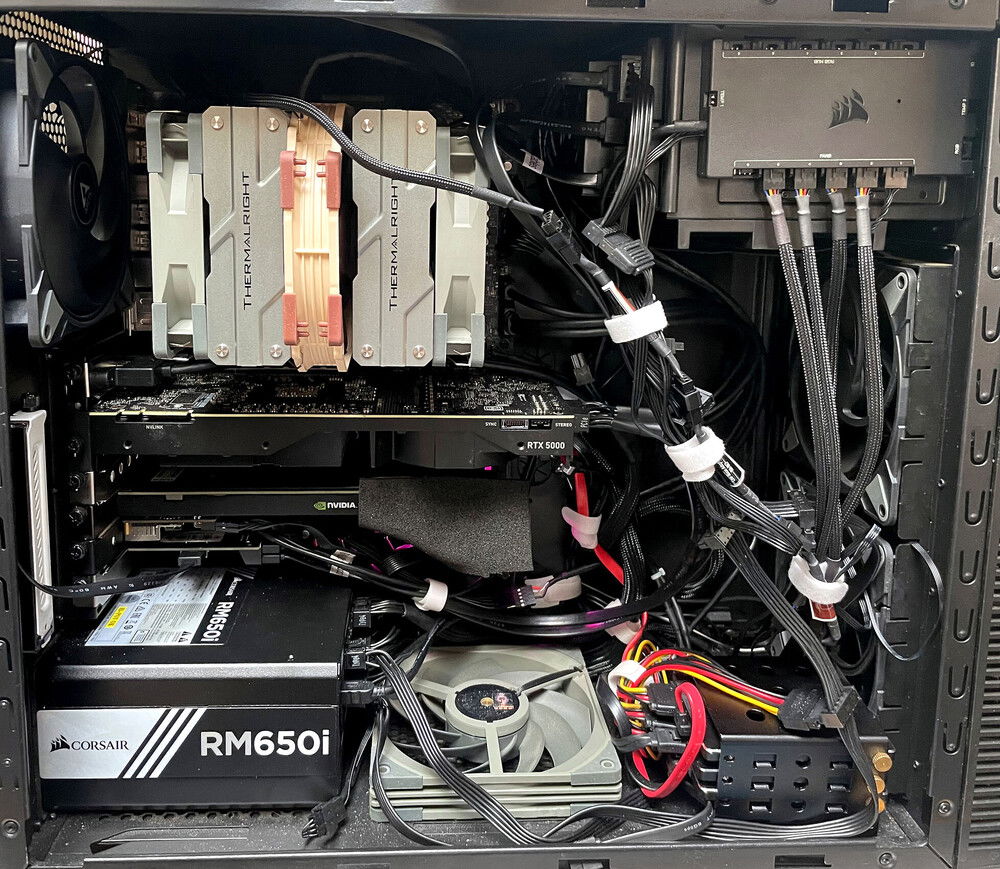

This is my vGPU server powered by Proxmox. Basically multiple private cloud gaming PCs in one machine. Powered by a AMD Ryzen 9 3950X that I got "for parts with bent pins" on eBay for a great price ($135USD) in an Asrock X570S PG mobo. When I ordered the mobo I initially got it for it's fanless chipset cooling but it ended up having the perfect PCIe slot layout for my needs. All in a Fractal Define R3, as I have multiple R3-R6 cases to chose from & the R3 I feel has the best sound dampening. Using a Corsair RM650i as it's all the power I need & it gives enterprise server like features as the Corsair PSUs are natively supported in Linux. Using a software package called "CoolerControl" which let's me control fan speeds based upon custom fan profiles/settings. So the passively cooled Tesla P4 can be cooled with a 40mm (15K max RPM) fan & have it fully controlled based upon that card's GPU temp. The Quadro RTX 5000 I got for a great price & let's the system support Ray Tracing based titles. The Tesla P4 is split into 775MB based VMs as the profile's resolution is limited to 1280x1024 & used to play early-mid 2000s based games so plenty of VRAM for those titles. I'm using mostly Parsec to remote in but I also run Sunshine/Moonlight as a backup method along with AnyDesk. I wanted a "NAS" that's always available to these VMs so I put in an Icydock 3x 3.5" Hotswap cage & use Samsung 860 Evo 1TB drives in a RAID5 so about 1.8TB of usable space. Went with Samsung drives as they show the remaining life directly in the Proxmox UI so I don't have to login via SSH & manually check them regularly. Even under a load of 6x concurrent users the system stays pretty quiet which is pretty nice for what's it doing.
Color(s): Black
RGB Lighting? No
Theme: none
Cooling: Air Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 270.00
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 454.50
ASRock - X570S PG Riptide
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 459.98
Corsair - Vengeance LPX (3200MHz) (Black) (2x)
Type: DDR4
Capacity: 64 GB
Graphics
$ 815.00
NVIDIA - Quadro
Chip Manufacturer: NVIDIA
Chip: RTX 5000
Interface: PCIe x16
Graphics
$ 207.00
NVIDIA - Tesla P4
Chip Manufacturer: NVIDIA
Chip: GeForce 4 Ti
Interface: PCIe x16
Storage
Samsung - 845DC Pro
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 800 GB
Storage
$ 659.97
Samsung - 860 EVO (3x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 179.00
Samsung - 980
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 638.00
Samsung - 980 Pro (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 212.00
Corsair - RM650i
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 100.00
Fractal Design - Define R3, Black Pearl
Type: Mid-Tower
Side Panel: Solid
Case Fan
$ 220.00
ARCTIC - P14 Max (2x)
Size: 140 mm
Case Fan
$ 44.99
ARCTIC - S4028-15K
Size: 40 mm
Case Fan
$ 61.18
Thermalright - TL-B14W
Size: 140 mm
Cooling
$ 56.89
Thermalright - Peerless Assassin
Type: Air Cooler
Accessories
$ 239.95
Accessories
$ 61.99
