ToeJam and Earl

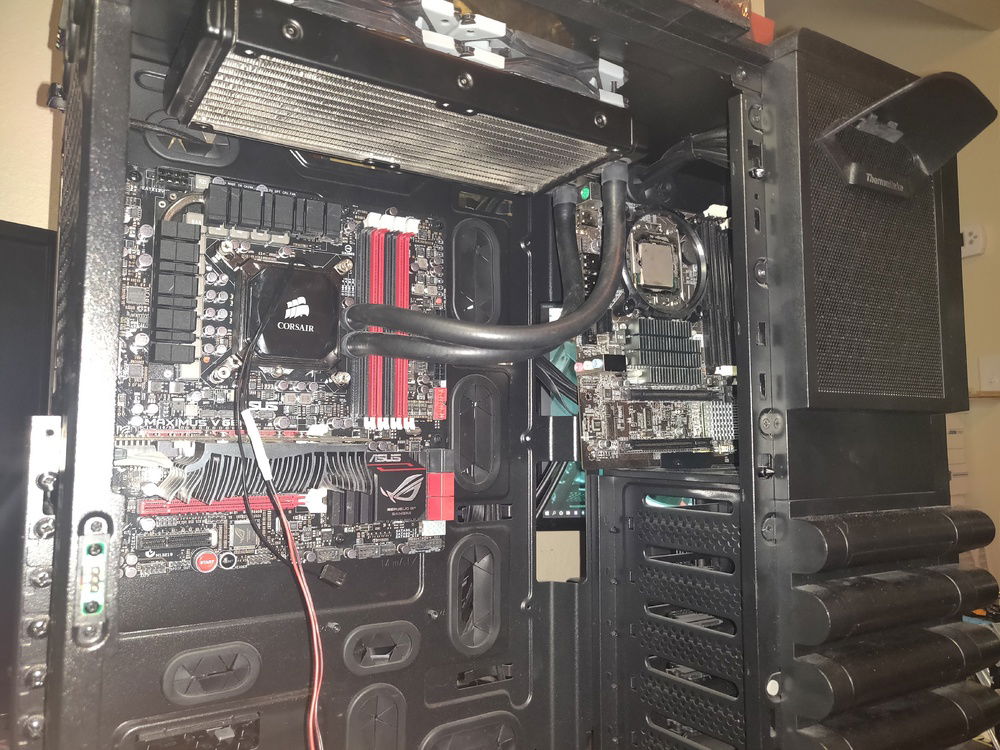

This is the build that now consists of my 2nd pc (Earl) and my NAS (ToeJam).
Since I last updated the the two builds that have had a fair number of upgrades along with being put into the same case (see old build pages for before specs).

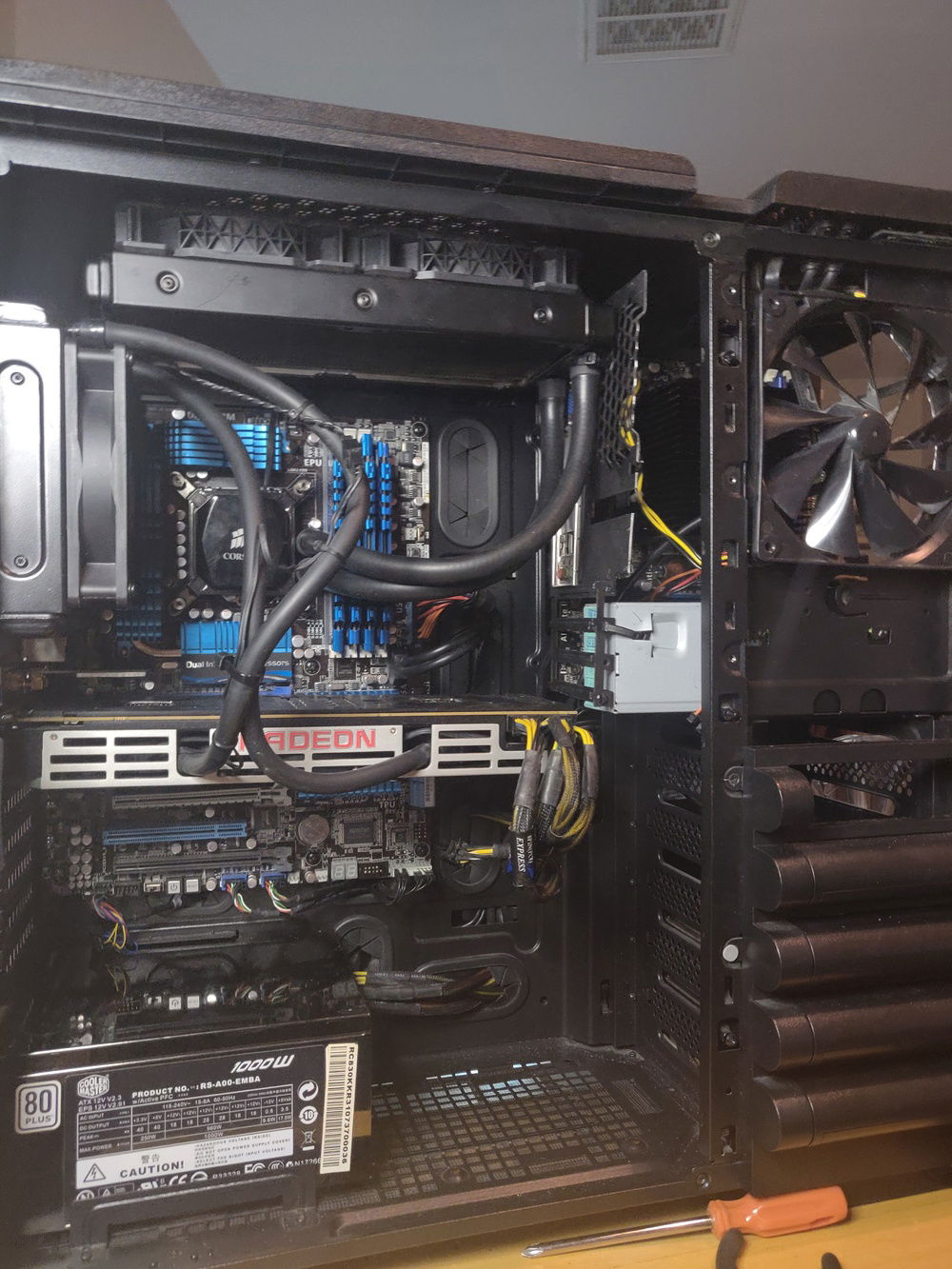

Earl is my backup gaming computer/theater pc/server/music player. It mostly sits in my room running a Minecraft server and uTorrent and playing music at night but sometimes ill watch a movie or two on it and play a game or two. Its mostly made from random parts that I have gotten good deals on from craigslist and Facebook marketplace. Like the r9 295x2 I got for $30 and it wasn't even dirty. The whole computer has cost me $84.80 to build.

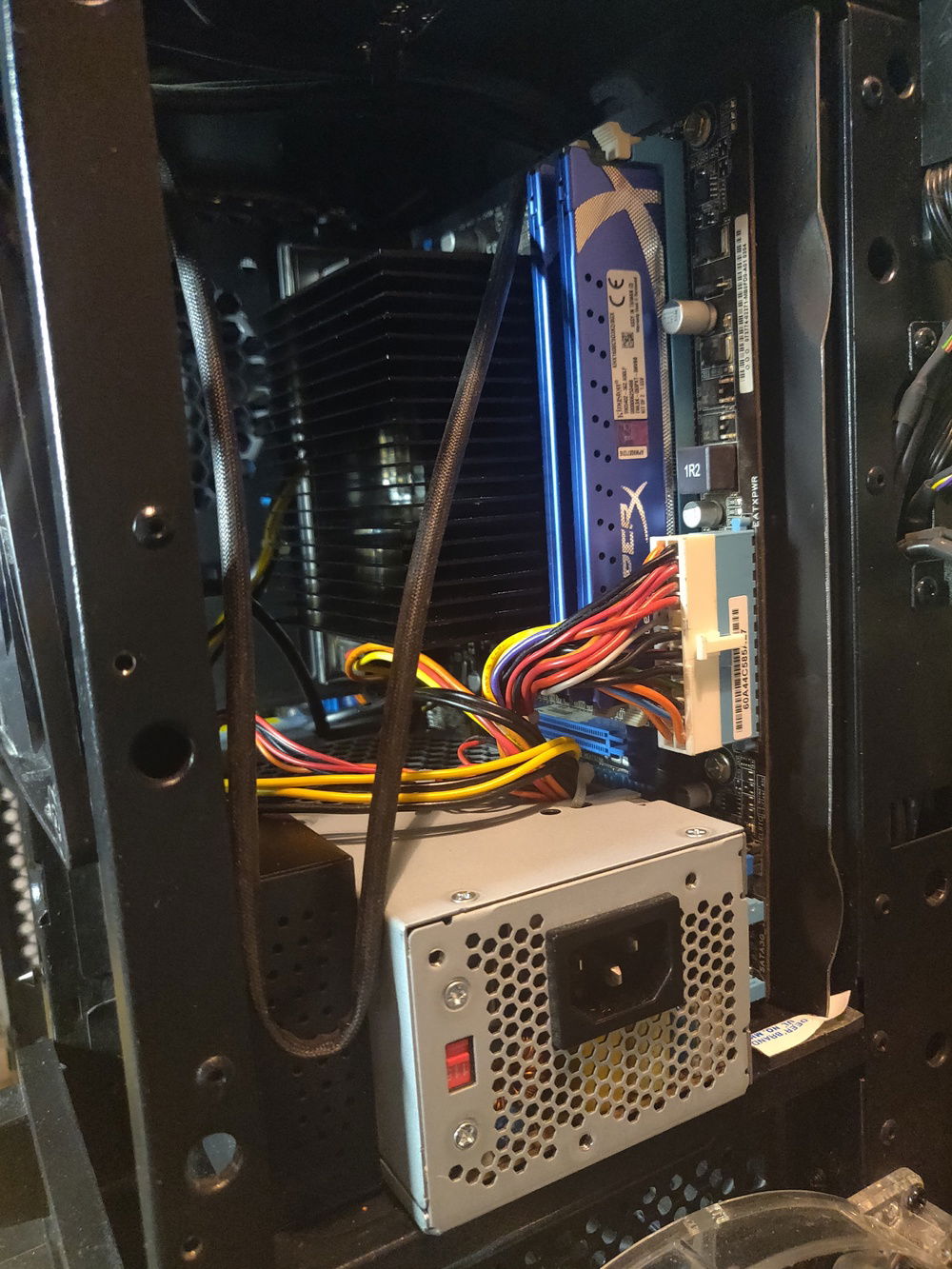

Toejam is my NAS that also runs my plex server and the other random stuff I feel like trying out in Truenas. It started as me just messing around with a old OptiPlex I had sitting around but after it was up for a while i found having a NAS was useful enough for me to want to build one. One of the main points i have when building was power efficiency because it will be running 24/7 for the foreseeable future. That's why I went with a low power cpu but it is still powerful enough to do a 4k plex stream or run a lightly modded Minecraft server all while staying under 80 watts under full load.

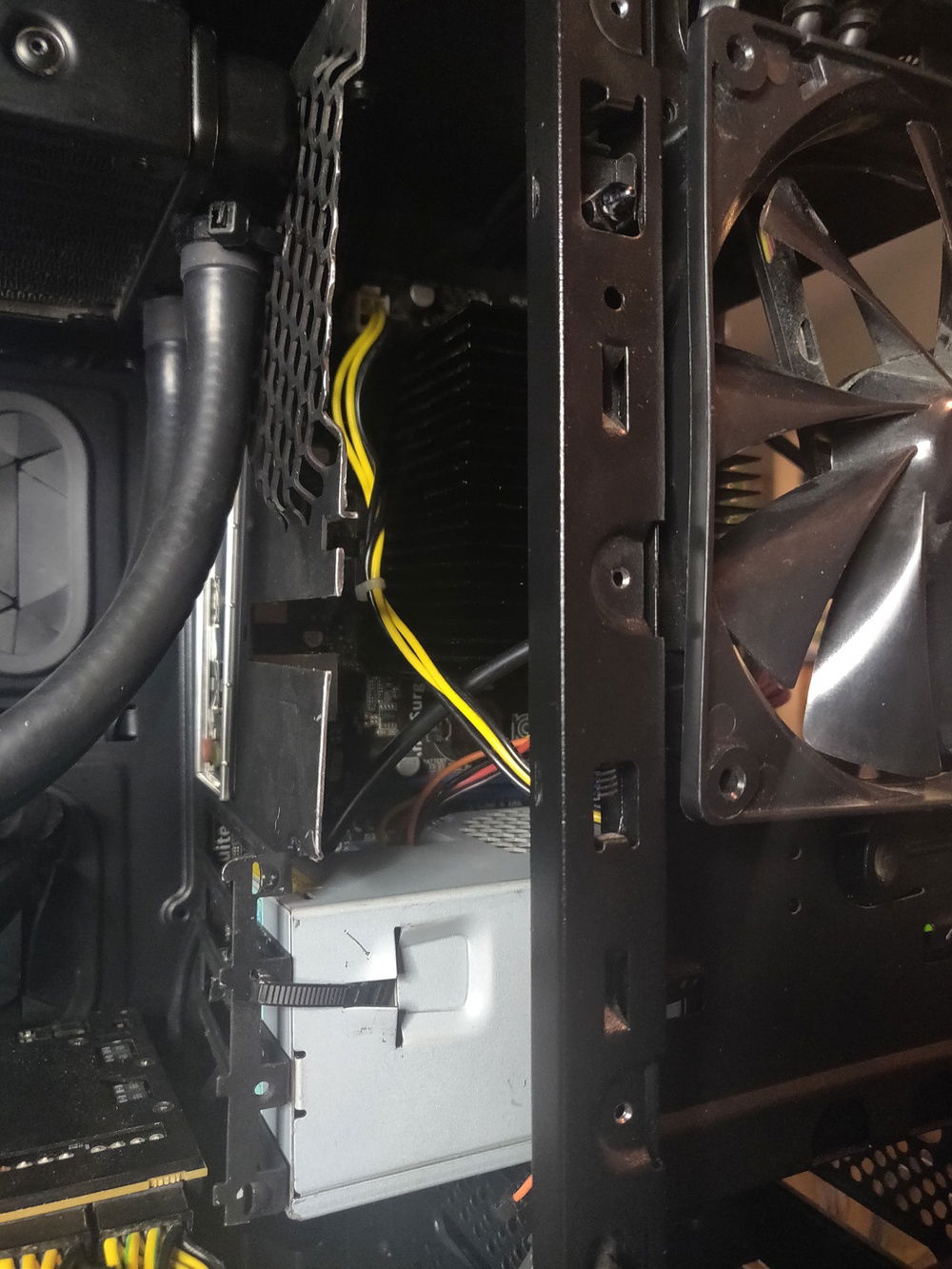

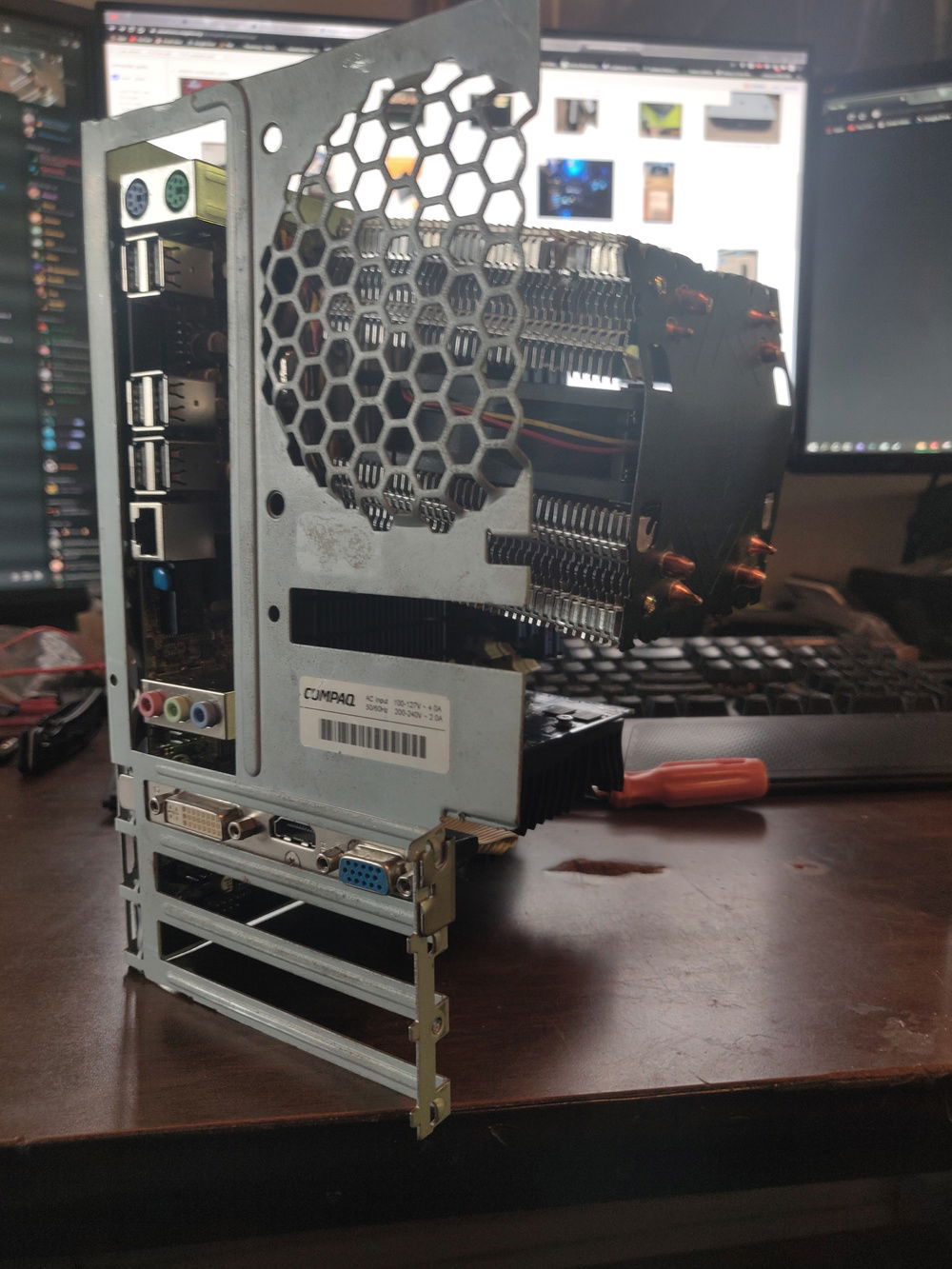

Both the computer are still WIP. I had to cut out a hole in the side of the drive bays to put a fan for ToeJam but im never going to need a disk drive in the computer so not a big deal for me. Also the board that I bough for ToeJam is missing a cpu pin (its a ground iirc) but it was quite cheep and i could make a good guess as to what pin was missing based on the sellers photos. I had to put a Molex plug on Earls cpu cooler because the sata that was on it was cut off when I got it. It also may or may have not let out some magic blue smoke when I tried to plug in the fan adapter so Im 99% sure the control board is fried but it still pumps so untill it stops doing that its good enough for me. Also there is a gigabit switch inside the case so I only have to run one ethernet cable to the computers.

Future plans for the two:
New AIO for Earl.
New drives and a ssd for ToeJam. I'm thinking 120GB ssd and 3-5 3-6TB Hdds in raid 5.
Also ideally id get a Phanteks power splitter so both computers can use the same PSU (if you know where I can get one let me know because I cant find any).
If I find one for cheep a ITX server board for ToeJam so I can switch over to 16GB of ECC ram.

Earl:
i7-2600k
ASUS P8P67 Deluxe
240mm AIO
16GB Ripjaw 1600mhz DDR3
R9 295x2
840 pro 120GB boot and 2 500GB hdds
Cooler Master 1000 watt power supply

ToeJam:
E3-1260L
ASUS H61M-A/USB3
ARTIC Alpine 12 Passive
8GB Hyper X 1600mhz
80GB boot hdd and 1TB storage
random small PSU I had
Color(s): Black Blue Red
RGB Lighting? No
Theme: none
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 79.00
Intel - Core i7 2600K
Socket: LGA 1155
Cores: 4
CPU
$ 62.00
Intel - Xeon E3-1260L
Socket: LGA 1155
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 21.65
ASUS - GA-H61M-USB3-B3
Chipset: H61
CPU Socket: LGA 1155
Size: Mini-ATX
Motherboard
$ 248.68
ASUS - P8P67 Deluxe
Chipset: P67
CPU Socket: LGA 1155
Size: ATX
Motherboard
Supermicro - X9SCM-F
Chipset: C204
CPU Socket: LGA 1155
Size: Micro-ATX
Memory
$ 63.76
G.Skill - Ripjaws (1600MHz) (Blue) (4x)
Type: DDR3
Capacity: 4 GB
Memory
$ 70.00
Kingston - HyperX Genesis (2x)
Type: DDR3
Capacity: 4 GB
Graphics
$ 349.99
AMD - R9 295x2
Chip Manufacturer: AMD
Chip: GTX 295X2
Storage
$ 194.72
HGST (Hitachi) - Hdt725050vla360 (2x)
Capacity: 500 GB
Storage
$ 12.80
Samsung - 840 Pro
Form Factor: 2.5 Inch
Capacity: 128 GB
Storage
$ 38.79
Western Digital - Blue 7200RPM
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 9.31
Western Digital - WD800JD75MSA3
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 80 GB
PSU
$ 3.00
Cooler Master - Real Power Pro RS-A00-EMBA
Wattage: 1000
Form Factor: ATX
Efficiency: 80+
Case
$ 199.99
Thermaltake - LEVEL 10 GT
Type: Full-Tower
Side Panel: Acrylic
Cooling
$ 14.99
ARCTIC - Alpine 12 Passive
Type: Air Cooler
Cooling
$ 212.00
Corsair - Hydro H100i
Type: AIO
Size (WxHxD): 240 mm
