the unfinished business

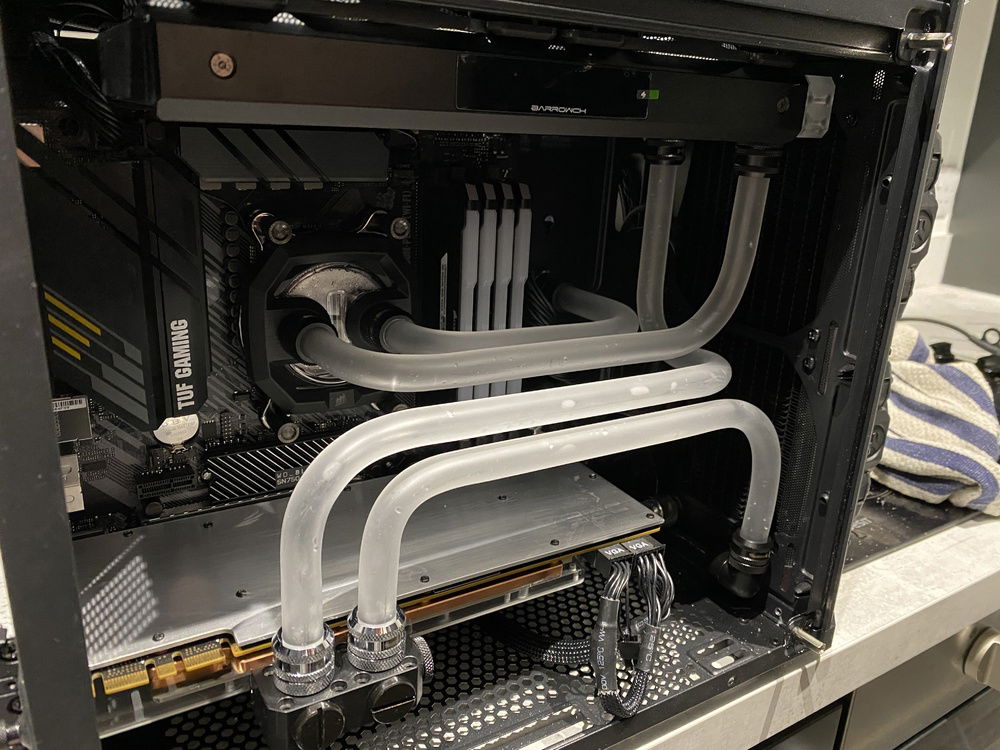

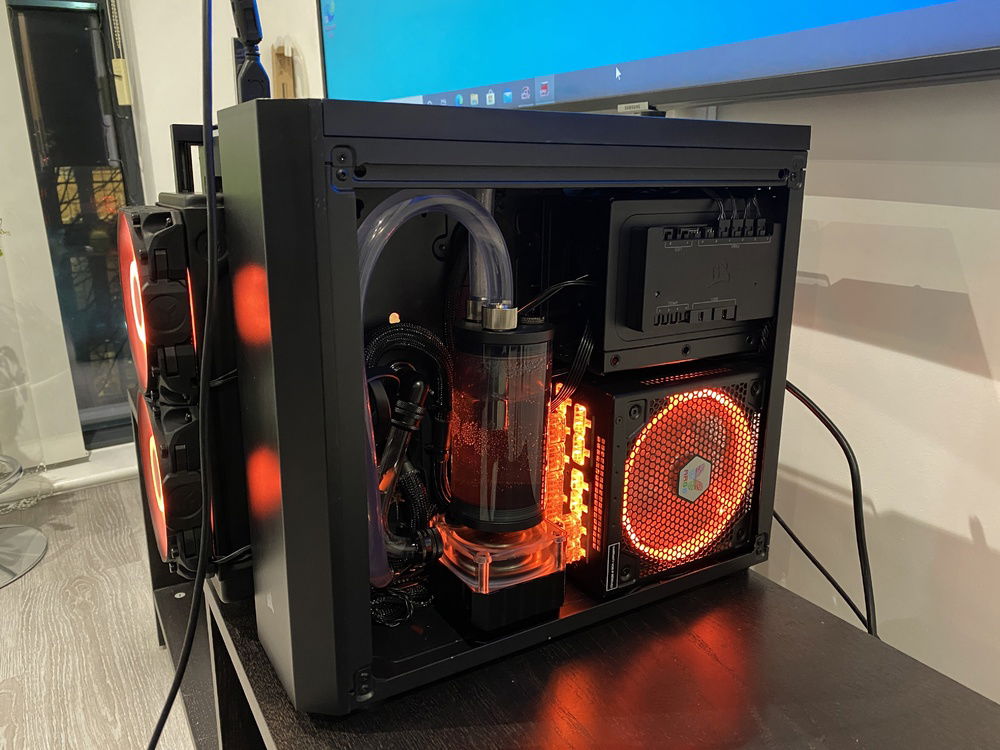

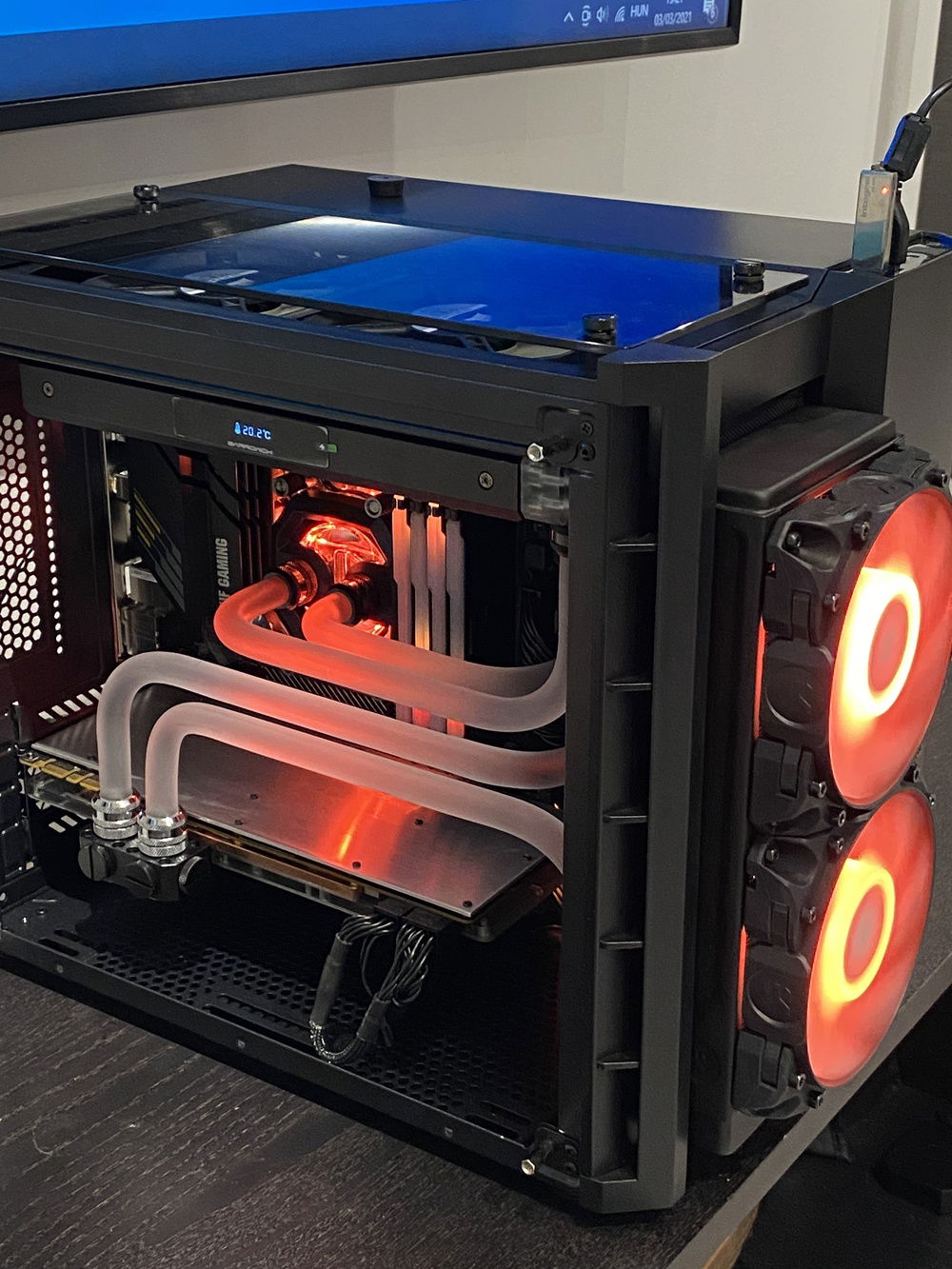

First ever custom loop (and pc build). Tubing took at least an hour per tube, wasted about 3 meters total.

Parts:

corsair vengeance pro 32gb 3600mhz c16
Tuf b550m plus wifi / replaced a faulty aorus pro-p
ryzen 9 3900x
superflower leadex 3 argb 750w
zotac 980 ti + xspc waterblock / wet sanded backplate
wd sn 750 nvme
corsair 280x case
ek vardar x3m rgb fans / front
corsair xc7 cpu block
barrowch pump
barrowch obsidian reservoir
barrowch & ek fittings
corsair frosted tubing
ek’s 45 mm radiator / front
barrowch 30mm fisheye oled radiator / top
corsair commander pro
+ 2x stock case fans

This is a semi-finished build, as ran out of budget. Ideally would have an rtx 3080 with EK waterblock, EK Vardar x3m top fans, custom cabling, interior shield made out of rustic mirror and another 210mm tube reservoir fitted on top of the case on the psu side. Still very satisfied though! Special thanks to my girlfriend for her patience during the build.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 339.99
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 192.99
ASUS - TUF Gaming Plus (WiFi)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 122.99
Corsair - Vengeance Pro (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 433.00
ZOTAC - GeForce® GTX 980 Ti ArcticStorm
Chip Manufacturer: NVIDIA
Chip: GTX 980 Ti
Storage
$ 111.56
Western Digital - BLACK SN750 Internal Gaming
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 140.00
Super Flower - Leadex III Pro (Black/ARGB)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 185.82
Corsair - Crystal 280X
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 97.50
Cooling
$ 120.00
Barrow - Boxfish
Type: Reservoir
Cooling
$ 97.00
Barrow - Pump
Type: Custom Loop
Cooling
$ 22.00
Corsair - Hydro X (custom)
Type: Water Cooling
Cooling
$ 69.52
Corsair - Hydro XC7 (Black/RGB)
Type: CPU Waterblock
Cooling
$ 89.99
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 75.00
XSPC - GPU Blocks
Type: Custom Loop
Estimated total value of this build:
$ 2,191.72
