SolidPrick

PC that was build in Pelican case. Its heavy as brick and costed me arm, leg, mental health and all my free time.

My first PC build. This has been my 1 year long project, attempt to build modular laptop from standard PC parts I could find.

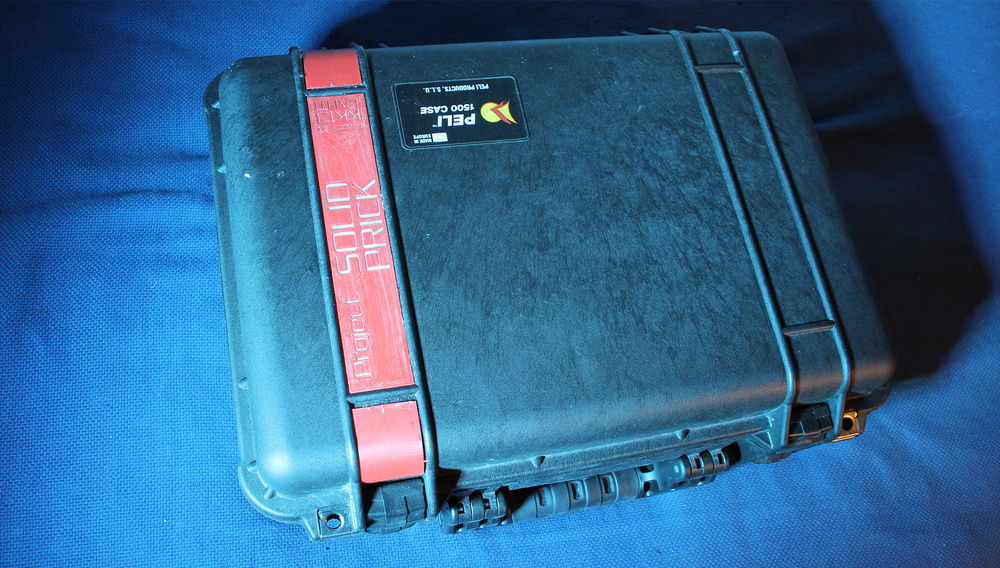

Building PC inside Pelican case wasn't my first option since i really wanted make my own case out of aluminium, but that thing changed since I started to have trust issues with my material supplier. Didn't get the materials.
Build began from lower spec parts (GTX750ti, Pentium g4400) and upgrated it, when it became my primary PC. At first all parts were screwed on piece of plywood to figure out the layout.

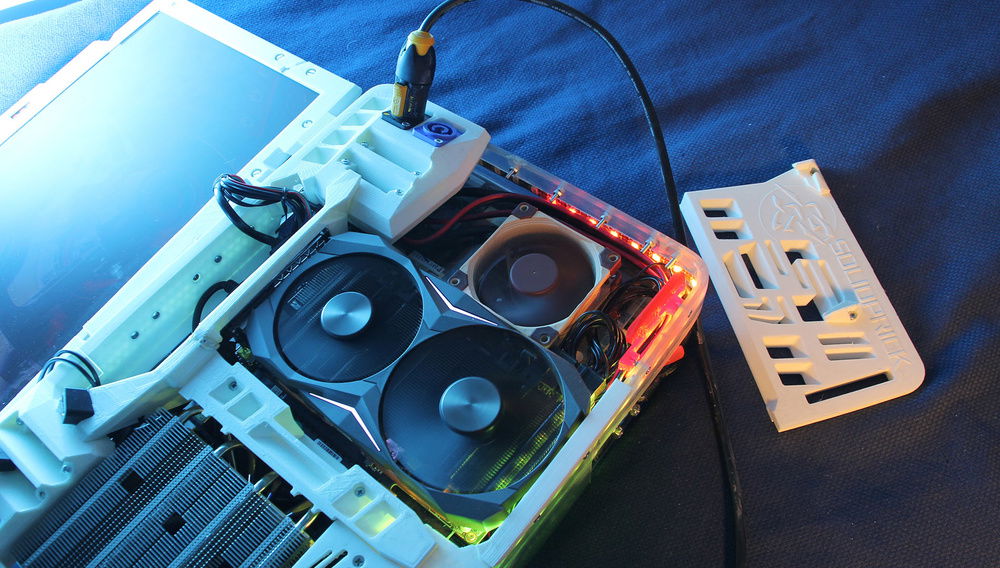

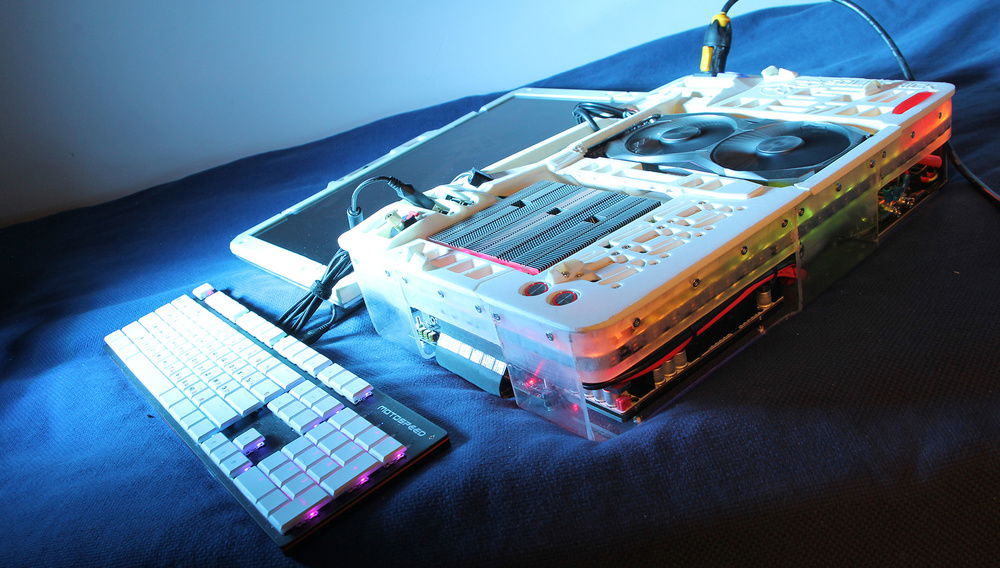

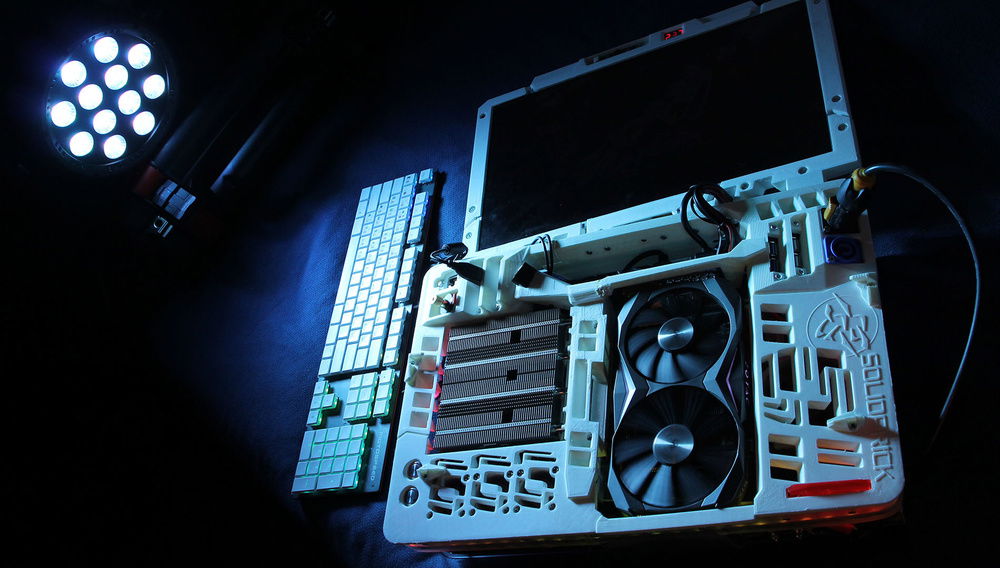

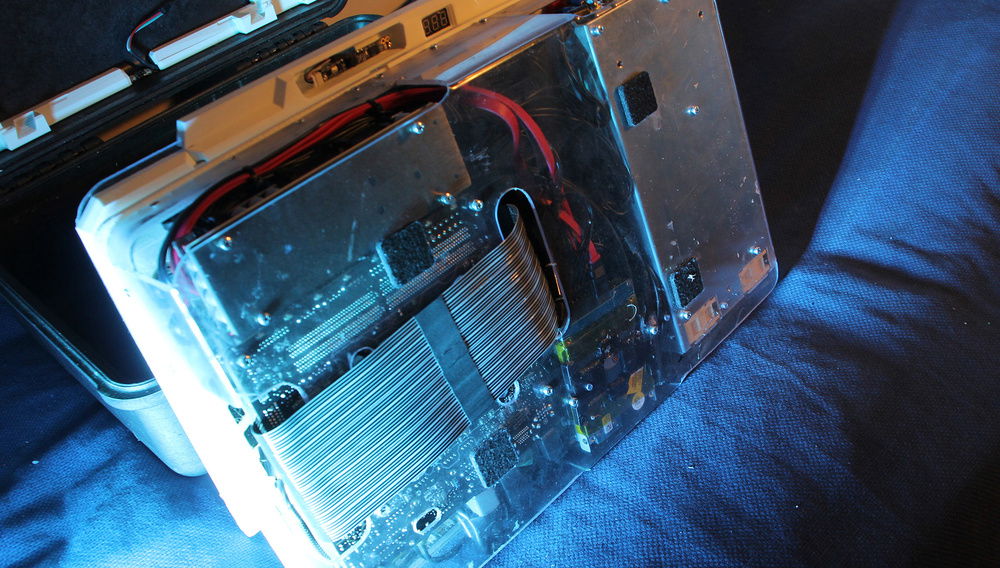

Frame consist from two main components: lid and main frame. Main frame, where everything is bolted and screwed in is made from polycarbonate. Lid also has polycarbonate plate. Printed parts I modelled in Blender and printed them with my diy 3d-printer from ABS. It took several attempts, but the fit was pretty damn good. Frame and lid is not bolted to the case so PC can moved and cleaned without removing a single bolt. Frame can be lifted up and lid is secured with simple hinges and latches.

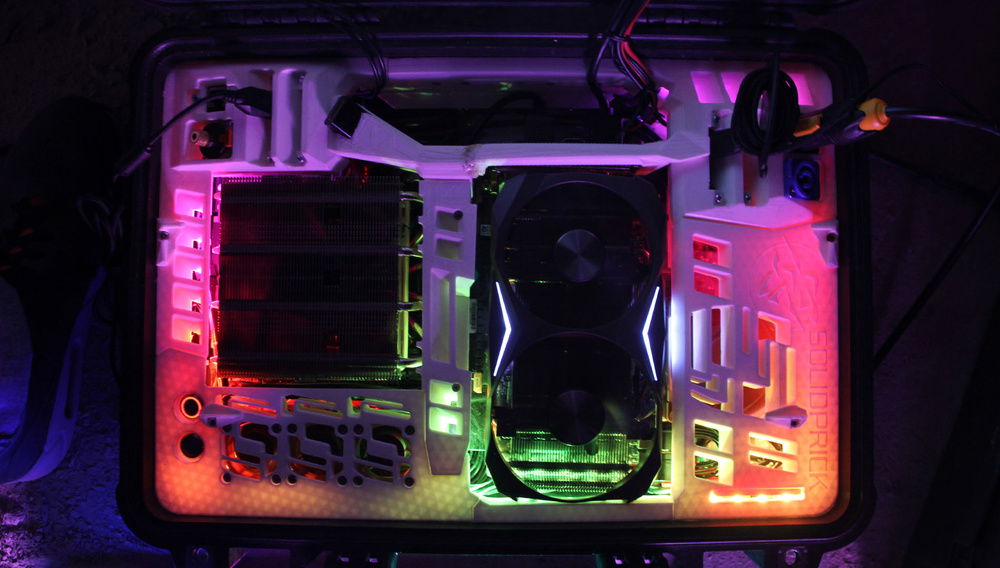

RGB´s controls arduino mega mini china special edition. So its fully programmable and it uses audio as source to light PC case. Codes I found online. I have no idea how to code :)

When using AC, power goes trough Meanwell RSP-750-24 (24V 750W)psu. It powers HDplex400 and two dc to dc converters 5v and 12v. One is for screen and other is for rgb. Voltage meter is on top of the lid next to camera. So when using ac its 24v and when using battery for example makita cordless drill battery then its 18v. There is room for internal battery behind lid, but Im going to leave that for later.

Even thought this PC have some expensive components there is recycled parts also. 17inch screen and 3HDD´s comes from broken laptops. Sata cables I found in rubbish bin and so on.

Visual theme was mash up of Soviet style engineering and cyberpunk.

More material about this project can be found in my instagram CampStyle__
Color(s): Black Red White
RGB Lighting? Yes
Cooling: Air Cooling
Theme: Military
Size: Mini-ITX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 393.80
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 385.00
MSI - Gaming Pro Carbon AC
Chipset: Z270
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
Generic/WL - Gloway STK
Type: DDR4
Capacity: 8 GB
Memory
Generic/WL - Gloway STK
Type: DDR4
Capacity: 8 GB
Graphics
$ 697.17
ZOTAC - GeForce Mini
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 77.43
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
HDPLEX - Generic
Wattage: 400
Form Factor: ATX
Efficiency: 80+
Case
Custom - Custom (custom)
Case Fan
$ 14.95
Cooling
$ 49.90
Noctua - NH-L12S
Type: Air Cooler
Unable to dertermine total build value (missing part value)
