Skyreach 4 Mini, Extreme Modded Zotac 3060 Ti, Custom Cabling & Solder!

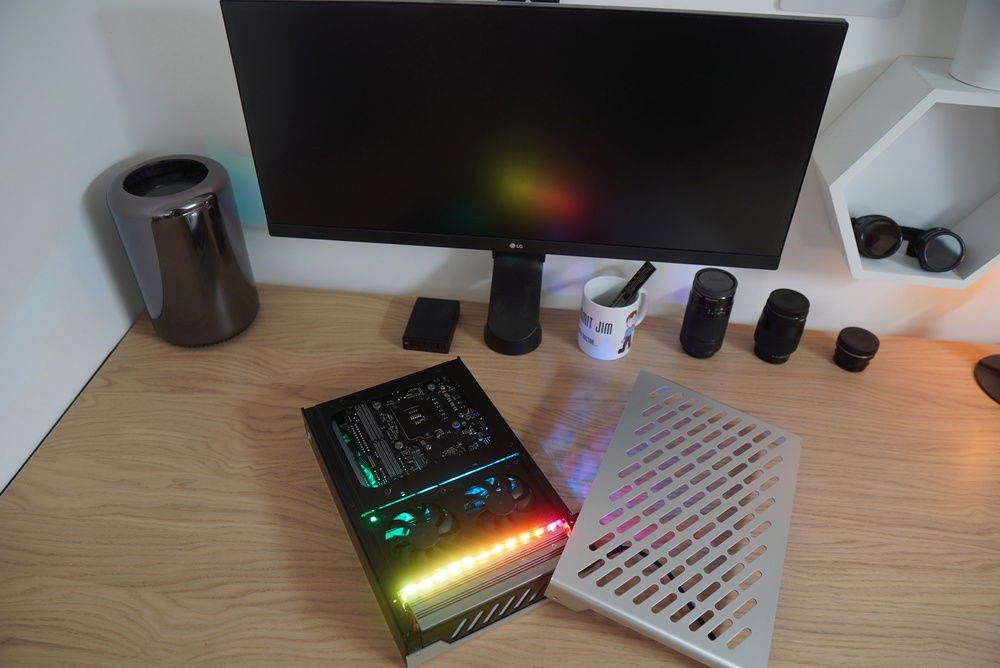

I picked the wrong year to upgrade my gaming pc. Apparently I picked the wrong case too because finding a GPU that would fit was almost impossible. I found the EVGA 3060 TI XC but couldn't get hold of it. Instead I went for the Zotac 3060 Ti Twin Edge.

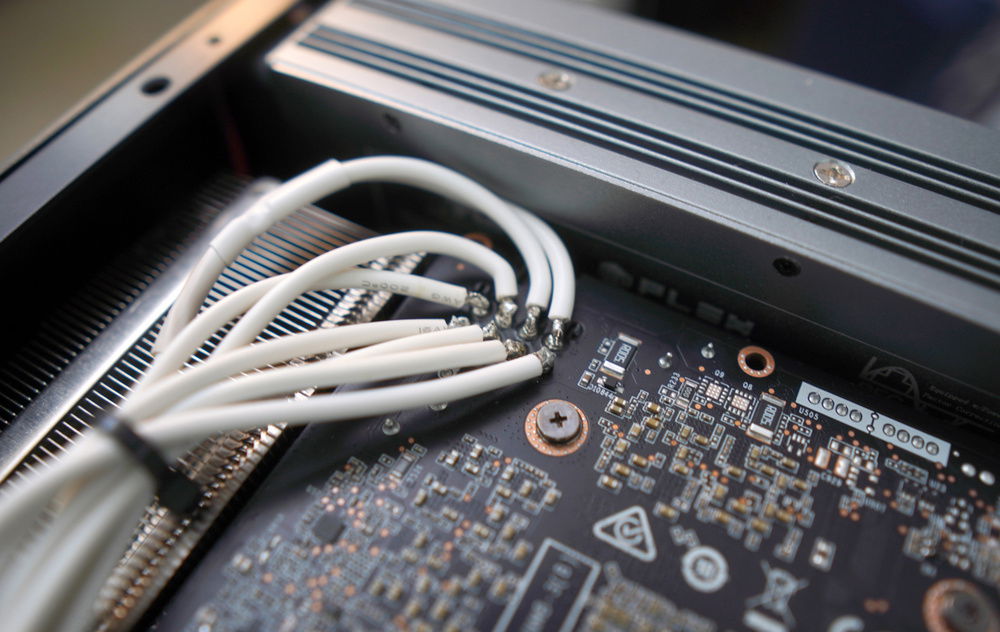

It was still too big and so I needed to cut the heatsink down and change the fans. I decided to solder the power cabling to the GPU rather than using angled adapters etc just because I thought it would look better and not force the GPU into a funny angle. While I was there I couldn't help but plug in some RGB too!

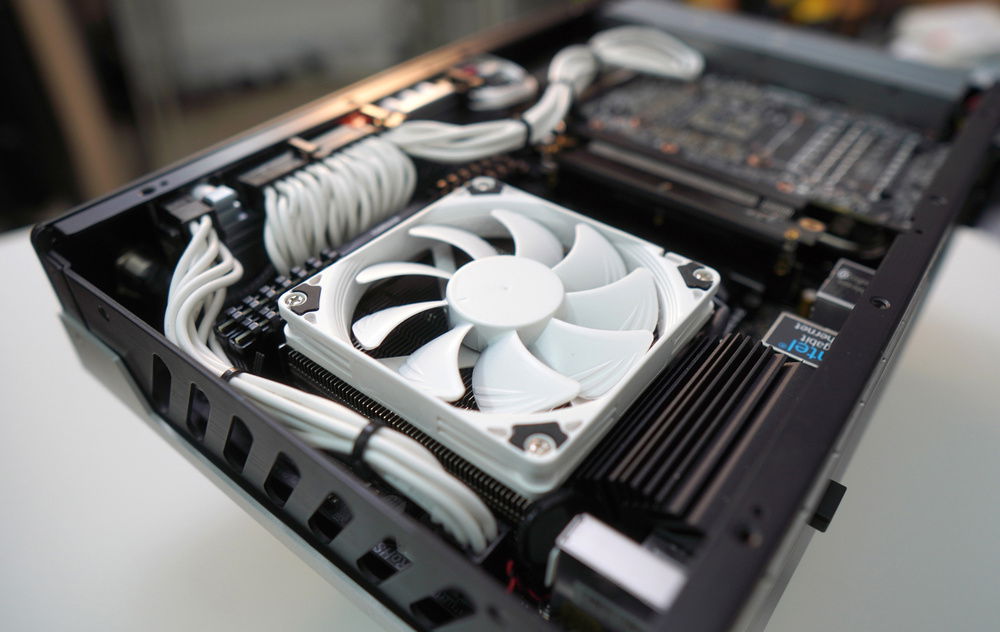

The CPU fan is the brown / beige noctua but spray painted white (I may replace it with a noctua chromax black fan - just can't decide whether black or white would accentuate the look of the wiring). The GPU fans are noctua chromax black.

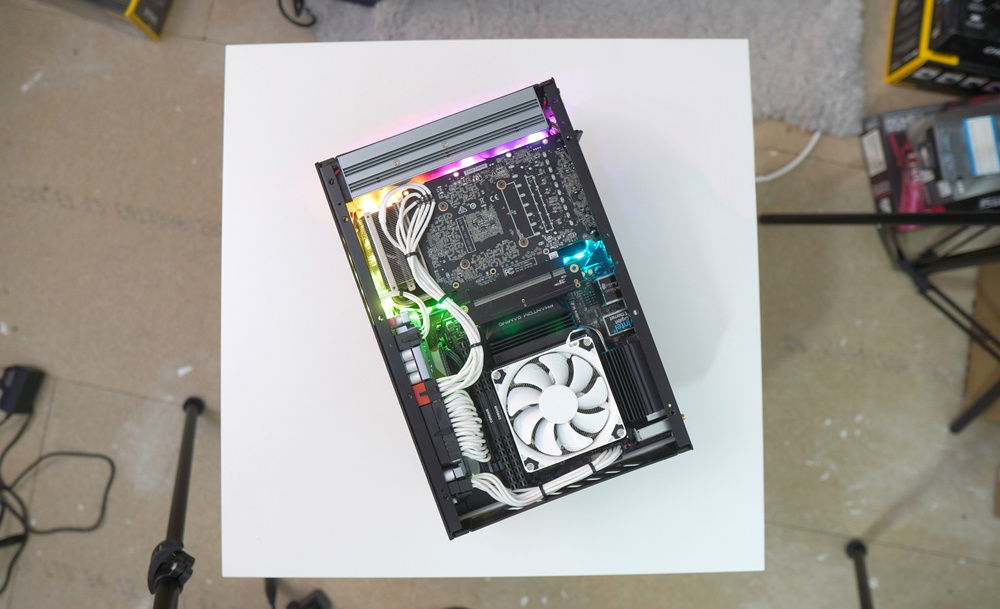

I made custom cabling throughout the build to try and get a clean build.
The video is here if interested: https://youtu.be/ZqjTbsFumbM

Here are the full specs:
Skyreach 4 Mini Case
Intel 9700K
Zotac 3060 Ti Twin Edge, deshrouded and 2x Noctua A9x14 fans installed.
Custom cabling throughout and soldered to GPU
ASRock Z390 Phantom Gaming-ITX/ac Motherboard
32Gb RAM
1TB Samsung 970 EVO SSD
HDPlex 400w PSU

Thanks for looking!
Color(s): Aluminum Black White
RGB Lighting? Yes
Theme: none
Cooling: Air Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 235.00
Intel - Core i7 9700K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 189.50
ASRock - Phantom Gaming-ITX/AC
Chipset: Z390
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
$ 102.46
Corsair - Vengeance LPX (3200MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
$ 589.99
ZOTAC - GeForce Gaming Twin Edge
Chip Manufacturer: NVIDIA
Chip: RTX 3060 Ti
Interface: PCIe x16
Storage
$ 152.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 213.00
HDPLEX - HDPLEX (discontinued)
Wattage: 300
Form Factor: ATX
Case
$ 200.00
NFC - S4 Mini
Type: Mini-Tower
Side Panel: Solid
Cooling
$ 134.85
Noctua - NH-L9i (Brown) (3x)
Type: Air Cooler
Estimated total value of this build:
$ 2,015.24
